Welcome to CyberPen
Congratulations on your purchase of the CyberPen, the most
innovative portable data collection device on the market.
The CyberPen combines the best in superior writing instru-
ments with the best in easy to use, lightweight bar code read-
ing devices.
Getting Started with the CyberPen
Before you can start using your CyberPen, you must first
perform some basic set up procedures.
Unpacking the CyberPen
Your CyberPen package should contain the following items:
• The CyberPen
• The Cyberwell
• Three silver oxide batteries
If any of these pieces are missing, please contact your sales
representative.
Service
Before you use your pen, follow the complete procedures for
set up. If you encounter a problem using your CyberPen
with your application system, please contact your primary
System Application provider first. If you believe your Cyber-
Pen is not functioning properly, contact Symbol Technolo-
gies, Inc. Customer Support Center at: 1-800-653-5350

2
Batteries
The life of the CyberPen’s batteries depends strongly on the
environment and method in which the pen is used. The
CyberPen ships with three Rayovac 675G. Other batteries
approved for use in the CyberPen are the Energizer EPX76
and Panasonic SP76. The use of batteries other than these
listed is not recommended.
Note: The CyberPen emits three short beeps to indicate a
low battery condition. When you hear these three beeps,
replace the batteries as soon as possible.
Replacement batteries may be ordered by calling the Radio
Shack Fulfillment Center at: 1-800-THE-SHAC (1-800-843-
7422).
Inserting Batteries into the CyberPen
Before using the CyberPen, you must first insert the three sil-
ver oxide batteries into the pen:

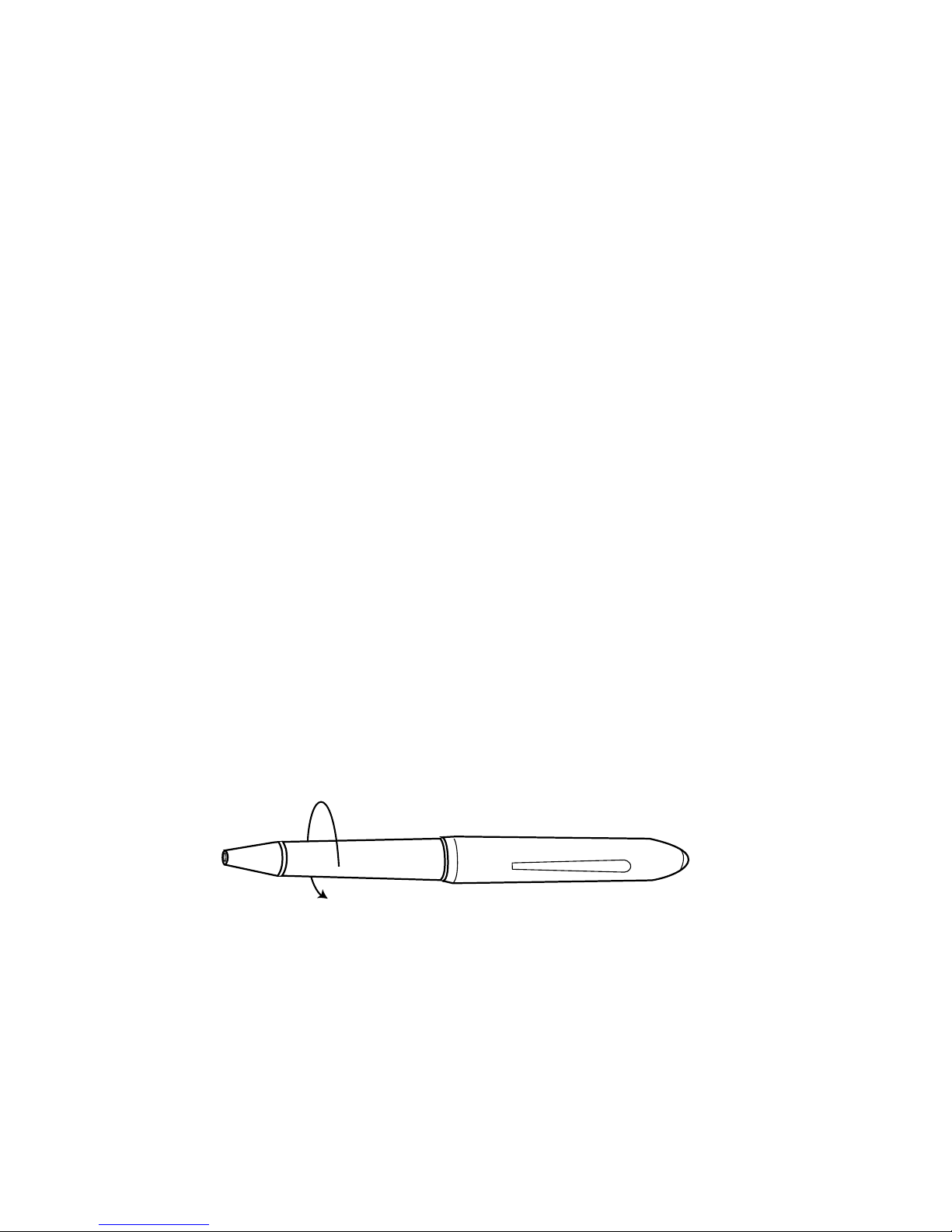

1. Holding the clip end of the pen, twist the pen end of the
pen counterclockwise and separate it from the clip end
of the pen:

3
2. Insert the batteries one at a time with the positive (+)
end up into the clip end of the pen:
3. Twist the bottom of the pen back on clockwise:

4
Setting Up the Cyberwell
Setting up the Cyberwell requires connecting the Cyberwell
cable to the serial port on the back of your PC.
1. Insert the Cyberwell cable into the the COM1 port on
the back of your PC. If the COM1 port is in use, use
the COM2 port.
2. Tighten the connector’s screws to ensure proper con-
nection.
Adjusting the Beeper Volume
The CyberPen’s beeper has four volume levels: High,
Medium, Low, and Off. To change the beeper volume, press
the scan button twice quickly. Upon pressing the scan button
twice, you should hear a sample of the newly selected vol-
ume.

5
Scanning with the CyberPen
Now that your set up is complete, you’re ready to scan bar
codes.

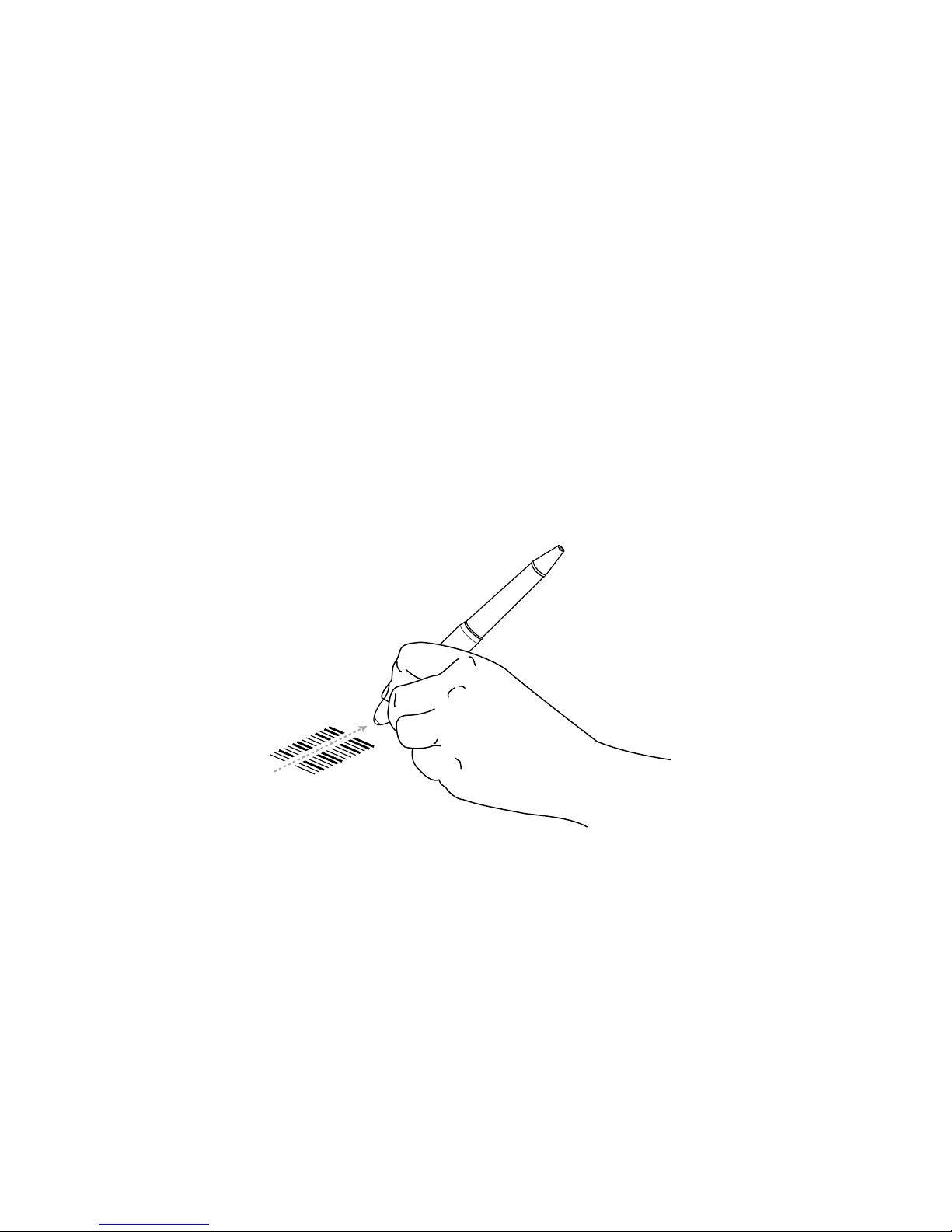

1. Hold the pen at an angle as shown in the diagram
below with the clear tip facing the bar code to be
scanned.
2. Depress and hold the scan button.
3. Place the scanner tip in the white space on either side of
the bar code.
4. With the button still depressed, move the scanner
quickly and smoothly over the bar code from start to
finish, ending in the white space on the other side of the
bar code. The motion should be similar to striking a
match.
A successful read of the bar code is indicated by an audible
beep and a green LED. If you do not hear a beep, try scan-
ning again, using a different speed, or following a different
path through the bar code.
When the pen is within 10% of being completely full of
data, the decode beep sounds longer. When the pen is com-
pletely full of data, three long beeps sound to let you know
the memory is full, and you must either upload your data to
the PC or clear the pen’s memory before any further bar code
data can be collected.

6
Inserting the CyberPen in the Cyberwell

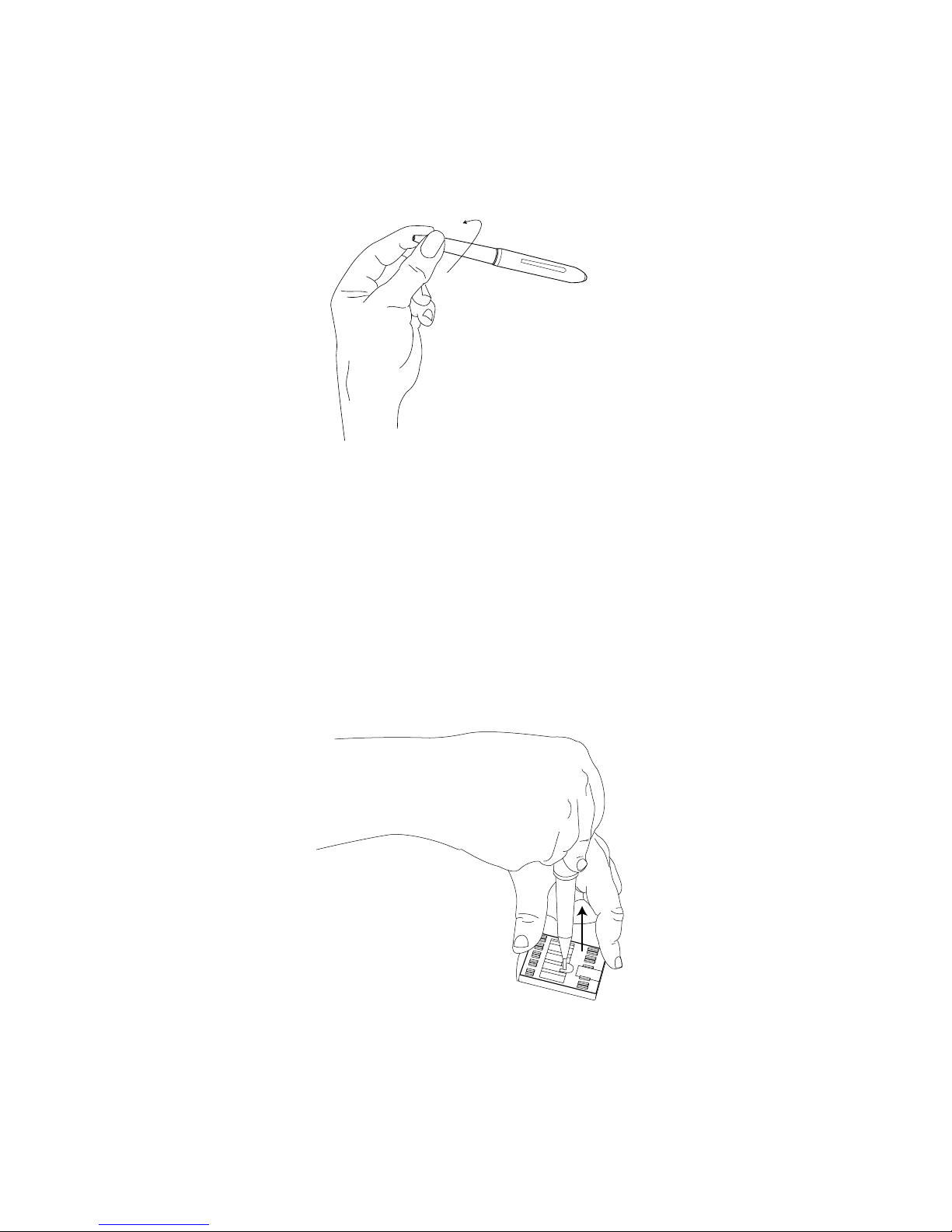

In order for the CyberPen to upload the collected bar code
data to the PC, the pen must be properly inserted in the
Cyberwell as illustrated:
Uploading Bar Code Data
To upload the collected bar code data to the PC:
1. Ensure the PC program is ready to receive data.
2. Press the scan button once and immediately insert the
pen into the Cyberwell.
The pen beeps once to indicate a connection has been
made with the PC and then stored bar codes can be
transferred to your PC. How that transfer takes place is
application-dependent. Do not remove the pen from
the Cyberwell until the upload is complete. If the pen is
removed from the well during the upload or if an error
occurs during upload, three beeps sound to indicate
interrupted communication. If this occurs, ensure the
PC is ready to receive data, press the scan button once
and reinsert the pen in the well to start the upload
again.

7
Writing with the CyberPen
To use the writing instrument, hold the tip (writing end) of
the pen and twist the body, until the full pen tip is exposed.
Pen Refill Removal and Insertion
The pen refill cartridge comes equipped with a removal tool.
There is a groove in the removal tool to “grab” the refill and

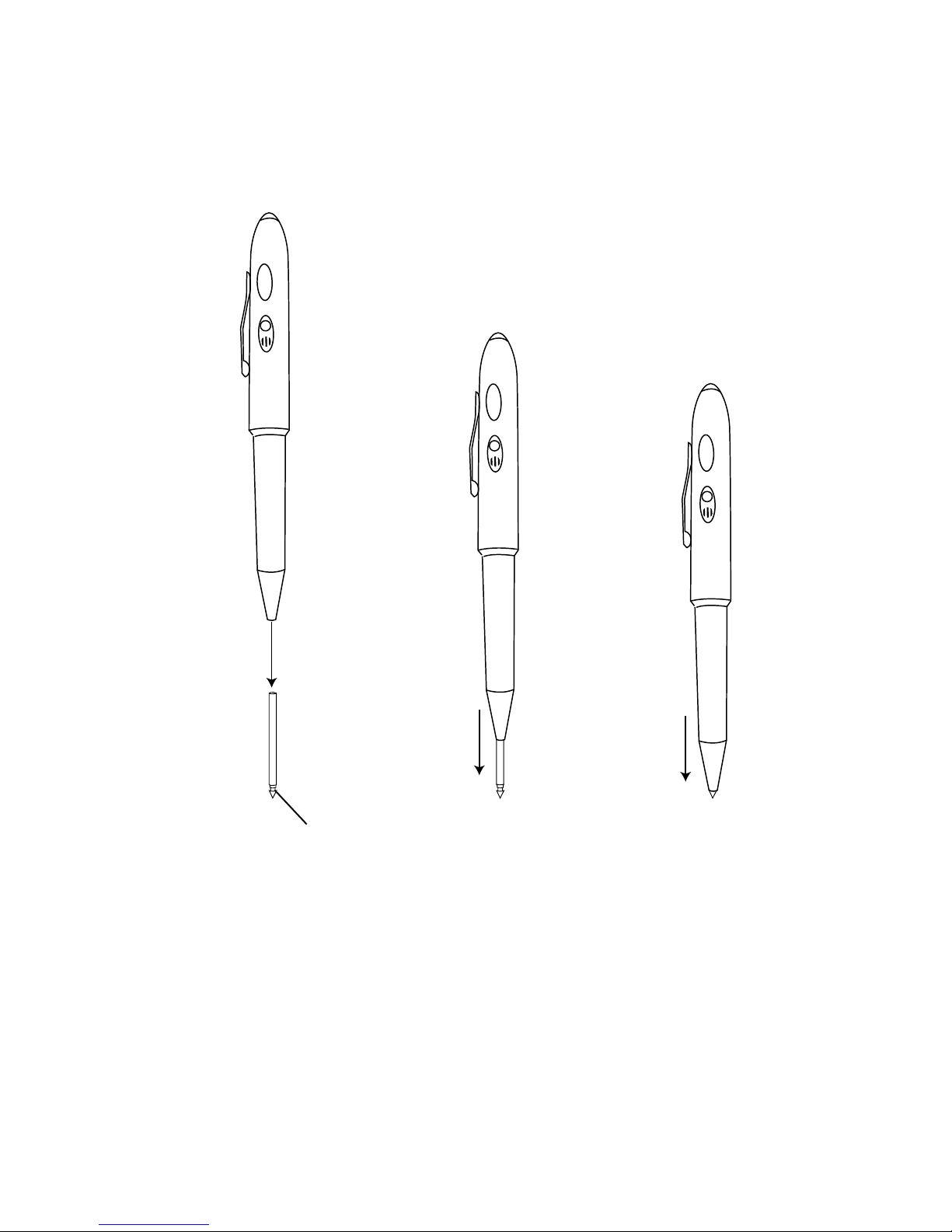

pull it out. To remove the ink cartridge:
1. Twist the bottom of the pen to expose the ink cartridge.
2. Insert the ink end of the pen into the removal tool on
the refill cartridge and pull the cartridge out as shown:
Note: The pen refill can be reordered by contacting the AT
Cross Consumer Relations Department at 1-800-510-9660.
The part number for the fine point black ink refill is
8669M2. The part number for the broad point black ink
refill is 8671M2.

8
Pen Refill
To insert a new ink cartridge, insert the ink end of the pen
into the pen as shown:
groove
