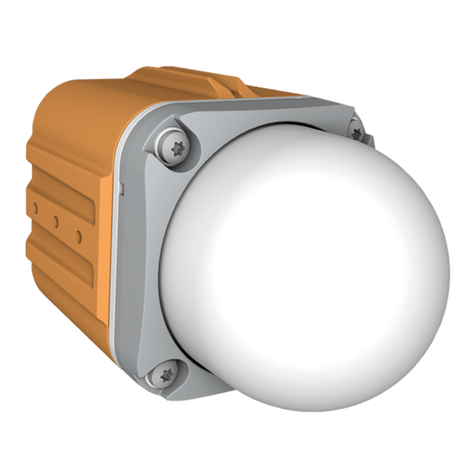

SYMEO LPR-1DHP User manual

SYMEO LOCAL POSITIONING RADAR
Product: LPR-1DHP
Product Documentation

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 2 of 40
Content
1OVERVIEW SAFETY..................................................................................................6
1.1 Safety Instructions....................................................................................................6
1.2 Installation.................................................................................................................6
1.3 Repairs.......................................................................................................................6
1.4 Transport and Storage..............................................................................................6
1.5 Power Supply............................................................................................................7
1.6 Setup and Operation.................................................................................................7
1.7 System Extensions and Accessories......................................................................7
1.8 Additional Instructions Regarding LPR-1DHP station............................................8
1.9 Important Information to User..................................................................................8
2OVERVIEW OF THE LPR-1DHP SYSTEM ................................................................9
2.1 Data sheet of LPR-1DHP Station............................................................................10
2.2 Opening angle LPR-1DHP station..........................................................................10
2.3 Mounting position of the LPR-1DHP stations .......................................................11
3COMPONENT SETUP OF THE LPR-1DHP STATION.............................................12
3.1 Overview..................................................................................................................12
3.2 Front element..........................................................................................................13
3.2.1 LED display...............................................................................................................13
3.2.2 Other parts................................................................................................................13
3.3 Rear elements .........................................................................................................14
3.3.1 LPR-1DHP station with TCP/IP interface...................................................................14
4ELECTRICAL CONNECTIONS................................................................................15
4.1 LPR-1DHP station with TCP/IP interface ...............................................................15
4.1.1 Electrical connection.................................................................................................15
4.1.2 Mode of operation.....................................................................................................15
4.2 LPR-1DHP configuration with USB interface........................................................16
4.2.1 Electrical connection.................................................................................................16
4.2.2 Mode of operation.....................................................................................................16

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 3 of 40
5MOUNTING ..............................................................................................................17
6COMMISSIONING LPR-1DHP WITH TCP/IP INTERFACE......................................18
6.1 Requirements..........................................................................................................18
6.2 Connection to LPR-1DHP Station..........................................................................18
7WEB SERVER FOR LPR-1DHP UNITS WITH TCP/IP INTERFACE........................20
7.1 Open Web Server....................................................................................................20
7.2 Settings....................................................................................................................21
7.2.1 „LAN“ area ................................................................................................................22
7.2.2 „Network“ Area..........................................................................................................23
7.2.3 „Serial-to-Ethernet“ Area ...........................................................................................24
7.2.3.1ttyS2 / Parameterization Port ....................................................................................24
7.2.3.2ttyS3 / Binary Port.....................................................................................................24
7.2.4 „Remote Access“ Area ..............................................................................................25
7.2.5 „Miscellaneous“ Area ................................................................................................26
7.2.6 „Special Functions“ Area...........................................................................................26
7.2.7 Accept settings / System Reboot ..............................................................................27
7.3 System Status.........................................................................................................27
7.4 Diagnostics .............................................................................................................29
7.5 Update Firmware.....................................................................................................30
7.5.1 Step 1 –File system..................................................................................................31
7.5.2 Step 2 –Linux Kernel................................................................................................32
7.5.3 Step 3 –Optional: Userspace ...................................................................................35
7.5.4 Step 4 –Restart........................................................................................................35
7.6 System Log .............................................................................................................35
8PROTOCOL XP DESCRIPTION FOR TCP/IP AND RS232......................................37
8.1 General Description................................................................................................37
8.1.1 Structure of Data Packet...........................................................................................37
8.1.2 Byte Stuffing .............................................................................................................37
8.1.3 CRC..........................................................................................................................38
8.2 Data Types...............................................................................................................38
8.2.1 Type 0x00 –Distance Data.......................................................................................38
8.2.2 Example of Distance Data.........................................................................................39
8.3Binary protocol XP over TCP/IP: Fixed Frame Protocol.......................................39
8.3.1 Detailed description TCP Fixed-Frame Protocol........................................................39
8.3.2 Detailed description UDP Fixed-Frame Protocol.......................................................40
8.4 Error messages.......................................................................................................40

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 4 of 40

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 5 of 40
The documentation for the LPR-1DHP Local Positioning Radar System is published by:
SYMEO GmbH
Prof.-Messerschmitt-Str. 3
D-85579 Neubiberg
www.symeo.de
If you have any questions or suggestions, please contact:
Email: in[email protected]
phone: [phone]
Copyright Symeo GmbH 2012
All rights reserved
HISTORY
Version
Date
Description
1.10
06.02.2012
Documentation for FCC
SYMBOLS USED
The following symbols are used throughout the documentation:
This symbol appears before instructions that must be followed at all times.
Failure to comply with these instructions will result in personal injury.
This symbol appears before instructions that must be followed at all times.
Failure to comply with these instructions will result in damage to
equipment.
This symbol appears before information of particular importance.
All rights reserved, particularly those relating to the translation, reprinting, and reproduction
by photocopying or similar processes of all or part of the documentation.
All rights reserved, particularly for purposes of the award of patents or submission of utility
models.
Delivery options and technical changes reserved.
Published by SYMEO GmbH

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 6 of 40
1 Overview Safety
1.1 Safety Instructions
LPR systems are purely tracking and assistance systems. They
therefore do not satisfy the safety class 3 requirements and must not be
used as standalone systems in safety-critical applications, such as
automation or anti-collision.
Follow the safety instructions in the operating instructions for the device
and the additional documentation!
Keep these safety instructions and other documents together with the device.
1.2 Installation
All installation, repair and servicing work must be carried out by qualified
and trained technicians!
When the system is mounted on fixed tubes the necessary measures to
prevent slippage of the system must be taken
1.3 Repairs
Repairs of the device must be carried out by authorized technicians.
Unauthorized opening and incorrect repairs could result in severe
danger to the user (danger of electric shock, radiated energy, fire
hazard).
1.4 Transport and Storage
Use the original packaging or other suitable packaging for returns and
whenever the system is to be transported. This ensures protection from
crushing, impacts, moisture and electrostatic discharge.
During setup and before operation, refer to the instructions for
environmental conditions included in the operating instructions for the
device.
Route the wires in such a way that they do not cause a hazard and are
not damaged. When connecting the wires, refer to the corresponding
instructions in the operating instructions for the device.
Do not drop the device and do not expose it to strong vibrations.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 7 of 40
1.5 Power Supply
A safety-inspected power cable that satisfies the regulations of the
country of use is required for the device. Devices with metal housings
must only be connected to a grounded, shock proof socket.
The device must not be operated unless the nominal voltage of the
device matches the local supply voltage. Check the supply voltage of
the device in stationary devices.
When connecting and disconnecting wires, refer to the instructions in
the operating instructions for the device.
Do not use any damaged wires (damaged insulation, exposed wires). A
faulty wire poses a risk of electric shock or fire hazard.
Polarity reversal or otherwise faulty connection can damage the LPR-
1DHP station. In that case the station must be send to the SYMEO
service.
1.6 Setup and Operation
During installation, make sure that no objects or fluids enter the device
(risk of electric shock, short circuit).
In emergencies (e. g. if there is damage to the housing, control
elements or the mains cable, if fluids or foreign bodies have infiltrated
the equipment), switch off the power supply to the device immediately
and notify your SYMEO Service.
Protect the contacts of all of the device's sockets and plugs from static
electricity. Do not touch the contacts. If it is ever necessary to touch the
contacts, take the following precautionary measures: Touch a grounded
object or carry a ground strap before touching the contacts. This will
divert static charges.
Proper operation (in accordance with IEC60950/EN60950) of the device
is only assured if the housing and integral covers for mounting slots are
fully installed (electric shock, cooling, fire protection, noise suppression).
If necessary, refer to the corresponding instructions in the operating
instructions for the device.
In the case of high outside temperatures and intense, direct solar
radiation or other radiant heat, it may be necessary to provide a sun or
heat shield.
1.7 System Extensions and Accessories
Data links to peripheral devices must be provided with adequate
shielding.
For LAN cabling, the requirements in accordance with EN 50173 and
EN 50174-1/2 apply. Use of either a Category 5 shielded cable for
10/100 Ethernet or Category 5e shielded cable for gigabit Ethernet is a
minimum requirement. The specifications of standard ISO/IEC 11801

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview Safety
Copyright © Symeo GmbH 2012
Page 8 of 40
must be complied with.
The warranty shall be voided if you cause defects to the device by
installing or exchanging system extensions.
1.8 Additional Instructions Regarding LPR-1DHP station
The LPR 1 DHP station must not be opened except for installation and
mounting. The LPR 1DHP station contains no serviceable components.
When opening, ensure that no fluid gets into the housing. When sealing
the station, ensure that the seal is included in the rear element and that
the LPR 1 DHP station is completely closed. Otherwise, moisture can
penetrate the station and damage it.
In order to install the LPR 1DHP station, the rear element must be
detached from the front element. Refer also to the instructions on
installing the station.
The printed circuit board stack connected to the front element does not
require user service and must remain attached to the front element.
Please take note of the safety and operating instructions in the
operating instructions for the system in which you want to install the
component.
1.9 Important Information to User
Any change or modification not expressly approved by the party
rsponsible for compliance could void the user's authority to operate the
equipment.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview of the LPR-1DHP system
Copyright © Symeo GmbH 2012
Page 9 of 40
2 Overview of the LPR-1DHP system
An LPR-1DHP system consists of two units named BS and TS that conduct the
measurements. One unit (BS) initiates the measurement and the second unit (TS) replies.
Both units are shipped in a pre-configured set. Unit BS1 is configured to measure with TS1,
BS2 with TS2 and so on. The distance values are only available on the unit labeled BS.
Consequently, the unit BS must be mounted at the position where the distance values are
required, e.g. on the crane-bridge. Figure 1 shows the complete system including mounting
bracket for mounting on tubes.
Figure 1: LPR 1DHP station consisting of
A: Front element with display (A1) and fixing screws for front element (A2)
B: Rear element with alignment aid (B1)
C: Holes for mounting bracket.
A1
A2
A2
A2
A2
C
B1
B
A

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview of the LPR-1DHP system
Copyright © Symeo GmbH 2012
Page 10 of 40
2.1 Data sheet of LPR-1DHP Station
Overview: Technical Data
Frequency range
61.000 MHz - 61.500 MHz
Transmitting power
20dBm EIRP
Measuring distance
up to 500 m *1
Typical accuracy
Up to ± 1 cm *1
Repeat rate
Max. 25 Hz
Power supply
10-36 V DC
Power consumption
Max. 15 W
Ambient temperature
-40°C to +75°C
Protection class
IP 65 with suitable cables (round, outside diameter
4.5 –10 mm)
Casing dimensions(LxWxH);
205 x 140 x 140 mm
Weight
0,9kg
Hardware Interface
Ethernet TCP/IP or UDP
USB (Configuration)
Data interface
Symeo LPR-1D protocol
Antenna
integrated
Compliance
FCC (Part 15.255)
*1Depending on the application conditions
2.2 Opening angle LPR-1DHP station
The LPR-1DHP station has an integrated antenna with +/-2° opening angle.
Figure 2: Opening angle LPR 1DHP station
To achieve operation and range as specified both system units must
have the same orientation, e.g. LED display oriented towards the roof
or the same wall.
LPR 1DHP Station
A A = 140mm
Integrated antenna
horizontal
4° -3 dB
0 dB
-3 dB vertical
4° -3 dB
0 dB
-3 dB

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview of the LPR-1DHP system
Copyright © Symeo GmbH 2012
Page 11 of 40
2.3 Mounting position of the LPR-1DHP stations
The stations must be aligned with each other for proper measurement. In addition the
following topics must be considered:
Site-specific mounting instructions must be followed when available.
A minimum distance of 2 meters between the two system units must be maintained to
guarantee the specified accuracy.
Minimum distance of 50 cm between adjacent systems must be used to avoid cross-
interference.
The two system units must be mounted opposite to each other with less than 10 cm
horizontal or vertical offset.
The stations must be aligned with an accuracy better than +/- 2°.
The orientation of the stations must be the same, e.g. both units with LED-display
oriented to the roof or to the same wall.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Component setup of the LPR-1DHP station
Copyright © Symeo GmbH 2012
Page 12 of 40
3 Component setup of the LPR-1DHP station
3.1 Overview
The LPR-1DHP station consists of front element A, rear element B and mounting bracket C
as shown in Figure 3.
Figure 3: System components front element A, rear element B and mounting bracket C
A: front element
A3 ethernet connector (version TCP/IP)
A4 terminal for power connection
A5 header for USB cable
B: rear element
B1 alignment aid
B2 ethernet connector system (version TCP/IP)
B3 cable feedthrough for power supply and auxiliary cables
B4 insert nut M6 for mounting the system in the mounting bracket
B5 ethernet connector front to rear element (version TCP/IP)
B6 USB connector for USB service port
C: mounting bracket
C1 mounting slots for system unit
Important parts not shown in Figure 3 like the LED display (A1) are displayed in Figure 1.
A
A3
A4
B
C
C1
C1
B1
B4
B4
B2
B3
B5
B6
A5

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Component setup of the LPR-1DHP station
Copyright © Symeo GmbH 2012
Page 13 of 40
3.2 Front element
The front element is composed of the following parts:
RF-support element, RF-board, IF-board, power supply and dielectric lens
Support element with housing screws (A2, see Figure 1)
Supply board including power supply terminal (A4), ethernet connector (A3) and USB
connector (A5)
LED display (A1, see Figure 1)
3.2.1 LED display
The LEDs on the operating display indicate different statuses of the device as follows:
When the system is powered, the red LED is turned on.
When both units are connected to the supply power and valid measurements are made
the green LED is turned on or blinking with low frequency.
Network traffic is indicated with the orange LED for a station with TCP/IP interface
3.2.2 Other parts
The only parts that are important for mounting and commissioning are the housing screws
(A2), the terminal for the power supply (A4), the ethernet connector (A3) for version TCP/IP
and the USB header (A5). The seal (A8) seals front and rear element when the system is
mounted correctly.
Replace the fuse (A9) only with a fuse of the same type and rating (3A normal blow).
Figure 4: Front element of the LPR-1DHP station (version TCP/IP)
A
A4
A3
A8
A9

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Component setup of the LPR-1DHP station
Copyright © Symeo GmbH 2012
Page 14 of 40
3.3 Rear elements
The rear element (B) carries the front element (A) and is mounted in the mounting bracket
(C).
3.3.1 LPR-1DHP station with TCP/IP interface
The rear element of the LPR-1DHP station with TCP/IP interface provides the following
connections (see
Figure 5):
Ethernet connector (B2) for Network connection: type Harting push pull, available from
SYMEO as MTE000060 plug RJ45.
power supply and auxiliary feedthroughs (B3)
insert nuts M6 (B4) for mounting in the mounting bracket
pressure equalization membran (B6)
USB connector (B7)
Figure 5: Rear element of the LPR-1DHP station
B
B3
B7
B2
B6
B4

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Electrical connections
Copyright © Symeo GmbH 2012
Page 15 of 40
4 Electrical connections
All installation, repair and servicing work must be carried out by
qualified and trained technicians!
The diameter of all cables fed through cable glands must be within 4.5
to 10 mm, and have a round cross-section.
4.1 LPR-1DHP station with TCP/IP interface
The pressure equalization membran (B6) must not be removed or
loosened. Otherwise the housing will not be sealed in a water-proof
manner.
4.1.1 Electrical connection
Power supply is connected using the power supply terminal (A4), Ethernet is connected to socket
(A3).
Figure 6 depicts the pin assignment of (A4): Positive voltage can be connected either at pin 1
or 3, the negative or ground voltage is connected to pin 2.
Polarity reversal or otherwise faulty connection can damage the LPR-
1DHP station.
Figure 6: Electrical connections
4.1.2 Mode of operation
For standard operation of LPR-1DHP stations with TCP/IP interface the rotary switch (S2)
has to be set to position 3(see Figure 6).
A4
A3
1
2
3
+
-
+

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Electrical connections
Copyright © Symeo GmbH 2012
Page 16 of 40
4.2 LPR-1DHP configuration with USB interface
4.2.1 Electrical connection
Power supply is connected using the power supply terminal (A4), USB is connected using
terminal (B6).
Figure 7 depicts the pin assignment of (A5). The pin assignment of (A4) is similar to (A4) as
described in section 4.1.1.
Polarity reversal or otherwise faulty connection can damage the LPR-
1DHP station.
Figure 7: Electrical connections
4.2.2 Mode of operation
For configuration of LPR-1DHP stations with USB interface the rotary switch (S2) has to be set to
position 0(see Figure 7).
B2
B6
+ - +
A4

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Mounting
Copyright © Symeo GmbH 2012
Page 17 of 40
5 Mounting
When the system is mounted on fixed tubes the necessary
measures to prevent slippage of the system must be taken
All installation, repair and servicing work must be carried out by
qualified and trained technicians!
A lot of the terms used in the following description are explained in
Figure 1 and Figure 3.
The LPR-1DHP station (front and rear element) is delivered pre-mounted, and with a
separate mounting bracket. Figure 1 shows the complete system including mounting bracket.
The mounting bracket must be mounted with a separte pipe clamp on a pipe. For mounting
the system please proceed as follows:
Please use a torx wrench type T25 to remove the front element A from the rear element
B by loosening of the mounting screws (A2). If necessary you can disconnect the
ethernet cable (B5) from the front element (A3) to be more flexible.
Insert the power supply cable in the cable feedthrough (B3) and connect it to the power
supply terminal (A4) on the rear element (A); siehe Figure 6.
Reinsert the Ethernet connector (B5) of the rear element (B) into the connector (A3) of
front element (A). Mount the front element (A) on the rear element (B). It might be
necessary to tighten the inserted power cable.
Fix the front element on the rear element with the housing screws (A2) using a torx
wrench T25.
Carefully tighten the cable feedthrough with flat wrench SW19.
Mount the mounting bracket (C) on a pipe installed at a suitable place. Do not tighten the
screws of the pipe-clamp yet, the system must be aligned first.
Mount the LPR-1DHP station in the mounting bracket (C). When tightening the screws in
the mounting slot (C1) make sure that you can still align the system unit.
Carefully align both units. To do so, it is recommended to use a laser level fitted into the
alignment aid (B1).
Finally fix the system by tightening the screws of the mounting bracket and the pipe
clamp. Flat wrench SW 11 and 13 are required.
Avoid entry of foreign objects or liquids into the system unit,
especially on the PCB stack of front element (A) or within rear
element (B).
It is important that both units have the same orientation, e.g. the
display of both units facing the ceiling.
Careful mounting of the system is required. It is important that the
joint (A6) remains clean and is not damaged, otherwise the
protection class cannot be guaranteed.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Commissioning LPR-1DHP with TCP/IP interface
Copyright © Symeo GmbH 2012
Page 18 of 40
6 Commissioning LPR-1DHP with TCP/IP interface
6.1 Requirements
In order for a station to be successfully commissioned, the LPR-1DHP components must
have been installed correctly:
The station has been installed.
The station has been connected to the power supply.
Data link has been established over TCP/IP.
Once these prerequisites have been fulfilled, you can connect the station to the network and
commission the LPR-1DHP system. How to do this is explained in the following chapters.
6.2 Connection to LPR-1DHP Station
With delivery the LPR-1DHP stations have the fixed IP-Address
192.168.1.99, if no other IP-Address is labeled outside the LPR-1DHP
station.
You can change the IP-Address of the LPR-1DHP station via the web
interface of the LPR-Station.
To get a connection between your PC and the LPR-1DHP station it is
maybe neccessary to change the network parameters of your computer.
Both units must be loctaed in the same network. That means in this
example that the first three numeric pads of both IP-addresses must be
the same.
Disconnect your PC from the network. Connect the LPR-1DHP station and the computer with
a network cable. Open your network settings of your computer.
Figure 8 –Network Settings
Enter the following fixed IP-
Address i.e. 192.168.1.1.
The subnet mask should be
set to 255.255.255.0.
Click in both windows OK.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Commissioning LPR-1DHP with TCP/IP interface
Copyright © Symeo GmbH 2012
Page 19 of 40
If you firewall settings are too restrictive, you may not get access to the
LPR-1DHP station. In this case deactivate the firewall temporarely under
the tab Advanced.
The LPR Station should be available via your PC now. You can check the connection with a
ping to the LPR-1DHP station:
Open the Command-Window:
1. Push the Windows Start Button
2. Choose Run
3. Enter cmd and click OK
4. Enter in the cmd.exe window: ping 192.168.1.99 or the IP-address of the LPR-1DHP
station.
Figure 9 –Ping LPR-1DHP Station
The LPR-1DHP Station should answer with a Reply.

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Web Server for LPR-1DHP units with TCP/IP interface
Copyright © Symeo GmbH 2012
Page 20 of 40
7 Web Server for LPR-1DHP units with TCP/IP
interface
Having a LPR-1DHP station with TCP/IP interface the network settings for this station are
described in this chapter.
Therefore it is necessary to open a TCP/IP connection between your computer and the LPR-
1DHP station.
7.1 Open Web Server
The IP-address of the LPR-1DHP station is 192.168.1.99 per delivery
status except another IP-address is labeled outside the box.
You can establish a connection with your LPR-1DHP stations Web
server either via HTTP or HTTPS if the station has been configured for
this; see section "Settings", "HTTP" and "HTTPS" fields in the "Remote
Access" area.
In HTTP connections, the data is transmitted unencrypted. In HTTPS
connections, it is encrypted for transmission (AES-256, 256-bit
encryption).
Open your web browser. In the address bar of the web browser enter the IP-address of
the LPR-1DHP station: http://192.168.1.99 or https://192.168.1.99. Press Enter.
A connection is established with your LPR-
1DHP station.
In the case of an HTTPS connection, you
may see two dialog boxes. Confirm them
both with OK.
Then the Welcome page for the LPR-1DHP
station's Web server will appear.
Click the function you want in the navigation bar. The individual functions are described in
the following sections.
You will be prompted to enter your information
for authentication.
Enter user name symeo and the password,
and click OK. The password has been set
to 54all2u by the manufacturer.
