Assembly Manual
Steel Tray
Wheelbarrow
By
Estimated Assembly
Time: 20 Minutes

1
PARTS INCLUDED
1
5
9
S4S3S2S1
2
6
10
3
7
11
4
8
12
Note: When assembling bolts the correct order is to:
1. Place bolt through material
2. Put the flat washer on the bolt
3. Place the spring washer on top of the flat washer
4. Finally place the nut over both the flat
washer and Spring washer
M8 BOLTS
S1 = 20mm
S2 = 45mm
S3 = 65mm
S4 = 100mm
TOOLS REQUIRED
• 14mm Extended socket
• 14mm Spanner
• Sticky Tape
WHEELBARROW
ASSEMBLY

1 2
Place S4 bolts in the
slots at the shallow
end of the tub.
Place S5 bolts in the
slots at the deep end
of the tub.
Place Support Mat (3) over the
tub, place it in the same direction
as shown in the image above.
Once the mat is in postion,
place the support struts (4) on
the bolts as shown above.
Step 1.
Step 2.
Step 3. Step 4.
42 3
WHEELBARROW
ASSEMBLY

3
WHEELBARROW
ASSEMBLY
6 75
Place Support Mat (3) on
tub with the flat side away
from the tub as shown.
Place the handles (6)
on the bolts.
Step 5.
Step 6.
Note: There are indents on one side
of the handles; have these indents
touching the support struts.
Place stand (6)
in place.
Secure the bolt with washer,
spring washer and the nut.
Step 7. Step 8.

3 4
WHEELBARROW
ASSEMBLY
Place S1 bolts
through the
front slots.
Attach support arms to the
handles using S3 bolts.
Secure the bolt with washer,
spring washer and the nut.
Step 9.
Step 12.
Step 13.
8
Note: Bolts must be inserted upwards
to ensure the bolt is the correct way up.
Place front support arms (8)
through S1 bolts as well.
Secure the bolt with washer,
spring washer and the nut.
Step 10.
Step 11.

5
WHEELBARROW
ASSEMBLY
9
Attach nose guard (9) to
handles using S2 bolts.
Place flat and spring
washers and lock with nut.
Step 14. Step 15.

5 6

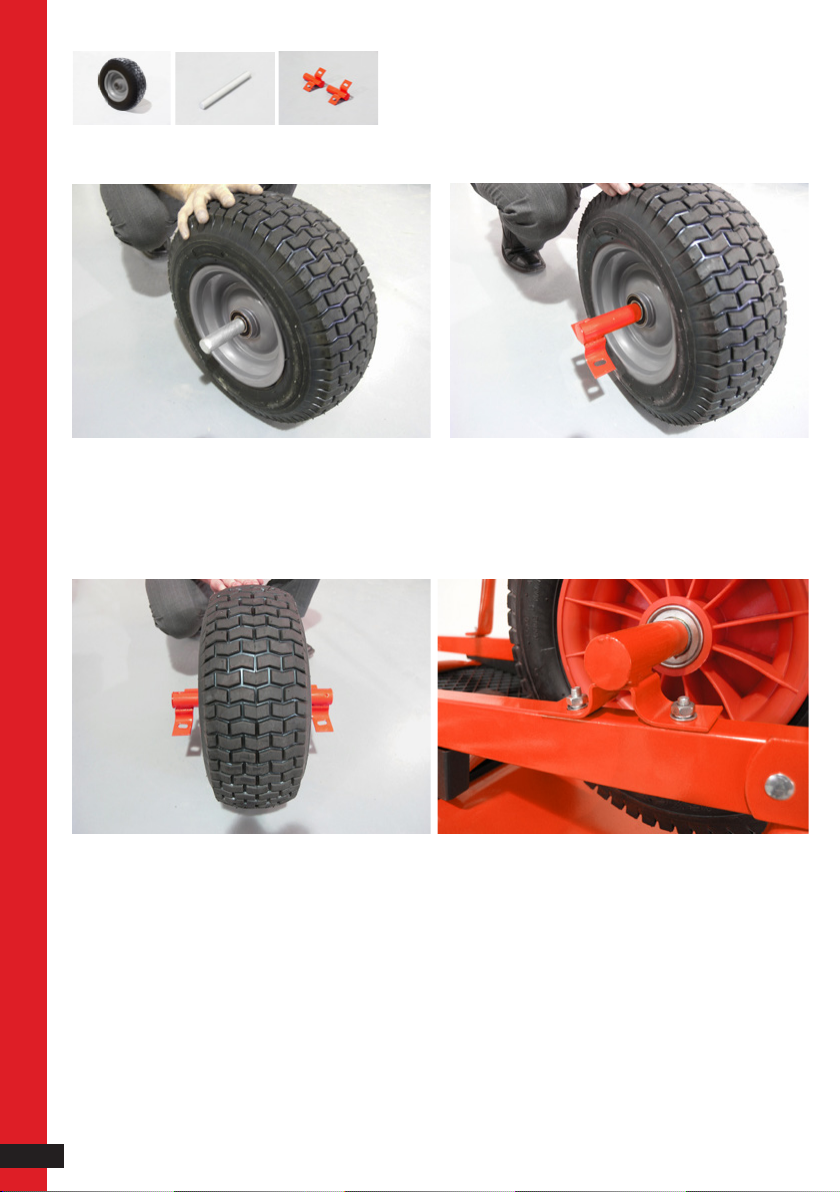

Place shaft (11) through
the wheel (10).
Place wheel assembly on top of the
handles (5) and secure with S3 bolts.
When tightening the wheel supports, align them evenly so the wheel is
centered. Once the wheel is in place, all other bolts can be tightened.
Secure the bolt with washer,
spring washer and nut.
Step 16.
Step 18. Step 19.
Note: With the wheelbarrow in the upright position, all bolts should be facing
downwards (or inwards in the case of the nose guard).
WHEELBARROW
ASSEMBLY
121110
Slide the wheel supports (12)
on both sides of the shaft.
Step 17.
