Operator’s Guide
UPS-3000 Series

006-0006504 02/27/18 Rev R 2 of 56 UPS-3000 Guide www.synqor.com
Table of Contents
Section I Warnings
Hazardous Voltages ...................................................................................................................................................4
Hazardous Energies...................................................................................................................................................5
Battery Pack..................................................................................................................................................................6
Protection from the Environment .........................................................................................................................6
No User Serviceable Parts........................................................................................................................................6
Section II General Product Information
Product Description ...................................................................................................................................................7
Product Topology ........................................................................................................................................................8
Part Numbering Scheme and Options ............................................................................................................. 10
Electrical Characteristics ..................................................................................................................................... 11
2U Mechanical Diagram....................................................................................................................................... 12

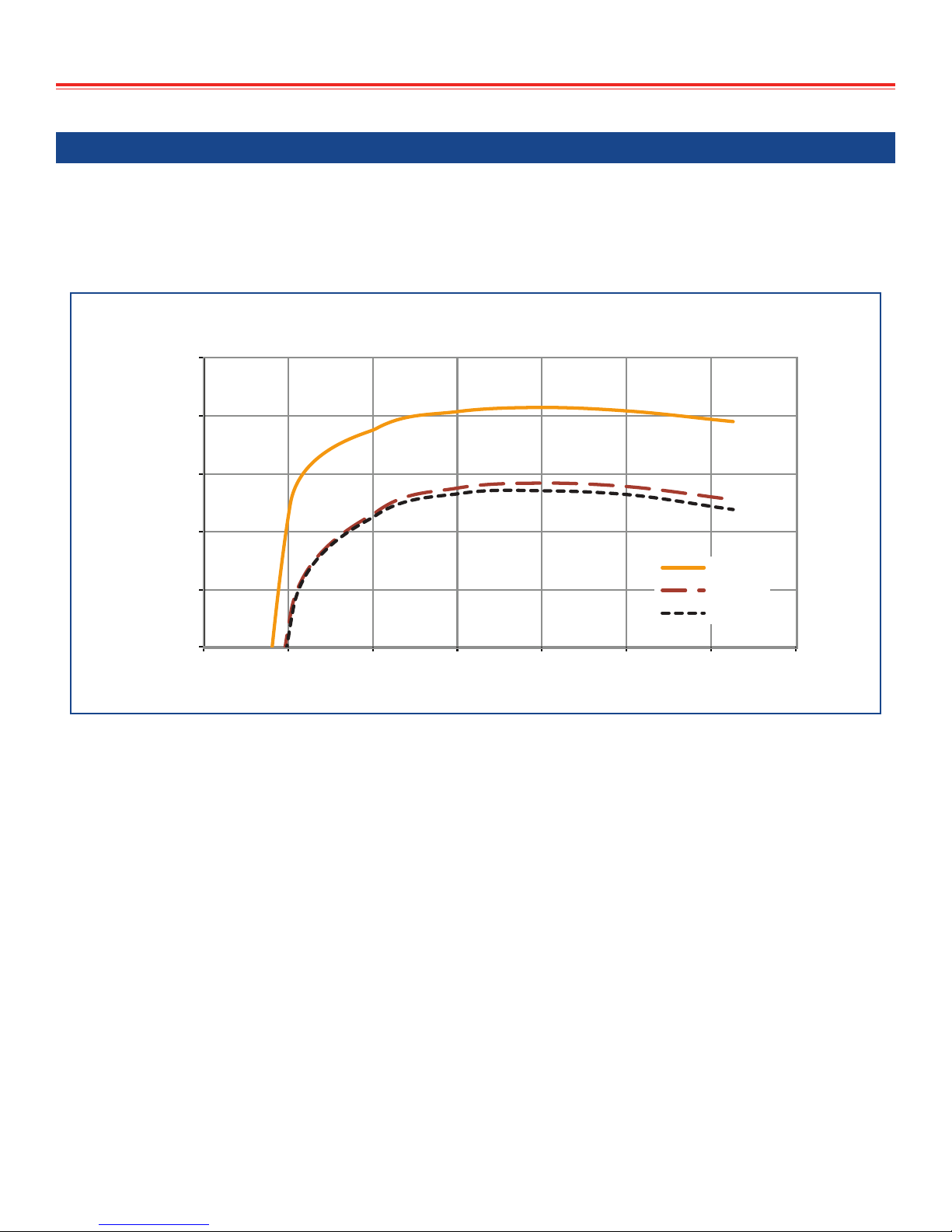

UPS Efficiency............................................................................................................................................................ 13

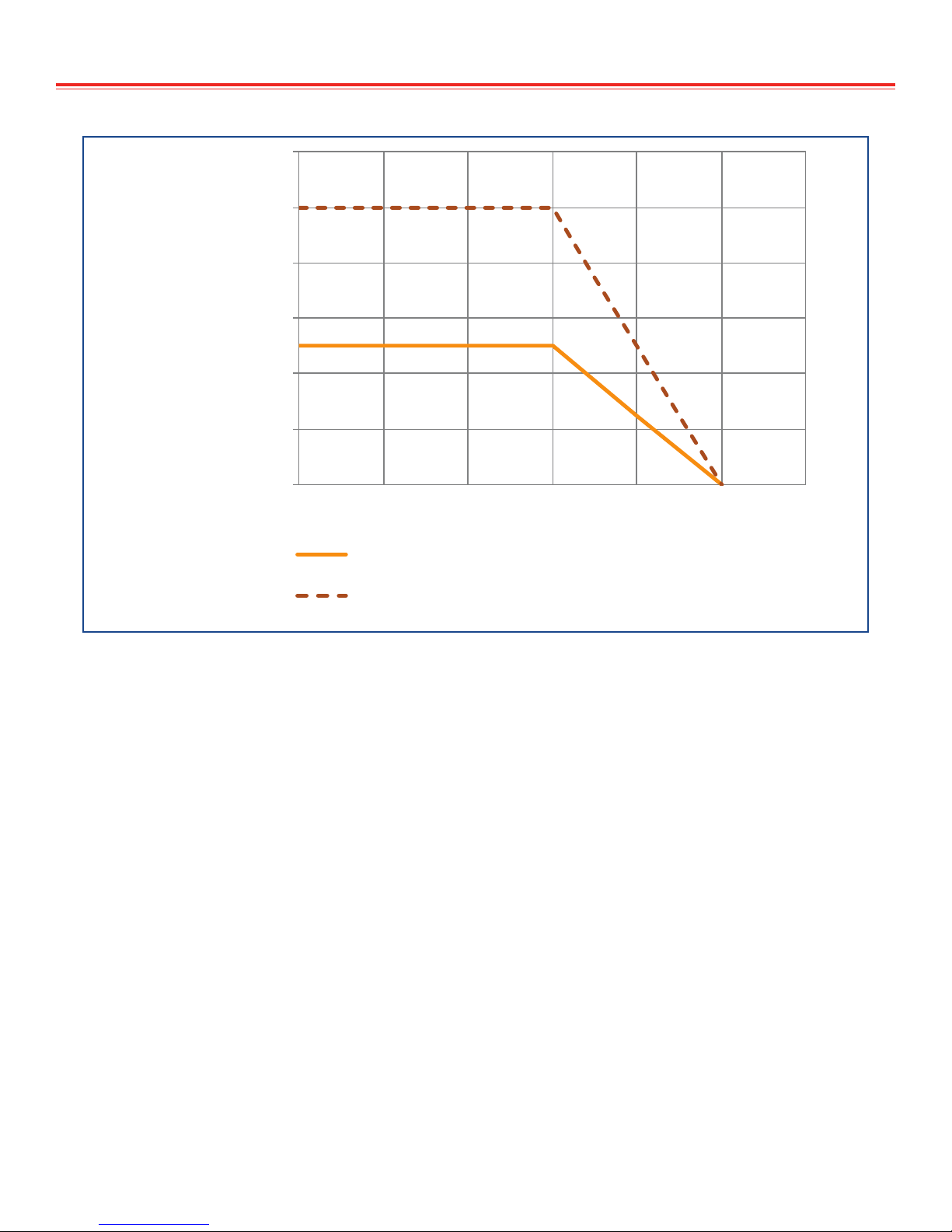

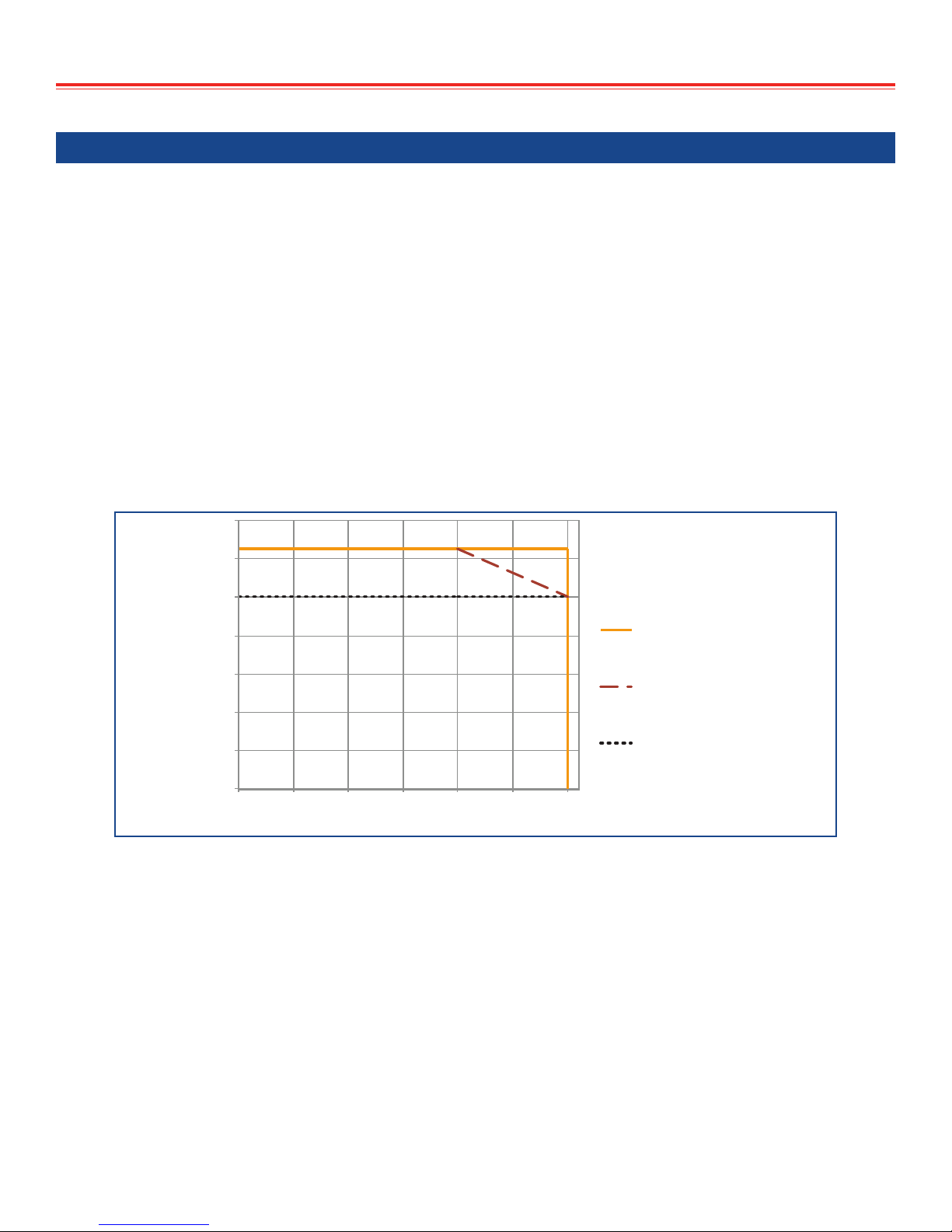

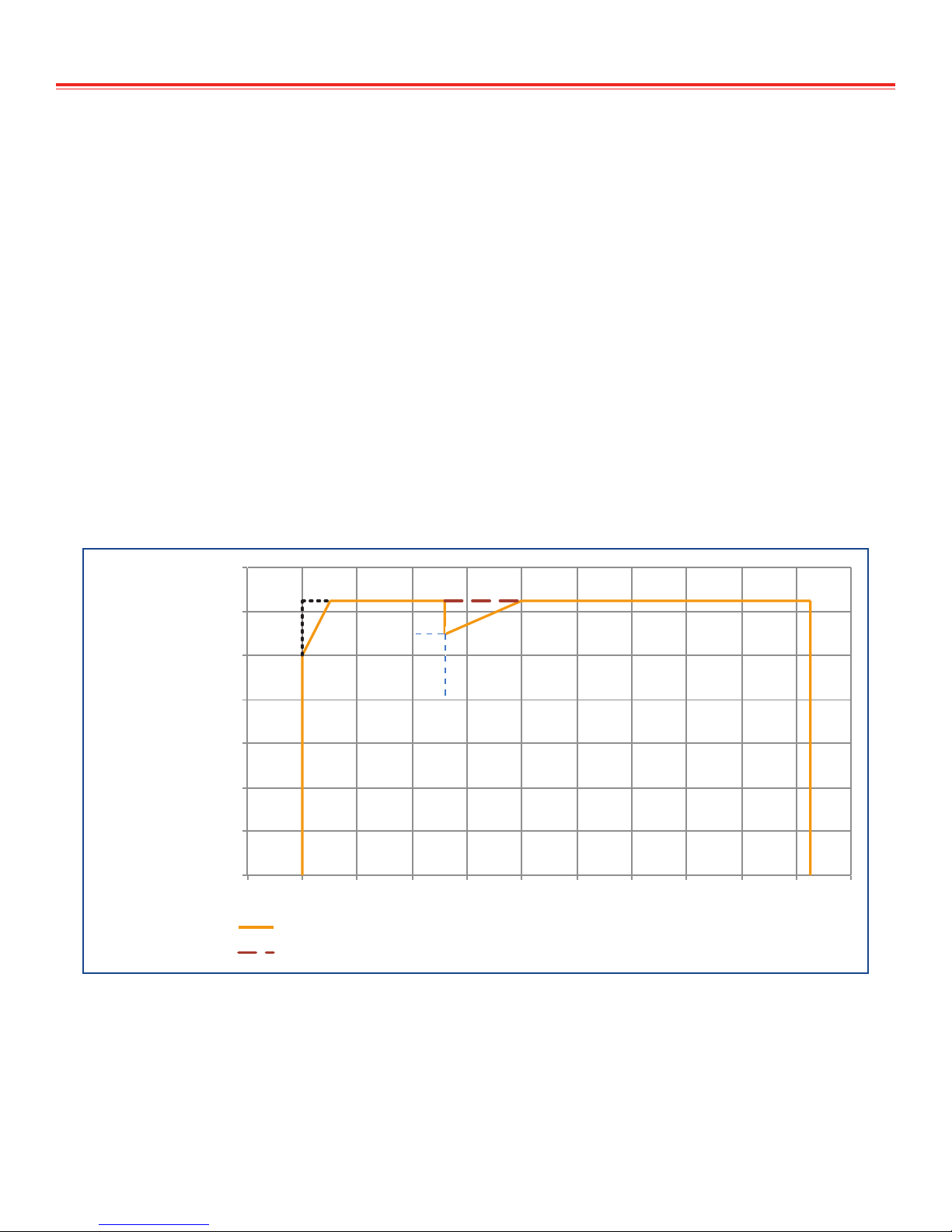

Total Output Power that can be derived from the AC INPUT ................................................................. 14

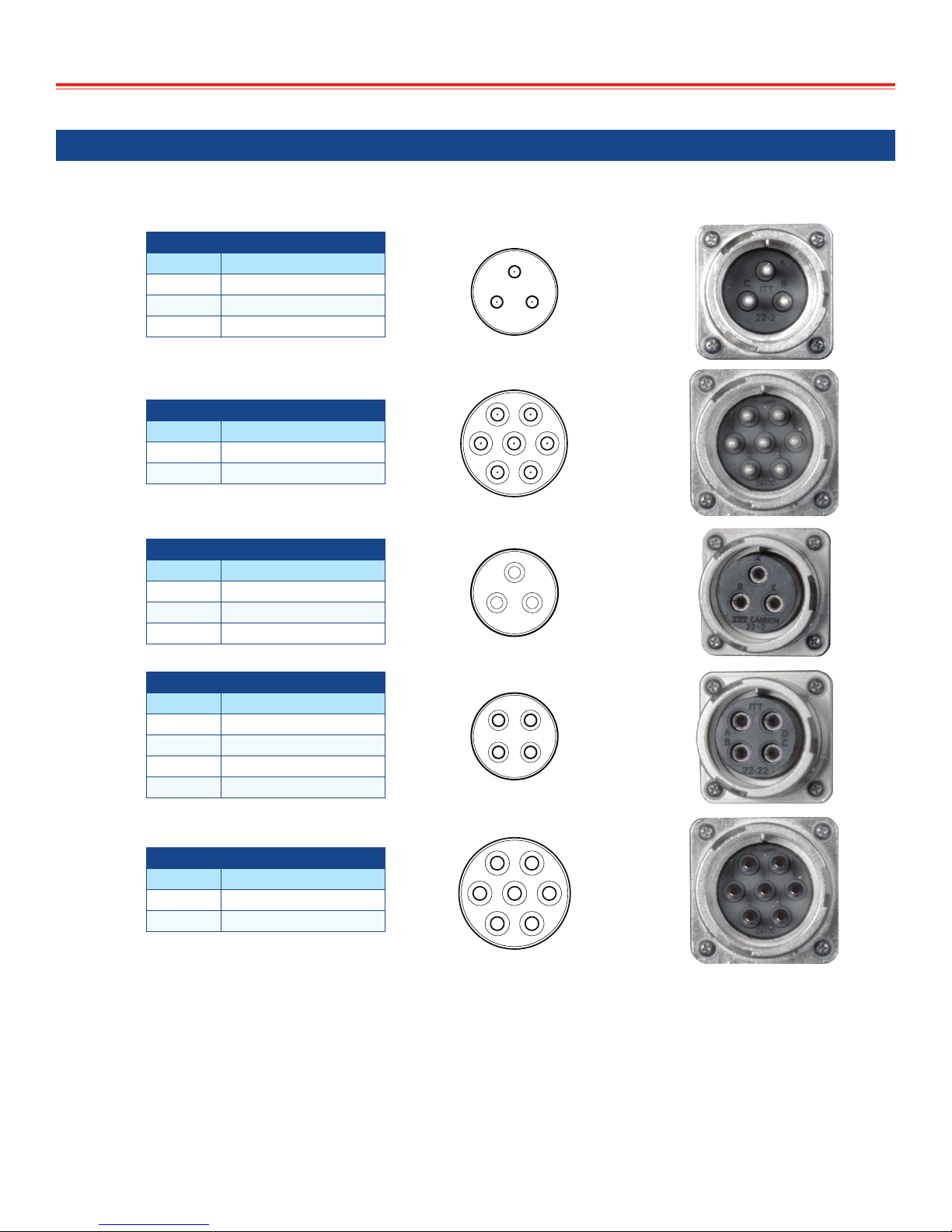

Power Cable Wiring Diagram ............................................................................................................................. 17
Power Cable Wire Size............................................................................................................................................ 18
Section III Operation
Set-Up ........................................................................................................................................................................... 19
Start-Up ....................................................................................................................................................................... 20
Shut-Down .................................................................................................................................................................. 20
Power Cable Connections/Disconnections While Operating .................................................................. 21
Cooling System .......................................................................................................................................................... 22
Front Panel Indicators ........................................................................................................................................... 23
LEDs...................................................................................................................................................................... 23
Audible alarm ................................................................................................................................................... 28
Hot Swapping the Battery Packs ........................................................................................................................ 28
Operating Environment......................................................................................................................................... 29
Section IV Multiple UPS Configurations
General Considerations ......................................................................................................................................... 30
Wiring Caution ......................................................................................................................................................... 30
Standard Paralleling -F Option ......................................................................................................................... 31
Expanded Paralleling –R Option ....................................................................................................................... 31
Parallel Configurations of the AC OUTPUTs: Up to Three Units........................................................... 32
Multi-unit Configurations............................................................................................................................. 32

006-0006504 02/27/18 Rev R 3 of 56 UPS-3000 Guide www.synqor.com
Parallel Connection of the AC Outputs ............................................................................................................ 33
Two UPS units with AC OUTPUTs Paralleled....................................................................................... 33
Three UPS units with AC OUTPUTs Paralleled.................................................................................... 34
Series Split-Phase Connection of AC Outputs .............................................................................................. 35
3-Phase Connection of AC Outputs .................................................................................................................. 36
Parallel Configurations of the AC OUTPUTs: Up to 32 Unit –R option .............................................. 37
Parallel Connection of DC Outputs ................................................................................................................... 38
Connection of the AC and/or DC INPUTS ...................................................................................................... 38
3-Phase AC INPUT Source............................................................................................................................ 38
Multi-unit AC Output On/Off Control – Standard Parallel (-F option)....................................... 39
Multi-unit AC Output On/Off Control – Expanded Parallel (-R option)..................................... 39
AC Output Neutral Grounding.................................................................................................................... 39
Section V Battery Pack
Battery Technology.................................................................................................................................................. 40
Electronic Circuitry within the Battery Packs .............................................................................................. 40
Battery Capacity....................................................................................................................................................... 41
Storage of the Battery Pack .................................................................................................................................. 41
Battery Pack Replacement .................................................................................................................................. 41
Handling the Battery Pack................................................................................................................................... 42
Section VI Control Interface Details
Control Cable Connections................................................................................................................................... 43
Internal User I/O Circuits............................................................................................................................. 44
Remote On/Off Switch Connections ......................................................................................................... 44
Digital Input/Output Control Signals............................................................................................................... 45
RS232 Serial Interface............................................................................................................................................ 45
Ethernet Interface.................................................................................................................................................... 47
Section VII Maintenance
Battery.......................................................................................................................................................................... 48
Fans ............................................................................................................................................................................... 48
Cleaning....................................................................................................................................................................... 48
Section VIII Trouble-Shooting Guide
Fault Conditions ....................................................................................................................................................... 49
Section IV (continued) Multiple UPS Configurations
Section IV (continued) Multiple UPS Configurations

Section I Warnings
006-0006504 02/27/18 Rev R 4 of 56 UPS-3000 Guide www.synqor.com
Section I Warnings
Hazardous Voltages
The INPUT AND OUTPUT POWER connectors and cables of the SynQor UPS may have voltages
that are unsafe. INJURY OR DEATH ON CONTACT may result. Appropriate safety precauons
should be taken. All connecons should be made in accordance with LOCAL ELECTRICAL CODES.
• The UPS CHASSIS should be connected to earth or system ground with Ground Stud on the
rear panel, see mechanical diagrams.
• For the AC INPUT cable and connector:
 Do not assume that a hazardous voltage is not present at the terminals of the AC input
connector, even if the UPS appears to be o.
 Do not make contact with the terminals of the AC input connector.
 Always connect the cable to the UPS before it is connected to the source of AC power.
 Always disconnect the AC input cable from the source of AC power before disconnecng it
from the UPS.
 If the AC input cable is connected to the source of AC power and not connected to the UPS,
do not contact the exposed terminals of the AC input cable.
 Do not assume that the source of AC power is not present.
 Connections between the AC input cable and the source of AC power should not be
accessible.
• For the AC OUTPUT cable and connector:
Do not assume that a hazardous voltage is not present at the terminals of the AC output
connector, even if the UPS appears to be o.
 Do not make contact with the terminals of the AC output connector.
Connect the AC output cable to the UPS before the UPS is turned on.
 If connecon of the load to the AC output cable has exposed conductors, make this connecon
before connecng the AC output cable to the UPS.
 Connecons between the AC output cable and the load should not be accessible.
• For the DC INPUT cable and connector (if present):
 The rated DC input voltage of the UPS is below the level considered hazardous.
 The DC input terminals of the UPS are isolated from the AC input and AC outputs with
reinforced safety insulaon.
 However, never assume the terminals of the DC input connector or the wires of the DC input
cable are safe to contact, even if the UPS or DC input source appears to be o.

Section I Warnings
006-0006504 02/27/18 Rev R 5 of 56 UPS-3000 Guide www.synqor.com
• For the DC OUTPUT cables and connectors (if present):
 The rated DC output voltage of the UPS is below the level considered hazardous.
 The DC output terminals of the UPS are isolated from the AC input and AC outputs with
reinforced safety insulaon.
 However, never assume the terminals of the DC output connector or the wires of the DC
output cables are safe to contact, even if the UPS appears to be o.
• For the BATTERY PACK (if not inserted into the UPS):
 When the baery pack is not inserted into the UPS, the baery is internally disconnected
from the power pins of the baery pack’s connector.
 Even if this disconnecon were not present, the DC voltage of the baery is below the level
considered hazardous.
 Do not apply external voltages to the pins of an exposed baery pack connector. It is not
possible to charge the baery pack from an external source, and excess voltages could
damage internal control circuitry.
Hazardous Energies
The INPUT AND OUTPUT POWER connectors and cables of the SynQor UPS may be the source
of high levels of energy. Do not inappropriately make electrical contact between any terminal of
a connector and another, or between any wire of a cable and another, or between any terminal
or wire and the UPS’s chassis or ground. DAMAGING ELECTRICAL ARCS may result. Care should
be taken to avoid accidental electrical contacts of this sort.
When the BATTERY PACK is not inserted into the UPS, the baery is internally disconnected from
the power pins of the baery pack’s connector. An electrical contact between any two of these
power pins or between any power pin and ground should therefore not be damaging. However,
care should take to avoid accidental electrical contacts of this sort.

Section I Warnings
006-0006504 02/27/18 Rev R 6 of 56 UPS-3000 Guide www.synqor.com
Section I Warnings
Baery Pack
The individual LITHIUM POLYMER BATTERIES contained in the SynQor baery pack are sealed units
that are further mechanically protected by the baery pack’s chassis and electrically protected by
the baery pack’s electronic circuitry. Under normal condions they do not pose a hazard, but
they should not be physically, thermally or electrically abused.
The TRANSPORT of the baery pack must comply with applicable regulaons of the locality. See
“Baery Pack - Handling the Baery Pack”.
The baery pack should be DISPOSED in accordance with applicable regulaons of the locality
or RETURNED to a factory-authorized Service Center.
Emergency response contact informaon for baery damage, leaks, smoke, or res can be found
at the following link: http://www.SynQor.com/UPS/documents/Contact.pdf. Please contact
the factory for all other quesons regarding the UPS baery pack.
CAUTION: Do not dispose of batteries in a re. The batteries may explode.
CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful to the skin
and eyes. It may be toxic.
Always use the proper SynQor baery pack. See the baery replacement chart on page 41.
Protecon from the Environment
The SynQor UPS is a ruggedly built product having its electronics and baery contained in
sealed chambers. It is capable of withstanding harsh levels of mechanical acceleraon, shock
and vibraon, temperature and pressure variaons, and exposure to water, salt, sand and dust
within the levels specied in the data sheet. THESE LEVELS SHOULD NOT BE EXCEEDED.
Do not obstruct the air intake in the front of the UPS or the fan exhausts in the rear panel of the
UPS while the UPS is operang.
No User Serviceable Parts
The SynQor UPS has no user serviceable parts inside of it. DO NOT REMOVE the cover of the
UPS or any of its connectors. DO NOT OPEN the baery pack. Only factory trained personnel
should perform repairs.

006-0006504 02/27/18 Rev R 7 of 56 UPS-3000 Guide www.synqor.com
Section II General Product Information
Product Descripon
The SynQor UPS-3000 Series is an advanced technology military-grade uninterrupble power
supply (UPS) that uses lithium polymer baeries and highly ecient power electronic circuitry
to achieve a high power level and baery run-me in a low-prole, low-weight, rack-mountable
package. It provides voltage and frequency condioning, electrical isolaon, and power ow
smoothing between the power inputs and its power outputs. It provides baery backed-up
power when other power sources are not present.
A communicaon/control port is available to permit monitoring and control by a host computer
system. Front panel LEDs and an audible alarm provide informaon on the status of the UPS and
the baery pack.
The UPS-3000 Series products can draw power from an AC input having a wide range of voltage
and frequency levels, or from an oponal 28 V nominal DC input. The AC input has priority over
the DC input. The UPS provides up to 3000 VA and 2500 W of AC output power at 115 Vac. The
pure sine wave AC output voltage can drive any non-linear load with a crest factor up to 2.5, and
any load power factor from 0.0 to 1.0. There are two oponal DC outputs at various voltage and
power levels. The total AC plus DC output power is limited to 2500 W.
The electronic circuitry within the UPS-3000 Series products is designed, qualied and screened
according to SynQor’s Mil-COTS Standards. It complies with the requirements of MIL-STD-704F,
MIL-STD-1399-300B, MIL-STD-1275D and MIL-STD-461F, as well as IEC-EN61000 specicaons
for world-wide commercial ulity applicaons.
The UPS-3000 Series products are designed and manufactured to withstand the harsh environments
and use encountered in military applicaons. The electronic circuitry and baery are contained in
a sealed chamber constructed from a die-cast aluminum chassis that is weather-proof and shock-
proof. Redundant, water-proof fans on the rear panel draw cooling air over the heat-sink ns below
the sealed chamber. Military-grade circular connectors are used, and oponal aached connector
covers are available for when the cables are not aached. The UPS-3000 Series products comply
with a wide range of tesng according to MIL-STD-810G.
The UPS-3000 Series is a 2U high unit that has two standard baery packs which provide >10
minutes of full-power run-me and weighs approximately 65 lbs.
The SynQor UPS-3000 Series products are designed and manufactured in the U.S.A.

Section II General Product Information
006-0006504 02/27/18 Rev R 8 of 56 UPS-3000 Guide www.synqor.com
Product Topology
The SynQor UPS-3000 Series products use a true on-line double conversion topology that
provides protecon to the load from spikes, noise, surges, brownouts, blackouts, etc. in the
input power sources. They also provide smoothing of load transients and nonlinear load
proles so that the input power sources are not subjected to these disturbances. There is
a seamless transfer from any power source to another so that there is no disrupon in the
output voltage waveform.
As the gure below shows, there is a nominal 28 V mid-bus within the UPS that draws power
from one of up to three power sources: the AC INPUT, the oponal DC INPUT or the baery
(with that order of priority based on availability). EMI lters are present at all external inputs
and outputs.
AC
INPUT
DC
INPUT
DC2
OUTPUT
2x DC1
OUTPUT
AC
OUTPUT
AC to DC
w/ PFC
and
ISOLATION
BATTERY
with
CHARGER
and
ELECTRONIC SWITCH
(OPTIONAL)
(Not available with DC2 Option)
ELECTRONIC
SWITCH
ISOLATED
INVERTER
BULK ENERGY
STORAGE
CAPACITOR
ISOLATED
DC-DC
CONVERTER
(OPTIONAL)
(OPTIONAL)
(OPTIONAL)
ISOLATED
DC-DC
CONVERTER
CIRCUIT
BREAKER
SINGLE-POLE
ELECTRONIC
BREAKER
Power ows from the AC INPUT through an AC-DC converter that has Power Factor Correcon
(PFC) and high-frequency safety isolaon stage. Power ows from the DC INPUT through an
electronic switch that is closed when the AC INPUT power is absent and the DC INPUT voltage is
within its specied range. Otherwise, a second electronic switch is closed to connect the baery
to the mid-bus.

Section II General Product Information
006-0006504 02/27/18 Rev R 9 of 56 UPS-3000 Guide www.synqor.com
The AC OUTPUT is created by an inverter that draws power from the mid-bus. This inverter provides
high-frequency safety isolaon and a pure-sinusoidal output voltage waveform. An oponal
electronic breaker can be added to the AC output. This one pole hot side only electronic breaker
allows for fault tolerant, glitch free operaon when several UPS units are placed in parallel.
Oponal DC outputs at various voltage and power levels are available. The DC1 opon provides
two separate 500 W outputs which cannot be used directly in parallel. The DC2 opon provides
a single parallelable output up to 2500 W. When the DC2 opon is selected, the DC Input is not
available. The DC1 and DC2 outputs are isolated from each other as well as the AC output.
Bulk energy storage capacitors are connected to the mid-bus to help smooth imbalances in
power ow between the inputs and outputs of the UPS.
There is a baery charger circuit that draws power from the mid-bus. It ensures the baeries
are normally fully charged and that the various cells are equalized. The baery also contains
protecon circuitry to avoid damage due to improper charging or discharging, or to excessive
temperatures.
There is a communicaon/control port that provides a digital interface to a host computer system.

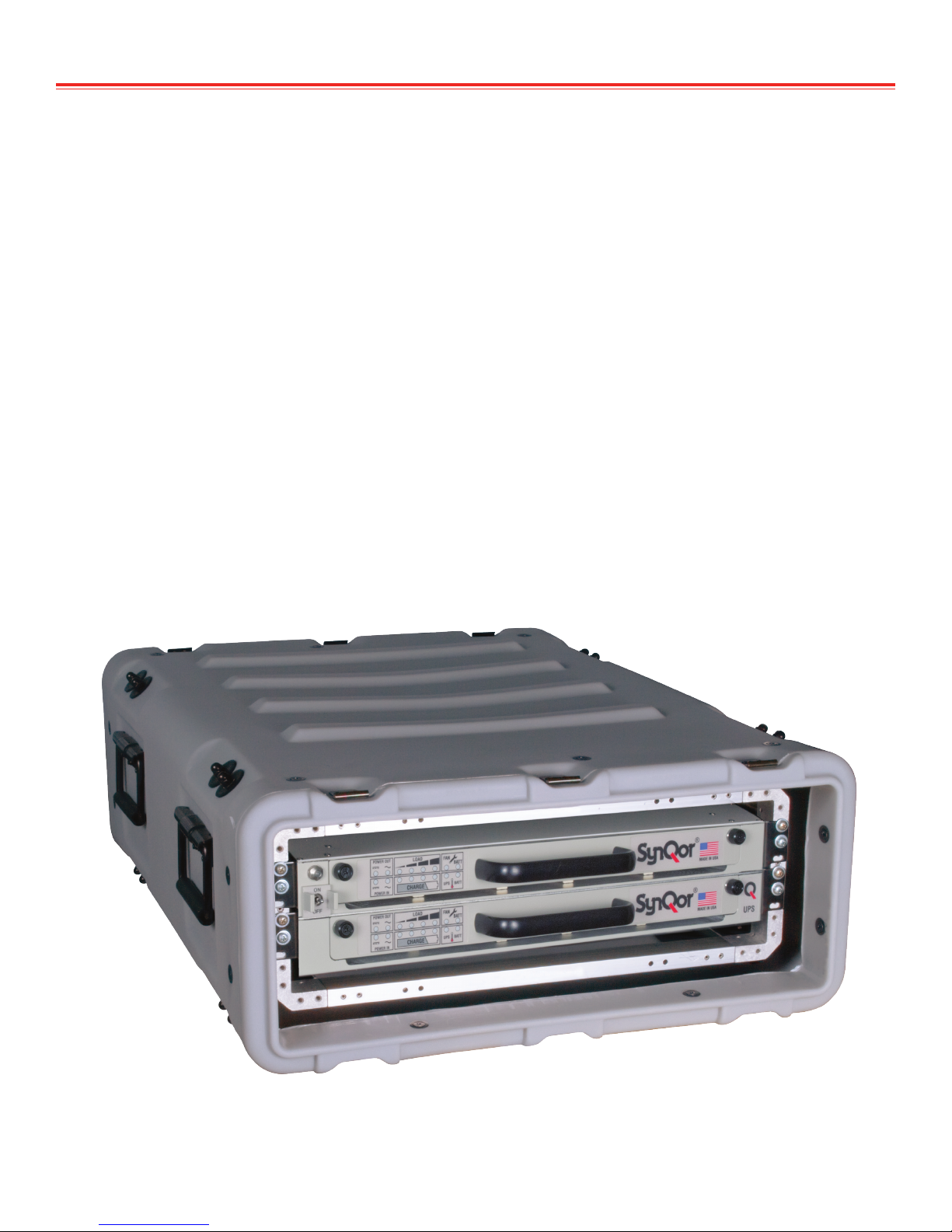

UPS in Transit Case Option

Section II General Product Information
006-0006504 02/27/18 Rev R 10 of 56 UPS-3000 Guide www.synqor.com
Part Numbering Scheme and Opons
This table shows the part numbering scheme for the full line of SynQor UPS products:
Family Output Power Battery Pack
Size Height AC Input Frequency
AC Output
Voltage
AC Output
Neutral Wire
AC Output
Set Point
Frequency
DC Input /
DC2 Output
Dual DC1
Output
Voltage
Additional Options
UPS 3000 S 2U L 1 G 6 D 28 000
UPS 3000: 3000 VA
2500 W S: Standard 2U: 3.40” L:
W:
47-65 Hz
47-800 Hz
1:
2:
5:
6:
4:
50 Hz
60 Hz
400 Hz
S: Not Installed 00:
None 000: None
D: DC Input 12: 12 V 0CE: CE Marking
G: Grounded M: DC2 Out 15: 15 V E00: Ethernet /
115 Vrms F: Floating * 24 VDC with 24: 24 V SNMP
230 Vrms R:AC Output Droop Share 28: 28 V ECE: Ethernet /
Electronic R: DC2 Out 40: 40 V SNMP &
Breaker * 28 VDC with 50: 50 V CE Marking
Droop Share
Not all combinations make valid part numbers, please contact SynQor for availability. See the Product Summary web page for more options.
* Note: Order “F: Floating” option when conguring the AC output for multi-unit combinations of up to 3 units.
Order “R: AC Output Electronic Breaker” option for fault-tolerant, glitch-free parallel systems of up to 32 units with N+M redundancy;
The AC output neutral wire will not be connected to the chassis
Example: UPS-3000-S-2U-L1G6D28-000
The UPS-3000 Series of products provide up to 3000 VA and 2500 W of total output power
(AC plus DC).
• A 2U high, 65 lbs. rackmount unit that uses two standard baery packs which provide >10 minutes of baery
run-me at full power
Each format has various opons that can be specied according to the part numbering scheme
shown in the table:
• The allowable frequency of the AC INPUT can either be in the 47-65 Hz range (for 50 Hz and/or 60 Hz systems)
or in the 360-800 Hz range (for 400 Hz and Variable Frequency systems)
• The output voltage of the UPS-3000 Series can be 115 Vrms or 230 Vrms.
• The AC output can be congured with its neutral wire internally grounded to the chassis of the UPS or le
oang for shipboard applicaons.
• The inial set-point frequency of the AC OUTPUT voltage can be 50 Hz, 60 Hz or 400 Hz. Regardless of the inial
set-point frequency, the actual frequency can be set through the communicaons/control port.
• There is an oponal DC INPUT that is specied to comply with MIL-STD-704F and MIL-STD-1275D for 28 V
systems.
• Two oponal DC OUTPUT capabilies are available: DC1 with up to 2x500 W capability, and DC2 with up to
2500 W capability.
• RS232 serial port and logic-level I/O communicaon are included in the standard model. An Ethernet port
providing web and SNMP interfaces is an available opon.
• The Electronic Breaker opon adds fault tolerant, glitch free mul-unit operaon for N+1 or N+M redundancy.
This opon also allows up to 32 units to be combined to form single-phase, split-phase, or 3-phase systems
The UPS-3000S-2U data sheet showing these specicaons and other informaon can be found
at the web site www.SynQor.com/UPS.

Section II General Product Information
006-0006504 02/27/18 Rev R 11 of 56 UPS-3000 Guide www.synqor.com
Electrical Characteriscs
INPUT CHARACTERISTICS
Operating AC Input
Voltage 80-265 Vrms*
Frequency 47-65 Hz
(Extended Option) (47-800 Hz Optional)
Input Power Factor >0.98 at 47-65 Hz
>0.97 at 400 Hz
>0.93 at 800 Hz
Maximum Input Current Continuous 40 A (full load, 85 Vrms)
AC Input Circuit Breaker Rating 50 A
(* Power Derating to 80% below 90 Vrms)
Operating DC Input (Optional)
Voltage 22-33 V
Continuous Maximum Input Current 124 A (full load, 22 V)
Transient Maximum Input Current 150 A
OUTPUT CHARACTERISTICS
Total Output Power Continuous 2500 W (3000 VA)
Maximum DC1 Output Power 1000 W
Maximum DC2 Output Power 2500 W
(Note: Available AC power is reduced by power delivered to the DC output)
AC Output
AC Output Waveform Pure Sinusoidal
Voltage 115 Vrms ± 3%
230 Vrms ± 3%
Frequency 60 Hz ± 0.5%
50 Hz ± 0.5%
400 Hz ± 0.5%
Instantaneous Peak Load Current 52 A (115 Vrms)
26 A (230 Vrms)
Load Power Factor 0-1.0 (leading or lagging)
Total Harmonic Distortion 2% (2000 W resistive load)
Dual DC1 Output (optional)
Voltage Regulation (Over Load & Temperature) ± 3%
Common Voltage/Power combinations 12 V at 42 A =504 W
(Two separate DC outputs) 15 V at 34 A =510 W
(Other Options Available) 24 V at 21 A =504 W
28 V at 18 A =504 W
40 V at 12.5 A =500 W
50 V at 10 A =500 W
DC2 Output (optional)
Voltage Setpoint ± 3%
Droop Share (Output droops vs. load to allow passive sharing among modules.)
24 V Option
Voltage Regulation (Over Load & Temperature) -15%
26 V at 0 A
22 V at 100 A =2200 W
28 V Option
Voltage Regulation (Over Load & Temperature) -13%
30 V at 0 A
26 V at 96.2 A =2500 W
Specications subject to change without notice.
ENVIRONMENTAL CHARACTERISTICS MIL-STD-810G
Temperature Methods 501.5, 502.5
Operating Temperature -20°C — +55°C
Storage Temperature -40°C — +65°C
Altitude Method 500.5
Operating 0 - 18,000 ft
Non-operating 0 - 40,000 ft
Environmental Tests
Shock/Drop Method 516.6, Procedures 1,4,6
Temperature Shock Method 503.5, Procedure 1
Vibration Method 514.6, CAT 5 & 24
Fungus Method 508.6
Salt Fog Method 509.5
Sand and Dust Method 510.5, Procedures 1,2
Rain Method 506.5 Procedure 1
Humidity Method 507.5 Procedure 2
Mechanical Vibrations of Method 528 Procedure 1
Shipboard Equipment
RELIABILITY CHARACTERISTICS MIL-HDBK-217F
MTBF 50 kHrs MIL-217F Ground Benign, Ta=25 °C
ELECTROMAGNETIC CAPABILITY MIL-STD-461F
CE101 30 Hz - 10 kHz
CE102 10 kHz - 10 MHz
CS101 30 Hz - 150 kHz
CS106 10 kHz - 40 GHz
CS114 10 kHz - 200 MHz
CS116 10 kHz - 100 MHz
RE101 30 Hz - 100 kHz
RE102 10 kHz - 18 GHz
RS101 30 Hz - 100 kHz
RS103 2 MHz - 40 GHz
MECHANICAL CHARACTERISTICS
Standard 2U Battery Pack
Chassis Size 17.00”W x 22.22”D x 3.40”H
Case Material Aluminum
Total Weight 65 lbs. (with chassis & battery)
Connectors
AC Input Connector CA02COME22-2PB
DC Input Connector CA02COME24-10PB
AC Output Connector CA02COME22-2SB
DC1 Output Connector CA02COME22-22SB
DC2 Output Connector CA02COME24-10SB
User I/O Ports HD DB15 Female
Conguration I/O Port HD DB15 Male
Ethernet Port Amphenol RJF22N00, Code B
Cooling Exhaust Fans
Sound Pressure Level (SPL) 54 dB(A)
Air Flow 0.67(m3/min) 23.7 CFM
Four fans in system, above specs are for each fan separately.

Section II General Product Information
006-0006504 02/27/18 Rev R 12 of 56 UPS-3000 Guide www.synqor.com
ITT
DC OUTPUT
DC INPUT AC INPUT
COMM/AUX PORT
ETHERNET PORT
AC OUTPUT
ITT
22-22
22-22
A
A
D
C
C
B
ITT-CANNON
24-10
A
D C
BGE
F
B
5
15
1
6
11
1
6
11
10
5
15
10
OFF OFF
O
N
O
F F
O
N
O
F F
ITT
22-2
A
C B
POWER OUT
POWER IN
LOAD
CHARGE
FAN
BATT
BATTUPS
POWER OUT
POWER IN
LOAD
CHARGE
FAN
BATT
BATTUPS
UNIT
MOUNTING
HOLES
8-32 .250"
[6.35]
x52
1.50"
[38.1]
22.22"
[564.388]
3.40"
[86.36]
3.40"
[86.36]
17"
[431.8]
.750"
[19.05]
9.750"
[247.65]
18.700"
[474.98]
.750" [19.05]
.750" [19.05]
.313"
[7.9502]
1.750"
[44.45]
.830"
[21.082]
2U Mechanical Diagram

Section II General Product Information
006-0006504 02/27/18 Rev R 13 of 56 UPS-3000 Guide www.synqor.com
UPS Eciency
Figure 1 shows the typical eciency with which the UPS-3000 series uninterrupble power
supplies delivers power to its AC OUTPUT from a 230 Vrms AC INPUT, an 115 Vrms AC INPUT or
a 28 V DC INPUT:
70.0%
75.0%
80.0%
85.0%
90.0%
95.0%
0 400 800 1200 1600 2000 2400 2800
Efficiency
Ouput Power (Watts)
Efficiency vs. Output Power
for Each Input Source
28 Vdc
230 Vac
115 Vac
Figure 1: Eciency vs. Output Power for Each Input Source.

Section II General Product Information
006-0006504 02/27/18 Rev R 14 of 56 UPS-3000 Guide www.synqor.com
Total Output Power that can be derived from the AC INPUT
The total UPS output power (the AC OUTPUT power plus the oponal DC OUTPUT power) for
the UPS-3000 series is rated at 2500 W for an ambient temperature as high as 55oC (131oF). It
draws this power rst from the AC INPUT (if its voltage is within range) and then the DC INPUT
(if its voltage is within range) and then from the internal BATTERY PACK (if it has sucient
charge).
However, when the AC INPUT voltage is at the low end of its range (<90 Vrms) or the ambient
temperature is at the high end of its range (>45oC/113oF) the UPS will not be able to deliver its
full rated output power in the steady-state without switching over to either the DC INPUT (if it
is available and >22 Vdc) or its internal baery. Figure 2 indicates the total steady-state output
power that the UPS can derive  under these extreme condions. See Figure
3 for informaon on transient condions.
0
400
800
1200
1600
2000
2400
2800
25 30 35 40 45 50 55
Output
Power
(Was)
Air Temperature (°C)
UPS Output Power vs. Air Temperature
V AC(IN) >105V RMS or V DC(IN) >22V or
power drawn from the baery
V AC(IN) = 90V RMS and V DC(IN) <22V and
power not drawn from the baery
V AC(IN) = 80V RMS and V DC(IN) <22V and
power not drawn from the baery
Figure 2: UPS Output Power vs. Air Temperature.
• If the AC INPUT voltage is above 105 Vrms, then the UPS can deliver its full rated output power
of 2500 W from the AC INPUT for an ambient temperature as high as 55oC (131oF) without
needing to switch over to the oponal DC INPUT or the internal BATTERY PACK.
• If the AC INPUT is between 90 Vrms and 80 Vrmsthen the total output power that can be
derived from the AC INPUT linearly decreases from 2500 W at 90 Vrms to 2000 W at 80 Vrms
(except for at the high end of the ambient temperature range – see below). For example, the
total output power that could be derived from the AC INPUT would be 2250 W at 85 Vrms as
long as the ambient temperature is not above 50oC (122oF). If the total output power is greater
than this derated value, the UPS will switch to the DC INPUT (if it is available and >22 V) or the
internal BATTERY PACK.

Section II General Product Information
006-0006504 02/27/18 Rev R 15 of 56 UPS-3000 Guide www.synqor.com
• If the AC INPUT voltage is 90 Vrms the ambient air temperature is above 45oC (113oF),
the total output power that can be derived from the AC INPUT linearly decreases from 2500
W at 45oC (113oF) to 2000 W at 55oC (131oF). For example, the total output power that could
be derived from the AC INPUT would be 2250 W at an AC INPUT voltage of 90 Vrms and an
ambient temperature of 50oC (122oF). A higher output power than this would cause the UPS
to switch over to its DC INPUT or the internal BATTERY PACK.
• When the AC INPUT voltage is between 105 Vrms and 90 Vrmsthe ambient temperature
is between 45oC and 55oC, the total output power that can be derived from the AC INPUT
can be calculated by linearly interpolang between the curves shown. For example, the total
output power that can be derived from the AC INPUT when the voltage is 97.5 Vrms would
be 2500 W up to an ambient temperature of 50oC (122oF) and then derate to 2250 W at 55oC
(131oF).
Furthermore, there is a limited (and uncommon) range of AC INPUT voltage between 132 Vrms
and 160 Vrmsin which the total output power that can be derived from the AC INPUT is also
derated, as shown in the graph below.
2200W
0
400
800
1200
1600
2000
2400
2800
60 80 100 120 140 160 180 200 220 240 260 280
Output
Power
(Was)
Input Voltage (Vrms)
Steady state
15s transient
2s transient
132V
Figure 3: UPS Output Power vs. AC Input Voltage, without switching over to the DC input or baery.
Note that the full rated output power of 2500 W can be derived from the AC INPUT having a
voltage within this uncommon range for 15 seconds before the UPS will switch over to the DC
INPUT or the BATTERY PACK. Also the UPS can drive full rated power for a 2 second interval even
if the AC INPUT voltage drops below 90 Vrms.

Section II General Product Information
006-0006504 02/27/18 Rev R 16 of 56 UPS-3000 Guide www.synqor.com
0
200
400
600
800
1000
0 500 1000 1500 2000 2500 3000
Maximum DC1
Output Power
(Watts)
ACPower Output (Watts)
DC1A or DC1B
DC1A Plus DC1B
1200
Figure 4: Maximum DC1 Power vs. AC Power
Addionally, while the AC output is loaded to 1500 W or greater, the available DC1A and/or DC1B
output power is reduced as shown in Figure 4. In order to achieve the rated DC1 output power,
the AC output must be loaded to less than 1500 W. For example, if the AC output is loaded to
2000 W and both DC1 outputs are to be used to achieve a total of 2500 W, they must be equally
loaded to 250 W. Similarly, if the AC output is loaded to 2000 W and if either DC1A or DC1B is
desired, it can only be loaded to 250 W.

Section II General Product Information
006-0006504 02/27/18 Rev R 17 of 56 UPS-3000 Guide www.synqor.com

Looking at the rear panel, the UPS connector terminals have the following functions and locations:
AC INPUT
 
 
B
C Ground
ITT
22-2
A
C B
DC INPUT
 
 +V
 VReturn
ITT-CANNON
24-10
A
D C
BGE
F
AC OUTPUT
 
 
B
C Ground
ITT
22-2
A
CB
DC1 OUTPUT
 
 
C +Vout1B
B
 
ITT
22-22
A D
C
B
DC2 OUTPUT
 
 +Vout
 
ITT-CANNON
24-10
A
DC
B G E
F

Section II General Product Information
006-0006504 02/27/18 Rev R 18 of 56 UPS-3000 Guide www.synqor.com
Power Cable Wire Size
SynQor recommends the following cables for use with the UPS-3000 Series:
AC Input: SYN-9105 UPS connecon to Hardwire Terminaon, 10’
AC Output: SYN-9135 UPS connecon to Hardwire Terminaon, 10’
DC Input: SYN-9155 UPS connecon to Hardwire Terminaon, 10’
DC1 Output: SYN-9173 UPS connecon to Hardwire Terminaon, 10’
DC2 Output: SYN-9178 UPS connecon to Hardwire Terminaon, 10’
Other opons may be available. Contact [e-mail] or visit the website: www.synqor.com for more
informaon. If it is necessary to develop custom cables for your applicaon, please read through the following
secon for some important consideraons. Damage caused by improper wiring of cables will not be covered
under SynQor’s warranty.
Both the input and output cables of the UPS carry substanal current, and since the wires in these cables have
resistance the current owing through them causes a voltage drop from one end of the cable to the other. In
other words, the voltage across the cable at its downstream end is smaller than the voltage across the cable at its
upstream end. Mathemacally, the amount that the voltage drops is equal to the resistance of the cable’s wire
mulplied by the current owing through the wire. It is therefore  to make sure that the 
 enough to keep this voltage drop to an acceptably small value.
While this is an issue for all of the power cables, 
because the current owing through it is very high (as high as 124 A for the UPS-3000 Series)
and the voltage across it is already relavely small (as low as 22 V). In fact, a common problem that arises
(when the DC INPUT cable has too small a wire) is that the voltage seen at the DC INPUT of the UPS falls below
the minimum specied value of 22 V even though the voltage at the source of the DC power is greater than
22 V. Under this condion the UPS will switch to the internal baery pack for its power source even though the
voltage at the DC source of power appears to be available and at a proper level.
The resistance of a wire depends directly on its length. A wire twice as long as another will have twice the
resistance, holding all other things constant. The resistance also depends on the reciprocal of the cross-seconal
area of the wire, which in turn depends on the square of the wire’s diameter. A wire with half the diameter of
another will therefore have four mes the resistance, holding all other things constant.
Therefore, the longer a cable is, the more important it is that the wire’s diameter be large. Alternavely, a cable
can have mulple pairs of wires to achieve a larger “eecve wire diameter”. This second approach gives a more
exible cable. For 10  long cables, SynQor recommends that for the UPS-3000 Series:
• The AC INPUT cable have 3 wires (one for the ground) of 8 AWG
• The DC INPUT cable have 6 wires (three for each connecon) of 8 AWG
• The AC OUTPUT cable have 3 wires (one for ground) of 10 AWG
• The DC1 OUTPUT cable have 4 wires (two for each connecon) of 10 AWG
• The DC2 OUTPUT cable have 6 wires (three for each connecon) of 8 AWG
Addional details about the eects of a resistance-related voltage drop are included in “Trouble-Shoong
Guide - Cable wire resistance is too high”.

006-0006504 02/27/18 Rev R 19 of 56 UPS-3000 Guide www.synqor.com
Section III Operation
Set-Up
The recommended procedure for seng up the UPS is the following:
• Insert the BATTERY PACKs (if not already present) and ghten its screws.
• Make sure the AC BREAKER on the rear panel of the UPS is in the OFF posion.
• Connect the ground wire to the ground stud on the rear panel of the UPS.
• Connect all OUTPUT cables, rst to the UPS and then to the various loads.
• that the oponal DC OUTPUT cables are connected to the UPS and the load with the
correct polarity.
• Connect the USER I/O cables.
• Connect all INPUT cables, rst to the UPS and then to the various sources.
• An overcurrent protect and disconnect device should be installed on the DC INPUT circuit. An
example of a suitable device is a Carling Technologies, F-series, 150 A 125 VDC, FA1-B0-14-
815-12A-BG circuit breaker. (www.carlingtech.com)
•  that the oponal DC INPUT cable is connected to the UPS and the source of DC power
with the correct polarity.
• Turn on the sources (if they have an upstream breaker).
• Move the AC BREAKER on the rear panel of the UPS to the ON posion.
 Be careful to not toggle the ON/OFF switch during the setup. Doing so could cause the UPS
to turn on and present a hazardous voltage at its output.

006-0006504 02/27/18 Rev R 20 of 56 UPS-3000 Guide www.synqor.com
Section III Operation
Start-Up
•  that all connecons to the UPS are correct.
• If either the AC source or the DC source (or both) is present and within specicaons, the
color of the LED above the ON/OFF switch will be amber. This indicates that the UPS is
in standby mode and ready to turn on. The baery pack LEDs will also be appropriately
illuminated.
• Momentarily push the ON/OFF switch on the front panel of the UPS upward. The switch can
then be released and it will return to its normal (neutral) posion.
• The UPS will immediately enable its outputs (assuming there is no fault condion). The color
of the LED above the ON/OFF switch will change to green. The LEDs on the baery pack will
indicate the amount of power being delivered to the load and the input source from which
this power is being drawn.
 If no input power sources are available the UPS can sll be turned on. It will draw power
from the internal baery for as long as the baery has charge le in it. This is somemes referred
to as a “COLD START” in the industry. Under this condion, the LED above the ON/OFF switch
and the baery pack’s LEDs will inially all be o. When the ON/OFF switch is pushed to the
ON posion, all of these LEDs will be appropriately illuminated. Both baery packs need to be
inserted and charged in order for the cold-start to succeed.
Shut-Down
• Shut down the equipment connected to the UPS.
• Push the ON/OFF switch on the front panel of the UPS downward and hold it in this
posion for 1 second (or more). The color of the LED above the ON/OFF switch will change
to amber (if one or both input power sources are present) or it will be o (if no power
sources are present). The switch can then be released to return to its normal posion. The
service light on the baery will remain green for approximately 10 seconds aer a normal
shutdown
• The UPS will disable its outputs and shut down.
• The baery pack LEDs will either be appropriately illuminated (if one or both input power
sources are present) or they will be o (if no power sources are present).
• It is not necessary to move the AC BREAKER on the rear panel of the UPS to the OFF posion.
