SynQor 3-Phase UPS-1500 Series Manual

UPS-1500-S-1U
UPS-1500-E-2U
1.888.567.9596 (USA only) |SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA |www.synqor.com
Made in USA
N+M Redundancy
(optional)
Operator’s Guide
3-Phase UPS-1500 Series
UninterrUptible power SUpply

006-0007129 10/12/2018 Rev B 2 of 60 UPS-1500 3-Phase Guide www.synqor.com
Table of Contents
Section I Warnings
Hazardous Voltages ...................................................................................................................................................4
Hazardous Energies...................................................................................................................................................5
Battery Pack..................................................................................................................................................................6
Protection from the Environment .........................................................................................................................6
User Serviceable Parts...............................................................................................................................................6
Section II General Product Information
Product Description ...................................................................................................................................................7
Product Topology ........................................................................................................................................................8
Part Numbering Scheme and Options ............................................................................................................. 10
Product Specifications............................................................................................................................................ 12
Electrical Characteristics ..................................................................................................................................... 14
1U Mechanical Diagram....................................................................................................................................... 15
2U Mechanical Diagram....................................................................................................................................... 16

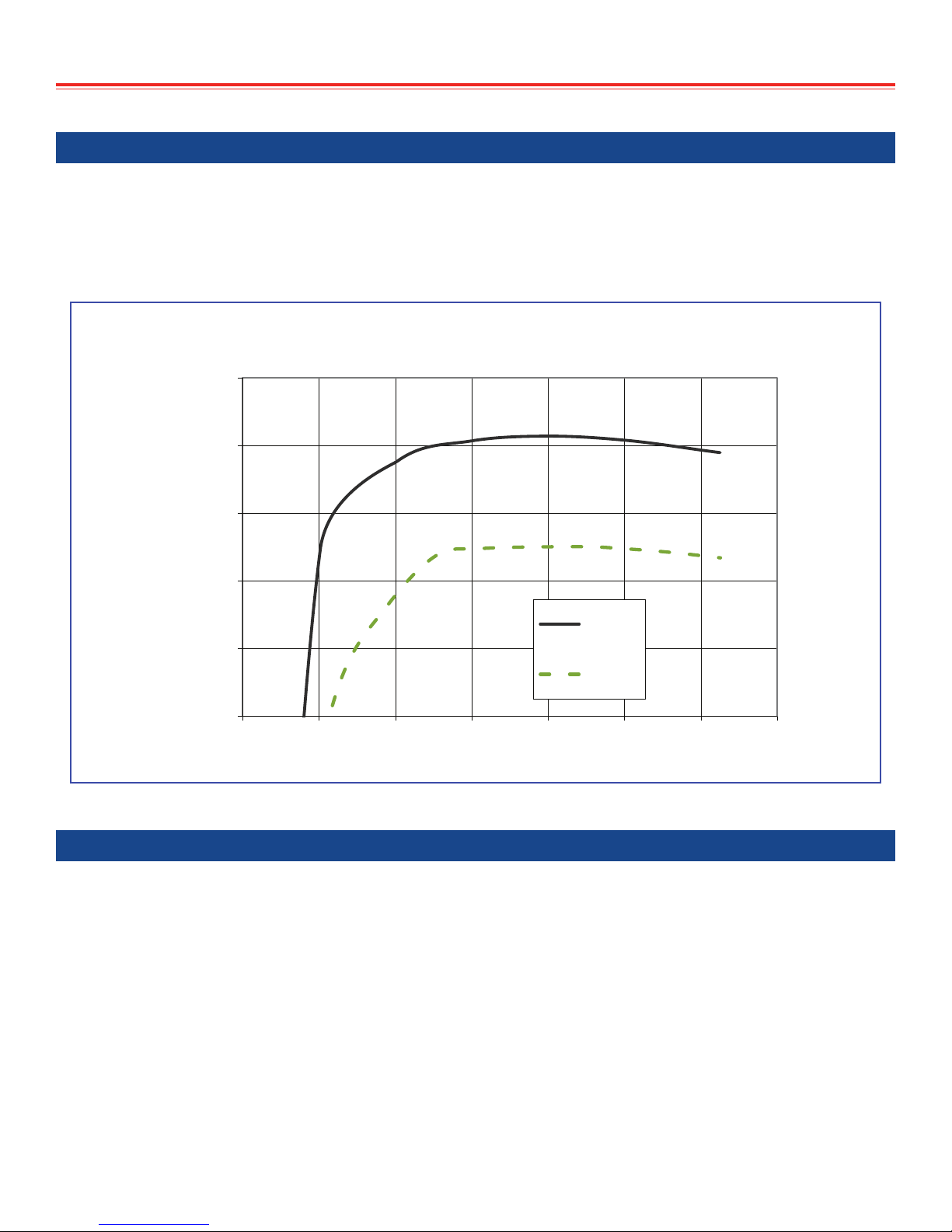

UPS Efficiency............................................................................................................................................................ 17
Total Output Power that can be derived from the AC INPUT................................................................. 17

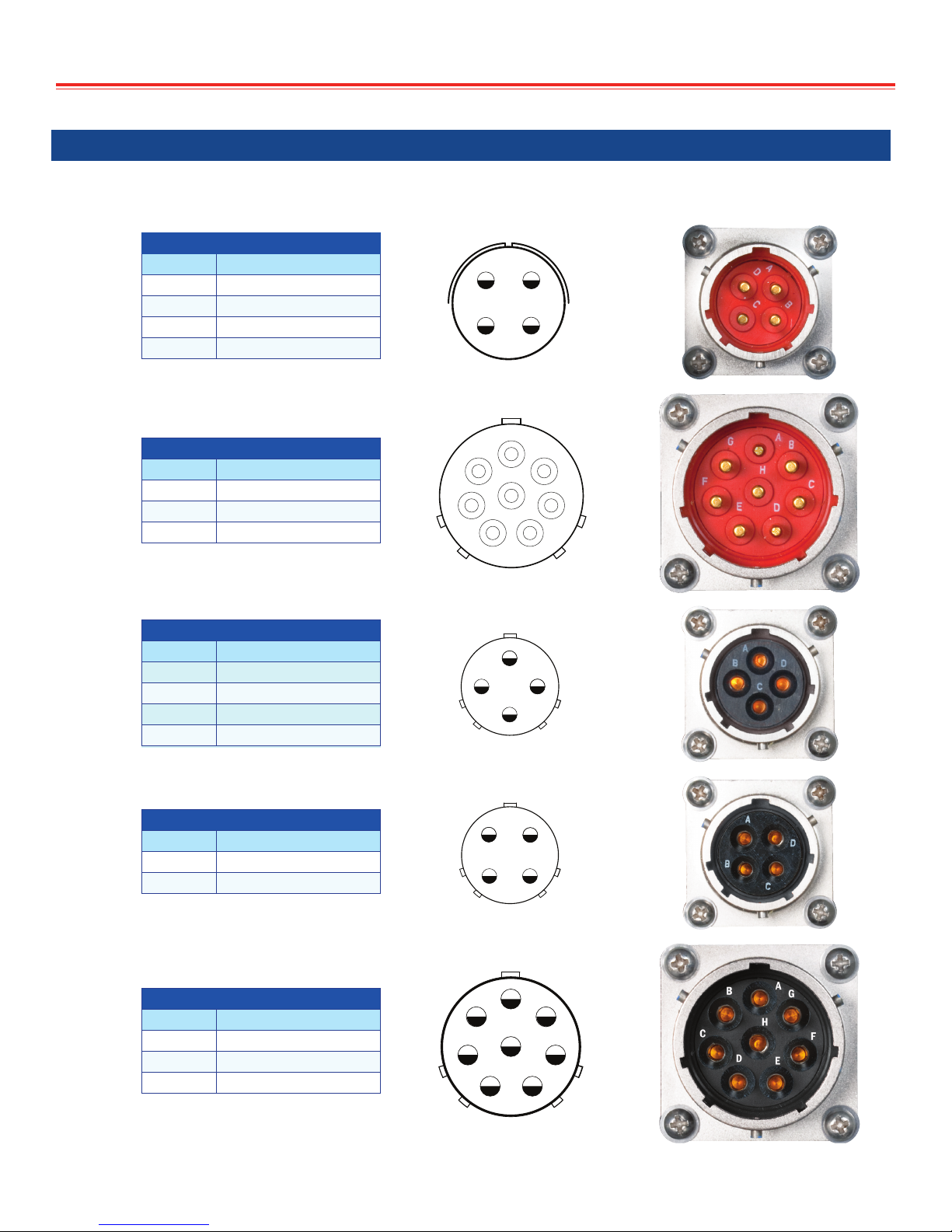

Power Cable Wiring Diagram ............................................................................................................................. 19
Power Cable Wire Size............................................................................................................................................ 20
Section III Operation
Set-Up ........................................................................................................................................................................... 22
Start-Up ....................................................................................................................................................................... 23
Shut-Down .................................................................................................................................................................. 23
Power Cable Connections/Disconnections While Operating .................................................................. 24
Cooling System .......................................................................................................................................................... 25
Front Panel Indicators ........................................................................................................................................... 26
LEDs...................................................................................................................................................................... 26
Audible alarm ................................................................................................................................................... 31
Hot Swapping the Battery Pack .......................................................................................................................... 31
Operating Environment......................................................................................................................................... 32
Section IV Multiple UPS Configurations
General Considerations ......................................................................................................................................... 33
Standard Paralleling “F” Option ....................................................................................................................... 33
Expanded Paralleling “R” Option....................................................................................................................... 34
Parallel Configurations of the AC OUTPUTS: Up to Three Units ........................................................... 35
Multi-unit Configurations............................................................................................................................. 35

006-0007129 10/12/2018 Rev B 3 of 60 UPS-1500 3-Phase Guide www.synqor.com
Parallel Configurations of the AC OUTPUTS: Up to 32 Unit “R” option ............................................. 36
Parallel Connection of the AC OUTPUTS ....................................................................................................... 37
Two UPS units with AC OUTPUTS Paralleled...................................................................................... 37
Three UPS units with AC OUTPUTS Paralleled................................................................................... 38
Series Split Phase Connection of AC OUTPUTS .......................................................................................... 39
3-Phase Connection of AC OUTPUTS ............................................................................................................. 40
Parallel Connection of DC OUTPUTS............................................................................................................... 41
Connection of the AC and/or DC INPUTS ...................................................................................................... 41
Multi-unit AC OUTPUT “ON/OFF” Control – Standard Parallel (“F” option) ......................... 41
Multi-unit AC OUTPUT “ON/OFF” Control – Expanded Parallel (“R” option)........................ 42
AC OUTPUT Neutral Grounding ............................................................................................................... 42
Wiring Caution ......................................................................................................................................................... 42
Section V Battery Pack
Battery Technology.................................................................................................................................................. 43
Electronic Circuitry within the Battery Pack ................................................................................................ 43
Battery Capacity....................................................................................................................................................... 44
Storage of the Battery Pack .................................................................................................................................. 45
Battery Pack Replacement .................................................................................................................................. 45
Handling the Battery Pack................................................................................................................................... 46
Section VI Control Interface Details
Control Cable Connections................................................................................................................................... 47
Internal User I/O Circuits............................................................................................................................. 48
Remote On/Off Switch Connections ......................................................................................................... 48
Digital Input/Output Control Signals............................................................................................................... 49
RS232 Serial Interface............................................................................................................................................ 50
Ethernet Interface.................................................................................................................................................... 51
Section VII Maintenance
Battery.......................................................................................................................................................................... 52
Fans ............................................................................................................................................................................... 52
Cleaning....................................................................................................................................................................... 52
Section VIII Trouble-Shooting Guide
Fault Conditions ....................................................................................................................................................... 53
Section IV (continued) Multiple UPS Configurations

Section I Warnings
006-0007129 10/12/2018 Rev B 4 of 60 UPS-1500 3-Phase Guide www.synqor.com
Section I Warnings
Hazardous Voltages
The INPUT and OUTPUT Power connectors and cables of the SynQor UPS may have voltages that
are unsafe. INJURY OR DEATH ON CONTACT may result. Appropriate safety precauons should
be taken. All connecons should be made in accordance with LOCAL ELECTRICAL CODES.
• The UPS CHASSIS should be connected to earth or system ground with Ground Stud on the
rear panel, see mechanical diagrams.
• For the AC INPUT cable and connector:
Do not assume that a hazardous voltage is not present at the terminals of the AC INPUT
connector, even if the UPS appears to be “OFF”.
Do not make contact with the terminals of the AC INPUT connector.
Always connect the cable to the UPS before it is connected to the source of AC power.
Always disconnect the AC INPUT cable from the source of AC power before disconnecng
it from the UPS.
If the AC INPUT cable is connected to the source of AC power and not connected to the UPS,
do not contact the exposed terminals of the AC INPUT cable.
Do not assume that the source of AC power is not present.
Connecons between the AC INPUT cable and the source of AC power should not be accessible.
• For the AC OUTPUT cable and connector:
Do not assume that a hazardous voltage is not present at the terminals of the AC OUTPUT
connector, even if the UPS appears to be “OFF”.
Do not make contact with the terminals of the AC OUTPUT connector.
Connect the AC OUTPUT cable to the UPS before the UPS is turned “ON”.
If connecon of the load to the AC OUTPUT cable has exposed conductors, make this
connecon before connecng the AC OUTPUT cable to the UPS.
Connecons between the AC OUTPUT cable and the load should not be accessible.
• For the DC INPUT cable and connector (if present):
The rated DC INPUT voltage of the UPS is below the level considered hazardous.
The DC INPUT terminals of the UPS are isolated from the AC INPUT and AC OUTPUTS with
reinforced safety insulaon.
However, never assume the terminals of the DC INPUT connector or the wires of the DC
INPUT cable are safe to contact, not even if the UPS or DC INPUT source appears to be “OFF”.

Section I Warnings
006-0007129 10/12/2018 Rev B 5 of 60 UPS-1500 3-Phase Guide www.synqor.com
• For the DC OUTPUT cable and connector (if present):
The rated DC OUTPUT voltage of the UPS is below the level considered hazardous.
The DC OUTPUT terminals of the UPS are isolated from the AC INPUT and AC OUTPUTS with
reinforced safety insulaon.
However, never assume the terminals of the DC OUTPUT connector or the wires of the DC
OUTPUT cable are safe to contact, not even if the UPS appears to be “OFF”.
• For the BATTERY PACK (if not inserted into the UPS):
When the baery pack is not inserted into the UPS, the baery is internally disconnected
from the power pins of the baery pack’s connector.
Even if this disconnecon were not present, the DC voltage of the baery is below the level
considered hazardous.
Do not apply external voltages to the pins of an exposed baery pack connector. It is not
possible to charge the baery pack from an external source. An external voltage could
damage the pack’s internal control circuitry.
Hazardous Energies
The INPUT and OUTPUT Power connectors and cables of the SynQor UPS may be the source of
high levels of energy. Do not inappropriately make electrical contact between any terminal of a
connector and another, or between any wire of a cable and another, or between any terminal or
wire and the UPS’s chassis or ground. DAMAGING ELECTRICAL ARCS may result upon contact. Care
should be taken to avoid accidental electrical contacts of any sort with the baery connector.
When the BATTERY PACK is not inserted into the UPS, the baery is internally disconnected
from the power pins of the baery pack’s connector. An electrical contact between any two of
these power pins or between any power pin and ground should therefore not be damaging the
pack. However, care should be taken to avoid accidental electrical contacts of this sort.

Section I Warnings
006-0007129 10/12/2018 Rev B 6 of 60 UPS-1500 3-Phase Guide www.synqor.com
Section I Warnings
Baery Pack
The individual LITHIUM POLYMER BATTERIES contained in the SynQor baery pack are sealed units
that are further mechanically protected by the baery pack’s chassis and electrically protected by
the baery pack’s electronic circuitry. Under normal condions they do not pose a hazard, but they
should not be physically, thermally or electrically abused.
The TRANSPORT of the baery pack must comply with applicable regulaons of the locality. See
“Baery Pack - Handling the Baery Pack”.
The baery pack should be DISPOSED in accordance with applicable regulaons of the locality
or RETURNED to a factory-authorized Service Center.
Emergency response contact informaon for baery damage, leaks, smoke, or res can be found
at the following link: http://www.SynQor.com/UPS/documents/Contact.pdf. Please contact
the SynQor factory for all other quesons regarding the UPS baery pack.
Do not dispose of baeries in a re. The baeries may explode.
Do not open or mulate baeries. Released electrolyte is harmful to the skin and
eyes. It may be toxic.
Always use the proper SynQor baery pack. See the baery replacement chart on page 45.
Protecon from the Environment
The SynQor UPS is a ruggedly built product having its electronics and baery contained in sealed
chambers. The UPS is capable of withstanding harsh levels of mechanical acceleraon, shock
and vibraon, temperature and pressure variaons, and exposure to water, salt, sand and dust
within the levels specied in the data sheet. THESE LEVELS SHOULD NOT BE EXCEEDED.
Do not obstruct the air intake in the front of the UPS or the fan exhausts in the rear panel of the
UPS while the UPS is operang.
User Serviceable Parts
UPS fans are user replaceable with kits available from SynQor. Please contact the SynQor factory
for obtaining fan replacement kits and instrucons (Replaceable Fan Module SYN-9450). The
SynQor UPS has no other user serviceable parts inside.
or any of its connectors. Other than fan assembly replacement, only factory trained personnel
should perform unit repairs.

006-0007129 10/12/2018 Rev B 7 of 60 UPS-1500 3-Phase Guide www.synqor.com
Section II General Product Information
Product Descripon
The SynQor UPS-1500 3-Phase Series is an advanced technology military-grade uninterrupble
power supply (UPS) that uses lithium polymer baeries and highly ecient power electronic
circuitry to achieve a high power level and baery run-me in a low-prole, low-weight, rack-
mountable package. It provides voltage and frequency condioning, electrical isolaon, and
power ow smoothing between the power inputs and its power outputs. It provides baery
backed-up power when other power sources are not present.
A communicaon/control port is available to permit monitoring and control by a host computer
system. Front panel LEDs and an audible alarm provide informaon on the status of the UPS and
the baery pack.
The UPS-1500 3-Phase Series products draw power from a 200VL-L/115VL-N AC INPUT connected
in delta. Note that since the UPS input is in delta, no physical neutral input connecon exists.
Line to neutral “INPUT”voltages discussed throughout this document are conceptual, not
physical. Line to neutral voltages will be referred in this document as line to virtual neutral
“” for discussion purposes.
The UPS grants a high degree of exibility in terms of supplying power to the unit. The AC INPUT
accepts a wide frequency range (45-800Hz). An oponal 28 V nominal DC INPUT may also be
used. The AC INPUT has priority over the DC INPUT. The UPS provides up to 1500 VA and 1250 W
of AC OUTPUT power at 115 or 230 Vac. The pure sine wave AC OUTPUT voltage can drive
any non-linear load with a crest factor up to 2.5, and any load power factor from 0.0 to 1.0.
The UPS-1500 also provides several opons on the unit’s output conguraon. There are two
oponal DC outputs, available at various voltage and power levels. However, note that the
combined AC and the DC opon output power is limited to 1250 W total.
The electronic circuitry within the UPS-1500 Series products is designed, qualied and screened
according to SynQor’s MIL-COTS Standards. It complies with the requirements of MIL-STD-704F,
MIL-STD-1399-300B, MIL-STD-1275D and MIL-STD-461F, as well as IEC-EN61000 specicaons
for world-wide commercial ulity applicaons.
The UPS-1500 Series products are designed and manufactured to withstand the harsh
environments and use encountered in military applicaons. The electronic circuitry and baery
are contained in a sealed chamber constructed from a die-cast aluminum chassis that is weather-
proof and shock- proof. Redundant, water-proof fans on the rear panel draw cooling air over
the heat-sink ns below the sealed chamber. Military-grade circular connectors are used, and
oponal aached connector covers are available for when the cables are not aached. The
UPS-1500 Series products comply with a wide range of tesng according to MIL-STD-810G.

Section II General Product Information
006-0007129 10/12/2018 Rev B 8 of 60 UPS-1500 3-Phase Guide www.synqor.com
The UPS-1500 Series has two product formats: 1) a 1U high unit that has a standard baery pack
that provides >10 minutes of full-power run-me, and 2) a 2U high unit that has an extended
baery pack that provides >24 minutes of full-power run-me. The former weighs approximately
32 lbs. and the laer 50 lbs.
The SynQor UPS-1500 Series products are designed and manufactured in the U.S.A.
Product Topology
The SynQor UPS-1500 Series products use a true on-line double conversion topology that
provides protecon to the load from spikes, noise, surges, brownouts, blackouts, etc. in the
input power sources. This topology also provides smoothing of load transients and nonlinear
load proles so that the input power sources are not subjected to these type of disturbances.
There is a seamless transfer from any power source to another so that there is no disrupon
in the output voltage waveform.
As the gure below shows, there is a nominal 28 V mid-bus within the UPS that draws power
from one of up to three power sources: the 3-Phase AC INPUT (primary source), the oponal
DC INPUT (secondary source) or the baery (backup source). EMI lters are present at all
external inputs and outputs.
3-Phase
AC
INPUT
DC
INPUT
DC2
OUTPUT
DC1
OUTPUT
AC
OUTPUT
3-Phase
AC to DC
w/ PFC
and ISOLATION
BATTERY
with
CHARGER
and
ELECTRONIC SWITCH
(OPTIONAL)
(Not available with DC2 Option)
ELECTRONIC
SWITCH
ISOLATED
INVERTER
BULK ENERGY
STORAGE
CAPACITOR
ISOLATED
DC-DC
CONVERTER
(OPTIONAL)
(OPTIONAL)
(OPTIONAL)
ISOLATED
DC-DC
CONVERTER
SWITCH
SINGLE-POLE
ELECTRONIC
BREAKER

Section II General Product Information
006-0007129 10/12/2018 Rev B 9 of 60 UPS-1500 3-Phase Guide www.synqor.com
Power ows into the unit from the AC 3-Phase delta connected INPUT (no neutral wire
connecon) through a power switch. Internal fuses in the input protect the unit in the event
of a hardware failure of the 3-Phase AC to DC INPUT stage.
The 3-Phase AC to DC INPUT stage provides input current liming, Power Factor
Correcon (PFC), and high frequency isolaon. In the DC INPUT power opon, power ows
from the DC INPUT through an electronic switch that is closed when the AC INPUT power
is absent and the DC INPUT voltage is within valid range. If power is not available on the AC
INPUT or in the oponal DC INPUT, a second electronic switch is closed which interconnects
the baery to the mid-bus.
The AC OUTPUT is created by an inverter that draws power directly from the mid-bus. This
inverter provides high frequency safety isolaon and a pure-sinusoidal output voltage waveform.
An oponal electronic breaker can be added to the AC OUTPUT. This one pole hot side only
electronic breaker allows for fault tolerant, glitch free operaon when several UPS units are
placed in parallel. This opon is referred as “expanded” parallel opon.
Oponal DC outputs at various voltage and power levels are also available. The DC1 opon is
limited to 500 W. The DC2 opon can deliver up to 1250 W output.
INPUTThe DC1 and DC2 outputs are isolated from
each other and from the AC OUTPUT.
Bulk energy storage capacitors are connected to the mid-bus to help smooth imbalances in
power ow between the inputs and outputs of the UPS.
There is a baery charger circuit that draws power from the mid-bus. It ensures the baeries
are normally fully charged and that the various cells are properly equalized. The baery also
contains protecon circuitry to avoid damage due to improper charging or discharging, or to
excessive temperatures.
There is a communicaon/control port that provides a digital interface to a host computer system.
UPS in Transit Case Option

Section II General Product Information
006-0007129 10/12/2018 Rev B 10 of 60 UPS-1500 3-Phase Guide www.synqor.com
Part Numbering Scheme and Opons
This table shows the part numbering scheme for the full line of SynQor UPS products:
Base Models
Model Number Power Battery Run-Time Height (W x D x H) Weight
@Full Power (80% Power)
UPS-1500-S-1U (1 Standard Battery Pack) 1250 W 1500 VA >10 min. (>13 min.) 1U (17.00” x 21.60” x 1.73”) 32 lbs.
UPS-1500-E-2U (1 Extended Battery Pack) 1250 W 1500 VA >24 min. (>31 min.) 2U (17.00” x 21.60” x 3.33”) 50 lbs.
Base Models
Options Options
AC
Input
Freq
AC
Output
Voltage
AC
Output
Neutral
Wire
AC
Output
Set
Point
Freq
DC
Input
/ DC2
Output
DC1
Output
Additional
Options
AC Input
Freq T47-65 Hz
47-800 Hz
AC Output
Voltage
1
2
115 Vrms
230 Vrms
UPS-1500-S-1U-
UPS-1500-E-2U- T1
2
S 00
00
D 12
G 5 M 15 -0 AC Output
Neutral
Wire
G
F
R
Grounded
F 6 P 24 -C Floating*
R 4 R 28 -E AC Output Electronic Breaker*
V 40
AC Output
Set Point
Freq
5
6
4
50 Hz
60 Hz
400 Hz
W 50
Not all combinations make valid part numbers, please contact SynQor for availability.
See the Product Summary web page for more options.
DC Input /
DC2 Output
SNot Installed
*Notes: D DC Input
Order “F: Floating” option when conguring the AC output for multi-unit combinations MDC2 Out 24 VDC with Droop Share
of up to 3 units. PDC2 Out 24 VDC No Share
Order “R: AC Output Electronic Breaker” option for fault-tolerant, RDC2 Out 28 VDC with Droop Share
glitch-free parallel systems of up to 32 units with N+M redundancy. VDC2 Out 28 VDC No Share
The AC output neutral wire will not be connected to the chassis. WDC2 Out 50 VDC No Share
Requires Ethernet / SNMP Option.
DC1 Output
00 None
12 12 V
Examples: 15 15 V
UPS-1500-E-2U-L1G6D28-000, UPS-1500-S-1U-L2G5S00-E00 24 24 V
UPS-1500-S-1U-L2G5S00-0CE (230 V output with CE marking) 28 28 V
40 40 V
50 50 V
Additional
Options
-0 None
-E Ethernet/SNMP
-C Ethernet/SNMP with Conguration Loading
00 No CE Marking
The UPS-1500 Series of products provide up to 1500 VA and 1250 W of total output power (AC
plus DC). They come in two dierent physical formats:
• A 1U high, 32 lb. rackmount unit that uses a standard baery pack that provides >10 minutes
of baery backup at full power.
• A 2U high, 50 lb. rackmount unit that uses the expanded baery pack provides >24 minutes of
baery backup at full power.
Each of the two rack mount unit conguraons have various opons that can be specied
according to the part numbering scheme shown in the table above:

Section II General Product Information
006-0007129 10/12/2018 Rev B 11 of 60 UPS-1500 3-Phase Guide www.synqor.com
• The allowable frequency of the 3-Phase AC INPUT must be in the 45-800 Hz range .
• The output voltage of the UPS-1500 Series can be Single-Phase: 115 VRMS or 230 VRMS.
• The AC OUTPUT can be congured with the neutral wire internally grounded to the chassis of
the UPS or le oang for shipboard applicaons.
• The Electronic Breaker opon adds fault tolerant, glitch free operaon for N+1 or N+M
redundancy. This opon, also allows the user to build mul-unit systems of up to 32 units total
in Single-Phase, Split-Phase, or 3-Phase system conguraon.
• The inial set-point frequency of the AC OUTPUT voltage can be 50 Hz, 60 Hz or 400 Hz.
• There is an oponal DC INPUT for the 3-Phase units. The DC INPUT opon is compliant with
the 28Vdc MIL-STD-704F and MIL-STD-1275D standards.
• On the output, two DC OUTPUT port opons with a number of DC voltage are available: DC1
with up to 500 W capability, and DC2 with up to 1250 W capability an oponal droop share
output characterisc.
• RS232 serial port and logic-level I/O communicaon are included in the standard model. An
Ethernet port providing web and SNMP interfaces is available as an opon.

Section II General Product Information
006-0007129 10/12/2018 Rev B 12 of 60 UPS-1500 3-Phase Guide www.synqor.com
Product Specicaons
The following three pages show the electrical and mechanical specicaons of the UPS-1500S-1U
high and the UPS-1500E-2U Series of products. Data sheets showing these specicaons and
other informaon can be found at the web site hp://www.synqor.com/UPS.
DC1 Output
Option
DC1 Output
Option
UPS-1500-S-1U with DC1 Output/DC2 Output Option
Ethernet Port
Option
Ethernet Port
Option
AC Output
AC Output
Exhaust
Fan
Exhaust
Fan
Exhaust Fan
Exhaust Fan
I/O
Port
I/O
Port
User
Config
Port
User
Config
Port
Ground
Stud
(1/4-20)
Ground
Stud
(1/4-20)
DC Input
Option
AC Input
AC Input
AC Switch
AC Switch
UPS-1500-S-1U with DC Input/DC1 Output Option
Air intakes
Status Indicator Panel
Status LED
On/Off
17.00"
1.73"
1U
UPS-1500-S-1U
DC2
Output
Option

Section II General Product Information
006-0007129 10/12/2018 Rev B 13 of 60 UPS-1500 3-Phase Guide www.synqor.com
Air intake
Status Indicator Panel
UPS-1500-E-2U
UPS-1500-E-2U with DC Input/DC1 Output Option
UPS-1500-E-2U with DC1 Output/DC2 Output Option
17.00"
3.33"
2U
On/Off
DC1 Output
Option
DC1 Output
Option
Ethernet Port
Option
Ethernet Port
Option
AC Output
AC Output
Exhaust
Fan
Exhaust
Fan
Exhaust Fan
Exhaust Fan
I/O
Port
I/O
Port
User
Config
Port
User
Config
Port
Ground
Stud
(1/4-20)
Ground
Stud
(1/4-20)
DC Input
Option
AC Input
AC Input
AC Switch
AC Switch
DC2
Output
Option

Section II General Product Information
006-0007129 10/12/2018 Rev B 14 of 60 UPS-1500 3-Phase Guide www.synqor.com
Electrical Characteriscs
INPUT CHARACTERISTICS
Operating AC Input
Voltage 85 - 140 Vrms L-N*
147-242 Vrms L-L
3-Phase Connection Type 3-Wire Delta
Frequency 45-800 Hz
Input Power Factor 0.999 at 45-65Hz
0.98 at 400Hz
Maximum Input Current Continuous 8.3A (full load, 85Vrms L-N)
AC Input Circuit Breaker Rating 10A
(* Power Derating to 85% below 100 Vrms L-N)
Operating DC Input (Optional)
Voltage 22-33V
Continuous Maximum Input Current 62A (full load, 22V)
Transient Maximum Input Current 75A
OUTPUT CHARACTERISTICS
Total Output Power Continuous 1250W (1500VA)
Maximum DC1 Output Power 510W
Maximum DC2 Output Power 1250W
(Note: Available AC power is reduced by power delivered to the DC output)
AC Output
AC Output Waveform Pure Sinusoidal
Voltage 115Vrms ± 3%
230Vrms ± 3%
Frequency 60Hz ± 0.5%
50Hz ± 0.5%
400Hz ± 0.5%
Peak Load Current 26A (115Vrms)
13A (230Vrms)
Load Power Factor 0-1.0 (leading or lagging)
Total Harmonic Distortion 2% (1000W resistive load)
DC1 Output (optional)
Voltage Regulation (Over Load & Temperature) ± 3%
Common Voltage/Power combinations (DC1) 12V at 42A =504W
(Other Options Available) 15V at 34A =510W
24V at 21A =504W
28V at 18A =504W
40V at 12.5A =500W
50V at 10A =500W
DC2 Output (optional)
Voltage Setpoint ± 3%
No Sharing
Voltage Regulation (Over Load & Temperature) -2%
Common Voltage/Power combinations (DC2) 24V at 50A =1200W
28V at 44.6A =1250W
50 V at 20 A =1000W
Droop Share (Output droops vs. load to allow passive sharing among modules.)
24V Option
Voltage Regulation (Over Load & Temperature) -15%
26V at 0A
22V at 50A =1100W
28V Option
Voltage Regulation (Over Load & Temperature) -13%
30V at 0A
26V at 48.1A =1250W
ENVIRONMENTAL CHARACTERISTICS MIL-STD-810G
Temperature Methods 501.5, 502.5
Operating Temperature -20°C — +55°C
Storage Temperature -40°C — +65°C
Altitude Method 500.5
Operating 0 - 18,000 ft
Non-operating 0 - 40,000 ft
Environmental Tests
Shock/Drop Method 516.6, Procedures 1,4,6
Temperature Shock Method 503.5, Procedure 1
Vibration Method 514.6, CAT 5, 7, 8, 9, 24
Fungus Method 508.6
Salt Fog Method 509.5
Sand and Dust Method 510.5, Procedures 1,2
Rain Method 506.5, Procedure 1
Humidity Method 507.5, Procedure 2
Mechanical Vibrations of Method 528, Procedure 1
Shipboard Equipment
RELIABILITY CHARACTERISTICS MIL-HDBK-217F
MTBF 100 kHrs MIL-217F Ground Benign, Ta=25 °C
ELECTROMAGNETIC CAPABILITY MIL-STD-461F
CE101 30 Hz - 10 kHz
CE102 10 kHz - 10 MHz
CS101 30 Hz - 150 kHz
CS106 10 kHz - 40 GHz
CS114 10 kHz - 200 MHz
CS116 10 kHz - 100 MHz
RE101 30 Hz - 100 kHz
RE102 10 kHz - 18 GHz
RS101 30 Hz - 100 kHz
RS103 2 MHz - 40 GHz
MECHANICAL CHARACTERISTICS
1U (Standard Battery Pack)
Chassis Size (H x W x D) 17.00”W x 22.53”D x 1.73”(1U)
Case Material Aluminum
Total Weight 32 lbs. (with chassis & battery)
2U (Extended Battery Pack)
Chassis Size (H x W x D) 17.00”W x 22.53”D x 3.33”(2U)
Case Material Aluminum
Total Weight 50 lbs. (with chassis & battery)
Connectors
AC Input Connector MS3470L14-4PW
DC Input Connector MS3470L18-8P
AC Output Connector MS3470L14-4S
DC1 Output Connector MS3470L14-4SW
DC2 Output Connector MS3470L18-8S
User I/O Ports HD DB15 Female
Conguration I/O Port HD DB15 Male
Ethernet Port Amphenol RJF22N00, Code B
Cooling Exhaust Fans
Sound Pressure Level (SPL) 54 dB(A)
Air Flow 0.67(m3/min) 23.7 CFM
Two fans in system, above specs are for each fan separately.

Section II General Product Information
006-0007129 10/12/2018 Rev B 15 of 60 UPS-1500 3-Phase Guide www.synqor.com
1U Mechanical Diagram
MADE IN USA
UPS
POWER OUT
POWER IN
LOAD
CHARGE
FAN
BATT
BATTUPS
ON
OFF
.750"
[19.05]
.750"
[19.05]
9.750"
[247.65]
18.700"
[474.98]
19.450"
[494.03]
.313"
[7.9502]
.625"
[15.875]
.55"
[13.97]
UNIT
MOUNTING
HOLES
8-32 .250" [6.35]
x26
1.73" [43.942]
1.50" [38.1]
22.53"
[572.1]
17"
[431.8]
3.33"
[84.582] 1.749"
[44.4246]
2.375"
[60.325]
.750"
[19.05]
.750"
[19.05]
9.750"
[247.65]
22.53"
[572.1]
18.700"
[474.98]
19.450"
[494.03]
UNIT
MOUNTING
HOLES
8-32 .250"
[6.35]
x52
.625"
[15.875]
1.50" [38.1]
2.062"
[52.3748]
.313"
[7.9502]
.55"
[13.97]
17"
[431.8]

Section II General Product Information
006-0007129 10/12/2018 Rev B 16 of 60 UPS-1500 3-Phase Guide www.synqor.com
2U Mechanical Diagram
3.33"
[84.582] 1.749"
[44.4246]
2.375"
[60.325]
.750"
[19.05]
.750"
[19.05]
9.750"
[247.65]
22.53"
[572.1]
18.700"
[474.98]
19.450"
[494.03]
UNIT
MOUNTING
HOLES
8-32 .250"
[6.35]
x52
.625"
[15.875]
1.50" [38.1]
2.062"
[52.3748]
.313"
[7.9502]
.55"
[13.97]
17"
[431.8]

Section II General Product Information
006-0007129 10/12/2018 Rev B 17 of 60 UPS-1500 3-Phase Guide www.synqor.com
UPS Eciency
Figure 1 shows the typical eciency with which the UPS-1500 3-Phase series uninterrupble
power supplies delivers power to its AC OUTPUT from a 200 VrmsL-L/115 VrmsL-vN AC INPUT or
a 28 V DC INPUT. The inseron loss of the “Electronic Breaker” opon can be of up to 1% of the
total eciency at full load.
70.0%
75.0%
80.0%
85.0%
90.0%
95.0%
0 200 400 600 800 1000 1200 1400
E c iency
Output P ower (W atts )
S ynQor UP S E c iency vs . Output
P ower and Input Voltage
28 Vdc
115VL-N
Figure 1
Total Output Power that can be derived from the AC INPUT
The total combined UPS output power (the AC OUTPUT power plus the oponal DC OUTPUT
power opons) for the UPS-1500 series is rated at 1250 W for an ambient temperature as high
as 55°C (131°F). Power is drawn rst from the primary AC INPUT (if voltage is within range) and
then the secondary DC INPUT (if voltage is within range) and then from the internal BATTERY
PACK (if it has sucient charge).
However, when the AC INPUT voltage is at the low end of its range (<100VL-vN AC) the UPS will
not be able to deliver its full rated output power in the steady-state without switching over to
either the DC INPUT (if it is available and >22 Vdc) or its internal baery. If one of the phases is
missing in the 3-Phase AC INPUT source the UPS will switch to the secondary DC INPUT source if
present, or the to the baery backup if the DC INPUT source is not available.

Section II General Product Information
006-0007129 10/12/2018 Rev B 18 of 60 UPS-1500 3-Phase Guide www.synqor.com
Figure 2 indicates the total steady-state output power that the UPS can draw from the AC INPUT
vs line voltage. See Figure 3 for informaon on transient condions.
0
200
400
600
800
1000
1200
1400
80 90 100 110 120 130 140 150
Output
Power (W)
Input Voltage (VL-N)
UPS Output Power vs. 3-Phase AC Input Voltage
Steady State
Figure 2
• If the AC INPUT voltage is above 100VL-vN, then the UPS can deliver its full rated output power
of 1250 W from the AC INPUT for an ambient temperature as high as 55°C (131°F) without
needing to switch over to the oponal DC INPUT or the internal BATTERY PACK
• If the AC INPUT is between 100VL-vN and 85VL-vN then the total output power that can be
derived from the AC INPUT linearly decreases from 1250 W at 100V L-vN to 1000 W at 85VL-vN.
For example, the total output power that could be drawn from the AC INPUT would be 1083
W at 90VL-vN. If the total output power is greater than this derated value, the UPS will switch
to the DC INPUT (if it is available and >22 V) or the internal BATTERY PACK.

Section II General Product Information
006-0007129 10/12/2018 Rev B 19 of 60 UPS-1500 3-Phase Guide www.synqor.com
Looking at the rear panel, the UPS connector terminals have the following functions and locations:
AC INPUT
A
B
C
D Ground
A
B
D
C
DC INPUT
A
BG
H
DE
CF
AC OUTPUT
A
B
C
D Ground
A
BD
C
DC1 OUTPUT
OUT
A
B
D
C
DC2 OUTPUT
OUT
A
H
FC
B G
D E

Section II General Product Information
006-0007129 10/12/2018 Rev B 20 of 60 UPS-1500 3-Phase Guide www.synqor.com
Power Cable Wire Size
SynQor recommends the following cables for use with the UPS-1500 Series:
AC INPUT: SYN-9114 UPS connecon to NEMA L15-30P Plug, 10’
SYN-9113 UPS connecon to Hardwire Terminaon, 10’
AC OUTPUT: SYN-9131 UPS connecon to NEMA 5-20 Receptacle, 10’
SYN-9130 UPS connecon to Hardwire Terminaon, 10’
DC INPUT: SYN-9151 UPS connecon to Ring Connectors, 10’
SYN-9154 UPS connecon to NATO Connector, 10’
DC1 OUTPUT: SYN-9171 UPS connecon to Fork Connectors, 10’
SYN-9172 UPS connecon to Hardwire Terminaon, 10’
DC2 OUTPUT: SYN-9174 UPS connecon to Harwire Terminaon, DC2 OUTPUT, 10’
SYN-9175 UPS connecon to Fork Connectors, DC2 OUTPUT, 10’
Other opons may be available. Contact or visit the website:
for more informaon. If it is necessary to develop custom cables for your
applicaon, please read through the following secon for some important consideraons.
Both the input and output cables of the UPS carry substanal current, and since the wires in
these cables have resistance, the current owing through them causes a voltage drop from one
end of the cable to the other. In other words, the voltage across the cable at its downstream end
is smaller than the voltage across the cable at its upstream end. Mathemacally, the amount
that the voltage drops is equal to the resistance of the cable’s wire mulplied by the current
owing through the wire. It is therefore important to make sure that the resistance of the cable’s
wire is small enough to keep this voltage drop to an acceptable level.
While this is an issue for all of the power cables, it is parcularly important for the DC INPUT and
DC2 OUTPUT cables. DC current owing through these cables can be very high (65 A for the
UPS-1500 Series) while at the same me, the input voltage to the UPS is relavely small (22 V). A
common problem might develop due to high cable resistance (when the DC INPUT cable gage is
too small) which causes the input voltage to the UPS to fall below the 22V minimum. Under this
condion the UPS will switch to the internal baery pack for its power source even though the
voltage at the DC power source appears to be available and within proper range.
The resistance of a wire is also directly proporonal on its length. A wire twice as long as another
will have twice the resistance, holding all other things constant. The resistance in a cable is also
inversely proporonal to the cross-seconal area of the wire, which in turn is proporonal to the
square of the diameter of the cable. A wire with half the diameter of another will therefore have
four mes the resistance, holding all other things constant.
This manual suits for next models
2
Table of contents
Other SynQor UPS manuals
