SYREBO SY-HRC11 User manual

1
Soft Rehabilitation Glove
SY-HRC11 User Manual
Version: V1.0
Issuance Date: 17/3/2021

2
Contact Information
Manufacturer:
Shanghai SiYi Intelligent Technology Co.,Ltd.
Address: East Area Of Floor 5,No.26,Lane 3399,Kangxin Road,Pudong New Area,Shanghai,
China,201321
Tel: [phone]
Country of Origin: China
Website: http://siyizn.com
E-mail: [e-mail]
Name: MedPath GmbH
Add: Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

SY-UM-01
1
Important
Descriptions on the Environment of Use
This product is a common device that can run continuously (enclosed device without the ability to
prevent liquid from entering), and it cannot be used in the presence of a mixture of flammable
anesthetic gas and air or a mixture of flammable anesthetic gas and oxygen or nitrous oxide.
This product may break down due to the interference of electromagnetic waves from portable TV,
radio transceiver, and electric toys, etc. Please keep it away from these products.
Electromagnetic compatibility. This product should be kept away from the objects that can
generate strong electromagnetic waves or noise, such as nuclear magnetic resonance equipment,
microwave generator, and radiation equipment (e.g. X-ray machine, CT machine, etc.);
This product should be kept away from high-frequency surgical instruments, such as
high-frequency electrotome, and mobile phone, etc.
Intellectual Property
The intellectual property rights of this Manual and its corresponding products are owned by
Shanghai SiYi Intelligent Technology Co., Ltd.
and are registered trademarks of Shanghai SiYi Intelligent Technology Co.,
Ltd., and are owned solely by Shanghai Siyi Intelligent Technology Co., Ltd.
This User Manual may not be copied, modified, translated or distributed by any person or
organization in any form without the written consent of Shanghai SiYi Intelligent Technology Co.,
Ltd.
Disclaimer
All contents in this manual are written in strict accordance with relevant national laws and
regulations and the technical specifications of Shanghai SiYi Intelligent Technology Co., Ltd., and
have been strictly checked and ensured to be correct. Shanghai SiYi Intelligent Technology Co.,
Ltd. is not liable for any consequences caused by improper use.
Shanghai SiYi Intelligent Technology Co., Ltd. has the right to change the contents and version
number of this User Manual according to the changes of product specification and the software
upgrades without prior notice.

SY-UM-01
2
Notification
Before using the Soft Rehabilitation Glove, please read this manual carefully to have a clear
understanding of its functions and operations.
Keep this manual handy so that it can be referred to whenever needed. Follow the operating
procedures and usage described in this guide.
Do not modify the device, replace any parts, use non-specified parts, or remove protection
devices, as these actions could result in a hazardous situation.
General Warnings
Training is mandatory. Use this document as a guide during training and as a
reference after training.
This manual is not a substitute for training.
Plug and unplug the power supply with the normal procedure! Otherwise, it will lead
to serious injury or death!
Do not plug and unplug the power supply with wet hands! Otherwise, it will lead to
serious injury or death!
Use the power supply as specified, otherwise it will cause fire or electric shock!
The device must not be disassembled or repaired by non-professionals without
permission, otherwise it will cause fire or electric shock!
The power must be disconnected before opening the casing of the host. When the
casing is opened, the device cannot be used.
The power supply of the device is 100~240V, 50/60Hz, Before using the device, it is
necessary to verify that the power supply voltage matches with the voltage value of
the adapter.
PLEASE READ THIS USER MANUAL BEFORE
OPERATING the glove

SY-UM-01
3
General Cautions
Do not use the device if users are distracted or not paying attention to the operation
of the glove.
This product is contraindicated in the following people:
1) Patients with severe disturbance of blood circulation;
2) Patients with comminuted fracture or bone cancer;
3) Patients with burn injury, bleeding condition, suppuration or uncontrollable
infectious diseases;
4) Patients with severe deformation or spasm of hands;
5) Patients with obvious hand trauma or allergy to N Cloth and Lycra.
Attention should be paid to avoid static electricity during use, which may cause
damage to the device.
Please remove the adapter and disconnect the power supply in time if the device is
not used for a long time.
Do not use unofficial accessories for the sake of safety.
Shut down the device and unplug the power supply immediately in any one of
following conditions during operation:
1) Lightning strike;
2) Occurrence of abnormal sound, smoke or peculiar smell;
3) Excessive surface temperature of the host;
4) Entry of water into the host;
5) The user feels pain, swelling or other discomfort.
It is suggested that the duration of single training should be about 20 minutes.
As gloves are often worn by patients, the following measures can be taken to ensure
the safety and hygiene of gloves:
1) Patients need to wear disposable gloves for isolation during training;
2) Gloves shall be regularly wiped with 75% medical alcohol for five times or
disinfected with ultraviolet radiation for one hour;
3) Pneumatic rehabilitation gloves and data gloves are consumables, with a service
life of 3 months and 6 months respectively under continuous use. Failure to replace
the gloves after their expiration may reduce rehabilitation effect and clinical
experience.
The following requirements on storage shall be observed:
1) Do not place weights on the device and its accessories;

SY-UM-01
4
2) Do not expose it to direct sunlight or high temperature;
3) Do not expose it to high humidity;
4) Do not store it in a place with intense vibration;
5) Do not store it in a place where children or pets can reach.
Working environment: Temperature, +5℃~+40℃; relative humidity, ≤80%;
atmospheric pressure: 860 hPa ~ 1060 hPa;
Transportation and storage environment: Temperature: -40℃~+55℃; relative
humidity, ≤93%; atmospheric pressure: 860 hPa ~ 1060 hPa.
It could be transported by general means or transported in the manner specified in
the contract. During transportation, it shall be protected from sunlight, rain, severe
vibration and impact, and shall not be transported together with toxic, corrosive or
explosive substances.
The device should be maintained regularly, and the routine maintenance should be
carried out once a week to clean the dirt and dust outside the host and check whether
all interfaces on the host function properly.
When using the training system in a wheelchair, it is necessary to ensure that there is
enough barrier-free space under the desktop to accommodate the wheelchair.
The hand length of patients using this product must be in the range of 8 ~ 22 cm.
The wearing parts need to be cleaned and disinfected regularly, and the
power-assisted rehabilitation gloves are consumable and need to be replaced
regularly to ensure hygiene and effectiveness.
Please inform the manufacturer and competent authority in case of any adverse
events related to the device occur.
The therapist should evaluate the patients’ hand function before training；
The therapist should evaluate whether the product is suitable for patients by letting
the device running for a trial cycle
The patient should be trained in the presence of the therapist.

SY-UM-01
5
Content
Contact Information............................................................................................................................ 2
Important............................................................................................................................................. 1
Disclaimer........................................................................................................................................... 1
Notification..........................................................................................................................................2
1. Introduction..................................................................................................................................... 7
1.1 About this User Manual........................................................................................................ 7
1.2 Glossary and Abbreviations.................................................................................................. 7
2. System Description......................................................................................................................... 8
2.1 Intended Use..........................................................................................................................8
2.2 Applicable Locations.............................................................................................................8
2.3 Indications............................................................................................................................. 8
2.4 Contraindications.................................................................................................................. 8
3. Symbols used in this User Manual................................................................................................10
4. System Components......................................................................................................................13
4.1 Host..................................................................................................................................... 13
4.2 Rehabilitation gloves...........................................................................................................13
4.3 DG01 Data Gloves.............................................................................................................. 14
4.4 Charger and Data Line........................................................................................................ 14
5. System Features.............................................................................................................................15
5.1 Working Mechanism........................................................................................................... 15
5.2 Product Model and Software Version................................................................................. 15
5.2.1 Product Model..........................................................................................................15
5.2.2 Software Version...................................................................................................... 15
6. Instructions on Use and Installation..............................................................................................16
6.1 Preparation before Use........................................................................................................16
6.2 Wearing Gloves................................................................................................................... 16
6.3 Glove Size........................................................................................................................... 17
7. Descriptions on Product Training Functions................................................................................ 18
7.1 Product introduction............................................................................................................18
7.1.1 Buttons..................................................................................................................... 18
7.1.2 Icons......................................................................................................................... 18
7.2 Passive training................................................................................................................... 20
7.3 Mirror training.....................................................................................................................20
7.4 Active training.....................................................................................................................21
8. Trouble-Shooting...........................................................................................................................22
8.1 The movement range of power-assisted rehabilitation gloves is obviously reduced or there
is no movement at all:............................................................................................................... 22
9. Cleaning and Maintenance............................................................................................................23
9.1 Cleaning and Maintenance..................................................................................................23
9.2 Maintenance of Training Equipment.................................................................................. 23
10. Repair Policy............................................................................................................................... 24
11. Disposal....................................................................................................................................... 24
12. Warranty...................................................................................................................................... 24

SY-UM-01
6
13. Warranty...................................................................................................................................... 25
12.1 Service Support................................................................................................................. 25
14. Packing List.................................................................................................................................25
Appendix A........................................................................................................................................26

SY-UM-01
7
1. Introduction
1.1 About this User Manual
This User Manual provides the information necessary to operate the Soft Rehabilitation Glove.
PLEASE READ THIS USER MANUAL BEFORE OPERATING the glove. If any part of
this User Manual is not clear, contact Customer Support for assistance.
1.2 Glossary and Abbreviations
Table 1.1 Glossary and Abbreviations
Mode
The current method to operate the Soft Rehabilitation Glove system,
such as Passive Mode, Mirror Mode, Active Mode etc.
Therapist
A specially-trained medical professional who is qualified to adjust the
Soft Rehabilitation Glove to the user, and provides the user with proper
usage instructions.
User
The person who uses the Soft Rehabilitation Glove.

SY-UM-01
8
2. System Description
2.1 Intended Use
The soft rehabilitation glove is suitable for rehabilitation training of patients with finger joint
dysfunction.
2.2 Applicable Locations
The device can be used in institutions engaged in rehabilitation, including hospitals,
rehabilitation centers or clinics, community-based rehabilitation centers and elderly-care
institutions, Patients can also use it at home.
2.3 Indications
The soft rehabilitation glove is mainly used for finger joint rehabilitation training of patients
with finger movement dysfunction caused by cerebral stroke and brain trauma.
2.4 Contraindications
Absolute Contraindications: The device must not be used!
•Patients with severe disturbance of blood circulation;
•Patients with comminuted fracture or bone cancer;
•Patients with burn injury, bleeding condition, suppuration or uncontrollable infectious
diseases;
•Patients with severe deformation or spasm of hands;
•Patients with obvious hand trauma or allergy to N Cloth and Lycra.
Relative Contraindications: Each patient must be conscientiously assessed by the
doctor/therapist in charge individually to determine if Soft Rehabilitation Glove therapy is
suitable for the patient in case of:
•A patient after surgery;
•A patient with twisted finger joints;
•A patient with abnormal skin function;
•A patient with various acute diseases;
•A patient with disturbance of blood circulation;
•A patient with fever above 38℃;
•A patient undergoing treatment;

SY-UM-01
9
•A patient during menstruation or pregnancy;
•A patient with heart diseases and implanted with pacemaker and other medical
electronic devices.
Note:
In case of abnormal hand muscle tension or severe hand swelling, pain and other
discomfort during training, please contact the attending doctor or rehabilitation
physician in time, and stop using the soft rehabilitation glove immediately if
necessary. Before using the soft rehabilitation glove, it is necessary to consider the
opinions of the attending doctor or rehabilitation physician to carry out the
corresponding hand function rehabilitation treatment.

SY-UM-01
10

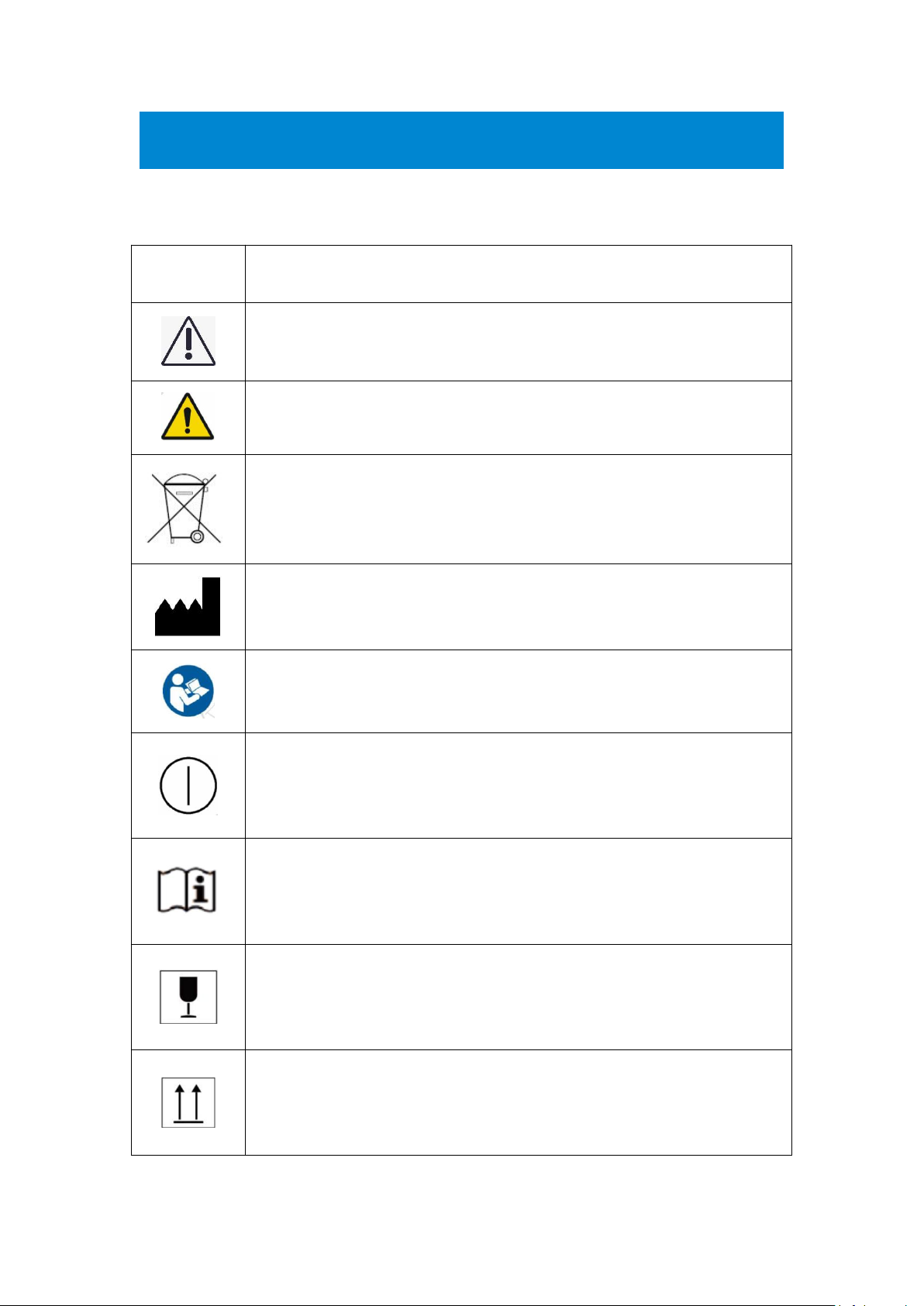

3. Symbols used in this User Manual
Table 3.1 Symbols
Symbol
Description
Warning! Please refer to the document attached!
General warning symbol
Do not discard with household waste
Information about the manufacturer of the device
Follow the user manual
Shutdown button
Caution! Please read the operating instructions carefully!
Frangible
Upward

SY-UM-01
11
Protected from rain
Protected from direct sunlight
Protected from radiation
Serial number
Authorized representative in the E.U
use by
Type B applied part
date of manufacture
Medical device
CE Marking

SY-UM-01
12
Electrical safety classⅡ

SY-UM-01
13
4. System Components
This section describes various components of the Soft Rehabilitation Glove
system.
(See Fig. 4.1~Fig. 4.7 ).
4.1 Host
Components of host: (1) display space; (2) buttons area; (3) data interface; (4) Power interface; (5)
Charge interface
4.2 Rehabilitation gloves
Components of power-assisted rehabilitation gloves: (1) Non-indentation fabric; (2) Corrugated
pipe; (3) Air manifold box; (4) Air outlet pipe

SY-UM-01
14
4.3 DG01 Data Gloves
Components of data gloves: (1) Sensor; (2) Hyper-elastic lycra fabric; (3) Collection plate
4.4 Charger and Data Line
Components of adapter: (1) DC plug; (2) Power plug

SY-UM-01
15
5. System Features
This section explains the features of the Soft Rehabilitation Glove system.
5.1 Working Mechanism
The working mechanism of the soft rehabilitation glove is described as below. The control
module of the glove issues a control instruction according to the parameters set by the
operator in advance, to realize the bending and stretching movements of the power-assisting
rehabilitation glove through the positive and negative pressure switching of the pneumatic
driving technology, thus to drive the joints for rehabilitation training. Through repeated
rehabilitation training, the glove could stimulate joints, generate a virtuous circle of the
physiological synovial fluid, reduce joint swelling, and prevent or treat joint motion
amplitude reduction and joint stiffness caused by trauma or insufficient exercise.
5.2 Product Model and Software Version
5.2.1 Product Model
SY-HRC10
5.2.2 Software Version
The software is used in this product in its full version of V1.4.0.0
The software is used in this product in its release version of V1.

SY-UM-01
16
6. Instructions on Use and Installation
6.1 Preparation before Use
（1）Take out all parts from the box, confirm the absence of any abnormal conditions such as
breakage or missing, and place them on a horizontal and vibration-free desktop;
（2）Connect the air supply plug of Rehabilitation gloves with Rehabilitation interface on the
side of the host;
（3）Insert the DC plug of the adapter into the DC socket on the side of the host, and connect
the adapter to the AC power supply of 100~240V 50/60Hz through the power line;
（4）Press the switch button“ ” to turn on the host;
（5）Wear Rehabilitation gloves in your affected hand and prepare for training;
6.2 Wearing Gloves
Rehabilitation gloves have halves for left hand and halves for right hand with various sizes.
Patients should select suitable gloves to wear according to their own conditions. If the stiffness of
joint or the muscle tension of hand is high, please massage the affected hand for 3~5 minutes first.
When wearing the glove, put fingers into the glove first, and properly pull the whole glove
towards the wrist, so that the fingertips go as far as possible into the glove, then tighten the glove
with the hook & loop waist fastener on the inner side of the glove. Finally, wrap the tying tape
around between the thumb and forefinger and stick it tightly.

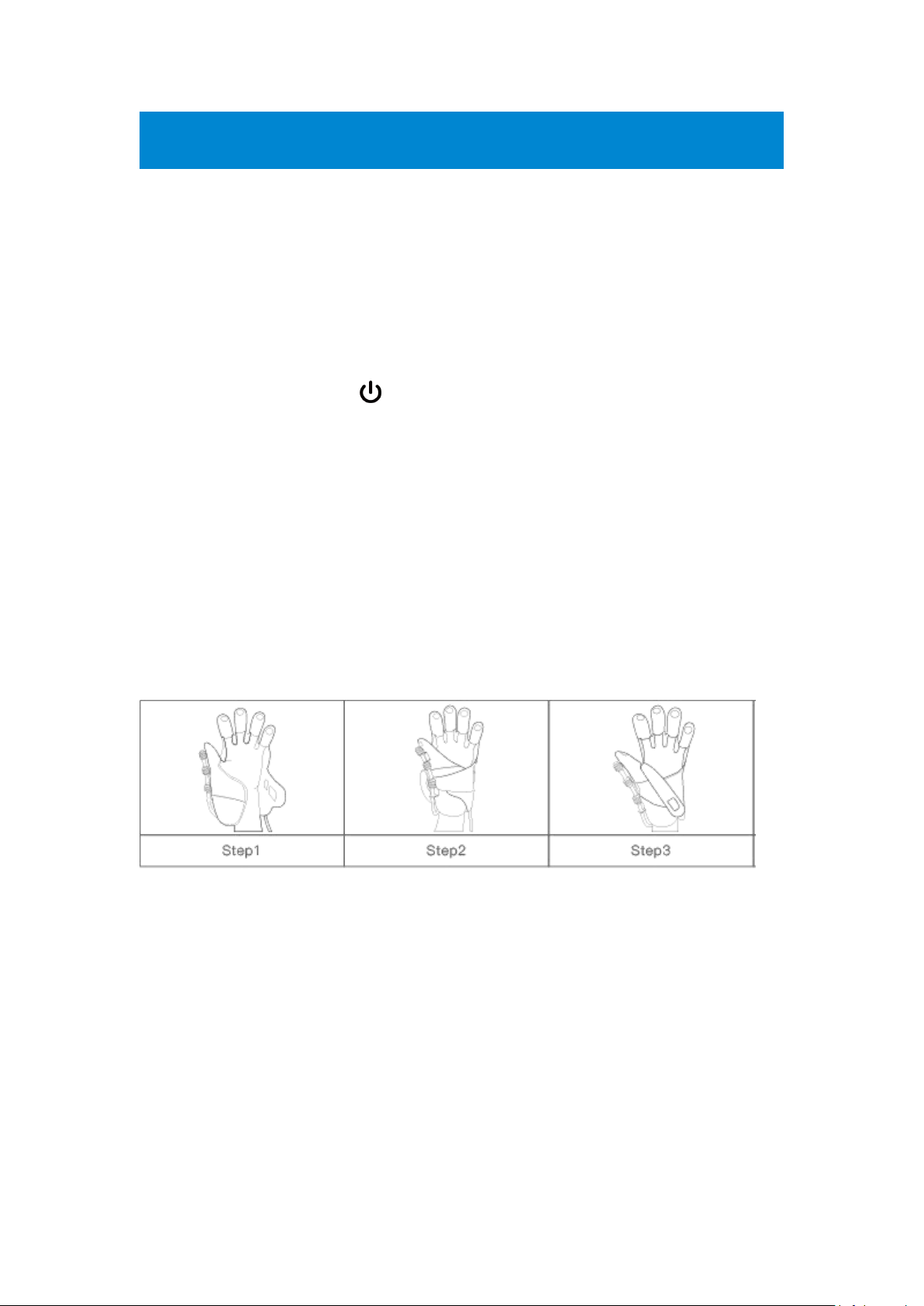

Step 1 : Wear the rehabilitation glove on the affected hand;
Tip：All fingers should reach the top.
Step 2 : Pull the velcro over your wrist and stick it on.
Tip : Try to keep your fingers touching the top of the glove.
Step 3 : Pull the velcro strap from the end of the thumb on the back along the middle of the thumb and index
finger to the velcro on the palm to complete wearing.
Tip: Please wear gloves correctly, there is no gap between the wrist and the gloves when making a fist.

SY-UM-01
17

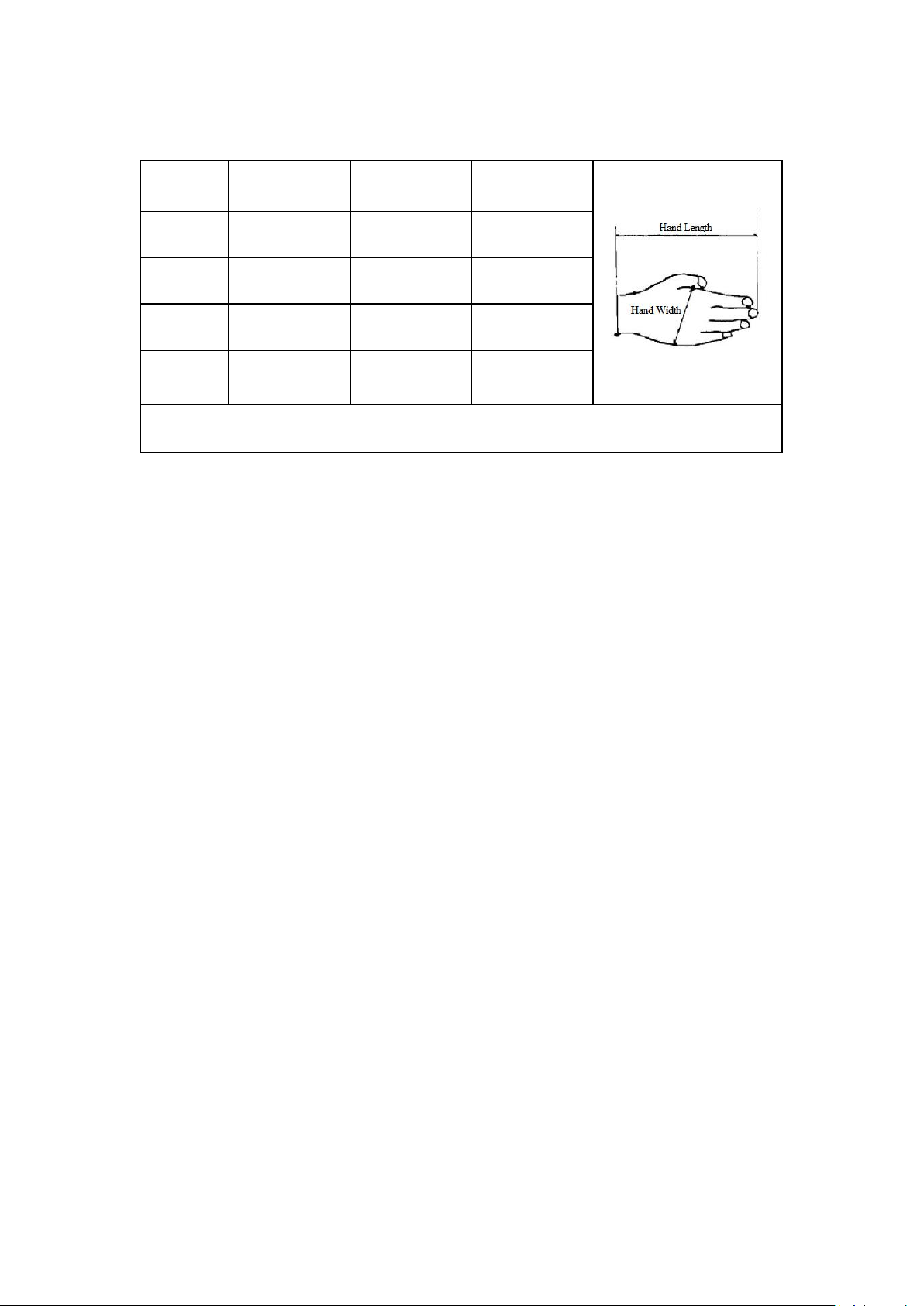

6.3 Glove Size
Size
Height (cm)
Hand Length
(mm)
Hand Width
(mm)
L
>178
190~210
85~89
M
156~178
162~190
78~85
S
140~156
135~162
60~78
XS
<140
90~135
50~60
Other sizes are available through customization

SY-UM-01
18
7. Descriptions on Product Training Functions
The functions and operation steps in this Manual are described according to full functions, some
of which are not universally applicable to all types of products. For detailed information on model
configurations and functions, please refer to the descriptions specific to the product model or seek
advices from Shanghai SiYi Intelligent Technology Co., Ltd. or its authorized agent.
7.1 Product introduction

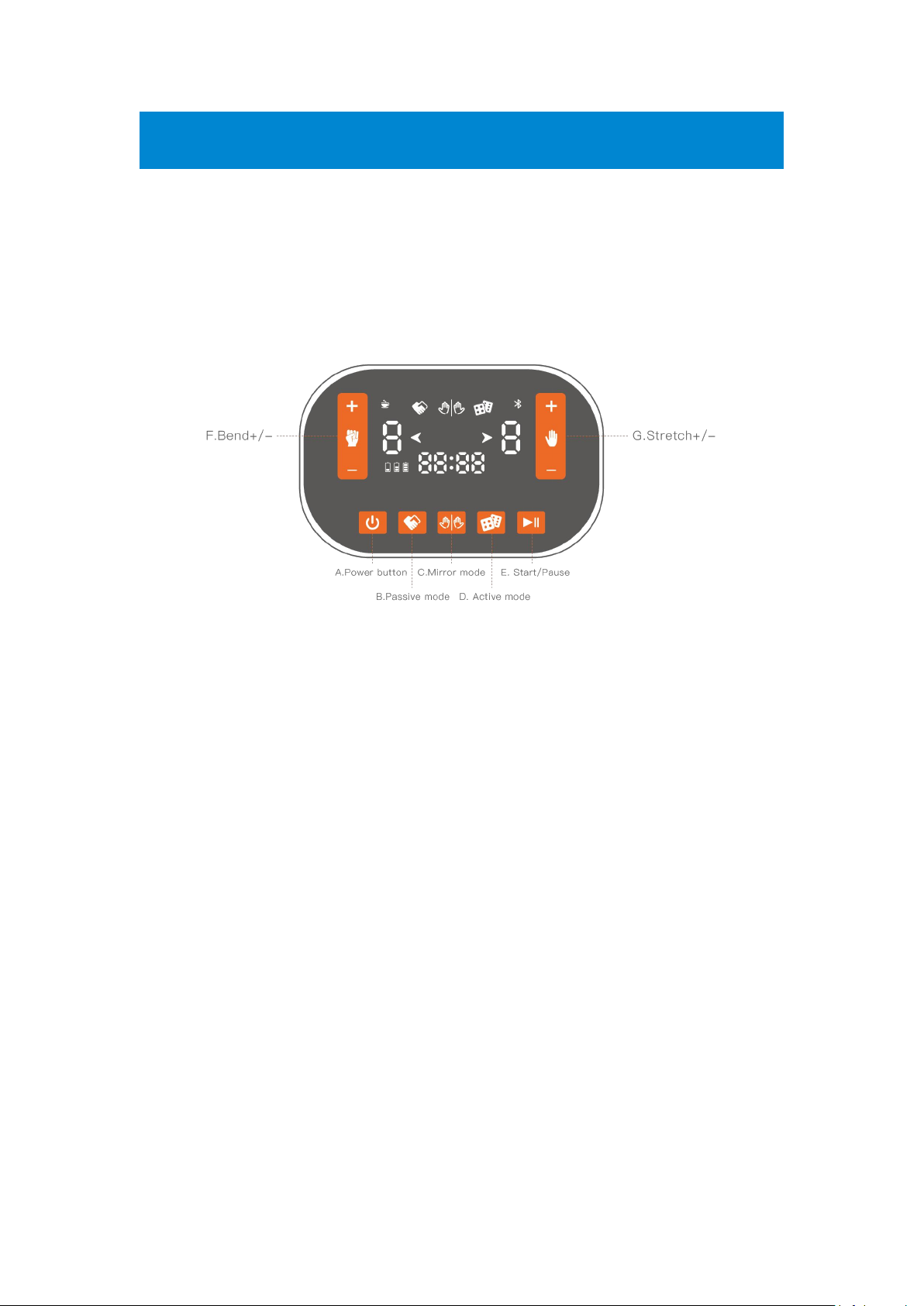

7.1.1 Buttons
A. Power button: long press to turn on/off.
B. Passive training: switch to passive training.
C. Mirror training: switch to mirror training.
D. Active training: switch to active training.
E. Start/Pause: press this button during the host is running,to pause the operation; press it again
to start running.
F. Bend+/-:adjust the bend strength/level(There are a total of 9 levels, 3s/level. Every time
increases one level, the time interval increases by 1s. The 9th level is 11 seconds. The higher
the level, the greater the strength.)
G. Stretch+/-:adjust the stretch strength/level(There are a total of 9 levels, 3s/level. Every time
the patient increases one level, the time interval increases by 1s. The 9th level is 11 seconds.
The higher the level, the greater the strength.)
7.1.2 Icons
