Systime HELLO II User manual
0309 V3.1
1
SYSTIME CORPORATION LIMITED
HELLO II
Bluetooth Headset
User’s Guide
Hello2.com.tw
0309 V3.1
2
Contents
Safety Approvals and Certification......................................................................................................3
Introduction............................................................................................................................................5
Headset Features...................................................................................................................................7
Charging the Headset............................................................................................................................8
Wearing the Headset...........................................................................................................................10
Switching the Headset On/Off............................................................................................................ 11
Pairing the Headset............................................................................................................................. 11
Using the Headset ...............................................................................................................................13
Accepting a Call...................................................................................................................................13
Ending a Call........................................................................................................................................13
Making a Call........................................................................................................................................13
Volume Control....................................................................................................................................14
Transferring a Call between Headset and Mobile Phone.................................................................15
Mute/Un-mute.......................................................................................................................................15
Resetting the Headset.........................................................................................................................15
Headset LED Indicator ........................................................................................................................16
Desktop Charger Indicator..................................................................................................................16
Audio Tones.........................................................................................................................................17
Specifications ......................................................................................................................................18
Limited Warranty .................................................................................................................................19
0309 V3.1
3
Safety Approvals and Certification
Users are advised not to make changes or modify the device in any way. Changes or modifications not
expressly approved by Systime will void the warranty.
FCCNotices
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
0309 V3.1
4
CEStatement
Important Notice: This device is a 2.4GHz FHSS Bluetooth headset, intended for office and home uses
in all EU and EFTA member states.
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Systime.
0309 V3.1
5
Introduction
Congratulations on your purchase of a Systime Hello II Bluetooth Headset. The Systime Hello II
Bluetooth Headset is quite light, weighing just about 10g. Before you begin, you should ensure that the
device you would like to use in conjunction with the Systime Hello II Bluetooth Headset is compatible
with Bluetooth specification v1.1 or higher and supports the Bluetooth headset profile.
Read this user’s guide carefully before you start using the Systime Hello II Bluetooth Headset.
Package Contents
In this package, you will find:
One Systime Hello II Bluetooth Headset
One Neck strap
One Desktop charger
One AC adapter
Four Ear Cushions
One User’s guide
0309 V3.1
6
Bluetooth Wireless Technology
The Bluetooth wireless technology is set to revolutionize the personal connectivity market by providing
freedom from wired connections. It is a specification for a small form-factor, low-cost radio solution
providing links between mobile computers, mobile phones and other portable and handheld devices,
and connectivity to the Internet. The Bluetooth Special Interest Group (SIG), comprised of leaders in the
telecommunications, computing, and network industries, is driving development of the technology and
bringing it to market. The Bluetooth SIG includes promoter companies 3Com, Ericsson, IBM, Intel,
Lucent, Microsoft, Motorola, Nokia and Toshiba, and more than 2000 adopter companies.
0309 V3.1
7
Headset Features
1. Talk Button: Switches the headset on/off, answers/ends a call, pairs the headset with a device, and
is used for voice dialing.
2. Volume Up/Down Button: Adjusts the speaker volume.
3. LED Indicator: Displays the status of the headset.
4. Earpiece: Holds the headset in the ear.
5. Speaker: Plays incoming audio.
6. Earpiece Arm: Provides superior stability and durability.
7. Microphone: Picks up external audio.
8. Charging Port: Charges the battery.
9. Reset Button: Re-initializes the headset.
1
2
2
3
7
6
5
9
8
4
0309 V3.1
8
Charging the Headset
The headset has a rechargeable battery. Before using the headset for the first time, you have to charge
the headset battery for approximate 150 minutes to get a full charge. A fully charged battery provides
over 4 hours of talk time and over 1 week of standby time.
If the battery is low, you will hear an audio warning tone through the headset speaker at 16-second
intervals, and the LED indicator flashes red. The low battery warning tone will begin three to five
minutes of talk time before the headset runs out of power.
You can recharge the headset at any time without waiting for the battery to be completely discharged.
To keep the battery in good condition, please always recharge the headset within a month once the
headset is fully discharged.
Before charging, make sure that headset (with internal battery) is at room temperature. The battery will
not charge in very cold and very hot conditions.
Please note that the headset battery is not replaceable.
0309 V3.1
9
Tochargetheheadset:
1. Connect the AC adapter to the desktop charger, then plug into an electrical outlet.
2. Place the headset in the desktop charger.
3. During charging, the red indicator light on the desktop charger illuminates.
4. When the battery is fully charged, the indicator light on the charger turns green.
5. You can now remove the headset from the desktop charger, and disconnect the desktop charger
from the AC adapter.
During charging, if an incoming call arrives while the headset is switched on, you can answer the call
simply by removing the headset from the desktop charger.
0309 V3.1
10

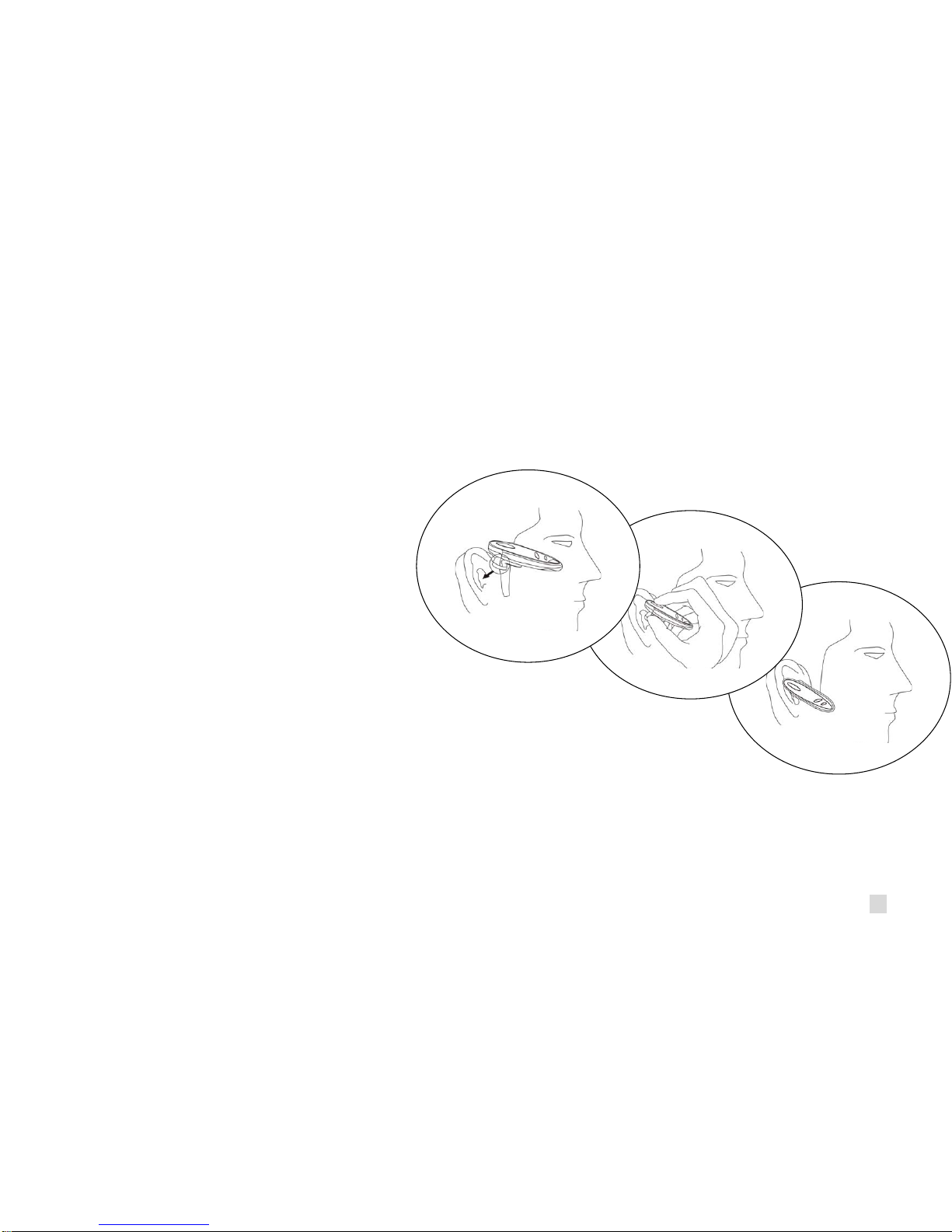

Wearing the Headset
The Systime Hello II Bluetooth Headset can be worn either on the right or left ear. The earpiece is
adjustable, and the 90-degree, rotatable design ensures a snug yet comfortable fit in your ear. To put on
the headset, please follow the instructions as below:
1. Directly put the earpiece into your
outer ear canal.
2. Adjust the headset to fit your ear.
3. The microphone should be positioned
towards to your mouth.
The ear cushion supplied with Systime Hello II Bluetooth Headset provides
additional comfort and better fitting. To attach the ear cushion,
1. Hold the headset firmly.
2. Cover the earpiece with the ear cushion.
3. The ear cushion is attached to the ready-to-wear headset.
0309 V3.1
11
Switching the Headset On/Off
Toswitchtheheadseton
1. Press the Talk button for about 5 seconds until you hear two high tones. The LED indicator flashes
blue four times.
2. The headset switches on and enters standby mode. The LED indicator continuously flashes blue
every 3 seconds.
Toswitchtheheadsetoff
1. Press the Talk button for about 3 seconds until you hear two low tones. The LED indicator flashes
red four times.
2. The headset switches off and the LED indicator no longer blinks.
Pairing the Headset
Before using the headset, you must first pair it with a Bluetooth enabled device, such as a Bluetooth
mobile phone. Pairing is the necessary for two Bluetooth devices to connect each other wirelessly. After
creating a paired link, you do not need to repeat the pairing process and the headset automatically links
to the mobile phone when both devices are turned on. Paring must be performed every time you want to
use the headset with a different Bluetooth mobile phone or other Bluetooth enabled devices.
0309 V3.1
12
To initiate pairing between the headset and a Bluetooth mobile phone in close proximity:
1. Please turn off the headset.
2. Make certain the mobile phone is switched on.
3. Press the Talk button to switch on the headset, and keep the Talk button pressed for 3 seconds
until the LED indicator alternates between blue and red. The headset is now ready for pairing with
the mobile phone.
4. Perform a device discovery from the mobile phone. (For details on device discovery, please
consult your phone’s user’s guide.)
5. Once the mobile phone discovers the headset, the text Hello II appears on the phone’s screen.
6. Follow the phone instructions to accept pairing. When prompted to enter the passkey, enter the
number: 0000.
7. If time runs out after 60 seconds and the pairing fails, you will have to repeat the steps above. You
can view the status from the phone’s screen.
8. On completing pairing, the phone’s screen will notify you that the pairing was successful. The LED
indicator continuously flashes blue, and the headset goes into standby mode.
9. You can now make and answer calls through the headset.
0309 V3.1
13
Using the Headset
Before using the headset, make sure that (1) the headset is switched on and connected to a paired
Bluetooth mobile phone; (2) the headset is within 10 meters of the phone; and (3) the phone’s Bluetooth
feature is on (see your phone’s user’s guide).
Accepting a Call
When an incoming call comes, the headset rings and the LED indicator flashes blue three times at
three-second intervals. To receive the call from the headset, press the Talk button once. You can also
answer the call by using your phone in the normal way. Please note that if the mobile phone rings first,
wait until you hear a ring tone from the headset, and then press the Talk button to answer the call.
Ending a Call
To end a call, press the Talk button once on the headset or press the phone’s END key. The headset
returns to standby mode.
Making a Call
You can make a call through:
0309 V3.1
14
Voiceactivation
To use voice activation, the mobile phone must support voice dialing. For details on voice dialing,
please see your phone’s user’s guide.
1. Press the Talk button once on your headset.
2. After a short tone sounds, speak the name of the person you wish to connect (if he or she has a
voice tag in your phone).
3. The phone automatically dials the number. You can see the details of the call from the phone’s
screen.
** For Nokia mobile phones, you have to press and hold the “Names” key first, and then speak the
person’s name after the short tone.
Dialing a phone number from your mobile phone
1. Dial the phone number from the mobile phone’s keypad.
2. Press the key to send the call from your phone.
3. The call automatically transfers to the headset.
Volume Control
During a call, you can adjust the headset speaker volume. An audio tone is played for each volume up
and volume down step.
0309 V3.1
15
To increase the volume, press the volume up button repeatedly until you reach the desired level. To
decrease the volume, press the volume down button repeatedly until you reach the desired level.
Transferring a Call between Headset and Mobile Phone
To transfer a call from the headset to the mobile phone, initiate it from the mobile phone. (Refer to your
phone’s user’s guide)
To transfer a call from the mobile phone to the headset, simply press the Talk button once even If the
headset is then switched on after a call has been initiated.
Mute/Un-mute
To mute the headset sound, press the volume up button or the volume down button for 2 seconds until
you hear two low beeps repeated every 2 seconds. To un-mute, press the volume up button or the
volume down button.
Resetting the Headset
If the headset cannot function normally, you can try to reset it. To reset the headset, press the reset
button at the bottom of the headset once, and then switch on the headset.
0309 V3.1
16
Headset LED Indicator
Status Blue LED Red LED Interval Remarks
Turning on 4 times
Turning off 4 times
Pairing mode Flashes blue and red alternatively until the pairing is complete or time out.
Standby mode Once Once 3 seconds Flashes red when low battery
For Nokia handsets, flashes
blue three times every three
seconds.
Incoming call 3 times 3 seconds For Nokia handsets, flashes
four times every three seconds.
Talk mode 4 times 4 times 3 seconds Flashes red when low battery
Desktop Charger Indicator
Status Red LED Green LED
Charging in process On
Charging complete On
0309 V3.1
17
Audio Tones
Switching on Two high tones Switching off Two low tones
Pairing modeTwo high tones Incoming call Aring tone at a 2-second interval
Mute Two low beeps repeated every 2
seconds Un-mute Two high tones
Low battery An audio tone every 16 seconds.
Particularly, for Nokia mobile phones
All sounds generated from the mobile phone automatically transfer to the headset.
When an incoming call comes, the headset uses the same ring tone as the mobile phone. If the
mobile phone is set in vibration mode, you won’t hear any ring tone from the headset.
To transfer a call from the mobile phone to the headset when the headset is switched on after a call
has been initiated, first answer the call from the phone, and then press the Talk button on the
headset. The phone’s screen shows “Connect with Hello II?”. Press “Accept” to transfer the call.
0309 V3.1
18
Specifications
Standard Compliant with Bluetooth specification v1.1
Chipset BlueCore2-Audio single chipset
Profile Supported Bluetooth Headset profile
Radio Frequency 2402 MHz ~2480 MHz
Transmitter Power Class 2 (max 4dBm)
Transmission Range Up to 10 meters
Receiver Sensitivity -77 dBm
Charger Power Supply 5VDC / 500 mA
Temperature Operating: -20°C to 60°C; Storage: -20°C to 60°C; Charging: 0°C to 45°C
Operation Voltage 3.7V
Battery Rechargeable 110mAh Lithium Polymer battery
Charging Time 150 minutes
Talk Time HV1: over 4 hours; HV3: over 7 hours
Standby Time More than 1 week
Dimension 60(L)x18(W)x11(H) mm
Weight 10.8g (not including desktop charger)
HV1 mobile phones: Nokia 6310/6310i/8910/8910i
HV3 mobile phones: Ericsson T39/T68; Sony Ericsson T68i/P800/T610/Z600
0309 V3.1
19
Limited Warranty
Systime Corporation Limited Limited One-Year Product Warranty
Systime Corporation Limited warrants this product against defects in materials and workmanship for its
warranty period. If a defect is discovered, Systime will, at its option, repair or replace the product at no charge
provided it is returned during the warranty period with transportation charges prepaid to the authorized Systime
dealer from whom you purchased the product. Repaired or replaced product will be returned to you at the
same revision level as received or higher at Systime’s option. Systime reserves the right to replace discounted
product with an equivalent generation product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication; if
the product has been modified or dismantled without the written permission of Systime; or if any Systime serial
number has been removed or defaced.
The warranty and remedies set forth above are exclusive and in lieu of all others, whether oral or written,
expressed or implied. Systime specifically disclaims any and all other warranties, including implied warranties
of merchantability, fitness for a particular purpose, and non-infringement of third party rights are expressly
excluded.
Systime is not responsible for special, incidental or consequential damages resulting from any breach of
warranty or under any other legal theory, including, without limitation, damages resulting from use of or
reliance on this information presented, loss of profits or revenues or costs of replacement goods, even if
informed in advance of the possibility of such damages.
0309 V3.1
20
SYSTIME CORPORATION LIMITED
Hello2.com.tw
Tel: +886 2 2368-6171
17F, No. 100, Sec.2, Roosevelt Rd.,
Taipei 100, Taiwan, R.O.C.
Table of contents
