T.I.P. GROOM-IT Specifications

1619 COUNTY K
CUSTER, WI 54423
PHONE [phone] · FAX [phone]
E-Mail · [email protected]
www.tipinc.net
PULL-TYPE BRUSH SYSTEM
WITH OPTIONS
OPERATOR’S INSTRUCTIONS
AND PARTS MANUAL

Groom It
1
=T.I.P. Inc.=
GROOM-IT Brush System
Congratulations on your purchase of the T.I.P. Groom-It Brush System!
You can rest assured that you have one of the highest quality turf brush
systems on the market today. With proper care and maintenance, your
Groom-It will provide you with years of reliable service. If you have any
questions about the Groom-It, or any of our other turf care products, feel
free to call us or drop us a line. We would be delighted to serve you in the
future. Thank you for your patronage.
CONTENTS
Section Page
Table of Contents 1
Limited Warranty 2
Safety 3
Set-Up 5
Operation Instructions 6
Storage 7
Maintenance 7
Groom-It Plus Option 8-9
*Parts:

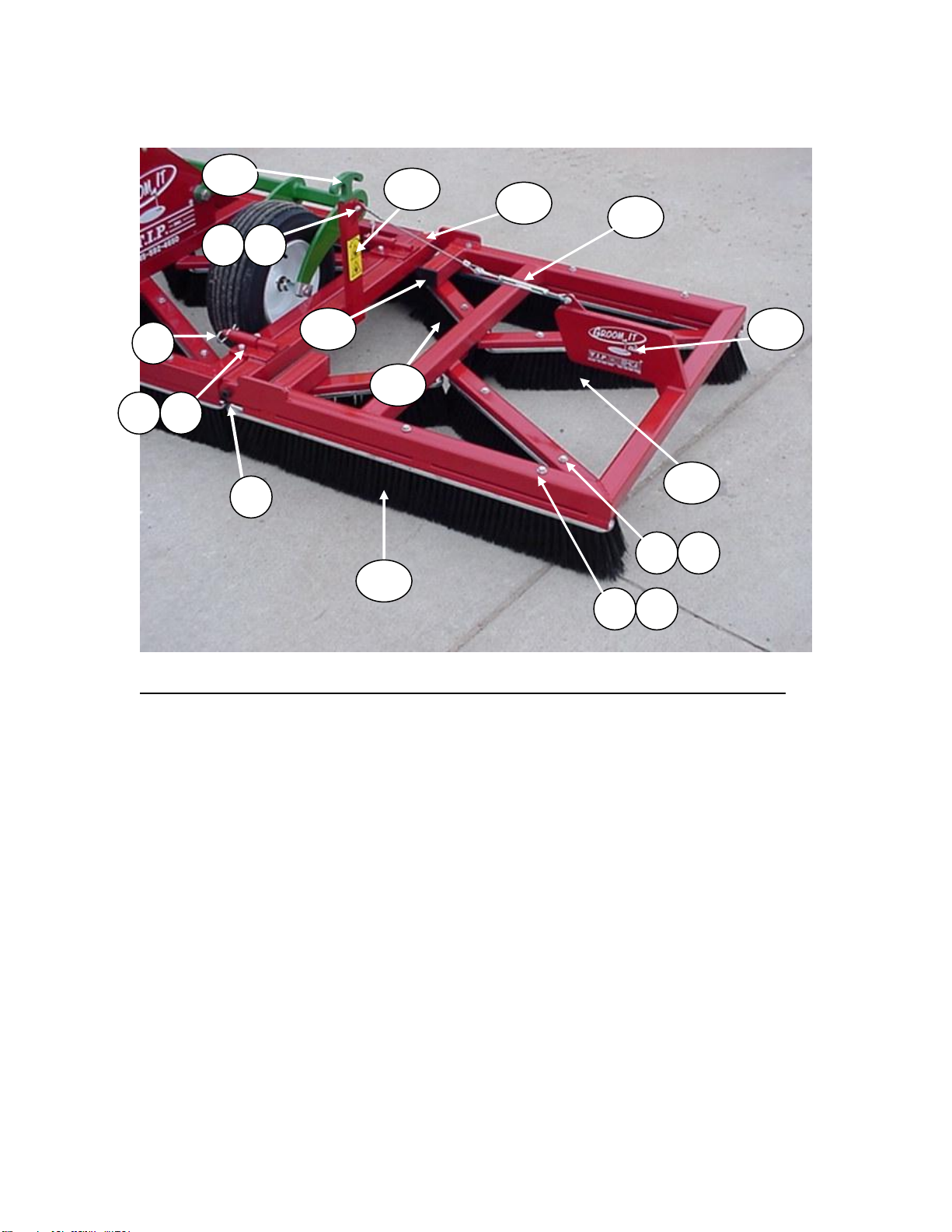

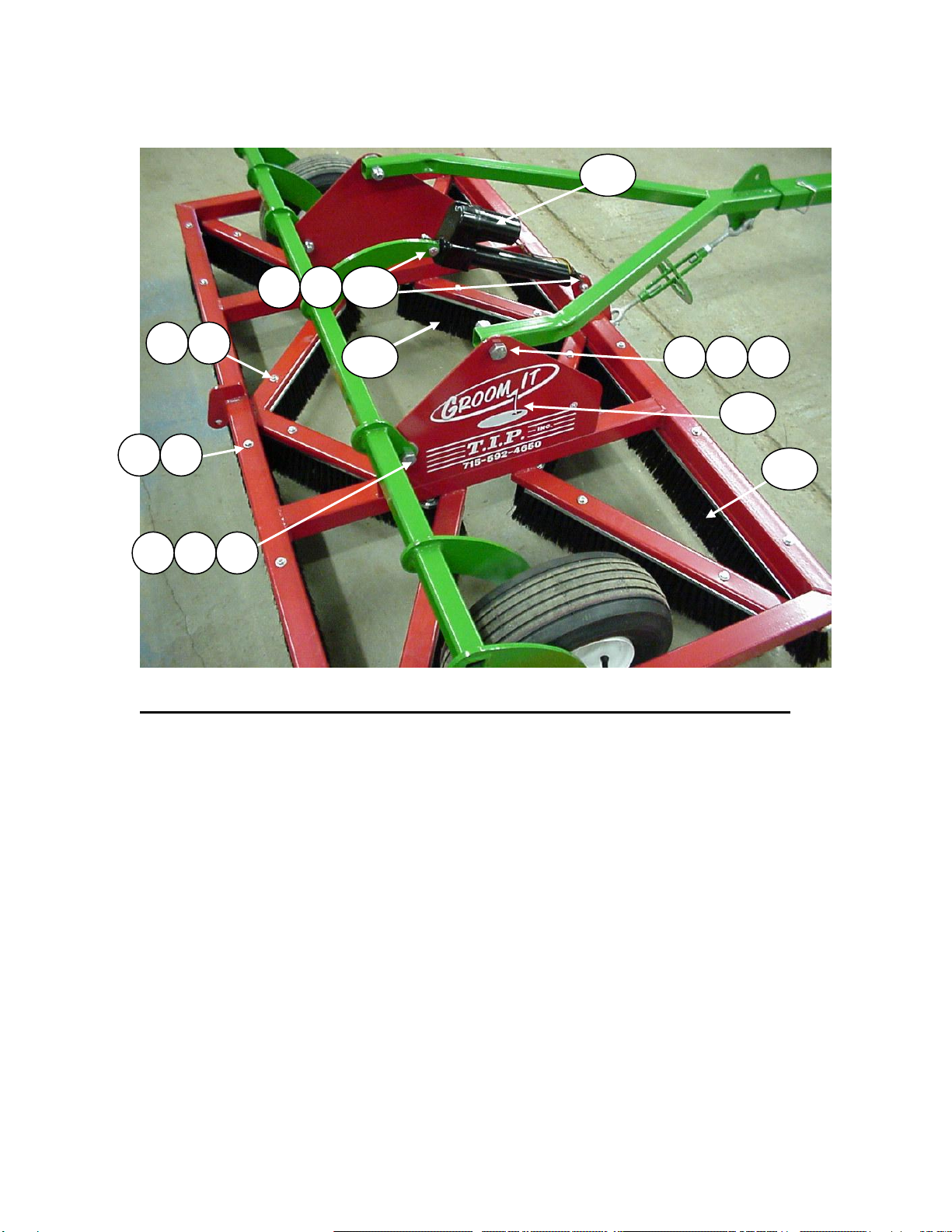

Figure #1-Main Frame 13

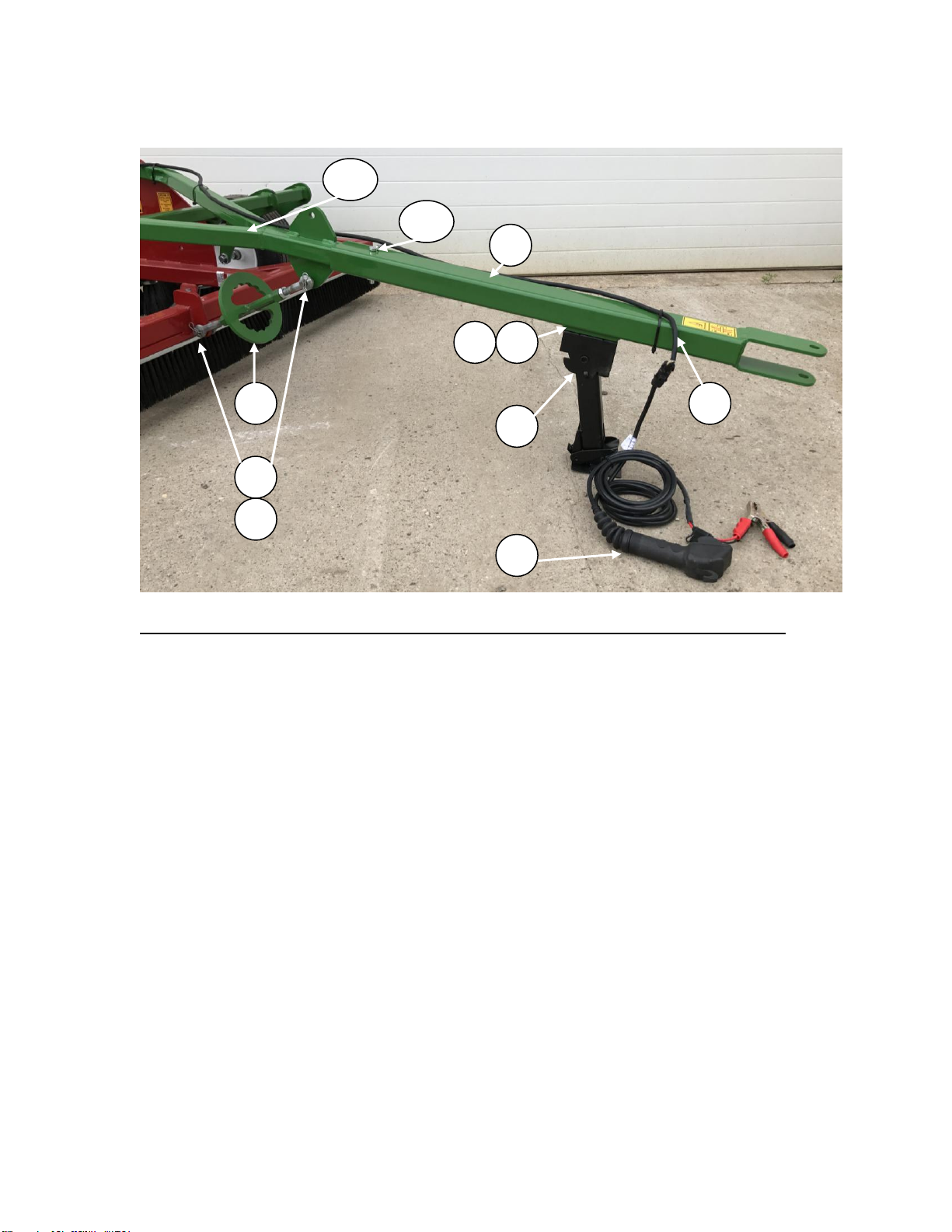

Figure #2-Hitch, Electrical 14

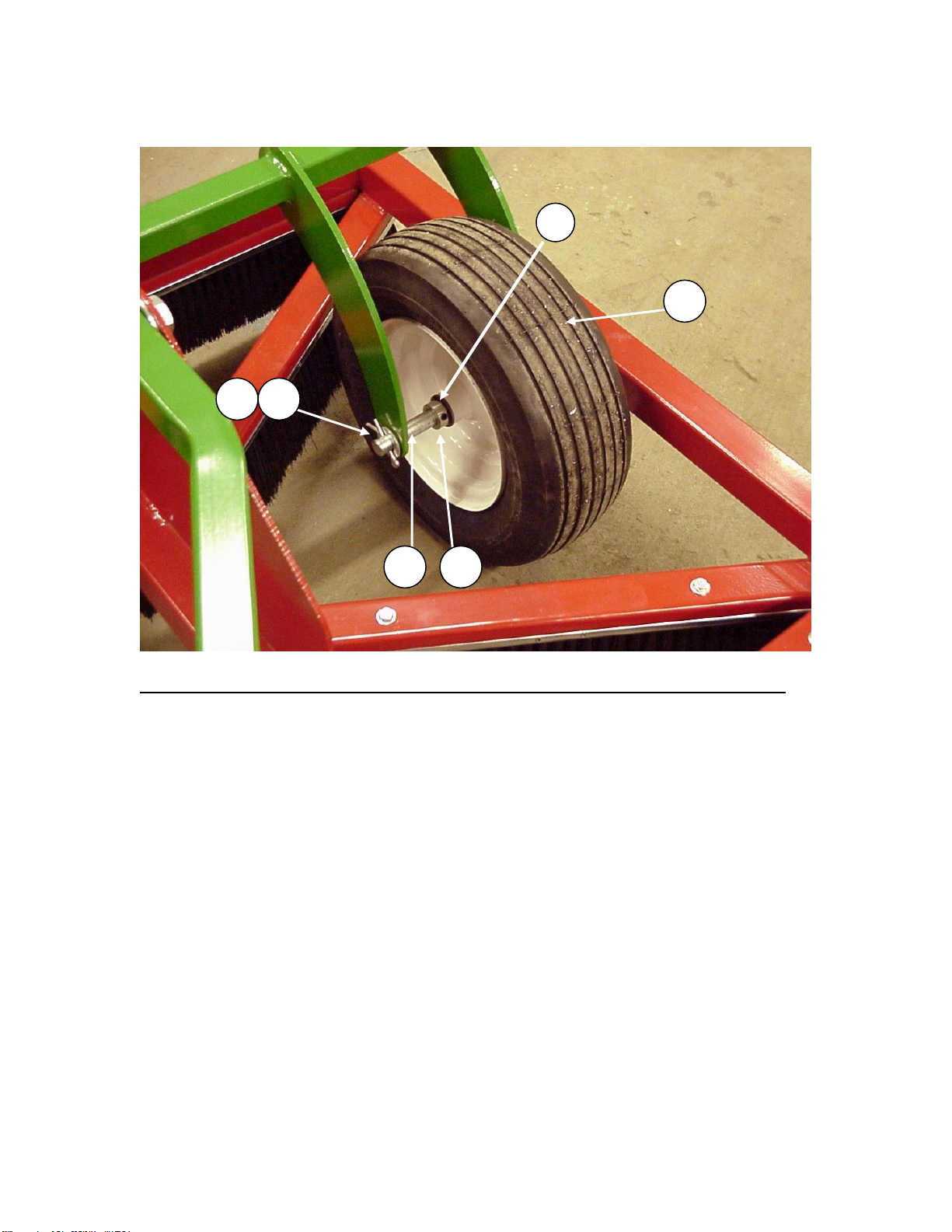

Figure #3-Wheel Assembly 15
Figure #4-Groom-It Plus 16

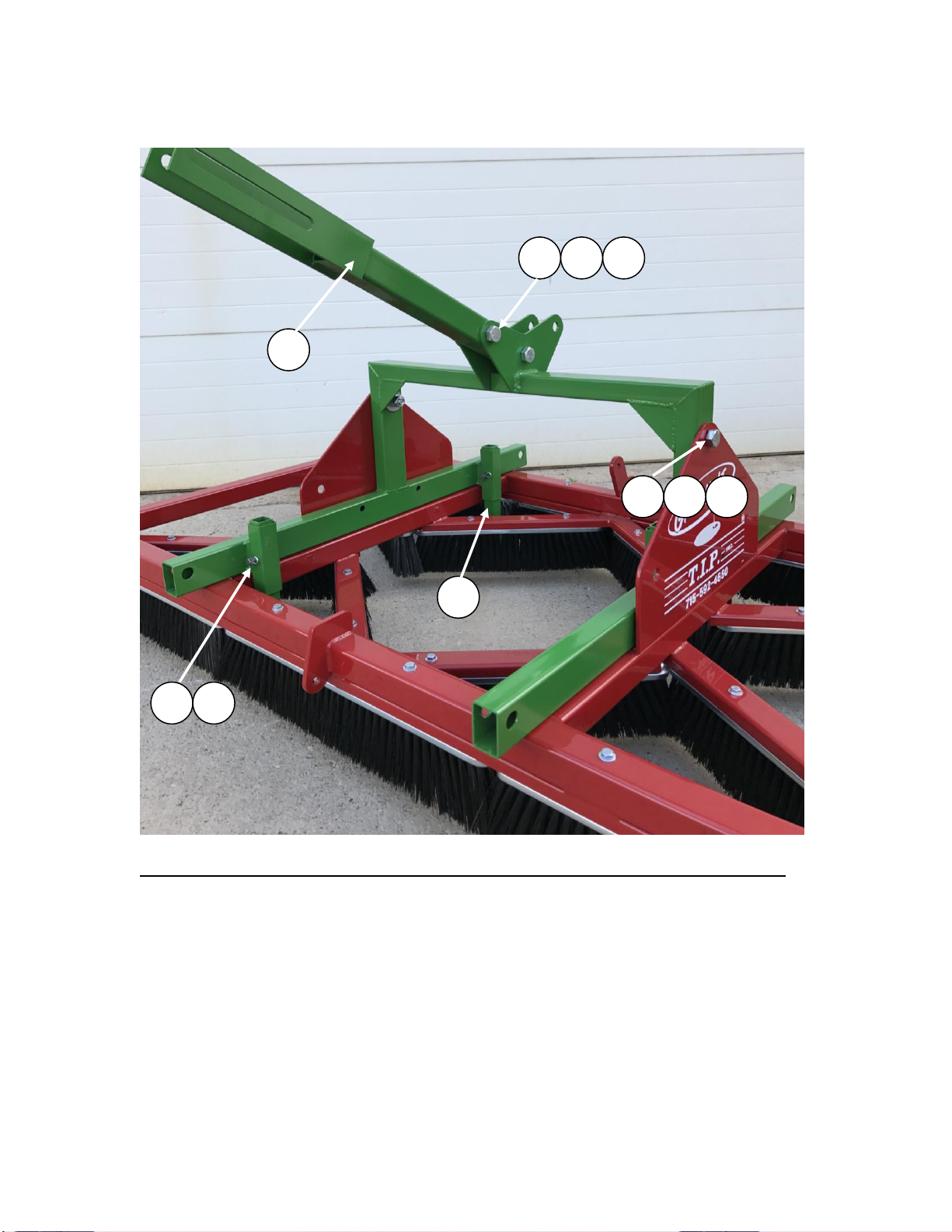

Figure #5-Groom-It 3 PT Mount 17
Warranty Registration Card 18

Groom It
2
=T.I.P. Inc.=
Limited Warranty
T.I.P. Inc. warrants that the equipment it manufactures will be free from defects in
materials and workmanship for a period of one year from delivery date. This warranty is
extended to the Original Purchaser only, and is non-transferrable.
Should a defect in materials or workmanship be experienced within the warranty
period, T.I.P. Inc. shall, at its discretion, furnish F.O.B Custer, WI, new or
remanufactured parts to replace the non-conforming parts. T.I.P. Inc. shall not cover any
labor costs incurred by the purchaser to replace said parts.
This warranty is limited to new equipment, parts or accessories that are
manufactured by T.I.P. Inc., provided that the equipment is used and maintained
according to the instructions in the manual, and the Original Purchaser has completed,
signed and returned the enclosed Warranty Registration form to T.I.P. Inc. within 30 days
after the delivery of said equipment. This warranty does not apply to damage or
deterioration to the equipment resulting from, but not limited to; natural wear and tear,
abuse of goods, presence of abrasives, chemical action, improper installation, misuse,
vandalism, or acts of God. This warranty does not apply to goods manufactured by
others, beyond the warranties stated by the manufacturers for those goods.
The limited warranty expressed hereunder, is exclusive, and T.I.P. Inc. makes no
other representations, warranties, or guarantees, neither expressed nor implied, as to
merchantability or the fitness of said equipment for any particular use or purpose, or that
the equipment or installation of equipment when placed into operation will comply with
applicable national, state, and local health and safety laws. T.I.P. Inc. shall not be liable
for any consequential or indirect damages including, but not limited to, loss of anticipated
profits or production, increase of cost of operation, loss due to spoilage of material,
damage caused directly or indirectly to other property or goods, or penalties or fines
arising from non-compliance.

Groom It
3
SAFETY
GROOM-IT Brush System
UNDERSTAND AND FOLLOW SAFETY INFORMATION
ALL OPERATORS should read and understand all safety information and operating
instructions for the Groom-It, and learn how to use the controls properly. Be aware of
safety words such as CAUTION, WARNING and DANGER. These words alert you to
important safety information. Do Not let anyone operate without proper instruction.
Make sure that ALL OPERATORS can recognize and understand all safety warning
labels on the machine. Keep all safety labels in good condition, and replace those that are
missing or damaged. Replacement safety labels are available from your dealer.
PROPER SETUP
Make sure that machine is properly and securely coupled to the tow vehicle before
operation. Verify that the 12volt DC electrical connection is hooked securely and in the
proper polarization. Visually inspect the location of all electrical lines on machine to
avoid pinching in metal parts or contact with actuator during operation.
DURING OPERATION
Operate the Groom-It only when all safety guards are in place. Before moving machine,
check to make sure that no one is in the immediate vicinity. Never allow anyone to ride
machine at any time. Always be aware of pinch points and falling objects, specifically
when flipping the hitch or when using the Groom It Plus or Scratch It options.
Wear close fitting clothing and safety gear appropriate for the operating conditions. Be
aware that rocks or other debris could fly out from under the machine.
The operation of the machine requires the full attention of the operator. Do not wear
radio or other music headphones while operating this machine.

Groom It
4
SAFE MAINTENANCE
Never lubricate, service or adjust machine while it is running. Keep hands, feet and
clothing from power driven components. Disengage all power from machine before
servicing. If machine is still connected to tow vehicle, be sure tow vehicle is turned off
and secured against rolling.
Securely support all parts of machine that must be raised for service work. Keep machine
in good working order by replacing worn or broken parts. Be sure to remove all excess
grease, oil and dirt. Properly dispose of all waste materials.
TRANSPORTATION
The Groom-It is designed for off road use only, and should not be towed on public
roadways. Maximum tow speed for machine is 15mph. If it becomes necessary to tow
machine on roadways, do so only on a highway approved trailer.

Groom It
5
SET-UP
GROOM-IT Brush System
ASSEMBLY
If your Groom-It came delivered on a pallet, first remove machine and all parts from the
pallet. Connect the wishbone draw bar hitch assembly to the top frame of the machine
using the two 3/4 x 3 inch bolts, washers and lock nuts provided. Place bolt through the
frame upright, the washer, and finally the hitch assembly. MAKE SURE the washer is in
between the frame upright and the hitch assembly. Place locknut on the bolt and tighten
until snug to allow for easy movement of the hitch assembly. Pin turnbuckle assembly in
place between the wishbone hitch assembly and the Groom-It frame. Slide outer hitch
assembly over wishbone assembly and pin together at desired length with the spring pin
included. Unroll wire on hand held remote and plug into the extension wire. Plug
extension wire into actuator socket.
CONNECTION TO TOW VEHICLE
Connect the pin-type hitch to your tow vehicle using a pin that is the appropriate
diameter, and secure to ensure pin does not come out during operation.
The Groom-It utilizes the 12volt DC electrical supply from the tow vehicle to operate the
electric wheel lift actuator. Connect the alligator clips from the machine to the battery of
the tow vehicle, being sure to connect the red clip to the positive side of the battery, and
the black to the negative. Be sure that clips and wires are properly secured so they will
not vibrate loose or lose contact during operation.
CAUTION!
Avoid direct contact with the battery terminals and the un-insulated portion of the
alligator clips. Electrical shock could result.
LEVELING MACHINE
With Groom-It attached to tow vehicle, park in a flat, level area. Lower brushes until the
wheels are clear of the ground. Loosen the jam nut on the Turnbuckle assembly, and
adjust the turnbuckle until all the brushes have equal pressure on the ground. Retighten
the jam nut.

Groom It
6
OPERATOR'S INSTRUCTIONS
GROOM-IT Brush System
This machine is designed specifically for use on natural grass areas. It
is not to be used on any roadways.
NOT INTENDED FOR HIGHWAY USE.
12 volt DC connections only.
Before performing any service on brush, be sure to disconnect from
battery, this will isolate unit from tow vehicle.
In very dusty conditions be sure to wear proper respiratory protection.
Only operate during daylight hours.
Never allow anyone to ride on machine.
Follow the safety instructions in your tow vehicle operator manual.
Review and follow all safety information before operating the Groom-It. Be sure all Set-
Up procedures have been completed.
OPERATION
Verify that electrical connections are made with the tow vehicle and that the hitch pin is
secured in place and locked.
After you reach the location where the sweeping is to be done, lower the using the remote
operated hand switch. Pull the Groom-It over the surface you wish to brush. Groom-It
can be raised or lowered while in motion. Suggested operating speed during brushing is
approx. 4 to 6 mph. When not brushing, raise Groom-It off of the ground.
The hitch may be "Flipped" over, making it possible to pull the Groom-It in the opposite
direction. This feature is to help minimize any "Set" the brushes might take being pulled
in one direction, thus lengthening brush life.
To flip the hitch, remove the two clevis pins securing the turnbuckle assembly. Flip the
hitch assembly over, and replace the turnbuckle on the opposite side using the clevis pins.
No leveling readjustment should be necessary. Be sure to use proper lifting techniques.

Groom It
7
STORAGE
Before storing the Groom-It, clean off all dirt and residue from the entire machine,
especially the brushes.
Always store the Groom-It with the wheels lowered completely and the brushes off the
ground. Use the Quick Set hitch to keep the Groom-It level, so brushes don't rest on the
ground. To uncouple brush from tow vehicle, remove pin from hitch receiver, lower
parking jack.
MAINTENANCE
Before attempting any maintenance remove watches and jewelry.
Inspect all wire and wiring connections.
Use proper lifting and supporting devices when performing any maintenance.
Grease wheels before each use. Sand and other contaminants can cause damage if wheels
are not greased. Wipe off excess. Check tires for wear or damage.
Inspect brushes for excessive wear and missing bristles every 25 hours of use. Check for
loose brushes and tighten or replace if necessary. Inspect the rest of the machine for
loose bolts and for damaged wires. Repair if necessary.

Groom It
8
GROOM-IT PLUS Option
Wing Extensions for GROOM-IT Brush System
Review and follow all safety information before operating the Groom-It Brush System.
INSTALLATION
If the Groom-It Plus did not come already installed on your Groom-It brush, follow these
instructions. Place the two wings on either side of the Groom-It main frame. Clip all the
tie straps that are holding the bolts and the green pin in place, and raise the pin tube so it
is standing vertical. With the Groom-It on a level surface and sitting directly on it's
brushes (wheels raised all the way up), align the Groom-It Plus wings so they are
centered on the ends of the Groom-It and tight to it. The quick release mounting tabs on
the Groom-It Plus should be on top of the Groom It frame. Drill 4 holes through the
mounting tab holes and though the Groom-It frame. Secure the mounting tabs with four
5/16 x 3" bolts and lock nuts provided. Repeat for the other side.
SET-UP
After the Groom-It Plus wings are mounted, raise the Groom-It all the way off the ground
once again. With the Groom-It Plus wings lowered, level the wings by adjusting the
level adjustment nut and jam nut on the adjustment bolt. The wings should be horizontal
or slightly below horizontal, but not dragging on the ground when the machine is raised.
OPERATION
The Groom-It Plus wings should be in the horizontal position only when you are in the
area that brushing is to occur. When the machine is in transit or in storage, the wings
should be pinned in their vertical position. To lower the wings, hold the wing with one
hand, and pull the green Transport Pin with the other hand. Gently lower the wing to it's
horizontal position. Replace the transport pin into the pin tube for safe keeping.
CAUTION!
DO NOT let the Groom-It Plus wings drop to their horizontal positions. ALWAYS
lower the wings fully by hand. Allowing the wings to drop could damage the cable
stay and turnbuckle assemblies. The cable stay is designed to lift the wing off of the
ground when the Groom-It is raised by its wheels. It is not intended to take the
force of a falling wing.

Groom It
9
When brushing is complete, raise the Groom-It Plus wings to their vertical position, and
secure in place with the green transport pin. Do not transport machine from one location
to another with Groom-It Plus wings in horizontal position.
STORAGE/TRANSPORTATION
The Groom-It Plus should always be pinned in the vertical position when being stored or
transported from one location to another. Before storing the Groom-It Plus, clean all dirt
and residue from the machine, especially the brushes.
MAINTENANCE
Inspect brushes for excessive wear and missing bristles every 25 hours of use. Check for
loose brushes and tighten or replace if necessary. Inspect the rest of the machine for
loose bolts.

Groom It
10
Figure 1: Main Frame
Ref Part# Description Qty
1 FN22159 Short Lag Screw 16
2 FN22167 Long Lag Screw 12
3 FN33004 Flat Washer for Lag Screws 28
4 FN13361 ¾ x 2" Bolt 2
5 FN13365 ¾ x 3" Bolt 2
6 FN33018 ¾" Flat Washer 6
7 FN37039 ¾" Nylock Nut 4
8 FN13213 ½ x 2-1/2" Bolt 2
9 FN37030 ½" Nylock Nut 2
10 FN36310 ½" Nut 1
11 BLK2XG05 Linear Actuator, 12V Electric 1
12 SP100 Groom-It Decal 2
13 MB230246 Polypropylene Brush, 24" Black for Natural Turf 10
14 MB230186 Polypropylene Brush, 18" Black for Natural Turf 4
11
1
2
6
4
7
9
8
7
3
3
14
10
5
12
13
6

Groom It
11
Figure 2: Hitch, Electrical
Ref Part# Description Qty
1 GITBUCKLE Turnbuckle Leveling Adjuster Assy. 1
2 FN66117 Clevis Pin, ½ x 2- ¼ " 2
3 FN45281 Hitch Pin Clip for Clevis Pin 2
4 TP921170 Joystick 1
5 TP921170-B Extension Wire for Controller 1
6 RH82301 Stabilizer Jack 1
7 FN13102 3/8” x 5/8” Jack Attachment Bolt 2
8 FN33622 3/8” Lock Washer 2
9 GITONASSY Outer Hitch Assembly 1
10 FN0120679 Tongue Adjustment Locking Pin 1
11 GIHITCH Hitch Wishbone Assembly 1
3
7
4
1
2
8
6
5
9
10
11

Groom It
12
Figure 3: Wheel Assembly
Ref Part# Description Qty
1 FN65126 Cotter Pin 2
2 FN33092 ¾" Flat Washer 2
3 TP4017A Axle, Zinc Plated 2
4 TOSC-12 Set Collar, ¾" 4
5 TP4025 Tire/Wheel Assy 2
6 TP4026 Replacement Bushing for Wheel Assy 4
MAINTENANCE:
Grease each wheel daily and check tire pressure.
To change tire, block up unit; remove pin #1 and washer #2. Loosen #4 collar, pull axle
#3 out. This will allow wheel assembly to be removed from frame. Check bushing and
axle pin. To re-assemble do the opposite.
1
2
3
4
5
6

Groom It
13
Figure 4: Frame (Groom-It-Plus Option)
Ref Part# Description Qty
1 FN22159 Short Lag Screw 16
2 FN22167 Long Lag Screw 12
3 FN33004 Flat Washer for Lag Screws 28
4 FN26367 Shoulder Screw 4
5 FN13365 3/8 x 3" Bolt 8
6 FN37024 3/8" Nylock Nut 8
7 FN45282 Hitch Pin Clip #6 4
8 FN13005 ¼ x 1" Bolt 2
9 FN36302 ¼" Nut 4
10 TP5017 Transport Pin 2
11 SP104 Decal, Falling Wing Warning 2
12 TP1000 End Plug, Black 2" 4
13 TP50** Cable Assy. (Call for Details) 2
14 TP5021 Turnbuckle, 4" 2
15 SP103 Groom-It Plus Decal 4
16 MB230246 Polypropylene Brush, 24" Black 4
17 MB230186 Polypropylene Brush, 18" Black 4
18 MB230360 Polypropylene Brush, 36" Black 4
1
2
3
3
14
5
12
13
4
6
8
9
10
11
15
7
16
17
18

Groom It
14
Figure 5: Groom-It 3 PT Mount Option
Ref Part# Description Qty
1 FN66117 Clevis Pin 0.5 X 2.5 3
2 FN45281 Hitch Pin Clip #3 3
3 FN13367 3/4 x 3.5” Bolt 2
4 FN13365 3/4 x 3” Bolt 2
5 FN33018 3/4" Flat Washer 4
6 FN37039 3/4" Nylock Nut 4
7 TP3PTJACKSTAND Jack Stand for 3 PT Groom-It 3
8 TP3PTTOPLINK 3 PT Top Link for 3 PT Groom-It 1
1
2
3
4
6
5
6
5
7
8

Groom It
15
MAIL THIS WARRANTY CARD TODAY
IF IT IS NOT REGISTERED IN THE HOME OFFICE OF
T.I.P. INC.
ANY CLAIM YOU HAVE UNDER THE WARRANTY
WILL NOT BE HONORED….
DON’T DELAY
PLEASE COMPLETE THE WARRANY REGISTRATION
AND RETURN IMMEDIATELY.
CUT HERE
T.I.P. INC.
1619 COUNTY K
CUSTER, WI 54423
PHONE [phone] ●FAX [phone]
WARRANY REGISTRATION
NAME:
ADDRESS:
CITY/STATE/ZIP CODE:
DEALER’S NAME:
DEALERS ADDRESS:
CITY/STATE/ZIP CODE:
DATE OF PURCHASE:
S/N
MODEL#
I HAVE READ AND FULLY UNDERSTAND ALL
SAFETY DIRECTIONS AND AGREE TO TRAIN ALL PERSONNEL
OPERATING THIS MACHINE.
SIGNATURE:__________________________________________
DATE:_______________________

Groom It
16
