Tacmina PW Series User manual

www.tacmina.com
PW Series
Solenoid-driven Diaphragm Metering Pump
7 Thank you for purchasing this TACMINA product. Please read this
OPERATION MANUAL carefully in order to ensure that you will use the
product safely and correctly.
7 Be sure to keep this OPERATION MANUAL in a place where it will be
easily available for reference.
7 If the product you purchased conforms to special specifications not
described in this OPERATION MANUAL, handle the product according to
details of separate meetings, drawings and approved documents.
Please read this OPERATION MANUAL carefully before use.
Operating the pump incorrectly in disregard of these instructions
may lead to death, injury and/or cause property damage.
OPERATION MANUAL
PW/PWM/PWT
DCLPW/DCLPWM/DCLPWT
CLPW/CLPWM/CLPWT
Applicable Models
This illustration is for the PW-30R
7
TACMINA accepts no liability whatsoever for any damage caused by
malfunction of this product and other damage caused by use of this product.
00H1-4EM-127PW(E).indd2 2014/11/1711:31:59

1
In order to ensure that the pump will be operated correctly and safely, this OPERATION MANUAL contains some
guidelines for the user in the form of important safety precautions and considerations which, depending on their
seriousness, are categorized as set forth below. Be absolutely sure to heed these precautions and considerations.
!WARNING
• This is used to indicate a condition or action which may result in death or serious injury if the instructions given
are ignored and the operations are performed incorrectly.
!CAUTION
• This is used to indicate a condition or action which may result in injury and/or damage to personal property if
the instructions given are ignored and the operations are performed incorrectly.
IMPORTANT
• This is used to indicate a condition or action which must be established or carried out in order to maintain the
performance and service life of the equipment.
NOTE
• This is used to indicate supplementary information.
Conditions of Use
!WARNING
• This pump cannot be used in explosion-proof regions or in explosive or combustible atmospheres.
!CAUTION
• This pump must be used for the purpose of transferring or injecting liquids only. Using it for any other purpose may
result in accidents and/or malfunctions.
• This pump cannot be used to transfer or inject any liquids containing slurry.
• This pump’s discharge volume cannot be adjusted by operating the valve on its discharge pipe.
• The characteristics of this pump are such that pulsation will arise. If pulsation threatens to be a problem, install an
air chamber or some other device for reducing the effects of pulsation.
• Do not use the pump outside the following usage ranges. Doing so may cause malfunctions.
How to operate the pump safely
Ambient temperature
0 to 40 °C*
1
Ambient humidity 35 to 85%RH
Temperature of liquid 0 to 40 °C (no freezing)
Viscosity of liquid
Less than 50 mPa • s
*
2
Altitude of installation location Less than 1,000 m
Environmental protection IEC standard : IP65 or equivalent (Water - and dust - proof)
*1
Transport and store the pump at temperatures within the −10°C to +50°C range. Do not subject the pump to strong impacts.
*2 The maximum viscosity for the high-viscosity type is 3,000 mPa • s.
✽
Install the tank at a position higher than the pump (so that the pipe is connected to force the chemical downward).
✽The volume and viscosity of the liquids that can be pumped differ according to the conditions under which the pipes are
connected and the properties of the chemicals to be pumped.
Installation, Piping & Connections
!WARNING
• This pump does not have explosion-proof specifications. Do not install it in explosion-proof regions or in explosive
or combustible atmospheres.
• Install the pump in a location that cannot be accessed by anyone but control personnel.
!CAUTION
• If this pump has been dropped or damaged, consult your vender or a TACMINA representative. Using a dropped or
damaged pump may result in accidents and/or malfunctions.
• Do not install the pump where there is a risk of flooding or where there are high levels of moisture or dust. Doing so
may cause electric shocks and/or malfunctions.
• This pump has a water-proof construction (equivalent to IP65 under IEC standards). However, it is made of plastic
so make every attempt to avoid installing it in a position that will shorten its service life (such as a position where it
will be exposed to direct sunlight, wind or rain).
• Connect the pipes to the pump properly.
01-07EM-127PW(E).indd1 2014/11/1711:44:39

2
• Do not connect the pipes above a passageway. Do not install the pipes where the chemical may splash onto people
even if the hose/tube should break.
• When using a pump with a relief-valve function, always attach a hose for relief purposes, and lead the end of the
pipe back to a tank or other container.
• When using a pump without a relief-valve function, be absolutely sure to install a relief valve on the pipe right
outside the pump on the discharge side. If the user has forgotten to open the valve or foreign matter is clogged
inside the pump’s discharge-side pipe, this may cause the pressure to rise above the pump’s specifications range,
liquid to gush out, the pipes to become damaged and/or the pump to malfunction, all of which are dangerous.
• When using the pump in cold regions, the chemical may freeze inside the pump head or pipes, possibly damaging
the pump and its surroundings. Be absolutely sure to install a heating unit or heat-insulating unit.
• The water used for the shipment tests may be left on the liquid-end parts (the parts that come into contact with the
liquid) of the pump. If the pump is to be used for chemical that may harden or give off gas if it reacts with water, be
absolutely sure to dry off the liquid-end parts prior to use.
• When the hoses/tubes become very hot, their ability to withstand pressure will deteriorate. When using hoses/tubes
available on the market, be absolutely sure to use the ones which are resistant to chemical and which can withstand
the temperatures and pressures under which the pump will be used.
•
The durability of a hose/tube differs significantly depending on the chemicals with which it is used, on the temperatures
and pressures and on the presence of ultraviolet rays. Inspect the hoses/tubes, and replace them if they have deteriorated.
•
The control panel cover is made of plastic so do not subject it to excessive force. Otherwise, it may break or be damaged.
Electrical Wiring
WARNING
!
• This pump cannot be used in explosion-proof regions or in explosive or combustible atmospheres.
• Take steps to ensure that the power will not be turned on during the course of work. Hang a sign on the power
switch indicating that work is in progress.
• Do not operate the pump with wet hands. Doing so may result in electric shocks.
• Securely ground the protective earth terminal, and be absolutely sure to install a ground fault circuit interrupter.
Otherwise, you may receive electric shocks.
• Do not attempt to disassemble the pump body or the circuit parts.
!CAUTION
• The wiring must be done by a qualified electrician or somebody with electrical knowledge.
• Connect the wires after checking the supply voltage. Do not connect the wires to a power supply that is not within
the rated voltage range.
Operation & Maintenance
WARNING
!
• Ensure that nobody other than the operators and control personnel will operate the pump.
• Take steps to ensure that the power will not be turned on during the course of work. Hang a sign on the power
switch indicating that work is in progress.
• Do not operate the pump with wet hands. Doing so may result in electric shocks.
• When trouble has occurred (such as when smoke appears or there is a smell of burning), shut down the pump’s
operation immediately, and contact your vender or a TACMINA representative. Otherwise, a fire, electric shocks and/
or malfunctions may result.
• Do not attempt to disassemble the pump body or the circuit parts.
• During the air releasing, chemical may suddenly gush out from the pipes and other parts. Lead the end of the air-
release hose bank to the tank or other container, and secure it so that it will not become disconnected.
• A situation in which the valve inside the pipe at the discharge side of the pump is shut off or becomes blocked
with foreign matter is dangerous in that it may lead to an excessive rise in pressure that will exceed the pump’s
specification range, causing liquid to gush out, the pipe to be damaged and the pump itself to malfunction. Prior to
operating the pump, check the valves and pipes, etc.
!CAUTION
• When working on the liquid-end parts of the pump, wear protective gear suited to the chemical concerned (such as
rubber gloves, a mask, protective goggles and work overalls that are resistant to chemical).
• Before attempting to maintain or repair the pump, release the pressure in the discharge pipe, discharge the liquid in
the pump head, and clean the liquid-end parts.
• The vibration of the pump may cause the hoses/tubes to become loose and disconnected. Before starting
operation, secure the hoses/tubes and check their tightness.
• While the pump is operating, the pump’s surfaces may become hot, reaching a temperature of 60°C or more.
• Idling the pump for prolonged periods of time can lead to malfunctions.
• When diluting sodium hypochlorite, use pure water or water processed with a water softener. Otherwise the pump
may malfunction or discharge trouble may result.
01-07EM-127PW(E).indd2 2014/11/1711:44:40

3
Other Precautions
!CAUTION
• Do not attempt to remodel the pump.
• Install a protective barrier or other preventive action to cope with a chemical spill just in case one occurs. Also take
steps to ensure that the pump will not get wet from the chemical.
• When it comes time to dispose of the pump, entrust its disposal to an industrial waste disposal company whose
operations have been authorized in accordance with applicable laws and regulations.
01-07EM-127PW(E).indd3 2014/11/1711:44:40

4
Contents
Operating precautions...............................................................................................................20
Discharge-volume setting..........................................................................................................21
Air releasing................................................................................................................................22
✽
The instructions differ according to the model. Find the model concerned in the table on page 22, and read the instructions given.
Calibration...................................................................................................................................26
Procedure for prolonged shutdown of operation....................................................................26
Operation
Maintenance precautions..........................................................................................................33
Exploded views of liquid-end parts and external dimension.................................................35
Maintenance
Model code..................................................................................................................................47
Performance Specifications......................................................................................................48
Liquid-end material....................................................................................................................51
Power Supply Specifications ....................................................................................................52
I/O Signal Specifications ...........................................................................................................52
Operation mode..........................................................................................................................52
Performance curve.....................................................................................................................53
Specifications
Troubleshooting .........................................................................................................................44
Troubleshooting
Installing the product...................................................................................................................9
Piping ..........................................................................................................................................10
Connecting..................................................................................................................................11
✽
The instructions differ according to the model. Find the model concerned in the table on page 11, and read the instructions given.
Electrical wiring..........................................................................................................................16
Installation
Control panel ..............................................................................................................................27
Pump control functions.............................................................................................................28
Keylock........................................................................................................................................31
Parameter settings.....................................................................................................................32
Description of functions
Checking out the product............................................................................................................5
Accessories list............................................................................................................................5
Description of product.................................................................................................................8
Names of the parts.......................................................................................................................8
Introduction
Application examples..........................................................................................56
Consumables......................................................................................................57
Spare parts & options.........................................................................................60
Explanation of terms...........................................................................................60
After-sales services............................................................................................61
Setting flow.........................................................................................................62
InstallationOperation
Description of functions
Maintenance
Troubleshooting
Specifications
Introduction
01-07EM-127PW(E).indd4 2014/11/1711:44:40

5
Introduction
After unpacking the pump, check the following.
• Is the pump the one that was ordered?
• Do the details on the pump’s nameplate match what was ordered?
• Is all the accessories supplied?
✽Check the supplied accessories against the “Accessories list” below.
• Has the pump sustained any damage from vibration or impact during transit?
• Have any of the screws come loose or fallen out?
Every care is taken by TACMINA in the shipment of its pumps, but if you
come across anything untoward, please contact your vender or a TACMINA
representative.
Checking out the product
Accessories list
✽When a PTS chemical injection system with an analog input-type model (□PWM) mounted was purchased, a signal cable is
connected.
■PW/PWM/PWT (General chemical injection type)
VTCE/VTCF
Relief-valve function w/ relief valve w/o relief valve
Model 30R 60R 100R 30 60 100 200
Hose/tube (3m)
PVC braided hose (4×9)
PE tube (6×8 or 1/4"×3/8")
PVC braided hose (6×11)
PE tube (6×8 or 1/4"×3/8")
PVC braided hose (4×9)
PE tube (6×8 or 1/4"×3/8")
PVC braided hose (6×11)
PE tube (6×8 or 1/4"×3/8")
Relief/air-release hose (1m)
Soft PVC hose (4×6, installed) Soft PVC hose (4×6) -
INSULOK (spare) for relief hose
1 piece -
Anti-siphon check valve 1 set (R1/2)
Foot valve 1 set
Ceramic weight 1 set ✽Only when PE tube is selected.
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
FTCE/FTCF
Relief-valve function w/ relief valve w/o relief valve
Model 30R 60R 100R 30 60 100
Tube (3m) PE tube (6×8 or 1/4"×3/8")
Relief/air-release hose (1m)
Soft PVC hose (4×6, installed) Soft PVC hose (4×6)
INSULOK (spare) for relief hose
1 piece -
Anti-siphon check valve 1 set (R1/2)
Foot valve 1 set
Ceramic weight 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
FTCT
Relief-valve function w/ relief valve w/o relief valve
Model 30R 60R 100R 30 60 100
Tube (3m) FEP tube (6×8 or 1/4"×3/8")
Relief/air-release hose (1m)
Soft PVC hose (4×6, installed) Soft PVC hose (4×6)
INSULOK (spare) for relief hose
1 piece -
Anti-siphon check valve 1 set (R1/2 or R3/8)
Foot valve 1 set
Ceramic weight 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
01-07EM-127PW(E).indd5 2014/11/1711:44:40

6
Introduction
Accessories list
6TCT Model 30 60 100
Tube (3m) PTFE tube (6×8)
Anti-siphon check valve 1 set (R1/2 or R3/8)
Foot valve 1 set
Hose pump for air-release 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
■PW/PWM/PWT (High-viscosity type)
VTCF Model 60 100
Hose (3m) PVC braided hose (12×18)
Hose pump for air-release 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
■PW/PWM/PWT (Boiler type)
VTCET Relief-valve function w/ relief valve w/o relief valve
Model 30R 30
Tube for discharge side (2m) PA tube (4×6)
Tube for suction side (1m) PVC braided hose (4×9)
Relief/air-release hose (1m) Soft PVC hose (4×6, installed) Soft PVC hose (4×6)
INSULOK (spare) for relief hose 1 piece
Anti-siphon check valve 1 set (R1/2)
Foot valve 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
■PW/PWM/PWT (High-pressure type)
VTCET Model 30
Tube for discharge side (2m) PA tube (4×6)
Hose for suction side (1m) PVC braided hose (4×9)
Air-release hose (1m) Soft PVC hose (4×6)
Anti-siphon check valve 1 set (R1/2)
Foot valve 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
01-07EM-127PW(E).indd6 2014/11/1711:44:40

7
Introduction
Accessories list
■
DCLPW/DCLPWM/DCLPWT (For injection of sodium hypochlorite type w/ air block)
ATCF Relief-valve function w/ relief valve w/o relief valve
Model 30R 60R 100R 30 60 100
Hose (3m)
PVC braided
hose (4×9)
PVC braided hose (6×11)
PVC braided
hose (4×9)
PVC braided hose (6×11)
Relief/air-release hose (1m) Soft PVC hose (4×6, installed) Soft PVC hose (4×6)
INSULOK (spare) for relief hose 1 piece -
Degassing joint *11 set
Degassing joint hose (already attached) 1.5m (1/4"×3/8")
Anti-siphon check valve w/ duck-bill cap 1 set (R1/2)
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
*1 The joint and union nut have already been installed on the pump head.
■CLPW/CLPWM/CLPWT (
For injection of sodium hypochlorite type
)
ATCF Relief-valve function w/ relief valve w/o relief valve
Model 30R 60R 100R 30 60 100
Hose (3m)
PVC braided
hose (4×9)
PVC braided hose (6×11)
PVC braided
hose (4×9)
PVC braided hose (6×11)
Relief/air-release hose (1m) Soft PVC hose (4×6, installed) Soft PVC hose (4×6)
INSULOK (spare) for relief hose 1 piece -
Anti-siphon check valve w/ duck-bill cap 1 set (R1/2)
Foot valve 1 set
Cable 2 m
Pump-mounting nuts/bolts 2 sets (M5×30)
Operation manual 1 copy
01-07EM-127PW(E).indd7 2014/11/1711:44:40

8
Introduction
Description of product
This is a solenoid-driven diaphragm metering pump with liquid-end parts which are resistant to chemicals and with a
compact body. It can be operated on any supply voltage from AC 100V to AC 240V (±10%). Its discharge capacity has
been adjusted so that it will remain constant over the supply voltage range.
Names of the parts
✽Parts may have different shapes to those shown in the figure depending on the model. Refer to "Exploded views of
liquid-end parts and external dimension.
Discharge-side joint
Relief valve*1
Control panel
Suction-side joint Air-release port
Pump head
Cable gland
(for power supply)
Cable gland
(for signals)
Stroke-length
adjustment dial*2
Relief valve
Air-release knob
*1 Air-release knob on models w/o
relief-valve function.
*2 Operate with the stroke length set
to 100% when the SAFE mode,
ECO mode or ALARM functions
are to be enabled.
For injection of sodium hypochlorite type
Suction-side joint
CLPW
series
DCLPW
series
General chemical injection type
PVC StainlessPVDF
High-viscosity type
Boiler type
High-pressure type
✽W/o relief valve
Air-release
knob
✽W/o relief valve
Air-release
nozzle assembly
08-32EM-127PW(E).indd8 2014/11/1711:43:50

9
Installation
Installing the product
!WARNING
• This pump does not have explosion-proof specifications. Do not install it in explosion-proof regions or
in explosive or combustible atmospheres.
• Install the pump in a location that cannot be accessed by anyone but control personnel.
!CAUTION
• Do not install the pump where there is a risk of flooding or where there are high levels of moisture or
dust. Doing so may cause electric shocks and/or malfunctions.
• This pump has a water-proof construction (equivalent to IP65 under IEC standards). However, it is made
of plastic so make every attempt to avoid installing it in a position that will shorten its service life (such
as a position where it will be exposed to direct sunlight, wind or rain).
Installation location
• Avoid installing the pump in a location exposed to direct sunlight or wind and rain. Although it features a water-proof
construction (equivalent to IP65 under the IEC standards), direct sunlight may cause the temperature of the metal
parts to rise, ultraviolet rays may cause the plastic parts to deteriorate, and sand, dust, and rainwater may damage or
corrode the pump body.When installing the pump outdoors, it is recommended that an awning or cover be installed to
protect the pump from the elements and extend its service life.
• Install the pump in a location where the ventilation is good and where the chemical will not freeze.
• Provide adequate space around the pump to facilitate maintenance and inspections.
• Place the pump in a level location, and secure it so that it will not vibrate. Installing the pump at an angle may result in
discharge trouble or in the inability of pump to discharge.
Mounting bolt positions
Use the pump-mounting bolts (×2) provided to secure
the pump.
✽Secure the pump in two places opposite each other
among the four possible places.
* The pump can be installed at any pitch ranging from
87 to 110 mm.
Assembling the pump
The direction in which the pump head and solenoid box
part (upper part) and circuit box part (lower part) are
assembled can be changed to one of three directions.
✽If, due to restrictions on the pipe connections or other
factors, the control panel is pointing in a direction in
which it is difficult to operate the pump, change the
direction by following the steps on the next page.
6
R3
87~110*
87~110*
Rear
Control panel
Upper part
Lower part
<View from above>
✽at time of shipment
Left Right
90° 90°
08-32EM-127PW(E).indd9 2014/11/1711:43:52

10
Installation
Installing the product

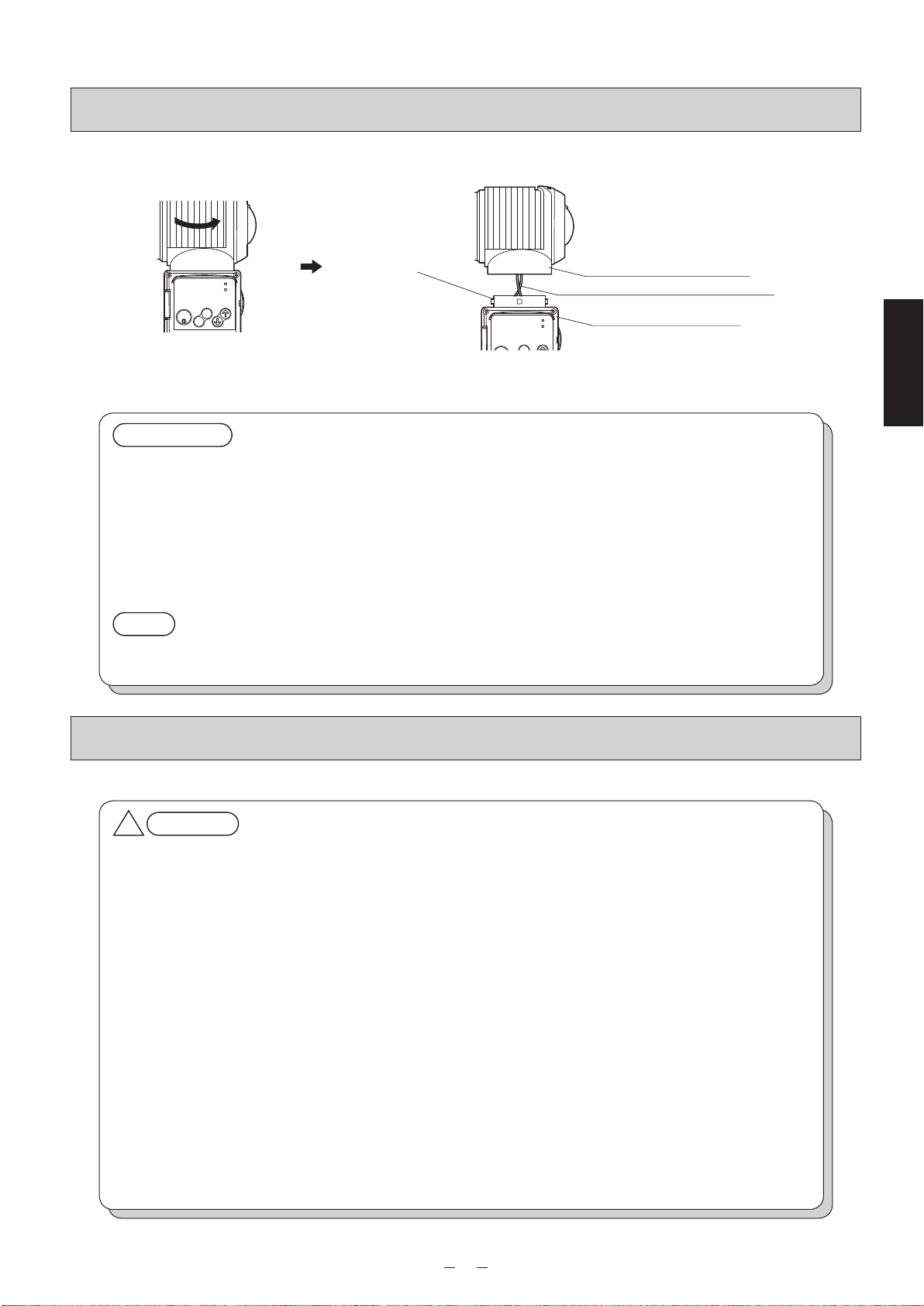

(1) Twist the pump head and solenoid-box part (upper part) counterclockwise by about 30 degrees, and lift slightly (by 2
to 3 cm).
Solenoid box part (upper part)
Circuit box part (lower part)
✽Ensure that the wiring is not pinched.
✽Check whether
the O-ring is
fitted into place
here.
(2) Twist the upper part in the desired direction, align the groove in the coupling of the upper part and the protrusion in
the coupling of the lower part, and insert.
(3) Twist the upper part clockwise, and secure.
IMPORTANT
•
The upper part and lower part are connected by wires.When lifting the upper part, lift it until the upper part and lower
part are separated just slightly (by a gap of 2 or 3 cm).The wires may be broken if the parts are separated too far.
• When twisting the upper part, do not apply pressure to the pump head and especially not to the joint
area and operation panel cover. Otherwise, the parts may be damaged.
•
The fixed part of the pump is made of plastic so refrain from applying excessive force to it. Doing so may damage it.
• Do not excessively twist the wires or pinch them between parts of the pump.
• The assembly directions are left, rear and right as seen from the control panel (only 90 degrees). The
pump cannot be assembled at any midway points.
•
During assembly, twist the upper part firmly until the protrusion touches the right end, and check that it is secured.
NOTE
• It is easier to twist the upper part if you press down on it.
•
When the pump is shipped, it is assembled so that the pump head is facing the left side as seen from the control panel.
Piping
!CAUTION
• Connect the pipes to the pump properly.
• Do not connect the pipes above a passageway. Do not install the pipes where the chemical may splash
onto people even if the hose/tube should break.
• When using a pump with a relief-valve function, always attach a hose for relief purposes, and lead the
end of the pipe back to a tank or other container.
• It is dangerous to operate a pump with the discharge side pipe closed off due to valve closing or
clogging with foreign matter, for example, because abnormal pressure will buildup inside the pipe. As a
safety measure, take the action in I or II, whichever is applicable.
I. When the pump is provided with a relief-valve function
Connect a relief hose to the air-release port, bring the end of the hose back to the chemical liquid tank
and secure it.
II.When the pump is not provided with a relief valve function
Attach a relief hose and relief valve to the discharge side pipe, and bring the end of the hose back to
the chemical liquid tank and secure it.
•
When using the pump in cold regions, the chemical may freeze inside the pump head or pipes, possibly
damaging the pump and its surroundings. Be absolutely sure to install a heating unit or heat-insulating unit.
•
When the hoses/tubes become very hot, their ability to withstand pressure will deteriorate. When using
hoses/tubes available on the market, be absolutely sure to use the ones which are resistant to chemical
and which can withstand the temperatures and pressures under which the pump will be used.
•
The durability of a hose/tube differs significantly depending on the chemicals with which it is used, on the temperatures
and pressures and on the presence of ultraviolet rays. Inspect the hoses/tubes, and replace them if they have deteriorated.
Bear in mind the following points when connecting the pipes.
08-32EM-127PW(E).indd10 2014/11/1711:43:52

11
Installation
Piping
IMPORTANT
• Install a pressure gauge on the discharge-side pipe in order to measure the pressure at the discharge
side of the pump.
• Install the pump as close as possible to the tank. If the suction-side pipe is too long, cavitation* may
occur, possibly making it impossible to maintain the pump’s metering capability.
• Install a valve for releasing the pressure inside the discharge side pipe. The 3-way valve on the flushing
water line can be used instead.
• The intake performance may be reduced when the valve seat inside the pump head has dried out. If
liquid is not sucked in, moisten the valve seat with some liquid.
* Refer to the “Explanation of terms” on page 60.
Connecting
The piping procedure will be described by pump type.
Model Series Liquid-end
material
Pump position Connections of parts
Below-tank
mounting
Above-tank
mounting
Injection
point
Piping
Foot
valve
Degassing
joint
For injection of general chemicals
PW-30R/60R/100R
VTCE/VTCF ⅠⅤ
A-1 B-1 C-1
D
FTCE/FTCF ⅠⅤ
A-1 B-2 C-2
FTCT ⅠⅤ
A-3 B-2 C-2
PW-30/60/100/200
VTCE/VTCF ⅡⅥ
A-1 B-1 C-1
PW-30/60/100
FTCE/FTCF ⅡⅥ
A-1 B-2 C-2
FTCT ⅡⅥ
A-3 B-2 C-2
6TCT ⅡⅥ
A-3 B-1 C-1
For injection of high-viscosity chemicals
PW-60/100
VTCF Ⅱ- - B-1 -
For injection of boiler chemicals
PW-30R
VTCET ⅠⅤ
A-4
Discharge side: B-3
Suction side: B-1
C-1
PW-30
ⅡⅥ
A-4 C-1
For injection of high-pressure
PW-30
VTCET ⅡⅥ -
Discharge side: B-3
Suction side: B-1
C-1
For injection of sodium hypochlorite
DCLPW-30R/60R/100R
ATCF Ⅲ-
A-2 B-1 -
DCLPW-30/60/100
Ⅳ-
A-2 B-1 -
CLPW-30R/60R/100R
ATCF ⅠⅤ
A-2 B-1 C-1
CLPW-30/60/100
ⅡⅥ
A-2 B-1 C-1
■Pulsation
•
The occurrence of pulsation will cause the pump’s hoses/tubes to vibrate. Secure the hoses/tubes so that they will not swing about.
•
In order to reduce pulsation, the installation of a damper is recommended. Ask a TACMINA representative for more information.
■Pipe length
• An excessively long hose/tube may result in increased pressure loss, may cause the pressure to exceed the pump’s
allowable pressure, or may give rise to overfeed and/or cause pipe vibration.
•
The pump comes with a 3-meter-long hose/tube for both the discharge side and suction side.If the pressure loss exceeds
the pump’s maximum discharge pressure, thicker pipes will be required. Provide details on the (1) viscosity of the liquid, (2)
length of the pipes (how they are positioned) and (3) specific gravity of the liquid to a TACMINA representative.
■During maintenance
• When disconnecting the hose/tube for maintenance or other purposes and then reconnecting the same hose/tube, cut
about 10 mm off the end of the hose/tube before reconnecting.
• When conducting maintenance, release the pressure of the discharge hose/tube.
■When curving a hose/tube
• Provide a sufficient margin so that the hose/tube will not bend instead of curve round.
• Take steps to ensure that the hose/tube will not bend, rub against other parts, be cut or stepped on. Such actions can
damage the hose/tube.
• Take steps to minimize the number of tight curves in the pipes, joints and other parts that may restrict the flow.
08-32EM-127PW(E).indd11 2014/11/1711:43:53

12
Installation
Connecting
I. Pump below-tank mounting position (w/ relief valve)
II. Pump below-tank mounting position (w/o relief valve)
III. Pump below-tank mounting position (w/ relief valve)
IV. Pump below-tank mounting position (w/o relief valve)
V. Pump above-tank mounting (w/ relief valve)
VI. Pump above-tank mounting (w/o relief valve)
Applicable models:PW/CLPW-30R/60R/100R Applicable models:PW/CLPW-30/60/100/200
Applicable models:DCLPW-30R/60R/100R Applicable models:DCLPW-30/60/100
Applicable models:PW/CLPW-30R/60R/100R Applicable models:PW/CLPW-30/60/100/200
Main pipe
Anti-siphonal check valve
Valve
Tank
Relief/air-release hose
Main pipe
Anti-siphonal check valve
Valve
Tank
Relief/air-release hose
Air-release
hose Air-release
hose
Degassing joint
Main pipe
Anti-siphonal check valve
Valve
Tank
Relief/air-release hose
Main pipe
Anti-siphonal check valve
Relief valve
Degassing joint
Valve
Tank
Main pipe
Anti-siphonal check valve
Valve
Tank
Degassing joint
Anti-siphonal check valve
Relief valve
Degassing joint
Main pipe
Valve
Tank
Relief valve
Degassing joint
✽Pump above-tank mounting cannot be used for the DCLPWand high-viscosity type.
✽If at all possible, use pump below-tank mounting position for the CLPW.
✽When using the pump in an above-tank mounting position, moisten the valve seat area with some water or
chemical liquid before operating the pump.
✽This pump has a maximum suction height of -1.5 m for water in the condition with the valve seat area mois-
tened. The suction capability may decrease when the valve seat area is dry. (Except the DCLPW, CLPW
and high-viscosity types)
08-32EM-127PW(E).indd12 2014/11/1711:43:53

13
Installation
Connecting
Injection point connections
The anti-siphonal check valve has a different shape depending on the material used for the liquid-end material of the pump.
First check the model of the pump to be used, and then refer to the applicable diagram below.
✽An anti-siphonal check valve is not provided for the high-viscosity type.
A-1. VTCE/VTCF
FTCE/FTCF type A-2. ACTF type A-4. VTCET typeA-3. FTCT/6TCT type
Injection point
(Rc1/2)
Wrap sealing
tape around
here.
Wrap sealing
tape around
here.
Main pipe Main pipe
Injection point
(Rc1/2or
Rc3/8)
Main pipe
Injection point
(Rc1/2)
Main pipe
Wrap sealing
tape around
here.
Wrap sealing
tape around
here.
Screw into
place.
Injection point
(Rc1/2, Nominal
diameter 16)
Proceed with the piping
with the anti-siphonal
check valve still attached.
Check cap: Outside
diameter 14mm
NOTE
•
When using a PVC or PVDF anti-siphonal check valve
Install the valve so that
the end of the injection
nozzle is positioned at the
center of the main pipe.
If the nozzle is too long, use a
saw or other tool to cut off its
end, use a file or other means
to finish the cut-off surface, and discard the metal scraps.
✽
In the case of an anti-siphonal check valve
used for sodium hypochlorite, attach the
shut-off cap to the body after cutting it.
• For maintenance
It is recommended that
the tube be attached to
the main pipe through a
valve to enable the anti-
siphonal check valve to
be replaced or cleaned,
etc.
✽
Use a valve made
of materials which will resist any corrosion
resulting from the chemical used.
Main pipe
Valve
Pipe connections
B-1. Hose connection
Model: VTCE/VTCF/6TCT/ATCF type
Insert the hose/tube firmly so that it
will not become disconnected, and
tightenthenutssecurely.Donot
excessively tighten the nuts. Doing so
may damage or break the joint.
Tighten up the nut appropriately after
operation has started.
B-2. Tube connection
Model: FTCE/FTCF/FTCT type
(1) Wrap sealing tape around the
threaded part of the tube fitting.
(2)
Pass the tube through the tightening nut
(1), grip (2) and sleeve (3), and insert its
end until it touches the back end of the
tube-fitting body (4) on the inside.
(3)
Tighten the tightening nut (1) by hand.
(4)
Using the tool, tighten the tightening nut (1)
in such a way that the gap (area “a” in the
figure) between the tube-fitting body (4) and
tightening nut (1) is approximately 1.5 mm.
✽
Bear in mind that the joint may break if
tightening nut (1) is tightened too much.
When bending the tube, be sure to leave
sufficient leeway (R100 or more) in the
bending so that the tube will not break.
B-3. PA tube connection
Model: VTCET (boiler) type
(1) Pass the nut (1) and sleeve (2)
over the tube, and insert the tube
so that its end touches the back of
the groove in the body.
(2) After manually tightening up the
nut all the way, use a monkey
wrench or spanner to secure the
flareless joint, and tighten up the
nut by two or so turns.
✽ Leave a gap (area “B” in the
figure) of 2 mm or more between
the discharge-side joint and the
flareless joint.
Nut
Retaining ring*1
Hose
* This part is not provided on the 6TCT type.
✽Take care not to tighten the nut too much.
Nut (1)
Tube
Sleeve (2)
Discharge-side
joint
Flareless joint
PE/FEP tube
Discharge-side
joint
Nut (1)
Grip (2)
Tube fitting (4)
Sleeve (3)
A
B
08-32EM-127PW(E).indd13 2014/11/1711:43:53

14
Installation
Connecting
Foot valve connection
C-1. Hose connection
Model: VTCE/VTCF/6TCT/VTCET/ATCF type
The foot valve has a different shape depending on the material used for the liquid-end material of the pump.
First check the model of the pump to be used, and then refer to the applicable diagram below.
✽A foot valve is not provided for the high-viscosity type and DCLPWseries.
Insert the hose/tube firmly so that it will not become
disconnected, and tighten the nuts securely. Do not excessively
tighten the nuts. Doing so may damage or break the joint.
Tighten up the nut appropriately after operation has started.
C-2. Tube connection
Model: FTCE/FTCF/FTCT type
(1) Wrap sealing tape around the threaded part of the tube
fitting.
(2) Pass the tube through the tightening nut (1), grip (2) and
sleeve (3), and insert its end until it touches the back end
of the tube-fitting body (4) on the inside.
(3) Tighten the tightening nut (1) by hand.
(4)
Using the tool, tighten the tightening nut (1) in such a way
that the gap (area “A” in the figure) between the tube-fitting
body (4) and tightening nut (1) is approximately 1.5 mm.
✽Bear in mind that the joint may break if tightening nut (1) is
tightened too much.
Nut
Retaining ring
Foot valve
Foot valve
Nut (1)
Grip (2)
Tube fitting (4)
Sleeve (3)
A
Ceramic weight
IMPORTANT
When installing the foot valve, cut the hose to the appropriate
length so that the foot valve is positioned 30 mm above the bottom
of the tank, and adjust its height. Tank
30 mm above the
bottom of the tank.
08-32EM-127PW(E).indd14 2014/11/1711:43:54

15
Installation
Connecting
Degassing joint connection
Body
Joint
Union nut
O-ringO-ring
Packing
O-ring
Spacer
Ball stopper
Check ball
Valve seat
Valve seat
Ball stopper
Check ball
O-ring
Ball stopper
Check ball
Valve seat
Valve seat
Ball stopper
Check ball
ATCF VTCE/VTCF
O-ring
Joint
Union nut
Air-release
hose Air-release
hose
Suction side Suction side
Make sure the end of air-release hose is not
immersed in the chemical liquid even when the
tank is full.
Make sure the air-release hose is not
folded over or bent into a wavy shape.
It could cause liquid to accumulate in
the hose.
The air will not be released if the pipes are connected as shown below so avoid this kind of connection.
(1) Loosen the union nut, and remove the joint and body. (4) Install the union nut on the body.
Check that the O-ring is provided on the body, and
tighten it up manually.
(2) Remove the suction side joint of the pump, and take
out the valve seat sets.
(3) Install the valve seat sets on the joint, and connect the
joint to the pump.
Example of unacceptable installation
IMPORTANT
• When connecting the degassing joint to the
DCLPW
The valve seat sets, joint and union nut are
installed on the pump body before the pump is
shipped. Before use, install the degassing joint
using step (4) above as a reference.
• When connecting the degassing joint to the
PW or CLPW
Remove the suction side joint, take out the valve
seat sets, and install them on the pump following
steps (1) to (4) in sequence.
✽ The hose joint, retaining ring, or hose nut of
pump (suction side) are not used.
08-32EM-127PW(E).indd15 2014/11/1711:43:54

16
Installation
AC200V
3-phase
Irrigation
pump
P
Power supply ELB NFB MC1 TH U
V
W
E
CP MC2
NFB EGreen
PW/DCLPW/
CLPW
PW/DCLPW/
CLPW
CS1
CS2
Automatic
Off
Manual
Automatic
Off
Manual
X
OL
MC
1
MC
2
PL
PL
ELB : Current leakage breaker
NFB : No-fuse breaker
MC1, 2: Electromagnetic contactor
TH : Thermal relay
CP : Circuit protector
CS1, 2: Changeover switch
OL : Overload relay
PL : Pilot lamp
Irrigation
pump
TH
Operation signals
P
P
P
CP MC
Power supply
AC100~240V
Green
E
PW/DCLPW
/
CLPW
P
Electrical wiring
WARNING
!
• This pump cannot be used in explosion-proof regions or in explosive or combustible atmospheres.
• Take steps to ensure that the power will not be turned on during the course of work. Hang a sign on the
power switch indicating that work is in progress.
• Do not operate the pump with wet hands. Doing so may result in electric shocks.
• Securely ground the protective earth terminal, and be absolutely sure to install a ground fault circuit
interrupter. Otherwise, you may receive electric shocks.
• Do not attempt to disassemble the pump body or the circuit parts.
!CAUTION
• The wiring must be done by a qualified electrician or somebody with electrical knowledge.
• Connect the wires after checking the supply voltage. Do not connect the wires to a power supply that is
not within the rated voltage range.

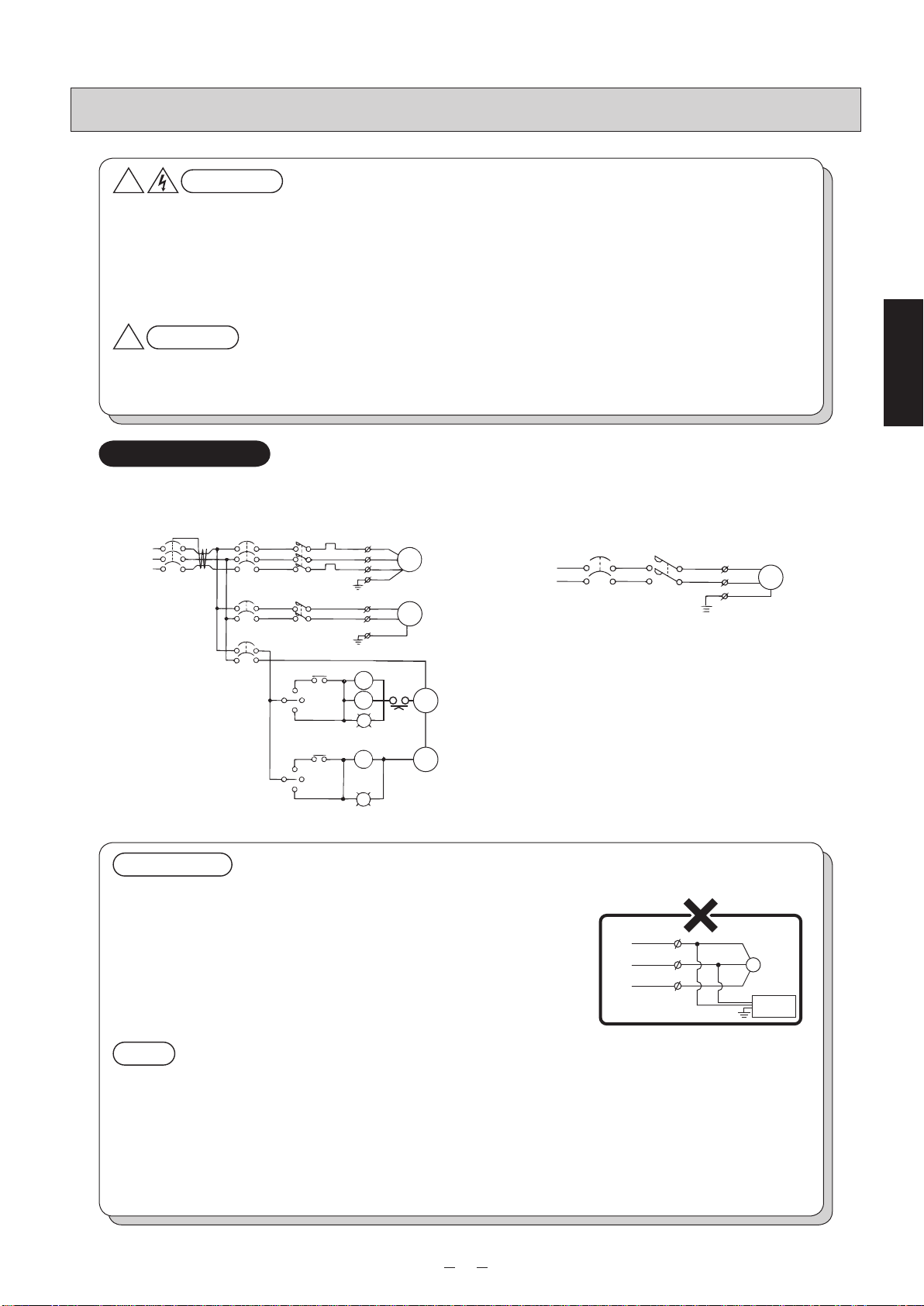

Example of wiring
●When operating the pump in tandem
with an irrigation pump, etc.
●When running the pump on its own
IMPORTANT
• Be absolutely sure to use a commercial power source (the power
supplied by an electric power company) for supplying the power.
<Power sources that cannot be used>
Power sources in which an AC power regulator is installed
Power sources on the output side of an inverter
• Since a high voltage is generated when the power is cut off or in
other such circumstances and this may result in trouble, do not
take the power from the same terminals as the induction motor of
an irrigation pump, etc.
NOTE
• When installing an overcurrent protection device for this pump, always install a circuit protector (CP) in
consideration of the operating time and the breaking current characteristics.
• The circuit protector (CP) shown as the recommended protection device can also be used as the
powerswitch, thus simplifying the wiring connections.
• A thermal relay (TH) is used to protect against heat generation due to motor overload, which makes
it suitable for motor pumps or other equipment that are operated continuously, but it is unsuitable for
this solenoid-driven pump, which is operated non-continuously. In this case, the pump may not operate
properly.
P
Irrigation
pump, etc.
U
V
W
PW/DCLPW/
CLPW
PE
Power supply
08-32EM-127PW(E).indd16 2014/11/1711:43:54

17
Installation
Electrical wiring
Connecting the power supply & protective earth
• A 3-pin detachable connector (including the protective
earth) is used to connect to the AC power supply.
• Use a round tough rubber-sheathed cable (VCTF-3C
or 4C) as the power cable.
✽With the VCTF-4C, cut one of the wires.
• When using a power cable other than accessories,
use a power cable which has a cross sectional area of
at least 2 mm2and an outside diameter of 5 to 10 mm.
(1) Remove the four screws at the back of the circuit
box, and open the cover.
3-pin detachable connector
Power cable
(2) Pull out the 3-pin detachable connector.
(3) Strip away about 7 mm of the covering over the con-
ductors.
(4) Insert the conductors into the connector holes, and
use a regular screwdriver to secure them firmly.
123
123
Round tough
rubber-sheathed cable
7mm
70mm
Regular screwdriver
(with a 3 mm or so blade)
(5) After securing the conductors, pull them gently to
check that they do not come free.
(6) Insert the connector back in its original position, and
screw down the cover.
A-6 pin deta chable connector is used to connect to the
signal cable.
• Use a round tough rubber-sheathed cable as the
power cable.
• Use a power cable which has a cross sectional area of
at least 0.5 mm2and an outside diameter of 5 to 10 mm.
Regular screwdriver
(with a 3 mm or so blade)
7mm
Signal cable
Round tough
rubber-sheathed cable
70mm
There are two cable grounds, one for the power supply and one for the signals.
NOTE
• When using the alarm output, connect the
signal wire, and set the parameter. Refer to
page 32 for the parameter setting.
Connecting the signal cable
08-32EM-127PW(E).indd17 2014/11/1711:43:54

18
Installation
Electrical wiring
Signal cable distribution
■ When not using a signal distributor
●Pulse signal
You can connect multiple instances of this pump in parallel and apply pulse signals and operation/stop signals to the
pumps.
Pump
Open collector
or
no-voltage contact signal
COM
Approximately
0.5 mA
Approximately 0.5 mA
× n pumps Approximately
0.5 mA
COM
Pump
(4) (6)(4) (6)
●Analog signal
You can connect multiple instances of this pump in series and apply analog signals to the pumps.
PWM
110Ω110Ω
++
−−
+
−
Analog
signal
PWM
(4) (6) (4) (6)
✽If you remove a pump during maintenance or similar operations or if a pump is malfunctioning, the analog signal will
be interrupted, and the other pumps will stop. If you want to ensure that these other pumps continue operating even
in these situations, install a signal distributor.
■ When using a signal distributor
●Pulse signal
Pump
Signal distributor Supplied power
Open collector
or
no-voltage contact signal
+−
Pump
(4) (6)
−+
(4) (6)
●Analog signal
Signal distributor Supplied power
PWM
110Ω110Ω
++
−−
Analog
signal
PWM
(4) (6) (4) (6)
Model comparison table
Pulse signal
Operation/Stop signal
PW {{
PWM ¯{
PWT {*1{
*1
Only when the pump is operating can
it be used with “timer control + pulse
input-based proportional control.”
08-32EM-127PW(E).indd18 2014/11/1711:43:55

19
Installation
Electrical wiring
External operation and stop input
The pump can be turned on and off using signals from an external device such as an interlock or level switch.
The pump runs or stops while (5) and (6) are shorted (no-voltage contacts) or while (5)+ and (6)- (open collector) are
input.
To set the operation to be performed when the external operation and stop input signals are received, refer to the set-
tings list on page 32.
✽The displayed settings blink while the pump is stopped by the stop input signal.
✽If STOP has been selected, the pump will stop operating when the signal is input regardless of the setting.
✽Even if OPERATION has been selected, the pump will not operate unless the external operation signal has been
input.
Signal input
● About signal input (SIGNAL IN) terminals
a) Input of non-voltage contact signal to a pulse input-type model
Non-voltage contact pulses produced by devices such as the pulse generator-type flow meter system are input to
terminal numbers (4) and (6). In this case, no considerations are required with regard to polarity. Be sure to use a
pulse signal that has low chattering noise.The contact points of a general control relay are not appropriate.
b) Input of open collector (drain) signal to a pulse input-type model
The electric current direction of the contact points of semiconductor devices (such as open collector and open
drain devices) is fixed due to the characteristics of these devices. Connect the collector (drain) to terminal number
(4) and the emitter (source) to number (6).
c) Input of electric current signal to an analog input-type model
Connect the signal wires (DC4 to 20mA) to terminal number (4) to use it as the positive terminal and to number
(6) to use it as the negative terminal.
● For details about signal specifications, see page 52.
Recommended protection devices
(1) Circuit protectors
(Protects the main power supply in the event of the pump problem)
Manufacturer Type
Mitsubishi Electric CP30-BA2P1-M3A
Fuji Electric CP32D/3
Matsushita Electric Works
BAC201305
(2) Lightning arrestors
Use an arrestor that matches the power supply to be used.The recommended arrestor models for 100V and 200V are
indicated below.
Manufacturer Type
For AC 100V For AC 200V
M-System Co. MA-100 MA-200
(3) Line filters, sealed transformers
Manufacturer Type
TDK RSHN-2003
08-32EM-127PW(E).indd19 2014/11/1711:43:55
This manual suits for next models
8
Table of contents
Other Tacmina Water Pump manuals
Popular Water Pump manuals by other brands

Pentair
Pentair HYDROMATIC H3H Installation and service manual

PAPILLON
PAPILLON MANTA instruction manual

SELWOOD
SELWOOD Seltorque S100 manual

Franklin Fueling Systems
Franklin Fueling Systems FE PETRO PMA 75 Replacement instructions

Sealey
Sealey TP98.v2 quick start guide

PondMAX
PondMAX Evo II series instruction manual

Homelite
Homelite UT40520 Operator's manual

TLV
TLV PowerTrap GP14-B instruction manual

STA-RITE
STA-RITE AR204-L 3/4 HP owner's manual

Agilent Technologies
Agilent Technologies 9130037 user manual

PYD Electrobombas
PYD Electrobombas PC Series Operating and maintenance manual

Grundfos
Grundfos MTB Series Installation and operating instructions
