Tacony Powr-Flite NM1600 User manual

OPERATOR’S MANUAL
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©Tacony, Inc., All rights reserved
Save These Instructions
Model NM1600
1600 RPM
Ultra High Speed Burnisher
X8442A16 05/2021

2
Your new Powr-Flite Ultra High Speed Burmisher will afford you many years of trouble-free
operation saitisfaction provided it is given proper care. All parts used in the manufacturing of this
unit have passed rigid quality control standards prior to assembly. Please safeguard the original
receipt / invoice. If you experience any problems with your unit during the warranty period, the
original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT
Read and understand this owner’s manual and all labels on the unit before operating. Safety is a
combination of common sense,staying alert and knowing how your unit works. Use this unit only
as described in this manual. Use only manufacturer’s recommended attachments. To reduce the
risk of personal injury or damage to your unit use only Tornado recommended accessories.
WARNINGS
READ THIS OPERATOR’S MANUAL!
WARNING: You must have training in the operation of this machine before using it.
WARNING: Machines can burn flammable materials and vapors. Do not use this machine with
or near fuels, grain dust, solvents, thinners or other flammable materials.
WARNING: Do not operate this machine unless it is completely assembled.
WARNING: Do not use this machine as a step or to move furniture.
WARNING: When disconnecting power cord from electrical outlet, grasp the plug. Pulling it out
by the cord itself can damage cord insulation and internal connections to the plug. To prevent
electric shock, always remove the electrical plug from the electrical outlet before doing any
repairs or maintenance to this machine.
WARNING: To prevent injury, always remove the electrical plug from the electrical outlet before
changing the polishing pad and before leaving the machine.
WARNING: To prevent injury, keep hands, feet, and loose clothing away from the rotating pad.
WARNING: Maintenance and repairs must be done by authorized personnel only.
WARNING: Keep all fasteners tight. Keep adjustments according to specification.
WARNING: Keep the electrical parts of the machine dry. For storage, keep the machine in a
building.
WARNING: Always use a three-wire electrical system connected to the electrical ground. For
maximum protection against electric shock, use a circuit that is protected buy a ground fault
circuit interrupter. Consult with your electrical contractor.
WARNING: To prevent damage to the power cord, do not let the pad, pad driver or wheels
touch the power cord when the machine is running. Always lift the power cord over the
machine.
WARNING: Make sure all labels, decals, warning, cautions and instructions are fastened to the
machine.
WARNING: To avoid fire, do not use unit with a flammable or combustible liquid to clean floor.
WARNING: Do not leave machine running unattended.

3
A
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This machine
is equipped with a cord having an equipment -grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as to
whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if
it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This appliance is for use on a nominal 115-volt circuit, and has a grounding plug that looks like
the plug illustrated in sketch A.

4
UNCRATING
Your Powr-Flite Ultra High Speed Burnisher
was protectively packed to prevent damage
in shipment. We suggest that upon removing
the unit from its carton you carefully inspect
it for any possible damage in transit. If
damage is discovered, immediately notify the
transportation company who delivered your
machine. As a manufacturer, we are unable to
act upon any claim for concealed damage: you
must originate the claim.
IMPORTANT SAFEGUARDS
This machine is designed to be safe when
used to perform the functions specified in this
Operator’s Manual. Should damage occur to
electrical or mechanical parts, the machine
should be repaired by the manufacturer or
competent service center before using in order
to avoid further damage to the machine or
physical injury to the user. Your floor machine
is equipped with a safety switch lockout device
designed for your safety. Do not attempt to
bypass or defeat the safety lockout device.
Never use any device to lock the power switch
in the ON position.
Fig 1
APPLICATION
The NM1600 Ultra High Speed Burnisher is
used to achieve and /or maintain a high gloss
appearance on an established floor finish.
The high pad revolution of the floor burnisher
combined with a good polishing pad will turn
properly established cleaned floor finish into a
high gloss, hardened finish known as the ‘wet
look shine”. Recommended pads are beige or
white synthetic pads, or the natural hogs hair
blended pads.
Preparation of the Surface
Before each use of this machine, the floor
must be dust mopped with a treated mop and
if necessary clean the floor with a damp mop
using a solution of water and neutral cleaner.
PREPARE THE MACHINE FOR OPERATION
WARNING: To prevent injury, always remove
the electrical plug from the electrical outlet
before changing the polishing pad and before
leaving the machine.
With the handle locked, tip the machine back
until the handle is lying flat on the floor
To remove the pad-lock pad holder from the
flexible pad driver, grasp the center support
with your thumb and forefinger and turn the

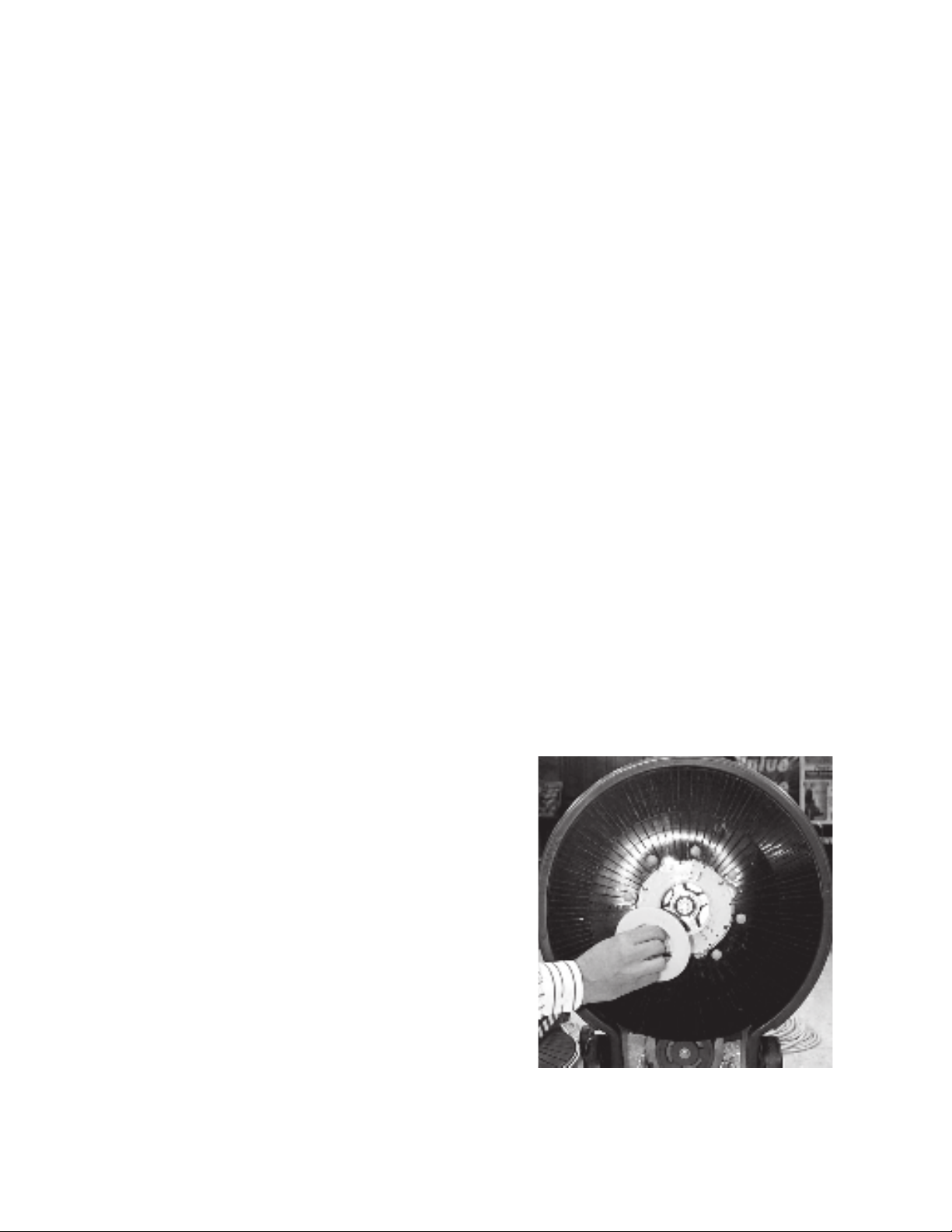

collar counter-clockwise (see figure 1).
Place a clean or new 20” buffing pad over the
alignment ring on the pad holder
Replace the collar by turning clockwise until
snug (see figure 2).
Step back and tilt the burnisher to the upright
position.
Connect the power cord into a grounded, 3-wire
outlet.
The NM1600 Ultra High Speed Burnisher
should be operated with the handle in the
unlocked “floating” position to provide excellent
maneuverability and automatic pad contact.
The units are designed for maintenance of large,
open areas. To prevent excessive pad drag
or uneven burnishing where tight, repetitive
turns are necessary, lock the handle for manual
control of pad contact.
NOTE: The hardened steel cam release
lever does not require extreme tightening to
effectively hold the handle in position. Over-
tightening the cam release lever will shorten the
functional life of the lever (see figure 3).

5
Fig 3
Fig 2
Fig 5
HOW TO OPERATE THE MACHINE
Plug the machine in as directed and lower the
handle to the desired operating height. Push
the safety switch forward (see figure 4) and
squeeze the switch triggers beneath the handle
grips. This activates the motor and stars the
pad in operation. Each time your release the
triggers the safety switch will reset. You will
need to follow the direction above to restart the
machine. CAUTION: When leaving the machine
unattended, disconnect the wall plug and return
the handle to the “locked” upright position to
prevent accidental starting.
Push the machine forward in a straight line, at
a slow walking speed. Overlap each pass by
about 1 inch (25mm).
Fig 4
Safety
Switch
Switch
Trigger
AFTER USING THE MACHINE
Upon completion, dust mop with treated mop to
pick up all burnishing residue.
The condition of the floor pad has a direct effect
on the performance of your burnisher. When
the pad becomes dirty, turn it over and use
the other side. When finished, wash the pad
out and allow it to dry completely before using
again.
TRANSPORTING THE MACHINE
Use the rear wheels for transporting the
NM1600 Ultra High Speed Burnisher. This will
insure that the operating wheels remain clean
and smooth for use on clean floor surfaces (see
figure 5).

6
MAINTENANCE
Once a month remove the motor cover of the
unplugged NM1600 Ultra High Speed Burnisher
by removing the motor cover screws.
Vacuum out any dust or debris which has
accumulated on the motor (see figure 6).
Replace the motor cover by setting it over
the holes in the housing and replace all of the
screws.
Check and maintain the tightness of all the
fasteners.
WARNING: Do not over-tighten the switch
housing screws.
Keep the burnisher clean, especially at the
handle tube and collar so the handle tube will
move freely through the collar.
Inspect the cord for cuts, gashes, or loose
prongs; replace as needed.
The length of the carbon brushes should be
inspected annually. If they are no longer
extended past the holder window, they should
be replaced.
Replacement of carbon brushes should be done
only by a qualified service technician.
Disassembly of this motor voids the warranty.
Improper disassembly and assembly of this
motor can permanently damage the field or
rotor.

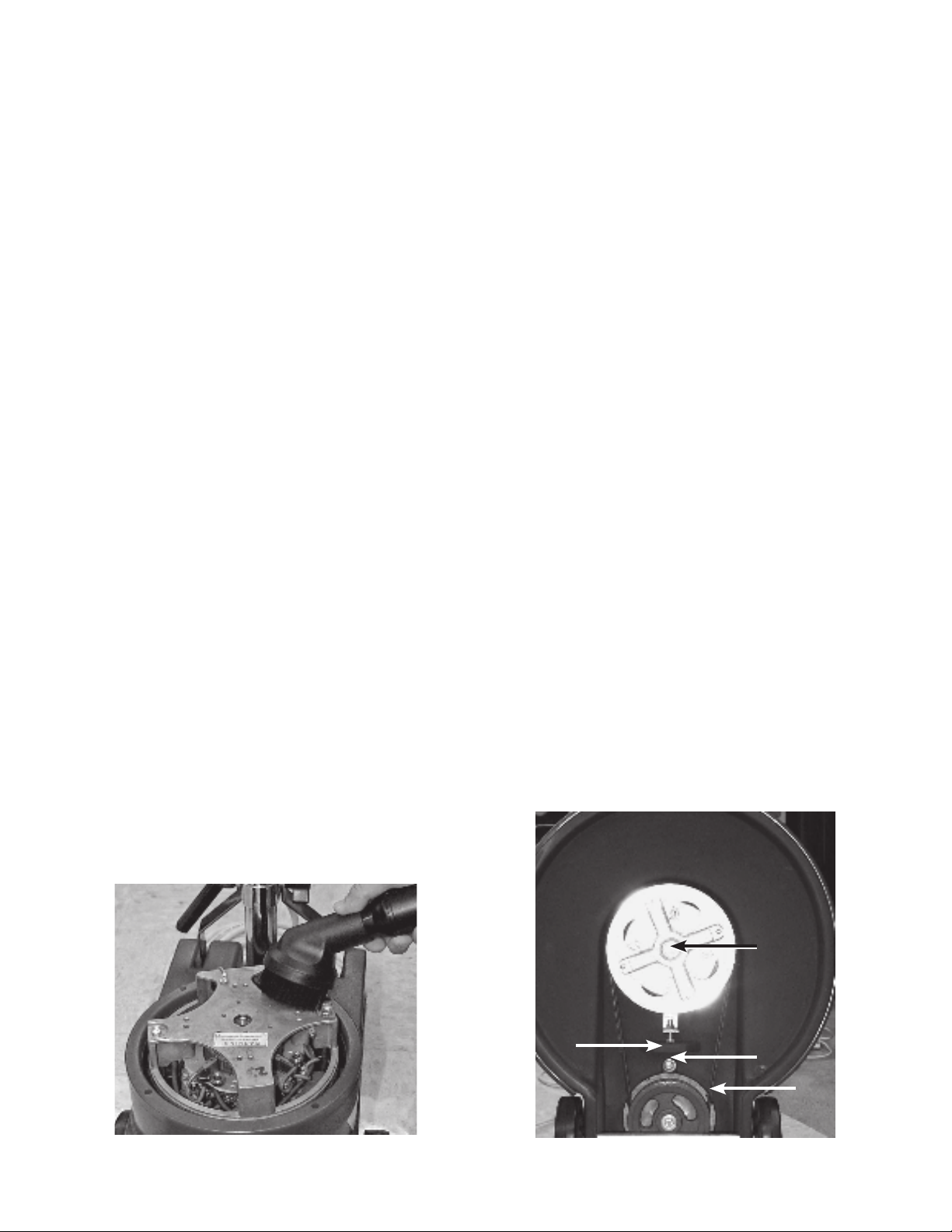

Fig 6
Drive Belt Adjustment (see figure 7)
1. Remove the three (3) Phillips head screws
holding the pad center grip
2. Remove four (4) large, slot head screws
holding the drive pad.
3. Loosen pulley mount bolts (A) with a
9/16” deep socket wrench.
Do not remove the bolts.
4. Using a 1/2” box wrench, turn adjustment
nut (B) until it touches the adjustment
bolt head. Turn the adjustment bolt to
tighten or loosen the belt tension.
5. Correct belt tension allows belt (C) no
more than 1/4” of side movement.
6. Tighten the four (4) pulley mount bolts
with the 9/16” socket.
7. Loosen the adjusting bolt (D) until it is
snug against adjustment stop molded in
housing and turn adjustment nut against
pulley mount bracket.
8. Replace pad driver and pad center grip
Fig 7
AA
BB
CC
DD

7
TROUBLESHOOTING
Problem Possible Cause
Burnisher will not start
Rectifier is defective. Replace.
Switch is defective. Replace.
Cord is damaged. Replace.
Plug is broken or has a loose contact. Replace.
Circuit breaker has tripped (2000 RPM and 2000
RPM Dust Control ONLY)*
Burnisher tends to move to the right
Do not lift up on the handle while operating the
unit.
Do not operate the unit with the handle set too
high. (Recommended handle height is from your
waist with your arms extended forward.)
Motor runs but pad does not turn Belt is broken. Replace.
* To prevent circuit overload
• Do not spray buff with the NM1600 Ultra High Speed Burnisher
• Check pad and change if dirty or rough
• Check area being burnished for cleanliness, area should be damp mopped, scrubbed or
swept with treated broom.
• Operator should not try to operate the burnisher in a side to side motion.
• Operator should not continually force the machine with handle pressure.
• Eliminate any extension cord that is smaller than 12/3 wire or greater than 25 feet in length.

X8442A16 05/2021
A Tacony Company
3101 Wichita Court • Fort Worth, TX 76140-1755
1-800-880-2913 • Fax: [phone]
For warranty information go to www.Powr-Flite.com
