TACSWAN 85-030 User manual

SHIELD LIGHT CABLE ORGANIZER BOX
P/N 85-030
Please read below before using your Shield Light Cable Organizer Box as it
relays benecial operating and safety information.
PHYSICAL CHARACTERISTICS
DIMENSIONS
(L X W X H)
Full Assembly: 3.07 x 1.97 x 0.87 (78 x 50 x 22 mm)
TOTAL
WEIGHT 1.06 oz (30 g)
SHIELD LIGHT CABLE ORGANIZER BOX REFERENCE GUIDE
INCLUDED
• Shield Light Cable Organizer Box
• 3M Reclosable Fastener
BASE
RELEASE TAB HOLE
(2 EA)
RELEASE TAB (2 EA)
CABLE RETAINER BOSS
COVER

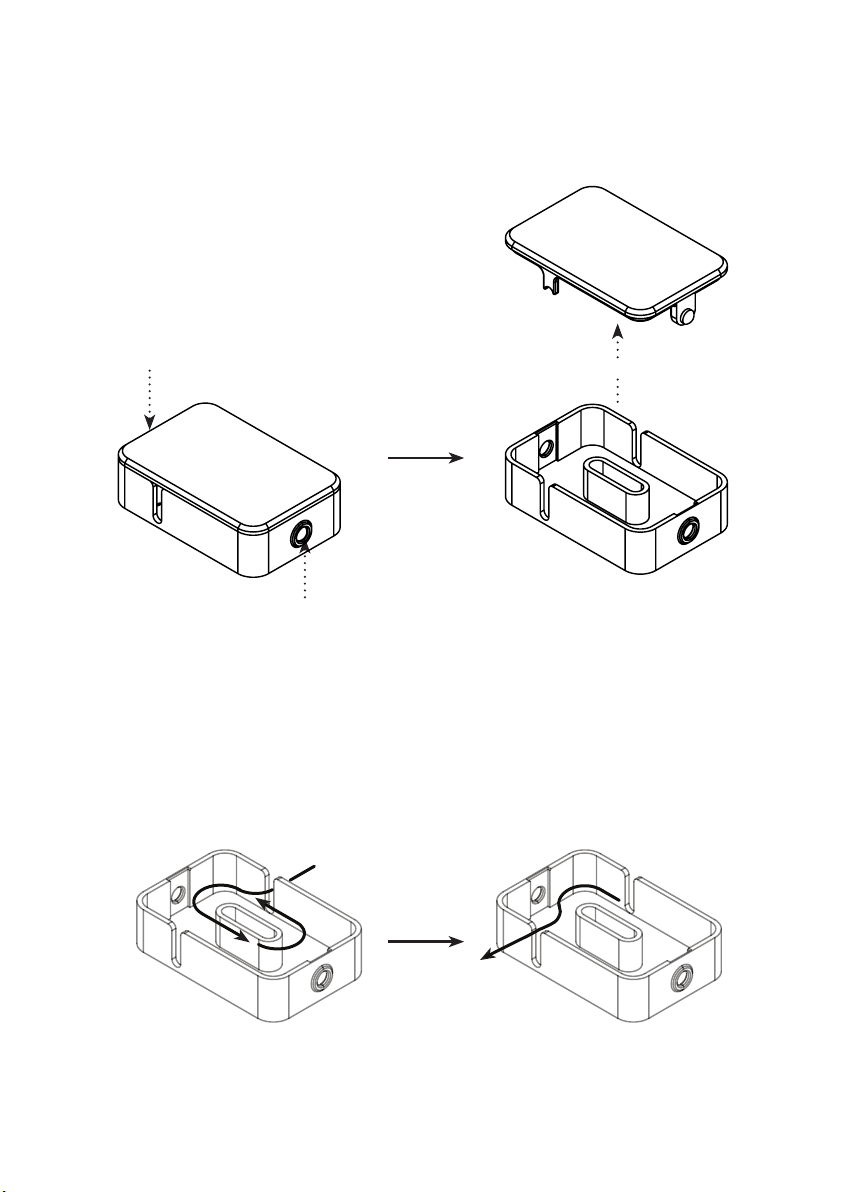

INSTALLATION
1. Press both Release Tabs while lifting the Cover from the Base. The
internal Cable Retainer Boss of the Cover and Base should now be
accessable.
2. Place excess cable through one side of the Cable Slot of the Base. Then,
wrap, or loop, the cable around the Cable Retainer Boss until the desired
amount of slack has been removed. Once the desired number of loops
has been made, place the remaining cable through the other Cable Slot.
PRESS HERE
PRESS HERE LIFT

3. Use nger to keep the cable held in position around the Cable Retainer
Boss. Press the Cover to the Base so that the Release Tabs align with
the Release Tab Holes. Make sure that the Tabs are locked in the Holes.
SHIELD INSTALLATION
1. Clean the surface of the shield where the Shield Light Cable Organizer
will be placed.
2. Remove the protective plastic from the back of one of the provided 3M
Reclosable Fastener (P/N 51-030). Place it on the back of the shield at
the desired location. Press rmly to adhere the Reclosable Fastener to
the rigid shield.
3. Remove the protective plastic from the back of one of the provided 3M
Recloasable Fastener (P/N 51-030). Place it on the Cable Organizer Box
(see the following page).
4. Then, place the Cable Organizer Box onto the back of the shield (at
desired location where Reclosable Fastener was installed) and rmly
press down, joinging the two parts. Ensure the strips are perpendicular
to each other to prevent detachment.

SHIELD INSTALLATION REFERENCE
lid,
cable organizer box
3m Reclosable fastener
BALLISTIC
shield
The user, or operator,
side of the shield is
shown towards the
reader of this manual.
Base,
cable organizer box
3m Reclosable fastener
3m Reclosable fastener

CARE/CLEANING
Your TacSwan product is a
professional tool. Regular
maintenance and care of your
product will maximize performance
for you. As needed, wash your
TacSwan product using a soft
washcloth, clean water and a mild
soap. When done, pat dry with a
damp cloth.
WARNINGS
TacSwan, LLC is not responsible for
the incorrect use of any TacSwan
Lighting product.
TacSwan, LLC is not responsible
for any injury or damage
caused during the use of this
product.
Usage of this product must be
supervised by an adult when it
is being used by a minor.
Any TacSwan product should
be operated at speeds safe
enough to maneuver around
surrounding obstacles.
Do not use under the inuence
of drugs or alcohol.
LIMITED LIFETIME WARRANTY
TacSwan, LLC (“TacSwan”) warrants
this product to be free from defects
in material for a lifetime of use
except for batteries, LEDs, abuse,
and normal wear. We will repair
or replace this product should we
determine it to be defective. This
limited lifetime warranty excludes
rechargeable batteries, chargers,
switches, and electronics, which
have a 2-year warranty with proof of
purchase.
This limited lifetime warranty is
given only to the original end user
of the accompanying product. If you
purchased a product from someone
other than an authorized TacSwan
reseller/distributor or if the product
was used, (including but not limited
to demo models, show models or
refurbished product by someone
other than TacSwan) prior to your
purchase, you are not the Original
Purchaser and the product that you
purchased is not covered by this
warranty. This limited warranty is
VOID if this Product has been altered
or modied in any way (including but
not limited to attempted warranty
repair without authorization from
TacSwan and/or alteration/removal
of the serial number). To expedite
warranty concerns, we encourage
the end user to register their
TacSwan Product at www.foxfury.
com/pages/warranty-registration.
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES ARE EXPRESSLY
DISCLAIMED EXCEPT WHERE SUCH
LIMITATION IS PROHIBITED BY LAW.
WARRANTY AND OTHER INFORMATION
SHIELD INSTALLATION REFERENCE
lid,
cable organizer box
3m Reclosable fastener
BALLISTIC
shield
The user, or operator,
side of the shield is
shown towards the
reader of this manual.
Base,
cable organizer box
3m Reclosable fastener
3m Reclosable fastener

You may have other specic legal
rights which vary by jurisdiction. Go
to www.foxfury.com/pages/warranty
for a complete copy of the warranty.
Retain your receipt for proof of
purchase.
All TacSwan products are designed in
Oceanside, CA. All TacSwan products
are manufactured with the highest
quality USA and foreign parts.
Products are assembled in either
TacSwan’s controlled plant in Asia or
the USA, under strict quality control.
TacSwan Products are distributed by
FoxFury, LLC.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: FoxFury.com
CALIFORNIA PROPOSITION 65
This product can expose you to
chemicals including Lead and DEHP,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65Warnings.ca.gov.
