Taga Harmony inTONE 2.1 Reference manual

inTONE 2.1
Introduction Manual
2.1 Speaker System

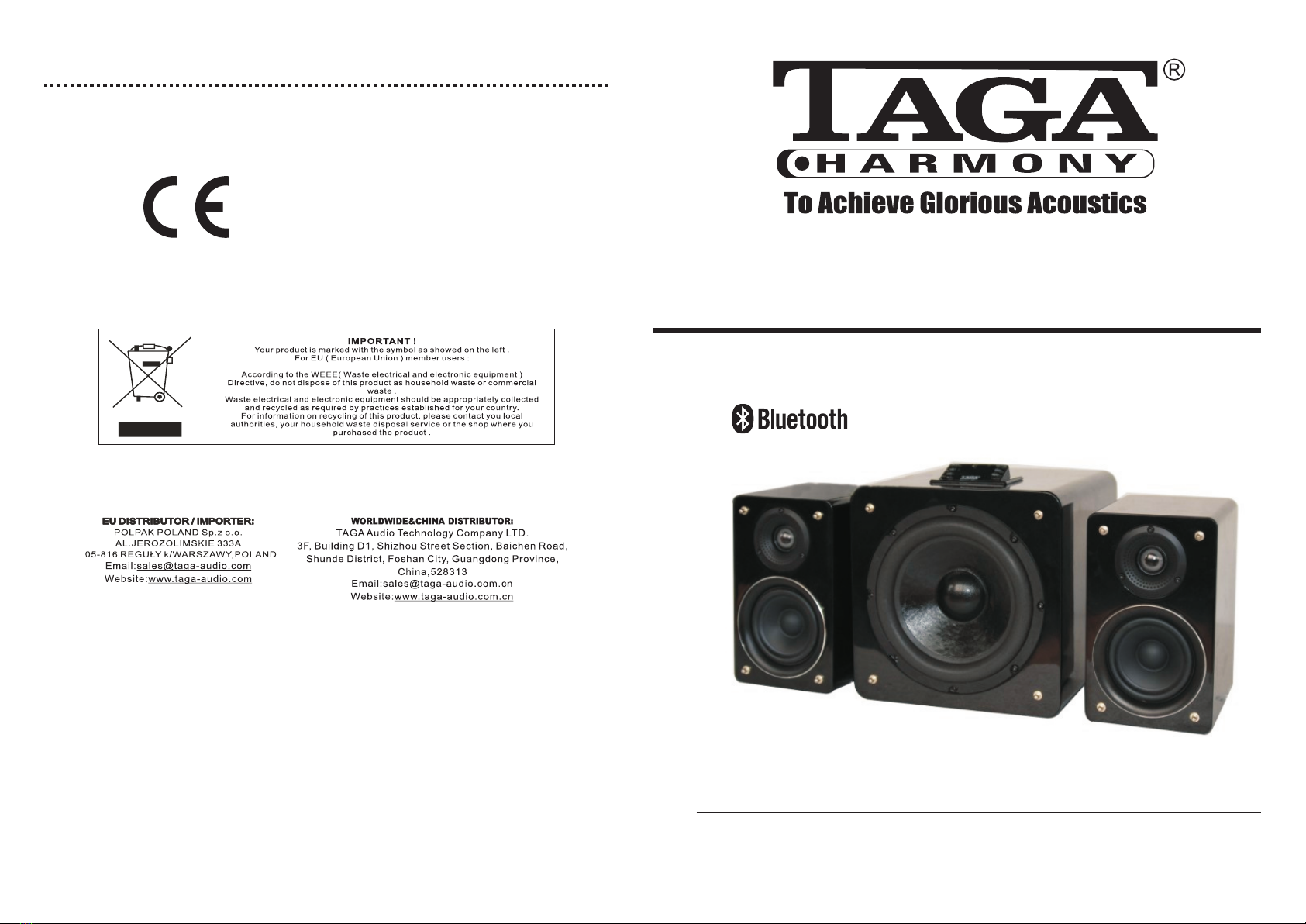

CE Compliance Statement
This product had been subject to the testing requirements for the CE mark, and
has been approved to claim the CE mark for the standards
The validity of the CE mark is restricted to those countries where it is legally enforced.
EN 55013:2001+A1:2003
EN55020:2002+A1:2003+A2:2005
EN 61000-3-2:2000+A2:2005
EN 61000-3-3:1995+A1:2001+A2:2005
EN60065:2002
®

12
Thank you for purchasing this TAGA Harmony inTONE 2.1 Active Speaker.
Introduction
This instruction manual provides all of the information that you need to know
about your TAGA Harmony inTONE 2.1.Please read it carefully before you start
using the unit.
Contents
Safety instruction............................................................ 3
Important safety instructions............................................ 4
System Set up/Remote Control........................................ 5
Remote Control Battery lnstallation.................................. 6
Connection.................................................... 7
Control Instructions......................................................... 7
Troubleshooting.............................................................. 9
Kit contents, Specifications............................................. 10
Connecting Satellites...................................................... 6
®
Bluetooth

WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow point within an equilateral triangle warns of the
presence of uninsulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle warns users of the presence
of important operating and maintenance (service) instructions in the literature
accompanying the appliance.
4
3
IMPORTANT
Safety Instructions
READ THIS SECTION CAREFULLY BEFORE PROCEEDING!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH LIQUIDS
,SHUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT,FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,REPLACE THE
FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE.REFER REPLACEMENT
TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE VENTILATION
TO ALLOW FOR COOLING. DO NOT PLACE NEAR A HEAT SOURCE. OR IN SPACES
THAT CAN RESTRICT VENTILATION.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Important Safety Instructions
1. Read instructions - All the safety and operating inst
ructions should be read before the product is operated.
2.Retain instructions - The safety and operating
instructions should be retained for future reference.
3.Heed Warning - All warning on the product and in
the operating instructions should be adhered to.
4.Follow Instructions - All operating and use
instructions should be followed
5.Cleaning- Unplug this products from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp, soft cloth for cleaning.
6.Water and Moisture- Do not use this product near
water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub; in a wet basement; or near
a swimming pool; and the like.
7.Accessories - Do not place this product on an unstable
cart, stand, tripod, bracket or table. The product may
fall, causing serious injury to a child or adult, and
serious damage to the product. Use only with a cart,
stand, tripod, bracket or table recommended by the
manufacture, or sold with the product. Any mounting of
the product should follow manufacture’s instructions
and should use a mounting accessory recommended by
the manufacture.
8.Ventilation - Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the product and to protect it from overheating, and
these openings must not be blocked or covered.The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is
provided or the manufacture’s instructions have been
adhered to.
9.Power Sources - This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home. consult your product dealer or local power
company. For products intended to operate from
battery power, or other sources, refer to the operating
instructions.
10.Grounding and Polarization - This product may be
equipped with a polarized alternating-current line plug
(a plug having one blade wider than the other).This
plug will fit into the power outlet only one way. This is
safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
11.Power-cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
product.
12.Lightning - For added protection for the product
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable systems.
This will prevent damage to the product due to lightning
and power-line surges.
13.Overloading - Do not overload wall outlet, extension
cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
14.Object and Liquid Entry - Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Do not expose
this apparatus to dripping or splashing, and ensure that
no objects filled with water, such as vases ,are placed
on the apparatus.
15.Servicing - Do not attempt to service this product
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
16.Damage Requiring Service- Unplug this product
from wall outlet and refer servicing to qualified
personnel under the following
Conditions:
When power supply cord or plug is damaged;
If liquid has been spilled, or objects have fallen into
product;
lf the product has been exposed to rain or water.
If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will require extensive work by a qualified
technician to restore the product to its normal operation;
If the product has been dropped or damaged in any way;
If the product exhibits a distinct change in performance
- this indicates a need for service.
17.Replacement Parts - When replacement parts are
required, be sure that technician has used replacement
parts specified by the manufacturer have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
18.Safety Check - Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the products is
in proper operating condition.
19.Wall or Ceiling Mounting - The product should be
mounted to a wall or ceiling only as recommended by
the manufacturer.
20.Heat - The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products(including amplifiers)that produce heat.

6
5
System Set-UP
Remote Control Instructions:
Make sure the POWER switch is in OFF position(the subwoofer is switched off).
Using the supplied subwoofer-satellite speaker interconnect cables connect
SPEAKER OUT R on the rear of the subwoofer with SPEAKER IN on the rear of
your Right inTONE 2.1 satellite, and then connect your Left satellite using
SPEAKER OUT L.
Power on subwoofer by changing the position of the POWER switch to ON.
Your system is ready to use.
SPEAKER
IN
SPEAKER
IN

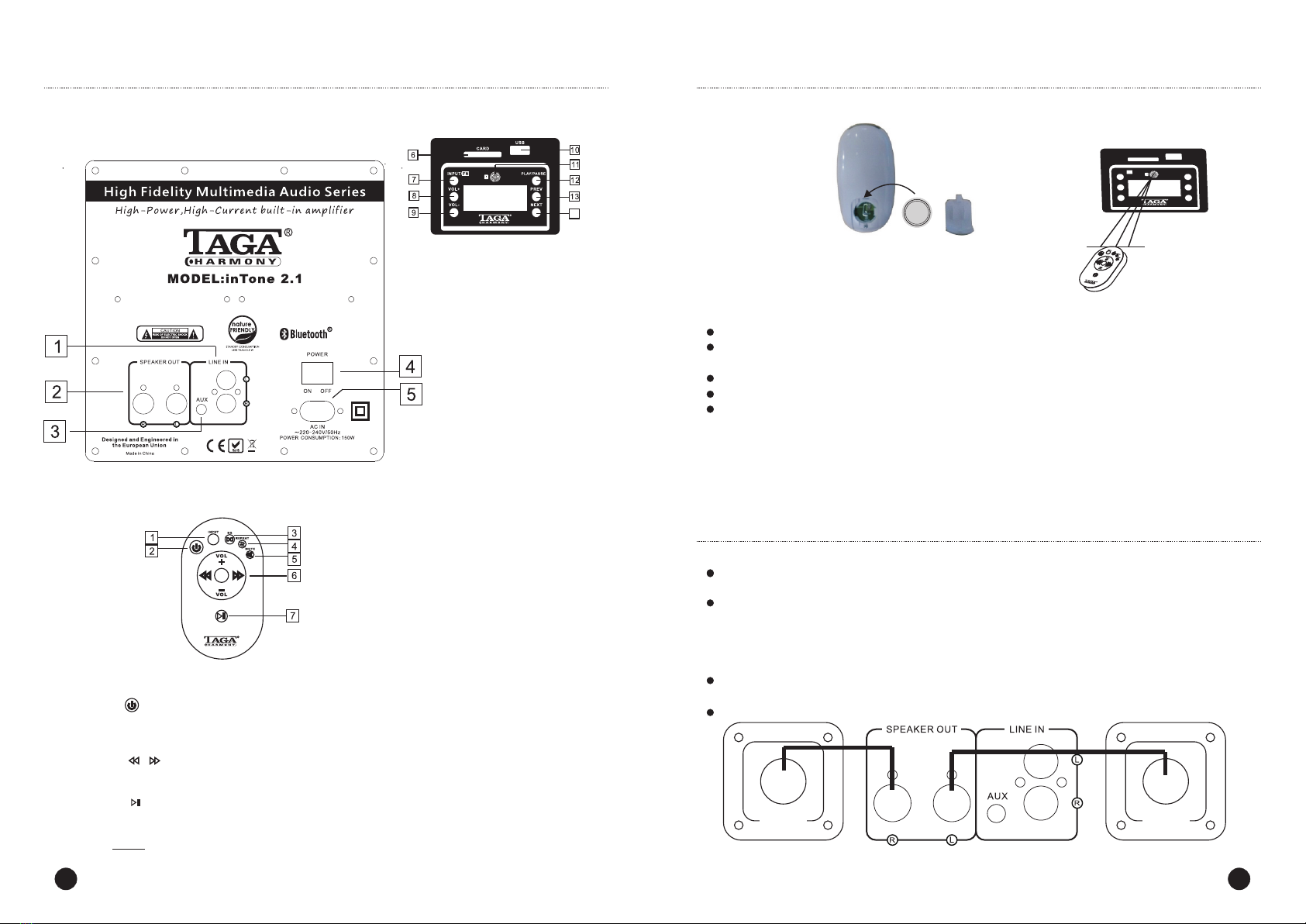

Connection of the subwoofer with the
satellites
Battery installation:
Operating the range of remote control: use the
remote control within a range of 7 meters
and angles of up to 30 degrees aiming at the
remote control sensor.
SET
1:RCA Audio Input
2:Speakers Output
3:3.5mm Aux-in Jack
4:Power Switch
5:AC Power Socket
6:SD/MMC Card Slot
7:INPUT/FN Button
8:VOL+ Button
9:VOL- Button
10:USB Port
11:
12:PLAY/PAUSE Button
13:PREV Button
14:NEXT Button
IR Sensor
1:INPUT : Press this button to choose one of audio sources
2: :
3:EQ: Press this button to choose different sound effect
4:REPEAT: Press this button to re-play the audio file
5:MUTE: Press this button to turn off the sound of inTONE 2.1
6: / : Press this button to choose PREV or NEXT track
7: :To start playback, press this button; To pause playback, press this button
again; to resume playback,
Press this button to turn on/off the speaker unit
VOL+/VOL-: Press this button to increase or decrease
the volume of inTONE 2.1
press this button again
Note: Functions REPEAT; PREV/NEXT; PLAY/PAUSE work only with
devices or USB drives and SD/MMC cards. Some of the functions could not be
available for all devices.
-
CAR D
NEX T
PRE V
PLAY/ PAUSE
USB
VOL -
VOL +
INP UT/ F N
SET
Caution:
Always use CR2025L Lithium batteries, and do not use the rechargeable batteries.
If the battery run out, remove the old battery and replace it with new one
within several minutes.
If the battery is placed incorrectly, it can cause explosion.
Remove the battery if the remote control is not used for a long period of time.
Do not handle and store the battery with metallic tools.
Rear Panel of Subwoofer
Remote Control
14
Control Panel -LED Display
Bluetooth
®
Right Left

Volume (VOL+/VOL-): Press and hold these buttons to increase or decrease the
volume. You may also adjust your source (laptop, smartphone, CD player etc.)
volume to increase or decrease the volume of the inTONE 2.1 system.
INPUT/FN:
Short press this button to choose one of the following sources: AUX/LINE, Bluetooth ,
USB or SD/MMC (two last only when a USB drive or SD/MMC card are inserted).
USB, SD/MMC Card will be automatically selected as a source after a USB drive or
SD/MMC card is inserted – the priority has a device connected as the last one. When
no files are recorded on USB drive or SD/MMC card “NO-F” info is displayed.
Long press this button to choose one of the following functions. You can adjust the
function or switch it on/off by using VOL+/VOL- buttons.
BASS (bA): This is the primary low frequency control which allows for 7dB of boost
or cut at 100Hz.
TREBLE (tr): This is the primary high frequency control which allows for 7dB of
boost or cut at 10Khz.
BALANCE (b): Adjust balance of Left and Right satellite.
SUBWOOFER (SU): This is the primary control of subwoofer level (+/- 7).
LOUDNESS (L): Use when listening at low volume levels.
EQUALIZER (EO): 5 presets or OFF. When EQ is ON some other functions
can be inactive.
VOLUME(U): Volume control.
Note: When both the USB drive and SD/MMC cards are removed inTONE 2.1 will
always return to AUX/LINE input.
When a source device is Bluetooth ; USB drive or SD/MMC card, you can
control connected devices via the top control panel:
Press PLAY/PAUSE button to start playback.
To pause playback, press PLAY/PAUSE. To resume playback,
press PLAY/PAUSE again.
To select the next track, press NEXT/VOL+ button.
To select the previous track, press PRE/VOL- button.
Control Instructions(Top control panel)
77
Power on the speakers with the POWER switch on the rear panel.
Select on your audio source e.g. Smartphone, Laptop, etc.
Press the INPUT till the icon is light and the LED display show”BLUE”.
Search for inTone 2.1 on your audio source e.g. Smartphone, Laptop etc.
After a short time, inTone 2.1 will appear on your audio source screen.
Select “ Pair”.
inTONE 2.1 will now be ready to play your music wirelessly within a range of
approximately 10 meters.
Note: Please refer to your audio source owner`s instruction for details on
adjusting the .
To stop playback stop playback on your connected device or change INPUT
on inTONE 2.1.
Note: Some of the above functions could be not available for all Bluetooth devices,
USB drivers or SD/MMC cards.
Hardwire connection to inTONE 2.1 (AUX/LINE):
inTONE 2.1 has the option to connect an audio source such as CD/MP3/MP4 players,
laptop, smartphone, table PC computer etc., using wired connection. inTONE 2.1
offers LINE IN Stereo RCA as well as 3.5mm Stereo mini jack connection.
Note: Do not use both wired connections at the same time.
8
Bluetooth Connection
®
®
Bluetooth
®
®
®
®
Bluetooth

Volume level on a connected
device is set too high.
Decrease volume
Sound source is distorted. WAV
and MID files are sometimes of
poor quality. Therefore distortion
and noise are easily noticed on
high quality systems. Try a
different audio source(e.g. CD
Player).
Check whether the battery power is run
out and replace the new battery.
Sound is distorted
Remote control doesn’t work
Kit Contents
Specifications
1.5- meter detachable power cord 1pc.
3-meter subwoofer-satellite interconnect cable 2pcs.
1.8-meter 3.5mm-3.5mm audio interconnect cable 1pc.
1.8-meter RCA-RCA audio interconnect cable 1pc.
Instruction manual 1pc.
Remote Control
CR2025L Battery
1pc.
1pc.
25mm(1”) TWG faceplate, silk dome
Power Requirements & consumption:
Bluetooth profiles:
Connectivity wireless:
Connectivity wired:
sensitivity:
Frequency Response(+/- 3dB):
Subwoofer Built-in Amplifier Power:
Subwoofer Bass Driver:
Satellite Bass/Midrange Driver:
Satellite High-Frequency Driver:
Dimensions(HxWxD):
Weight(net):
102mm(4”), Reinforced paper cone
203mm(8”), Heavy duty reinforced paper cone
Satellites’ channel:2x25W RMS/90W Dynamic Peak;
Subwoofer channel: 60W RMS/200W Dynamic Peak,
Class A/B; Subwoofer low-pass filter 12dB per octave
Satellites:110Hz - 20kHz ; Subwoofer: 38Hz – 120Hz
150mV
3.5mm stereo jack, RCA stereo, USB (MP-3 and
charging up to 700mA), SD/MMC card
Advanced Audio Distribution Profile
A2DP, AVRCP, GAVDP
Bluetooth V3.0
Satellites: 4.4 kg / pair ; Subwoofer 6.8 kg / pcs.
AC 220~230V/50Hz; 100W
24.5 x 24.5 x 27 cm (Sub.) 22.5 x 13.5 x 16 cm (Sat.)
Troubleshooting
If the unit fails to operate normally, check the following points to determine
whether the fault can be corrected. If it cannot be corrected, or if the fault is
not listed in the Problem column, disconnect the power cord and contact your
authorized dealer or service centre for help.
Problem Cause/Remedy
No power when unit is turned on
No sound
Switch on the electric current at the
socket.
Check that the plug has been
correctly inserted into the socket.
The internal fuse has blown and
must be replaced by a qualified
service technician.
The power cord has been
damaged and must be replaced.
Input selection is not correct.
Ensure input selection is set to the
correct source.
Input source volume is low.
Increase the volume level on the
source device.
No volume or low volume.
Turn the volume control to increase
the volume level.
10
9
Bluetooth is a registered trademark of Bluetooth SIG,Inc.
We reserve the right to change the technical data and the design of the product
without notice as a result of further development.
®
®
®
