Taga Harmony RB-1650BT User manual

RB-1650BT
IN-CEILING ACTIVE SPEAKER SYSTEM
Instruction Manual
Edition 02-18

2
Introduction
Congratulations for purchasing TAGA Harmony speaker system!
TAGA Harmony installation speakers provide superior sound performance and amazing
value.
The RB-1650BT system consists of a 2 x 30W RMS active speaker (master) paired
with a passive one (slave).
The system is a perfect solution for residential as well as commercial installations in
restaurants, pubs, shops, conferencing rooms, tness clubs, teaching rooms.
It allows to build a cost-e󰀨ective audio installation and stream music wirelessly via
Bluetooth®(music and the Internet radio) or via additional stereo line input
(RCA / 3.5 mm).
Unique features like remote control, front and rear IR receivers, RS-232, programmable
Auto Standby and Bass / Treble regulations help to integrate the RB-1650BT into any
audio-visual installation.
The daisy-chain connection allows to connect many systems of RB BT speakers to the
main speaker and build a very large and sophisticated AV installation.
The sound is clear, natural, dynamic and provides wide dispersion throughout a
listening area, and thanks to slim bezels you are hard to see speakers mounted in your
wall or ceiling!
The grills may be painted to blend with any decor.
This instruction manual provides all of the information that you need to know about
your TAGA Harmony Speakers.
Please read it carefully before you start using the unit.
Note!
The speakers are for indoor use only.
Cleaning
Do not use strong or abrasive cleaners. Use a damp, soft cloth for cleaning.
Do not get any part of the speaker wet.
Specications
Full technical specications are available on the www.TagaHarmony.com website.

3
Contents
Safety Instructions 4
Important Safety Instructions 5
Controls and Displays 6
Remote Controller
Front and Rear Panel
Conguration and Hooking the System 10
Placement 13
Speaker Mounting 14
Operation - Remote Controller 15
RS-232 Control Codes 18
RS-232 Return Codes 19
Kit Content 20
Specications 20

4
Safety Instructions
IMPORTANT
READ THIS SECTION CAREFULLY BEFORE PROCEEDING!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT REMOVE CHASSIS (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE
THE FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE. REFER
REPLACEMENT TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE
VENTILATION TO ALLOW FOR COOLING. DO NOT PLACE NEAR A HEAT
SOURCE, OR IN SPACES THAT CAN RESTRICT VENTILATION.
An exclamation mark in a triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
The triangle containing a lightning symbol is intended to alert the user to the presence
of uninsulated dangerous voltages within the product’s enclosure that may be of
su󰀩cient magnitude to constitute a risk of electric shock to persons.

5
Important Safety Instructions
1. Read Instructions – All the safety and operating instructions
should be read before the product is operated.
2. Retain Instructions – The safety and operating instructions
should be retained for future reference.
3. Heed Warnings – All warnings on the product and in the
operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions
should be followed.
5. Cleaning - Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp, soft cloth for cleaning.
6. Water and Moisture - Do not use this product near water
- for example, near a bath tub, wash bowl, kitchen sing or
laundry tub; in a wet basement; or near a swimming pool;
and the like.
7. Accessories - Do not place this product on an unstable
cart, stand, tripod, bracket or table. The product may fall,
causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod,
bracket or table recommended by the manufacture, or sold
with the product. Any mounting of the product should fol-
low manufacture’s instructions and should use a mounting
accessory recommended by the manufacture.
8. Ventilation - Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the pro-
duct and to protect it from overheating, and these openings
must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa,
rug, or other smimilar surface. This product should not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacture’s
instructions have been adhered to.
For products equipped with a separate power adapter
make sure to leave at least 5 cm (2 inches) free space on all
sides and top of the adapter.
9. Power Sources - This product should be operated only from
the type of power source indicated on the marking label. If
you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For
products intended to operate from battery power, or other
sources, refer to the operating instructions.
10. Grounding and Polarization - This product may be
equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug will
fit into the power outlet only one way. This is safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
11. Power-Cord Protection - Power supply cords should be ro-
uted so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and
the point where they exit from the product.
12. Lightning - For added protection for this product during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable systems. This will prevent
damage to the product due to lightning and power-line
surges.
13. Overloading - Do not overload wall outlets, extensions
cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
14. Object and Liquid Entry - Never push objects of any kind
into this product through openings as they may touch dan-
gerous voltage points or short-out parts that could result
in a fire or electric shock. Do not expose this apparatus to
dripping or splashing, and ensure that no objects filled with
water, such as vases, are placed on the apparatus.
15. Servicing - Do not attempt to service this product yourself
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
16. Damage Requiring Service - Unplug this product from wall
outlet and refer servicing to qualified personnel under the
following conditions:
• When power supply cord or plug is damaged;
• If liquid has been spilled, or objects have fallen into
product;
• If the product does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will require extensive work by a qualified technician to
restore the product to its normal operation;
• If the product has been dropped or damaged in any way;
• If the product exhibits a distinct change in performance
- this indicates a need for service.
17. Replacement Parts - When replacement parts are required,
be sure the technician has used replacement parts speci-
fied by the manufacturer or have the same characteristics
as the original part. Unauthorized subsitutions may result
in fire, electric shock, or other hazards.
18. Safety Check - Upon completion of any service or repairs
to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating
condition.
19. Wall or Ceiling Mounting - The product should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
20. Heat - The product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
21. [Refers to products equipped with vacuum tubes] Tube
Cage - For your safety and to protect the vacuum tubes
this product may be equipped with the factory installed
vacuum tube cage.
It is not recommended to remove the cage unless it is
required to change the vacuum tubes.
When the cage is removed - do not touch the vacuum
tubes - they may be hot and burn the skin!

6
Controls and Displays
1. Prepare a new CR2025 battery.
2. Remove the battery tray which is located on the bottom of the remote controller -
keep pressed the latch and pull out the tray.
3. Insert the battery into the battery tray.
Carefully follow the polarity diagram inside (positive + symbol).
4. Reinstall the tray.
Note!
• Use only CR2025 batteries and do not use the rechargeable batteries.
• If the battery run out, remove the old and replace it with a new one within several
minutes.
• If the battery is placed incorrectly, it may cause explosion.
• Remove the battery if the remote control is not used for a long period of time.
• Do not handle and store the batteries together with metallic tools.

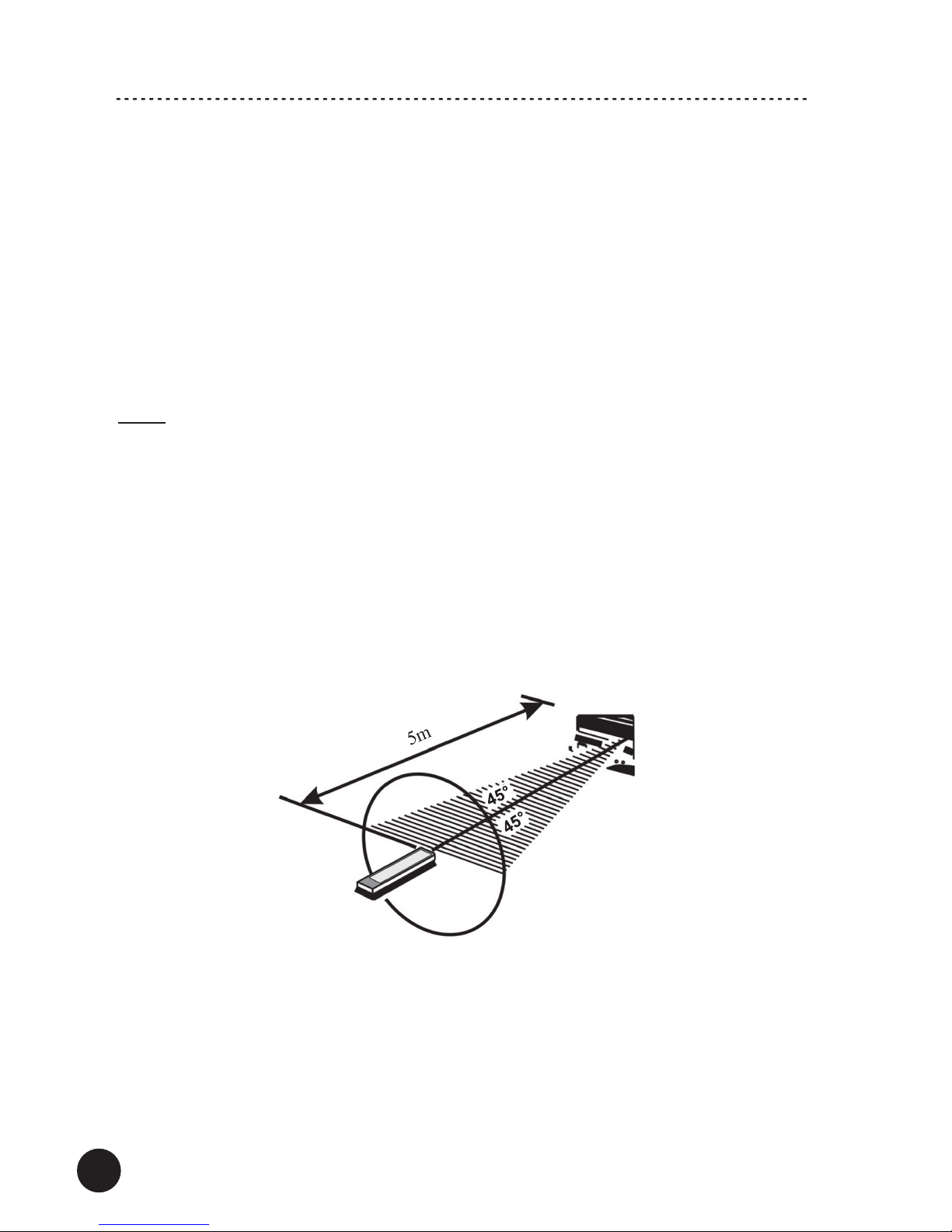

Use the remote controller within a range of 5 meters from the master speaker and
angles of up to 45 degrees aiming at the IR Receiver. Make sure to avoid obstacles
between the remote controller and the IR Receiver – it can interrupt the signal
transmission.
Note! Exposing the IR Receiver to direct sunlight or strong light may cause faulty
operation.
Battery Replacement
Operating Range
IR Receiver
Remote Controller
The remote controller is supplied with the lithium CR2025 battery installed.
To activate it remove the protection transparent shield by pulling it out.
Remote Controller

7

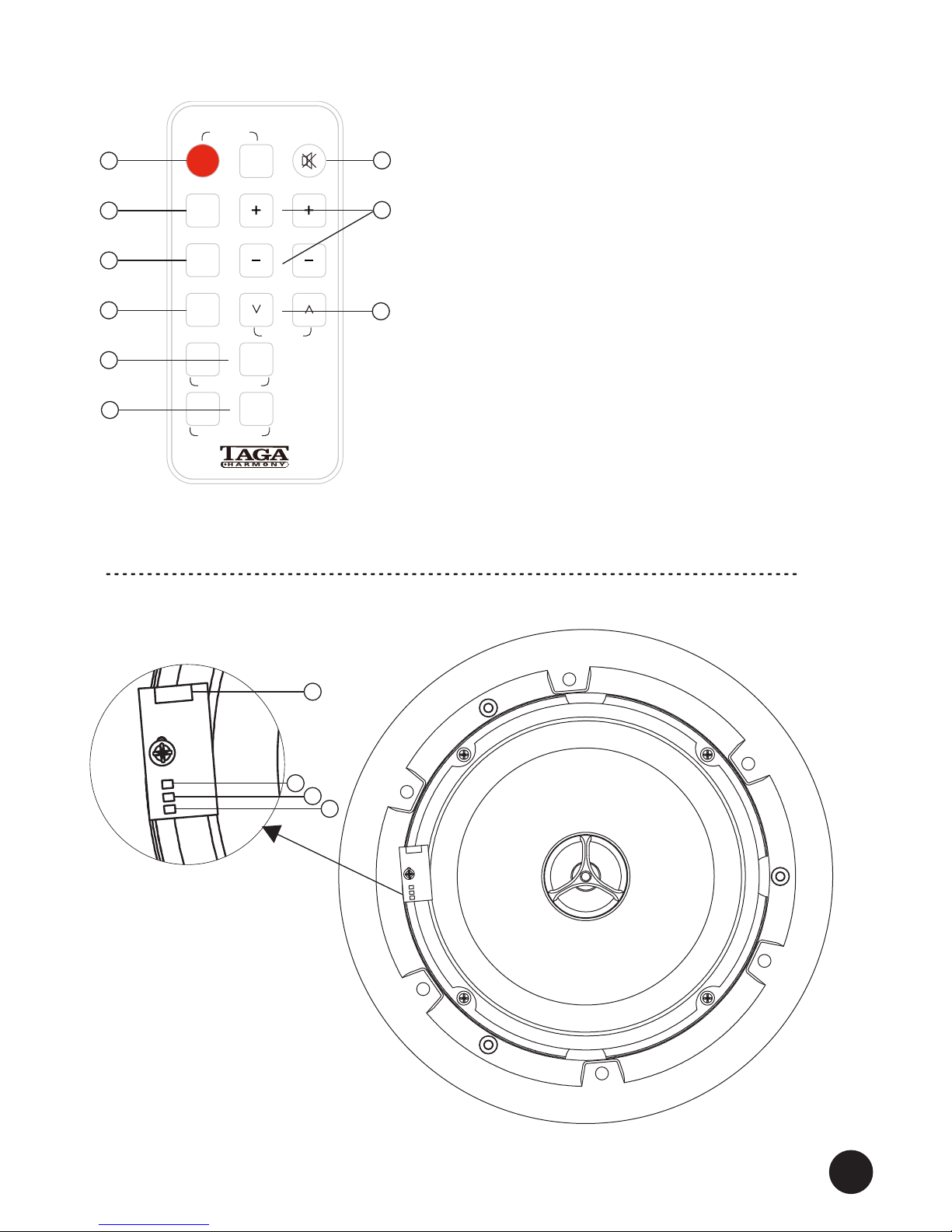

1. Power ON and OFF Buttons
2. BT Bluetooth Input Button
3. LINE Input Button
4. RESET Tone to Factory Settings Button
5. BT Bluetooth Priority ON and OFF Buttons
6. AUTO Standby ON and OFF Buttons
7. MUTE Button
8. Tone Buttons +/- for TREBLE and BASS
9. VOLUME Level Buttons (Lower▼/ Higher▲)
ON OFF
OFFON
OFF
ON
MUTE
POWER
RESET
LINE
BASSTREBLE
VOLUME
AUTO STANDBY
BT PRIORITY
BT
RB-1650BT
Front and Rear Panel
1
2
3
4
5
6
7
8
9
1. IR Receiver (Front)
2. Status LED: Red (Operation)
3. Status LED: Yellow (LINE IN)
4. Status LED: Blue (Bluetooth)
1
2
4
3
Master Speaker - Front Panel

8

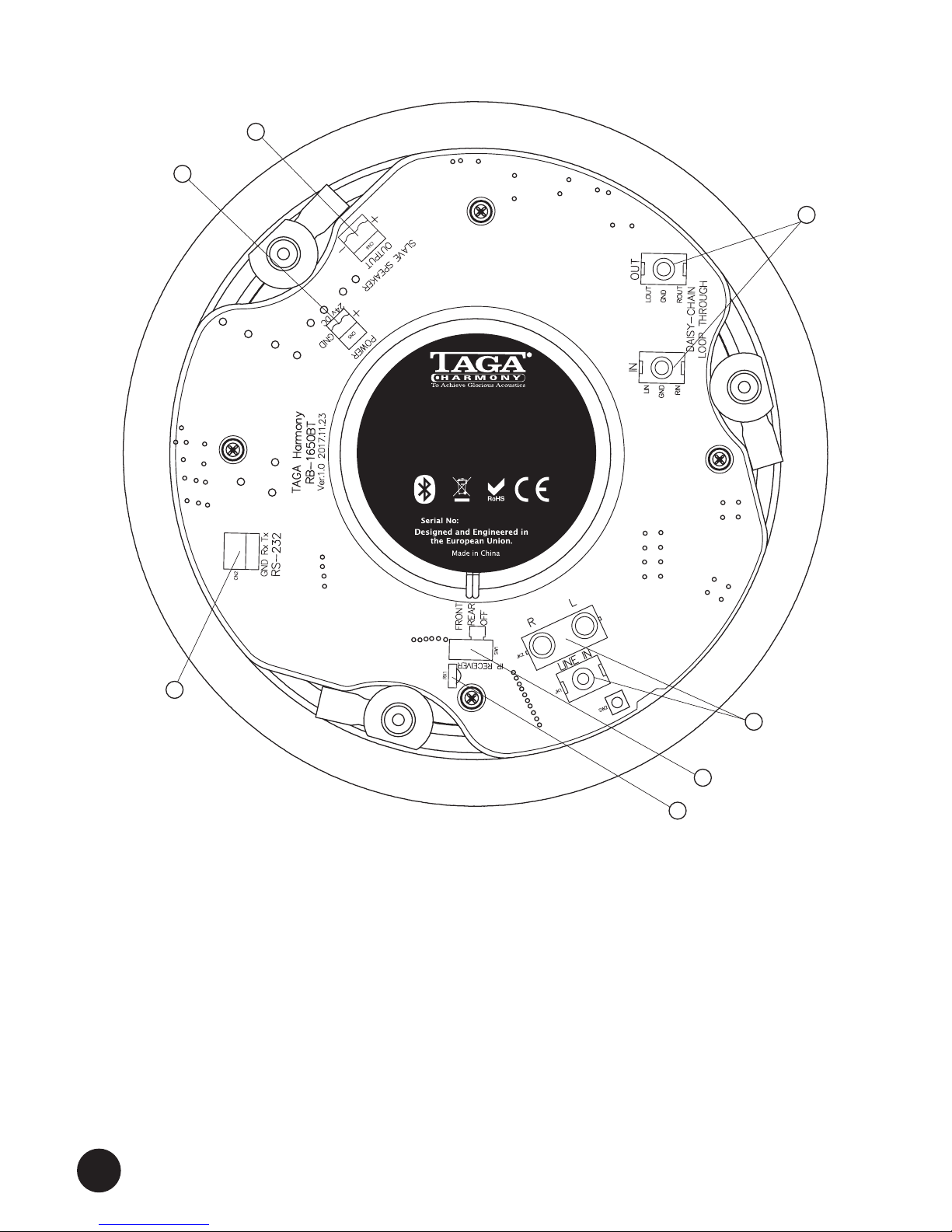

5. POWER input terminal - Phoenix Connector [BLACK color]
6. SLAVE SPEAKER OUTPUT terminal - Phoenix Connector [+ and -] [GREEN color]
7. DAISY-CHAIN LOOP THROUGH - IN and OUT 3.5 mm terminals
8. LINE IN input [RCA Left and Right / 3.5 mm]
9. IR RECEIVER switch
10. IR Receiver (Rear)
11. RS-232 terminal - Phoenix Connector [GREEN color]
Master Speaker - Rear Panel
RB-1650BT
2
x 30W RMS / 110W
Dynamic Peak
38Hz-25kHz
Active Speaker /
Passive Speaker
6
5
7
8
9
10
11

9
Slave Speaker - Rear Panel
12. MASTER SPEAKER INPUT terminal – Spring Clips [+ and -]
RB-1650BT
2x30WRMS/110WDynamic
Peak
38Hz-25kHz
Active Speaker /
Passive Speaker
12

10
Conguration and Hooking up the System
RB-1650BT
2 x 30W RMS / 110W Dynamic Peak
38Hz-25kHz
Active Speaker / Passive Speaker
RB-1650BT
2x 30WRMS/ 110WDynamic Peak
38Hz-25kHz
Active Speaker / Passive Speaker
RB-1650BT
2 x 30W RMS / 110W Dynamic Peak
38Hz-25kHz
Active Speaker / Passive Speaker
RB-1650BT
2x 30WRMS/ 110WDynamic Peak
38Hz-25kHz
Active Speaker / Passive Speaker
.
Speaker cable
Interconnect RCA
3.5 mm mini
jack-jack cable
RS-232 cable
AV Control System
CD Player, Tuner etc.
Smartphone, tablet, etc.
Another set
3.5 mm mini
jack-jack cable

11
Conguration and Hooking up the System
Make sure the power adapter is disconnected from the electrical outlet.
Follow the below instructions before installing the speakers.
Connecting Master with Slave
Connect the master and the slave speaker with each other using a 2-conductor
speaker cable (black and white) which is provided with this set.
The cable is ended with a Phoenix plug at one end and a 2 bare conductors on the
other.
Insert the Phoenix plug into the SLAVE SPEAKER OUTPUT terminal on the rear of the
master speaker.
Connect speaker cable on the other end to the spring clips on the rear of the slave
speaker.
Note! Pay attention to connecting the polarity correctly: the WHITE conductor should
wire the “+”SLAVE SPEAKER OUTPUT terminal on the master speaker with the RED
“+” spring clip on the slave speaker.
The BLACK conductor should wire the “-” SLAVE SPEAKER OUTPUT terminal on the
master speaker with the BLACK “-” spring clip on the slave speaker.
Note! Do not connect any other speaker models as a slave speaker than the provided
with this set.
Connecting Additional Source Devices to the Line Input
If you want to play music from analog audio source devices (CD player, FM tuner etc.):
using an RCA interconnect cable or 3.5 mm stereo mini jack-jack cable (both not
supplied with this product) connect the cable to the LINE IN on the rear of the master
speaker.
Note! The LINE IN is a single stereo input which uses RCA L/R and 3.5 mm
connections which are connected in parallel.
Connecting Multiple Sets (Daisy-Chain)
You can connect multiple systems (sets) together – there is no limit to number of sets.
It is called a Daisy-Chain connection.
The rst set in a chain is a “master set” which switches the inputs (Bluetooth and LINE
IN) and sends the audio signal to the next „slave set” in the chain and adjusts the
volume level and regulates the tones for all speakers connected.
If you want to use 2 sets in the Daisy-Chain connection then using a 3.5 mm stereo
mini jack-jack cable (no supplied with this product) connect the master set DAISY-
CHAIN OUTput (3.5 mm) with the DAISY-CHAIN INput (3.5 mm) on the slave set. For
connecting more sets use the DAISY-CHAIN OUTput (3.5 mm) on the second set to
connect the third one and for additional sets follow the same rule.
Note! The IR RECEIVER switch in all “slave sets” should be set to OFF which disables
the Line Input and activates the DAISY-CHAIN INput. The IR RECEIVER switch in the
“master set” cannot be in the OFF position.
Note! Never connect any other devices to the DAISY-CHAIN OUTput (3.5 mm) nor
the DAISY-CHAIN INput (3.5 mm). It may damage the system. This may void your
warranty.

12
IR RECEIVER Switch
Congure the switch:
FRONT – the IR Receiver located on the front panel of the master speaker is active
(you can operate the system by pointing the remote controller to the front panel).
REAR - the IR Receiver located on the rear panel of the master speaker is active (you
can operate the system by pointing the remote controller to the rear panel).
OFF – both front and rear IR Receivers are deactivated. The system is used as a
“slave set” in the Daisy-Chain connection.
Integration into an AV Control System via RS-232
This system can be integrated into your AV control system.
If you want to use this system with your AV control system connect a 3-conductor
communication cable (no supplied with this product) to the RS-232 terminal located on
the rear of the master speaker.
The pins are marked with Tx, Rx and GND:
Tx – transmits data to the control system
Rx – receives data from the control system
GND - ground
Note! RS-232 control codes are provided at the end of this instruction manual.
Please refer to your control system instruction manual or contact TAGA Harmony
dealer or installer for more information.
Connecting Power Adapter
The DC cable of the Power Adapter is ended with the Phoenix plug – insert it rmly into
the POWER input terminal (BLACK color) located on the rear of the master speaker.

13
Placement
Please spend some time considering placement prior to installing the speakers. Once
they are installed, they are not to be easily moved or repositioned. Each room has its
specic acoustics but there are some general rules:
Location
TAGA Harmony speakers can be installed almost anywhere thanks to our unique sound
characteristic which is strong and powerful, and has a wide dispersion eld.
In-wall In-ceiling
Placing the speakers near a corner will tend to increase the-
ir bass output, but may result in “boomy” or “muddy” sound.
Corner placement close to the
walls provides a good balance of
bass output and accuracy.
Placing the speakers further into the room will tend to
decrease their bass output, but may result in improved
articulation and clarity.
Place the speakers at least 60 cm (2 feet) away from corners and other surfaces which may
interfere or reflect sound (like tall furniture).
To add extra bass and denition to your system we recommend TAGA Harmony Custom Instal-
lations or traditional subwoofers.
In-wall In-ceiling
Place the front left and right speakers at an equal distance
from your listening position, at ear level while seated.
Place the left and right speakers
at an equal distance from your li-
stening position. Aim the speaker
toward your listening position (if
your speakers have this feature).
If the speakers are installed in a wall which is around 300
cm (10 feet) away from your listening position, place them
no more than 300 cm (10 feet) apart from each other and
no less than 150 cm (5 feet).
Place the speakers no more than
300 cm (10 feet) apart from each
other and no less than 150 cm
(5 feet).
Placement for critical listening in stereo (1 set)
In-wall In-ceiling
In rectangular smaller rooms [below 30 square meters (320 square feet)] usually 1 set
should work ne. Place both speakers near opposite corners.
In irregular or larger rooms use more than 2 sets and place
the speakers evently across the space for good sound
dispersion.
Place the speakers no more than
300 cm (10 feet) apart from each
other and no less than 150 cm
(5 feet).
Note! When using more than 1 set in 1 room connect all sets in the Daisy-Chain
connection to avoid problems with the Bluetooth®connection and operation.
Placement for entertainment listening or background music (1 or more sets in 1 room)
General notes

14
Swivel tweeter -depending on your particular primary listening area, room acoustics,
ceiling height, or personal preference, you may nd the sound more pleasing by po-
inting the tweeter in a particular direction. If additional treble is desired in the primary
listening area, point the tweeter towards that area; and if less treble is required, point
the tweeter away.
Push gently at the edge of the tweeter to point it in the desired direction.
Speaker Mounting
The below mounting procedure applies to drywall walls, drywall ceilings and drop ceilin-
gs or similar.
You will have to cut a hole in a wall or ceiling. With the right tools and a little extra care
and preparation, installing the speaker can be both quick and easy.
Your system is supplied with a cardboard template which has the shape of a hole which
has to be cut out to install each speaker.
• Make sure the Power adapter is disconnected from the electrical outlet.
• Position the template in place you wish to mount the speaker, and draw a line on the
wall or ceiling along the outside edge of the template.
• Make your cuts along the line in the wall or ceiling. Try to keep the cuts neat, however
the frame of the speaker will overlap the hole and hide any rough edges.
• Run all the cables to the speaker – check “Conguration and Hooking up the System”.
• Remove the speaker grill.
• With grill removed, insert the speaker into the mounting hole.
• Use a screwdriver to turn the mounting screws slowly clockwise.
• The cut edges of the wall or ceiling will be sandwiched rmly between the mounting
clamps and the speaker frame.
• Repeat the whole operation for the second speaker.

15
Operation - Remote Controller
Plug the power cable into the electrical outlet.
The system will turn ON - the RED status LED will turn o󰀨.
The YELLOW (Line In) status LED will light up and the BLUE (Bluetooth) status LED
will be flashing.
Turn the system ON and OFF
Turn OFF the system by pressing Power OFF button -the RED status LED will light up.
Turn ON the system by pressing Power ON button - the RED status LED will turn o󰀨.
The YELLOW (Line In) status LED will light up and the BLUE (Bluetooth) status LED
will be flashing.
Note! When the system is in the standby mode then all LEDs are o󰀨 - after a signal is
detected on the LINE input or the Power ON button is pressed, the system will switch
from the standby mode to the Power ON mode - The YELLOW (Line In) status LED will
light up.
Bluetooth®Priority and Select the Input
Press the Bluetooth BT Priority ON button to enable the auto-switching feature – the
Bluetooth input will be automatically selected when a Bluetooth device is paired.
Press the Bluetooth BT Priority OFF button to deactivate this feature – then the input
has to be selected manually.
When the Bluetooth BT Priority is ON, press the BT button and the Bluetooth®will be
paired in a few seconds and the Bluetooth®input will be selected.
Press the LINE button to select this input - If the LINE is selected make sure the audio
source is properly connected to the rear panel LINE IN input of the master speaker -
turn on your audio source and start playback. The YELLOW (LINE IN) status LED will
light up.
If the YELLOW (LINE IN) status LED is not light – it means that the Bluetooth®input is
selected.
For the Bluetooth®operation and pairing – check “Bluetooth®Connection” for more
details.
Note! In the Bluetooth BT Priority mode and when a Bluetooth device is not paired, the
BT button will not operate and the LINE input will be selected automatically.
Volume Regulation
You can adjust the volume level down ▼ and up ▲ by pressing the Volume buttons.
Note! Distortions and sound quality worsening may occur when the volume level is too
high – when you can hear that then immediately lower the volume level otherwise it
may damage the system - this may void your warranty.
Tone Regulations
Bass
You can adjust the bass level.
Press Bass - button to decrease the amount of low frequencies by -1dB.
Press Bass + button to increase the amount of low frequencies by +1dB.

16
Treble
You can adjust the treble level.
Press Treble - button to decrease the amount of high frequencies by -1dB.
Press Treble + button to increase the amount of high frequencies by +1dB.
Reset Tone to Factory
Press the Reset button to reset Bass and Treble to factory settings (0).
Note! Increasing the amount of bass / treble at high volume levels can damage this
system. This may void your warranty.
MUTE
During playback press this button to stop audio output (no sound will be audible) – the
RED status LED will be flashing slowly. Press it again to recover the audio signal out-
put back - the RED status LED will turn o󰀨.
Note! The following functions are not active in the MUTE mode: Volume Regulation,
Tone Regulation (Bass/Treble), Reset Tone to Factory.
AUTO STANDBY
Press the Auto Standby ON button to enable the standby feature – the system will be
turned to the standby mode after around 15 minutes of inactivity. Press the Auto Stand-
by OFF button to deactivate this feature.
Note! When the system is in the standby mode then all LEDs are o󰀨.
The system will switch from the standby mode to the Power ON mode:
- after a signal is detected on the LINE input or;
- after the Power ON button is pressed.
The YELLOW (Line In) status LED will indicate that the system is activated.
Conrmation of receiving the command from the remote controller
Each time any button on the remote controller is pressed and the command is properly
received by the system – the RED status LED will flash once – when a button is kept
pressed down the RED status LED will be flashing quickly.
Note! This does not apply to Power ON/OFF, BT, LINE and MUTE buttons.
MEMORY
When power is connected the RB-1650BT automatically turns on with the previously
set volume and tone levels. Restoring power brings the speaker back to life automati-
cally.
Bluetooth®Connection
1. After the system is switched on - the built-in Bluetooth®receiver is waiting to be
paired with a Bluetooth®source. The BLUE (Bluetooth) status LED is blinking.
Note! If no device is paired within a few minutes then the BLUE (Bluetooth) status LED
will turn o󰀨.
2. Select Bluetooth®on your audio source (smartphone, laptop etc.) and start scan-
ning for available Bluetooth®devices.
After a short time “TAGA RB-1650BT” will appear on the screen of your audio source.
3. Select “Pair” on your audio source to connect with the system. After the operation is
successful the BLUE (Bluetooth®) status LED will light continuously.
4. The RB-1650BT will now be ready to play your music wirelessly within a range of
approximately 7 meters.

Important Notes! Bluetooth® Connection
• When you move away from the working range of the RB-1650BT Bluetooth®
receiver then the current Bluetooth® connection may be lost and you will have to
repeat the pairing procedure.
• When you want to use another Bluetooth® audio source than currently active,
you have to disconnect the active connection and start the Bluetooth® connection
procedure.
• Bluetooth® is not always implemented properly on personal computers and it may
not work properly.
• Make sure to avoid obstacles between the audio source and the system – it can
worsen or interrupt the sound transmission.
!
17
5. Start playback on your audio source. You can regulate the volume level directly on
your audio source (up to the maximum level as set on the system).
Note! Please refer to your audio source user instruction for details on operating the
Bluetooth®.
Operation and names of specic functions can vary on di󰀨erent devices.
Painting
The grill may be painted to match your room decoration.
When painting the grill, make sure not to plug holes with paint or repaint it after paint
has dried.
Note! Before painting make sure to remove the fabric which is mounted on the inner
side of the grill and x it back after the paint has dried.
Installing the Grill
Before installing the grill run your system and check whether there are no vibrations au-
dible from the speakers. If you hear any, it may be caused by the loose screws - tighten
them up. Make sure not to place any objects between the grill and the speaker frame
with mounted magnets.
Install the grill and enjoy the music!
We strongly advise to contact a professional installer or dealer in order to install
TAGA Harmony products.
We recommend using high quality TAGA Harmony cables and other installation
accessories.

RS-232 Control Codes
95 B1 B1 Volume Step 17
95 B2 B2 Volume Step 18
95 B3 B3 Volume Step 19
95 B4 B4 Volume Step 20
95 B5 B5 Volume Step 21
95 B6 B6 Volume Step 22
95 B7 B7 Volume Step 23
95 B8 B8 Volume Step 24
95 B9 B9 Volume Step 25
95 BA BA Volume Step 26
95 BB BB Volume Step 27
95 BC BC Volume Step 28
95 BD BD Volume Step 29
95 BE BE Volume Step 30
95 BF BF Volume Step 31
95 C0 C0 Volume Step 32
95 C1 C1 Volume Step 33
95 C2 C2 Volume Step 34
95 C3 C3 Volume Step 35
95 C4 C4 Volume Step 36 maximum
A command string is built of 95 and then the command code repeated twice e.g.
Power ON send 95 and then send 11 twice.
Each part of the code should be preceded by “0x” e.g. 0x95 0x11 0x11.
RS-232 Communication Setup : Baud rate 9600 ; Stop bit 1 ; No Parity bit ;
Transmission interval more than 80ms.
HEX Codes Remote Controller
95 11 11 POWER ON
95 15 15 POWER OFF
95 05 05 MUTE
95 01 01 BLUETOOTH
95 09 09 LINE IN
95 08 08 TREBLE +
95 0D 0D TREBLE -
95 0C 0C BASS +
95 12 12 BASS -
95 10 10 RESET
95 07 07 VOL+
95 0B 0B VOL-
95 02 02 BT PRIORITY ON
95 04 04 BT PRIORITY OFF
95 00 00 AUTO STANDBY ON
95 5C 5C AUTO STANDBY OFF
95 A0 A0 Volume Step 0 minimum
95 A1 A1 Volume Step 1
95 A2 A2 Volume Step 2
95 A3 A3 Volume Step 3
95 A4 A4 Volume Step 4
95 A5 A5 Volume Step 5
95 A6 A6 Volume Step 6
95 A7 A7 Volume Step 7
95 A8 A8 Volume Step 8
95 A9 A9 Volume Step 9
95 AA AA Volume Step 10
95 AB AB Volume Step 11
95 AC AC Volume Step 12
95 AD AD Volume Step 13
95 AE AE Volume Step 14
95 AF AF Volume Step 15
95 B0 B0 Volume Step 16
18

RS-232 Return Codes
RS-232 Communication Setup: Baud rate 9600 ; Stop bit 1 ; No Parity bit ;
Transmission interval more than 80ms.
To request the current status of each speaker parameter, send the commands as
shown in below chart.
19
RS-232
CODES
16 bytes
Program Name Function Return Code Description
95 d0 d0 STANDBY Speaker working status 0 1
Normal working status = 1
O󰀨 status and standby status = 0
95 d1 d1 MUTE Mute status 0 1
Non-mute status = 0
Mute status = 1
95 d2 d2 PT2314E_SELECT Input select 0 1
BLUETOOTH = 0
LINE = 1
95 d3 d3 PT2314E_GAIN_GET Volume gain 0 36 In total 36 steps for Volume gain
95 d4 d4 PT2314E_B_GAIN_GET Bass gain 0 14 In total 14 steps for Bass gain
95 d5 d5 PT2314E_T_GAIN_GET Treble gain 0 14 In total 14 steps for Treble gain
95 d6 d6 BT_BIT Bluetooth status 0 2
Paired = 0
Pairing = 1
BT O󰀨 = 2
95 d7 d7 BT_PRIORITY Bluetooth Priority status 0 1
BT Priority OFF = 0
BT Priority ON = 1
95 d8 d8 AUTO_STANDBY Auto Standby status 0 1
Auto Standby OFF = 0
Auto Standby ON = 1

www.TagaHarmony.com
IMPORTANT!
Your product is marked with the symbol as showed on the left.
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household waste or commercial waste.
Waste electrical and electronic equipement should be appropriately collected and
recycled as required by practices established for your country.
For information on recycling of this product, please contact your local authorities, your
household waste disposal service or the shop where you purchased the product.
Your product is marked with the symbol as showed on the left.
For EU (European Union) member users:
This product has been tested and found in compliance with
requirements of the European Community
2014/30/EU (EMC) & 2014/53/EU (RED) & 2014/35/EU (LVD) directives.
Master Speaker 1EA
Slave Speaker 1EA
Cut-out Template 1EA
Speaker Cable 1EA
Power Adapter 1EA
Power Cord 1EA
Instruction Manual 1EA
TAGA EUROPE
POLPAK POLAND Sp. z o.o.
AL.JEROZOLIMSKIE 333A
05-816 REGUŁY k/WARSZAWY, POLAND
Email: [e-mail]
High-Frequency
Driver
25 mm (1”) TPTTD dome
Swivel mount
Bass / Midrange
Driver 165 mm (6.5”) Kevlar®
Built-in Amplier
Power
2 x 30W RMS
110W Dynamic Peak
HPCDA Class D
S/N ≥ 92dB
THD ≤ 0.2%
Frequency Response 38Hz - 25kHz
Sensitivity 89dB (1W / 1 m)
Input Sensitivity: 400mV (RCA / 3.5 mm)
Connectivity Wired LINE IN stereo (RCA / 3.5mm)
Connectivity
Wireless Bluetooth®v4.0
Power Requirements
& Consumption
AC 100-240V 50/60Hz; 70W
(external adapter 12 x 5.2 x 3.2 cm)
Dimensions (Dia x D) 23 x 9.5 cm
Minimum Mounting
Depth 130 mm
Cutout Dimensions
(D or H x W) 198 mm
Weight Active: 1.3 kg / Passive 1.2 kg
Finish WHITE, PAINTABLE (with grill on)
Bluetooth®is a registered trademark of Bluetooth SIG., Inc.
We reserve the right to change the technical data and the design of the product without notice as a result of further development.
Kit Content
Specications
