USER MANUAL
Petrol Line Trimmer
9096-336403
SAFETY
OPERATION
MAINTENANCE
AT33654
WARNING • PLEASE READ
For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions
can result in serious personal injury. Spend a few moments to familiarize yourself with your trimmer before each use.
MODEL NO. AT33654

2
AU
LINE TRIMMER WARRANTY
The benefits conferred by this warranty are in addition to all other conditions and warranties in respect of
this product which the consumer may have taken under the Trade Practices Act 1974 or by any legisla-
tion of a State or Territory of Australia. This product is warranted by Talon Tools Australia (ABN 12 099
520 939)(the “Company”) to be free from defects in material and workmanship for a period of 24 months
from the date of original purchase. The Company during the period of the warranty, will at its option, and
subject to the conditions stated herein, repair or replace without charge this product or any component
part, which upon examination by an Authorised Service Agent or by the Company is found to be
defective.
Warranty conditions
This warranty will not apply:
(i) where this product has been subjected to misuse, abuse, accident or want of care;
(ii) where this product has been used for a purpose for which it was not designed or is not suited;
(iii) where the service of this product has been undertaken by a person not authorised by the
Company to carry out such work or where parts that have not been approved by the Company have
been used;
(iv) where this product has been used for industrial or commercial purposes.
Should service become necessary during the warranty period, the purchaser should contact an
Authorised Service Agent or the Company. In order to obtain warranty service, the purchaser must
present the store receipt showing the name of the retailer and the date of purchase together with a
completed Warranty Card. The period of the warranty begins from the original date of purchase, notwith-
standing any subsequent repair or parts replacement. No additional warranty or guarantee other than set
out in this document, whether written or verbal, is authorised to be made on the Company’s behalf. The
purchaser shall be responsible for delivery or causing the product to be delivered to the Company or the
Authorised Service Agent and the purchaser shall be responsible for all charges in connection with re-
delivery of the product and/or the delivery of parts. Damage in transit is not covered by this warranty and
purchasers should remove the from the product any liquids (if applicable) before sending and pack the
product securely to prevent damage.
Warranty exclusions
Normal wear parts or components are subject to separate terms as follows: Normal wear parts, com-
ponents or service required when performing normal and regular maintenance of this product are not
covered by this warranty unless it is found to be defective by an Authorised Service Agent or by the
Company. Normal wear parts include, but are not limited to:
Worn Bump Head Carburetor Tune-ups Engine Tune-ups
Trimming line Lubricants Filters
Spark Plugs
Returns based on the above listed normal wear parts will not be accepted under this warranty as they
are considered consumable items and are at the expense of the purchaser.
AU
3
GENERAL TROUBLESHOOTING GUIDE
Unit will not start. Incorrect starting procedures. Follow correct starting procedures in user
manual.
ON/OFF switch in the “OFF” position. Turn ON/OFF switch to the “ON” position.
Primer bulb not pressed 10 times. Press primer bulb 10 times.
Throttle trigger not fully depressed when
starting.
Ensure that the throttle trigger is
depressed when starting.
Incorrect fuel/oil mix. Ensure that the correct fuel/oil mix (25:1
mixture) is used. Too little oil will damage
the engine while too much oil will foul the
spark plug.
Dirty spark plug. Check that the spark plug is clean and
properly fitted.
Not running smoothly. Dirty air cleaner. Check air cleaner is free and clear of
blockages.
Stale fuel. Drain and use fresh fuel.
Trimming line will not feed. No line in head. Check to see that there is line in the head.
If not replace with 2.0mm trimming line.
Line has been wound incorrectly around
spool.
Ensure that the line has been wound
in the correct direction. Refer to the
“Replacing Trimming Line” section of this
user manual.
Incorrect size line used. Ensure that only 2.0mm size line is used
in this machine.
Inner spool. Check the inner spool for dirt, burs or
warping. Excessive heat build-ups can
cause damage to the inner spool. If spool
is damaged, replace inner spool.
Worn bump head. If the bump knob has excessive wear it
indicates that the head is being rubbed
on the ground during operation or is being
“tapped” on a concrete surface. Both
these situations can contribute to line
feed, and other product problems. The
cutting head should be off the ground
at all times when cutting and the head
should only be “tapped” on a flat surface.
No drive to shaft. Bump head incorrectly installed. Ensure that the bump head is correctly
fitted.
Collars and spacers incorrect fitted
(Straight shaft units only).
Ensure that the collars and spacers are
correctly fitted.
The following basic troubleshooting checks can be easily carried out to determine whether or not the unit is running cor-
rectly. If the unit will not operate after these checks then the product should be taken to an Authorised Service Agent for
further inspection.
Ensure a small amount of fresh 2 stroke fuel (25:1 fuel:oil) is either in the tank or available for use during
troubleshooting.

5
AU
SPECIFICATIONS
Model No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AT33654
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-cooled, 2-Cycle,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chrome Cylinder
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28cc
Dry Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 kg
Fuel Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 720 ml
Bump Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Twin Line Bump Feed
Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional
Drive Shaft Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66cm+66cm
Cutting Width (Twin Line Head) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43cm
(Blade Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23cm
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . “J” Handle
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centrifugal Clutch
Sound pressure level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101.5 dB(A)
Sound power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 dB(A)
Vibration level for racing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12 m/s2
Vibration level for idling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33 m/s2
Maximum Engine Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75 kW
Maximum rotational frequency of the spindle (Bump Feed Head) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8500 r.p.m
Maximum rotational frequency of the spindle (Blade). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11000 r.p.m
Idle speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,700-3,000min-1
Fuel consumpion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.45 Litres/hr
Starting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Super Start Spring Assisted
1. DO NOT USE ANY OTHER FUEL than that recom-
mended in your manual. Always follow instructions in
the Fuel and Lubrication section of this manual. Never
use gasoline unless it is properly mixed with 2-cycle
engine lubricant. Permanent damage to engine will
result, voiding manufacturer’s warranty.
2. DO NOT SMOKE while refueling or operating equip-
ment.
3. DO NOT OPERATE UNIT WITHOUT A MUFFLER
and properly installed muffler shield.
4. DO NOT TOUCH or let your hands or body come in
contact with a hot muffler or spark plug wire.
5. DO NOT OPERATE UNIT IN AWKWARD POSITIONS,
off balance, outstretched arms, or one-handed. Always
use two hands when operating unit with thumbs and
fingers encircling the handles.
6. DO NOT RAISE LINEHEAD above ground level while
unit is operating. Injury to operator could result.
7. DO NOT USE UNIT FOR ANY PURPOSES OTHER
than trimming lawn or garden areas.
8. DO NOT OPERATE UNIT FOR PROLONGED
PERIODS. Rest periodically.
9. DO NOT OPERATE UNIT WHILE UNDER THE
INFLUENCE OF ALCOHOL OR DRUGS.
10. DO NOT OPERATE UNIT UNLESS DEBRIS SHIELD
AND/OR GUARD IS INSTALLED AND IN GOOD
CONDITION.
11. DO NOT ADD, REMOVE OR ALTER ANY
COMPONENTS OF THIS PRODUCT. Doing so
could cause personal injury and/or damage the unit
voiding the manufacturer’s warranty.
12. DO NOT operate your unit near or around flamma-
ble liquids or gases whether in or out of doors. An
explosion and/or fire may result.
13. DO NOT USE ANY OTHER CUTTING ATTACHMENT.
Use only Talon replacement parts and accessories,
which are designed specifically to enhance the per-
formance and maximize the safe operation of our
products. Failure to do so may cause poor perform-
ance and possible injury. Use only the stringhead
supplied with this product. Do not use any other cut-
ting attachment. Use of such attachments will void
your factory warranty and could result in serious
bodily injury.
WHAT NOT TO DO
4
GENERAL SAFETY RULES AU
WARNING! When using petrol tools, basic safety precautions, including the following, should always be followed to
reduce the risk of serious personal injury and/or damage to the unit.
Read all these instructions before operating this product and save these instructions.
READ YOUR USER MANUAL AND ALL SUPPLEMENTS
(IF ANY ENCLOSED) THOROUGHLY BEFORE
OPERATING YOUR UNIT.
1. Wear close fitting, tough work clothing that will
provide protection, such as long slacks or trousers,
safety work shoes, heavy duty work gloves, hard
hat, a safety face shield, or safety glasses for eye
protection and a good grade of ear plugs or other
sound barriers for hearing protection.
2. Prepare in a safe place. Open fuel cap slowly to release
any pressure which may have formed in fuel tank. To
prevent a fire hazard, move at least 10 feet (3 meters)
from fueling area before starting.
3. Turn unit off before setting it down.
4. Always hold unit firmly with both hands, the thumb
and fingers encircling the handles.
5. Keep all screws and fasteners tight. Never operate
your equipment when it is improperly adjusted or not
completely and securely assembled.
6. Keep handles dry, clean and free of fuel mixture.
7. Keep linehead as close to ground as practical. Avoid
hitting small objects with linehead. When cutting on a
slope, stand below linehead. NEVER cut or trim on
a hill or slope, etc. if there is the slightest chance of
slipping, sliding or losing firm footing.
8. Check area you will be trimming for debris that may
be struck or thrown during operation.
9. Keep all parts of your body and clothing away from
linehead when starting or running engine. Before
starting engine, make sure linehead will not come in
contact with any obstacle.
10. Stop engine before examining cutting line.
11. Store equipment away from possible ignition sources,
such as gas-powered water heaters, clothes dryers,
or oil-fired furnaces, portable heaters, etc.
12. Always keep the debris shield, linehead, and engine
free of debris build-up.
13. Operation of equipment should always be restricted
to mature and properly instructed individuals.
1. FOLLOW ALL WARNINGS and instructions regarding
operation and blade installation.
2. BLADE CAN VIOLENTLY THRUST AWAY FROM
MATERIAL IT CANNOT CUT - Blade thrust can cause
amputation of arms or legs. Keep people and animals
50 feet (15 meters) away in all directions. If blade
contacts foreign objects during operation, turn off
engine and allow coasting blade to stop. Then check
blade for damage. Always discard blade if it is warped
or cracked.
3. BLADE THROWS OBJECTS VIOLENTLY - You
can be blinded or injured. Wear eye, face, and leg
protection. Always clear work area of any foreign
objects before using blade. Keep people and animals
15 meters away in all directions.
4. INSPECT YOUR TRIMMER AND ATTACHMENTS
BEFORE EACH USE - Never use unless all blade-
attaching hardware is properly installed.
5. BLADE COASTS AFTER THROTTLE IS RELEASED
- A coasting blade can cut you or bystanders. Before
performing any service on the blade, always turn off
engine, and be sure coasting blade has stopped.
6. 50-FOOT (15 meters) DIAMETER HAZARD ZONE
-Bystanders can be blinded or injured. Keep people
and animals 15 meters away in all directions.
WHAT TO DO
WARNING: Keep children, bystanders,
and animals 50 feet (15 meters) away. If
approached stop unit immediately.
BRUSH / GRASS BLADE SAFETY
PRECAUTIONS
Meaning of symbols marked on the product
Read the user manual before using the machine
Whenever the machine is in use, safety goggles
must be worn to safeguard against flaying object, as
must ear protectors, such as a soundproof helmet, in
order to protect the operator’s hearing. If the operator
is working in an area where there is a risk of falling
objects, a safety helmet must also be worn.
Warning! Danger
Keep people or animals at least 45m away from
the machine during operation
Wear safety boots to protect against electric shock
Warning! Hot surface
Danger : Objects thrown up by machine
Wear gloves to protect your hands
Acoustic power level LWA accordance with
directive 2000/14/EC
Maximum revolution frequency of the drive shaft with
line head
Maximum revolution frequency of the drive shaft with
blade

7
AU
• “J” HANDLE ASSEMBLY
This handle design is required to provide a barrier
between the operator and the cutting head when a metal
blade is fitted to the machine. The J-Handle can be posi-
tioned to suit the operator. Figure 1A shows the recom-
mended position when using a blade.
1. To install handle onto unit, you will need the fol-
lowing components from your user kit: “J” handle
(A), fixing holder (B), clamps (C) and screws (D).
(Fig. 1A)
2. Install the fixing holder (B) onto the upper shaft of
the trimmer around 10 to 15 cm from the end of the
trigger handle. Place the clamp (E) over the shaft and
secure with the two screws (E). Be sure to use the
larger clamp which matches the 25mm shaft diam-
eter.
3. Install the handle (A) on the fixing holder and secure
with the remaining (smaller) clamp (D) and two
screws (E).
• INSTALLING ATTACHMENT
NOTE: To make installing or removing attachments easier,
place the unit on the ground or on a work bench.
1. Turn the knob (A) counterclockwise to loosen (Fig. 2A).
2. While firmly holding the attachment (B), push it
straight into the Quick-Change coupling (C) until the
release button (D) appears in the primary hole (E)
(Fig. 2B)
3. Turn the knob (A) clockwise to tighten. (Fig. 2C)
All attachments are designed to be used in the primary
hole unless otherwise indicated in the specific attach-
ments operators manual. If the incorrect hole is used, it
could result in injury, or damage to the unit.
• BLADE GUARD INSTALLATION
1. Remove gear collar (A) from the threaded gear hous-
ing shaft (Fig. 3A).
2. Place the shield on the gear housing and align the
mounting holes. Insert screws (B) as shown in illustra-
tion and tighten securely (Fig. 3B).
3. Reinstall the gear collar (A). Ensure the collar spacer
(C) is in place or the collar will rub the gear housing
(Fig. 3A).
• LINEHEAD INSTALLATION
1. Install gear collar (A) ensuring the collar spacer (B) is
in place (Fig. 4A).
2. Push spindle lock button in the side of the gearbox
housing so the lock pin is in the notch on the gear
collar (Fig. 4B).
3. Install line head by rotating anti-clockwise as per Fig.
4C. NOTE: the spindle has a left handed thread so
the line head must rotated anti-clockwise to install
and clockwise to remove.
ASSEMBLY INSTRUCTIONS
Fig. 1A
E
D
B
E
CE
A
WARNING:
To avoid serious personal injury,
shut unit off before removing or installing
attachment.
CAUTION:
The release button must be in the
primary hole and the knob securely tightened
before operating this unit.
A
CD
A
B
E
D
D
Fig. 2A Fig. 2B Fig. 2C
Fig. 3BFig. 3A
A
CB
6
AU

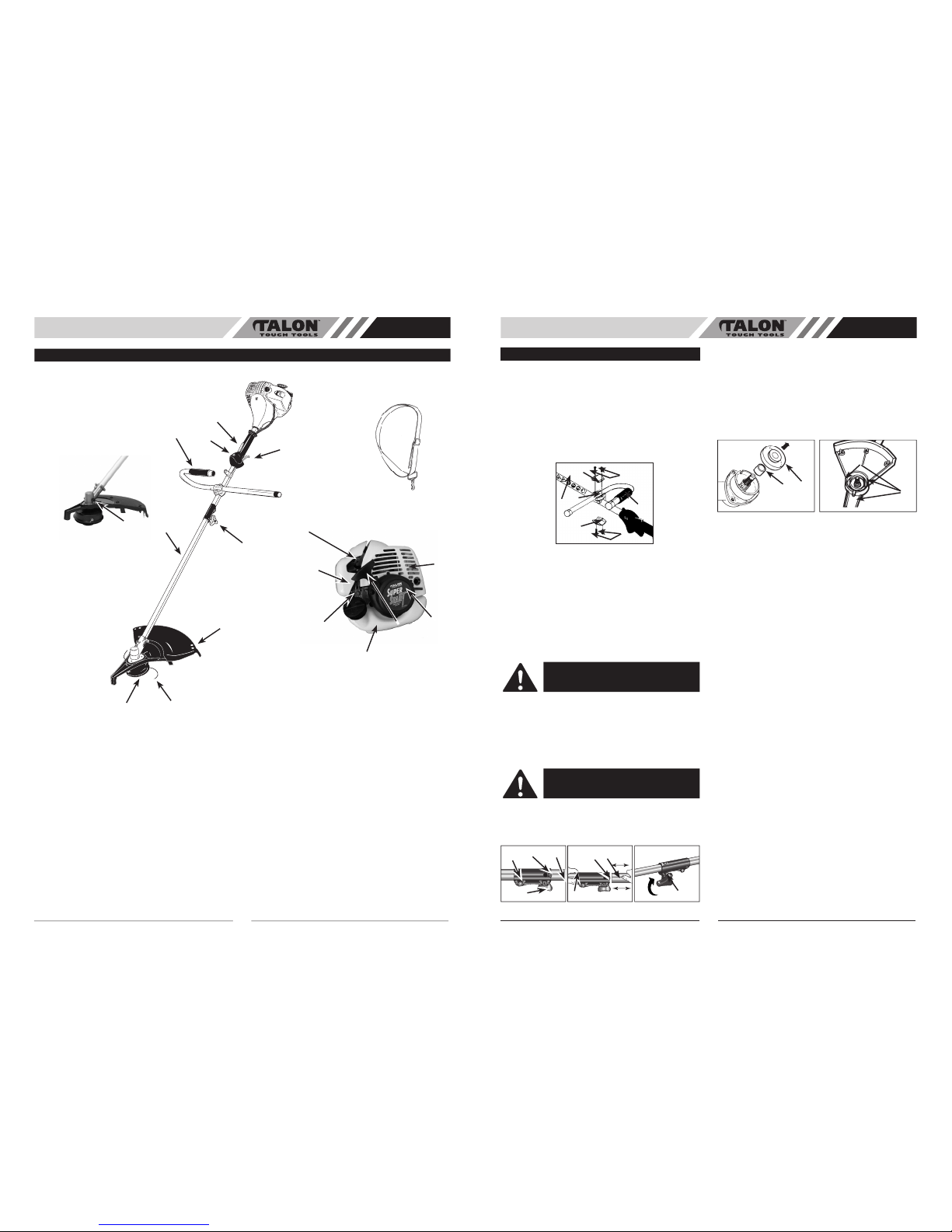

SAFETY FEATURES
3 DEBRIS SHIELD must be installed to prevent debris from being thrown at the operator and prevent the line from
extending longer than necessary.
16 MUFFLER SHIELD helps prevent hands, body and/or combustible materials from making contact with a hot muffler.
1. LINEHEAD
2. TRIMMING LINE
3. DEBRIS SHIELD
4. DRIVE SHAFT ASSEMBLY
5. HANDLE
6. THROTTLE TRIGGER
7. ON/OFF SWITCH
8. SAFETY TRIGGER
9. CHOKE LEVER
10. STARTER ROPE HOUSING
11. FUEL TANK
12. AIR FILTER COVER
13. STARTER HANDLE
14. MUFFLER SHIELD
15. PRIMER BULB
16. SHOULDER STRAP
17. UNIVERSAL COUPLING
18. SPINDLE LOCK BUTTON
5
AT33654
2
1
4
7
8
16
17
6
12
15
11
14
9
13
10
3
GENERAL IDENTIFICATION
18

AU
9
• FUEL
Use regular grade unleaded gasoline mixed with 2-
cycle engine oil for best results. Use mixing ratios in
FUEL MIXING TABLE.
• MIXING FUEL
Add the oil to an approved fuel container followed by the
gasoline to allow incoming gasoline to mix with oil. Shake
the container to ensure thorough mix.
• FUEL MIXING TABLE
GASOLINE Talon 25:1 Ratio
Custom Lubricant
5 Litres 6.7 oz 200ml
1 lmp. Gal. 6.1 oz. 180ml
Mixing
Procedure
25 Parts Petrol
to 1 part Lubricant
1ml = 1cc
• RECOMMENDED FUELS
Some conventional gasolines are being blended with
oxygenates such as alcohol or an ether compound to
meet clean air standards. Your Talon engine is designed
to operate satisfactorily on any gasoline intended for auto-
motive use including oxygenated gasolines.
• FUEL AND LUBRICATION
• SHOULDER STRAP
1. Put the strap on so it is over your LEFT shoulder.
2. Attach the harness clip (A) to the ring (B) mounted on
the shaft (Fig. 8A and 8B).
3. Adjust length of shoulder strap so linehead is parallel
to the ground as it hangs from the strap. A few prac-
tice swings without starting engine should be made to
determine correct balance.
NOTE: Detach the shoulder harness from the unit before
starting engine.

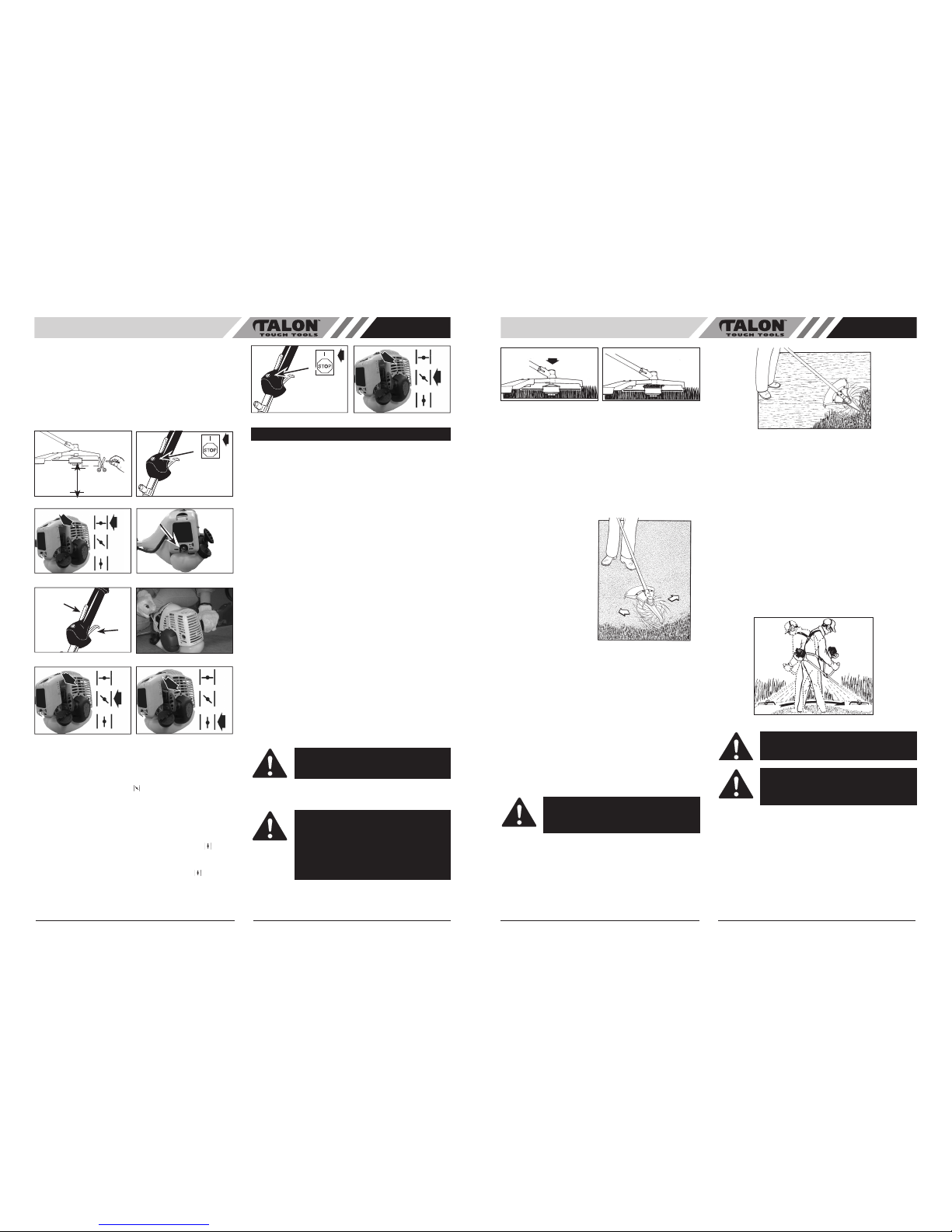

• STARTING A COLD ENGINE
NOTE: To minimize load on engine during starting and
warm-up, trim excess cutter line to 13cm (Fig. 9A).
1. Move ignition switch to the “RUN (I)” position (Fig.
9B).
2. Your unit is designed with a 3 position choke: CHOKE
“ ”, START “ ”, and RUN “ ”. Move choke lever to
CHOKE “ ” position (Fig. 9C).
3. Prime the carburetor. Pump the primer bulb (D) 10
times (Fig. 9D).
4. Grip handle firmly – depress safety trigger (E) &
throttle trigger (F) to the FULL THROTTLE position
(Fig. 9E).
5. A smooth rapid pull is required for a strong spark. Pull
starter rope briskly 4 times.
6. Move choke lever to START “ ” position (Fig. 9G).
7. Pull starter rope again 4 times while trigger is in the
full throttle position (Fig. 9F)
8. Once engine starts, leave in the START “ ” position
for 10 seconds.
9. Move the choke to RUN “ ” position (Fig. 9H).
FUEL AND LUBRICATION
WARNING: Never use straight gasoline in
your unit. This will cause permanent engine
damage and void the manufacturer’s warran-
ty for that product. Never use a fuel mixture
that has been stored for over 90 days.
WARNING: Lack of lubrication voids engine
warranty. Gasolilne and oil must be mixed
at 25:1.
Gasoline and
Oil Mix 25:1
OPERATING INSTRUCTIONS
WARNING: ALWAYS WEAR SHOULDER
STRAP when operating unit with a blade.
Attach harness to trimmer after starting unit
and engine is running at IDLE. Turn ENGINE
OFF before disconnecting shoulder harness.
Fig. 8A
A
Fig. 8B
B
AU
8

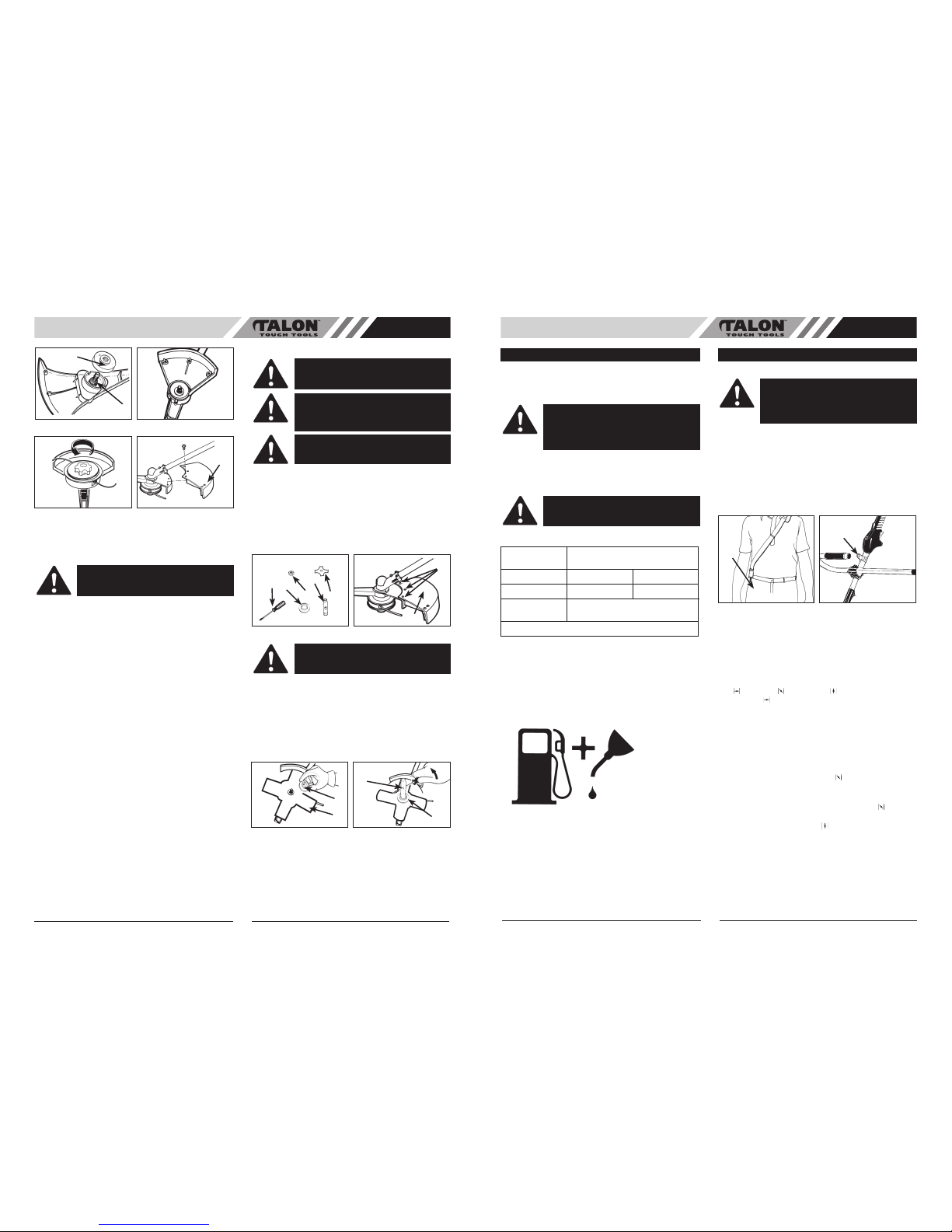

• DEBRIS SHIELD SKIRT INSTALLATION
Turn the unit over and install the debris shield skirt (A) as
shown (Fig. 5A)
• BLADE INSTALLATION (OPTIONAL BLADE)
1. To install the blade you will need the items illustrated
below (screwdriver not provided): retaining nut (C),
blade (D), screwdriver (E), flange (F), socket wrench
(G) (Fig. 7A)
2. Remove three screws (H). Remove the skirt (A). Use
the spindle lock to prevent the collar from turning
while removing the linehead (turn CLOCKWISE) (Fig.
7B).
3. Ensure the spindle lock is still in place.
4. Install blade (D) with teeth pointing CLOCKWISE as
shown in the illustration (Fig. 7C).
5. Install flange (F) with FLAT SURFACE facing blade
(Fig. 7C).
NOTE: Make sure blade is centered on collar arbor.
6. Tighten nut (C) securely by turning it
COUNTERCLOCKWISE with socket wrench (G).
Release spindle lock (Fig. 7D).
Fig. 4A Fig. 4B
A
B
Fig. 4C Fig. 5A
A
CAUTION: Skirt must be installed to properly
dispense cutter line and protect operator.
CAUTION: NEVER use unit if blade is warped
or has teeth that are chipped or missing.
Replace a damaged blade immediately.
CAUTION: NEVER operate unit with a
blade unless metal blade guard is properly
installed. NEVER operate a unit with a dam-
aged guard.
CAUTION: Always wear heavy-duty work
gloves when handling and installing a blade.
Fig. 7B
Fig. 7A
E
A
C
F
D
G
H
WARNING: Be sure the blade center hole is
properly sized to the collar arbor.
Fig. 7D
Fig. 7C
F
DC
G

AU
11
• TRIMMING PROCEDURES
When properly equipped with a debris shield and linehead,
your unit will trim unsightly weeds and tall grass in those
hard-to-reach areas - along fences, walls, foundations and
around trees. It can also be used for scalping to remove
vegetation down to the ground for easier preparation of a
garden or to clean out a particular area.
NOTE: Even with care, trimming around foundations, brick
or stone walls, curves, etc., will result in above normal
string wear.
TRIMMING / MOWING
Swing trimmer with a
sickle-like motion from
side to side. Do not tilt the
linehead during the pro-
cedure. Test area to be
trimmed for proper cutting
height. Keep linehead at
same level for even depth
of cut (Fig. 12A).
CLOSER TRIMMING
Position trimmer straight
ahead with a slight tilt
so bottom of linehead is
above ground level and
line contact occurs at
proper cutting point. Always cut away from operator. Do
not pull trimmer in toward operator.
FENCE / FOUNDATION TRIMMING
Approach trimming around chain link fences, picket fenc-
es, rock walls and foundations slowly to cut close without
whipping line against the barrier. If the line comes in con-
tact with rock, brick walls, or foundations, it will break or
fray. If line snags fencing, it will snap off.
TRIMMING AROUND TREES
Trim around tree trunks with a slow approach so line does
not contact bark. Walk around the tree trimming from left
to right. Approach grass or weeds with the tip of the line
and tilt linehead slightly forward.
SCALPING
Scalping refers to removal of all vegetation down to the
ground. To do this, tilt the linehead to about a 30 degree
angle to the right. By adjusting the handle you will have
better control during this operation. Do not attempt this
procedure if there is any chance flying debris could injure
operator, other people or cause damage to property
(Fig. 12B).
DO NOT SWEEP WITH TRIMMER
Sweeping refers to tilting linehead to sweep away debris
from walkways, etc. Your trimmer is a powerful tool and
small stones or other such debris may be hurled 50 feet
(15 meters) or more, causing injury or damage to nearby
property such as automobiles, homes and windows.
• CUTTING WITH BLADES
Always wear eye protection and protective clothing when
cutting with a blade.
Always use the harness for blade operations.
• USING WEED BLADES (4 TOOTH)
SCYTHING WEEDS
Scything refers to cutting by moving the blade from side to
side in a level arc. It is most effective with grassy weeds
and light undergrowth. It should not be used to cut large,
tough weeds or woody growth (Fig. 13).
• USING A BRUSH BLADE (8 OR 80 TOOTH)
SCYTHING
Scything may be used with a brush blade for light
brush and undergrowth. It is not recommended for tough
growth.
BINDING
Top heavy growth such as saplings and heavy brush can
bind and stop the blade. Avoid binding by anticipating
which way the growth will lean, and cut from the opposite
side.
Fig. 11A Fig. 11B
BUMP
Fig. 12A
WARNING: Use extreme caution when
SCALPING. Keep a distance of 100 feet (30
meters) between operator, other people and
animals during these operations.
Fig. 12B
CAUTION: Do not use weed blades to cut
brush or tree saplings.
Fig. 13
WARNING: Before operating this machine with
a blade check to ensure it is properly installed.
Follow all warnings listed in the blade safety
precautions section in this manual.
AU
10
NOTE: If engine fails to start after repeated attempts, refer
to Troubleshooting section.
NOTE: Always pull starter rope straight out. Pulling starter
at an angle will cause rope to rub against the eyelet. This
friction will cause the rope to fray and wear more quickly.
Always hold starter handle when rope retracts. Never
allow rope to snap back from extended position. This
could cause rope to snag or fray and also damage the
starter assembly.
• WARM ENGINE START
1. Move ignition switch to the “RUN” position (Fig.
10A).
2. Place choke in START “ ” position (Fig. 10B).
3. Grasp throttle handle firmly, squeeze throttle trigger to
FULL position.
4. Pull starter rope briskly until engine starts, but no
more than 6 times. Keep throttle at FULL position until
engine runs smoothly.
5. If engine does not start, place choke in RUN “ ” posi-
tion and pull starter rope 5 more times. If engine still
does not start it is probably flooded. Wait 5 minutes
and repeat procedure with choke in RUN “ ” position
and throttle full open.
• TO STOP ENGINE
Release throttle trigger. Let engine return to idle. Push and
hold ignition stop switch until engine stops.
• ADDITIONAL SAFETY PRECAUTIONS
Before operating your unit, review ALL SAFETY
PRECAUTIONS in this manual.
WARNING / CAUTION
• IF UNFAMILIAR WITH TRIMMING techniques, practice
the procedures with ENGINE in “OFF” position.
• ALWAYS CLEAR WORK area of debris such as cans,
bottles, rocks, etc. Striking objects can cause serious
injury to operator or bystanders and also damage
equipment. If an object is accidentally hit, immediately
TURN ENGINE OFF and examine equipment. Never
operate unit with damaged or defective equipment.
• ALWAYS TRIM OR CUT AT HIGH ENGINE SPEEDS.
Do not run engine slowly at start or during trimming
operations.
• DO NOT use equipment for purposes other than
trimming or mowing weeds.
• NEVER raise linehead above knee height during
operation.
• DO NOT operate unit with other people or animals
in the immediate vicinity. Allow a minimum of 50 feet
(15 meters) between operator and other people and
animals when trimming or mowing. Allow a distance
of 100 feet (30 meters) between operator and other
people and animals when SCALPING with linehead
cutter.
• IF OPERATING UNIT ON A SLOPE, stand below the
cutting attachment. DO NOT OPERATE on a slope or
hilly incline if there is the slightest chance of slipping or
losing your footing.
• LINEHEAD LINE RELEASE
To release fresh line, run engine at full throttle and “bump”
linehead against lawn. Line will automatically release.
The knife in debris shield will trim excess line. (Fig. 11A)
Fig. 9C Fig. 9D
Fig. 9E Fig. 9F
Fig. 9G Fig. 9H
TRIMMING INSTRUCTIONS
WARNING: DO NOT use steel wire or plastic-
coated steel wire of any kind with your line-
head. Serious operator injury can result.
CAUTION: Periodically remove weed wrap
to prevent overheating the drive shaft. Weed
wrap occurs when strands of weed become
entangled around the shaft beneath the
debris shield (Fig. 11B). This condition pre-
vents the shaft from being properly cooled.
Remove weed wrap with screwdriver or
similar device.
Fig. 9A Fig. 9B
13cm
For Line Head
0-300mm
For blade
100-400mm
Fig. 10B
Fig. 10A
A
D
E
F
A

13
AU
• FUEL CAP / FUEL FILTER
NOTE: Keep vent (A) on fuel cap clean of debris
(Fig.17A).
1. Lift fuel line and filter (B) out of tank. A steel wire (C)
with a hook or a paper clip works well (Fig. 17B).
2. Pull off with a twisting motion (Fig. 17C).
3. Replace fuel filter (D).
NOTE: Never operate the trimmer without the fuel filter.
Internal engine damage could result!
• CARBURETOR ADJUSTMENT
The carburetor was pre-set at the factory for optimum
performance. If further adjustments are necessary, please
take your unit to the nearest Authorized Service Center.
• SPARK PLUG
1. Spark plug gap = .025” (.635mm) (Fig. 18).
2. Torque to 105 to 130 inch pounds (12 to 15 N•m).
Connect spark plug boot.
• DEBRIS SHIELD KNIFE SHARPENING
1. Remove cutter knife (A) from debris shield (B) (Fig.
19).
2. Place knife in a bench vise. Sharpen knife using a
flat file, being careful to maintain the angle of cutting
edge. File in one direction only.
• STORING A UNIT
1. Perform all the general maintenance rec-
ommended in the Maintenance Section of your User
Manual.
2. Clean exterior of engine, drive shaft assembly, debris
shield and linehead.
3. Drain fuel from the fuel tank.
4. After fuel is drained, start engine.
5. Run engine at idle until unit stops. This will purge the
carburetor of fuel.
6. Allow engine to cool (approx. 5 minutes).
7. Using a spark plug wrench, remove the spark plug.
8. Pour 1 teaspoon of clean 2-cycle oil into the
combustion chamber. Pull starter rope slowly several
times to coat internal components. Replace spark
plug.
9. Store unit in a cool, dry place away from any source
of ignition such as an oil burner, water heater, etc.
10. Put the sleeve on when not in use or in
transportation.
• REMOVING A UNIT FROM STORAGE
1. Remove spark plug.
2. Pull starter rope briskly to clear excess oil from com-
bustion chamber.
3. Clean and gap spark plug or install a new spark plug
with proper gap.
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel / oil mixture. See Fuel
and Lubrication Section.
Fig. 16
CAUTION: Remove fuel from unit and store
in approved container before starting this
procedure. Open fuel cap slowly to release
any pressure which may have formed in
fuel tank.
A
Fig. 17A Fig. 17B
D
Fig. 17C
C
B
WARNING: Failure to follow these steps may
cause varnish to form in the carburetor and
difficult starting or permanent damage follow-
ing storage.
Fig. 18 Fig. 19
A
B
.025” (.635mm)
12
AU
If the blade binds in a cut stop the engine immediately.
Hold the unit up to prevent the blade from cracking or
breaking while pushing the sapling away from the cut to
free the blade.
AVOID KICKOUT
Kickout is the reaction of a moving blade if it contacts a
strong tree, brush or a solid object. The force that occurs
violently pushes the blade away in an arc. Kickout could
cause loss of control resulting in injury to the operator or
bystanders.
DO NOT USE A BLADE NEAR A CHAIN LINK FENCE,
METAL STAKES, LANDSCAPE BORDERS OR BUILDING
FOUNDATIONS.
The Talon blade guard is designed to reduce the risk of
kickout by providing stops to brace the unit against the
object being cut.
Place the sapling against the stop (A) so the rotation of the
blade continually draws it into the stop (A) (Fig. 14).

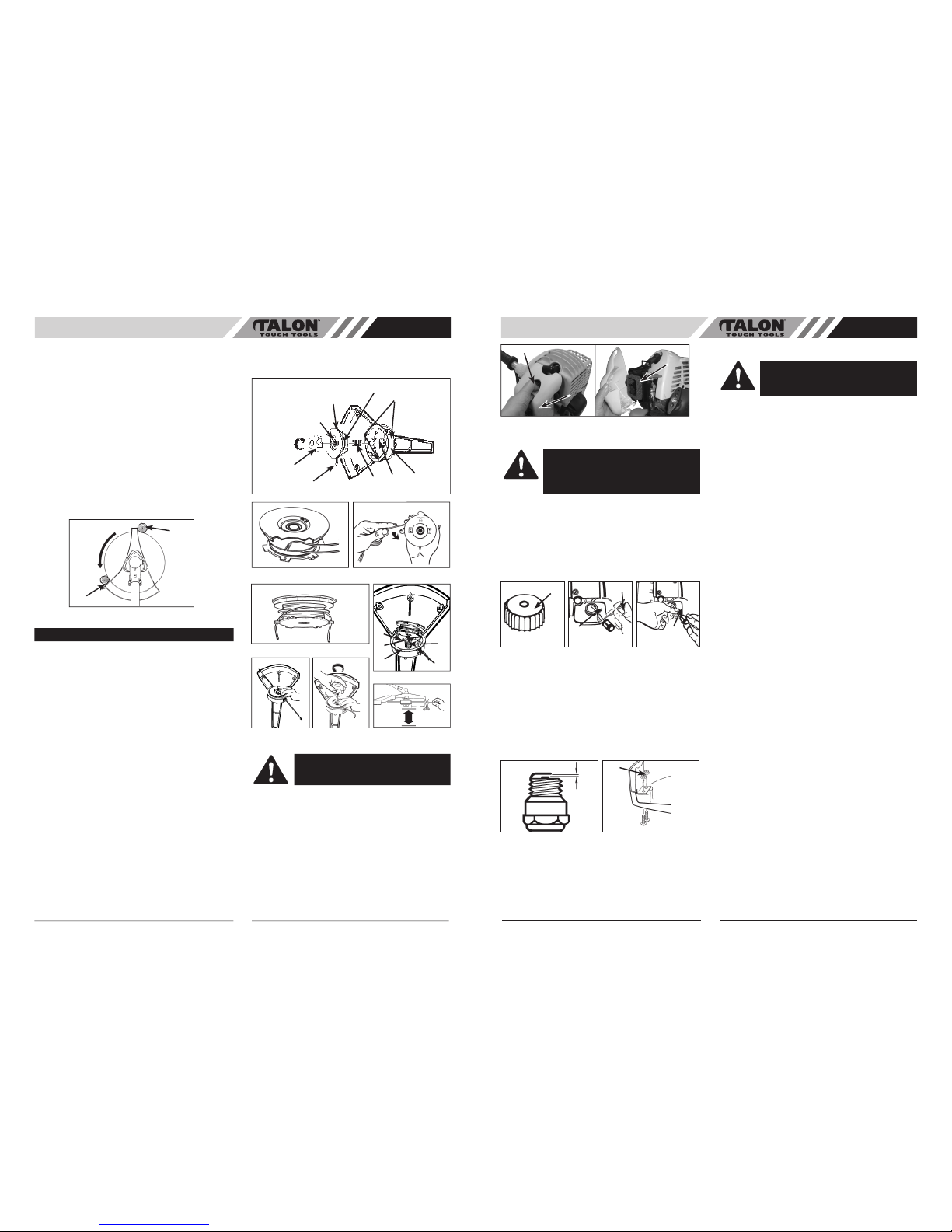

• REPLACING CUTTER LINE
1. Turn the knob (A) CLOCKWISE and remove it (Fig.
15A).
2. Remove the spool (C), and spring (D) from spindle
(E)
3. Remove any remaining cutter line.
4. Double a 32’ (9.8m) length of 2.5mm cutter line. Place
the looped center in one of the slots (G) of the spool
divider (Fig. 15B).
5. Wind as shown in illustration (Fig. 15C), keeping ten-
sion, with each half separated by the spool divider.
Wind to within 6” (15cm) of the ends
6. Lock each end of line into a slot (H) on opposite sides
of the spool (Fig. 15D).
7. Install the spring (D) over the spindle (E). Insert each
end of the line through an eyelet (J) in the housing (F)
(Fig. 15E).
8. Lower the spool into the housing (E) while feeding the
line through the eyelets (J). Ensure the spring seats
itself into the spool (Fig. 15E).
9. Once the spool is in place, apply pressure on the
spool compressing the spring. Pull each end of the
line (K) sharply to unlock the line from the slots (Fig.
15F).
10. Continue to apply pressure to the spool until the knob
can be threaded ANTICLOCKWISE onto the spingle.
Tighten the knob securely by hand only (Fig. 15H)
11. Trim the excess line to approximately 5” (13cm). This
wil minimize load on engine durig starting and warm-
up. (Fig. 15H)
• AIR FILTER
To Clean Air Filter:
1. Press down on tab (A) holding air filter cover in place,
remove cover (B) and lift filter (C) from air box. (Fig.
16)
2. Wash filter in soap and water. DO NOT USE
GASOLINE!
3. Air dry filter.
4. Reinstall filter.
NOTE: Replace filter if frayed, torn, damaged or unable
to be cleaned.
Fig. 14
A
A
MAINTENANCE INSTRUCTIONS
A. KNOB
B. CUTTER LINE
C. SPOOL
D. SPRING
E. SPINDLE
F. HOUSING
G. DIVIDER SLOTS
H. SLOTS
J. EYELETS
A
B
C
B
G
DE
F
J
Fig. 15A
Fig. 15B Fig. 15C
J
E
F
D
J
Fig. 15D
Fig. 15E
Fig. 15F Fig. 15HFig. 15G
13cm
For blade
100-400mm For String Head
0-300mm
CAUTION: NEVER operate trimmer without
the air filter. The air filter must be kept clean. If
it becomes damaged, install a new filter.
A
B
C
