T&C TC42.NG05.C User manual

160508-12 TC42.NG05.C 5056.426.C5
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the replace and should be
kept together. Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and operating
instructions
TC42
HEARTWOOD
BURNER INSTALLATION
INSTRUCTIONS
PART#
TC42.NG05.C
FOR TC42

Contents of Package
2
TC42.NG05.C 160508-12

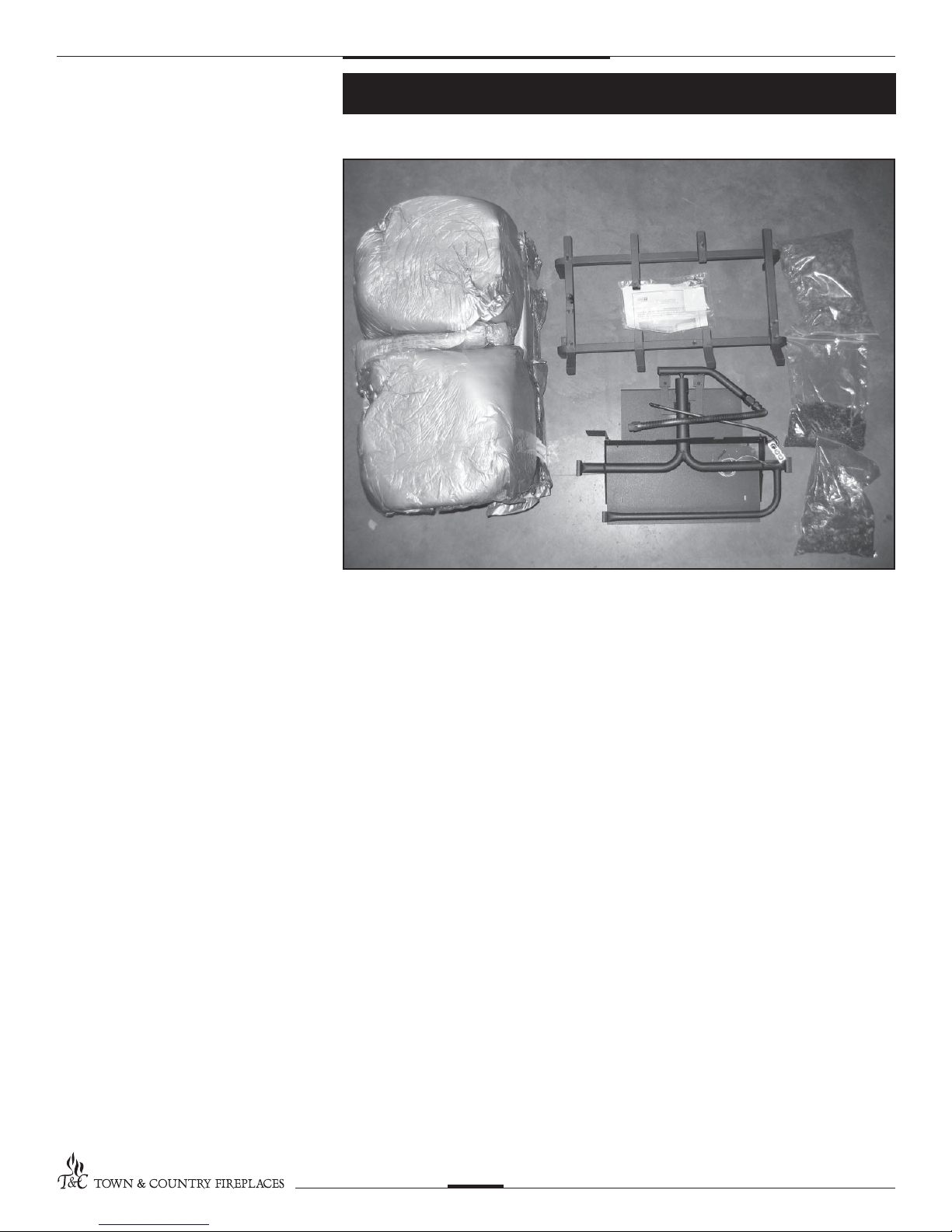

• BURNER ASSEMBLY (including pilot and manifold)
• LOG GRATE
• EMBER MATERIAL (one bag)
• COAL CHUNKS (one bag)
• VERMICULITE (one bag)
• HARDWARE PACKAGE

Fig. # 3
3
TC42.NG05.C 160508-12

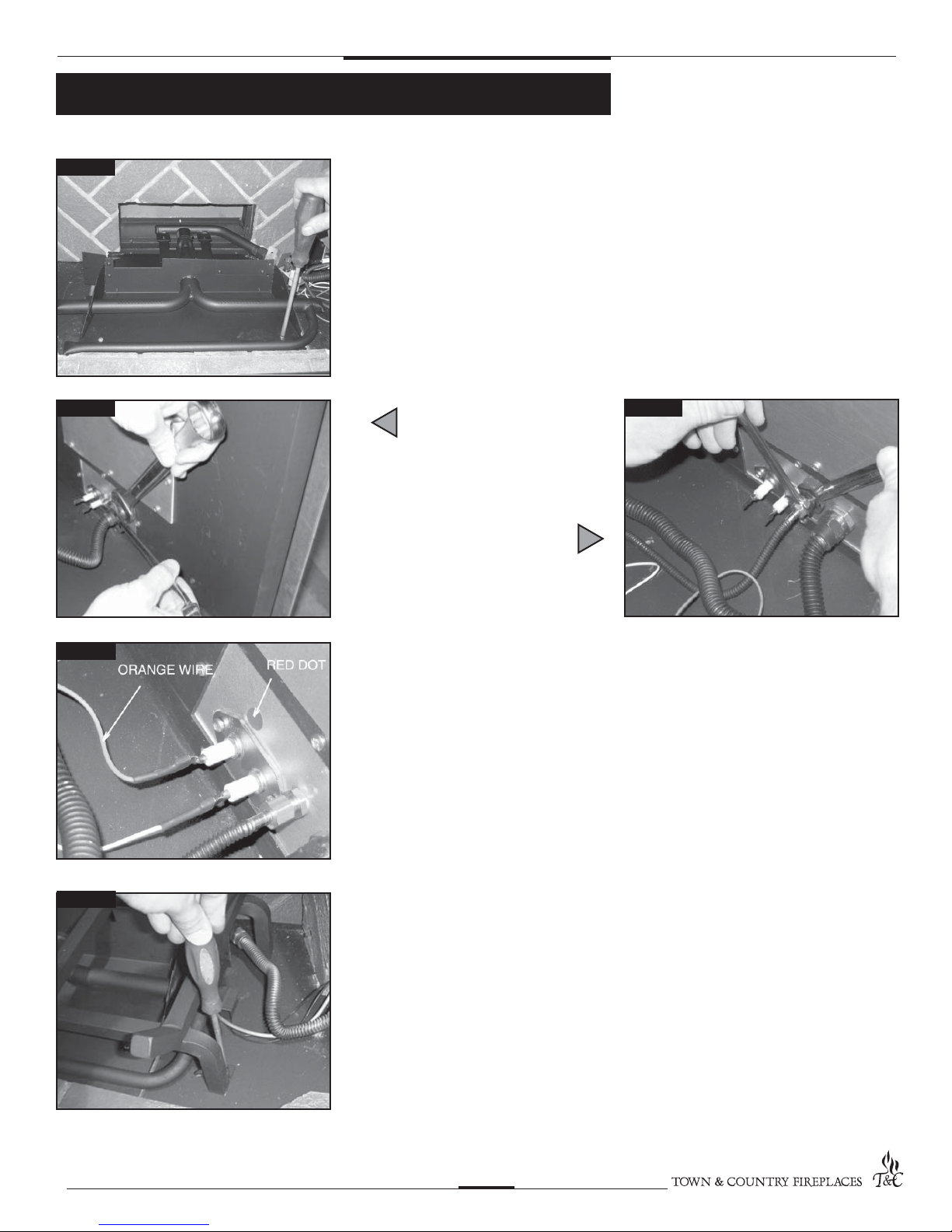

1. Attach the burner assembly to the oor of
the rebox with two screws. (Fig. # 1)
2. Attach the manifold supply tube to the
bulk head tting and tighten. (Fig. # 2)
Ensure that there are no leaks.
3. Attach the pilot supply tube to the bulk
head tting and tighten. (Fig. # 3) Ensure
there are no leaks.
4. Attach spark electrode (ORANGE) and
sensor leads to the electrical bulk head.
(Fig. #4) (The spark electrode connection
has a red dot above it)
5. Position the grate over the burner tray
and attach to the oor with two screws
through holes located behind the front
legs of the grate. (Fig. # 5)
Fig. # 2
Fig. # 1
Fig. # 5
Fig. # 4
Burner/ Grate Installation

4
TC42.NG05.C 160508-12
Fig. # 6
Ember Material
Fig. # 6a
A large bag of ember material is shipped with the replace and needs to be installed on
the burner to ensure optimum performance and ame appearance. A bag of coal chunks
and lava rock is also supplied this must only be used around the burner pan to cover up
the gas lines and brackets.
1. Pull apart the material into ember size pieces (approximately 1” squares) and
gently place them into the burner pan. Do not compress, leave them loose for best
performance.
2. Fill the burner pan with embers until level with the top of the pan at rear, and gradually
slope forward to the rebox oor at the front, covering both burner tubes.
3. Place remaining ember material, coal chunks and lava rock outside of the burner pan
as desired to cover-up gas lines and brackets. Do not put coal chunks or lava rock
inside burner pan as this will cause sooting and the burner to malfunction.
Note:
Ember material placement and amount will affect ame appearance. More
ember material results in lower ame height. Add or remove as needed until
desired ame affect.
Reduce the amount used on Propane models, as too much will create soot.
Embers only in this area.
Embers only in this area.
Embers, coal chunks and lava rock.
Embers, coal chunks and lava rock.

5
TC42.NG05.C 160508-12
Fig. #9
Fig. #11 Fig. #12
Fig. #10
Fig. # 7
The logs are packaged in a foam pack inside the box, they are fragile and should be
handled with care. Unpack and inspect log set. There should be a total of 9 logs. Gas
plumbing and vent connections should be
Position the logs as indicated by the following pictures. SEVEN logs have holes and /or
pins. Engage each pin in the corresponding holes. TWO of the logs do not have holes or
pins, they rest in position, locate as per the diagrams. (Fig. # 7-15)
Log Set Assembly
Fig. # 8
Fig. #14 Fig. #15
Fig. #13
BASE LOG, #a LEFT CENTER LOG, #b LEFT FRONT LOG, #c
LOG WITH HOLE, #d RIGHT CENTER LOG, #e FRONT RIGHT LOG, #f
CENTER TWIG, #hRIGHT BASE LOG, #g CENTER BASE CHUNK, #i

Propane Conversion
If the unit is to be used on propane,
convert as follows using the compo-
nents supplied with this replace:
CAUTION
The gas supply and electrical power
must be shut off before proceeding
with the conversion.
Fig. # 17
Fig. # 18
Fig. # 16
WARNING
This conversion kit shall be
installed by a qualied
service agency in
accordance with the
manufacturer's instructions
and all applicable codes
and requirements of the
authority having
jurisdiction.
If the information in these
instructions is not followed
exactly, a re, explosion or
production of carbon
monoxide may result
causing property damage,
personal injury or loss of
life.
The qualied service
agency is responsible for
the proper installation of
this kit.
The installation is not
proper and complete un-
til the operation of the
converted appliance is
checked as specied in the
manufacturer's instructions
supplied with the kit.
Note: Factory supplied components must
be used to ensure correct input.
After conversion conrm proper manifold
pressure.
1. Ensure the burner, pilot and gas
supply are turned off, and the
appliance has cooled.
2. Remove the two screws securing the
manifold assembly to the burner.
(Fig. #16)
3. Remove the manifold assembly from the
burner. (Fig. #15)
4. With a ½” wrench remove the natural gas
orice (#25) and replace with propane
orice (3/32)(our part # 5021.31)
(Fig. #18)
5. Fully open the primary air shutter.
6. Reinstall the manifold assembly
6
TC42.NG05.C 160508-12

Minimum
rate screw
7. With a 7/16” wrench loosen the pilot head
on the pilot assembly by a half-turn
(Fig. #19)
8. Slide the pilot adjustment band over and
ensure that the hole in the orice band is
showing. (Fig. #20 shows NG position,
Fig. # 21 shows LP position)
9. Remove the minimum rate screw located
in the valve.
(Fig. #22)
Fig. #21
Fig. # 22
Fig. # 19
Fig. # 20
7
TC42.NG05.C 160508-12
M
r
a

8
TC42.NG05.C 160508-12
Minimum
rate screw
NG LP
Fig #23
Fig #24
Fig #25
Fig #26
10. Replace theminimum ratescrew withthe
one provided in the propane conversion
kit supplied with this replace. Ensure
that the screw is fully installed.
(Fig. #23)

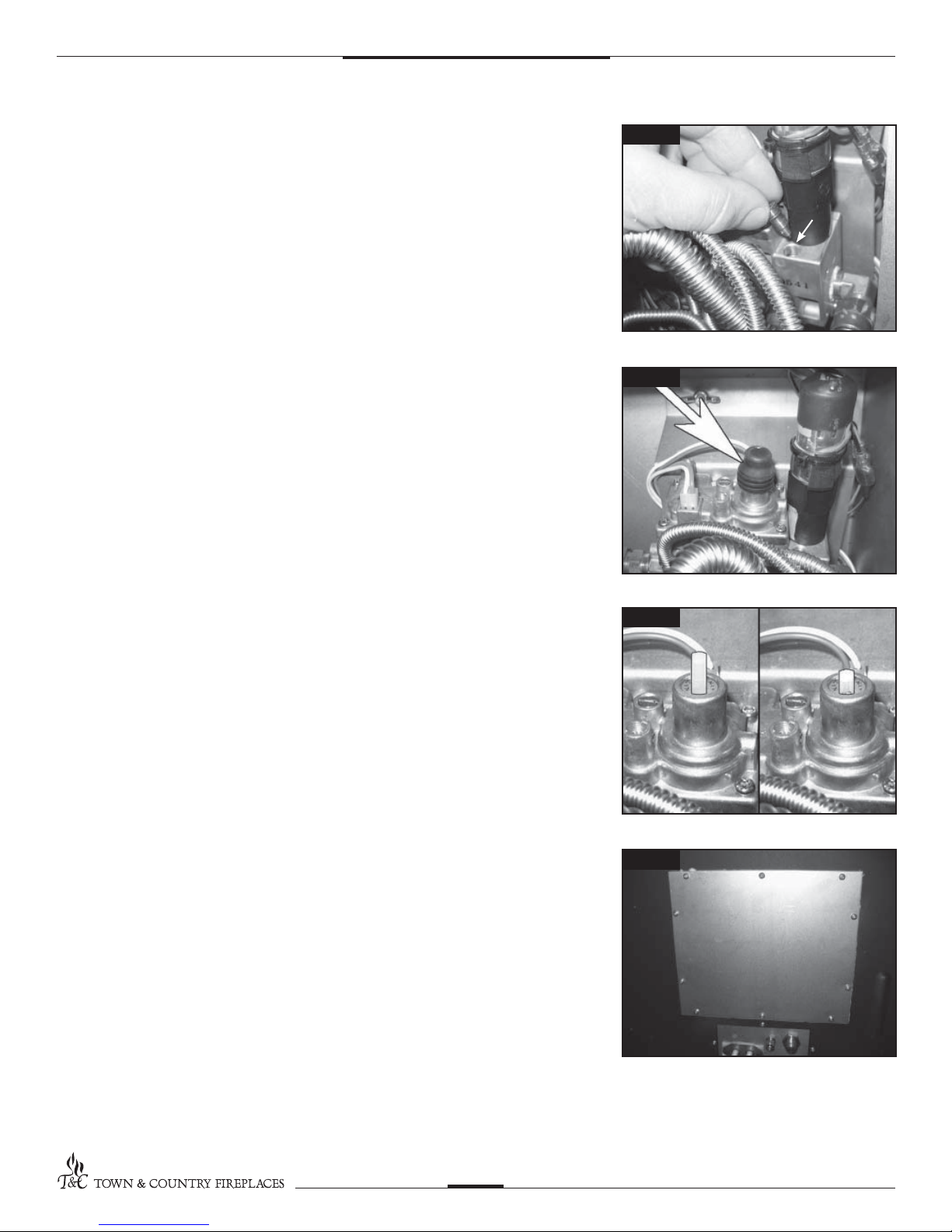

11. Pull off the rubber cap from the top of
the pressure regulator. (Fig. #24)
12. Press down on the center post and
rotate 90°. The center post should
stay down. (Fig. #25). Replace the
rubber cap.
13. Fill in the date and the name of the
person who performed the conversion
in the white area on the conversion
label. Peel off the protective backing
and apply the conversion label directly
over the gas specications on the rating
label.
14. Attach the access panel to the side of
the rebox with the previously removed
screws. (Fig. #26)
Note:
Gasket must be installed with access
panel.

9
TC42.NG05.C 160508-12
1. Remove the plug from the manifold test
port. The plug is located between the
right side lintel and rebox side (bottom
port). (Fig. # 27)
2. Thread the extension test tting into the
open test port. (Fig. #28)
3. Attach a pressure gauge onto the
tting.
4. When testing is complete remove the
extension test tting and replace the
plug. Thread sealant will be required to
ensure a gas-tight connection.
Correct gas pressure requirement:
Supply Pressure Natural Gas Propane
(For purpose of input adjustment)
Minimum 5.0" WC 12.5" WC
Maximum 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.8" WC 11.0w" WC
Minimum 2.1" WC 5.5" WC
Note: To test the gas pressure, turn off the gas supply before removing the plug from
the supply pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Fig #27
Fig #28
Gas Pressure Check

10
TC42.NG05.C 160508-12
Fig. # 29
The air shutter on the burner tube controls the primary combustion air to the gas burner
and is preset at the factory for natural gas fuel. Some adjustment may be necessary to
obtain desired ame and to eliminate carbon deposits. Evaluate ame appearance after
the replace has reached operating temperature. See Fig. #29 for proper ame pattern.
Open primary air shutter if the logs, glass, and rebox have carbon accumulation and /
or the ames are long, dark and stringy. The shutter may also be opened to enhance the
Ember Material glow and lessen the ame height.
Caution: Burner area may be hot!
Turn off the replace and allow the unit to cool before proceeding.
Caution: Proper air shutter setting is a
must.
The ame should be just orange and “lazy”.
It should NEVER be set to create sooting on
internal parts and glass.
Burner Flame Adjustment
To Adjust:
1. Open and remove window frame and set
aside. See "Window Frame Removal"
section found in the Installation and
Operating Instructions manual.
2. Remove the log set and set aside.
3. Loosen the screw in the Primary Air
Shutter.
4. Rotate the shutter to increase or decrease
the amount of primary air.
5. Reassemble in reverse order.

11
TC42.NG05.C 160508-12
Replacement Parts
ITEM.......DESCRIPTION........................................... PART NO.
#1..........TC42.NG01 BURNER ASSEMBLY.... TC42.90859C
#2..........9 PCS LOG SET ................................. 5098.32
#3..........ORIFICE, NATURAL GAS (#25) ........ 5022.12
ITEM.......DESCRIPTION........................................... PART NO.
#4..........PILOT ASSEMBLY............................. 5005.025
#5..........MAIN SUPPLY TUBE (FLEX) ............ 5019.223
#6..........PILOT TUBE (FLEX) ......................... 5019.225
#7..........PROPANE CONVERSION KIT .......... TC42.LPCEO1
#1.... BURNER ASSEMBLY
1a GRATE
1b
BURNER INSULATION
1c BURNER TRAY SUPPORT SHIELD
1d PILOT SHIELD
1e TC42.NG01 BURNER WELD
1f MANIFOLD
1g 1/2 PIPE TO 1/2 TUBE CONNECTION
1h PILOT BRACKET
2a BASE LOG (a)
2b LEFT CENTER LOG (b)
2c LEFT FRONT LOG (c)
2d LOG WITH HOLE (d)
2e RIGHT CENTER LOG (e)
2f FRONT RIGHT LOG (f)
2g RIGHT BASE LOG (g)
2h CENTER TWIG (h)
2i CENTER BASE CHUNK (i)
KIT CONTENTS:
3 ORIFICE, NATURAL GAS
4 PILOT ASSEMBLY
5 MAIN SUPPLY TUBE
6 PILOT TUBE
#2.... 9 PCS LOG SET
EMBER MATERIAL (Not shown)
2a
BASE LOG (a)
2b LEFT CENTER LOG (b)
2c LEFT FRONT LOG (c)
2d LOG WITH HOLE (d)
2e RIGHT CENTER LOG (e)
2f FRONT RIGHT LOG (f)
2g RIGHT BASE LOG (g)
2h CENTER TWIG (h)
2i CENTER BASE CHUNK (i)
#3.... ORIFICE, NATURAL GAS (#32)
#4.... PILOT ASSEMBLY, CONVERTIBLE
#5.... MAIN SUPPLY TUBE (FLEX)
#6.... PILOT TUBE (FLEX)
#7.... PROPANE CONVERSION KIT (Not shown)
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
*
NOT SHOWN
*
2a
2b
2c
2d
2g
2e
2f
2h
2i
#1
#2 #3
#4
#6 #5
1a
1b
1e
1d
1f
1h
1c 1g

TECHNICAL SUPPORT: 1-888-715-2664
www.townandcountryreplaces.net
2975 Allenby Rd., Duncan, BC V9L 6V8
Printed in Canada
