POWER S15 BP
Tannoy adopts a policy of continuous improvement and product specification is subject to change POWERVS15 BP data file // Issue: 1.06 // 15.01.08
The high power POWERVS15 BP is a compact, versatile and extremely efficient bandpass
subwoofer system, designed to extend the low frequency response of Tannoy POWERV
loudspeakers and increase system headroom. Extending the frequency response of these
systems to below 40 z this highly efficient design is capable of providing output levels
normally associated with considerably larger enclosures.
The POWERVS15 BP consists of one high efficiency 380mm (15.00”) with a 76mm (3.00”)
voice coil drive unit mounted in a compact and sturdy, black or white painted cabinet
constructed from 15mm (0.62”) multi-ply birch hardwood; robust enough to survive the
punishment that speakers systems are subjected to on the road and in club installations.
Delivering impressive levels of accuracy and performance, the POWERVS15 BP is equipped
with a highly efficient, flexible and reliable Class D power amplifier incorporating
a switching power supply. The amplifier section and power supply were developed
simultaneously and therefore optimally matched to minimise noise and enhance stability.
The power module combines light, efficient and cool-running amplification, comprehensive
driver protection and equalisation into a single compact unit. Clean, undistorted sound is
delivered, even when driven at very high power levels. No cooling fans are required so the
system runs quietly and is not prone to internal dust contamination.
All signal processing functions have been precisely tailored; crossover frequencies and
slopes, EQ, phase corrections and limiting. LED’s on the rear panel indicate signal
presence, signal activity, and power. Signal input and audio link are via XLR, while the
mains connector is a Neutrik locking Powercon type. The full range POWERV models have
a high pass mode that enables a simple top box and subwoofer combination to be created
without the need for an external crossover. Two low pass setting options on the subwoofer
amplifier fully optimise integration with the full range units.
Available in black or white, this versatile powered subwoofer also has, due to effective
acoustic matching to the other POWERV models, a wide range of uses in fully integrated
installations as diverse as theme bars, performing arts centres, high quality public address,
theme parks, leisure venues, audio visual, houses of worship and ‘dry hire’ rental.
The POWERVS15 BP comes complete with recessed carrying handles for ease of
transportation and 10mm flying points provide a quick and secure flying. A blanking plate
covers a recess for the optional VT pole mount.
Product Description
• 380mm (15.00”) bass unit
• Compact and versatile birch plywood enclosure
• Rugged, highly efficient Class D amplification with
universal power supply
• 2 x integral carry handles
• Multiple flying points and accessory mounting
hardware option
• Live sound reinforcement
• Theme pubs and nightclubs
• Theatre front of house and effects
• Movie theatres and cinemas
• Side fill in large-scale music reinforcement
• Theme parks and leisure venues
• Sports and multi-use stadiums
• Audio visual
• igh quality public address
• ouses of Worship
• Extended bass for POWERV full range loudspeakers
• ‘Dry hire’ rental
Features
Applications

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
POWER S15 BP
Tannoy adopts a policy of continuous improvement and product specification is subject to change POWERVS15 BP data file // Issue: 1.06 // 15.01.08
TECHNICAL SPECIFICATIONS
System Type Subwoofer - Bandpass
Frequency Response (-3dB) (1) 47 z - 80k z
Low pass flilter A on
Frequency Range (-10dB) (1) 47 z - 110k z
Low pass filter B on
Frequency Response (-3dB) (1) 37 z - 80k z
Low pass filter A on
Frequency Range (-10dB) (1) 37 z - 110k z
Low pass filter B on
Driver Complement 1 x 380mm (15.00”)
igh excursion bass driver
Crossover User selectable LPF
Rated Maximum SPL (2)
Average 124dB
Peak 130dB
Distortion
10% Full Power (15.5V)2nd armonic 3rd armonic
40 z 0.65% 0.67%
100 z 3.05% 0.70%
1% Full Power (4.9V)2nd armonic 3rd armonic
40 z 0.13% 0.30%
100 z 0.76% 0.24%
PSU Specifications
Input Connector Locking Neutrik Powercon
Voltage Selection Automatic (115 / 230V, 45 - 65 z)
Type igh current, high frequency switch
mode
Efficiency >90% typical
Input voltage 100v / 115v / 230v nominal +/-10%
Mains fuse External
Fuse type T10AT
Other features Automatic soft start
Enclosure 100 litre internally braced 15mm (0.62”)
birch plywood enclosure
Finish Textured black or white paint with
custom colours on request
Connectors 1 x female XLR (input)
1 male XLR (link)
1 x Neutrik Powercon
Controls & Level control
Indicators Power LED (Blue)
Signal LED (Green)
Limit LED (Red)
Full range / igh pass switch (110 z)
Power switch
Fittings 8 x M10 flying inserts
2 x recessed carry handles
Blanking plate for optional VT pole
mount
4 x Rubber feet
Dimensions 665 x 440 x 440mm
x W x D 26.18 x 17.32 x 17.32”
NET Weight 30kg
(66lbs)
Electronics
Maximum signal input for clip Input attenuator at minimum: +18dBu
Input attenuator at maximum: +5dBu
Output noise -105dB unweighted, referenced to
maximum output (22k z bandwidth)
Efficiency >90% typically
Damping Factor 400 ref 8 Ohms
Distortion <0.05% @ 1k z -3dB output
(22k z bandwidth)
Input Impedance 5.6kOhms unbalanced
11.2kOhms balanced
Protection systems Over Current
Excessive over current causes shutdown
Temperature Limiters applied
Brownout Automatic protection and recovery
Mains Inrush current limiting
Indicators 1x Limit LED
1x Signal LED
1x Power LED
Number of channels One
System Type Class D
System POWER S15 BP Construction
8001 4310 POWERVS15 BP Black 1
8001 4311 POWERVS15 BP White 1
PART NUMBER PACKED QUANTITY
COLOUR
MODEL NAME
Ordering Information
Notes:
(1) Average over stated bandwidth. Measured at 1 metre on axis.
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verification of published specifications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specifications when dealing with critical applications.

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
POWER S15 BP
Tannoy adopts a policy of continuous improvement and product specification is subject to change POWERVS15 BP data file // Issue: 1.06 // 15.01.08
PERFORMANCE MEASUREMENTS
q y p ( )
-40
-30
-20
-10
0
10
10 100 1000 10000
-40
-30
-20
-10
0
10
10 100 1000 10000
-40
-30
-20
-10
0
10
10 100 1000 10000
LPF1
LPF2
FEQUENCY
RESPONSE
FEQUENCY
RESPONSE
FEQUENCY
RESPONSE
1m on-axis frequency response (LPF1)
frequency ( z)
Level (dB)
frequency ( z)
1m on-axis frequency response (LPF2)
frequency ( z)
Level (dB)Level (dB)
1m on-axis frequency response (LPF1 and LPF2)

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
POWER S15 BP
Tannoy adopts a policy of continuous improvement and product specification is subject to change POWERVS15 BP data file // Issue: 1.06 // 15.01.08
DIMENSIONAL SKETCHES
10
INPUT
D
E
C
T
S
I
L
E
T
R
E
T
N
I
US
MODE
LINK A0
BLEVEL
-POWER
-SIGNAL
-LIMIT
115-230V
500VAMax
50-60Hz
POWER
TANNOYPART3461 0913
REPLACEONLYWITH
T10AL250V
FUSE
RAINORMOISTURE
OUVRIR
THISCLASSD DIGITAL DE VICEMEETSALLREQUIREMENTS OF THE
CANADIANINTERFERENCE-CAUSINGEQUIPMENTREGULATIO NSAND
OPERATIONSUBJECTTOCONDITIONSSTATED IN THE MANUAL
THISEQUIPMENT MUSTBE EARTHED
TOREDUCETHERISK OF FIRE OR ELECTRIC
SHOCKDONOT EXPOSE THIS EQUIPMENT TO
RISQUEDECHOC ELECTRIQUE-NE PAS
CAUTION
COMPLIESWITHPART15 OFTHE FCC RULES.
AVIS:
WARNING
MODEBMODEA
LPF1
80Hz
LPF2
110Hz
665.0
[26.18"]
440.0
[17.32"]
440.0
[17.32"]
195.0
[7.68"]
40.0
[1.57"]
625.0
[24.61"]
220.0
[8.66"]
38.5
[1.52"]
40.0
[1.57"]
400.0
[15.75"]
220.0
[8.66"]
222.5
[8.76"]
195.0
[7.68"]
665.0mm
(26.18”)
195.0mm
(7.68”)
440.0mm
(17.32”)
195.0mm
(7.68”)
40.0mm
(1.57”)
625.0mm
(24.61”)
400.0mm
(15.75”)
40.0mm
(1.57”)
440.0mm
(17.32”)
222.5mm
(8.76”)
38.5mm
(1.52”)
220.0mm
(8.66”)
220.0mm
(8.66”)

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
POWER S15 BP
Tannoy adopts a policy of continuous improvement and product specification is subject to change POWERVS15 BP data file // Issue: 1.06 // 15.01.08

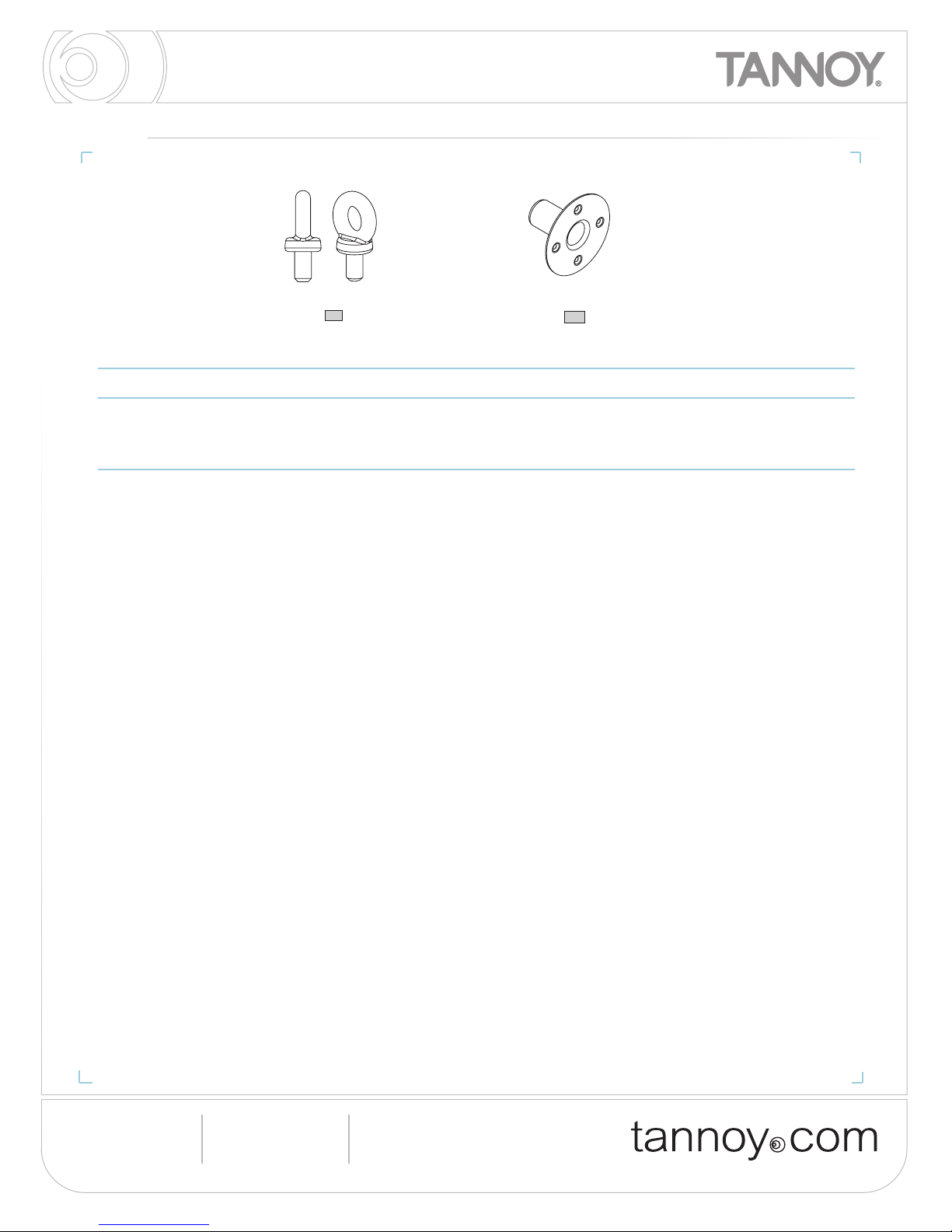

OPTIONAL ACCESSORIES & MOUNTING OPTIONS
VEB VTH
8001 2820 VEB - 1
8001 2860 VT Black 1
8001 2870 VT White 1
PACKED QUANTITY
PART NUMBER COLOUR
MODEL NAME
Ordering Information
The bass loudspeaker shall be of the bandpass type consisting of one 380mm (15.00”) long excursion low frequency transducer mounted on an
internal baffle and driven by an integrated single channel (bridged) Class D amplifier with user selectable low pass filter.
The optimally tuned 100 litre enclosure shall be of 15mm (0.62”) birch plywood construction finished in a wear resistant, textured black paint. There
shall be eight M10 rigging points and a blanking plate for the installation of a pole mount socket.
Performance of the subwoofer shall meet or exceed the following criteria: Frequency response measured at 1 metre on axis with swept sine wave
shall be 47 z to 80 z (-3dB) with low pass filt A switched on and 47 z to 110 z (-3dB) with low pass filt B switched on. Rated average SPL shall
be 124dB (anechoic) on axis at 1 metre. Connectors shall be 1 x female XLR (input), 1 x male XLR (link) and 1 x Neutrik Powercon. The speaker
shall be fitted with the following controls and indicators: level control, blue power LED, green signal LED, red limit LED, user selectable LPF and
a power switch.
The enclosure shall not exceed the following dimensions: 665 x 440 x 440mm or 26.18 x 17.32 x 17.32” ( x W x D)
The Tannoy subwoofer loudspeaker system shall be… POWERVS15 BP
Architectural specifications
