Post Hole Digger
BPH-100
Operator’s Manual

2
BPH-100 Post Hole Digger
Page left blank intentionally

3
BPH-100 Post Hole Digger
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual
instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the
Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
TO THE OWNER:
Read this manual before operating your Tar River equipment. The information presented will prepare you to
do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual
carefully and become acquainted with all the adjustment and operating procedures before attempting to
operate. Replacement manuals can be obtained from your selling dealer. The equipment you have purchased
has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all
mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified. Observe all safety
information in this manual and safety decals on the equipment. For service, your authorized Tar River dealer
has trained mechanics, genuine Tar River service parts, and the necessary tools and equipment to handle all
your needs. Use only genuine Tar River service parts. Substitute parts will void the warranty and may not meet
standards required for safe and satisfactory operation.
Record your implement model and serial number in the space provide below. Your dealer will need this
information to give you prompt, efficient service.
Model Number: ______________________________________
Serial Number: _______________________________________
Date Purchased: ______________________________________

4
BPH-100 Post Hole Digger
Introduction …………………………………………………………………………………………….. 5
Technical Specifications ……………………………………………………………………………….. 5
Safety …………………………………………………………………………………………………… 6
Safety Signal Words ……………………………………………………………………………………. 6
General Safety Guidelines ……………………………………………………………………………… 7
Safety Decal Care ………………………………………………………………………………………. 7
Before Operation ……………………………………………………………………………………….. 8
During Operation ……………………………………………………………………………………….. 9
Highway And Transport Operations …………………………………………………………………… 10-11
Attaching to tractor .…………..………………………………………………………………………… 12

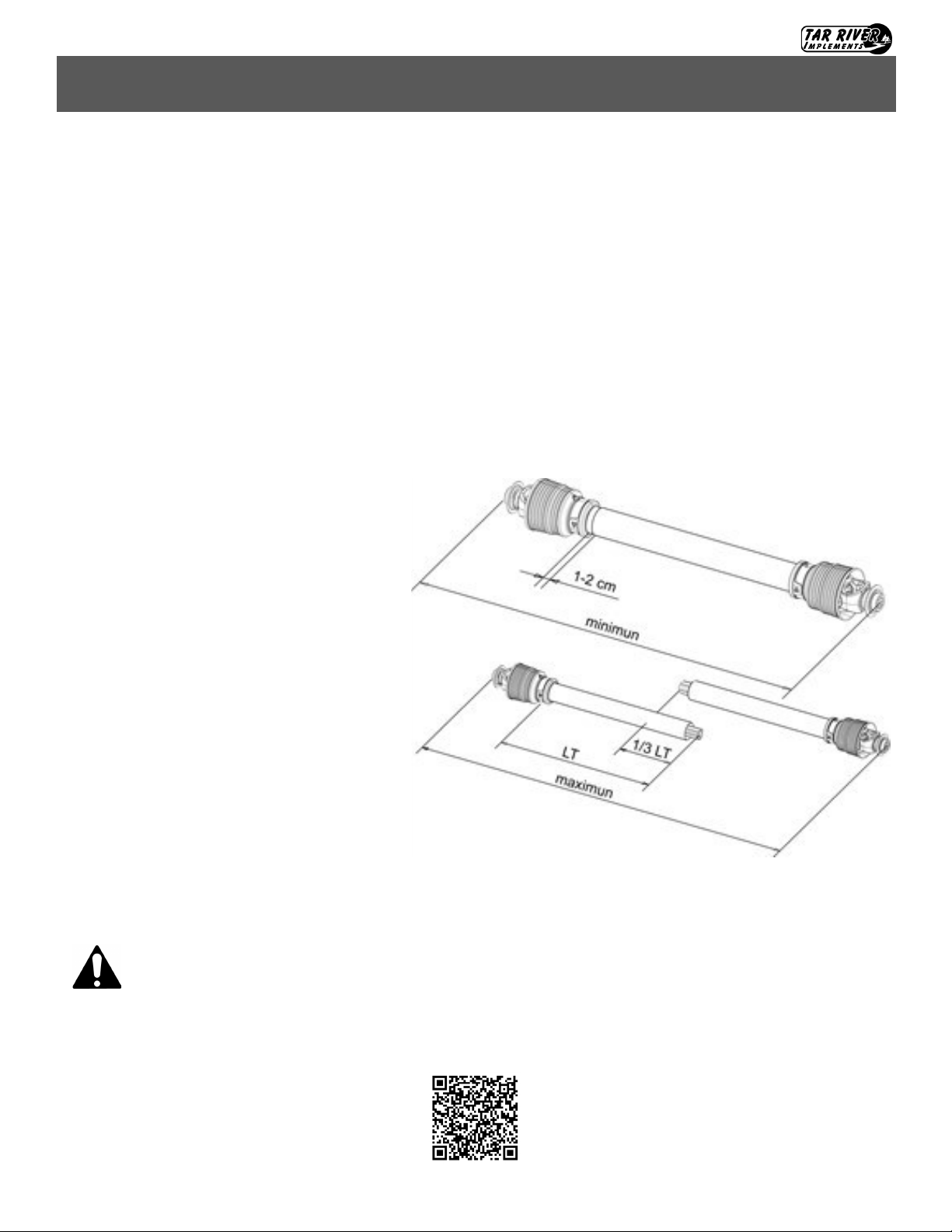

Attaching PTO Shaft..………………………………………………………………………………….. 13

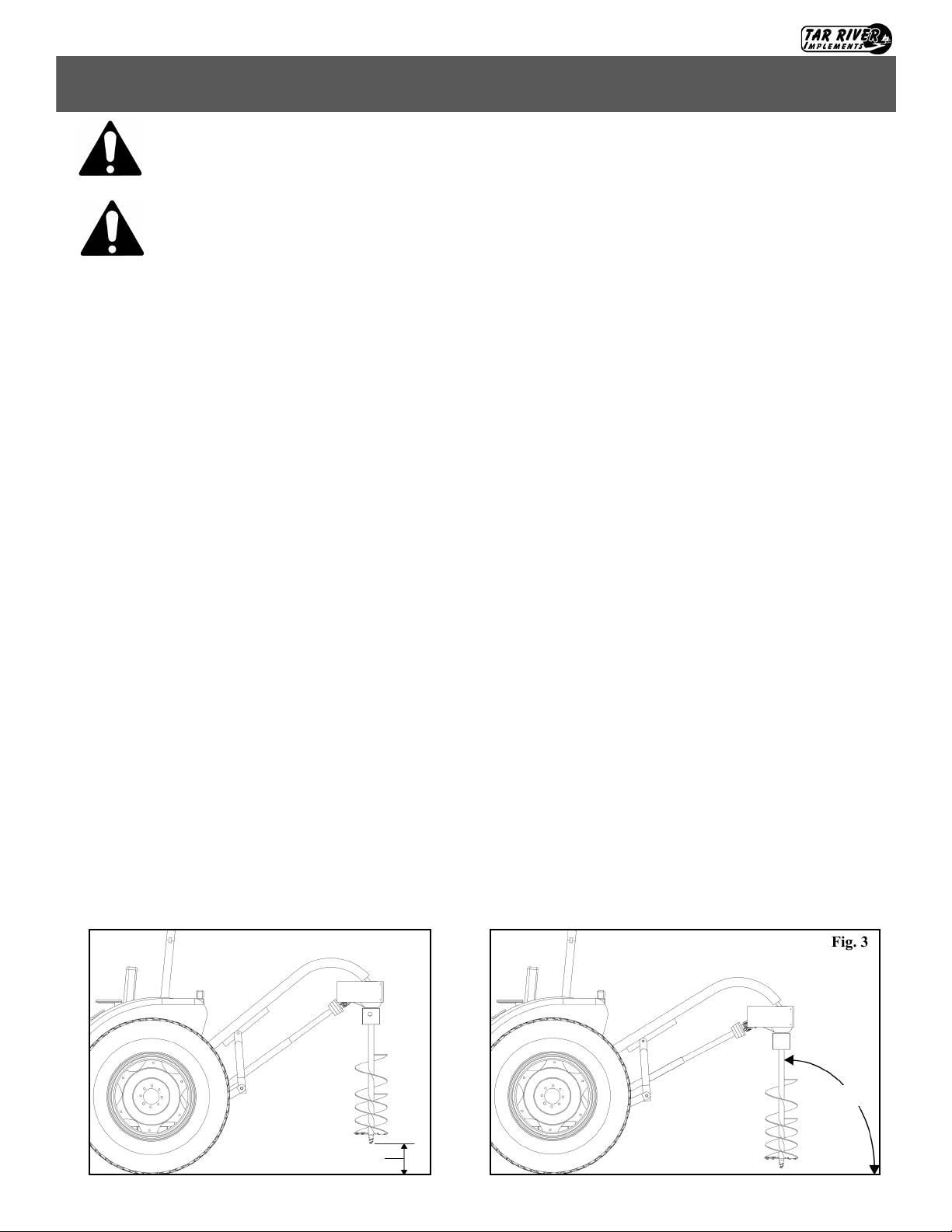

Operating Instructions…..………………………………………………………………………………. 14-15
Maintenance and Service….. …………………………………………………………………………... 16-17

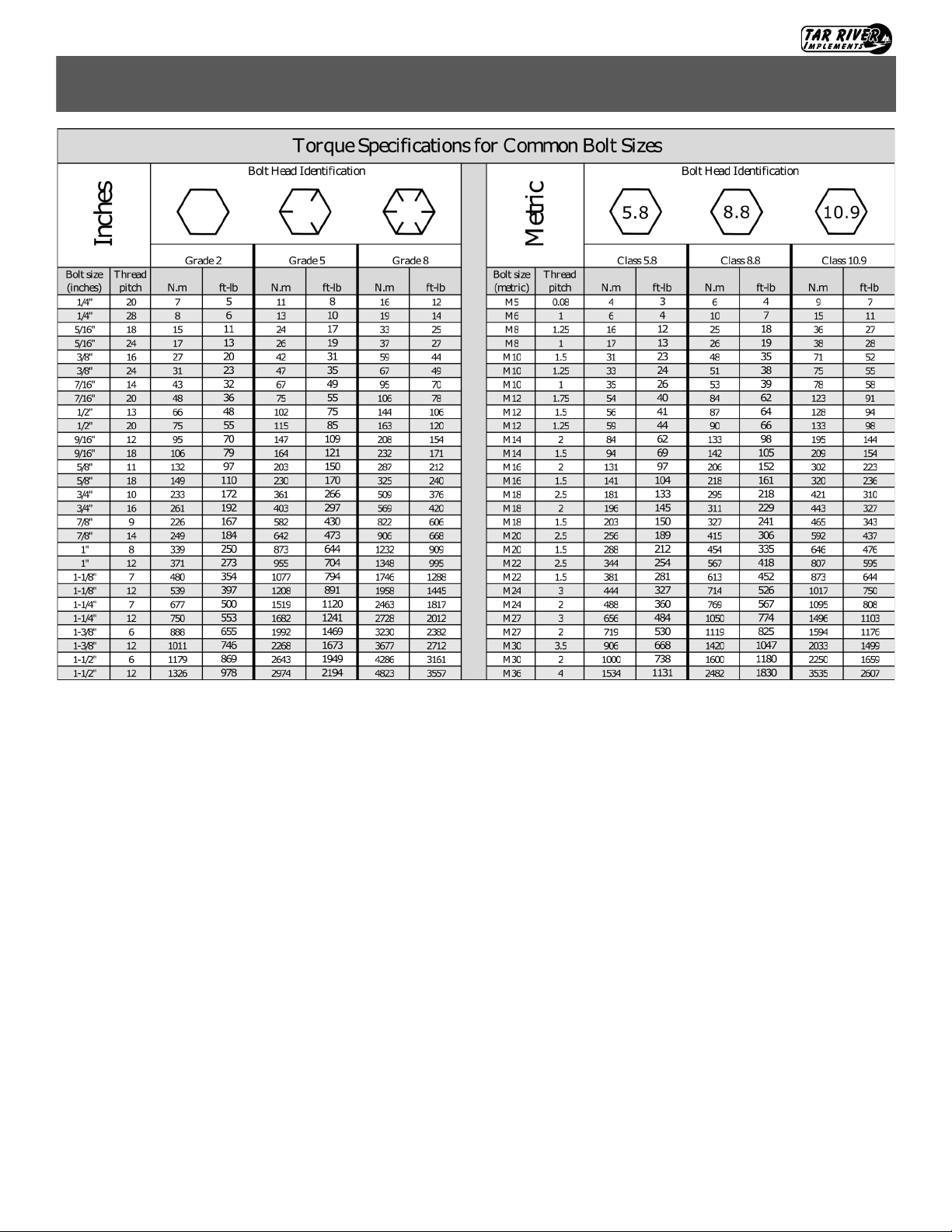

Torque Specifications ………………………………………………………………………………….. 18

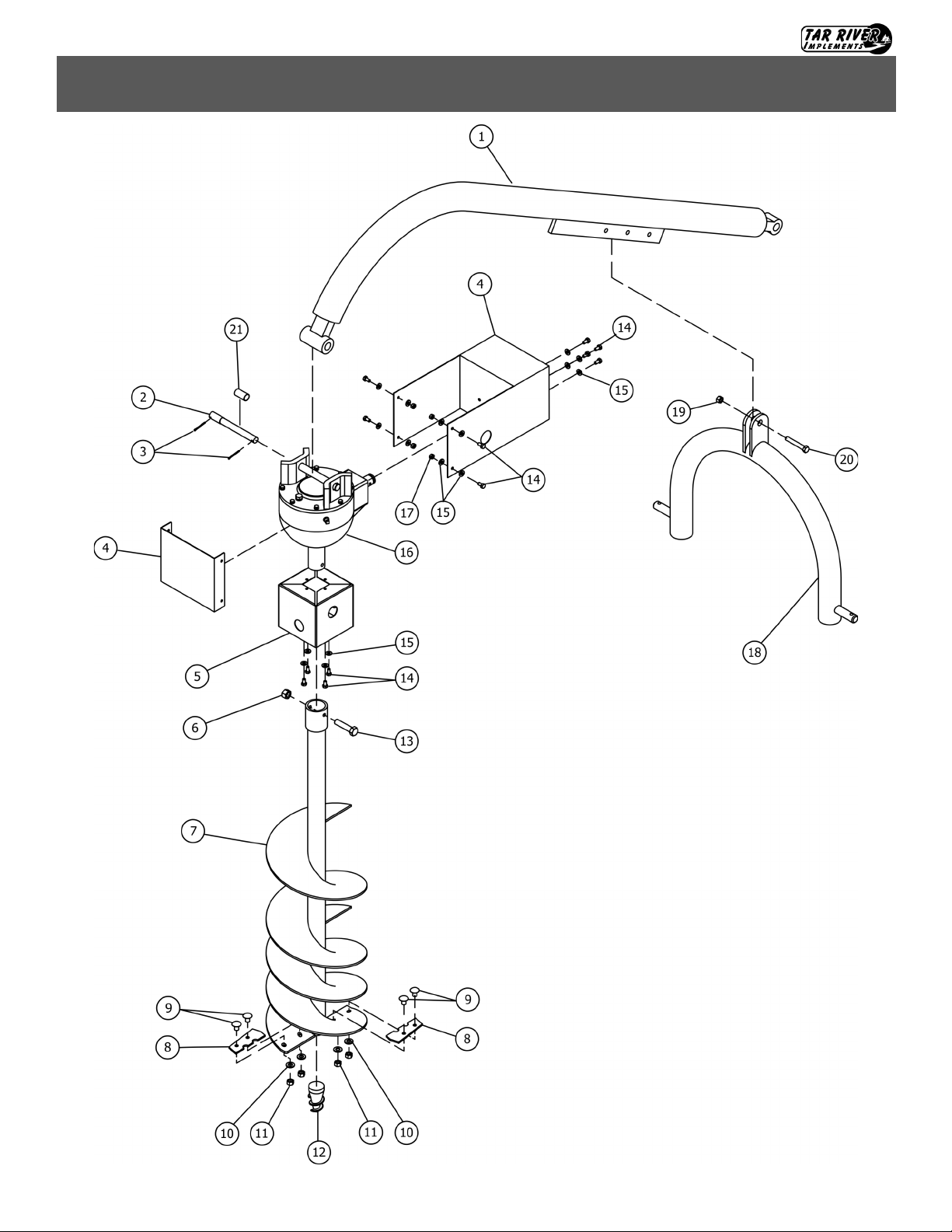

Parts Breakdown ……………………………………………………………………………………….. 20-22
Warranty ………………………………………………………………………………………………... 24
Table of ContentsImportant Safety Information
Table of Contents

5
BPH-100 Post Hole Digger
Thank you for purchasing your BPH-100 Post Hole Digger. The BPH-100 is an excellent tool for digging
holes for fence post. It allows the operator to put in fence post easily and quickly from the comforts of the
tractor seat.
Technical Specifications
• Cat. 1, 3-point hitch
• 18-60 hp rated gearbox
• Augers available in three sizes, 6”, 9” & 12”
-
BPH-100
HP 18-60
Hitch Cat. 1
Weight 157 lbs.
IntroductionImportant Safety Information
Introduction

6
BPH-100 Post Hole Digger
Safety
It is important that you read the entire manual and to become familiar with this product before you begin using
it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues
arising from modification. We strongly recommend this product not be modified and /or used for any
application other than that for which it is designed. If you have any questions relative to a particular
application, DO NOT use the product until you have first contacted us to determine if it can or should be
performed on the product.
Read and understand this manual and all safety signs before operating and maintaining . Review the safety
instructions and precautions annually.
Safety Signal Words
TAKE NOTE! This safety alert symbol found though out this manual is used to call you attention to
instructions involving you personal safety and the safety of others. Failure to follow these instructions
can result in injury or death.
This symbol means:
Attention!
Become alert!
Your safety is involved!
Note the use of the signal words, DANGER, WARNING and CAUTION with the safety messages.
The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. This signal word is to be limited to the most extreme situations typically for machine
components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used
to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Important Safety InformationImportant Safety Information
Important Safety Information

7
BPH-100 Post Hole Digger
General Safety Guidelines
The safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build in as many safety features as possible. However, every year many accidents
occur which could have been avoided by a few seconds of thought and a more careful approach to handling
equipment. You, the operator, can avoid many accidents by observing the following precautions in this section.
To avoid personal injury, study the following precautions and insist those working with you, or for you, follow
them.
Replace any DANGER, WARNING, CAUTION or instruction safety decal that is not readable or is missing.
Location of such decals are indicated in this manual. Do not attempt to operate this equipment under the
influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow
persons to operate or assemble this unit until they have read this manual and have developed a
thorough understanding of the safety precautions and of how it works.
To prevent injury of death, use a tractor equipped with a Roll Over Protection System (ROPS). Do not paint
over, remove or deface any signs or warning decals on your equipment. Observe all safety signs and practice
the instructions on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question -
Don’t try it!
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed a safety sign should also display the current safety sign
• Safety signs are available from your Distributor or Dealer Parts Department or the factory.
Safety Decal Care
Important Safety InformationImportant Safety Information
Important Safety Information

8
BPH-100 Post Hole Digger
How to install Safety Signs:
• Be sure that the installation area is clean and dry.
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the decal over the specified area and carefully press the small portion with the exposed sticky
backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of decal backing paper.
• Carefully study and understand this manual.
• Do not wear loose-fitting clothing, which may catch in moving parts.
• Always wear protective clothing and substantial shoes.
• Assure that all tires are inflated evenly.
• Give the unit a visual inspection for any loose bolts, worn parts or cracked welds, and make necessary
repairs. Follow the maintenance safety instructions included with this manual.
• Be sure that there are no tools lying on or in the equipment.
• Do not use the unit until you are sure that the area is clear, especially of children and animals.
• Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your
new equipment.
• Practice operation of your equipment and its attachments. Completely familiarize yourself and other
operators with its operation before using.
• Use a tractor equipped with a Roll Over Protection System (ROPS) and fasten your seat belt prior to
starting engine.
• The manufacturer does not recommend usage of tractor with ROPS removed.
• Move tractor wheels to the widest recommended settings to increase stability.
• Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer
and attach safety chain.
• Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to the
equipment.
Before Operation
Important Safety InformationImportant Safety Information
Important Safety Information

9
BPH-100 Post Hole Digger
• Children should not be allowed on the product.
• Clear the area of small children and bystanders before moving the implement.
• If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety
chains if required. Shift towing unit to a lower gear before going down steep downgrades, thus using the
engine as a retarding force. Keep towing vehicle in gear at all times. Slow down for corners and rough
terrain.
• Make sure you are in compliance with all local and state regulations regarding transporting equipment on
public roads and highways. Lights and slow moving signs must be clean and visible by overtaking or
oncoming traffic when feeder in transported.
• Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the
engine of the towing vehicle or move the unit. This is particularly important with higher noise levels and
quiet cabs, as you may not hear people shouting.
• NO PASSENGERS ALLOWED! Do not carry passengers anywhere on, or in, the tractor or equipment,
except as required for operation.
• Keep hands and clothing clear of moving parts.
• Do not clean, lubricate or adjust your equipment while it is moving.
• When halting operation, even periodically, set the tractor or towing vehicle brakes, disengage the PTO,
shut off the engine and remove the ignition key.
• Be especially observant of the operating area and terrain. Watch for holes, rocks or hidden hazards. Always
inspect the area prior to operation.
• DO NOT operate near the edge of drop-offs or banks.
• DO NOT operate on steep slopes as overturns may result.
• Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
During Operation
Important Safety InformationImportant Safety Information
Important Safety Information

10
BPH-100 Post Hole Digger
• Adopt safe driving practices.
• Keep the brake pedals latched together at all times. Never use independent braking with machine in tow
as loss of control and/or upset of unit can result.
• Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an
emergency stop to be safe and secure. Keep speed at a minimum.
• Reduce speed prior to turns to avoid the risk of overturning.
• Avoid sudden uphill turns on steep slopes.
• Always keep the tractor or towing vehicle in gear to provide engine braking when going downhill. Do not
coast.
• Do not drink and drive!
• Comply with state and local laws governing highway safety and movement of farm machinery on public
roads.
• Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles
on the highway during daylight and nighttime transport. Various safety lights and devices are available
from your dealer.
• The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their
use. Local laws should be checked for all highway and marking requirements.
• When driving the tractor and equipment on the road or highway under 40 kph (20 mph) at night or during
the day, use the amber warning lights and a slow moving vehicle (SMV) identification emblem.
• Plan your route to avoid heavy traffic.
• Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow
bridges, intersections, etc.
• Be observant of bridge loading ratings. Do not cross bridges rated at lower than the gross weight at which
you are operating.
• Watch for obstructions overhead and to the side while transporting.
• Always operate in a position to provide maximum visibility at all times. Make allowances for increased
length and weight of the equipment when making turns, stopping the unit, etc.
• Pick the most level route when transporting across fields. Avoid the edges of ditches or gullies and steep
hillsides.
• Be extra careful when working on inclines.
Highway and Transport Operations
Important Safety InformationImportant Safety Information
Important Safety Information

11
BPH-100 Post Hole Digger
• Maneuver the tractor or towing vehicle at safe speeds.
• Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death.
• Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement.
• Allow for unit length when making turns,
• Operate the towing vehicle from the operator’s seat only.
• Never stand alongside of unit with engine running or attempt to start engine and/or operate machine while
standing alongside of unit.
• Never leave running equipment attachments unattended.
• As a precaution, always recheck the hardware on equipment following every 100 hours of operation.
Correct all problems. Follow the maintenance safety procedures.
Highway and Transport Operations
Important Safety Information
Important Safety Information

12
BPH-100 Post Hole Digger
Attaching the Post Hole Digger (Fig. 1)
• Back up the tractor to the Post Hole Digger, while lining up the lower tractor links to the Post Hole Digger
lower pins. It may be necessary to lift the implement with a hoist to hold it in position.
• Stop the engine, set the brake and remove the key from the tractor and block the tractor tires.
• Secure the tractor lower arms to the Post Hole Digger lower pins with lynch pins.
• Remove the top link from the tractor and store in a safe place.
• Attach the Post Hole Digger boom end directly to the top link mounting bracket on the tractor. Secure
Boom to Tractor with a top link pin and lynch pin.
• Adjust the tractor sway bars/chains to center the Post Hole Digger and remove excess sway.
• Operate the tractor hydraulic controls very slowly up and down. There should be no contact between the
Post Hole Digger or any part of the tractor. Failure to check clearance can result in damage to the Post
Hole Digger, tractor (especially the tires) and possible injury to the operator. Maintain no less than 6” of
clearance between the Post Hole Digger, tractor and tractor tires throughout the complete range of motion.
Attaching to Tractor
Fig. 1
Tractor Lower Arms
Warning: When attaching the Post Hole Digger, Never allow anyone to stand between the
Tractor and Post Hole Digger. Serious injury or death can occur!

13
BPH-100 Post Hole Digger
Attaching the PTO shaft:
Before installing the PTO shaft make sure that the RPM rating and the direction of rotation match those of the
tractor. Carefully read the PTO shaft and tractor instructions. Before operation, make sure that the guards are
installed on the power take off of the tractor and PTO shaft. Make sure that they cover the PTO shaft through-
out its length. Note: The PTO shaft may be too long and require shortening. See “Shortening a PTO
driveline” below.
Press the locking pin on the PTO yoke and slide yoke on to the PTO of the tractor until the pin seats. Pull on
PTO shaft to make certain it is locked in place. Repeat the procedure for the machine end. Attach the PTO
cover’s safety chains to a stationary part of the tractor. Leave some slack in the chain to accommodate move-
ment.
Shortening a PTO driveline:
1. With the machine attached to the tractor’s
3-point hitch, and the PTO shaft not in-
stalled, separate the PTO shaft. Attach the
machine end to the machine and the other
end to the tractor PTO input shaft.
2. Raise the machine by using the tractor’s
hydraulic 3-point hitch to its maximum
lift height.
3. Hold the half shafts next to each other and
mark them so each end is approximately
1/2” from hitting the end of the telescopic
profiles.
4. Shorten the inner and outer guard tubes
equally.
5. Shorten the inner and outer profiles by the
same length as the guard tubes. Using a
rattail file, round off all sharp edges and
burrs. Grease the telescopic profile gener-
ously before reassembling.
When fully extended, the tubes must overlap by at least 1/3 of the length of the pipes
(LT). When retracted, the min. acceptable clearance is 1-2 cm (3/8”-3/4”)
Attaching PTO Shaft
Scan the QR code below for more detailed information on PTO installation.

14
BPH-100 Post Hole Digger
Operating the Post Hole Digger:
• Warning: The auger point should be raised no higher than 12” above the ground when engaging the PTO,
(Fig. 2).
• The auger must be vertical to the ground, (Fig. 3). Adjust to the lift arm as necessary to place the auger in a
vertical position to the ground. Do not engage the PTO at this time. With the auger point off the ground,
slowly lower it until the auger point is touching the ground. If the auger is not vertical, move the tractor
forward or backward to get in the proper working position.
• Set the tractor brakes and take tractor out of gear.
• Lower the auger to the ground. With the tractor engine in idle, slowly engage the PTO.
• Increase the speed as required to move dirt out of the hole.
• Do not exceed 540 rpms! Operate at or below 540 rpms. Higher speeds can cause equipment failure and
serious injury or death.
• Depending on the soil conditions, it may be necessary to hold the hydraulic controls in position to assist
digging.
• Never allow anyone to use their body weight to press the auger into the ground.
• Before each use, check the condition of the cutting edges and auger point. If the auger is having trouble
penetrating the ground, it may be time to replace the cutting edges and point.
• Once the auger digs down approximately 12”, raise the auger to clear the dirt from the hole. Do not raise
the auger completely out of the hole. Once the dirt is cleared, lower auger and repeat the process until the
predetermined depth is achieved.
Danger: Never allow anyone to stand close to the auger and driveline when
operating. Serious injury or death can occur.
Fig. 3
Assembly
Operating Instructions
Warning: Never leave the tractor seat while the implement is in operation. Do
not assist or allow someone else to assist the implement while in operation.
Serious injury or death can occur.
Fig. 2
12” max
Ground Level
90 degrees
Ground Level

15
BPH-100 Post Hole Digger
Operating the BPH-100 Post Hole Digger (continued):
• Once the operation has started, DO NOT move the tractor. The brake must be set securely to prevent
movement of the tractor. Damage to the auger, gearbox and the PTO can occur if the tractor moves while
the auger is in the hole.
• Completely remove the auger from the hole before moving the tractor.
• Disengage the PTO when transporting, even for a short distance.
• Never attempt to shovel dirt away from a rotating auger. The shovel can be caught by the auger causing
serious injury or death. If the auger becomes stuck, disengage PTO, turn off tractor, remove key and dig
around auger to free it.
• Never leave the tractor seat while operating the implement. Serious injury or death can occur.
Assembly
Operating Instructions

16
BPH-100 Post Hole Digger
Maintenance/Service
• Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
• Make sure there is plenty of ventilation. Never operate the engine of the towing
vehicle in a closed building. The exhaust fumes may cause asphyxiation.
•
maintenance.
• Always use the proper tools or equipment for the job at hand.
• Use extreme caution when making adjustments.
• After servicing, be sure all tools, parts and service equipment are removed.
• Where replacement parts are necessary for periodic maintenance and servicing, genuine factory
replacement parts must be used to restore your equipment to original specifications. The manufacturer will
not claim responsibility for use of unapproved parts and/or accessories and other damages as a result of
their use.
• liability
for injury or warranty.
• Check the tightness of all hardware on the Post hole digger on a regular basis.
• Check the gear box for proper amount of oil.
Shear Protection:
The 5/16”x2-1/2” Hex Bolt connecting the PTO shaft to the gearbox is a shear bolt. If the auger encounters a
hard object, such as large rocks or concrete, the auger could lock up and stop rotation. The auger bolt is
designed to shear off to prevent damage to auger or gearbox.
In the event the auger bolt shears, check the auger and gearbox for damage. Replace damaged parts with OEM
parts only!
DANGER: Stop engine, lock parking brake and remove key before performing any
service or maintenance.
Never rely on the tractor lift system. Place blocks or stands under the Post Hole Digger to
prevent it from falling, causing serious injury or death.
Always use personal protection devices, such as glasses or gloves when performing mainte-
nance on the Post Hole Digger.
Warning: Never replace the shear bolt with a bolt harder than a GRADE 2 bolt. This can
damage the implement and void the warranty. It is advisable to replace the shear bolt with
an OEM shear bolt. Contact your dealer for the correct replacement bolt.

17
BPH-100 Post Hole Digger
Maintenance/Service
Fig. 4
Grease
Grease
Coat PTO inner tube with a thin layer of grease
Grease
Grease
Lubrication
Before every use:
• Check the oil level in the gearbox. Remove the oil plug on the side of the gearbox. The oil level should
be up to the lower threads of the hole. If oil level is low, add 90 wt. gear oil.
• Inspect the auger’s cutting teeth and point. Replace if excessive wear is found.
Every 8 hours:
• Remove and clean dirt and/or debris from the Post Hole Digger/Auger.
• Inspect the auger’s cutting teeth and point. Replace if excessive wear is found.
• Lubricate and inspect the PTO. (See Fig. 4).
Every 25 hours:
• Check Post Hole Digger hardware for tightness. Vibration from normal use can cause hardware to loosen.
See “Torque Specification” chart of page 17, for proper torque values.
After each use:
1. Thoroughly clean the Post Hole Digger & Auger.
2. Lubricate moving parts as needed.
3. Store in a shed or under a shelter after use.

18
BPH-100 Post Hole Digger
Notes:
This chart is an approximate estimate of torque values.
Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application.
Fasteners must always be replaced with the same grade as specified in the manual.
Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware.
Make sure that fastener threads are clean and that you properly start thread engagement.
Torque Specifications
Torque Specifications

Rev. 02/22
Post Hole Digger
BPH-100
Parts Manual

20
BPH-100 Post Hole Digger
PHD-100 Post Hole Digger Assembly
PHD-100 Post Hole Digger PTO
