Taramp's T 0302 FX User manual

The installation of this product must be made by a qualified professional.
CAR SOUND MIXER
MULTICOLOR

01
Index
Term of warranty
Technical assistance
For international support, check on our website:
www.taramps.com.br/en/rede-de-assistencias-tecnicas or contact direct the factory support:
Phones: [phone] / [phone]
E-mail: [email protected]
•Damage of any kind, due to problems in the product, as well as losses caused by discontinued use of the
product.
•Costs involving uninstallation, reinstallation of equipment as well as shipment to the factory;
•Damaged products by improper installation, water infiltration, violation by unauthorized individuals;
•Cases in which the product is not used in adequate conditions;
•Tamper or torn warranty seal;
•Defects caused by accessories, modifications or features attached to the product;
•The product with damage from falling, bumps or nature related problems (flooding, lightning, etc.);
•Warranty card is not properly filled or torn;
TARAMPS, located on Abilio Daguano Street 274, Res. Manoel Martins – Alfredo Marcondes, SP - Brazil,
ZIP CODE 19180-000, guarantees this product against any defects on terms of project, making,
assembling, and/or with solidarity, due to project vices which cause it improper or inadequate to its
original use within 12 months from the date of purchase. In case of defect during the warranty period,
TARAMPS responsibility is limited to the repairing or substitution of the device of its own making.
This warranty excludes:
• Outputs
01 • Term of Warranty
02 • Introduction
• Technical assistance
04 • Product Overview
• Safety
05 • Connections
• Inputs
• Safety requirements
03 • Presentation
• Important recommendations
• Controls
08 • Audio effects table
11 • Installation
10 • Installation
06 • Functions

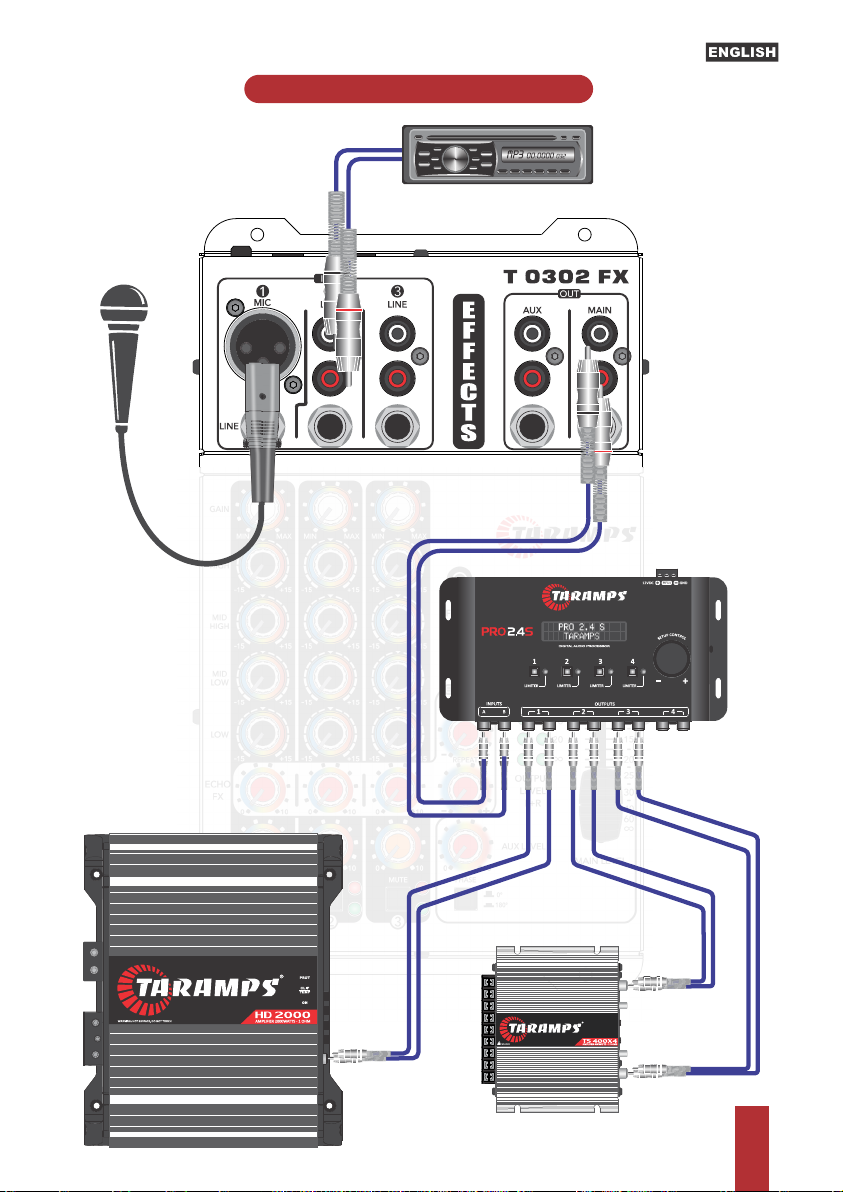

• Connection examples - 2
• Standby effects table
09 • Installation
• Power and activation

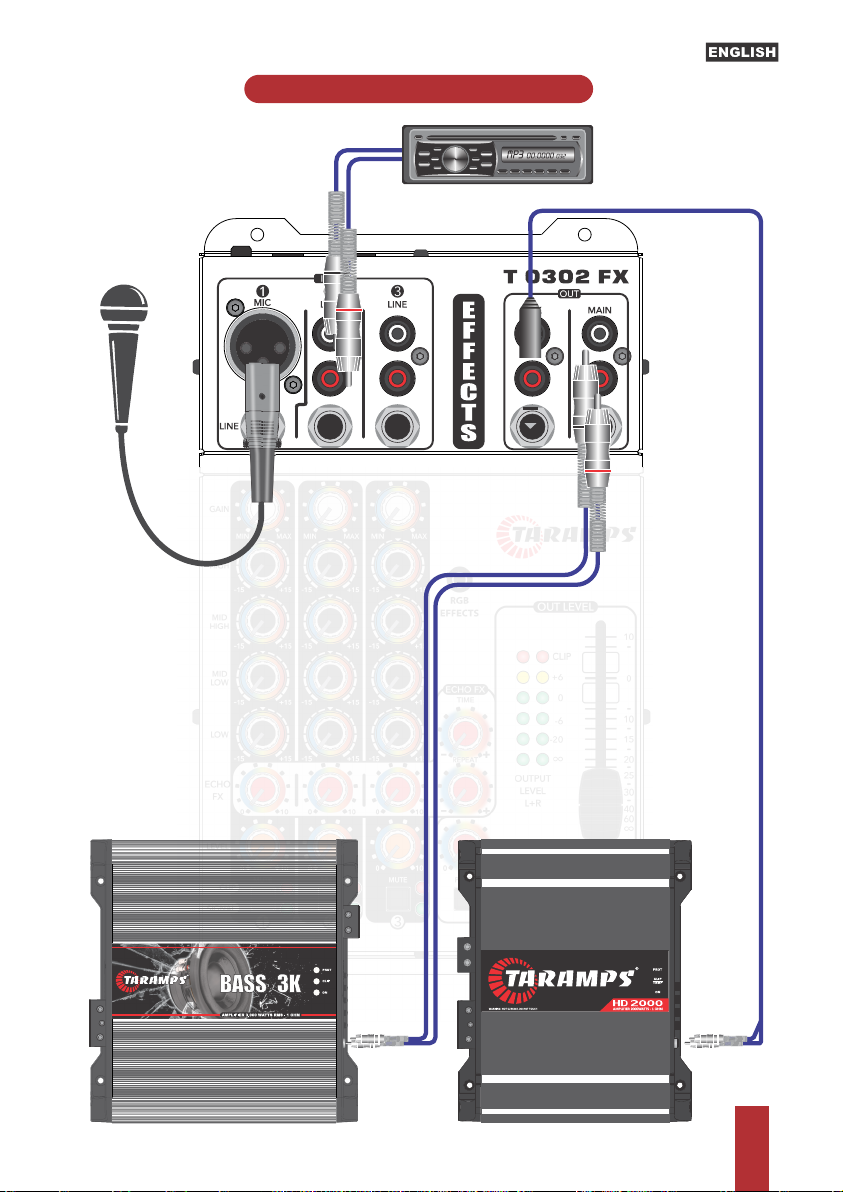

• Connection examples - 1
12 • Technical features
07 • RGB effects

02
Safety requirements
Introduction
Taramps reserves the right to modify the contents of this document at any time without prior notice and
does not have the obligation to apply the changes in units which were previously produced.
- Use the correct tools for installing this product.
To ensure proper use, please read through this manual before using the car sound mixer. It is
specially important that you know the CAUTIONS contained here.
- The installation of this product must be done by a qualified professional.
- This product is for use with 12V batteries. Always check the voltage before installing.
- Never install the product in places exposed to dust, humidity and water. Pay attention to
install it far from fuel tank, fuel lines, heat sources and other parts of vehicle.
- Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect
any wires routed through car's body.
- Be sure to install protection fuse or a circuit braker near to battery. Follow the ampere rating
as indicated here in this manual. Use of improper fuse or circuit breaker could result in
overheat, smoke, damage to product, injury or burns.
- Automotive sound systems may produce high sound pressure levels. Avoid continuous
exposure to levels over 85dB to prevent permanent hearing loss.
As you read this manual, pay attention to the safety symbols.
Safety
This symbol with “CAUTION” is intended to alert the user to the presence of
important instructions. Failure to heed the instructions will result in risk of injury
to user or product damage.
CAUTION
Read this manual before installing the product. In case of questions contact our technical
support: [phone] or www.taramps.com.br.
At the end of its lifespan, this product must not be disposed of in household waste.
Look for an electronic equipment collection or recycling center for proper disposal.
Declaration of Conformity
Hereby, Taramps Electronics Ltda declares that the product
T 0302 FX MULTICOLOR complies with the Directive
2014/30/EU, according with the following harmonized
standard:
-EN 50498:2010
The full text of the EU Declaration of Conformity is available at
the Product Page on Internet.
TARAMPS ELECTRONICS LTDA
Alfredo Marcondes - SP
Brazil
Electromagnetic compatibility (EMC) -
Product family standard for aftermarket
electronic equipment in vehicles

With a total of 69 variable lighting effects, causing a different visual effect for the user. See
pages 07 and 08.
- Level for output control.
CHANNELS 2 and 3 feature shared L+R type RCA inputs with an RTS connector for greater
connection exibility.
The T 0302 FX MULTICOLOR features 3 input channels, CHANNEL 1 is balanced with two
shared connections, one XLR and one RTS. This is a high-sensitivity, wide-gain input, which
allows the use of a Microphone or LINE IN.
All 3 inputs have independent controls for:
The T 0302 FX MULTICOLOR mixer was designed for sound systems allowing the mixing of
several types of audio signals with high delity, ensuring the original dynamics of the sound.
It features a 4-band equalizer that allows you to increase or reduce specic ranges of mid-bass
and highs, allowing for a professional control in any situation. It also has the Echo FX feature,
which allows you to add the Echo effect to your songs or voice. Its outputs with timed MUTE
avoid undesirable noises (Pops) when turned on or off, dispensing with the sequencing of
activations, facilitating installation.
- Gain for adjusting the input signal level.
- 4 EQ controls HIGH, MID HIGH. MID LOW and LOW with ±15dB boost/attenuation.
The 2 outputs have great amplitude and can deliver up to +18dBu or 6.3Vac of distortion-free
signal.
In order to avoid noise captation, use good quality
shielded signal cables and connectors.
The sound mixer must be fixed in an easily accessible and
ventilated place. It is not recommended to install the
product on the sides of speakers, as vibrations can
damage their internal components.
Use the P4 adapter with terminal that comes with the
product to connect the power wires to the vehicle's 12V
battery. Use 1.5mm² gauge wires for both the positive and
negative wires. Screw the wires according to the following
instruction:
As protection, a fuse must be installed close to the positive
pole of the battery (1A fuse). check for more details on
pag. 09 of this manual. For the REMOTE connection, use
0.5 mm² wire.
1- Borne on the battery positive
2 - Borne on the battery negative.
Presentation
Important recommendations
Check power polarity and recommended gauge.
it is recommended to install a 1 Ampere fuse on the positive supply terminal.
CAUTION
03

04
Pontos de fixação
Pontos de fixação
On this page you have an overview of the T 0302 FX MULTICOLOR sound mixer, you will better
understand the commands on the next page. To be able to use all the product commands, carefully read
all the commands below.
Install the mixer in an easily accessible place and, if fixing is necessary, use the 4 screwing holes to avoid
possible vibrations.
Product overview

05
Connections
OUT - Outputs
It features an RCA connector in parallel with a connector for TRS. This output mixes all input
signals, including L and R.
This output features a phase inversion button and independent level control, but it also
responds to the MAIN LEVEL control.
AUX OUT
MAIN OUT
This output mixes all input channels, including R and L.
It features an RCA connector in parallel with a connector for TRS.
Unbalanced inputs Inputs for RCA or (TRS 1/4”) connector. They allow you to receive signals
from several types of sound gear such as CD/DVD/MP3-player, audio processors, etc... with
high level outputs.
1
MIC / LINE
LINE
1
32
Balanced inputs for XLR (Canon) and TRS connectors. ATTENTION: these inputs DO NOT
HAVE PHANTON POWER.
IN - Inputs

06

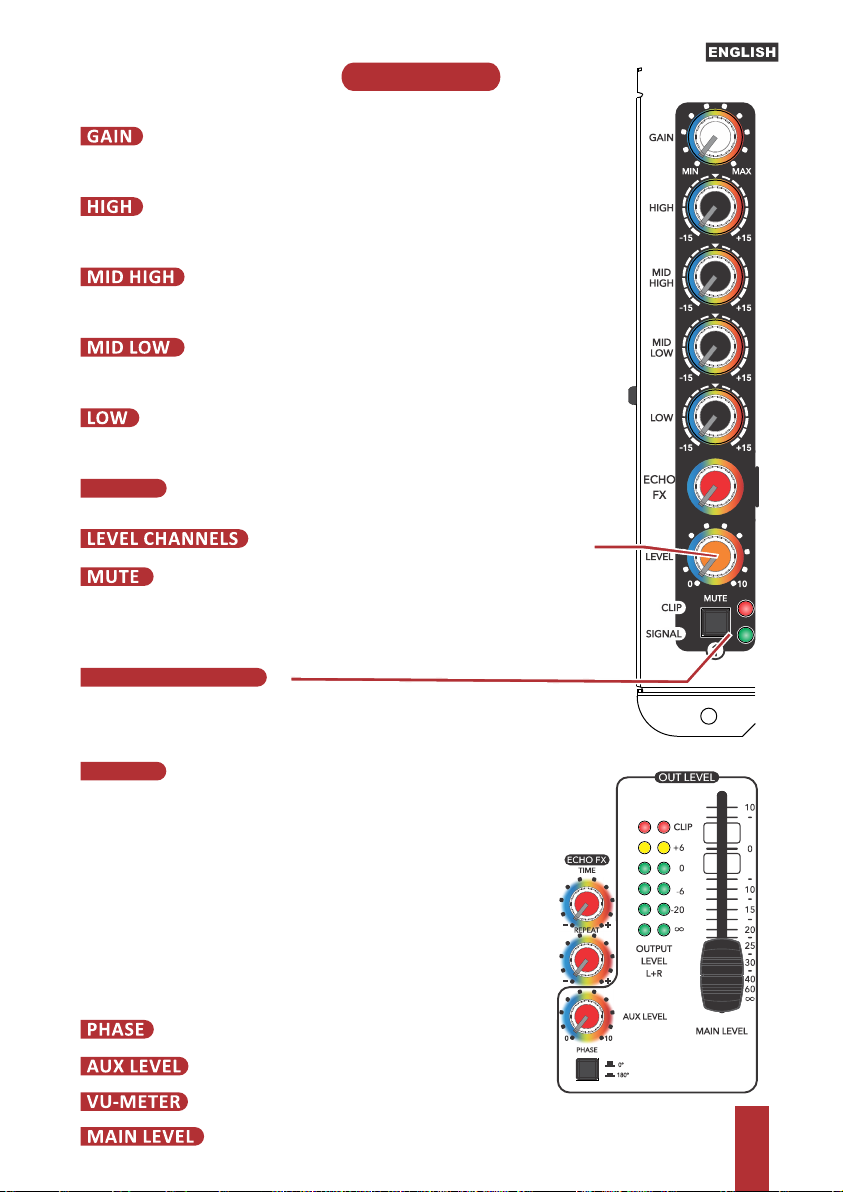

Functions Controls
Adjusts the input signal level. It must be used in case of input
saturation, signaled by the CLIP LEDs.
Increases or reduces treble by up to ±15dB
Increases or reduces mid-high by up to ±15dB
Increases or reduces mid-low by up to ±15dB
Increases or reduces Low by up to ±15dB
Adjusts the audio level of the channel (channel 1,
2 or 3) that will be mixed at the outputs.
Mutes the channel mixing at the outputs. It is useful for quick channel
cutting without changing the gain settings. When activated, the red CLIP
LED will light regardless of the input signal level.
Red LED shows channel input saturation or MUTE button pressed.
Green LED indicates that the channel is receiving signal at its input.
LED INDICATORS
Indicates the level of the output signal.
Controls the signal level at the outputs.
Inverts the signal phase of the AUX OUT channel by 180°
Adjusts the audio output level at AUX OUT
ECHO FX: The TIME control increases the time between repetitions, ranging
from approximately 50ms to 350ms. The REPEAT control increases the
number of repetitions from 1 (minimum) to 12, with exponential
attenuation.
In a practical way, the TIME control can be compared to the size of an
echo room. For a larger room, the sound takes more time to reflect
on the walls. For smaller rooms the reflection time is short, some
times difficult to realise. The REPEAT control can be compared to the
type of wall coating material. Soft material absorbs more sound
energy, creanting less echo repetition. Hard material reflects more
effectively the sound creating more sound reflection.
ECHO FX
Regulates the amount of effect that will be applied to the
channel. Being 0, no effect and 10, maximum effect.
ECHO FX

1
5
4
0
2
10
3
7
9
6
8
11
12
26
27
14
28
32
13
16
20
15
29
17
23
25
30
31
19
18
21
22
24
fixed color: medium white
fixed color: strong white
palette per function: white gain / eq. blue / eco red / level orange
palette per function: white gain / eq. green / eco red / level orange
palette per function: white gain / eq. purple / eco green / level orange
palette per function: red gain / eq. purple / eco green / level blue
red background with white pimball animation
palette per function: white gain / eq. cyan / eco red / level orange
green background with white pimball animation
fixed color: green + cyan
fixed color: blue
fixed color: pink
fixed color: faint white
fixed color: green
fixed color: cyan
fixed color: purple
fixed color: pink + red
fixed color: yellow
horizontal lines falling and accumulating, changes colors automatically.
vertical back and forth with white background and dots alternating colors.
vertical fill in red.
strobe effect in white
turns off all RGB effect LEDs
giroflex effect
fixed color: red
fixed color: orange
changes the automatic effect randomly
rainbow effect with wave animation
purple background with white pimball animation
blue background with white pimball animation
yellow background with white pimball animation
rainbow background with pimball (arcade) animation in white
cyan background with white pimball animation 07
The T 0302 FX MULTICOLOR sound mixer has several lighting effects that can be chosen by
the user. There are two operating modes that alternate depending on the state of the table:
AUDIO MODE: activated when there is an audio signal output from the table. At this
moment, the RGB EFFECTS button will configure the lighting effect for audio mode.
STANDBY MODE: activated when there is no audio output for 10 seconds. At this moment, the
RGB EFFECTS button will set the lighting effect to standby mode.
NOTE: VU-METER effects are only available in AUDIO MODE. This effect works with the output
audio level and serves only as a lighting effect. For greater output level accuracy, use the LED
VU-METER next to MAIN LEVEL.
RGB EFFECTS
STANDBY EFFECTS TABLE

08
vu-meter: blue background, scale from blue to red
vu-meter: green background, scale from blue to green
fixed color: green + cyan
fixed color: blue
fixed color: pink + red
fixed color: strong white
palette per function: white gain / eq. green / eco red / level orange
vu-meter: green background, scale from green to red
horizontal lines falling and accumulating, changes colors automatically.
vertical back and forth with white background and dots alternating colors.
vertical fill in red.
fixed color: purple
fixed color: pink
turns off all RGB effect LEDs
rainbow effects with wave animation
fixed color: orange
strobe effect in white
vu-meter: green background, scale from green to red
VU-meter: purple background, green/yellow/red scale.
vu-meter: white background, range from green to purple
giroflex effect
fixed color: red
fixed color: yellow
fixed color: green
fixed color: cyan
fixed color: faint white
fixed color: medium white
palette per function: white gain / eq. blue / eco red / level orange
palette per function: white gain / eq. cyan / eco red / level orange
palette per function: red gain / eq. purple / eco green / level blue
red background with white pimball animation
purple background with pimball (arcade) animation in white
cyan background with white pimball animation
rainbow background with pimball (arcade) animation in white
green background with white pimball animation
blue background with white pimball animation
yellow background with white pimball animation
palette per function: white gain / eq. purple / eco green / level orange
AUDIO EFFECTS TABLE
1
5
6
7
4
0
8
3
2
9
20
16
11
12
10
15
17
13
18
14
19
24
21
25
32
27
22
23
33
34
35
26
37
29
30
28
36
31

09
Power and activation
Installation
Connection that turns on or off automatically from a remote cable from a CD/DVD player. Use 0.5 mm²
cable.
Note: if the ON/OFF button is pressed, the device will not turn off by remote activation.
It can automatically turn on and off by remote activation using the REMOTE IN connection. To do so, keep
the ON/OFF key off (unpressed).
The T 0302 FX MULTICOLOR was designed to be used in car audio systems with a 12V battery, but it can
also be used with an external 12V plug adapter with a current of at least 2A, which must be purchased
separately (in this case, the consumer should pay attention to the adapter plug that should be standard
P4-2mm) . It has an ON/OFF button that eliminates the REMOTE IN connections.
The REMOTE OUT connection can be used for powering amplifiers and is timed to minimize transients
when turning the system on and off.
Output for activating other devices. It can be used to turn on amplifiers or other equipment as long as
they have a remote input. This output is current limited and not suitable for currents greater than 100mA.
Use 0.5 mm² or higher gauge cables.
Turns on the sound mixer regardless of the REMOTE IN signal when pressed.
If the REMOTE IN input is active (remote on) this button will not turn off the device until the REMOTE IN
input is deactivated.
REMOTE IN
REMOTE OUT
POWER ON/OFF
01
02
04
to the battery's 12V positive terminal.
Standard P4 /12V 2mm power connector. Use the TERMINAL/P4 adapter that comes with the product or a
12V adapter source (adapter source doens't come with the product).
Use a 0.75mm² cable for the connections and use a 1A fuse on the positive wire as close as possible to
the battery, following the marking on the TERMINAL/P4 adapter:
to the battery’s negative terminal
12V POWER SUPPLY 03
Check power polarity and recommended gauge.
it is recommended to install a 1 Ampere fuse on the positive supply terminal.
CAUTION
01
02 03 04

10
Microphone
Connection examples - 1
Installation
Amplifier 1
Amplifier 2
Acessory
Illustrative Images
Head unit

11
Microphone
Connection examples - 2
Installation
Sound system 1Sound system 1
Illustrative Images
Head unit

12
Power Voltage (POWER):
Channel 1 input impedance:
Max outputs level:
Consumption*:
Dimensions (WxHxD):
Output impedance:
Remote Output (REM Connector):
Channel 2 and 3 input impedance:
Channel 2/3 input sensitivity:
Weight:
4 EQ bands per channel:
Echo Fx Time / Echo Fx Repeat:
Remote Input (REM Connector):
Frequency Response (-3dB):
Total Harmonic Distortion:
Signal to Noise Ratio (SNR):
Channel 1 input sensitivity:
100 mA
9 ~ 16 Vdc
Mic (XLR): unbalanced 4K Ohms
Low ±15dB (30Hz)
Main Out (P10/RCA): 18 dBu/6.3Vac
145x42x242mm (5.28"x1.65"x9.66")
Aux Out (P10/RCA): 18 dBu/6.3Vac
Main Out (P10/RCA): 47R
0.82Kg (1.80lb)
Balanced 8K Ohms
50 ~ 350ms 1 ~ 12 repetições
Line (TRS): unbalanced 8.5K Ohms
470 mA
Line (TRS): unbalanced 10K Ohms
Line (RCA): unbalanced 10K Ohms
9 ~ 16 Vdc
Balanced 17K Ohms
Aux Out (P10/RCA): 47R
2Hz ~ 76Khz
<0,009% (T.H.D.)
112dB
Line (TRS) Min: 620mV ~ Max 7.6mV
Line (TRS/RCA) Min: 2.55V ~ Max: 60mV
Mic (XLR) Min: 500mV ~ Max 7mV
High ±15dB (18KHz)
Mid Low ±15dB (240Hz)
Mid High ±15dB (2.4KHz)
Technical features
Taramps reserves the right to modify the content of this manual without prior notice and without
any obligation to apply the modications to previously produced units.
* The consumption of T 0302 FX MULTICOLOR may vary according to the effect used.

MN_019486_R00
Manufactured by:
TARAMPS ELECTRONICS LTDA
TAX ID: 11.273.485/0001-03
Street: João Silvério, 121 • Res. Manoel Martins
Alfredo Marcondes - SP
Made in Brazil
