Target T11FOCH16 User manual

THIS IS IMPORTANT TO YOUR SAFETY.
PLEASE TAKE A MINUTE TO READ IT CAREFULLY
BEFORE SWITCHING ON YOUR NEW HEATER.
2.Insert Plug into Power Point and switch on.
3.Turn the Thermostat control down
(anticlockwise) until you hear it click off.
QUICK START GUIDE
If you have any query, please feel free to call our friendly customer service team
on our toll free number: 1800 079 124 or via email [e-mail].
90cm
Note: Do not use with power boards or
double adaptors, etc. as it may overload
your power point and trip your power.
90cm
1. After fitting the castor wheels as per the
instructions, place heater on a flat surface
ensuring there is at least 90cm clearence
all around and over the top of the heater.
Do Not Place items on or against the heater.
4. Switch either or both switches to
the “I” or / and “II” postion. The indicator light
in the switch will illuminate.
“I” Only is Low Heat
“II” Only is Medium Heat
“I & II” is High Heat
“O” is OFF
Ensure the switch in the
timer is set to “I” for manual
operation.

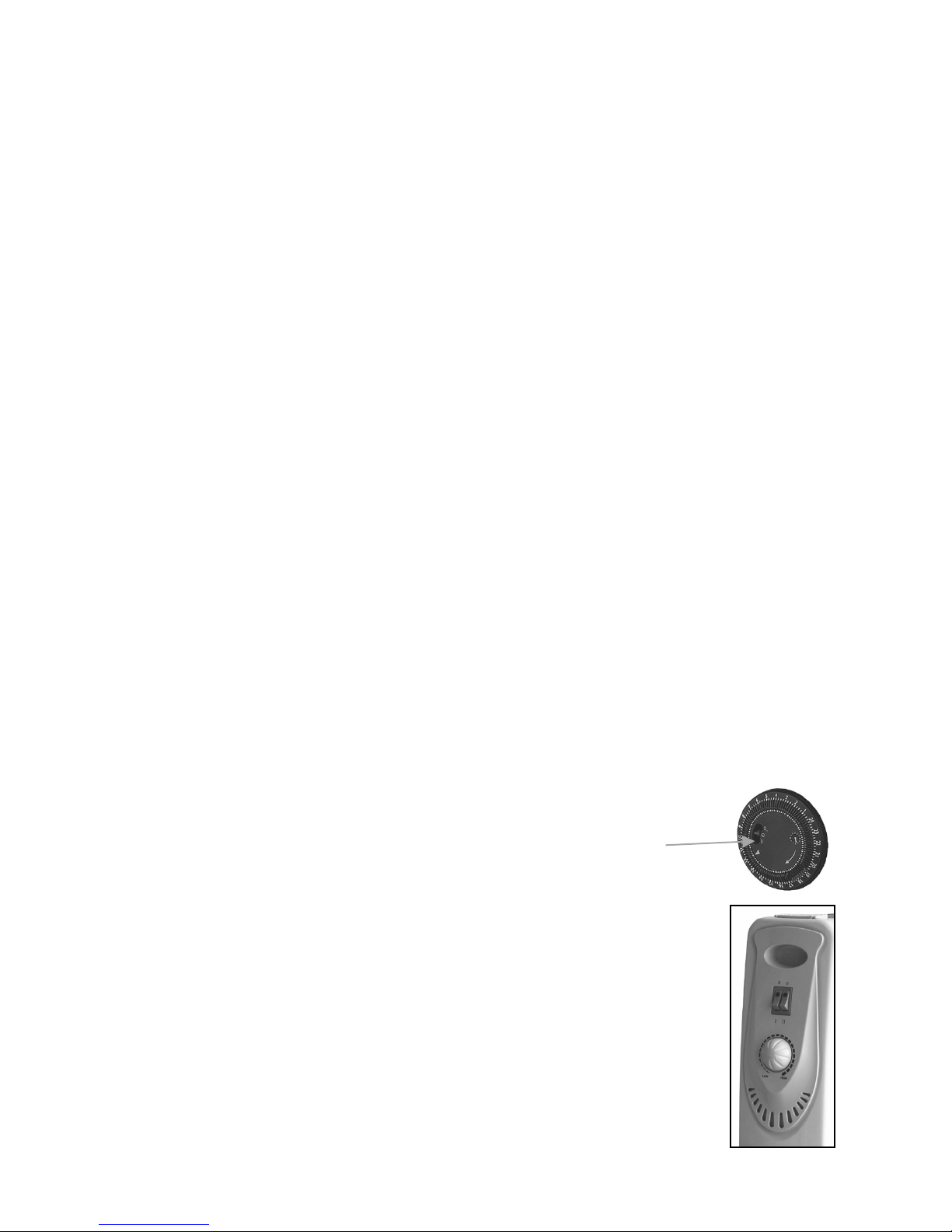

5. With the heat selector switches set to either
“I”, “II” or “I and II”, turn the thermostat control
up slowly (clockwise) until you hear it click On.
The heater will now start to heat. Adjust up or
down to your desired temperature setting.
Note: As the thermostat
maintains room temperature
it will switch on and off. As it
switches on and off, you may
notice a blue flash from
inside the heater.
This is not dangerous and
is no cause for alarm.
6. Do Not Operate while unattended
Press the heat selector swithces to position
“O” (off), then turn power off at the power
point and unplug. Always Unplug when not
in use.

Page 2 of 20

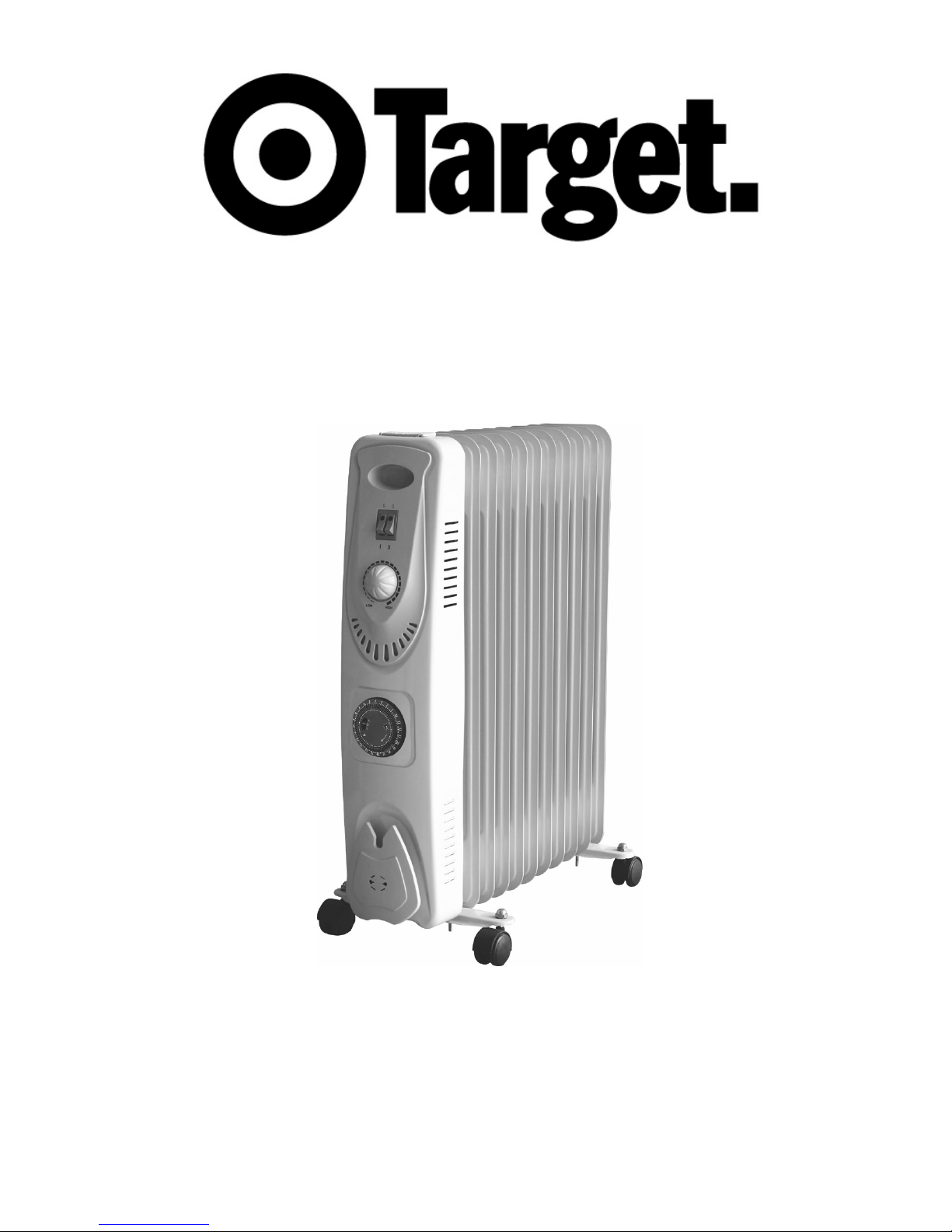

Oil Filled Column Heater with Timer
User Manual
T11FOCH16
Input: 220 - 240Va.c. 50Hz
3 Heat Settings 1000W / 1400W / 2400W
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
Page 3 of 20

Page 4 of 20

1Important Safeguards............................................................6
2Component Diagram .............................................................8
3Before Use ............................................................................9
4Fitting the Castor Wheels ......................................................9
5Method of Heating ...............................................................12
6Operation.............................................................................12
6.1 Low, Medium and High Heat Settings............................................. 12
6.2 Timer ............................................................................................... 14
7Cleaning ..............................................................................15
8When the Appliance is Not in Use .......................................16
8.1 Cord Storage................................................................................... 16
8.2 Storage............................................................................................ 16
9Troubleshooting...................................................................17
10 Warranty Against Defect......................................................19
Page 5 of 20

1 Important Safeguards
When using electrical appliances, basic safety precautions should always be followed, including the following:
•Carefully read this instruction manual before using appliance.
•Keep appliance out of reach of young children.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Ensure children and babies do not play with plastic bags or any packaging materials.
•This appliance is heavy. Care should be taken when moving it. Do not pull along using the power cord,
use handle only. Turn off and unplug before moving.
•Do not attempt to modify this product in any way.
•This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
•Let the heater cool before moving.
•Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains, etc. at least
90cm from the top and all sides of the heater.
•Do not drape laundry or any other items over the heater.
•VERY IMPORTANT:
Ensure that appliance does not get wet (water splashes etc.).
Do not use appliance with wet hands.
Do not immerse appliance in water or other liquids or use near sinks, baths or showers.
•Always operate the appliance from a power source of the same voltage, frequency and rating as
indicated on the product rating label.
•Do not use this heater with extension leads, power boards or double adaptors, etc.
•Position the power supply lead properly so that it will not be walked on, pinched by items placed on or
against it or have the appliance resting on it.
•Use this appliance only for its intended use. This Appliance is intended for household use only and not
for commercial or industrial use.
•Do not use this appliance if it has been dropped or any part of the appliance (including the cord or plug)
has been damaged. Take this appliance to your nearest authorised service centre or qualified dealer for
inspection or repair.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard
•Use only accessories recommended or supplied by an authorised service centre or qualified dealer. The
use of accessories not intended for use with this appliance may cause injuries to the user or damage to
the appliance.
•Always switch off and unplug the heater when not in use.
•Do not install the heater on other appliances, on uneven surfaces or where it could be subject to direct
sunlight, excessive dust or mechanical vibrations.
•This Appliance should not be used outdoors, placed near a hot gas or electrical burner.
•Warning: In order to avoid overheating, do not cover the heater.
Page 6 of 20

•Unplug this appliance before cleaning or storing or when unused for long periods of time.
•Any type of servicing, apart from ordinary cleaning, must be carried out by an authorised service centre
or qualified dealer. There are no user serviceable parts in this appliance.
•If this appliance is used by a third party, please supply the instruction manual with it.
•Do not misuse the power cord. Never pull the appliance by the cord or pull to disconnect it from the
outlet. Instead, grasp the plug and pull to disconnect.
•Do not tip the appliance on its side or upside down after initially fitting the castor wheels.
•This heater is not intended for use in bathrooms, laundry areas or similar moist indoor locations.
•Never locate the heater where it may fall into a bathtub or other water containers.
•Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
•Do not run the power cord under carpeting or cover the cord with throw rugs, runners or the like. Arrange
the cord away from traffic areas and where it will not be tripped over.
•Do not place the cord over any part of the heater.
•To disconnect the heater, set controls to OFF then remove the plug from the outlet.
•Do not insert or allow foreign objects to enter any ventilation opening as this may cause an electric
shock, fire or could damage the heater.
•This heater has hot electrical parts inside. DO NOT use it in areas where petrol, paint or flammable
liquids are used or stored.
•Fully remove the power cord from the cord tidy before use. Always fully uncoil the power cord before
applying power.
•This product must always be USED and STORED in the UPRIGHT POSITION.
•The heater must not be located immediately below or in front of a power socket outlet.
•This heater is filled with a precise quantity of oil. Repairs requiring the opening of the oil container are
only to be conducted by the manufacturer or a qualified service agent and who should be contacted if
there is an oil leakage.
•When scrapping the heater, follow the regulations concerning the disposal of oil.
•Disposal of the oil should be in accordance with local regulations. You should contact your local council
to determine the correct procedure.
•No liability can be accepted for any damage caused by non-compliance with these instructions or any
other improper use or mishandling of appliance.
•This product has not been designed for any uses other than those specified in this manual.
•For additional protection, it is strongly recommend that the use of a residual current device (RCD) with a
tripping current not exceeding 30mA be used on the circuit supplying this product. If you are unsure if
your home has this device, please contact your nearest Electrical Contractor.
•Always unplug electrical appliances when not in use and when leaving the house.
•As with all electrical appliances, never use the heater when unattended or asleep. Always switch off and
unplug electrical appliances when not in use and when leaving the house.
READ AND SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Page 7 of 20

2 Component Diagram
Item
Description
1
Handle
2
Power Selection Switches (3 Heat Setting)
with Power Indicator Lights
3
Room Thermostat / Temperature Control
4
Air Vents
5
Timer
6
Cord Storage
7
Oil Filled Heater Fins
8
Castor Wheels
1
8
2
6
7
3
4
5
Page 8 of 20

3 Before Use
Congratulations on the purchase of your new Oil Filled Heater.
Remove all packaging and dispose of thoughtfully.
Before first using your new Oil Filled Heater, it is most important that you read and follow the
instructions in this instruction manual, even if you feel you are quite familiar with this type of
product.
Your attention is drawn particularly to the section dealing with “IMPORTANT
SAFEGUARDS”.
Find a place and keep this manual handy for future reference.
Your Oil Filled Heater is easy and safe to use. It has been designed to function quietly and
safely under normal circumstances.
Read all instructions to ensure safe and efficient use.
4 Fitting the Castor Wheels
To reduce packaging size and waste, they have been placed unassembled in the box and
need to be fitted to the heater.
1
Mount Plate x 2
4
Domed Nut x 4
2
Castor Wheel x 4
5
Wing Nut x 4
3
U-Bolt x 2
1
2
3
5
4
Page 9 of 20

The diagrams following show how to securely attach the castor wheels so that your Oil
Filled Heater can easily be wheeled from room to room.
The first step is to attached the castor wheels to their mount brackets.
NOTE: It Is Very Important that the castor wheels and mounting plates are fitted correctly.
•Unscrew the Dome Nuts from the castor wheels.
•Fit the castor wheel end through the mounting plate and screw on the Dome Nut.
Tighten with a spanner.
•Do the same for the other three castor wheels.
For fitting the castor wheels to the heater, Ensure the
heater is not plugged into the power point.
Page 10 of 20

NOTE: It Is Very Important that the castor wheels
and mounting plates are fitted correctly.
•Turn the heater upside down. Take care as
the heater is heavy.
•Remove the wing nuts from the U-Bolts and
then position the U-Bolt between the end fins
and hold in place as shown.
•Position the mounting plate (with wheels
attached) over the U-bolt threaded ends and
push down as shown.
NOTE: It is important that the mounting
plate be positioned with the two holes in the
side of the plate facing the control panel so
as to clear the two screw ends as shown.
•Screw the Wing Nuts onto the U-Bolt ends
and tighten. Repeat for other side of U-Bolt
as shown.
IMPORTANT: This is the only time that you
should ever turn the Oil Filled
Heater on its side or upside-
down.
•Fit the castor wheels to the other end of the
heater using the same method as shown.
•After fitting the castor wheels, turn the
heater back over and stand on the wheels.
•Wait at least 10 minutes for the oil in the
fins to settle down to the bottom before
switching on.
Bottom of Heater
Page 11 of 20

5 Method of Heating
The heating fins are filled with a special oil that conducts heat from the heating element out
to the metal surfaces of the fins.
This in turn warms the air around them which gently and silently heats the room.
You will notice the surfaces in the room (i.e. walls, furniture, etc) will heat up and will radiate
the heat back into the room.
This type of heating is very different to the “normal” fan heater which only spot heats the air
and blows the heated air directly onto the person. (personal heater).
The Oil Filled Heater will warm the complete room and persons in the room. This type of
heating is not instantaneous and may take 30 – 60 minutes to reach full temperature
depending on the ambient temperature, room size, insulation, etc.
Be careful never to damage or puncture the fins because as the oil inside heats up, the
pressure inside rises creating a pressurised vessel.
Like any electrical appliance, this product may cause injury or could cause damage to
property if used whilst the heater is damaged.
6 Operation
NOTE: Keep combustible materials such as furniture, pillows, bedding, papers, clothes and
curtains, etc. at least 90cm from the top and all sides of the heater.
DO NOT drape clothes, laundry, towels etc. over the heater.
To use, insert the plug into the power point and switch on.
6.1 Low, Medium and High Heat Settings
•First, ensure the heater is plugged in and switched on at the power
point, the Timer Switch in the centre section of the Timer is set to
the “I” (On) position and that the adjustable room Thermostat is set
to the High Position. (Rotate Fully Clockwise).
Note: To use the timer function, refer to the “Timer” section in this manual.
•Switch “I”: With the “switch II” is in the “0” position, press “switch I” to the “I”
position for “Low Heat” setting. The Indicator Light in the switch will
illuminate indicating power is being supplied.
•Switch “II”: With the “switch I” is in the “0” position, press “switch II” to the
“II” position for “Medium Heat” setting. The Indicator Light in the switch will
illuminate indicating power is being supplied.
Page 12 of 20

•Switch “I” and Switch “II”: press both switches to the “I” and “II” positions for “High Heat”
setting. Both Indicator Lights in the switches will illuminate indicating power is being
supplied.
•To switch heating off, switch both switches to the “0” position. Both Indicator Lights in the
switches will turn off.
•When first setting up the temperature setting, switch on both switches “I” and “II” to (High
Heat Setting) and turn the thermostat clockwise to “High”.
•When the room reaches the desired temperature, still with both switches set to “I” and “II”
(High Heat Setting), slowly turn the thermostat down (anticlockwise) until you hear it
“Click” off. The Indicator Lights will turn off.
•Leave the thermostat in this position and the heater will now cycle on and off and maintain
the desired room temperature.
•As the heater cycles on and off, the indicator lights in the switches will also turn on and off.
Note: As the thermostat maintains room temperature it will switch on and off. As it
switches on and off, you may notice a blue flash from inside the heater. This is NOT
dangerous and no cause for alarm. It is the Room Thermostat contacts operating.
•At the same time you turn down the room thermostat, you may switch off one of the heat
switches to reduce the power consumption. This will set the heating elements to either low
or medium depending on which switch you turn off, but will increase the amount of time it
takes to reheat.
•On very cold days this may not be practical, as heat losses can exceed the heat
generated by your heater. Larger rooms and open space areas may also find the low or
medium heat setting ineffective.
•You will need to experiment with this heater to establish the exact setting required for any
particular room or space.
•Best performance and efficiency is achieved with an insulated home, closed windows &
doors and with drapes closed.
CAUTION: Even after the heater has been turned off, it will remain very hot for some time.
DO NOT touch the hot surfaces during heating or after being turned off.
Keep children away from the heater at all times.
Page 13 of 20

6.2 Timer
The heater is equipped with a timer so that it can be programmed to switch on and off at
your desired time.
NOTE: As with all electrical appliances, never use the heater when unattended or asleep.
Always switch off and unplug electrical appliances when not in use and when leaving the
house.
This timer is a 24 hour timer and is divided into 15 minute intervals.
Power supply to the heater is required for the timer to keep time. If the heater is unplugged
from the power point, the timer will stop.
Next time the heater is plugged in and switched on at the power point, the timer will need
to be set to the current time again as follows:
1. Plug the heater into the power point and switch on.
2. Rotate the outer section of the timer (Clockwise Only) so the
current time of day lines up with the small arrow. (DO NOT
TURN IT COUNTER CLOCKWISE)
I.E. if the current time is 4.00pm, rotate the outer section of
the timer (Clockwise Only) until “16” lines up with the
arrow tip. “16” represents 16.00 hours which is 4pm.
If the current time is 9.30pm, rotate the outer section of the timer (Clockwise
Only) until the arrow tip lines up half way between 21 and 22. “21” represents
21.00 hours which is 9pm and “22” represents 22.00 hours which is10pm.
Each increment between the main numbers are 15 minute intervals.
3. The timer has a small switch in the centre section. The function of this switch is as
follows: “I” = Unit is always On,= Timer function is ON and “0” = Timer function
and heater is Off.
4. Set the timer switch to position.
There are 96 small plastic pins on the timer. Each pin corresponds to 15 minutes
interval.
Pushing the Pin outward sets the time you want the heater to turn ON.
Pushing the Pins inward sets the time you want the heater to turn OFF.
Page 14 of 20

i.e. With the timer set to the current time (say for example 4pm “16” on the timer) and
you wish the heater to turn on at 5pm and turn off at 8pm, push all the Pins
outward that are between the numbers 17 and 20. “17 represents 17.00 hours
which is 5pm and 20 represents 20.00 hours which is 8pm.
You can set the heater to turn on and off multiple times a day by setting the pins as
desired.
If you wish to use the heater continuously without the timer function, set the timer
switch to the “I” (On) Position.
If you wish to stop the timer function and prevent heating, set the timer switch to the
“0” (Off) position.
Note:
The indicator lights, in the heat selector switches, will be On when the timer is set to “I”
(On) position or the timing function is set on has switched On the heating function.
The indicator lights, in the heat selector switches, will be Off when the timer is set to
“0” (Off) position or the timing function is set on has switched Off the heating function.
CAUTION: Do not use the timer function unattended or while asleep.
The heater will not operate if timer is set to the position but the pins are not set
according to the times required.
If the heater loses its electricity supply, e.g. Switched off at the mains socket or in the
event of a power failure, the current time of day will need to be reset again after the
power is resupplied and if you wish to use the timer function.
7 Cleaning
Before any maintenance or cleaning work is carried out, DISCONNECT the appliance
from the ELECTRICITY supply.
If the appliance is hot, allow it to completely cool before cleaning.
Wipe the outer fins with a moist cloth. (Not a wet cloth)
Note: Do not use detergents, abrasive powders, highly perfumed cleaning products, wax
polishes or products containing alcohol, solvents, etc. as these may damage the unit.
Dry the appliance thoroughly.
Any dust build up in the vents can be vacuumed out.
DO NOT place any objects into any vents.
Page 15 of 20

8 When the Appliance is Not in Use
8.1 Cord Storage
Wind the cable around the cord storage bracket (Do Not wind on tight) and the plug can
be inserted into the bracket if desired as shown.
8.2 Storage
When the appliance is not in use or is not going to be used for a long period, disconnect
from the electricity supply and store in a dry safe place.
Ensure the heater is standing upright and not on its side or upside down.
Page 16 of 20

9 Troubleshooting
BEFORE contacting a service agent, please check the following points:
Symptom Cause Remedy
No power to the appliance
(No Indicator Lights)
The Power Plug may not be plugged in
to the power point and switched on.
Ensure the power plug is inserted into
the power point correctly and switched
on.
There may be no power to the power
point.
Ensure there is power to the power
point. Test with another appliance such
as a table lamp.
Heat Selector switch or switches not
set to the “I” or “II” positions
Switch the switches to either “I” or “II”
positions or both.
Adjustable room thermostat is set too
low.
Rotate the room thermostat clockwise
to the High setting.
Timer Switch may be set to “0” (Off) Set the timer switch to “I” (On)
If using the Timer Function, timer may
have turned off as pre-set.
Program the timer to switch on
automatically again or to change the
Auto Off time.
The heater has overheated and blown
the Over-Temp thermal fuse.
Call the service department.
Timer is turning heater On
and or Off at the wrong times
Timer may not be set to current time of
Day
Rotate the timer (clockwise only) until
the current time of day lines up with the
small arrow mark. Refer section
“Timer” for instructions
Program may be set incorrect
Ensure the Pins are pushed out for the
time you want the heater ON and push
the Pins inward for the time you want
the heater Off. Refer section “Timer”
for instructions
Timer will not keep current
time of day
If power is turned off to the heater, the
timer will also stop.
When you plug the heater in and
switch on at the power point, adjust the
timer to the current time of day. Refer
section “Timer” for instructions.
Note: As with all electrical appliances,
never use the heater when unattended
or asleep. Always switch off and
unplug electrical appliances when not
in use and when leaving the house.
Power is available but not
heating (Indictor Lights are
illuminated)
Pre-heat time is too short.
Allow the heater more time to heat up.
More time is required depending on the
ambient temperature. Heat is not
instantaneous and may take 30 – 60
minutes to reach full heating.
Heater is heating and
functioning properly but room
temperature still feels “cold”
Pre-heat time is too short.
Allow the heater more time to heat up.
More time is required depending on the
ambient temperature. Heat is not
instantaneous and may take 30 – 60
minutes to reach full heating.
The heater may be too small for the
size of your room.
A larger and higher power heater will
be required to heat larger rooms.
The room may not be insulated or
there are drafts or open doors /
windows, etc.
Best performance and efficiency is
achieved with an insulated home,
closed windows & doors and with
drapes closed.
Room may be too big for this size
heater.
This size heater is only suitable for a
room size up to 43M3
e.g. a room with dimensions 3M Wide
x 6M Long x 2.4M High
Page 17 of 20

Burning Smell when first
turned on.
This is normal for first use or for first
use after storing away for some time.
Allow appliance to heat up and the
smell will disappear over a short
period.
Clicking Sound during use
This will be one or both of the internal
Thermostats turning on and off to
maintain a safe operating temperature
of the heater.
This is normal for this type of heater.
Crackling Sound when
heating
Sometimes, the heater can make a
crackling sound when first heating up.
The crackling should stop after a
period of time. If the sound persists,
contact the service department for
further instruction.
Occasional Blue Flashes from
Inside the Heater Panel can
be seen especially in a dark
room.
This is the thermostat switching on and
off while it maintains the room
temperature.
This is not dangerous and is no cause
for alarm. This is normal for this type of
Thermostat.
If after the above checks you believe there is still a fault, contact Customer Support for
assistance.
In warranty, customers should ensure that the above checks have been made before
returning for a refund as a refund may not be granted if the fault is not a mechanical or
electrical breakdown.
Page 18 of 20

10 Warranty Against Defect
WHAT’S COVERED?
1.1. H.E. Group Pty Ltd (“us” “we” or “our”) warrants
this good for a full replacement or refund for a
period of twelve months from the date of
purchase.
1.2. This warranty covers materials and
workmanship defects only
WHAT IS NOT COVERED?
2.1 This good is for household use only and if used
in any way other than as detailed in the
instruction manual will void this warranty.
2.2 This warranty does not apply to defects arising
from abuse, alteration,
unauthorised or
unreasonable use of the good, nor does it cover
general deterioration due to usage
2.3 This warranty does not apply to accessories
due to general deterioration or acts beyond
human control.
WHAT WE WILL DO
3.1. We will replace the good or provide a refund to
the value of the purchase price, if a defect is
discovered in the good during the warranty
period of twelve months subject to verification
of defect or malfunction and the date and proof
of purchase and purchase price.
WARRANTY COSTS
4.1 Once we have received the goods and you
have complied with the warranty, our costs
associated with the warranty claim will be borne
by us.
4.2 No responsibility will be taken for goods lost,
mislaid or damaged whilst in transit.
GENERAL
5.1 The benefits of this warranty are additional to
any other rights and remedies you may have
under law.
5.2 Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law (Schedule 2 of the Competition and
Consumer Act 2010 (Cth)). You are entitled to a
replacement or refund for a major failure and
compensation
for any other reasonably
foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you
require further information on the Australian
Consumer Law, please visit the Australian
Consumer Law website at
http://www.consumerlaw.gov.au.
5.3 Notwithstanding 5.1, except as provided for in
this warranty, all express and implied
warranties and conditions under statute or
general law as to the merchantability,
description, quality, suitability or fitness of the
goods for any purpose, or as to design,
assembly, installation, materials or
workmanship or otherwise are (where permitted
under law) expressly excluded.
5.4 To the extent permitted by law, our total liability
for loss or damage of every kind related to the
good in any way whatsoever is limited to the
amount paid to the retailer by you for the good
or the value of the good.
5.5 These terms and conditions supersede and
exclude all prior and other discussions,
representations (contractual or otherwise) and
arrangements relating to the supply of the
goods or any part of the goods. This includes
representations not made by us relating to the
performance of the goods or any part of the
goods or the results that ought to be expected
from using the good.
CUSTOMER CARE
6.1 To claim under this warranty, you must first
contact our friendly customer service team on
free call 1800 079 124
or via email
[e-mail] and explain the basis of
your claim. Our customer service team will then
provide you with directions on how to make your
claim under this warranty.
6.2 This warranty is valid with the presentation of the
original proof of purchase receipt or tax invoice
originating from the store of purchase for the
product showing the retailer’s name, date of
purchase and amount paid, by you, for the
good.
Address:
Phone No:
Email:
Website
HE Group Pty Ltd, 17 Claremont Avenue, Malvern VIC 3144 Australia
1800 079 124 (free call) or [phone] New Zealand: [phone]
[e-mail]
www.hegroup.com.au
Nov 2015
Edition
Page 19 of 20

Page 20 of 20
