Before Use
4
Before Use
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.66).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
• The unit may not function properly if the
connectors between the unit and front panel
are dirty. Detach the front panel and clean the
connector with a cotton swab gently, being
careful not to damage the connector.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth. If
the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral cleaner,
then wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the disc player of the unit. Called
lens fogging, this condensation on the lens
may not allow discs to play. In such a situation,
remove the disc and wait for the condensation
to evaporate. If the unit still does not operate
normally after a while, consult your JVC dealer.
Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull them
out horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
!B5A-2303-00b_18KWV-K_En.indb 4 2018/01/09 18:26

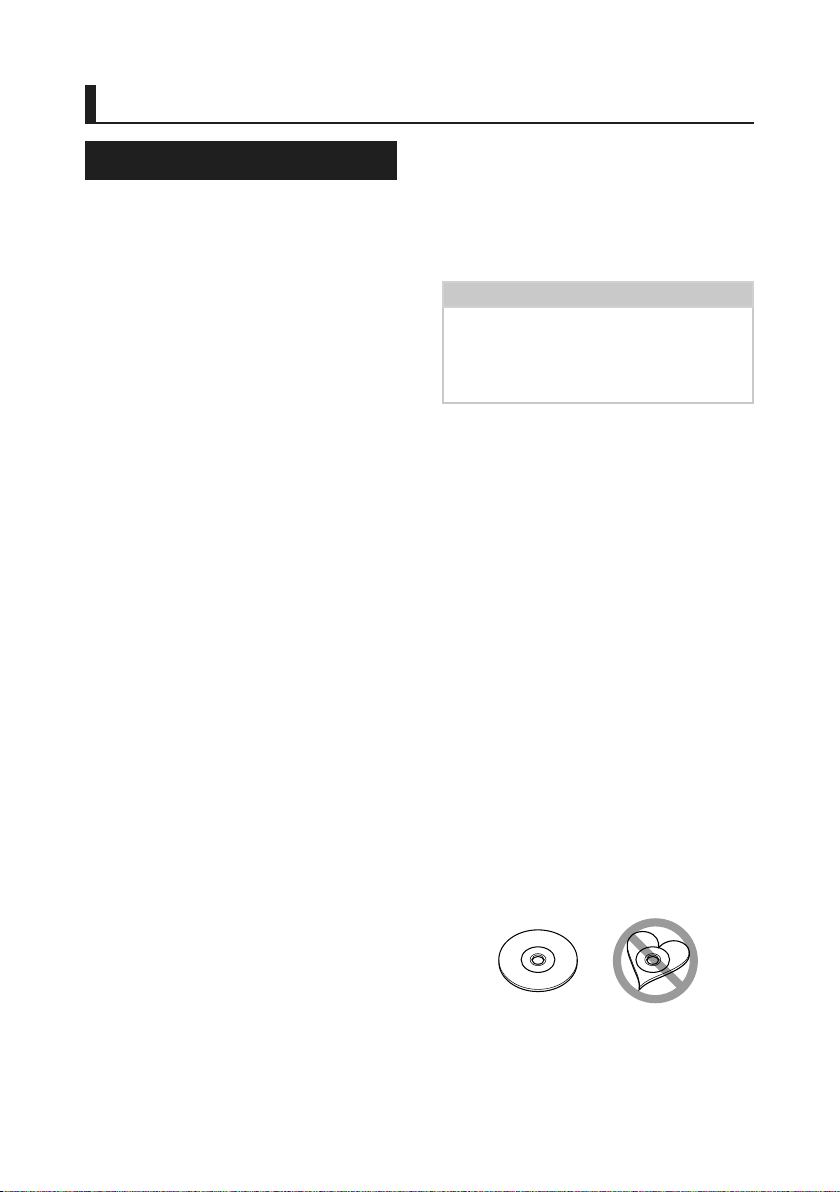

Before Use
5English
• This unit can only play the CDs with
.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process see your
writing software, and your recorder instruction
manual.)
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP]menu. See
User Interface Setup (P.66).
!B5A-2303-00b_18KWV-K_En.indb 5 2018/01/09 18:26
Basic Operations
6
Basic Operations
Functions of the Buttons on the Front Panel
KW-V840BT
1 2 3 4
KW-M740BT
1 3 4
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
–, +
(Volume)
• Adjusts volume.
The volume will go up until 15 when you keep pressing [+].
2
Disc insert
slot
• A slot to insert a disc media.
3
FNC • Displays the popup menu screen.
• Pressing for 1 second displays the Voice Recognition screen (P.61).
• When the power off, turns the power on.
4
Remote
Sensor
• Receives the remote control signal.
!B5A-2303-00b_18KWV-K_En.indb 6 2018/01/09 18:26
Basic Operations
7English
Turning on the Unit
The method of turning on is different
depending on the model.
1

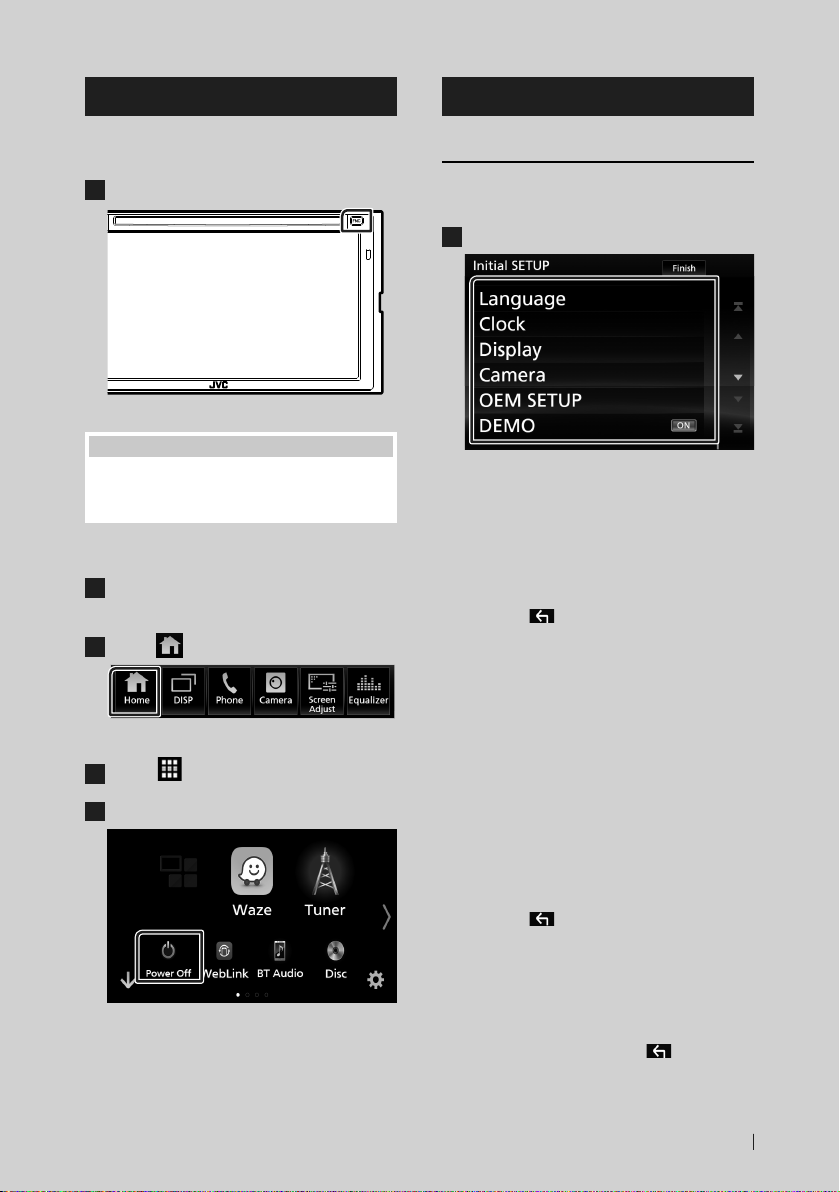

Press the [FNC]button.
The unit is turned on.
NOTE
• If it is your first time turning the unit on after
installation, it will be necessary to perform Initial
setup (P.7).
●To turn off the unit:
1
Press the [FNC]button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [Power Off].
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■[Language]
Select the language used for the control
screen and setting items. Default is“American
English (en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For detailed operation, see User Interface
Setup (P.66).
■[Clock]
Sets the synchronization of the clock and
adjusts it.
For detailed operation, see Calendar/clock
settings (P.9).
■[Display]
If it is hard to see the image on the screen
even, adjust the viewing angle.
1Touch [Display].
2Touch [Viewing Angle].
3Select an angle
4Touch [
].
For detailed operation, see Display Setup
(P.68).
■[Camera]
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [ ].
For detailed operation, see Camera Setup
(P.51).
!B5A-2303-00b_18KWV-K_En.indb 7 2018/01/09 18:26
Basic Operations
8
■[OEM SETUP]
This function requires a commercial adaptor.
Consult your JVC dealer for details.
■[DEMO]
Set the demonstration mode. Default is “ON”.
1Touch [DEMO]and set ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu.
See Setting Up (P.65).
Security Code Setup
You can set up a security code to protect your
receiver system against theft.
When the Security Code function is activated,
the code cannot be changed and the function
cannot be released. Note the Security Code
can be set as the 4 digit number of your
choice.
1
Press the [FNC]button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [Security].
Security screen appears.
5
Touch [Security Code Set]on the Security
screen.
Security Code Set screen appears.
6
Enter a security code with four-digit
number and touch [Enter].
7
Enter the same code again and touch
[Enter].
Now, your security code is registered.
NOTE
• Touch [BS]to delete the last entry.
• If you enter a different security code, the screen
returns to step 6 (for the first code entry).
• if you have disconnected the Receiver from
battery, enter the correct security code as that
you have entered in step 6 and touch [Enter]. You
can use your receiver.
To change the security code:
1
Touch [Security Code Change]on the
Security screen, then repeat step 6 and 7.
To clear the security code:
1
Touch [Security Code Cancellation]on
the Security screen.
!B5A-2303-00b_18KWV-K_En.indb 8 2018/01/09 18:26
Basic Operations
9English
Calendar/clock settings
1
Press the [FNC]button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
3
Touch [ ].
4
Touch [User Interface].
User Interface screen appears.
5
Touch [Time Zone].
6
Select the time zone.
7
Set each item as follows.
Scroll the page to show the item.
■[Clock]
[RDS-SYNC ](Default): Synchronizing the
Radio Data System station time data and
this unit’s clock.
[Manual]: Sets the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual]for Clock, adjust the
date and time manually. (P.66)
NOTE
• Please set the date and time. If it is not set, it may
not work with some functions.
Adjusting the volume
To adjust the volume (0 to 40),
Press [+]to increase, and press [–]to decrease.
Holding [+]increases the volume continuously
to level 15.
!B5A-2303-00b_18KWV-K_En.indb 9 2018/01/09 18:26
Basic Operations
10
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display setting menu screen or
to change the page, etc.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll the list screen
by flicking the screen up/
down.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Monitor Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the gesture control is not available).
• Sliding the finger towards up/down: Functions
same as pressing []/ [](Media). Tuner
Preset broadcast stations are switched.Sliding
the finger towards left/right: Functions same as
pressing [E]/ [F].
• Moving your finger clockwise or counter-
clockwise: increases/decreases the volume.

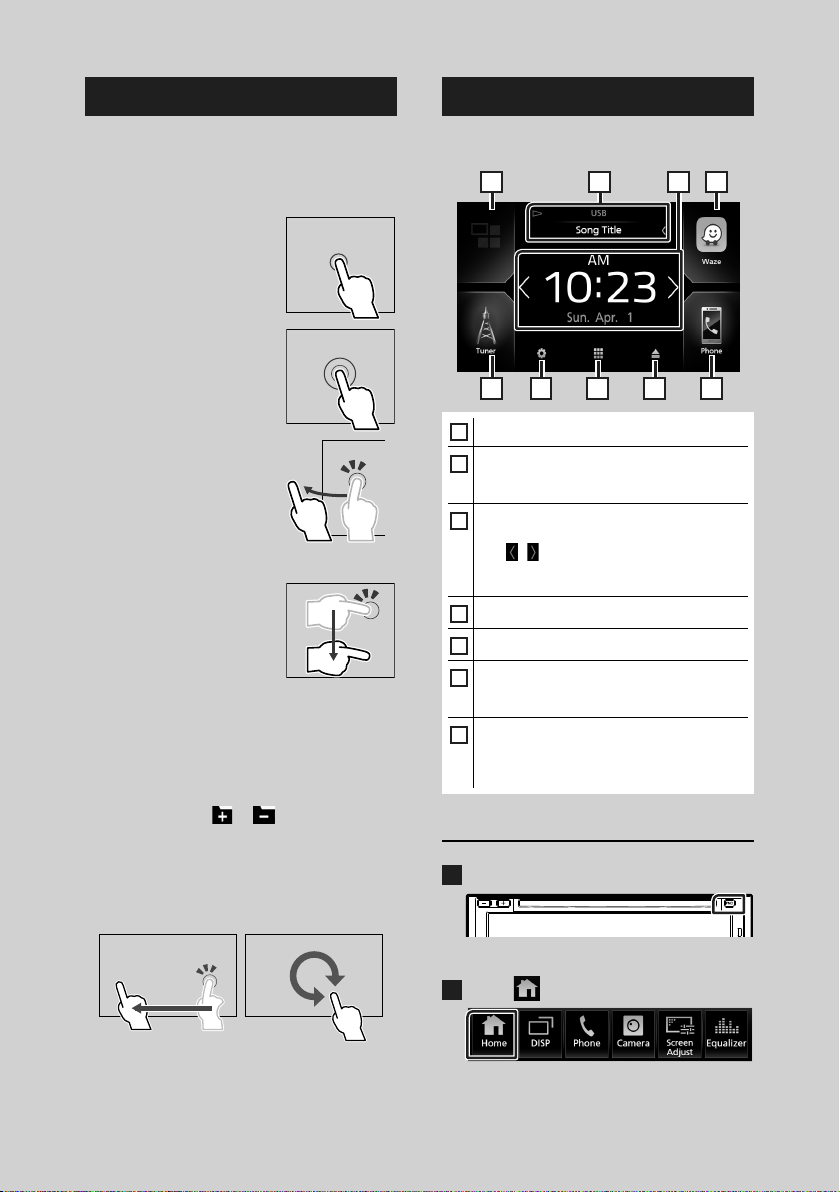

HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
1 74 5 6
12 3
1
• Short-cut playback source icons (P.12)
2
• Current source information.
• Touch to display the control screen of current
source.
3
• Widget
– You can change the widget by touching
[
]/[ ].
– Touch the widget to display the detailed
screen.
4
• Displays the SETUP Menu screen. (P.65)
5
• Displays the source selection screen. (P.11)
6
• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc.
KW-V840BT only
7
• Displays the Hands Free screen. (P.60)
• When connecting as Apple CarPlay or
Android Auto, it works as a phone provided
in Apple CarPlay or Android Auto.
Display the HOME
1
Press the [FNC]button.
Popup menu appears.
2
Touch [ ].
HOME screen appears.
!B5A-2303-00b_18KWV-K_En.indb 10 2018/01/09 18:26
Basic Operations
11English

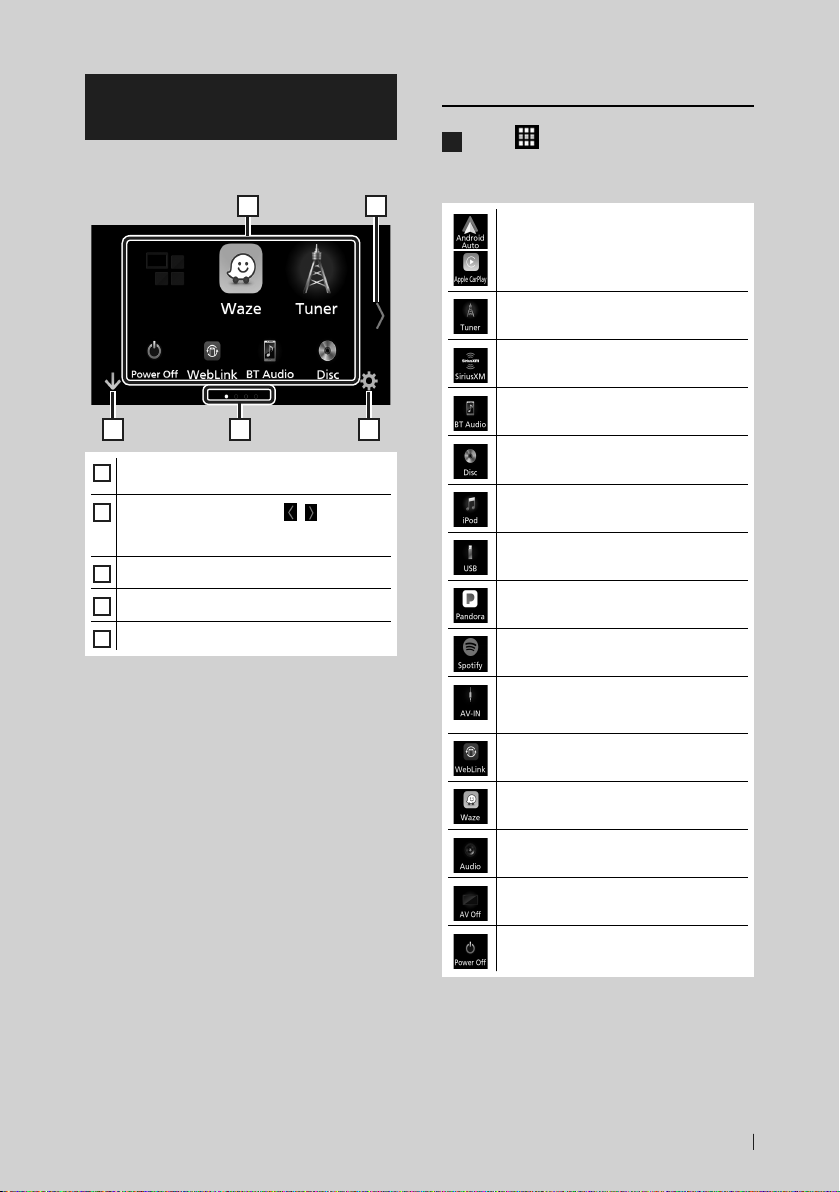

Source selection screen
descriptions
You can display all playback sources and
options on the source selection screen.
3 5
2
4
1
1
• Changes the playback source.
For playback sources, see P.11.
2
• Changes the page. (Touch []/[ ].)
You can also change the page by flicking left
or right on the screen.
3
• Returns to previous screen.
4
• Page indication
5
• Displays the SETUP Menu screen. (P.65)
Select the playback source
1
Touch [ ].
From the screen, you can select the
following sources and functions.
• Switches to the Android Auto/ Apple Car
Play screen from the connected iPhone/
Android device.*1(P.21)
• Switches to the Radio broadcast.
(P.35)
• Switches to the SiriusXM® satellite radio
broadcast. (P.39)
• Plays a Bluetooth audio player. (P.58)
• Plays a disc.*2(P.15)
• Plays an iPod/iPhone. (P.32)
• Plays files on a USB device. (P.29)
• Switches to the Pandora. (P.24)
• Switches to the Spotify. (P.26)
• Switches to an external component
connected to the AV-IN input terminal.
(P.52)
• Displays the WebLink screen. (P.28)
• Displays the Waze screen. (P.28)
• Displays the Audio screen. (P.70)
• Turns off the AV source. (P.12)
• Turn off the unit. (P.7)
• For sources and information displayed when
an ADS adapter is connected, see OEM
Features Operation (P.53).
!B5A-2303-00b_18KWV-K_En.indb 11 2018/01/09 18:26
Basic Operations
12
*1When iPhone compatible with CarPlay is
connected, [Apple CarPlay]is displayed.
When an Android device compatible with
Android Auto is connected, [Android Auto]is
displayed.
*2KW-V840BT only
To select the playback source on the
HOME screen
The 3 items displayed on the source selection
screen as the large icons are shown on the
HOME screen.
You can change items displayed on this area
by customizing the source selection screen.
(P.12)
To select the playback source on the
source control screen
Display source selection buttons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
To turn off the AV source
1
Touch [ ].
2
Touch [AV Off].

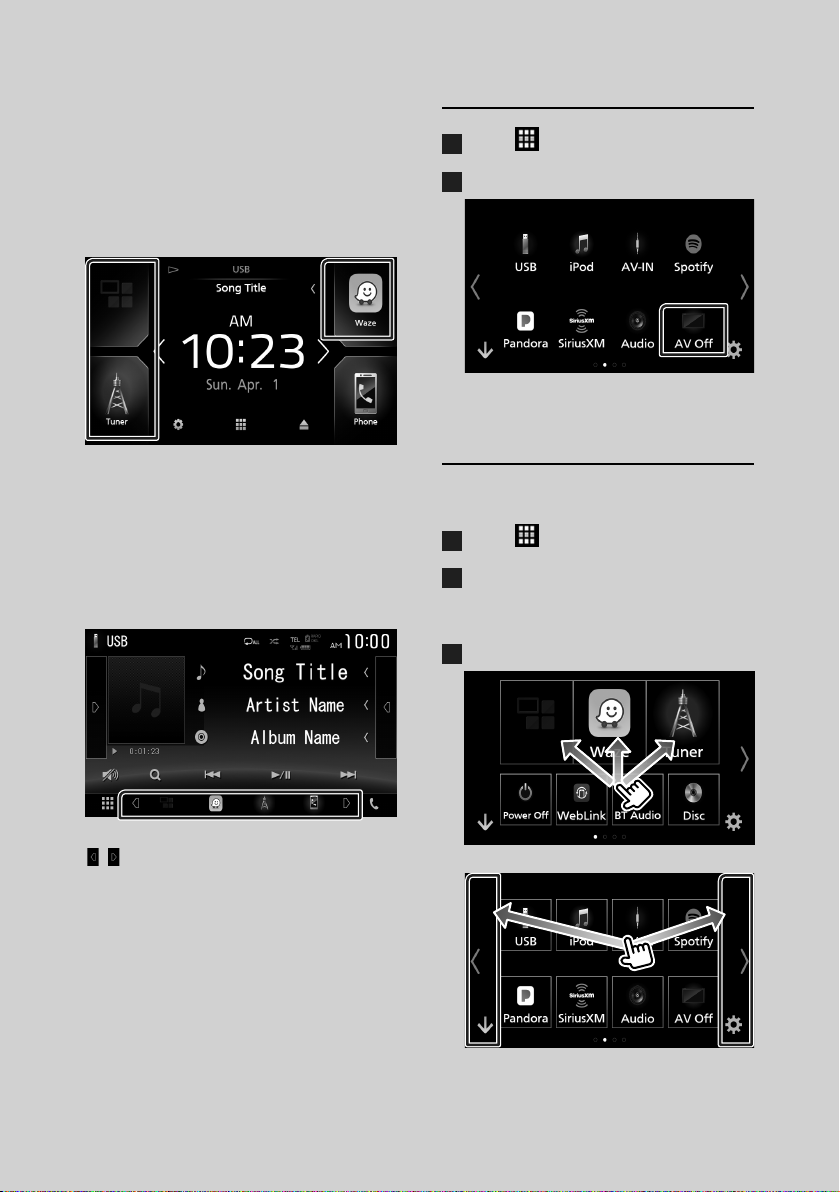

Customize Short-cut buttons on
HOME screen
You can arrange the position of the source
icons as you like.
1
Touch [ ].
2
Touch and hold the icon which you want
to move to go into the customizing
mode.
3
Drag it where you want to move.
Changes the page
!B5A-2303-00b_18KWV-K_En.indb 12 2018/01/09 18:26
Basic Operations
13English
Source control screen
descriptions
There are some functions which can be
operated from most screens.
Indicators
1
2 3 4
KW-M740BT
5
Short-cut buttons
1
• Connected Bluetooth device information.
• : Lights up when quick charging battery
of the connected iPod/ iPhone/ Smartphone.
2
All sources icon
Displays all sources.
3
Secondary screen
• [
]/[ ] : The Secondary screen changes every
time you touch it. You can also change the
Secondary screen by flicking left or right on
the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is on.
– [LOUD]: The loudness control function is on.
• Short-cut buttons: The source changes to the
one you have set as a short-cut. For the short-
cut setting, refer to Customize Short-cut
buttons on HOME screen (P.12).
4
[G](KW-V840BT)
• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc.
• To forcibly eject the disc, touch it for 2 seconds
and touch [Ye s ]after the message is displayed.
5
[Û](KW-M740BT)
Touch to display the Hands Free screen. (P.60)
When connecting as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
Popup menu
1
Press the [FNC]button.
Popup menu appears.
2
Touch to display the popup menu.
KW-M740BT
The contents of the menu are as follows.
• Displays the HOME screen. (P.10)
• Switches the screen.
The screen switched to depends on the
[DISP Key]setting in the [User Interface]
screen. (P.66).
• Touch and hold to turns the screen off.
• Display the Hands Free screen. (P.60)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
!B5A-2303-00b_18KWV-K_En.indb 13 2018/01/09 18:26
Basic Operations
14
• Displays the view camera. (P.51)
• Displays the Screen Adjustment screen.
(P.65)
• Displays the Graphic Equalizer screen.
(P.73)
• Close the popup menu.
• Short-cut buttons: The source changes to
the one you have set as a short-cut. For
the short-cut setting, refer to Customize
Short-cut buttons on HOME screen
(P.12).
• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc.
• To forcibly eject the disc, touch it for 2
seconds and touch [Ye s ]after the message
is displayed.
KW-V840BT only
• Touch to display the Hands Free screen.
(P.60)
• When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
KW-M740BT only

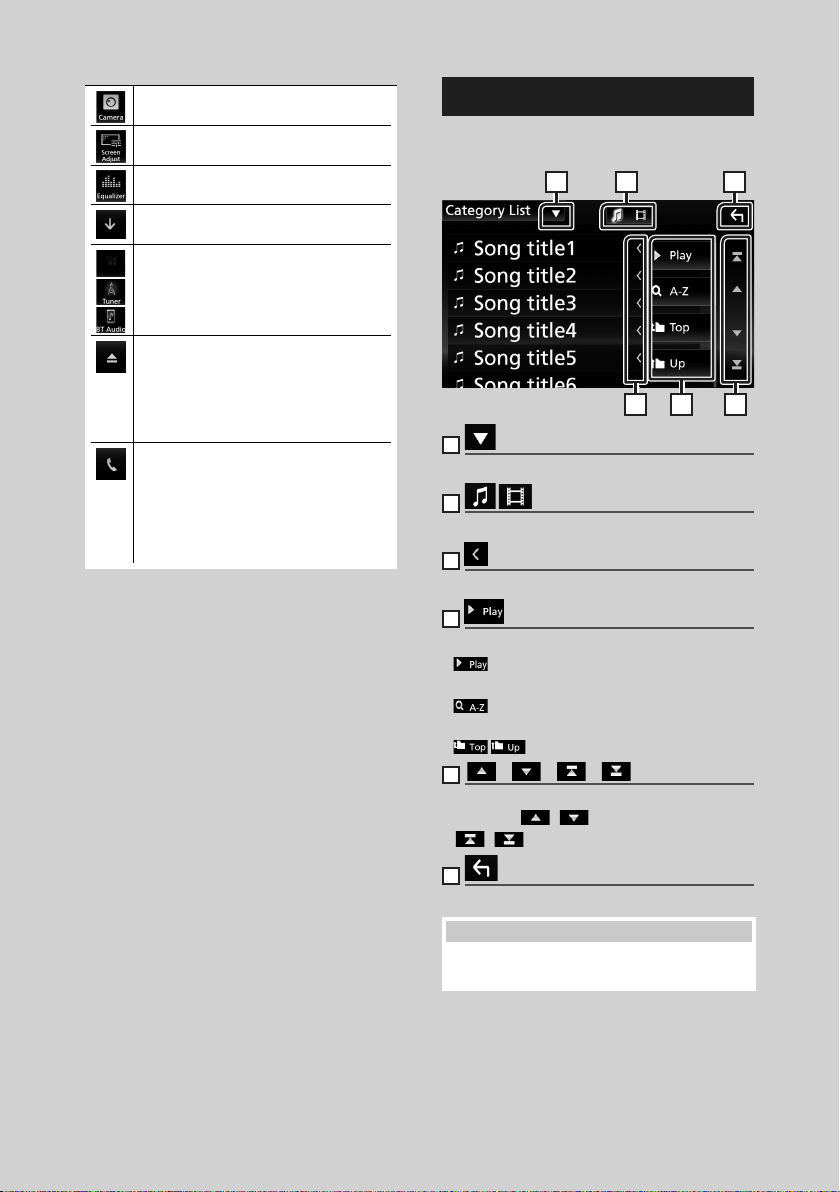

List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays list type selection window.
2
Displays music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• : Jump to the letter you entered
(alphabet search).
• : Moves to the upper hierarchy.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change the page to display more items
by pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
!B5A-2303-00b_18KWV-K_En.indb 14 2018/01/09 18:26
Disc
15English
Disc (KW-V840BT)
Playing a disc
Ñ Insert a disc
1 Insert the disc into the slot.
The unit loads the disc and playback
starts.
Ñ Eject a disc
1 Press the [FNC]button.
Popup menu appears.
2 Touch [G].
When removing a disc, pull it horizontally.
DVD/ VCD Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• The screen shot below is for DVD. It may be
different from the one for VCD.
1 When the operation buttons are not
displayed on the screen, touch the
7
area.
Control screen
1
2
3
4
5
Video screen
7
6
8
6
1
Information display
Displays the following information.
• Title #, Chapter #: DVD title and chapter
number display
• Track #/Scene #: VCD track or scene number
display. Scene # is displayed only when
Playback control (PBC) is on.
• Linear PCM, etc.: Audio format
• [Hide]: Hides the control screen.
!B5A-2303-00b_18KWV-K_En.indb 15 2018/01/09 18:26
Disc
16
• [ ] : Repeats the current content. Each time
you touch the key, repeat mode switches in
the following sequence;
DVD: Title repeat ( ), Chapter repeat
( ), Repeat off ( )
VCD (PBC On): Does not repeat
VCD (PBC Off ): Track repeat ( ), Repeat off
( )
2
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel. For details on the keys, see Function
panel (P.16).
3
Play mode indicator/ Playing time
• D, B, I, etc.: Current play mode indicator
The meanings of each icon are as follows;
D(play), B(fast forward), A(fast
backward), I(stop), R(resume stop),
H(pause), (slow playback), (slow
reverse playback).
4
Operation keys
• [E][F]: Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
• [DH]: Plays or pauses.
• [
]: Touch to attenuates/restores the sound.
5
Indicator Items
• [IN]: A disc is inserted.
White: A Disc is inside the unit.
Orange: Error at the disc player
VCD
• [1chLL/2chLL]: Identifies the left audio output
of channel 1 or 2.
• [1chLR/2chLR]: Identifies the monaural audio
output of channel 1 or 2.
• [1chRR/2chRR]: Identifies the right audio
output of channel 1 or 2.
• [1chST/2chST]: Identifies the stereo audio
output of channel 1 or 2.
• [LL]: Identifies the left audio output.
• [LR]: Identifies the monaural audio output.
• [RR]: Identifies the right audio output.
• [ST]: Identifies the stereo audio output.
• [PBC]: The PBC function is on.
• [VER1]: The VCD version is 1.
• [VER2]: The VCD version is 2.
6
Searching area
Touch to search the next/previous content.
7
Key display area
Touch to display the control screen.
8
[MENU CTRL](DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.19).
NOTE
• The control screen disappears when no operation
is done for 5 seconds.
• If you use a remote control, you can jump directly
to the desired image with entering the chapter
number, scene number, play time, etc. (P.79).
Ñ Function panel
1 Touch []on the left side of the screen.
DVD VCD
The functions of each key are as follows.
[I]
Stops playback. When touched twice, the disc is
played from the beginning when you play it the
next time.
[
][ ]
Fast forward or fast backward. Each time you
touch the key, the speed changes; 2 times, 8
times.
[
]or [ ] (DVD only)
Plays in slow motion forward or backward.
[SETUP](DVD only)
Touch to display the DVD SETUP screen. See
DVD Setup (P.20).
[MENU CTRL](DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.19).
!B5A-2303-00b_18KWV-K_En.indb 16 2018/01/09 18:26
Disc
17English
[PBC](VCD only)
Turn Playback control (PBC) on or off.
[Audio](VCD only)
Change the audio output channel.
Music CD/ Disc media Basic
Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• In this manual,“Music CD”will be referred to as
the general CDs which include music tracks in.
“Disc media” will be referred to as CD/DVD disc
which includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.
Control screen
4
3
5
2
6
1
7
Open the drawer
5
4
1
CODEC /[ ] / [ ]
• When a high-resolution source is played, its
format information is displayed. (Disc media
only)
• [
]: Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
Track/ File repeat ( ), Folder repeat ( )
(Disc media only), Repeat all ( )
• [
]: Randomly plays all tracks in current
folder/disc. Each time you touch the key,
random mode switches in the following
sequence;
Track random ( ) (Music CD only), Folder
random ( ) (Disc media only), Random off
( )
2
Track information
Displays the information of the current track/ file.
Only a file name and a folder name are displayed
if there is no tag information. (Disc media only)
3
Operation keys
• [1](Disc media only) : Searches file. For details
on search operation, see List screen (P.14).
• [E][F]: Searches the previous/next
content.
Touch and hold to fast forward or fast
backward.
• [DH]: Plays or pauses.
• [
]: Touch to attenuates/restores the sound.
4
Function panel (Disc media only)
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
][ ] : Searches previous/next folder.
5
Content list
• Touch on the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Indicator Items
• [IN]: A disc is inserted.
White: A Disc is inside the unit.
Orange: Error at the disc player
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
7
Artwork (Disc media only)
/Play mode indicator/ Playing time
• The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D(play), B(fast forward),
A(fast backward), H(pause).
!B5A-2303-00b_18KWV-K_En.indb 17 2018/01/09 18:26
Disc
18
Video screen
9
88
8
Searching file area (Video file only)
Touch to search the next/previous file.
9
Key display area (Video file only)
Touch to display the control screen.
File search Operation
(Disc media only)
You can search a file according to hierarchy.
NOTE
• For operations in the list screen, see List screen
(P.14).
1 Touch [1].
Folder List screen appears.
2 Touch the desired folder.
When you touch a folder its contents are
displayed.
3 Touch desired item from the content list.
Playback starts.
!B5A-2303-00b_18KWV-K_En.indb 18 2018/01/09 18:26
Disc
19English
DVD Disc Menu Operation
You can set up some items in the DVD-VIDEO
disc menu.

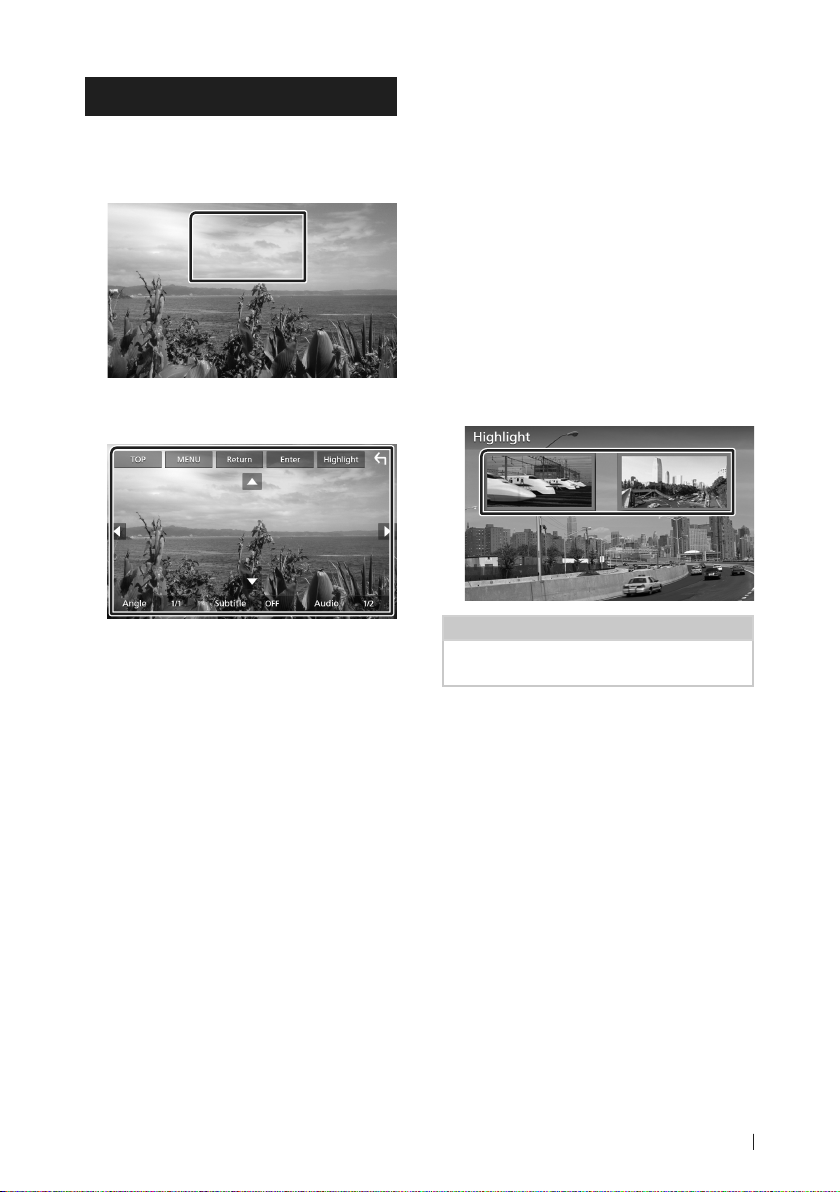

1 Touch illustrated area during playback.
Menu Control screen appears.
2 Perform desired operation as follows.
■Displays the top menu
Touch [TOP].*
■Displays the menu
Touch [MENU].*
■Displays the previous menu
Touch [Return].*
■Enters selected item
Touch [Enter].
■Enables direct operation
Touch [Highlight]to enter the highlight
control mode (P.19).
■Moves the cursor
Touch [R], [S], [C], [D].
■Switches the subtitle language
Touch [Subtitle]. Each time you touch this
key, language is switched.
■Switches the audio language
Touch [Audio]. Each time you touch this key,
language is switched.
■Switches the picture angle
Touch [Angle]. Each time you touch this key,
picture angle is switched.
* These keys may not function depending on
the disc.
Ñ Highlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1 Touch [Highlight]in the Menu Control
screen.
2 Touch desired item on the screen.
NOTE
• The highlight control is cleared automatically if
you do not operate for a constant time.
!B5A-2303-00b_18KWV-K_En.indb 19 2018/01/09 18:26
Disc
20
DVD Setup
You can set up the DVD playback functions.
1 Touch illustrated area during playback.
2 Touch []on the left side of the screen.
Touch [SETUP].
DVD SETUP screen appears.
3 Set each item as follows.
■[
Menu Language]/ [Subtitle Language]
/ [Audio Language]
See Language setup (P.20).
■[Dynamic Range Control]
Sets the dynamic range.
[Wide]: The dynamic range is wide.
[Normal]: The dynamic range is normal.
[Dialog](Default): Makes the total sound
volume larger than other modes. This is
effective only when you are using Dolby
Digital software.
■[Screen Ratio]
Sets the screen display mode.
[16:9 ](Default): Displays wide pictures.
[4:3 LB]: Displays wide pictures in the Letter
Box format (having black stripes at the top
and bottom of screen).
[4:3 PS]: Displays wide pictures in the Pan &
Scan format (showing pictures cut at the
right and left ends).
Ñ Language setup
This setting is for the language used in the
menu, subtitle, and voice.
1 Touch the desired item;
[Menu Language], [Subtitle Language],
[Audio Language].
Language Set screen appears.
2 Select a language.
For language code, refer to DVD Language
Codes (P.90).
Sets the entered language and returns to
the DVD Setting screen.
NOTE
• To set the DVD’s original language for audio
language, touch [Original].
!B5A-2303-00b_18KWV-K_En.indb 20 2018/01/09 18:26
This manual suits for next models
1
Table of contents
Other JVC Car Video System manuals
