OPERATOR'S MANUAL
DCA 1200

Dealer:
Owner:
Firm / Farm:
City: State:
No. of the Certificate of Guarantee:
Serial / No.:
Date: Invoice No.:
Product:
Notes:
IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Introduction
The DCA 1200 model - seed and fertilizer spreader - is designed to
spread granular fertilizer and seeds in general. Built with modern
technology, it features greater strength and low maintenance.
The cable control allows the remote gate activation and the option
of one-side opening to make it easier to complete a finishing.
The adjustment is also easier by the graduated scale, allowing
it to distribute numerous amounts.
Spreader plates feature adjustable paddles, providing proper
distribution of different products.
Special system with four paddles in four different sizes, which
allows a working width adjustment and improved spreading.
It features protective grids, which prevent foreign objects from
damaging the equipment.
This instructions manual contains the necessary information for
the best performance of this spreader.The operator must carefully
read the entire manual before working with the equipment. Also,
read and understand the safety recommendations.
For any further clarification or in the event of technical problems
that may arise during the service, consult your dealer and the
Technical Support department of the factory. They can ensure
the fully functioning of your TATU spreader.

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Table of contents
1. To the owner 3
2. To the operator 4 to 9
3. Data sheet 10 & 11
4. Components 12
5. Set-up instructions 13 to 18
Preparing the tractor 13

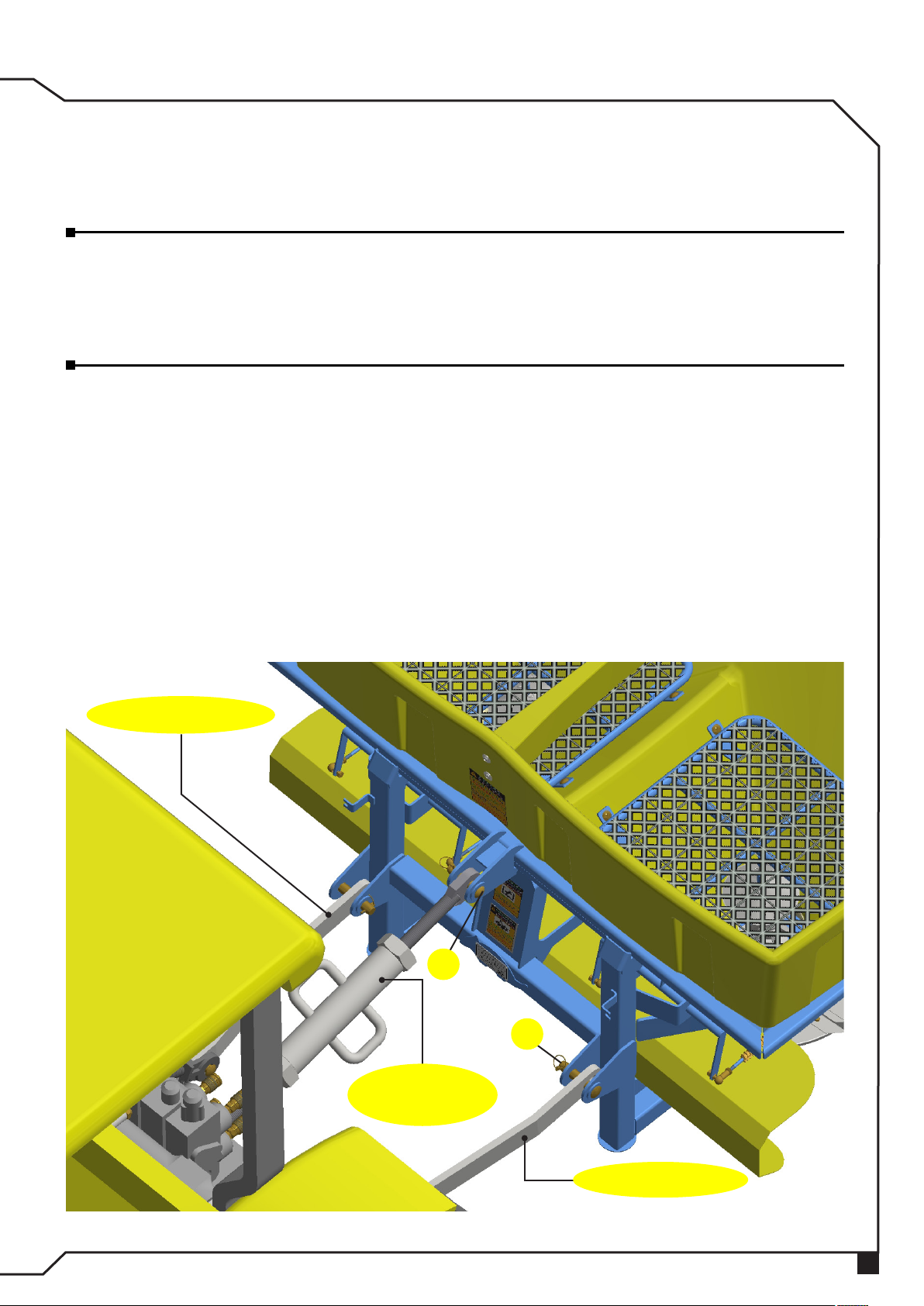

Hitching to the tractor 13 & 14

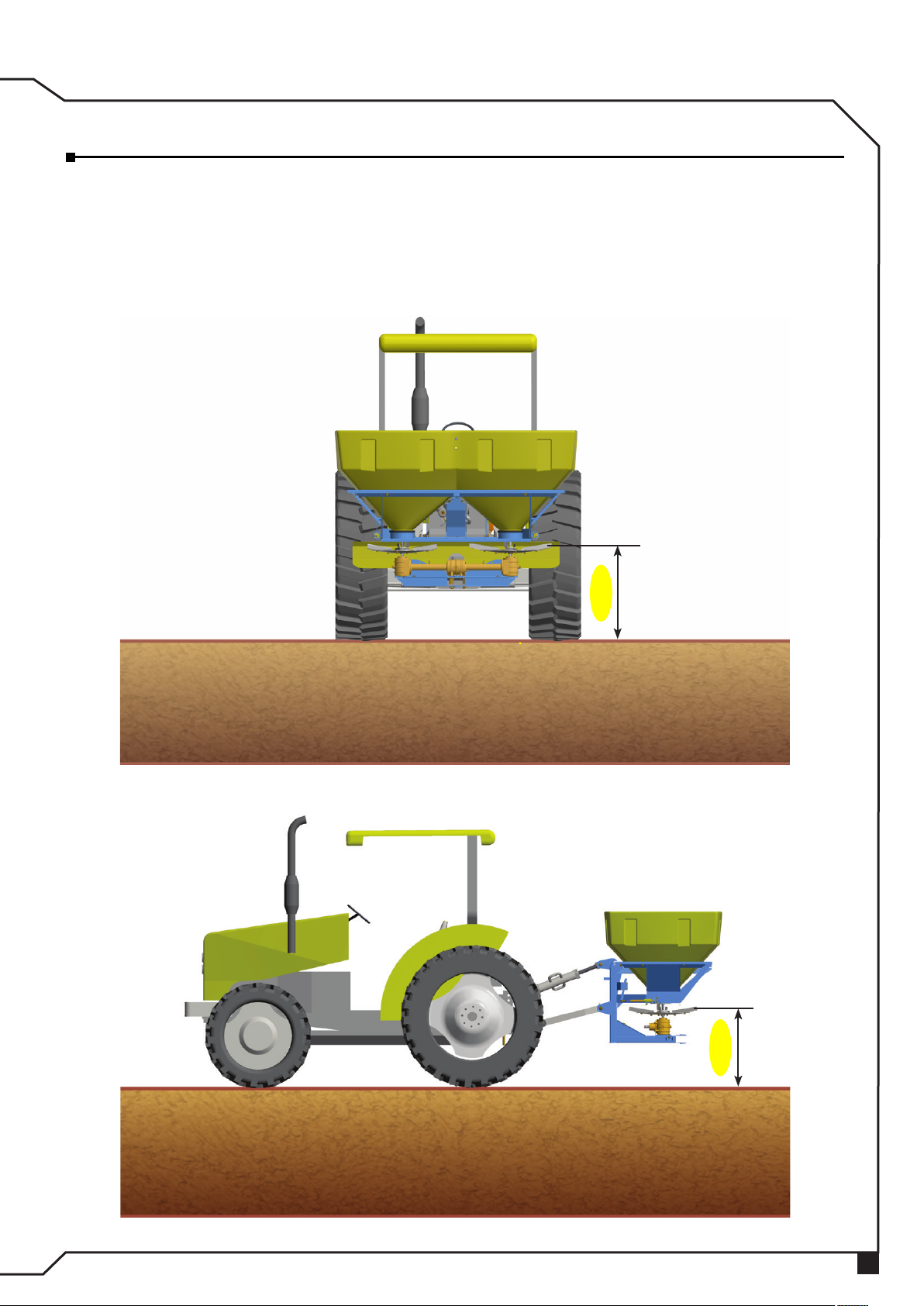

Height adjustment and horizontal leveling 15
Cardan shaft coupling to the power take-off 16

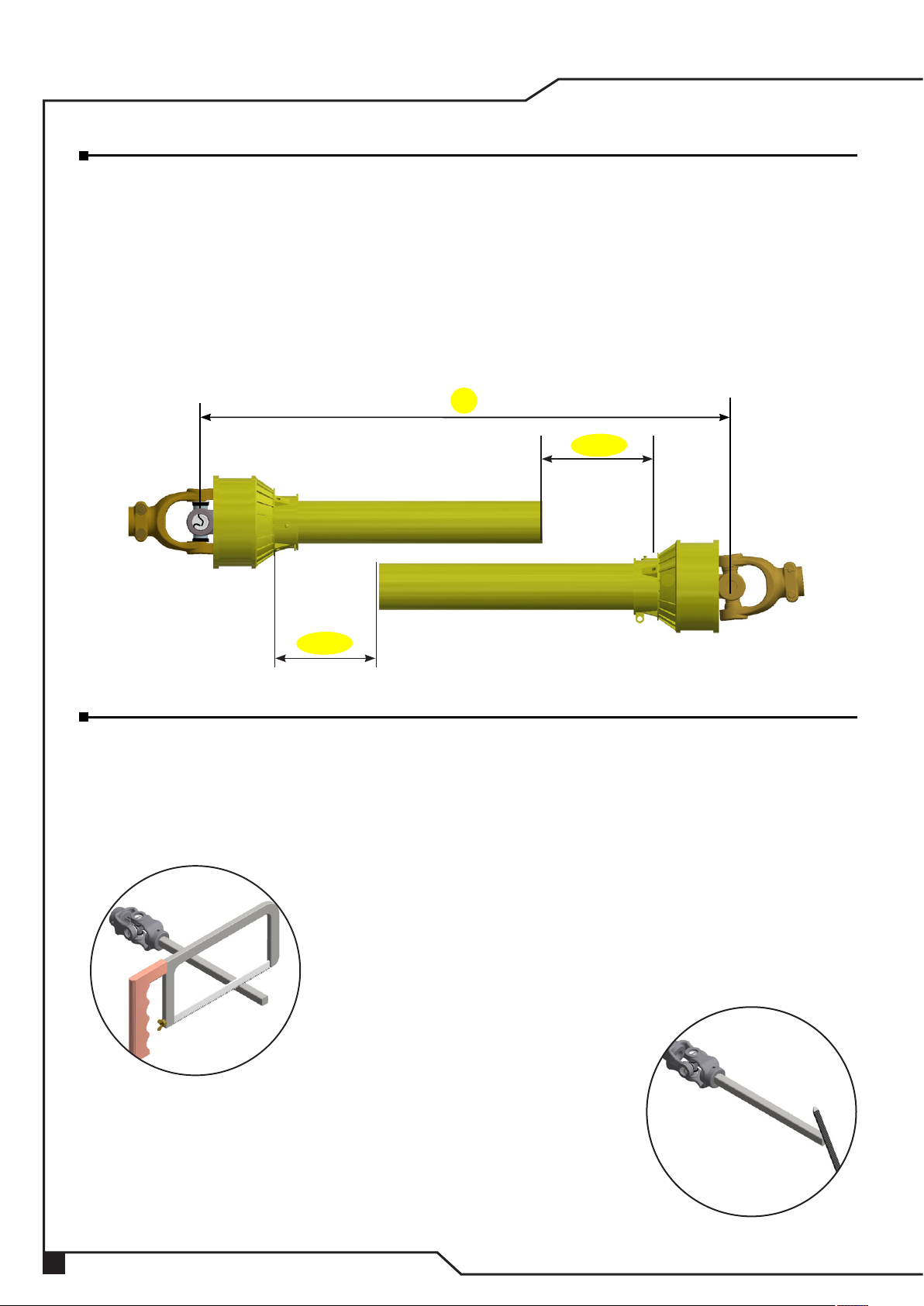

Reducing the cardan shaft length 16 & 17
Proper assembly of the cardan shaft / Drawbar displacement 17
Positioning and placing the control to the tractor 18
Flow activation system 18
6. Adjustments and operations 19 to 38
Tractor speed / Power take-off rotation speed 19
Adjusting the paddles 20
Setting the working width 21
Marking the passes in the field 21
Finishing 22
Procedures & calculation for flow rate adjustment (equipment stopped) 23 & 24
Procedures and calculation for flow rate adjustment 25
Distribution tables 26 to 36
Troubleshooting guide 37
Operations - Important points 38
7. Maintenance 39 to 42
Lubrication 39
Gearbox 40
Changing the plates 41
Stirrer maintenance 42
DCA 1200 storage 42
8. Important 43
9. Notes 44

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
General information
Important
To the owner
Right and left hand side indication is made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
The acquisition of any TATU product assures to the original purchaser the following
rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must transport, operate and carry out any maintenance on them;
• Marchesan is not responsible for any damage caused by accident on
transporting, incorrect utilization or inadequate storage, either by
negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment or any part thereof which
has been altered elsewhere than at the place of manufacture or which the
original purchaser thereof at retail has used or allowed to be used parts,
not made or supplied by Marchesan S/A.
NOTE

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
To the operator
Dear operator!
Respect the ecology. Do not throw trash away. This gesture of
goodwill helps to protect our environment.
Working safely
• Security aspects must be carefully observed to avoid accidents.
• This symbol is a warning used to prevent accidents.
• The instructions near this symbol refers to the safety of the
operator or third parties, therefore it should be carefully read
and observed. When the safety instructions are not being
followed, a serious accident or even death may occur.
Read and understand the information before making any
adjustment or maintenance.
Be careful with the environment
The DCA 1200 is simple to operate, requiring however the
basic and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during transportation, maintenance and
storage.
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.
Products such as oil, fuel, filters, batteries and others are
spilt over the soil and can penetrate to the underground layers,
compromising nature. Ecological and conscious disposal of them
should be done.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause several injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean and free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out maintenance operations
or to transport the equipment.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play near or over the equipment while it is operating,
during transportation or storage.
• Have full knowledge of the soil before starting to work. Provide the delineation
of obstacles or hazardous locations. Use the speed which is suitable to the
conditions of the ground or pathways to be covered.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Never operate the equipment without its proper protective devices.
• Be careful while hitching the equipment to the tractor.
• Wear protective gloves to work near the disc blades.
• Never attempt to change the adjustments, clean or lubricate the equipment
while it is moving.
• Carefully check the transport width on narrow locations.
• When setting the spreader to transport position, check if there are no people
or animals close or under the equipment.
• In case of emergency, know how to stop the tractor and equipment quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Only drive the equipment using tractors with appropriate power.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers at hands.
• Do not allow people or animals to get under the equipment at any time.
• Whenever you unhitch the equipment, either in the field or shed, do it on a
flat and firm surface and use the parking jacks. Make sure the equipment is
properly supported.
• We suggest that you carefully read the manual, as it will be a guide for
periodic verifications that need to be done and will allow that you assure the
maintenance of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be
done on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.
• When lifting with a hoist, use the appropriate points to lift.
• Underpin the equipment appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place,
are clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment on truck or trailer. If necessary use banners, lights
and other devices in order to give adequate warning to the other drivers.
Transportation over truck or trailer
To the operator

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
To the operator

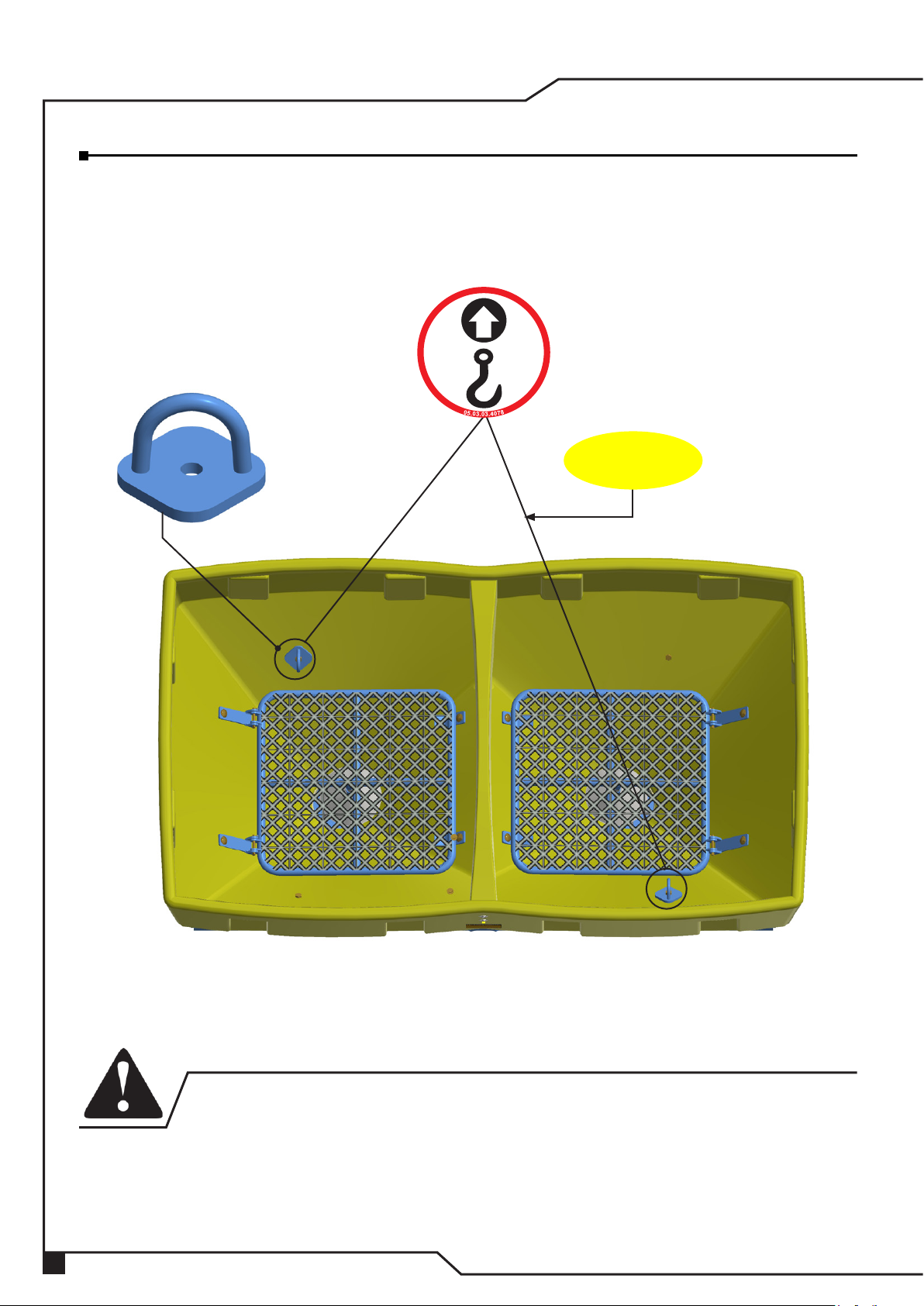

Lifting points
The equipment has adequate lifting points, located inside the bin. When carrying out
any maintenance or transporting the spreader, make sure to use all points.
3 meters long3 meters long
(minimum)(minimum)
Use chains, of at least 3 meters long, to lift the equipment safely.
Use the adequate points for lifting and be sure that the equipment is
safe. Avoid accidents.
Always keep a safe distance from the equipment.

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
To the operator
The safety decals warn about the equipment points that require more attention and they
should be kept in good repair. If these decals become damaged or illegible, replace them.
Marchesan provide decals, upon request and indication of the respective serial number.
Safety decals
AATTEENNÇÇÃÃOO
AATTTTEENNTTIIOONN
AATTEENNCCIIÓÓNN
05.03.03.1428
Leia o manual antes de iniciar o
uso do equipamento.
Read the manual before attempting
to work with the equipment.
Lea el manual antes de iniciar el
uso del equipo.
LUBRIFICAR E REAPERTAR DIARIAMENTE
LUBRICAR Y REAPRETAR DIARIAMENTE
L U B R I C AT E A N D T I G H T E N D A I LY
05.03.03.1827
Model Serial number
DCA 1200 05.03.06.1053
Decal set
AATTEENNÇÇÃÃOO
AATTTTEENNTTIIOONN
AATTEENNCCIIÓÓNN
554400 RRPPMM
05.03.03.2949
E s t e e q u i p a m e n t o é f a b r i c a d o p a r a
o p e r a r a 5 4 0 R P M n a T D P. To d a s a s
c a p a s d e p r o t e ç ã o d o s c a r d a n s
d e v e m s e r m a n t i d a s n o l o c a l .
This equiment is designed to operate at
540 RPM maximum tractor PTO speed.
All drive line shields must be kept in
place.
Este equipo es fabricado para operar
a 5 40 RP M en la TDP. Todas las capas
de protección de los cardanes deben
ser mantenidas en el local.
PPEERRIIGGOO
DDAANNGGEERR
PPEELLIIGGRROO
05.03.03.1859
Não se aproxime quando o
equipamento estiver em
funcionamento.
No se aproxime cuando
el equipo este en
funcionamiento.
Ne v er c o me cl o se r t o th e
eq u ipm e nt whe n it is i n
operation.
DISCOS ROTATIVOS
DISCOS ROTATIVOS
R O T A T I N G D I S C S

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Data sheet
ATTENTION •Before operating the spreader, please check the following points:
•Make sure the bin is clean and without impurities inside it.
•Check the oil level of the gearbox. In order to do so, put the equipment
on a flat and horizontal place and remove the plugs (A) to check the
oil. The boxes should be filled with oil in the same level of the height
of the plug or to a minimum volume of 300 ml at side boxes and 600
ml at the central boxes.
•Use only SAE 90 EP oil.
Model ............................................................................................................. DCA 1200
Load / Capacity: .................................................................................. 1.10 m³ / 1200 kg
Working width: ........................................................................................ up to 16 meters
Hitching: .............................................. Hydraulic system on the 3-point hitch, category II
Rotation (Tractor PTO):.......................................................................................540 rpm
Length: .................................................................................................................1.30 m
Width:................................................................................................................... 2.11 m
Weight:................................................................................................................ 370 Kg
Minimum required tractor power:.............................................................................60 hp
AA
AA
AA

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Data sheet

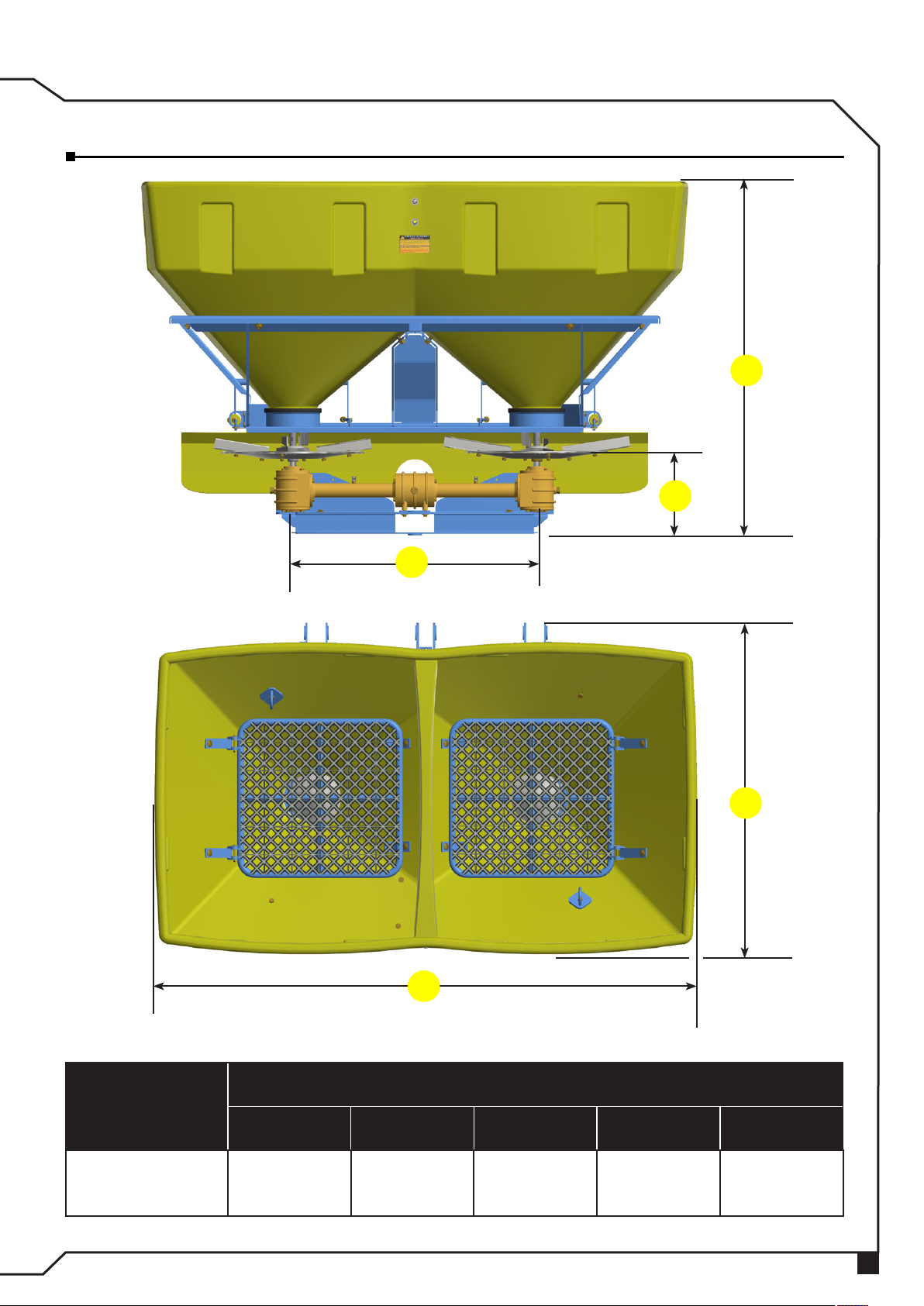

General dimensions
Model
Dimensions (mm)
A B C D E
DCA 1200 320 1360 940 1300 2111
DD
EE
AA
BB
CC

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Components
01 - Bin 06 - Stirrers
02 - Frame 07 - Metering system
03 - Gearbox 08 - Protective grid
04 - Spreader plates 09 - Protective funnel
05 - Paddles
0101
0808
0606
0909
0303
0404
0505 0707
0202

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Set-up instructions
Hitching to the tractor
For hitching, choose a place as flat as possible.
Drive the tractor in reverse gear in the spreader direction and be ready to brake. When
you get close to the spreader use the lever to control the position of the hydraulic
system, positioning the lower left arm at the same level of the spreader hitching pin.
1) Hitch the lower left arm and place the cotter pin (A).
2) Hitch the upper arm (third point) and place the cotter pin (B).
3) Hitch the lower right arm, which have up and down movements by the leveling
crank. At this moment, the extended thread from the upper arm (third point) can be
used to move the spreader closer or farther from the tractor, making it easier to hitch.
Preparing the tractor
The addition of water ballasts on the tires and a set of weights on the front part or on
the rear wheels of the tractor are the most used ways to increase soil traction and to give
a greater stability to the tractor. Check if the tractor is in full conditions before using it.
The following instructions must be carefully observed in order to assure the best
performance during the job.
Right lower hitchRight lower hitch
Third pointThird point
upper hitchupper hitch
Left lower hitchLeft lower hitch
BB
AA

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Set-up instructions
For a perfect hitching the spreader should be centered with the tractor, which is done
as follows:
• Align the spreader front hitch with the third point of the tractor.
• Totally lift the spreader.
• Check if the distances between the lower arms and the tires are the same on both
sides (as "A" in the figure below) and they should be leveled.
NOTE Never adjust the lower arms of the hydraulic system if the spreader is in a
lowered position.
AAAA

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Set-up instructions
Height adjustment and horizontal leveling
The working adjustment of the DCA 1200 is determined by having as reference the
distance of the spreader plates from the ground which is 80 cm.
Once the working height of the spreader plates is defined, adjust it in such a way that
when viewed from the side and from behind the equipment is in a horizontal position and
centered with the tractor, keeping the 80 cm distance of the spreader plates from the ground.
80 cm80 cm
80 cm80 cm

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Set-up instructions
Cardan shaft coupling to the power take-off
Before starting operations, check the length of the cardan shaft based on the tractor,
as well as on its proper assembly.
• Being the spreader properly hitched to the tractor (but with the cardan uncoupled),
move the hydraulic system to find the minimum distance (A) between the power take-off
and the spreader.
• Remove the "female" part from the cardan shaft and couple it to the PTO.
• Then, position it over the "male" part as if it were coupled and check the dimensions.
AA
5 cm5 cm
5 cm5 cm
Reducing the cardan shaft length
If necessary, cut similar parts of the "male" and "female" shaft, as well as the protective
covers. But before cutting, check every possibility of using the cardan without reducing its
length. Check if the drawbar has adjustments.
The length adjustment will be done when the distance between the equipment and
tractor does not allow coupling. Proceed as follows:
• First of all, disassemble the protective covers.
• Cut the hub and the solid bar (male and female) in the
desired measures. In order to do so, couple half of the cardan
shaft to the tractor and the other half to the equipment, placing
the semi-cardans in parallel and in several operating positions.
Then, determine the correct length and mark the cutting area.
• It is important to give finish working in the cut parts.
For this purpose, use a filer. Soon after, remove the filing
and lubricate the "male" with a fine layer of grease.

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA 1200DCA 1200
Set-up instructions
• Decrease the length of both protective covers using
the cut tubes as a measure and clean the cut residues.
• Assemble the cardan shaft according to the
assembly instructions.
• When using another tractor, verify the length of the
cardan shaft again.
NOTE The contact surface between the tube and bar shall not be smaller than 1/3
of the total length.
1/31/32/32/3
Drawbar displacement
The tractor drawbar should
be displaced to the side in
order to make free room for the
cardan shaft while lowering the
equipment.
Proper assembly of the cardan shaft
When assembling the cardan,
note the correct alignment at both
ends. The wrong assembly causes
excessive vibration and damage
the transmission, thus reducing
the lifetime of the set.
Correct assemblyCorrect assembly
Aligned internal forksAligned internal forks
Incorrect assemblyIncorrect assembly
Unaligned internal forksUnaligned internal forks
NOTE When fixing the cardan shaft to the tractor PTO, fasten the chain on a fixed
point of the tractor so that the cardan cover do not turn and thus do not get
loose during maneuvers.

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
DCA 1200DCA 1200
Set-up instructions
Positioning and placing the control to the tractor
The dual manual control (A) is used for opening and closing the gates and should
be fastened to the tractor in a comfortable position to the operator. The bracket is usually
fastened over the right wheel fender, using the control valve fastener (B).
The cables (C) should allow total lowering of the equipment to the ground,
without the cables being completely or excessively stretched.
NOTE
Flow activation system
The system activation is done by the dual manual control, and the opening adjustment
is done by spindles and injected nylon nuts that allow a fine flow adjustment and application
on just one side for finish working, if necessary.
AA
BB
CC
AdjustmentAdjustment
stopstop
ReadoutReadout
positionposition
HigherHigher
flow rateflow rate
LowerLower
flow rateflow rate
