IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
Introduction
The DCA² MC models perform an uniform distribution of dry and
humid limestone, granulated or powdered fertilizer, gypsum,
seeds and other products.
DCA² MC 2500, DCA² MC 5500, DCA² MC 7500 and DCA²
MC 10500 models have cardan shafts and belt transmission to
activate the conveyor and the rotating discs.
The DCA² MC 2500 feature a fixed wheelset with 2tires.
The wheelset tandem type (DCA² MC 5500, DCA² MC 7500 and
DCA² MC 10500) have four tires that precisely follow the soil
profile.
The conveyor is made of carbon steel and has tighteners to
adjust the tension.
The opening of the dosing gate features a graduated scale and
easy adjustment to distribute several quantities.
The fins are adjustable on the discs, performing an adequate
distribution of different products.
This operator's manual contains the necessary information for the
best performance of this spreader. The operator must carefully
read the entire manual before working with the equipment. Also,
read and understand the safety recommendations.
For any further clarification or in the event of technical problems
that may arise during the service, consult your dealer and the
Technical Support department of the factory. They can ensure
the fully functioning of your TATU spreader.

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
2DCA² MC 2500, 5500, 7500 & 10500
Table of contents
1. To the owner 3
2. To the operator 4 to 12
3. Data sheet 13 to 15
4. Components 16 to 21
5. Assembly 22 to 24
6. Set-up instructions 25 to 33
Preparing the tractor / Preparing the equipment 25
Hitching to the tractor 26 & 27
Coupling the cardan shaft to the PTO 28
Reducing the cardan shaft length 29
Cardan shaft assembly / Cardan working angle 30
Jack position for working or transportation 31
Equipment leveling / Deflector use / Tractor speed 32
PTO rotation / Final inspection 33
7. Adjustments and operations 34 to 49
Speed of the rotating discs / Conveyor speed (cardan shaft) 34
Speed of the rotating discs / Conveyor speed (hydraulic motor) 35
Sprockets change (cardan shaft) 36
Sprockets change (hydraulic motor) 37
Fins position on the discs 38
Distance between distribution bands / Flow divider adjustment 39
Gate opening 40
Application tables 41
Dry limestone / Granulated fertilizer distribution tables 42 & 43
Calculation for different distributions 44
Conveyor tension adjustment 45
Belt tension adjustment 46
Changing the belt of the rotating discs 47
Operations - Important points 48
Troubleshooting guide 49
8. Optional 50 & 51
Directioner 50
Damper 51
9. Maintenance 52 to 62
Lubrication / Lubricate every 24 hours of service 52 & 53
Filtering element replacement indicator / Replacing the filtering element 54 & 55
Belt replacement 56
Rotating discs maintenance 57
Periodic maintenance 58
Tires replacement 59
Spreader storage 60
Tires inflation 61
Hydraulic safety 62
10. Important data 63
11. Important 64

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
General information
Important
To the owner
The acquisition of any Tatu product assures to the original purchaser the following
rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must transport, operate and carry out any maintenance on them;
• Marchesan is not responsible for any damage caused by accident
on transporting, incorrect utilization or inadequate storage, either
by negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
The warranty shall not be applied to any equipment or any part thereof which
has been altered elsewhere than at the place of manufacture or which the
original purchaser thereof at retail has used or allowed to be used parts, not
made or supplied by Marchesan.
NOTE
Right and left hand side indication are made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
4DCA² MC 2500, 5500, 7500 & 10500
To the operator
Working safely
Be careful with the environment
Dear operator!
Respect the ecology. Do not throw trash away. This gesture of
goodwill helps to protect our environment.
Products such as oil, fuel, filters, batteries and others are
spilt over the soil and can penetrate to the underground layers,
compromising nature. Ecological and conscious disposal of them
should be done.
This equipment is simple to operate, requiring however the basic
and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during work, transportation, maintenance
and storage.
• Security aspects must be carefully observed, to avoid
accidents.
• This symbol is a warning used to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator, mechanician or third parties, therefore they should
be carefully read and observed. If the safety instructions are
not being followed, a serious accident or even death may
occur.
Read and understand the information before making any
adjustment or maintenance.
Have extreme caution when operating with the power take-off
(PTO), which you should not get closer during operation.
When hitching the equipment to the tractor, use a chain to
lock the equipment drawbar to the tractor hitch bar. This procedure
will prevent a possible rupture of any hydraulic hose or breaks on
the hitching system, what would make the equipment tilt up.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads.
Avoid that the tractor wheels touch the drawbar in sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out any maintenance or to
transport the equipment.

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
6DCA² MC 2500, 5500, 7500 & 10500
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed in the tractor.
• Do not allow children to play or to get over the equipment while it is operating,
during transportation or storage.
• When setting the equipment to transport position, check if there are no people
or animals close or under it.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Wear protective gloves to work near the cutting parts.
• Never operate the equipment without its protective devices.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground or pathways to be covered. Provide the
delineation of obstacles or hazardous locations.
• Carefully check the transport width on narrow locations.
• Be careful while hitching the equipment to the tractor.
• Only pull the equipment using a tractor with appropriate power.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers in hands.
• In case of emergency, know how to stop the tractor and equipment quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Never attempt to change the adjustments, clean or lubricate the equipment while
it is moving.
• Whenever you unhitch the equipment, either in the field or shed, do it on a
flat and firm surface and use jacks. Make sure that the equipment is properly
supported.
• We suggest that you carefully read the manual, as it will be a guide for periodic
verifications that need to be done and will allow that you assure the maintenance
of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
Transportation over truck or trailer
To the operator
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.
• When lifting with a hoist, use the appropriate points to lift.
• Underpin the equipment wheels appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place, are
clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment on truck or trailer. If necessary use banners, lights
and other devices in order to give adequate warning to the other drivers.

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
8DCA² MC 2500, 5500, 7500 & 10500
To the operator
Working safety standards
It is important to have knowledge not only about the functioning, operation of the
equipment and its technology, but also about the working legal aspects when using the
equipment, such as safety standards, operator's manual and working safety.
The equipment and tools used on the rural area must be properly handled, otherwise
health and safety of involved personnel may be compromised.
The operator must be capable and authorized to operate the tractor, meaning that the
person must comprehend the functioning instructions of the tractor and know about the
safety standards related to the job that will be performed.
The Ministry of Labor and Employment created safety standards that aim to decrease
the risk of accidents that may occur to the rural worker. Related to the subject of agicultural
machines and equipments, we specifically mention the NR 06, NR 12 and NR 31 standards.
Regulatory Standard - NR 06:
• For purposes of applying this Regulatory Standard, Personal Protective Equipment
(PPE) is considered any device or product that is worn by an individual worker for protection
against risks that could threaten safety and health at work.
Regulatory Standard - NR 12:
• This Regulatory Standard and its annexes provide technical references, basic
principles and protective measures to ensure the health and physical integrity of workers,
and establishes minimum requirements for the prevention of accidents and occupational
diseases in the design stages and use of machinery and equipment of all kinds, and also to
its manufacture, importation, trading, exhibition and cession in any way. It is understood to
be used to the construction, transportation, assembly, installation, adjustment, operation,
cleaning, maintenance, inspection, disabling and dismantling of machinery or equipment.
Regulatory Standard - NR 31:
• This Regulatory Standard has the purpose to establish the precept to be applied on
the organization and on the working environment, in order to make compatible the planning
and development of agriculture, livestock, forestry, forest exploration and aquaculture with
safety in the working environment.

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
To the operator
Lifting points
This equipment has adequate lifting points. When lifting with the help of a hoist, it is
essential to hitch the cables to these points.
• Use chains, of at least 3 meters long, to lift the equipment safely.
• Use the adequate points for lifting and be sure that the equipment is safe.
Avoid accidents.
• Always keep a safe distance from the equipment.
• The hooks are used to place the covering ply over the bin only.
• Never lift the equipment by their lateral hooks.
HookHook
HookHook

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
10 DCA² MC 2500, 5500, 7500 & 10500
To the operator
The safety decals warn about the equipment points that requires more attention and
they should be kept in good repair. If the decals become damaged or illegible, replace them.
Marchesan provide decals, upon request and indication of the respective serial number.
Safety decals
PPEERRIIGGOO
DDAANNGGEERR
PPEELLIIGGRROO
05.03.03.1859
Não se aproxime quando o
equipamento estiver em
funcionamento.
No se aproxime cuando
el equipo este en
funcionamiento.
Never come closer to the
equipment w h e n it i s in
operation.
DISCOS ROTATIVOS
DISCOS ROTATIVOS
R O T A T I N G D I S C S
A
A
T
T
E
E
N
N
Ç
Ç
Ã
Ã
O
O
/
/
A
A
T
T
T
T
E
E
N
N
T
T
I
I
O
O
N
N
/
/
A
A
T
T
E
E
N
N
C
C
I
I
Ó
Ó
N
N
CHECK THE DRIVE SHAFT LENGTH BEFORE USING THE
EQUIPMENT WHENEVER ANOTHER TRACTOR IS CHOOSEN.AND
05.03.03.1809
5
5
c
c
m
m
5
5
c
c
m
m
VERIFIQUE O COMPRIMENTO DO EIXO CARDAN ANTES DE INICIAR
O USO DO EQUIPAMENTO E TODA VEZ QUE TROCAR O TRATOR.
• Separe o macho da fêmea, e acople a TDP.
• Posicione o trator esterçado até que o pneu toque o cabeçalho.
• Verifique se existe uma folga mínima de 5 centímetros em cada extremidade.
Se necessário, corte partes iguais do macho e da fêmea, bem como das proteções.
• Dê acabamento nas partes cortadas. Limpe e lubrifique o macho.
VERIFIQUE LA LONGITUD DEL EJE CARDAN ANTES DE EMPEZAR
EL USO DEL EQUIPO Y SIEMPRE QUE UTILIZAR OTRO TRACTOR.
• Separe el macho de la hembra y acóplelo a la toma de potencia.
• Posicione el tractor hasta que el neumático toque la lanza.
• Verifique que haya un juego mínimo de 5 cm en cada extremidade. Se necesario,
cortar partes iguales del macho e de la hembra así como de las capas protectoras.
• Dar el acabo en las partes cortadas. Limpie y lubrique el macho.
• Separate the male and female, couple it to PTO.
• Position the tractor in an angle up to the tire touches the drawbar.
• Check the existence of a minimum free space of 5 cm at the ends. If necessary
cut similar parts from the male and female, as well as from the protections.
• Make finish working in the cut parts. Clean and lubricate the male bar.

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
To the operator
05.03.03.2425
Risco de acidente por TOMBAMENTO.
Nunca desacoplar o equipamento com
produto na caçamba.
Riesgo de accidente por VOLTEO.
Nunca desacoplar el equipo con
producto en la tolva.
Risk of accident from tipping over.
Never disconnect the equipment
when the bin is loaded.
AATTEENNÇÇÃÃOO
AATTTTEENNTTIIOONN
AATTEENNCCIIÓÓNN
Safety decals
AATTEENNÇÇÃÃOO
AATTTTEENNTTIIOONN
AATTEENNCCIIÓÓNN
554400 RRPPMM
05.03.03.2949
E s t e e q u i p a m e n t o é f a b r i c a d o p a r a
o p e r a r a 5 4 0 R P M n a T D P. To d a s a s
c a p a s d e p r o t e ç ã o d o s c a r d a n s
d e v e m s e r m a n t i d a s n o l o c a l .
This equiment is designed to operate at
540 RPM maximum tractor PTO speed.
All drive line shields must be kept in
place.
Este equipo es fabricado para operar
a 5 40 RPM en la TDP. Todas las capas
de p rote cción de los cardan es d eben
ser mantenidas en el local.
05.03.03.1818
1
1
º
º
2
2
º
º
4
4
º
º
3
3
º
º
B
B
E
E
F
F
A
A
D
D
C
C
INSTRUÇÕES PARA
TROCA DA CORREIA
Afrouxe o esticador (A) e a porca (B)
da polia, retirando a correia.
Sequência de Colocação da Correia:
O ajuste do esticador deve permitir
uma deformação de 3,5 cm, quando
pressionada.
1º) Po sicione a c orreia no c ubo de
transmissão (C).
2º) Passe a parte inferior da correia
na polia do distribuidor direito (D).
3º) Depois faça a torção da correia e
passe-a na polia do distribuidor
esquerdo (E).
4º) Passe-a por último na polia maior (F).
Faça o ajuste do esticador (A) e
reaperte a porca (B) da poli a.
Tensão da Correia:
INSTRUCCIONES PARA
CAMBIO DE LA CORREA
Suelte el tensor (A) y la tuerca (B) de
la polea. Retire la correa.
Procedimientos para montaje de
la correa:
El ajuste del tensor debe permitir
una flexión de 3,5 cm, cuando
presionada.
1º) Ubique la correa en la polea de
guía (C).
2º) Pase la parte inferior de la correa en
la polea del distribuidor derecho (D).
3º) Después, haga la torsión de la
correa y póngala en la polea del
distribuidor izquierdo (E).
4º) Por último, ponga la correa mayor
(F). Ajustar el tensor (A) y reapretar
la tuerca (B) de la polea de tensión.
Tensión de la Correa:
BELT REPLACEMENT
INSTRUCTIONS
Lo os en t he t ig ht en er (A) and the
nu t (B) f ro m the tension pulley.
Re mo ve t he b el t.
Procedures to Assembly the belt:
The tightener adjustment must
provide a 3,5 centimeter strain
rate, when the belt is forced.
1st) Plac e th e b e l t i n t h e g u i d e
pulley (C).
2nd) Place the lower belt half in the
right guide pulley (D).
3rd) Then, make the belt torsion and
place it in the left guide pulley (E).
Belt Tension:
4th) Finally, place the belt in the tension
pulley(F).
Adjust the tightener (A) and fasten the
nut (B) from the tension pulley.

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
12 DCA² MC 2500, 5500, 7500 & 10500
To the operator

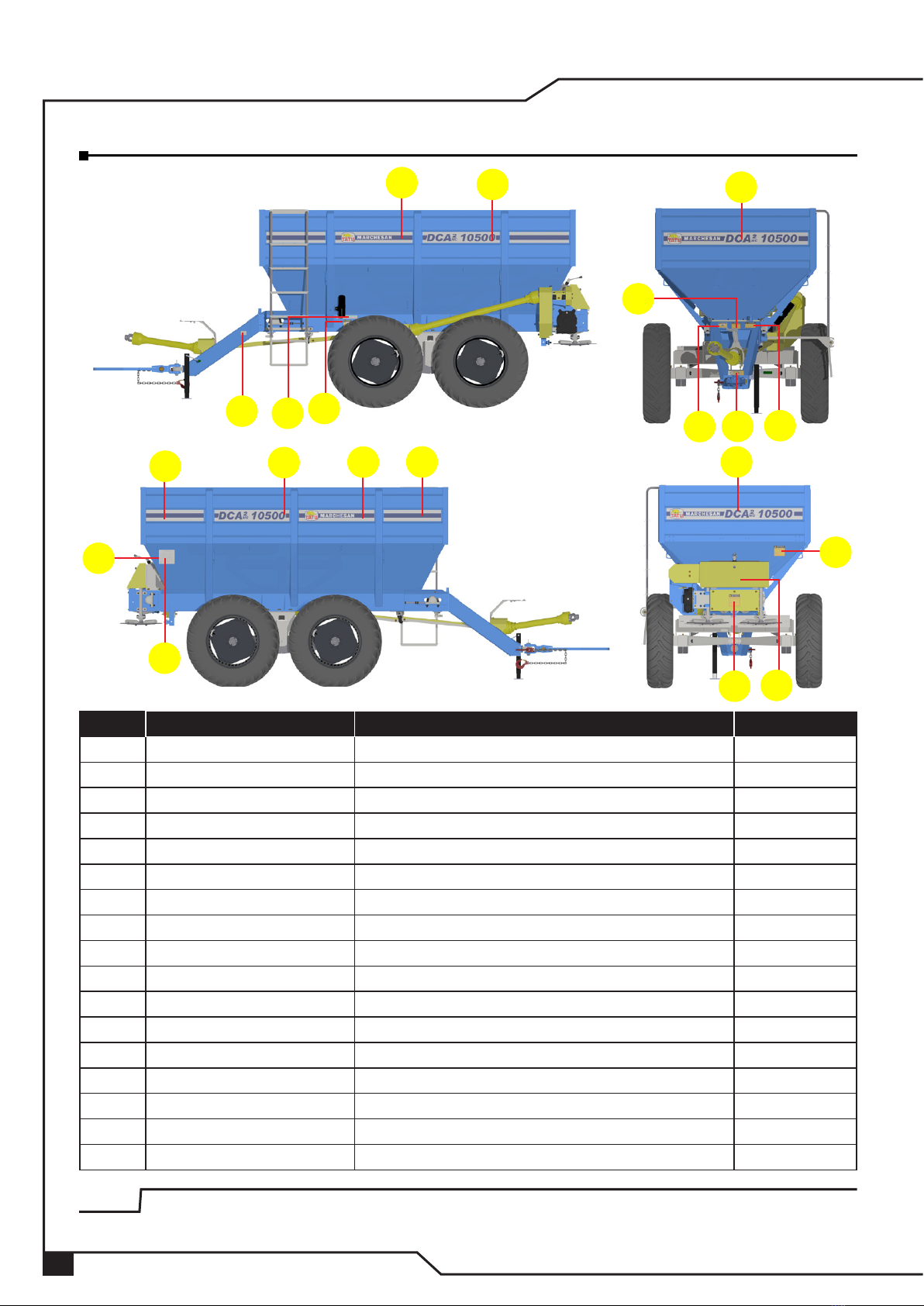

Decal spots
BB
FF
IIDD
HH
GG
EE
AA
A1A1
KK
CCJJ
CC
A1A1 A2A2
A2A2 AA
LL
A3A3
A3A3
Item Serial number Description Quantity
A /A1 05.03.06.0808 DCA² MC 2500 decal set 01
A /A1 05.03.06.0809 DCA² MC 5500 decal set 01
A /A1 05.03.06.0810 DCA² MC 7500 decal set 01
A /A1 05.03.03.4393/4394 DCA² MC 10500 decal 02
A2/A3 05.03.03.4392/4395 DCA² MC 10500 decal / Marchesan logotype 04
B 05.03.03.1428 Read the manual decal 01
C 05.03.03.1859 Danger decal 02
D 05.03.03.1809 Limestone spreader decal 01
E 05.03.03.2425 Risk of accident decal 01
F 05.03.03.1827 Lubricate and tighten daily decal 01
G 05.03.03.2949 540 RPM decal 01
H 05.03.03.1427 PTO decal 01
I 05.03.03.1087 Final test decal 01
J 05.03.03.1818 Belt replacement decal 01
K 05.03.03.1048 Dry limestone distribution decal (7 mts) 01
L 05.03.03.5157 Dry limestone distribution decal (14 mts) 01
* 05.03.03.4648 Grip coupler colors decal 01
NOTE * This item can be found on the model with hydraulic motor.

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
Data sheet
DCA² 2500 MC
Type: ............................................................................Limestone and fertilizer spreader
Model: ........................................................................................................... DCA²2500
Load capacity: ...................................................................................................... 1.4 m³
Distribution of limestone: .................................................................... Up to 7,200 Kg/ha
Distribution width: ..................................................................................... 6 to 14 meters
Wheelset: ...............................................................................................................Fixed
Tires: ........................................................................................7.5 x 16 - 10 ply (60 PSI)
Optional tires: .................................................................. Check the tires inflation page
Standard conveyor:......................................................................................Carbon steel
Optional conveyor:....................................................................................Stainless steel
Hitching: .........................................................................Drawbar / Power take-off (PTO)
PTO rotation speed:............................................................................................540 rpm
Wheel gauge width (mm): ........................................................................................1510
Total length (mm):....................................................................................................3600
Total width (mm): .....................................................................................................1750
Total height (mm):....................................................................................................1650
Tractor required power (cv):................................................................................. 60 - 65
Weight (Kg): ..............................................................................................................794
DCA² 5500 MC
Type: ............................................................................Limestone and fertilizer spreader
Model: ...........................................................................................................DCA²5500
Load capacity: ....................................................................................................... 2.3m³
Distribution of limestone: .................................................................... Up to 7,200 Kg/ha
Distribution width: .....................................................................................6 to 14 meters
Wheelset: ...................................................................................... Rocker arm / Tandem
Tires: ........................................................................................7.5 x 16 - 10 ply (60 PSI)
Optional tires: .................................................................. Check the tires inflation page
Standard conveyor:..................................................................................... Carbon steel
Optional conveyor:....................................................................................Stainless steel
Hitching: .........................................................................Drawbar / Power take-off (PTO)
PTO rotation speed:........................................................................................... 540 rpm
Wheel gauge width (mm): ....................................................................................... 1620
Total length (mm):................................................................................................... 4120
Total width (mm): .................................................................................................... 1870
Total height (mm):................................................................................................... 1750
Tractor required power (cv):................................................................................. 70 - 85
Weight (Kg): ........................................................................................................... 1074

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
14 DCA² MC 2500, 5500, 7500 & 10500
Data sheet
DCA² 7500 MC
Type: ............................................................................Limestone and fertilizer spreader
Model: ........................................................................................................... DCA²7500
Load capacity: .....................................................................................................3.75 m³
Distribution of limestone: .................................................................... Up to 7,200 Kg/ha
Distribution width: ..................................................................................... 6 to 14 meters
Wheelset: ...................................................................................... Rocker arm / Tandem
Tires: ........................................................................................11L - 15 - 10 ply (44 PSI)
Optional tires: .................................................................. Check the tires inflation page
Standard conveyor:......................................................................................Carbon steel
Optional conveyor:....................................................................................Stainless steel
Hitching: .........................................................................Drawbar / Power take-off (PTO)
PTO rotation speed:............................................................................................540 rpm
Wheel gauge width (mm): ........................................................................................1545
Total length (mm):....................................................................................................4700
Total width (mm): .....................................................................................................1860
Total height (mm):....................................................................................................1840
Tractor required power (cv):................................................................................90 - 100
Weight (Kg): ............................................................................................................1196
DCA² 10500 MC
Type: ............................................................................Limestone and fertilizer spreader
Model: ......................................................................................................... DCA²10500
Load capacity: .................................................................................................... 5.25 m³
Distribution of limestone: .................................................................... Up to 7,200 Kg/ha
Distribution width: .....................................................................................6 to 14 meters
Wheelset: ...................................................................................... Rocker arm / Tandem
Standard tires:........................................................................12.4 x 24 - 10 ply (40 PSI)
Standard conveyor:..................................................................................... Carbon steel
Optional conveyor:....................................................................................Stainless steel
Hitching: .........................................................................Drawbar / Power take-off (PTO)
PTO rotation speed:........................................................................................... 540 rpm
Wheel gauge width (mm): ....................................................................................... 1870
Total length (mm):................................................................................................... 5100
Total width (mm): .................................................................................................... 2200
Total height (mm):................................................................................................... 2490
Tractor required power (cv):............................................................................. 100 - 120
Weight (Kg): ........................................................................................................... 1930

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
Data sheet
Dimensions for storage
Dimensions for storage (mm)
DCA² MC (A) (B) (C)
2500 3,640 1,780 1,670
5500 4,140 1,740 1,785
7500 4,745 1,860 1,870
10500 6,030 2,215 2,470
CC
BB
AA

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
16 DCA² MC 2500, 5500, 7500 & 10500

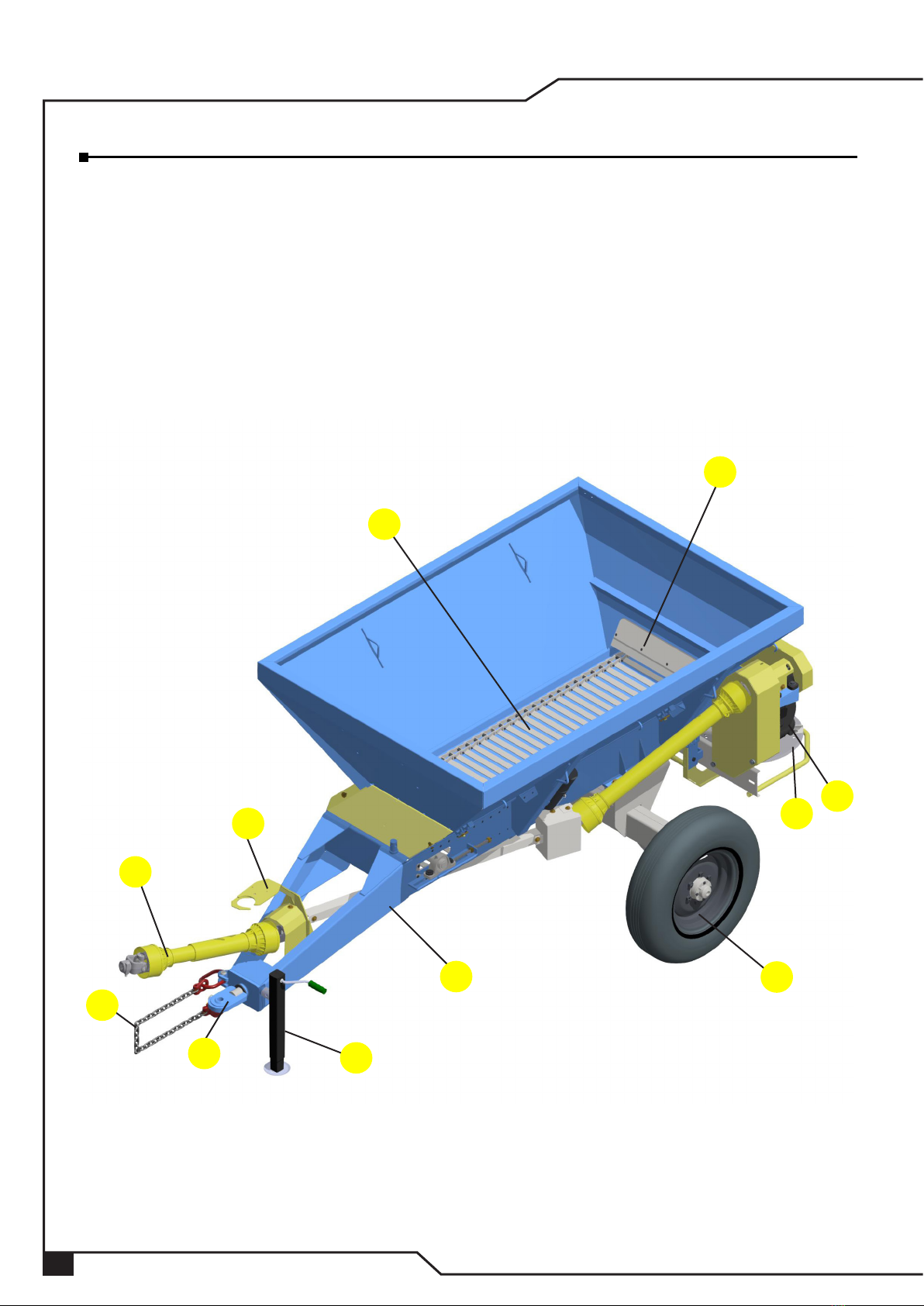

Components
DCA² MC 2500 - mechanical motor (cardan shaft)
01 - Frame and bin 02 - Jack
03 - Transmission system with cardan shaft 04 - Tractor hitch
05 - Wheelset 06 - Gearbox
07 - Conveyor 08 - Gate
09 - Rotating discs 10 - Safety chain
11 - Cardan support
0101
0707
0808
0909
0202
0303
1111
1010
0404
0505
0606

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. DCA² MC 2500, 5500, 7500 & 10500
Components
DCA² MC 5500 / DCA² MC 7500 - mechanical motor (cardan shaft)
01 - Frame and bin 02 - Jack
03 - Transmission system with cardan shaft 04 - Tractor hitch
05 - Wheelset 06 - Gearbox
07 - Conveyor 08 - Gate
09 - Rotating discs 10 - Safety chain
11 - Cardan support
0101
0202
0303
0404
0505
0606
0707
0808
0909
1010
1111

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
18 DCA² MC 2500, 5500, 7500 & 10500

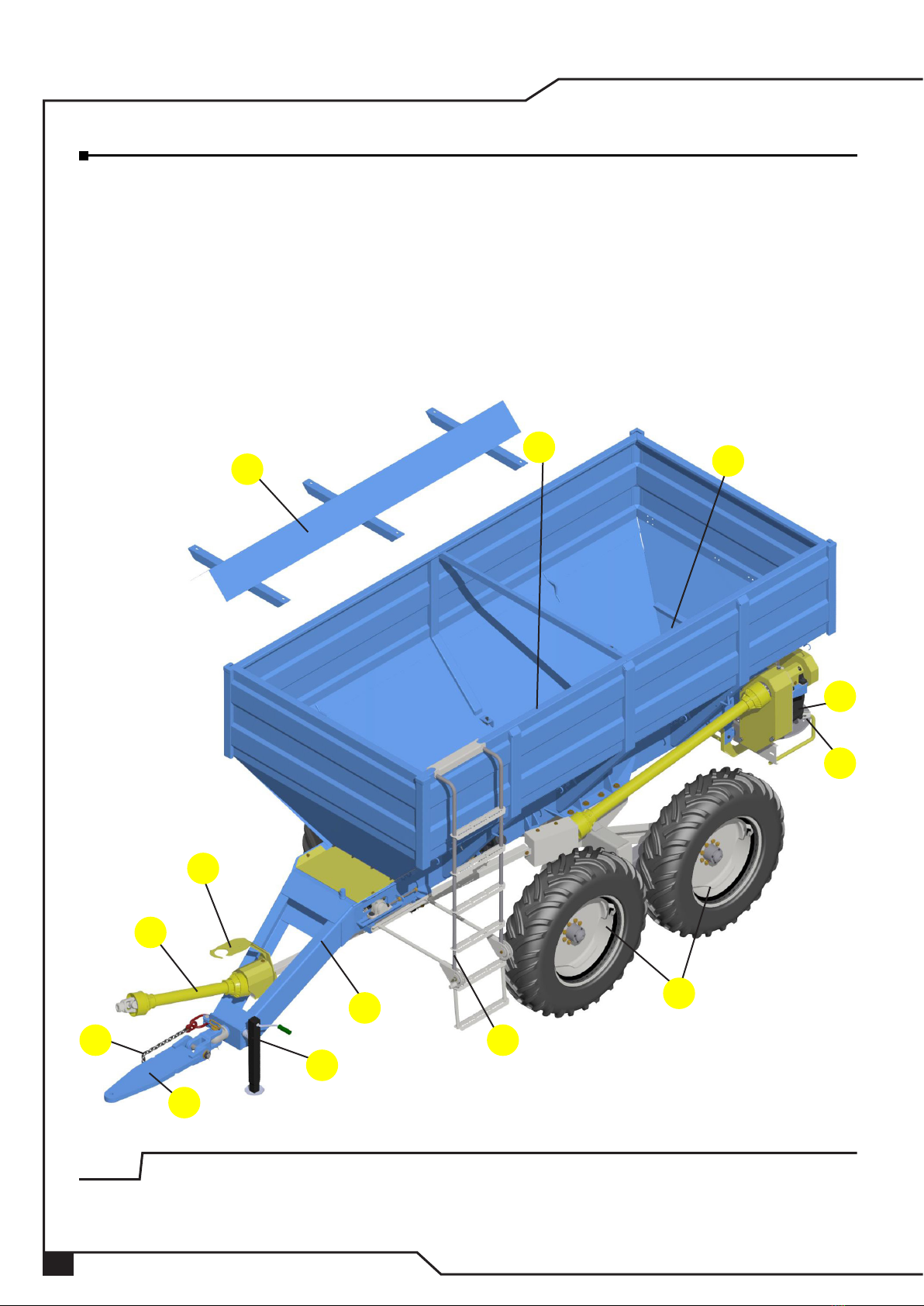

Components
DCA² MC 10500 - mechanical motor (cardan shaft)
• Deflector for the application of limestone, easily removable.
• Higher bin.
NOTE
01 - Frame and bin 02 - Jack
03 - Transmission system with cardan shaft 04 - Tractor hitch
05 - Wheelset 06 - Gearbox
07 - Conveyor 08 - Deflector
09 - Gate 10 - Rotating discs
11 - Safety chain 12 - Cardan support
13 - Ladder
0101
0202
0303
0505
0606
1010
0707
0808 0909
1111
1212
1313
0404
