Taurus T10.3 Pro User manual

TFT10.03.03
TF-T99-3-B
Assembly and Operating Instructions
Art. No. TF-T10.3PRO-3
Treadmill T10.3 Pro

T10.3 Pro
2

T10.3 Pro
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 13
3 OPERATING INSTRUCTIONS 19
3.1 Console display 19
3.2 Button functions 20
3.3 Fitness programmes 21
3.3.1 Quick Start 21
3.3.2 Manual programme 22
3.3.3 Low speed programme 22
3.3.4 Pre-set programmes 23
3.3.5 User-dened programmes 25
3.3.6 Heart rate-oriented programmes 26
3.3.7 Training programme 27
3.4 Body fat test 28
3.5 Bluetooth and tness apps 28
4 STORAGE AND TRANSPORT 30
4.1 General Instructions 30
4.2 Transportation Wheels 30
5 TROUBLESHOOTING, CARE AND MAINTENANCE 31
5.1 General Instructions 31
5.2 Faults and Fault Diagnosis 31
5.3 Care and Maintenance 32
5.3.1 Adjusting the Running Mat 32
5.3.2 Re-tensioning the Running Mat 33
5.3.3 Lubricating the Running Mat 33
5.4 Maintenance and Inspection Calendar 34
6 DISPOSAL 34

T10.3 Pro
4
7 RECOMMENDED ACCESSORIES 35
8 ORDERING SPARE PARTS 36
8.1 Serial Number and Model Name 36
8.2 Parts List 37
8.3 Exploded Drawing 42
9 WARRANTY 43
10 CONTACT 45

T10.3 Pro
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

T10.3 Pro
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

T10.3 Pro
7
1 GENERAL INFORMATION
1.1 Technical Data
LED display of
+ speed in km/h
+ training time in min
+ training distance in km
+ calories burnt in kcal
+ heart rate (when using the hand sensors or a chest strap)
+ incline in %
Motor output: 3.5 HP continuous output (AC motor)
Speed range: 0.5 - 24 km/h
Speed hot keys: 8
Incline range: 0 - 15 %
Incline hot keys: 8
Total number of training programmes: 33
Pre-set programmes: 20
Manual programmes: 1
Heart rate-oriented programmes: 3
User-dened programmes: 4
Running surface size (L x W): 160 cm x 56 cm
Weight and dimensions:
Article weight (gross, including packaging): 163 kg
Article weight (net, without packaging): 145 kg
Packaging dimensions (L x W x H): 226 cm x 90 cm x 41.5 cm
Set-up dimensions (L x W x H): 215 cm x 85 cm x 139 cm
Maximum user weight: 200 kg

T10.3 Pro
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart
rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

T10.3 Pro
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed to prevent improper use by
third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. In the
meantime, the equipment must not be used.
ATTENTION
+ The equipment requires a mains connection of 220-230V with 50 Hertz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16 amps, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.

T10.3 Pro
10
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms (ambient
temperatures between 10°C and 35°C). The equipment should not be used outdoors or in
rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

T10.3 Pro
11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as
otherwise there is a danger of suocation for children. Keep children away from the equipment
during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the
help of another technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

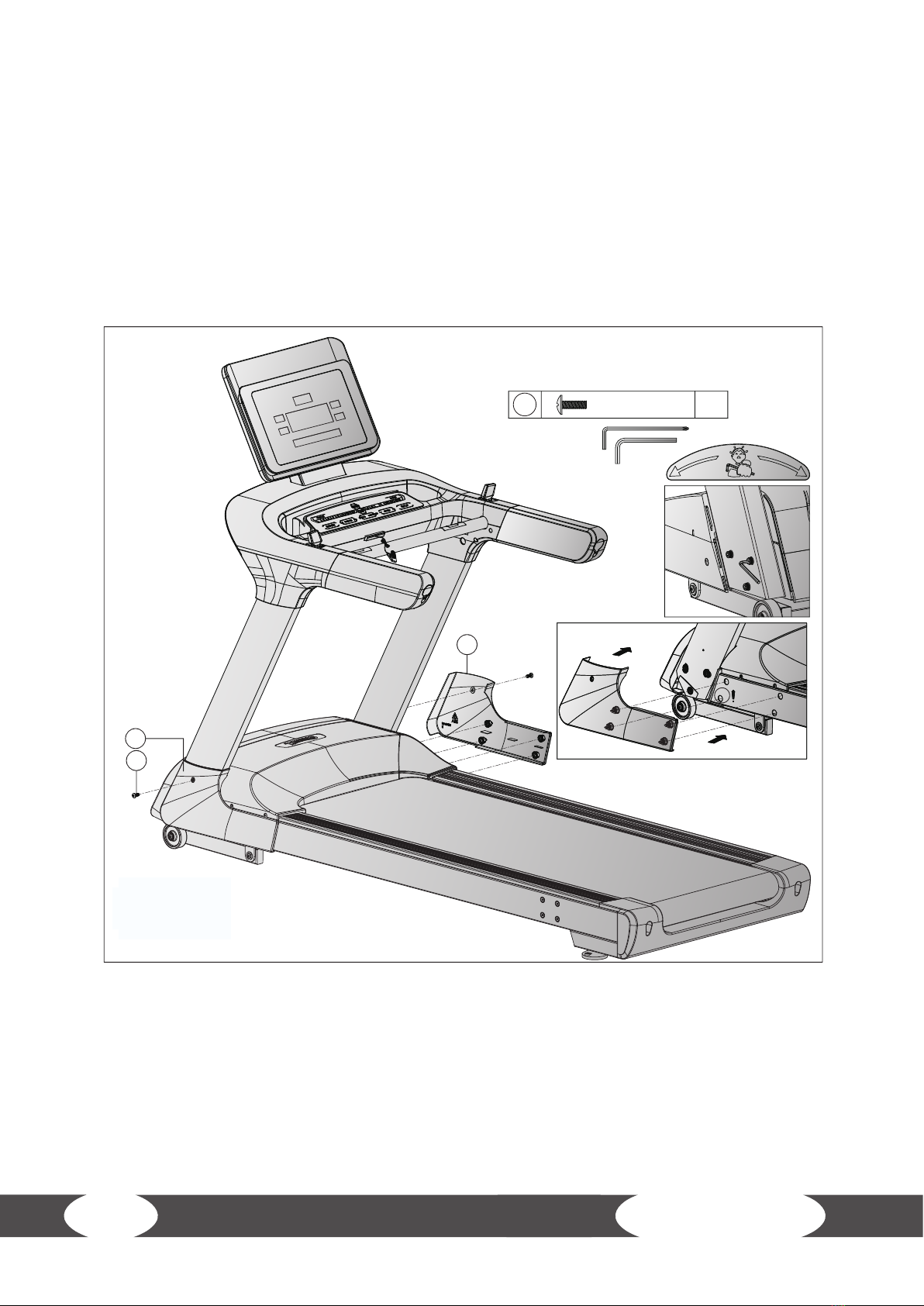

2 3
1
4
8L 8R
x1x1
x1
x1
126
x1
x1
84
x1
7
105L 105R
145
x1
KH-264D2
STEP1
10 M10*1.5*65L 6PCS
11 M5*0.8*15L 2PCS
91 M10*1.5*45L 4PCS
(mm)
STEP2
STEP4
STEP3
142
M8*1.25*15L 4PCS
143
15.4*8.2*2T 4PCS
27 16*8.5*1.2T 4PCS
11 M5*0.8*15L 4PCS
x1
T10.3 Pro
12
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

10
2
3
10
10
122
121
Step1
M10x1.5x65L
x6
M8
T10.3 Pro
13
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.
Step 1: Assembly of the handlebar posts
1. Connect the two cables (121 and 122) with one another.
ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the two handlebar posts (2 and 3) to the main frame (1) with six allen bolts (10).

Step2
a
105L
105R
121
120
b
91
91
M8
M10x1.5x45L
x4
T10.3 Pro
14
Step 2: Assembly of the handlebar
1. Slide the two covers (105L and 105L) downwards.
2. Connect the two cables (120 and 121) with one another.
ATTENTION
Be careful not to pinch the cables in the following step.
3. Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91).

11
105R
105L
27
142
143
142
143
27
27
142
143
142
143
27

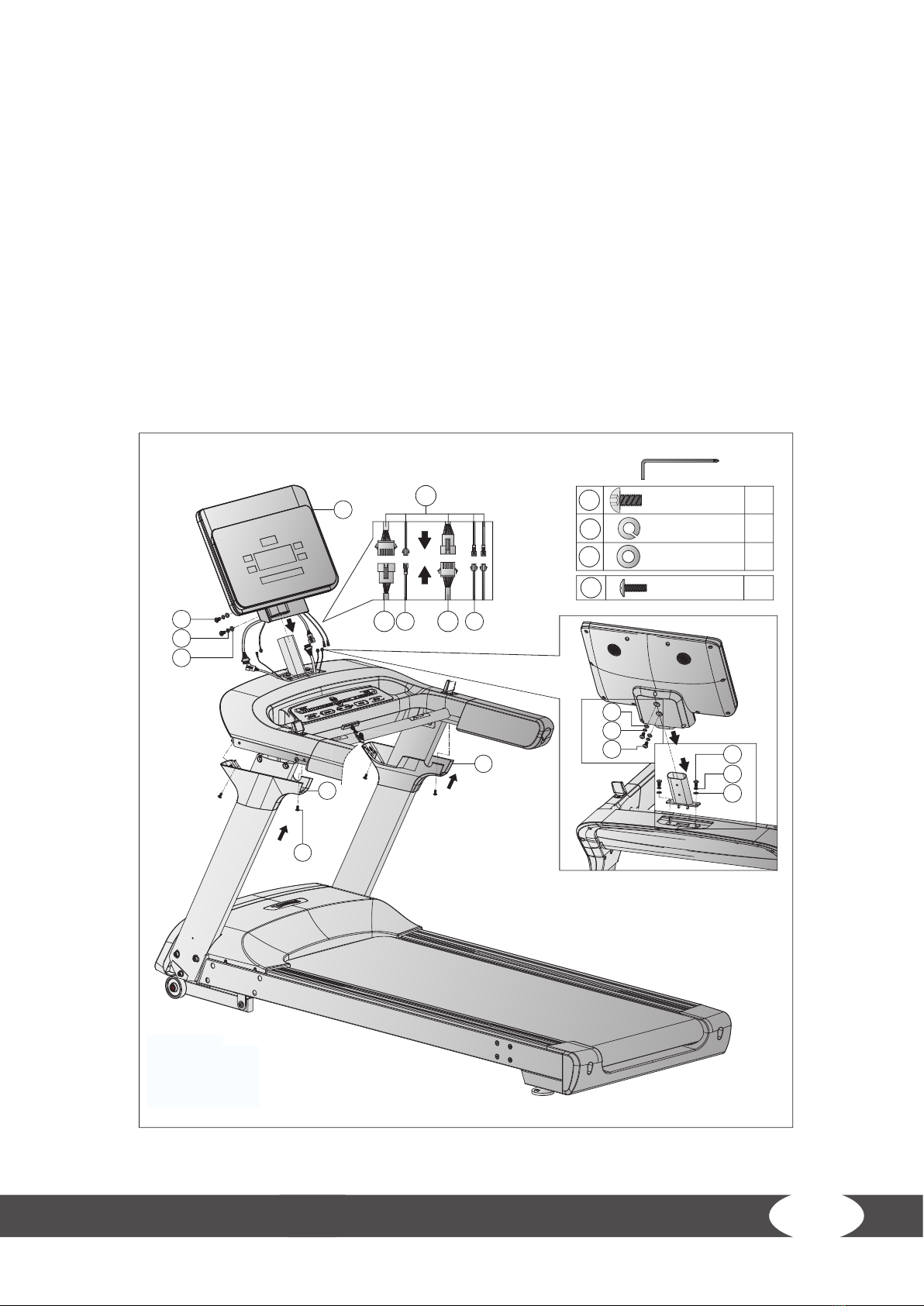

Step3
118 98 120 93
A
C
B
11
84 84
M8x1.25x15L
D16xD8.5x1.2T
x4
x4
x4
D15.4xD8.2x2T
M5x0.8x15L
x4
T10.3 Pro
15
Step 3: Assembly of the console
1. Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers
(143) and two at washers (27).
2. Connect the cables (93, 98, 118 and 120) with their counterparts of the console (84).
ATTENTION
Be careful not to pinch the cables in the following step.
3. Fix the console (84) to the supporting tube (7) with two allen bolts (142), two spring washers
(143) and two at washers (27).
4. Slide the covers (105L and 105R) upwards again and x them to the handlebar (4) with four
cross bolts (11).

Step4
11
8L
8R
a
b
M5x0.8x15L
x2
11
T10.3 Pro
16
Step 4: Finish the assembly
1. Tighten the six allen bolts (10).
2. Fix the covers (8L and 8R) to the main frame (1) by pressing the lugs on the inside of the covers
into the corresponding drill holes of the main frame until they engange audibly.
3. Finally x the covers (8L and 8R) to the handlebar posts (2 and 3) with two cross bolts (11).

T10.3 Pro
17
Step 5: Alignment of the feet
If the oor is uneven, you can stabilize the
treadmill by turning the two setting screws
under the main frame.
1. Lift the treadmill on the desired side and
rotate the setting screws under the main
frame.
2. Rotate the screws clockwise in order to
remove them and to raise the running
surface.
3. Rotate them counterclockwise in order
to lower the running surface.
Step 6: Connecting the equipment to the mains supply
ATTENTION
The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed
that the equipment will be supplied with sucient power. Technical errors can result.
Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical
safety.
Step 7: Using the holder for mobile devices
1. Place your mobile device onto the holder (C) above the console (84).
2. Pull out the xing hook (A) that is located on the back of the console cover and x it at the top
of your device.
LNOTICE
The scope of delivery contains a buer strap. This can optional be stuck between your device
and the console cover if there is knocking sound during workout. The buer strap has to be
stuck onto the top of the console cover.
Down Up

T10.3 Pro
18
LIMPORTANT NOTICE
To ensure that your treadmill has the latest software version, please perform an update
before using it for the rst time. Proceed as follows:
1. Tap "Settings" in the lower right corner of the screen.
2. Tap "Wireless" and connect your treadmill to the Internet.
3. Return to the settings.
4. Tap "System".
5. Tap "Start" to update the software.
Do not use or switch o the treadmill during the update.
Check whether another update is available and carry it out as described above at regular
intervals.

T10.3 Pro
19
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
SAFETY KEY
⚠WARNING
+ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment
can only be operated if the safety key is correctly attached to the contact point of the cockpit.
If the safety key is no longer on the contact point, the equipment automatically stops.
Therefore, the Safety Key cord with the clip must be attached to your clothing before every
training session. If you want to quickly stop the treadmill, if you can no longer control the
speed, or if another emergency occurs, remove the safety key from the cockpit using the cord.
+ To enable the safety key to detach from the contact point of the cockpit in the event of a fall,
the safety key clip must be rmly attached to your clothing!
+ Make sure that the safety key is not accessible to children.
3.1 Console display
INCLINE Indicates the current incline level between 1 - 15 %.
DISTANCE Indicates the covered distance between 0.0 - 9999 km.
TIME Indicates the already elapsed or remaining training time between 00:00
– 99:59 minutes.
PULSE Indicates your current heart rate between 40 - 220 bpm.
CALORIES Indicates the burnt calories between 0 – 999 Kcal.
HR Indicates the current heart rate accounts in dependence of the target
heart rate percentage.
SPEED Indicates the current speed between 0.5 - 24 km/h.

T10.3 Pro
20
3.2 Button functions
START With this button you can start a training programme.
When you are in the main menu, you can start your training via quick start.
When your training is paused, you can continue with your training by pressing
this button.
STOP With this button you can pause or end your training and return to the main
menu.
SPEED With these buttons you can adjust the speed. You can adjust the speed in four
ways:
1. The eight quick keys on the console (18/16/14/12/10/8/6/4). For example,
when you press on the 12 the treadmill will adjust the speed to exact 12
km/h.
2. The buttons on the console (+ and -)
3. The switch on the right handrail.
LNOTICE
If you tap on the little icon between the buttons on the touch screen, you
will be able to type in your desired speed.
INCLINE With these buttons you can adjust the incline. You can adjust the incline in three
ways:
1. The eight quick keys on the console (15/13/11/9/7/5/3/0). When you press
on the 11 the treadmill will adjust the incline to exact 11%.
2. The arrow buttons on the console.
3. The switch on the left handrail.
LNOTICE
If you tap on the little icon between the buttons on the touch screen, you
will be able to type in your desired incline.
COOL DOWN With this button you can start the cool down phase at any time. Speed and
incline will be reduced until the treadmill has come to a stop and has returned
to its original position.
ENTER With this button you conrm your entries.
