USER MANUAL
ELECTRIC THERMO POT BOILER & DISPENSER
Model No.: DSWB-320S
Thank you for purchasing this product.
Read all the information in this user manual before using the appliance.
Keep this manual in a handy location for future reference.

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed including
the following:
1. Read all instructions before use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord or plug in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or
taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the nearest authorized
service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place the water heater on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot
liquids.
12. Always attach plug to the water heater first, then plug cord into the wall outlet.
13. To disconnect, please remove plug from wall outlet to turn “off”power.
14. Do not use this appliance for other than intended use.
15. Do not dispense hot water while the water is being boiled.
16. Never fill water beyond the “FULL” mark in the inner Pot or below the “REFILL” mark on
the water level indicator, otherwise it will spill over or dry-up
during boiling.
17. Do not open the top lid when water is boiling to avoid scalding by hot steam.
18. Do not boil anything other than water.
19. Do not plug in or unplug with wet hands, this is to avoid electric shock or injury.
20. Do not block the steam vent with a cleaning cloth or other items, this is to avoid scalds due
to hot water spillage or deformation of the lid.

SAVE THESE INSTRUCTIONS
Servicing should be performed by an authorized service representative.
This water boiler is intended for household use.
A short power supply cord is provided to reduce the risk of becoming entangled in or tripping
over a longer cord. Longer detachable power supply cords or extension cords are available and
may be used if care is exercised in their use. If longer detachable power supply cords or
extension cords are to be used:
(1) the marked electrical rating of the extension cord should be at least as great as the
electrical rating of the appliance;
(2) If the appliance is the grounded type, the extension cord should be a grounding-type 3-
wire cord; and (3) the cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled down by children or tripped over accidentally.
The following instructions are applicable to 120V only:
This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet in only
one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician.
Do not attempt to defeat this safety feature.
The appliance is not intended for use by young children or disabled persons without
supervision.
Ensure that young children do not play with the water heater.

HOW TO USE
Before First Use:
1. Read all the instructions and important safeguards.
2. Remove all packaging materials; check that all items are received in good
condition.
3. Wash the stainless steel water tank with warm, soapy water using a sponge or
dishcloth.
4. Rinse thoroughly to remove any soapy residue.
5. Wipe body and stainless steel inner lid clean with a damp cloth.
6. Add water to full water level and then bring up to a boil.
7. After water is boiled. Use electric dispense button to discard half of the hot
water.
8. Unplug the power cord , remove the lid and discard the rest of the hot water.
⚠NOTE:
 Do not use abrasive cleaners or scouring pads.
 Do not immerse appliance, cord or plug in water at any time.
Open lid and fill with water:
During the initial use or after a long period of storage, boil a full pot of water and
discard. Please note that at initial use, there may be the smell of plastic, this is
normal and odor will disappear.

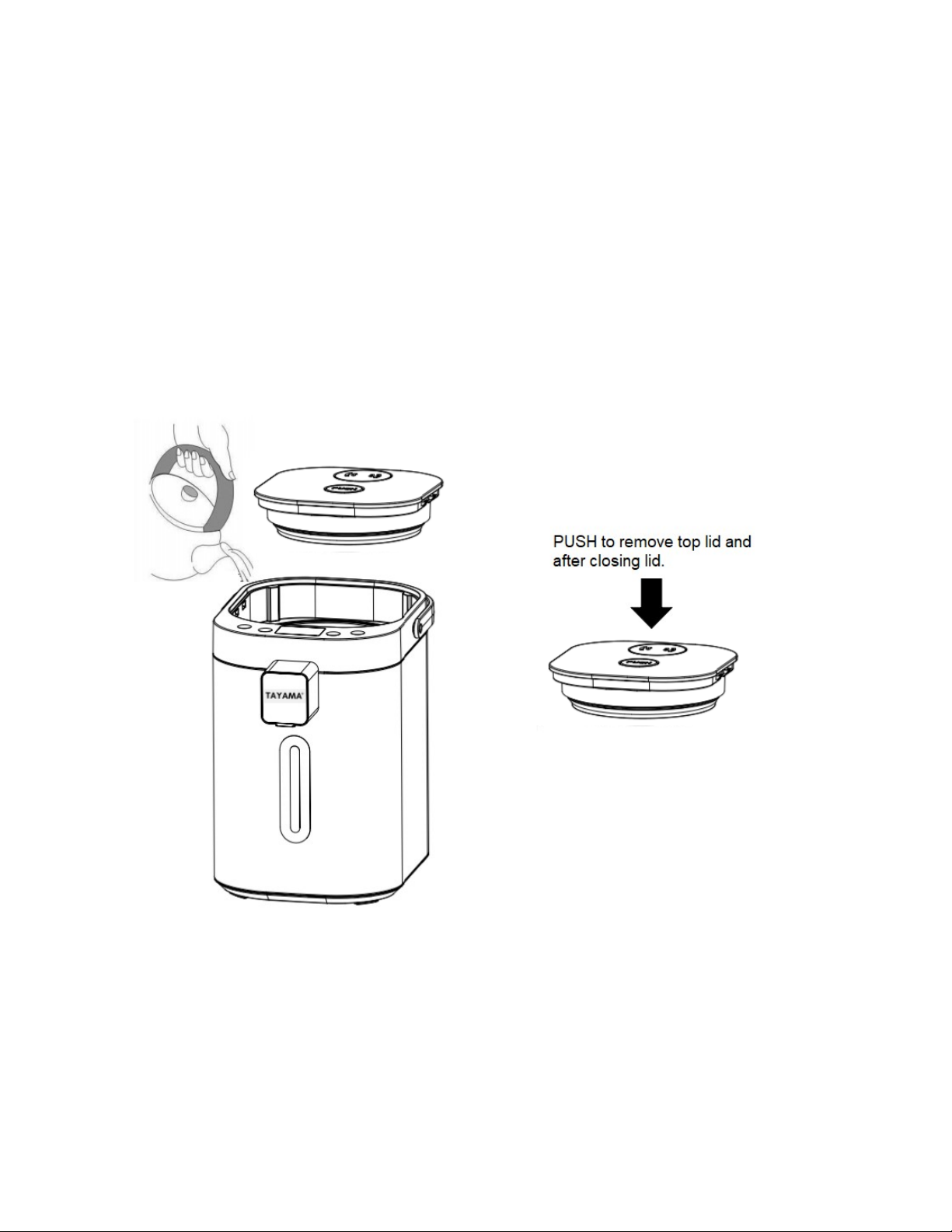

 To Open the Lid: Press down on PUSH button on top of the lid, lever will
raise to remove the lid.
 To Close the Lid: Align the top lid properly above the tank and press firmly
down to secure the lid and press down the PUSH button.

 Do not fill water directly under faucet to prevent wetting the control panel
or power receptacle and causing malfunction.
 Use a separate container to fill the inner pot with water.
 Do not fill above the FULL line to avoid overflowing when boiling.
 Do not pour water onto the main body or control panel.
 Make sure there is water in the tank before plugging in the power cord.
 To turn off, unplug the power cord. There is no OFF button.

CONTROL PANEL FUNCTIONS
PARTS IDENTIFICATION

Boil Water:
1. Always plug power cord to the thermos pot first and then to the wall outlet.
After power is switched ON, water will start to boil immediately.
 Do not open top cover when water is boiling.
 Do not add water when appliance is still boiling.
 Do not obstruct the top lid steam vent.
2. LCD will display water temperature boiling to 212°F degree.
3. Keep warm will remain at 185°F degree default and temperature selection
ranges 104-194°F degrees.
Re-boil Function:
1. Press “Re-Boil” button once and indicator symbol will come ON.
2. After Re-boil is completed, the Keep Warm indicator symbol will turn on.
NOTE:
 Re-boil will not work if there is insufficient water inside the tank, please add
water.
 Pressing the Re-Boil button immediately after the water had just reached
boiling level will have no effect as the water is already at 212°F.

Dispense Function:
1. Auto Dispense Button
a) Press the “Unlock” button once. The “Unlock” indicator symbol will come
on.
b) Touch the “Dispense” button to dispense hot water.
2. Cup Water Dispense Outlet
a) Press the “Unlock” button once. The “Unlock” indicator symbol will come
on.
b) Bring your cup up to the cup switch located below the dispense spout and
gently press to dispense hot water.
⚠NOTE:
 If the dispense button is not selected within 8 seconds after selecting the
“Unlock” button, the appliance will automatically revert back to the safety
LOCK position.
 The dispensing function will NOT operate if the electric thermo pot is not
plugged in or has power ON.
Temperature Setting:
Press the “Temp. Set” button to select your ideal temperature.
Press “Temp. Set” button once to change
Temperature range:
194℉, 185℉, 176℉, 167℉, 158℉, 149℉,
140℉, 131℉, 122℉, 113℉, 104℉

Default temperature setting is 185℉. After water temperature has finished boiling
and reached selected temperature setting, Keep Warm mode will turn on and
maintain set temperature.
Keep warm symbol will illuminate after boiling. If the water temperature is
below the selected settings, water will be boiled again and boiling LED will
illuminate.
Temperature can be reset during Keep Warm. The device will RE-BOIL
automatically according to the different hot water temperature settings.
CAUTION:
 Always keep the lid away from you as there is hot steam trapped
under the lid.
 Do not press the dispensing button when the inner water
reservoir is empty, damage may occur.
 You cannot dispense hot water by auto Dispense Button or the
Cup Switch if the pot is unplugged.

Temperature Setting Guide:
Storage:
If you do not use the electric thermo pot for a long time, please:
1. Disconnect the power cord.
2. Pour out the water.
3. Dry the electric thermo pot thoroughly before storing away.
Care and Cleaning:
Unplug, discard remaining hot water and wait until the unit cools down before
cleaning can be started.
Only use clean soft materials such as cloth, sponge or paper towel.
1. Simply rinse thoroughly with water and wipe the inside liner with a clean
sponge or paper towel.
104℉ Warm water
113℉ Milk
122℉ Lemon water
140℉ Fruit tea
158℉ Ginger tea
185℉ Green tea or Coffee
194℉ Suitable for cooking hot instant food and
for hot beverages such as hot chocolate
212℉ Re-Boil function
