Taylor 340 User manual

OPERATOR’S 
MANUAL
Model 340, 341, 342
Slush Freezers
1/97 (Original Publication)
(Updated 7/29/2020)
Original Operating Instructions
028764−M

Complete this page for quick reference when service is required:
Taylor Distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle____________________
Phase____________________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are

considered to be the original set of instructions.
© 1997 Taylor Company
(Updated 7/29/2020)
028764−M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of
Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties.
All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
028764-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Water Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Beater Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Section 3: Safety
To Operate Safely. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Section 4: Operator Parts Identification

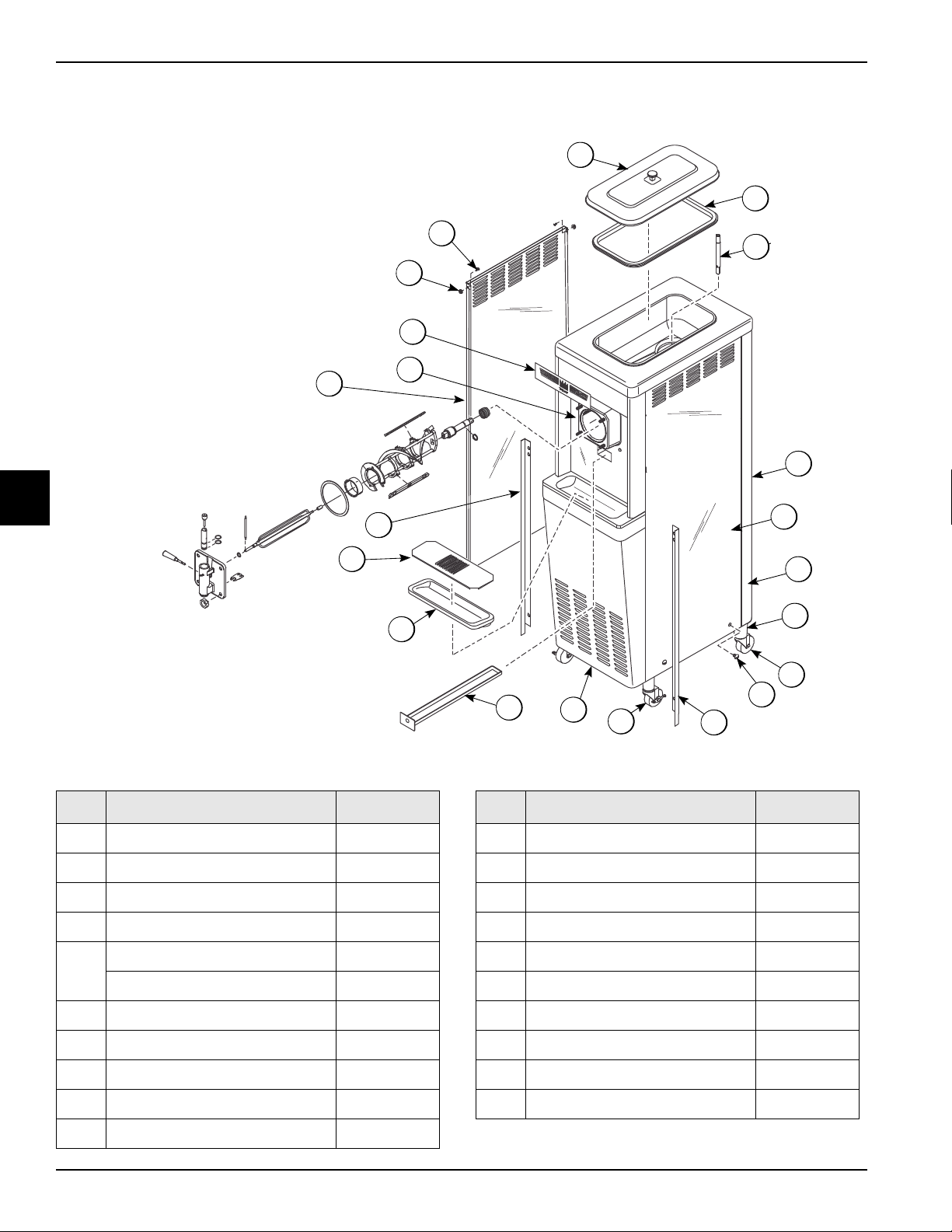

Model 340 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

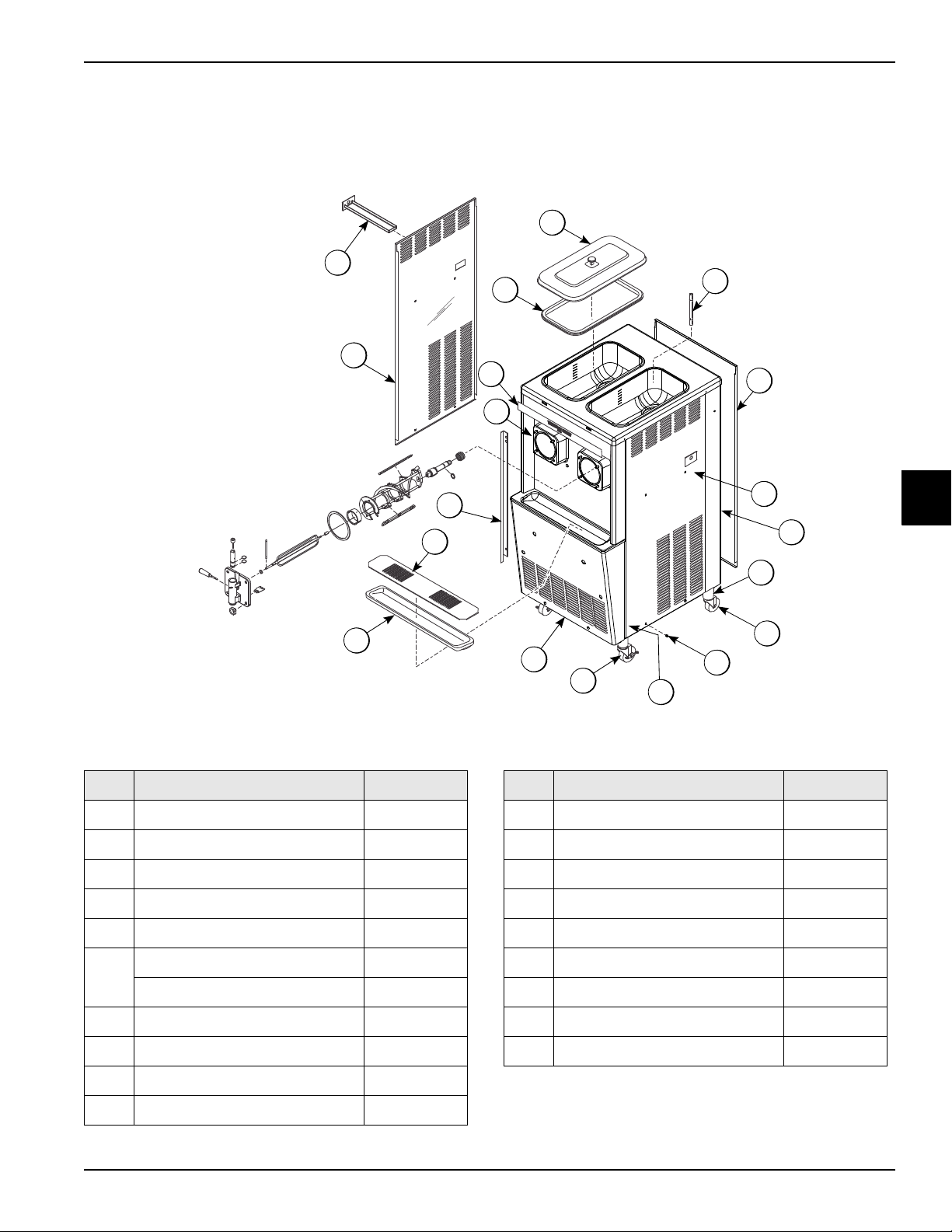

Model 341 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Model 342 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Models 340, 341, 342 Beater Door Assembly (Standard Door/No Prime Plug) . . . . . . 4-4
Model 342 Beater Door Assembly With Self-Closing/Prime Plug Door . . . . . . . . . . . . 4-5
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Section 5: User Interface
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Control Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Consistency Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Indicator Light—Add Mix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
For Your Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Section 6: Operating Procedure
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Freezer Door Assembly Standard Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Freezer Door Assembly Self-Closing/ Prime Plug Door . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Closing Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Draining Product From the Freezing Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Brush Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

ii 028764-M
Table of Contents
Section 7: Operator Checklist
During Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Models 340, 341, 342
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Operator’s
Checklist on page 7-1.
Installer Safety
IMPORTANT! In all areas of the world, the
machine should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only authorized Taylor service personnel
should perform installation, maintenance, and
repairs on Taylor machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
Important! All repairs must be performed by an 
authorized Taylor service technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating the machine. Make sure all possible
hazards to the user or the machine have been
addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of 
104°F (40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
!
!

1-2
TO THE INSTALLER
Models 340, 341, 342 To the Installer
1
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine for
damage and promptly report any damage to the local
authorized Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
Air-Cooled Machine
Do not obstruct air intake and discharge openings:
Model 340 air cooled machine requires a minimum of 6
in. (152 mm) air space on the front, sides and rear.
Model 342 air cooled machine requires a minimum of 3
in. (76 mm) air space around all sides. Install the
deflector to prevent recirculation of warm air.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezers and possibly cause
permanent damage to the compressors.
Water Connections
(Water-Cooled Machine Only)
An adequate cold water supply must be provided with a
hand shutoff valve. On the underside rear of the base
pan, two 3/8 in. IPS water connections for inlet and outlet
have been provided for easy hookup. Permanently
connect the machine using ½ in. (12.7 mm) inside
diameter water lines. (Flexible lines are recommended, if
local codes permit.) Depending on local water conditions,
it may be advisable to install a water strainer to prevent
foreign substances from clogging the automatic water
valve. There will be only one water in and one water out
connection. Do not install a hand shutoff valve on the
water out line. Water should always flow in this order:
first, through the automatic water valve; second, through
the condenser; and third, through the outlet fitting to an
open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the unit must not exceed 150 psi (1034 kPa).
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical Code
(NEC), ANSI/NFPA 70-1987. The purpose of the NEC
code is the practical safeguarding of persons and
property from hazards arising from the use of electricity.
This code contains provisions considered necessary for
safety. In all other areas of the world, equipment should
be installed in accordance with the existing local codes.
Please contact your local authorities.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
freezer for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications. Refer
to the wiring diagram provided inside of the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
!
!
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Models 340, 341, 342
To the Installer
1
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. (3
mm) installed in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against theleakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be replaced by an
authorized Taylor service technician in order to avoid a
hazard. Secure the supply cord ground lead to the
machine in a location where if the cord is pulled, the main
power leads will become taut before the ground lead can
break loose.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
machine main terminal block only. To correct rotation on
a single-phase machine, exchange leads inside the
beater motor. (Follow the diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box located behind the
service panel.
It is recommended that beater rotation adjustment be
performed by an authorized Taylor service technician.
Refrigerant
CAUTION! This equipment contains
fluorinated greenhouse gases (F-Gas) to provide
refrigeration using a hermetically sealed circuit or within
foam insulation. This unit's type of gas, quantity, Global
Warming Potential (GWP) and CO2 tonnes equivalent
information is recorded on the unit's data-label. The
refrigerant used is generally considered non-toxic and
non-flammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion
CAUTION! Use only approved refrigerant
listed on the unit's data-label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush them immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
!

1-4
TO THE INSTALLER
Models 340, 341, 342 To the Installer
1
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
!

Section 2
2-1
Models 340, 341, 342
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to provide dependable
operation. The Taylor Slush Models 340, 341, and 342,
when properly operated and cared for, will produce a
consistent quality product. Like all mechanical products,
these machines will require cleaning and maintenance. A
minimum amount of care and attention is necessary if the
operating procedures outlined in this manual are followed
closely.
This Operator’s Manual should be read before operating
or performing any maintenance on your equipment.
Your Taylor freezer will not eventually compensate and
correct for any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment’s operation study these procedures together
in order to be properly trained and to make sure that no
misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by an authorized Taylor service
technician. Taylor reserves the right to deny warranty
claims on machine or parts if unapproved Taylor parts or
incorrect refrigerant were installed in the machine,
system modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
Warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.
IMPORTANT! If the crossed-out wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.

2-2
TO THE OPERATOR
Models 340, 341, 342 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine’s refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner’s responsibility to make this fact
known to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its machines. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or unbillable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the five-year
warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, that it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the model/
serial number of the machine in question.

Section 3
3-1
Models 340, 341, 342
Safety
3
Safety
We at Taylor Company, are concerned about the safety of
the operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme efforts
to design and manufacture built-in safety features to
protect both you and the service technician. As an
example, warning labels have been attached to the
freezer to further point out safety precautions to the
operator.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
To Operate Safely
NOTICE! DO NOT operate the machine
without reading this entire manual first. Failure to follow
all of these operating instructions may result in damage
to the machine, poor performance, health hazards, or
personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities, or lack of
experience and knowledge. Where limited machine
operation is allowed for public use, such as a self-serve
application, supervision or instruction concerning the use
of the machine by a person responsible for their safety is
required. Children should be supervised to ensure that
they do not play with the machine.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with larger fuses
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only
authorized Taylor service technicians or
licensed electricians may install a plug or
replacement cord on the machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. (3
mm) installed in the external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
!
!

3-2
SAFETY
Models 340, 341, 342 Safety
3
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
• Secure the supply cord ground lead to the
machine in a location where if the cord is pulled,
the main power leads will become taut before
the ground lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
WARNING! This machine must NOT be installed
in an area where a water jet or hose can be used.
NEVER use a water jet or hose to rinse or clean the
machine. Failure to follow this instruction may result in
electrocution.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are restrained with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to, the freezer door,
beater, or scraper blades), unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving machine for any reason. Two or more persons
are required to safely move this machine. Failure to
comply may result in personal injury or damage to the
machine.
IMPORTANT! Access to the service area of
the machine must be restricted to persons having
knowledge and practical experience with the machine, in
particular as far as safety and hygiene are concerned.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet, designed to maintain product
temperature at or below 40°F (4.4°C). Before
replenishing the mix supply, the product must be
refrigerated at or below 40°F (4.4°C). Failure to follow
this instruction may result in health hazards and poor
freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
!
!
!
!

SAFETY
3-3
Models 340, 341, 342
Safety
3
machine.
DO NOT obstruct air intake and discharge openings. A
minimum air clearance on both sides of the machine is
required.
Models 341/342: 3 in. (76 mm) minimum air space on all
sides.
Model 340: 6 in. (152 mm) minimum air space on sides
and 0” at the rear. It is recommended to place the rear of
the machine against the wall to prevent the recirculation
of warm air. Failure to follow this instruction may cause
poor freezer performance and damage to the machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in.
(1.6 m) from the floor.

3-4
SAFETY
Models 340, 341, 342 Safety
3
Notes:

Section 4
4-1
Models 340, 341, 342
Operator Parts Identification
4
Operator Parts Identification
Model 340
Figure 4-1
Note: Standard door shown (no prime plug)
5
2
1
3
6
10 9
8
7
12
11
4
Item Description Part No.
1CoverA.−Hopper−STD X38458−SER
2 Gasket−Hopper Cover 038375
3Tube−Feed−Non Reverse 015176−9
4 Panel−Rear 047008
5 Panel−Side−Left 068906
6 Panel−Side *Right 068924
Item Description Part No.
7 Leg−4.250 013458
8Skirt−Air Flow 049069
9Pan−Drip 19−1/2 Long 035034
10 Tray−Drip 14−7/8L X 5−1/8 013690
11 Shield−Splash 18 022763
12 Panel A.−Front X46881

4-2
OPERATOR PARTS IDENTIFICATION
Models 340, 341, 342 Operator Parts Identification
4
Model 341
Figure 4-2
Note: Standard door shown (no prime plug)
1
20
19
2
3
17
4
16
15
5
6
8
9
7
10
12
13
14
11
18
5
Item Description Part No.
1CoverA.−Hopper−Std X38458−SER
2 Gasket−Hopper Cover 038375
3Tube−Feed−Non Reverse 3/8 Hole 015176−9
4 Panel−Rear 013637
5
Panel–Side–Left *341* 086295
Panel–Side–Right *341* 086296
6Trim−Rear Corner 013620
7 Adaptor A.−Caster X18915
8Caster−4 SWV 5/8 Stem X 1-3/8 018794
9Screw−1/4−20X3/8 SLTD Round 011694
10 Angle−Pa n e l −R 013828
Item Description Part No.
11 Caster−4 SWV 5/8 Stem w/Brake 034081
12 Panel-Service 013638-SP1
13 Pan-Drip 19-1/2 Long 035034
14 Tray-Drip 14-7/8L X5-1/8 SGL 013690
15 Shield-Splash 18 022763
16 Angle-Panel-L 013829
17 Panel A.−Front X46881
18 Decal-Dec 048359
19 Nut-10-32 Whiz Flange Locknut 020983
20 Screw-10-32X1/2 Serrated HWH 020982

OPERATOR PARTS IDENTIFICATION
4-3
Models 340, 341, 342
Operator Parts Identification
4
Model 342
Figure 4-3
Note: Standard door shown (no prime plug)
1
23
4
5
6
7
9
8
10
11
12
13
14
19
15
18
16
17
Item Description Part No.
1CoverA.−Hopper−STD X38458−SER
2 Gasket−Hopper Cover−20 038375
3Tube−Feed−Non Reverse 015176−9
4 Panel−Rear 017563
5 Panel−Side *R 069037
6
Trim−Rear Corner−Right 013663
Trim−Rear Corner−Left 069040
7 Adapter A.−Caster X18915
8Caster−4 SWV 5/8 Stem 018794
9Screw−1/4−20X3/8 SLTD 011694
10 Angle−Panel−R 013828
Item Description Part No.
11 Caster−4 SWV w/Brake 034081
12 Panel−Service 024439−SP1
13 Tray−Drip 22−7/8L X 5−1/8W 014533
14 Shield−Splash 037041
15 Angle−Pa n el −L 013829
16 Panel A.−Front X25807
17 Decal−DEC−Taylor 021872
18 Pan−Drip 11−5/8 Long 027503
19 Panel−Side *L 069036

4-4
OPERATOR PARTS IDENTIFICATION
Models 340, 341, 342 Operator Parts Identification
4
Models 340, 341, 342 Beater Door Assembly (Standard Door/No Prime Plug)
Figure 4-4
18
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Item Description Part No.
1 Door A.- Slush- Partial X83427SER3
2 Handle A.- Draw- Slush X47384
3 Valve- Draw 047734
4 Pin A.- Valve Handle X25929
5 O- ring- 1 OD X 0.139 W 032504
6 Buster- Ice 047735
7 O- ring- 0.291 ID X 0.080 W 018550
8 Torque A. X14488
9 Bearing-Guide 014496
10 Gasket- Door 5.177ID 016672
Item Description Part No.
11 Bearing- Front 013116
12 Beater A.-7 QT-1 Pin X46233
13 Arm- Torque (340/341) 014500
Arm- Torque (342) 029549
14 Blade- Scraper- Plastic 084950
15 Shaft- Beater 035418
16 Seal- Drive Shaft 032560
17 O- ring- 7/8 OD X 0.139 W 025307
18 Nut- Stud 029880

OPERATOR PARTS IDENTIFICATION
4-5
Models 340, 341, 342
Operator Parts Identification
4
Model 342 Beater Door Assembly With Self-Closing/Prime Plug Door
Figure 4-5
17
20
12
13
6
5
10
9
3
7
19
16
15
21
18
14
1
2
4
8
11

4-6
OPERATOR PARTS IDENTIFICATION
Models 340, 341, 342 Operator Parts Identification
4
Model 342 Beater Door Assembly With Self-Closing/Prime Plug Door
Item Description Part No.
1 Pin- Handle- Valve X83812
2 Spring- COMP.970X.082 030344
3 Valve- Draw- SLF CLO 080662
4 O- ring- 1OD X0.139W 032504
5 Buster- Ice 047735
6
Door A.- Partial 
S/N M4106402 & Up
X83427- SER
Door w/Pin & Valve 
S/N Prior to M4106401
X83427SSP
7 O- ring- 0.563 OD X 0.070W 043758
8 Plug- Prime- STNLS 050405
9 Handle A.- Draw- Slush X47384
10 Nut- Stud 029880
Item Description Part No.
11 O- ring-0.291 ID X.080W 018550
12 Arm- Torque 029549
13 Torque A. X14488
14 Bearing- Guide 014496
15 Gasket- Door 5.177ID 016672
16 Bearing- Front 013116
17 Beater A.- 7QT- 1 Pin X46233
18 Blade- Scraper- Plastic 084950
19 Shaft- Beater 035418
20 Seal- Drive Shaft 032560
21 O- ring- 7/8 OD X 0.139W 025307
