Taylor 358 User manual

OPERATOR’S
MANUAL
Model 358 and 359
Thick Shake Freezers
8/2/10 (Original Publication)
(Updated 8/10/20)
Original Operating Instructions
056788-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number:____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2010 Taylor Company
056788-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
056788-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Air-Cooled Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Beater Rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Section 2: To the Operator
Compressor Warranty Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Section 3: Safety
Section 4: Operator Parts Identification

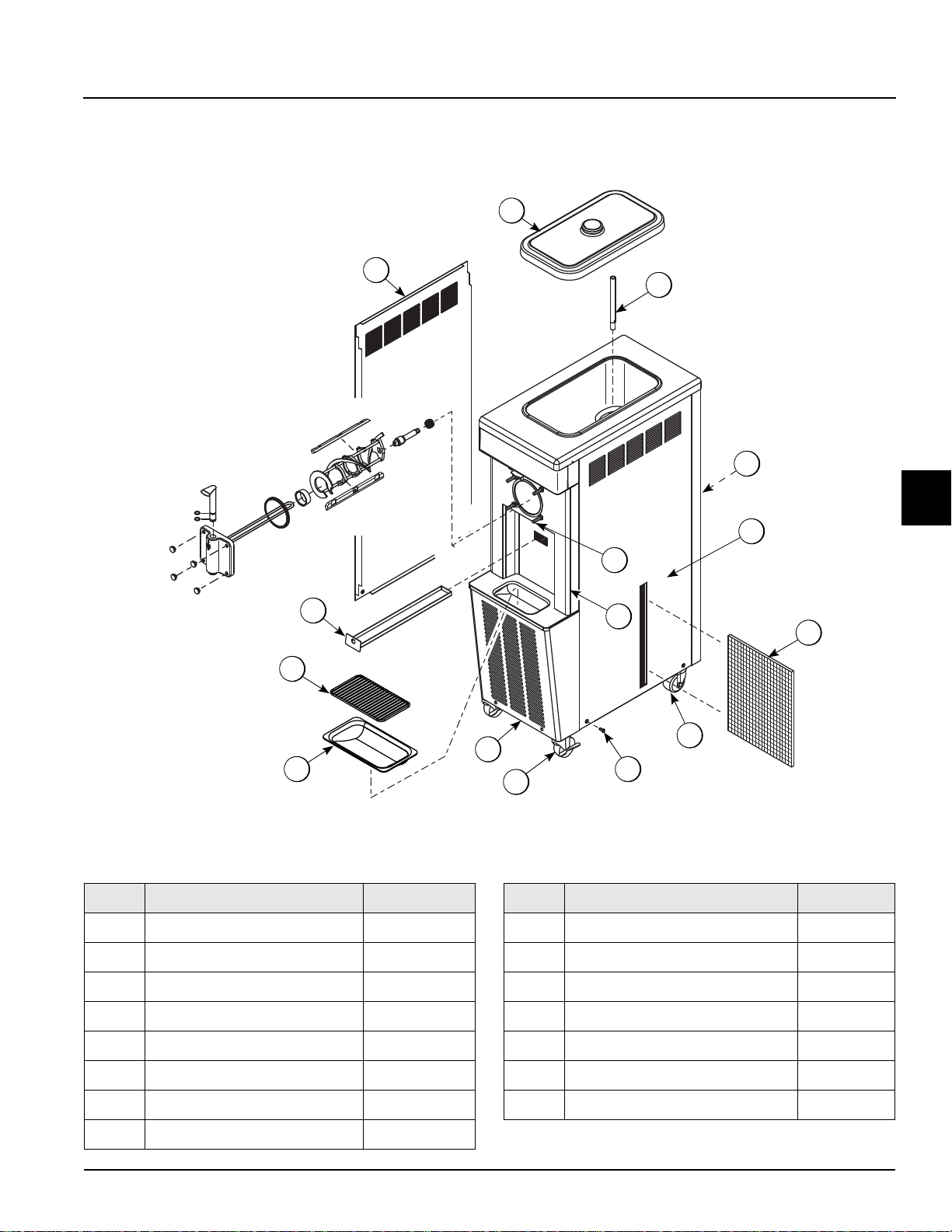

Model 358 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

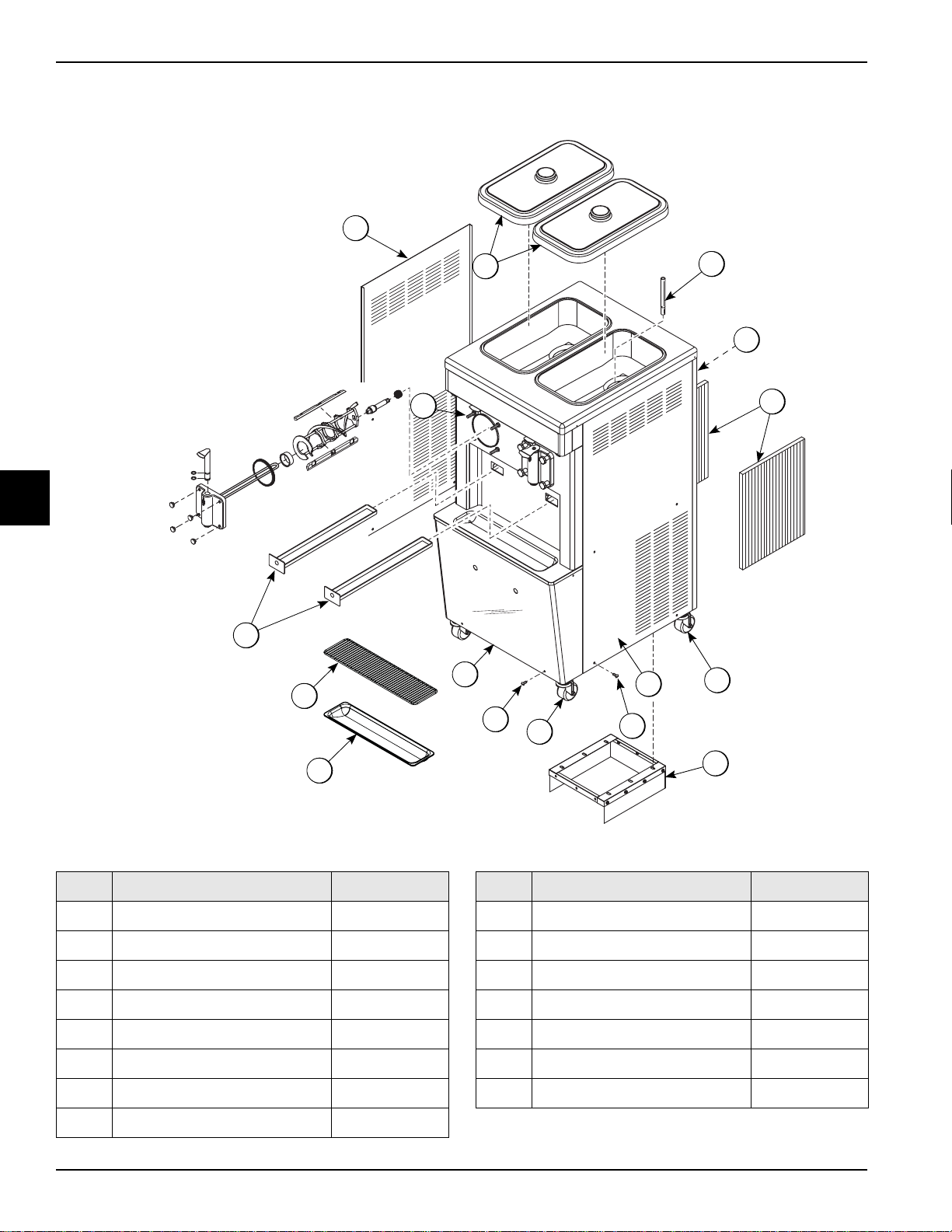

Model 359 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Beater and Door Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

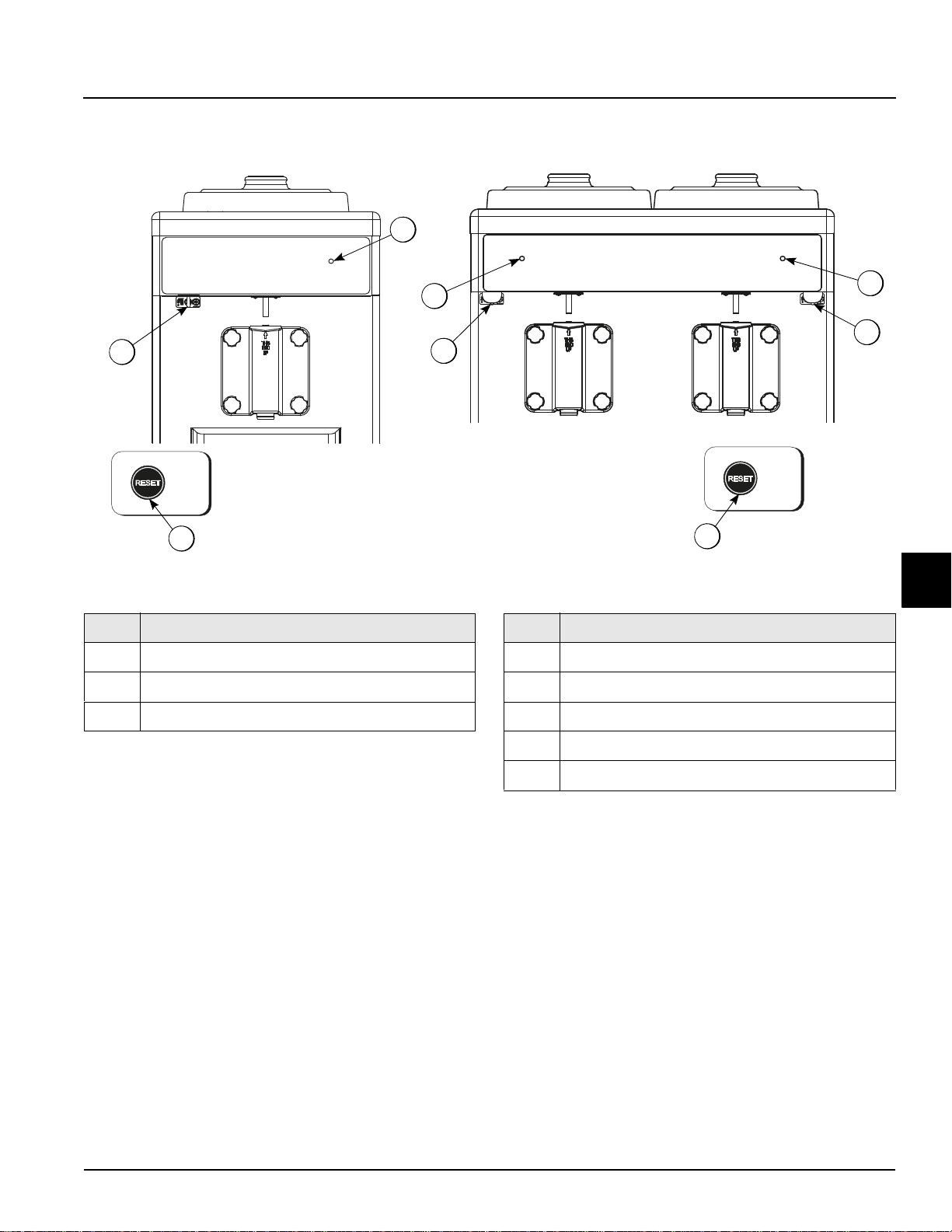

Section 5: User Interface
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Indicator Light - MIX OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
RESET Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Air Tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Section 6: Operating Procedures
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5
Closing Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Draining Product from Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Brush-Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

ii 056788-M
Table of Contents
Section 7: Operator’s Checklist
During Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Models 358 and 359
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating the machine. Make sure all possible
hazards to the user or machine have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine and
promptly report any damage to the local authorized
Taylor distributor.
This machine is made using USAsizes of hardware. All
metric conversions are approximate and vary in size.

1-2
TO THE INSTALLER
Models 358 and 359 To the Installer
1
Air-Cooled Machine
Do not obstruct air intake and discharge openings:
Air-cooled machines require a minimum of 3 in. (76 mm)
of clearance around all sides of the freezers and
3-1/2 in. (89 mm) on the bottom.
Model 359 Only: Installation of air deflector is required.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezers and possibly cause
permanent damage to the compressors.
Electrical Connections
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.
(3 mm) in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by authorized personnel to local
codes.
• Supply cords used with this machine shall be
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician to avoid
a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Models 358 and 359
To the Installer
1
Beater Rotation
Note: The following procedures must be performed by
a Taylor service technician.
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
freezer main terminal block only. To correct rotation on a
single-phase machine, exchange leads inside the beater
motor. (Follow the diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box, located behind
the service panel.
It is recommended that beater rotation adjustment be
performed by a Taylor service technician.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine’s type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine’s data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

1-4
TO THE INSTALLER
Models 358 and 359 To the Installer
1
Notes:

Section 2
2-1
Models 358 and 359
To the Operator
2
To the Operator
Your freezers have been carefully engineered and
manufactured to give you dependable operation. These
machines, when properly operated and cared for, will
produce a consistent quality product. Like all mechanical
products, they will require cleaning and maintenance. A
minimum amount of care and attention is necessary if the
operating procedures outlined in this manual are followed
closely.
IMPORTANT! This manual should be read
before operating or performing any maintenance on the
machine.
Your Taylor machine will NOT compensate for and/or
correct any errors made during setup or filling operations.
Thus, the initial assembly, setup, and priming procedures
are of extreme importance. It is strongly recommended
that all personnel responsible for the machine's
operation, including assembly and disassembly, go
through these procedures together to be properly trained
and to make sure that all personnel understand their role
in using and maintaining the machine.
If you require technical assistance, please contact your
local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on
machines or parts if unapproved parts or incorrect
refrigerant were installed in the machine, system
modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.
IMPORTANT! If the crossed-out wheeled bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.

2-2
TO THE OPERATOR
Models 358 and 359 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit's refrigeration system, only
the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the unit owner's responsibility to make this fact known
to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or unbillable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the 5-year
warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, that it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the
model/serial number of the unit in question.

Section 3
3-1
Models 358 and 359
Safety
3
Safety
We atTaylor Company are concerned about the safety of
the operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme efforts
to design and manufacture built-in safety features to
protect both the operator and service technician. As an
example, warning labels have been attached to the
freezer to further point out safety precautions to the
operator.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
NOTICE! DO NOT operate this machine
without reading this entire manual first. Failure to follow
all of these operating instructions may result in damage
to the machine, poor performance, health hazards, or
personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.

3-2
SAFETY
Models 358 and 359 Safety
3

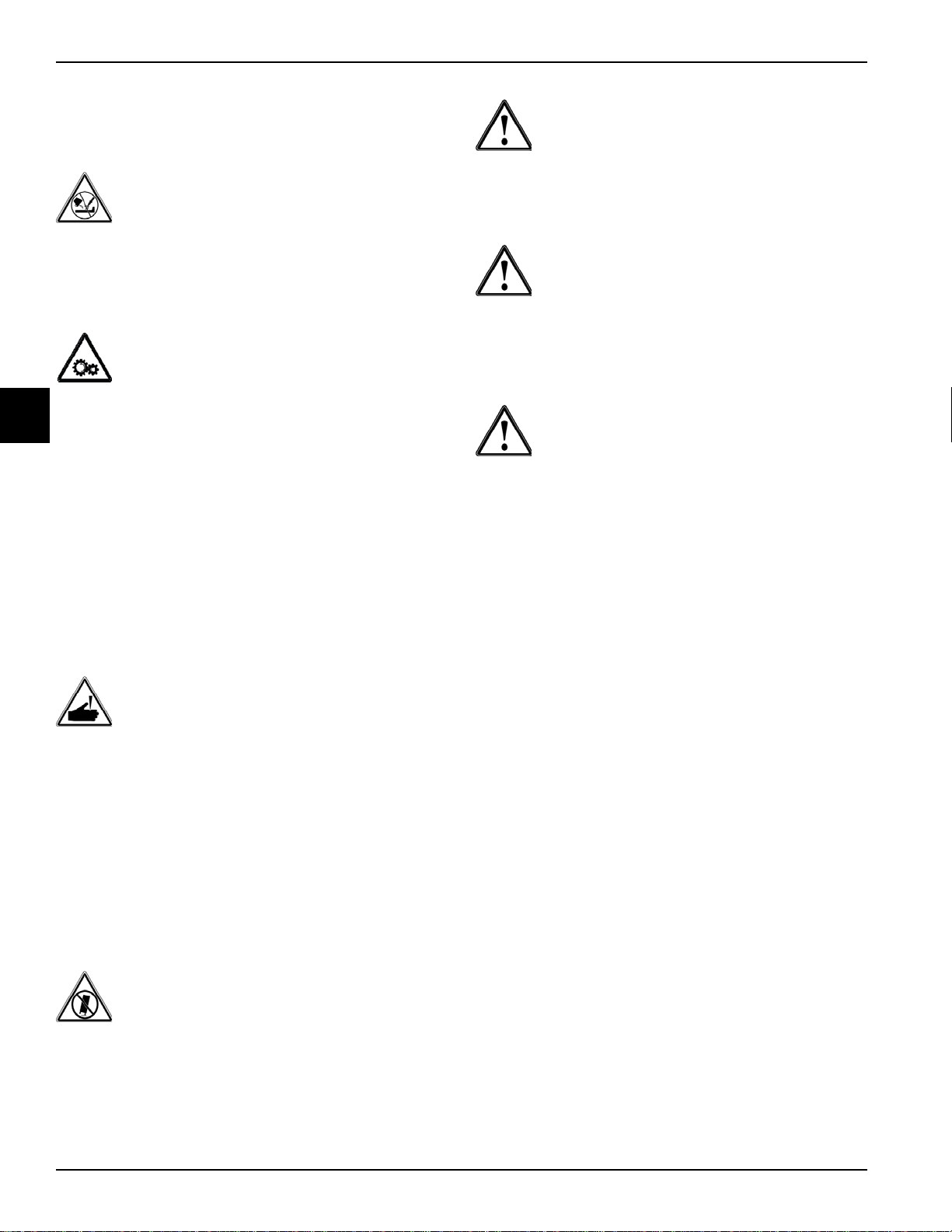

Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to the freezer door,
beater, or scraper blades) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
Failure to follow these instructions can result in personal
injury or damage to the machine.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or machine damage.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is designed to
maintain product temperature under 41°F (5°C). Any
product being added to this machine must be below 41°F
(5°C). Failure to follow this instruction may result in
health hazards and poor machine performance.
Do not run the machine without product. Failure to follow
this instruction can result in damage to the machine.
Do not obstruct air intake and discharge openings:
Air-cooled machines require a minimum of 3 in. (76 mm)
of clearance around all sides of the freezers and
3-1/2 in. (89 mm) on the bottom.
Model 359 only: Installation of the air deflector is
required.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezers and possibly cause
permanent damage to the compressors.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
39 in. (1.0 m) from the surface of the machine and at a
height of 62 in. (1.6 m) from the floor.

Section 4
4-1
Models 358 and 359
Operator Parts Identification
4
Operator Parts Identification
Model 358
Figure 4-1
15
1
3
2
4
5
8
9
10
11
6
7
14
13
12
Item Description Part No.
1 Cover A.-Hopper Insul X51152
2 Tube-Feed-Nonrevers 015176-5
3 Panel-Rear 046021
4 Panel-Side *358* Right 046023-SP1
5 Filter A.-13 x 16-7/8 x 7/16 046044
6 Stud-Nose Cone 054748
7 Panel A.-Front X45987
8 Caster-Swivel 3/4 - 10 St. 021279
Item Description Part No.
9 Screw-1/4-20 x 5/8 Slotted 005542
10 Caster-Locking Swivel 030307
11 Panel-Service 048267
12 Tray-Drip 066696
13 Shield-Splash 066697
14 Pan A.-Drip X50879
15 Panel-Side *Left 046022

4-2
OPERATOR PARTS IDENTIFICATION
Models 358 and 359 Operator Parts Identification
4
Model 359
Figure 4-2
2
1
14
13
12
11
910 9
76
5
3
15
8
4
Item Description Part No.
1 Panel-Side-Left 065250
2 Cover Assembly-Hopper X51152
3 Tube-Feed-Nonreversible 015176-5
4 Panel-Rear 065271
5 Filter-Air 18 L x 13.5 H x 70 052779-3
6 Caster-3” Swivel 3/4-10STM 021279
7 Panel-Side-Right 065251
8 Deflector-Air X81693
Item Description Part No.
9 Screw-1/4-20 x 5/8 Slotted 005542
10 Caster-3” SWV 3/4-10 Lock 030307
11 Panel-Service Front 068705
12 Tray-Drip 19-5/8 L x 4-7/8 033812
13 Shield-Splash-Wire 033813
14 Pan A.-Drip X50879
15 Stud-Nose Cone 054748

OPERATOR PARTS IDENTIFICATION
4-3
Models 358 and 359
Operator Parts Identification
4
Beater and Door Assembly
Figure 4-3
8
9
7
6
5
4
10
10 1
2
3
Item Description Part No.
1 Seal-Drive Shaft 032560
2 Shaft-Beater 033235
3 Beater A.-7 Qt. - 1 Pin X46233
4 Bearing-Front 013116
5 Gasket-Door - 5.177 ID x 5.9380 016672
Item Description Part No.
6 Valve A.-Draw X46028
7 O-ring - 1-1/16 OD x .139 W 084545
8 Door-Partial 1 Spout X30272-SER
9 Nut-Stud 021508
10 Blade-Scraper Plastic 084950

4-4
OPERATOR PARTS IDENTIFICATION
Models 358 and 359 Operator Parts Identification
4
Accessories
Figure 4-4
*Note: A sample container of sanitizer is sent with the F unit.
For reorders, order Stera-Sheen®part no. 055492 (100 packs)
or Kay-5®part no. 041082 (125 packs).
Apply the appropriate
Taylor approved food safe lubricant.
2
4
3
5
7
6
1
Item Description Part No.
1Kit Assembly-Tune Up *358 X46050
Kit Assembly-Tune Up *359 X36356
2 Brush-Rear Bearing 013071
3 Brush-Double Ended 013072
Item Description Part No.
4 Brush-Draw Valve 014753
5 Brush-Hopper 3” x 7” 023316
6 Lubricant-Taylor 4 Oz. 047518
*7 Sanitizer-Stera-Sheen See Note

Section 5
5-1
Models 358 and 359
User Interface
5
User Interface
Model 358 Model 359
Figure 5-1 Figure 5-2
5
4
3
2
1
2
1
3
Item Description
1PowerSwitch
2 MIX OUT Indicator
3 RESET Button
Item Description
1 MIX OUT Indicator-Left Side
2 Power Switch-Left Side
3 MIX OUT Indicator-Right Side
4 Power Switch-Right Side
5 RESET Button

5-2
USER INTERFACE
Models 358 and 359 User Interface
5
Power Switch
The middle position is OFF. The left position is Wash,
which activates the beater motor only. The right position
is Auto, which activates the beater motor and the
refrigeration system.
Figure 5-3
Indicator Light - MIX OUT
The MIX OUT light is on the front of the machine. When
the MIX OUT light begins to flash, the mix hopper is
almost completely exhausted and has an insufficient
supply of mix to operate the freezer. Only a small amount
of mix (less than 1 pint) is left in the hopper.
At this time the Auto mode is locked out and the freezer
shuts down, protecting the freezer from damage due to a
freeze-up. To initiate the refrigeration system, add mix to
the mix hopper. The freezer will automatically begin
operation.
Figure 5-4
RESET Button
CAUTION! DO NOT use metal objects to press
the reset button. Failure to follow this instruction may
result in electrocution.
The RESET button is in the left-side panel on the Model
358. The RESET buttons are in the lower front panel on
the Model 359. The reset mechanism protects the beater
motor from overloading. Should an overload occur, the
reset mechanism will trip.
To properly reset the freezer, place the power switch in
the OFF position. Press the RESET button firmly. Place
the power switch in the Wash position and observe the
freezer's performance. Open the side access panel to
check if the beater motor is turning the driveshaft in a
clockwise (viewed from operator end) direction without
binding.
If it is turning properly, place the power switch in theAuto
position to resume normal operation. If the freezer shuts
down again, contact a Taylor service technician.
Air Tube
The air tube is designed with a hole on one end. After
priming the machine, install the air tube into the mix inlet
hole with the hole end down. Every time the draw handle
is raised, new mix and air from the hopper will flow down
into the freezing cylinder. This will keep the freezing
cylinder properly loaded and maintain overrun.
Figure 5-5

Section 6
6-1
Models 358 and 359
Operating Procedures
6
Operating Procedures
The Model 358 has been selected to show the
step-by-step operating procedures for both models
contained in this manual. These models, for practical
purposes of operation, are the same.
These models store 20 qt. (18.9 L) of mix in each hopper.
The mix flows by gravity from the hopper to the freezing
cylinder through an air tube.
We begin our instructions at the point when we enter the
store in the morning and find the parts disassembled and
laid out to air-dry from the previous night's cleaning.
These opening procedures will show you how to
assemble these parts into the freezer, sanitize them, and
prime the freezer with fresh mix in preparation to serve
your first portion.
If you are disassembling the machine for the first time or
need information to get to this starting point in our
instructions, turn to “Disassembly” on page 6-7 and start
there.
Assembly
Note: When lubricating parts, use an approved
food-grade lubricant (example: Taylor Lube).
WARNING! Make sure the power switch is in
the OFF position before installing/removing any parts.
Failure to follow this instruction may result in severe
personal injury or electrocution.
1. Lubricate the groove and shaft portion that comes in
contact with the bearing on the beater driveshaft.
Slide the seal over the shaft and groove until it snaps
into place. Do not lubricate the hex end of the
driveshaft. Fill the inside portion of the seal with
1/4 in. (6.35 mm) more lubricant and lubricate the flat
side of the seal that fits onto the rear shell bearing.
Figure 6-1
2. Install the driveshaft into the freezing cylinder, hex
end first, and into the rear shell bearing until the seal
fits securely over the rear shell bearing. Engage the
hex end firmly into the drive coupling. Make sure the
driveshaft fits into the drive coupling without binding.
Figure 6-2
3. Before installing the beater assembly, inspect the
scraper blades.
Apply the appropriate
Taylor approved food safe lubricant.

6-2
OPERATING PROCEDURES
Models 358 and 359 Operating Procedures
6
Check the scraper blades for any signs of wear or
damage. If a scraper blade is nicked or worn, replace
both blades.
Figure 6-3
4. If the blades are in good condition, place the rear
scraper blade over the rear holding pin on the beater.
Note: The hole on the scraper blade must fit
securely over the pin to prevent damage.
Figure 6-4
5. Holding the rear blade on the beater, slide the beater
halfway into the freezing cylinder. Install the front
scraper blade over the front holding pin. Slide the
beater assembly the rest of the way into the freezing
cylinder.
Figure 6-5
6. Make sure the beater assembly is in position over the
driveshaft. Turn the beater slightly to make sure the
beater is properly seated. When in position, the
beater will not protrude beyond the front of the
freezing cylinder.
7. Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear: door
bearing, door gasket, draw valve, O-rings, and all
sides of the door assembly, including the inside of the
draw valve bore. Replace any damaged parts.
8. Slide the two O-rings into the grooves on the draw
valve and lubricate.
Figure 6-6
9. Lubricate the inside of the freezer door spout, top
and bottom, and insert the draw valve into the freezer
door from the top (THIS END UP).
Figure 6-7
11547
11530
11531
Apply the appropriate
Taylor approved food safe lubricant.
