Taylor 104 User manual

OPERATOR’S 
MANUAL
Model 104
Batch Freezer
8/13/08 (Original Publication)
(Updated 8/5/2020)
Original Operating Instructions
053064-M

Complete this page for quick reference when service is required:
Taylor Distributor: __________________________________________________________
Address: _________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation:_________________________________________________________
Information found on the data label:
Model Number:____________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2008 Taylor Company
(Updated 8/5/2020)
053064-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
053064-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
60-Cycle Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Beater Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Section 3: Safety
Section 4: Parts
Model 104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Beater Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Section 5: User Interface
Control Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Orange Dial Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Timer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Door Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Reset Condition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Section 6: Operating Procedures
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Overrun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Drawing Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Brush-Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Section 7: Operator Checklist
During Cleaning and Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

ii 053064-M
Table of Contents
Section 8: Troubleshooting
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Model 104
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
equipment should be installed in accordance with
existing local codes. Please contact your local authorities
if you have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper protective equipment (PPE) is
available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before you uncrate the machine. Make sure that all
possible hazards the user or equipment may come into
contact with have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70ºF to 75ºF (21ºC to 24ºC). The freezer has
successfully performed in high ambient temperatures of
104ºF (40ºC) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine for
damage and promptly report any damage to the local
authorized Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
!

1-2
TO THE INSTALLER
Model 104 To the Installer
1
Air-Cooled Machines
Do not obstruct air intake and discharge openings.
Air-cooled machines require a minimum of 6 in. (152 mm)
of clearance around all sides of the freezer to allow for
adequate air flow across the condenser(s). Failure to
allow adequate clearance can reduce the refrigeration
capacity of the freezer and possibly cause permanent
damage to the compressor.
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical Code
(NEC), ANSI/NFPA 70-1987. The purpose of the NEC
code is the practical safeguarding of persons and
property from hazards arising from the use of electricity.
This code contains provisions considered necessary for
safety. In all other areas of the world, equipment should
be installed in accordance with the existing local codes.
Contact your local authorities.
Each machine requires one power supply for each data
label on the machine. Check the data label on the freezer
for branch circuit over current protection or fuse, circuit
ampacity and other electrical specifications. Refer to the
wiring diagram provided inside of the electrical box for
proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.

(3 mm) installed in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices, to
protect against the leakage of current such as a
GFI, installed by the authorized personnel to the
local codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician in order
to avoid a hazard.
• Secure the supply cord ground lead to the
machine in a location where if the cord is pulled,
the main power leads will become taut before
the ground lead can break loose.
60-Cycle Machines
This equipment is supplied with a three-wire cord and
grounding type of plug, for connection to a single-phase,
60-cycle, branch circuit supply. This machine must be
plugged into a properly grounded receptacle. Permanent
wiring may be employed if required by local codes.
Instructions for conversion to permanent wiring are as
follows.
1. Make sure the freezer is electrically disconnected.
2. Remove the rear panel and locate the small electrical
box at the base of the freezer.
3. Remove the factory-installed cord and strain-relief
bushing.
!
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Model 104
To the Installer
1
4. Route incoming permanent wiring through the
7/8 in. (22 mm) hole in the base pan.
5. Connect two power supply leads. Attach the ground
(earth) wire to the grounding lug inside the electrical
box.
6. Make sure the machine is properly grounded before
applying power.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase unit, interchange
any two incoming power supply lines at the freezer main
terminal block only. To correct rotation on a single-phase
unit, exchange leads inside the beater motor. (Follow the
diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box located behind the
service panel.
It is recommended that beater rotation service be
performed by a Taylor service technician.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine’s type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine’s data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

1-4
TO THE INSTALLER
Model 104 To the Installer
1
Notes:

Section 2
2-1
Model 104
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to provide dependable
operation. The Taylor Model 104 Batch Ice Cream
freezer, when properly operated and cared for, produces
a consistent quality product. Like all mechanical
products, this machine requires cleaning and
maintenance. A minimum amount of care and attention is
necessary if the operating procedures outlined in this
manual are followed closely.
NOTICE! DO NOT operate this machine
without reading this entire manual first. Failure to follow
all of these operating instructions may result in damage
to the machine, poor performance, health hazards, or
personal injury.
Model 104 does not compensate and correct for any
errors during the setup or filling operations. Therefore,
the initial assembly and priming procedures are of
extreme importance. It is strongly recommended that
personnel responsible for the machine’s operation, both
assembly and disassembly, go through these procedures
together to be properly trained and to make sure that no
misunderstandings exist.
If you require technical assistance, please contact your
local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts
used are authorized Taylor parts purchased from the
local authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on units
or parts if Taylor-unapproved parts or incorrect refrigerant
were installed in the unit, if system modifications were
performed beyond factory recommendations, or if it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor warranty, see
the Limited Warranty section in this manual.
IMPORTANT! If the crossed-out wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.

2-2
TO THE OPERATOR
Model 104 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit's refrigeration system, only
the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the unit owner's responsibility to make this fact known
to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this unit, Taylor has no obligation to either supply or
provide replacement refrigerant either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, that it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor Factory. Be prepared to provide the 
model/serial number of the unit in question.

Section 3
3-1
Model 104
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect both operators and service technicians.
Installing and servicing refrigeration equipment can be
hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service refrigeration
equipment. When working on refrigeration equipment,
observe precautions noted in the literature, tags, and
labels attached to the machine, and other safety
precautions that may apply. Follow all safety code
requirements. Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may result in component replacement and
service repair expenses.
NOTICE! DO NOT operate this machine
without reading this entire manual first. Failure to follow
all of these operating instructions may result in damage
to the machine, poor performance, health hazards, or
personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge. Where limited machine
operation is allowed for public use, such as a self-serve
application, supervision or instruction concerning the use
of the machine by a person responsible for their safety is
required. Children should be supervised to ensure that
they do not play with the machine.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by a Taylor
service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. 
(3 mm) installed in the external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
!

3-2
SAFETY
Model 104 Safety
3
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by an Taylor service technician in order
to avoid a hazard.
• Secure the supply cord ground lead to the
machine in a location where if the cord is pulled,
the main power leads will become taut before
the ground lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are restrained with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to, freezer door,
beater, or scraper blades), unless all control
switches are in the off position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving for any reason. Two or more persons are
required to safely move this machine. Failure to comply
may result in personal injury or damage to the machine.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet, designed to maintain product
temperature at or below 41°F (5°C). Before replenishing
the mix supply, the product must be refrigerated at or
below 41°F (5°C). Failure to follow this instruction may
result in health hazards and poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings. A
minimum of 3 in. (76 mm) air clearance on both sides of
the machine is required. It is recommended to place the
rear of the machine against the wall to prevent the
!
!

SAFETY
3-3
Model 104
Safety
3
recirculation of warm air. Failure to follow this instruction
may cause poor freezer performance and damage to the
machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in.
(1.6 m) from the floor.

3-4
SAFETY
Model 104 Safety
3
Notes:

Section 4
4-1
Model 104
Parts
4
Parts
Model 104
Figure 4-1
2
3
10
9
8
7
6
5
1
4
Item Description Part No.
1 Funnel 034252
2 Panel- Side Left 051039
3 Cover A.-Mix Inlet X24948
4 Panel- Rear 051040
5 Panel- Side Right 051038
Item Description Part No.
6 Gasket- Base Pan 049420
7 Pan- Drip 13- 1/4 Long 039027
8 Panel A.- Front X51043
9 Stud- Freezer 023057
10 Bezel 033406

4-2
PARTS
Model 104 Parts
4
Beater Door Assembly
Figure 4-2
3
11
10
6
5
4
2
1
7
8
9
16
13
14
15
12
Item Description Part No.
1 Seal- Drive Shaft 032560
2 Shaft- Beater 033498
3 Beater Assembly X33417
4 Blade- Scraper 7- 1/4” L 033277
5 O-ring 5- 7/16 OD x 5- 1/4 033276
6 Door A.- Partial X37710
7 Pin A.- Pivot 1- 3/4 Grip X37705
8 Screw- Stem 034662
Item Description Part No.
9 Spout A.- Drip X33422
10 Nut- Stud 008614
11 O-ring 2- 1/4 OD x .139 W 030890
12 Plate- Draw 027811
13 Arm- Handle 030042
14 Pin- Quick Release 3/16 027813
15 Cap- Stem 027812
16 Stem- Freezer Cover 034661

PARTS
4-3
Model 104
Parts
4
Accessories
Figure 4-3
*Note: A sample container of sanitizer is sent with the unit.
For reorders, order Stera-Sheen®Part No. 055492 
(100 two-oz. packs).
Apply the appropriate
Taylor approved food safe lubricant.
6
1
2
3
4
5
Item Description Part No.
1 Pail-6 qt. 023348
2 Brush-Mix Pump Body
3” x 7”
023316
3 Brush-Rear Bearing
1” x 2”
013071
Item Description Part No.
4 Brush-Draw Valve 1-1/2” 014753
5 Lubricant-Taylor 4 oz. 047518
6Sanitizer-Stera Sheen®See Note

4-4
PARTS
Model 104 Parts
4
Notes:

Section 5
5-1
Model 104
User Interface
5
User Interface
User Interface
Figure 5-1

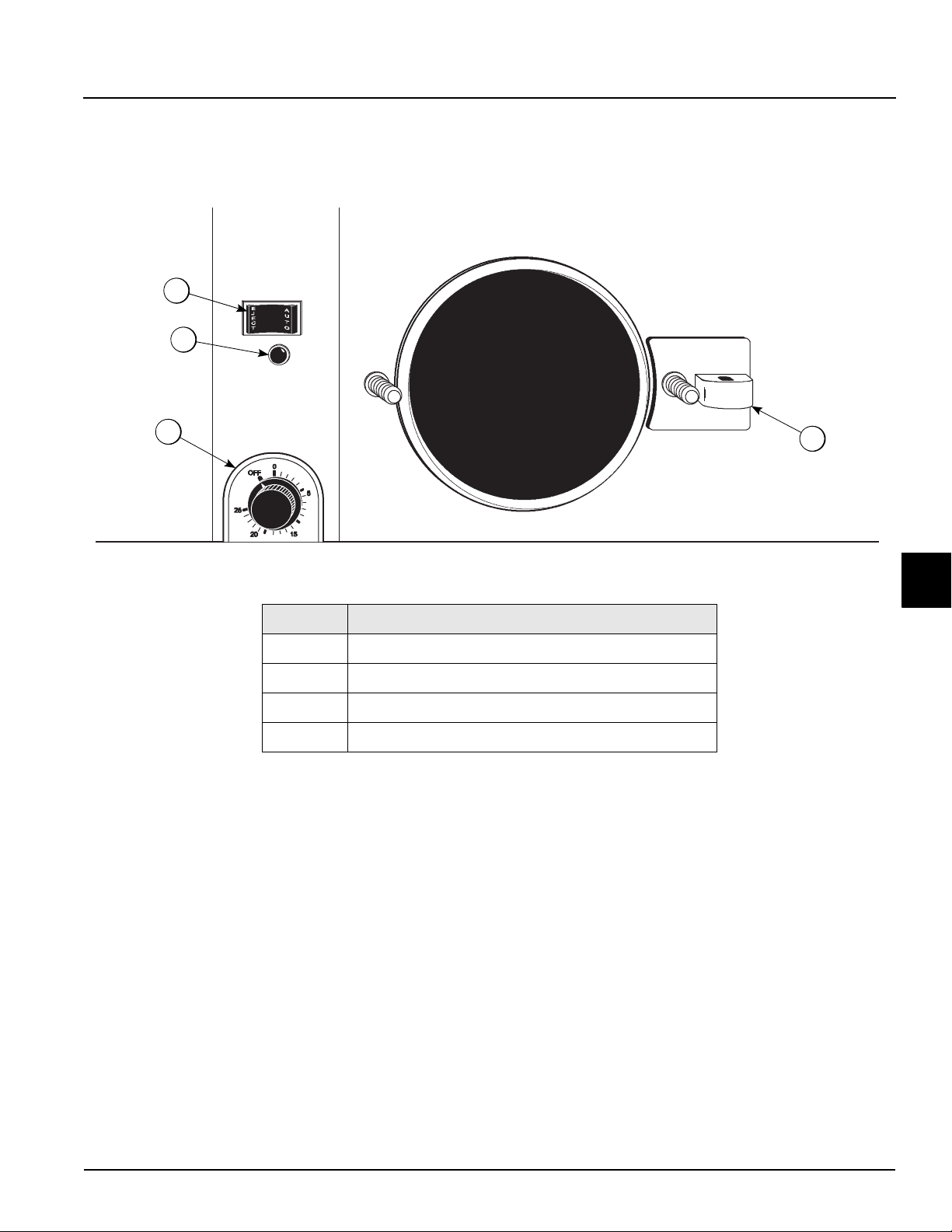

Control Switch
When the control switch (1) is placed in the Auto mode
and the timer is adjusted to the desired setting, the
refrigeration system operates. When the switch is placed
in the Eject mode, only the beater motor operates.
Orange Dial Light
Located below the control switch is an orange dial light
(2). When the control switch is in the AUTO position, this
light turns on, indicating the refrigeration system is
operable when the timer is set.
Safety
Never empty the contents of the freezing cylinder while
the control switch is in the AUTO position. Always put the
control switch into the EJECT position when drawing
product from the freezing cylinder. As an additional safety
feature, this machine does not operate if the door is
open.
Timer Control
Model 104 uses a timer control (3) to operate the
compressor and determine the viscosity of the product.
After the desired amount of product has been added to
the freezing cylinder, turn the timer for the amount of
refrigeration required for the batch. The timer setting
varies due to mix variations and desired finished product
viscosity.
Item Description
1 Control Switch
2 Orange Dial Light
3 Timer Control
4 Door Hinge
1
2
34

5-2
USER INTERFACE
Model 104 User Interface
5
Once the desired time is set, put the control switch into
the AUTO position. The compressor and beater motor
operate until the time is up. When the timer setting
elapses, the refrigerating process is canceled. The dial
light and beater assembly continues to operate. A tone
sounds, signaling the operator to dispense the finished
product. Turn the control switch to the EJECT position.
The product is ready to draw off and serve.
Start with 5 minutes and increase as needed. Times and
temperatures are dependent on specific mix
formulations, pre-charge amounts, and finished product
preferences.
Note: Because the freezing cylinder for the first batch
is at room temperature, the first batch freeze-down time
will be longer than subsequent batches.
Door Hinge
The door hinge (4) allows you to open the door without
removal. This feature is primarily used when changing
flavors and cleaning up is necessary.
Reset Condition
Model 104 is equipped with an internal motor overload
protection. Should an overload occur, the reset
mechanism trips, canceling freezer operation. To
properly reset the freezer, put the control switch into the
OFF position. Allow the beater motor to cool. Then return
the control switch to its original position.
Note: If the unit went out on reset, the product may
have been run too cold or too long. Therefore, after
resetting the freezer, check the temperature control or
the time set.
.
