Taylor 793 User manual

OPERATOR'S
MANUAL
Model 793 Chick-fil-A
Soft Serve Freezer
Original Operating Instructions
082304CFAM 6/25/13 (Original Publication)
Updated 12/6/13

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
E2013 Carrier Commercial Refrigeration, Inc.
082304CFAM
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may
be a violation of Copyright Law of the United States of America and other countries, could result in the awarding
of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents Model 793
Table of Contents
Section 1 To the Installer 1............................................
Section 2 To the Operator 4...........................................
Section 3 Safety 6....................................................
Section 4 Operator Parts Identification 8...............................

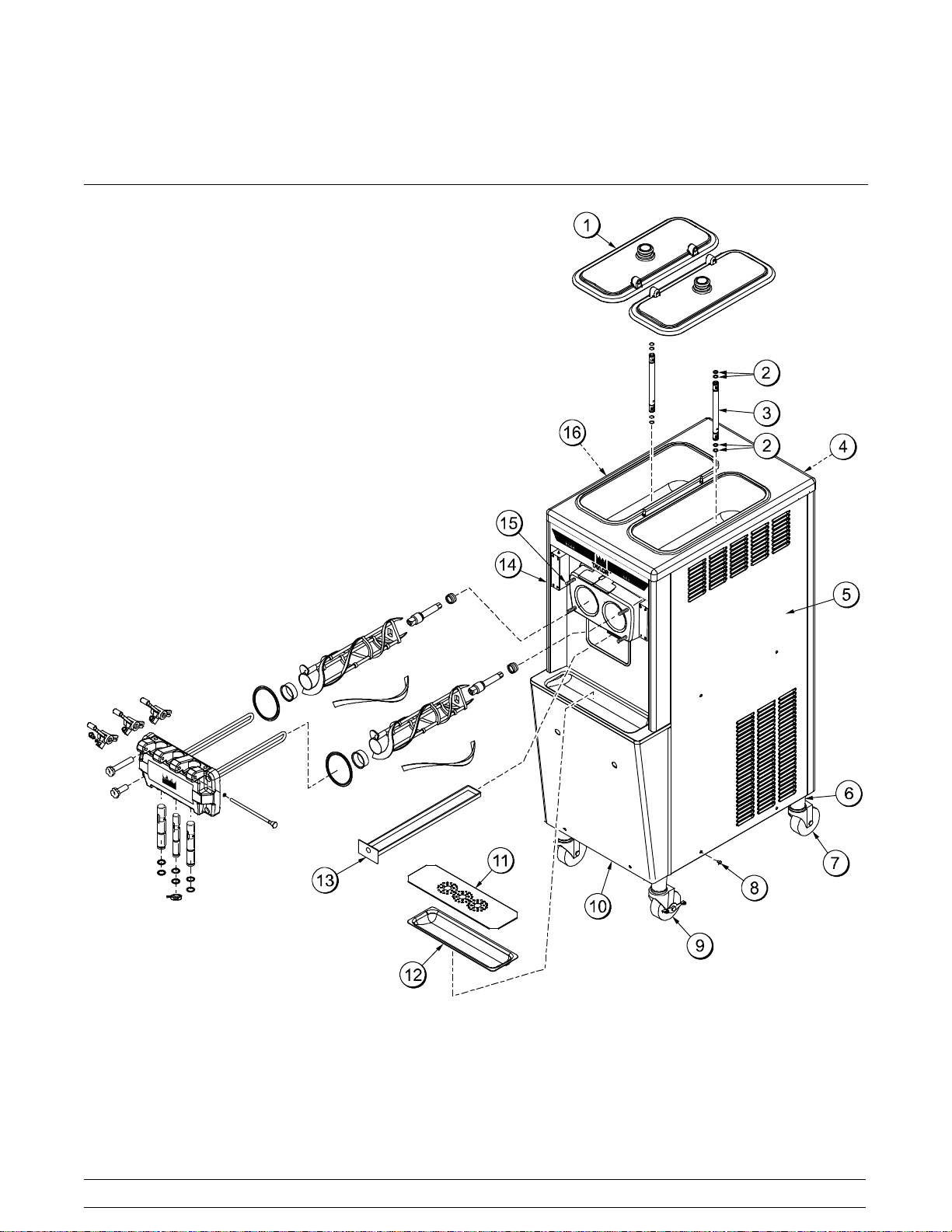

Model 793 8............................................................

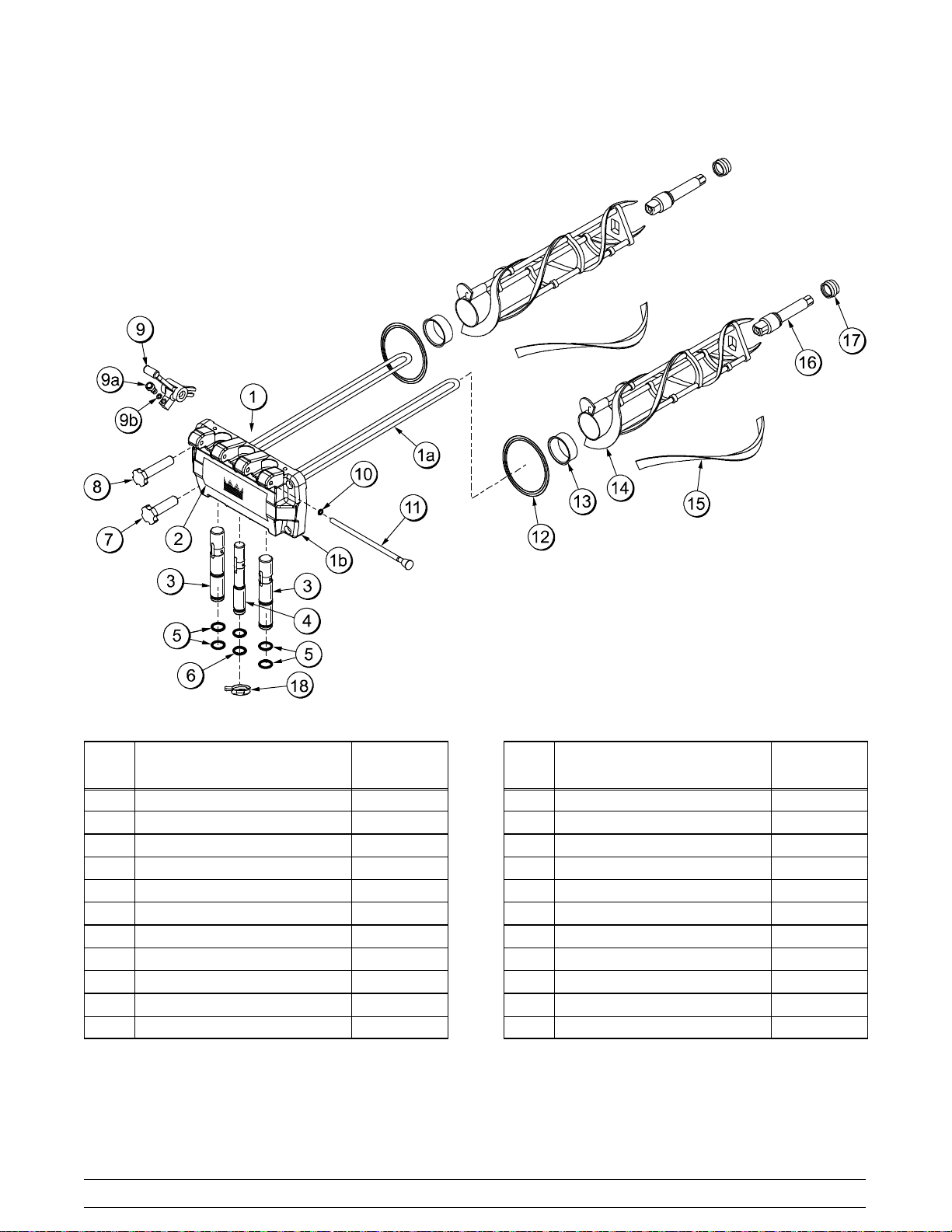

Three Spout Door and Beater Assembly 10.................................

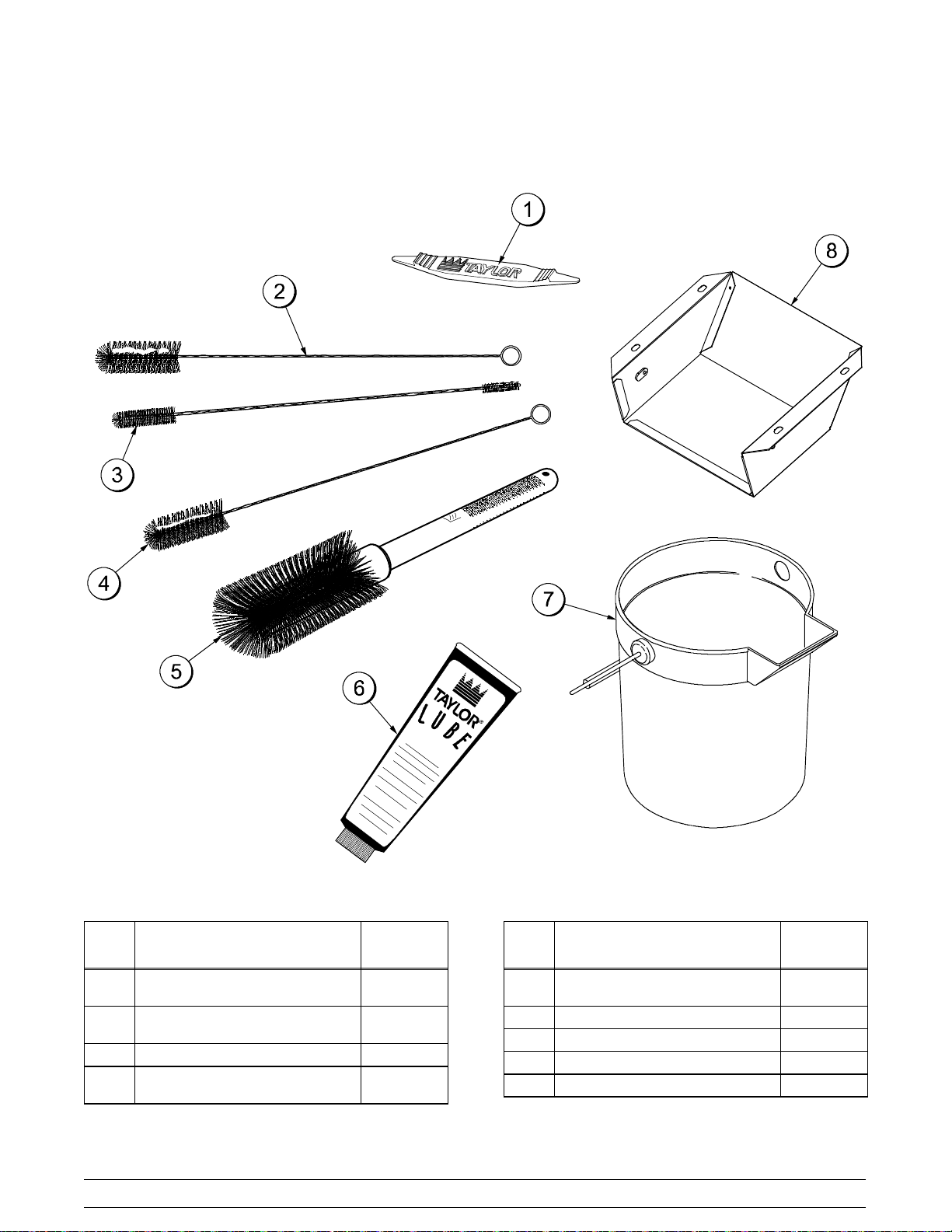

Accessories 11..........................................................
Section 5 Important: To the Operator 12.................................
Symbol Definitions 12....................................................
Air Tube 13.............................................................
Section 6 Operating Procedures 14.....................................
Assembly 14............................................................
Sanitizing 18............................................................
Priming 20..............................................................
Closing Procedure 20....................................................
Draining Product From The Freezing Cylinder 21............................
Rinsing 21..............................................................
Cleaning 21.............................................................
Disassembly 22..........................................................
Brush Cleaning 22.......................................................
Section 7 Important: Operator Checklist 23..............................
During Cleaning and Sanitizing 23.........................................
Troubleshooting Bacterial Count 23........................................
Regular Maintenance Checks 23...........................................
Winter Storage 24........................................................
Section 8 Troubleshooting Guide 25....................................
Section 9 Parts Replacement Schedule 28...............................
Section 10 Limited Warranty on Equipment 29............................

Model 793 Table of Contents
Table of Contents - Page 2
Section 11 Limited Warranty on Parts 31.................................
Section 12 Parts List 34.................................................
Wiring Diagram 43.......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E2013 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated December, 2013)
082304CFAM
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may be a violation of Copyright Law of the United States of America and other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model 793 To the Installer
131206
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor® equipment.
SOnly authorized Taylor service personnel
should perform installation, maintenance,
and repairs on Taylor equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper protective equipment (PPE)
is available and worn when required during
installation and service.
SAuthorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the unit must
be disconnected prior to performing any installation,
maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death
from electrical shock or hazardous moving parts as
well as poor performance or damage to the unit.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed.
Make sure that all possible hazards to the installer,
user, and the unit have been addressed.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70°-75°F (21°-24°C). The unit has
successfully performed in high ambient
temperatures of up to 104°F (40°C) at reduced
capacities.
This unit must NOT beinstalledinanarea
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken in moving this unit for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
damage to the unit.
The authorized installer should inspect the unit for
damage and promptly report any damage to the
local authorized Taylor distributor.
This unit is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
Air Cooled Units
DO NOT obstruct the unit's air intake and discharge
openings:
A minimum of 3” (76 mm) of air space is required on
all sides. Install the deflector provided to prevent
recirculation of warm air. Minimum air clearances
must be met to assure adequate air flow for
optimum performance.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the unit and possibly cause
permanent damage to the compressor.

2Model 793To the Installer
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided
with a hand shut-off valve. On the underside rear of
the base pan, two 3/8” I.P.S. (for single-head units)
or two 1/2” I.P.S. (for double-head units) water
connections for inlet and outlet have been provided
for easy hook-up. 1/2” inside diameter water lines
should be connected to the unit. (Flexible lines are
recommended, if local codes permit.) Depending on
local water conditions, it may be advisable to install
a water strainer to prevent foreign substances from
clogging the automatic water valve. There will be
only one water “in” and one water “out” connection
for both single-head and double-head units. DO
NOT install a hand shut-off valve on the water “out”
line! Water should always flow in this order: first,
through the automatic water valve; second, through
the condenser; and third, through the outlet fitting to
an opentrapdrain.
A back flow prevention device is
required on the incoming water connection side.
Please refer to the applicable National, State, and
local codes for determining the proper configuration.
Electrical Connections
In the United States, this unit is intended to be
installed in accordance with the current edition of the
National Electrical Code (NEC), ANSI/NFPA 70
which governs the installation of the unit at the local
governmental level.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the unit should be
installed in accordance with the existing local codes.
Please contact your local authorities.
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the unit
for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
Refer to the wiring diagram provided inside of the
electrical box for proper power connections.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
CAUTION: THIS UNIT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
An equipotential grounding lug is provided with
this unit. Some countries require the grounding lug
be properly attached to the rear of the frame by the
authorized installer. The installation location is
marked by the equipotential bonding symbol (5021
of IEC 60417-1) on both the removable panel and
the unit's frame.
SStationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.

3
Model 793 To the Installer
131021
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
To correct the rotation on a three-phase unit,
interchange any two incoming power supply lines at
unit's main terminal block only.
To correct rotation on a single-phase unit, change
the leads inside the beater motor. (Follow the
diagram printed on the motor.)
Electrical connections are made directly to the
terminal block provided in the main control box
located under the upper left side panel on the
countertop unit, or behind the service panel on the
console units.
It is recommended that beater rotation be performed
by an authorized Taylor service technician.
Refrigerant
In consideration of our environment, Taylor
uses only HFC refrigerants. The HFC refrigerant
used in this unit is R404A. This refrigerant is
generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Use only R404A refrigerant that conforms
to the AHRI standard 700 specification. The use of
any other refrigerant may expose users and
operators to unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.
Taylor reminds technicians to be aware of
and in compliance with local government laws
regarding refrigerant recovery, recycling, and
reclaiming systems. For information regarding
applicable local laws, please contact your local
authorized Taylor distributor.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

4Model 793To the Operator
131206
Section 2 To the Operator
The unit you have purchased has been carefully
engineered and manufactured to give you
dependable operation.
This unit, when properly operated and cared for, will
produce a consistent quality product. Like all
mechanical products, it will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator's Manual should be read
before operating or performing any maintenance on
the unit.
Your Taylor unit will NOT compensate for and/or
correct any errors made during the set-up or filling
operations. Thus, the initial assembly, set-up, and
priming procedures are of extreme importance. It is
strongly recommended that all personnel
responsible for the unit's operation, including
assembly and disassembly, go through these
procedures together in order to be properly trained
and to make sure that all understand their role in
using and maintaining the unit.
In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor.
Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.
If the crossed out wheeled bin symbol is
affixed to this unit, it signifies that this unit is
compliant with the EU Directives as well as other
similar end of life legislation in effect after August
13, 2005. Therefore, it must be collected separately
after its use is completed, and cannot be disposed
as unsorted municipal waste.
The user is responsible for returning the unit to the
appropriate collection facility, as specified by your
local code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste
facility and/or local authorized Taylor distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this unit, Taylor has no obligation to either
supply or provide replacement refrigerant either at
billable or unbillable terms. Taylor will recommend a
suitable replacement if the original refrigerant is
banned, obsoleted, or no longer available during the
five (5) year Taylor warranty of the compressor.

5
Model 793 To the Operator
From time-to-time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor's testing, that it would be accepted as
a drop-in replacement for this unit, then the
disclaimer in this “Compressor Warranty Disclaimer”
section will not apply to the use of the alternate
refrigerant approved by Taylor.
To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call Taylor or your local authorized Taylor distributor.
Be prepared to provide the Model/Serial Number of
the unit in question.
Note: Continuing research results in steady
improvements; therefore, information in this
Operator Manual is subject to change without
notice.

6Model 793Safety
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator at all times when they are
coming in contact with the unit and its parts. Taylor
makes every effort to design and manufacture
built-in safety features to protect both operators and
service technicians.
Installing and servicing refrigeration equipment can
be hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service
refrigeration equipment. When working on
refrigeration equipment, observe precautions noted
in the literature, tags and labels attached to the unit,
and other safety precautions that may apply. Follow
all safety code requirements. Wear safety glasses
and work gloves.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may also damage
the unit and/or its components. Such damage
may result in component replacement and
service repair expenses.
DO NOT operate the unit without reading
this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.
This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited equipment operation is allowed for
public use, such as a self-serve application,
supervision or instruction concerning the use of the
appliance by a person responsible for their safety is
required. Children should be supervised to ensure
that they do not play with the appliance.
SAll repairs should be performed by an
authorized Taylor service technician.
SThe main power supplies to the unit must be
disconnected prior to performing installation,
repairs, or maintenance.
SDO NOT operate the unit unless it is
properly grounded.
SDO NOT operate the unit with larger fuses
than specified on the unit's data label.
SUnits that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods,
or during initial installation, shall have
protective devices such as a GFI, to protect
against the leakage of current, installed by
the authorized personnel to the local codes.
SStationary units which are not equipped with
a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

7
Model 793 Safety
An equipotential grounding lug is provided with
this unit. Some countries require the grounding lug
be properly attached to the rear of the frame by the
authorized installer. The installation location is
marked by the equipotential bonding symbol (5021
of IEC 60417-1) on both the removable panel and
the unit's frame.
DO NOT use a water jet to clean or rinse
the unit. Failure to follow these instructions may
result in serious electrical shock.
SDO NOT allow untrained personnel to
operate this unit.
SDO NOT operate the unit unless all service
panels and access doors are restrained with
screws.
SDO NOT remove any internal operating
parts (including, but not limited to, freezer
door, beater, or scraper blades), unless all
control switches are in the OFF position.
Failure to follow these instructions may result in
severe personal injury, especially to fingers or
hands, from hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater assembly. The scraper blades
are very sharp.
This unit must be placed on a level surface.
Extreme care should be taken when moving the unit
for any reason. Two or more persons are required to
safely move this unit. Failure to comply may result in
personal injury or damage to the unit.
Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this Operator Manual for the
proper procedure to clean this unit.
This unit is designed to maintain product
temperature under 41°F (5°C). Any product being
added to this unit must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.
DO NOT obstruct the unit's air intake and discharge
openings:
A minimum of 3” (76 mm) of air space is required on
all sides. Install the deflector provided to prevent
recirculation of warm air. Minimum air clearances
must be met to assure adequate air flow for
optimum performance.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the unit and possibly cause
permanent damage to the compressor.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70°-75°F (21°-24°C). The unit has
successfully performed in high ambient
temperatures of up to 104°F (40°C) at reduced
capacities.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the unit and at a
height of 1.6 meters from the floor.

8Model 793Operator Parts Identification
Section 4 Operator Parts Identification
Model 793
Figure 1

9
Model 793 Operator Parts Identification
793 Exploded View Parts Identification
ITEM DESCRIPTION TAYLOR
PART NO.
1COVER-HOPPER-14 QT-GRAY 041682-GRY
2O-RING-.643 OD X .077W 018572
3TUBE-FEED-SS 081718-5
4PANEL-REAR 041855
5PANEL A.-SIDE RIGHT X82285
6ADAPTOR A.-CASTER X18915
7CASTER-4" SWV 5/8 STEM X
1-3/8 018794
8SCREW-1/4-20X3/8 SLTD
ROUND 011694
ITEM DESCRIPTION TAYLOR
PART NO.
9CASTER-4" SWV 5/8 STEM
W/BRAKE 034081
10 PANEL-SERVICE 064000
11 SHIELD-SPLASH 022765
12 TRAY-DRIP 021057
13 PAN-DRIP 19 1/2 LONG 035034
14 PANEL A.-FRONT X41820-SP2
15 STUD-NOSE CONE 022822
16 PANEL A.-SIDE LEFT X82284

10 Model 793Operator Parts Identification
Three Spout Door and Beater Assembly
Figure 2
ITEM DESCRIPTION TAYLOR
PART NO.
1DOOR A.-3 SPT*794*CHK-FIL-A X68971-SER
1a BAFFLE A. X50882
1b DOOR A.-3 SPT*794* CFA X68966
2DECAL-DOOR-3 SPOUT 021521
3VALVE A.-DRAW X68969
4VALVE A.-DRAW X69799
5O-RING-1-1/16 OD X.139W 020571
6O-RING-13/16 OD X .103W 019330
7NUT-STUD-SHORT 034383
8NUT-STUD-LONG 034382
9HANDLE A.-DRAW NON-ADJ. X80916
ITEM DESCRIPTION TAYLOR
PART NO.
9a SCREW-5/16-24 X .625 069014
9b O-RING-1/4 OD X .070W 50 015872
10 O-RING 5/16OD X .070W 016272
11 ROD A.- PIVOT X20683
12 GASKET-DOOR HT 4"-DOUBLE 048926
13 BEARING-FRONT 050216
14 BEATER A.- HELICORE X31761
15 BLADE- SCRAPER 035174
16 SHAFT-BEATER 032564
17 SEAL-DRIVE SHAFT 032560
18 CAP-DESIGN 1.010"ID-6 POINT 014218

11
Model 793 Operator Parts Identification
Accessories
Figure 3
ITEM DESCRIPTION TAYLOR
PART NO.
1TOOL-CLEANING O-RING
REMOVAL 048260
2BRUSH-REAR BRG 1" OD X 2" X
14" 013071
3BRUSH-DOUBLE ENDED 013072
4BRUSH-DRAW VALVE 1" OD X
2" X17" 013073
ITEM DESCRIPTION TAYLOR
PART NO.
5BRUSH-MIX PUMP BODY- 3" X
7" WHITE 023316
6LUBRICANT-TAYLOR 4 OZ. 047518
7PAIL-MIX 10 QT. 013163
8KIT A.-AIR DEFLECTOR X80777
*KIT A.-TUNE UP 3 SPOUT CFA X69492
*NOT SHOWN

12 Model 793Important: To the Operator
Section 5 Important: To the Operator
Figure 4
ITEM DESCRIPTION
1MIX LOW INDICATOR LIGHT
2MIX REFRIGERATION KEY
3STANDBY KEY
4WASH KEY
5AUTO KEY
6POWER ON/OFF TOGGLE
7RESET BUTTON
Symbol Definitions
To better communicate in the International arena,
the words on many of our operator switches and
keys have been replaced with symbols to indicate
their functions. Your Taylor equipment is designed
with these International symbols.
The following chart identifies the symbol definitions
used on the unit's operator switches.
=OFF
=ON
=MIX
= STANDBY
= WASH
=AUTO

13
Model 793 Important: To the Operator
Item #1 - MIX LOW Indicator Light
Located on the front of the unit is a mix level
indicating light. When the light is flashing, it indicates
that the mix hopper has a low supply of mix and
should be refilled as soon as possible. Always
maintain at least 3” (76 mm) of mix in the hopper. If
you neglect to add mix, a freeze-up may occur. This
will cause eventual damage to the beater, blades,
drive shaft, and freezer door.
Item #2 - MIX REF Key
When the MIX REF key is pressed, the light comes
on indicating the mix hopper refrigeration system is
operating. The MIX REF is controlled by the left side
of the unit as viewed from the operator end. The
MIX REF function cannot be cancelled unless the
AUTO or STANDBY modes are cancelled first.
Item #3 - STANDBY Mode Key
Per standard Chick-fil-A daily operating procedures,
the Standby feature is not used.
Item #4 - WASH Mode Key
When the WASH key is pressed, the light comes on.
This indicates beater motor operation. The
STANDBY or AUTO modes must be cancelled first
to activate the WASH mode.
Note: To cancel a mode of operation function,
press the key again. The light and mode of operation
will shut off.
Item #5 - AUTO Mode Key
When the AUTO key is pressed, the light comes on.
This indicates that the main refrigeration system has
been activated. In the AUTO mode, the WASH or
STANDBY functions are automatically cancelled.
The MIX REF function is automatically locked in to
maintain the mix in the mix hopper.
Note: To cancel a mode of operation function,
press the key again. The light and mode of operation
will shut off.
Item #6 - Power Switch
When placed in the ON position, the power switch
allows SOFTECH control panel operation.
Item #7 - Reset Button
The reset button is located in the service panel. The
reset protects the beater motor from an overload
condition. If an overload occurs, the reset
mechanism will trip. To properly reset the unit, press
the AUTO key to cancel the cycle. Place the power
switch in the OFF position. After two or three
minutes, press the reset button firmly.
Do not use metal objects to press the
reset button. Failure to follow this instruction
may result in electrocution.
Place the power switch in the ON position. Press the
WASH key and observe the unit's performance. If
the beater motor is turning properly, press the
WASH key to cancel the cycle.
Press the AUTO key on both sides of the unit to
resume normal operation. If the unit shuts down
again, contact an authorized Taylor service
technician.

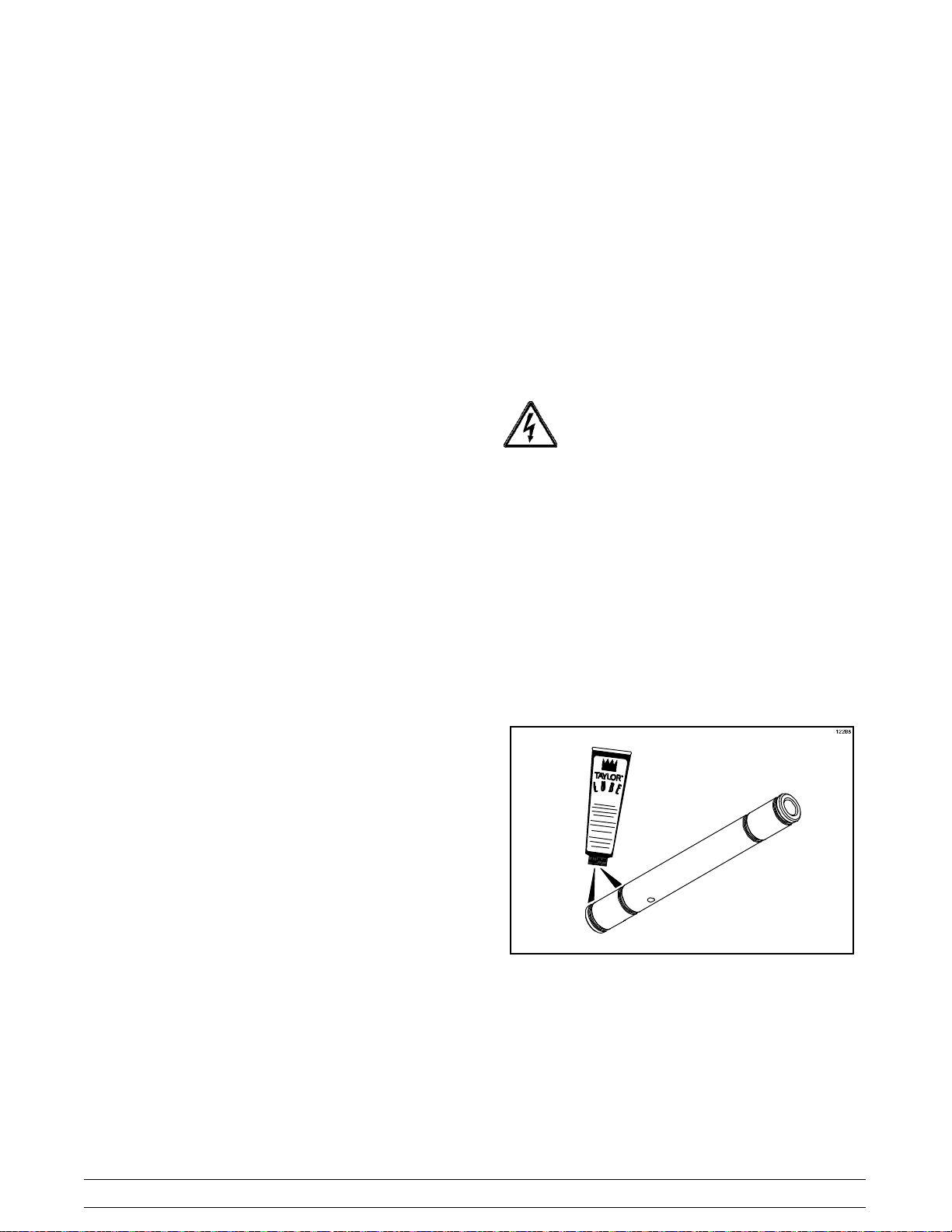

Air Tube
Figure 5
After priming the unit, lubricate the o-rings on the
end of the air tube that has the small hole on the
side. Install that end of the air tube into the mix inlet
hole. Every time the draw handle is raised, new mix
and air from the hopper will flow down into the
freezing cylinder. This will keep the freezing cylinder
properly filled and maintain overrun.

14 Model 793Operating Procedures
Section 6 Operating Procedures
The Model 793 stores mix in a hopper. The mix
flows by gravity through an air tube into the freezing
cylinder. The unit has two 3.4 quart (3.2 liter)
capacity freezing cylinders and two 14 quart (13.2
liter) mix hoppers.
We begin our instructions at the point where we
enter the store in the morning and find the parts
disassembled and laid out to air dry from the
previous night's cleaning.
The opening procedures in this section will show you
how to assemble these parts into the unit, sanitize
them, and prime the unit with fresh mix in
preparation to serve your first portion.
If you are disassembling the unit for the first time or
need information to get to this starting point in our
instructions, turn to page 22, “Disassembly”, and
start there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
MAKE SURE POWER SWITCH IS IN THE
“OFF” POSITION! Failure to follow this instruction
may result in severe personal injury from hazardous
moving parts.

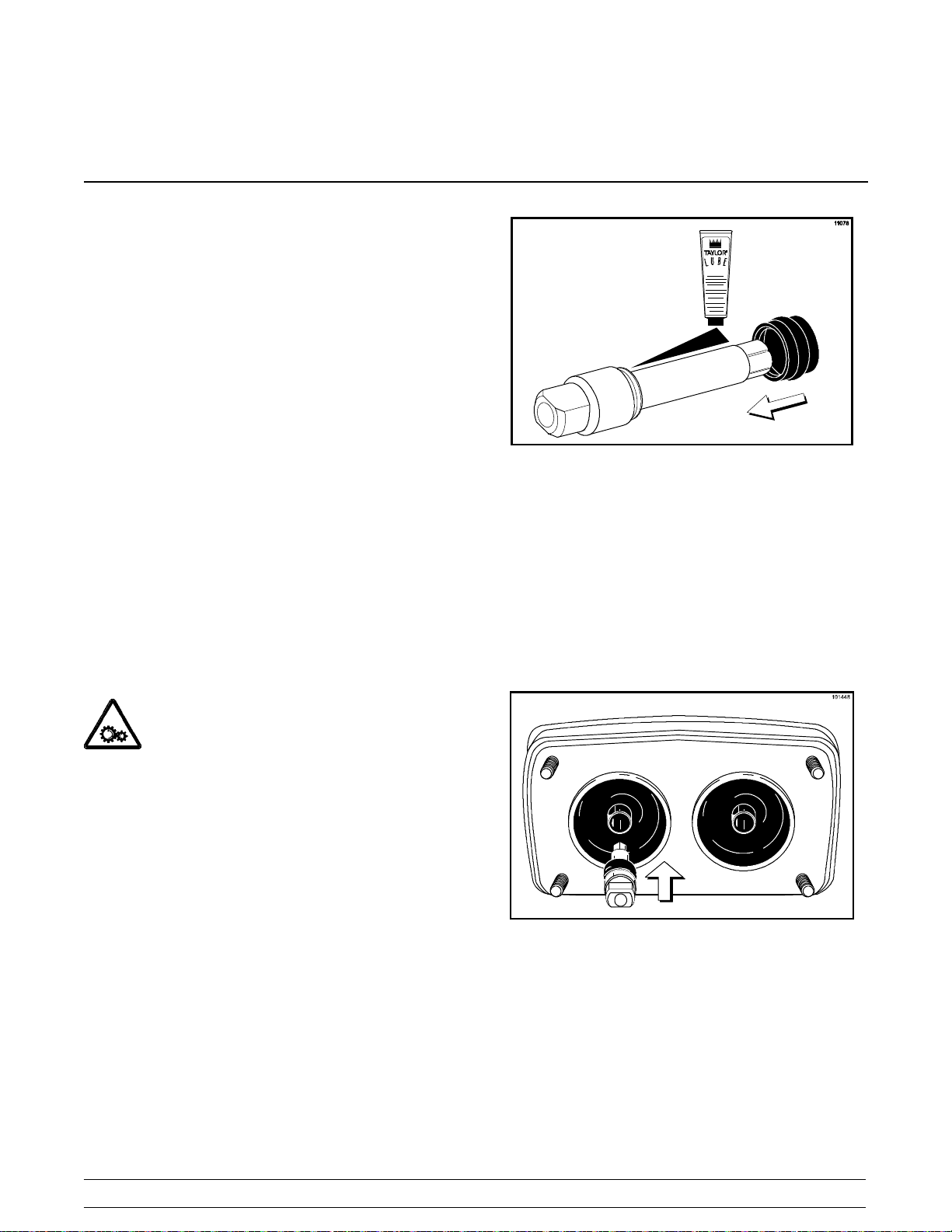

Step 1
Lubricate the groove and shaft portion that comes in
contact with the bearing on the beater drive shaft.
Slide the seal over the shaft and groove until it
snaps into place. DO NOT lubricate the hex end of
the drive shaft. Fill the inside portion of the seal with
1/4” more lubricant and lubricate the flat side of the
seal that fits onto the rear shell bearing.
Figure 6
Step 2
Insert the drive shaft into the freezing cylinder, hex
end first, and into the rear shell bearing until the seal
fits securely over the rear shell bearing. Engage the
hex end firmly into the drive coupling. Be sure the
drive shaft fits into the drive coupling without
binding.
Figure 7

15
Model 793 Operating Procedures
Step 3
Take one of the scraper blades and slip it under the
hook at the front of the beater. Wrap the blade
around the beater, following the helix and pushing
the blade down onto the helix as you wrap. At the
back end of the beater, slip the blade under the
hook. Repeat this step for the second scraper
blade.
Figure 8
Step 4
Holding the beater securely, slide the beater one
third of the way into the freezing cylinder. Looking
into the freezing cylinder, align the hole at the rear of
the beater with the flats on the end of the drive
shaft.
Figure 9
Step 5
Slide the beater the remainder of the way into the
freezing cylinder and over the end of the drive shaft.
The beater should fit snugly, but not so tightly that
the beater cannot be turned slightly to engage the
drive shaft. If the beater slides in too easily with little
or no resistance, there will not be enough force
against the beater to hold the blades in place. If this
is the case, contact your authorized Taylor service
technician.
Repeat steps 1 - 5 for the other side of the unit.
Step 6
Place the large rubber gaskets into the grooves on
the back side of the freezer door.
Step 7
Slide the white plastic front bearings over the baffle
rods onto the bearing hubs, making certain that the
flanged end of the bearing is resting against the
freezer door.
Note: Do not lubricate the gaskets or the front
bearings.
Figure 10

16 Model 793Operating Procedures
Step 8
Insert the baffle rods through the opening in the
beaters and seat the door flush with the freezing
cylinder. With the door seated on the freezer studs,
install the handscrews. The short handscrews go on
the bottom and the long handscrews go on the top.
Tighten equally in a crisscross pattern to ensure the
door is snug.
Figure 11
Step 9
Install the draw valves. Slide the two o-rings into the
grooves on the draw valves and lubricate.
Figure 12
Step 10
Lubricate the inside of the freezer door spouts, top
and bottom. Insert the draw valves from the bottom
until the slot in the draw valves comes into view.
Figure 13
Step 11
Install the adjustable draw handles. Slide the o-ring
into the groove on the pivot pin and lubricate.
Figure 14
