Taylor 432 User manual

OPERATOR’S 
MANUAL
Model 432 Frozen Beverage Unit
with Raised Drip Tray
May, 2008 (Original Publication)
(Updated 7/30/2020)
Original Operating Instructions
066484-M

Complete this page for quick reference when service is required:
Taylor Distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2008 Taylor Company
(Updated 7/30/2020)
066484-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

066484-M 1
Table of Contents
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Beater Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Section 3: Safety
Section 4: Operator Parts Identification
Model 432 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Model 432 Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Beater Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Beater Door Assembly Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Section 5: User Interface
Control Switch (Item 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Push-Button Switch (Item 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Display Light Switch (Item 3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Indicator Light—MIX OUT (Item 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Light—ADD MIX (Item 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Viscosity Adjustment (Item 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Section 6: Operating Procedures
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Closing Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Draining Product from the Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Brush-cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

066484-M 2
Section 7: Operator Checklist
During Cleaning and Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Model 432
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before work-
ing on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts as well as
poor performance or damage to the machine.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed.
Make sure that all possible hazards to the installer, user,
and the machine have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70ºF to 75ºF (21ºC to 24ºC). The machine has
successfully performed in high ambient temperatures of
up to 104ºF (40ºC) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving the machine for any reason. Two or more
persons are required to safely move this machine.
Failure to comply may result in personal injury or damage
to the machine.
The authorized installer should inspect the machine for
damage and promptly report any damage to the local
authorized Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
!

1-2
TO THE INSTALLER
Model 432 To the Installer
1
Air-Cooled Machines
Do not obstruct air intake and discharge openings:
A minimum of 6 in. (152 mm) on both sides and 0 in. on
the back is required. Failure to follow this instruction may
cause poor freezer performance and damage to the
machine.
Electrical Connections
This machine must be plugged into a properly grounded
receptacle. The cord and plug must be sized for 20A
usage. The voltage specifications are 208-230/60/1.
Follow specifications listed on your data plate.
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.

(3 mm) installed in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices, to
protect against the leakage of current such as a
GFI, installed by the authorized personnel to the
local codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician in order
to avoid a hazard.
• Secure the supply cord ground lead to the
machine in a location where if the cord is pulled,
the main power leads will become taut before
the ground lead can break loose.
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Model 432
To the Installer
1
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
Note: The following procedures must be performed by
a Taylor service technician.
To correct rotation on a single-phase machine, change
the leads inside the beater motor. (Follow the diagram
printed on the motor.)
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This unit's type of gas, quantity, Global Warming
Potential (GWP) and CO2tonnes equivalent information
is recorded on the machine's data label. The refrigerant
used is generally considered non-toxic and non-
flammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush immediately with cold water. If burns are severe,
apply ice packs and contact a physician immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
!
!

1-4
TO THE INSTALLER
Model 432 To the Installer
1
Notes:

Section 2
2-1
Model 432
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor Model 432, when properly operated
and cared for, will produce a consistent quality product.
Like all mechanical products, it will require cleaning and
maintenance. A minimum amount of care and attention is
necessary if the operating procedures outlined in this
manual are followed closely.
This Operator's Manual should be read before operating
or performing any maintenance on your equipment.
Your Taylor freezer will not eventually compensate for
and correct any errors during the setup or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment's operation, both assembly and disassembly,
sit down together and go through these procedures in
order to be properly trained and to make sure that no
misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on
machines or parts if unapproved parts or incorrect
refrigerant were installed in the machine, system
modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.
IMPORTANT! If the crossed-out, wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed, and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit's refrigeration system, only
the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the unit owner's responsibility to make this fact known
to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or unbillable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the five-year
warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, that it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor Factory. Be prepared to provide the 
model/serial number of the unit in question.

2-2
TO THE OPERATOR
Model 432 To the Operator
2
Notes:

Section 3
3-1
Model 432
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect both operators and service technicians.
Installing and servicing refrigeration equipment can be
hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service refrigeration
equipment. When working on refrigeration equipment,
observe precautions noted in the literature, tags and
labels attached to the machine, and other safety
precautions that may apply. Follow all safety code
requirements. Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may result in component replacement and
service repair expenses.
NOTICE! DO NOT operate the machine without
reading this entire manual first. Failure to follow all of
these operating instructions may result in damage to the
machine, poor performance, health hazards, or personal
injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities, or lack of
experience and knowledge. Where limited machine
operation is allowed for public use, such as a self-serve
application, supervision or instruction concerning the use
of the machine by a person responsible for their safety is
required. Children should be supervised to ensure that
they do not play with the machine.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by a Taylor
service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. 
(3 mm) installed in the external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by an Taylor service technician in order
to avoid a hazard.
!
!

3-2
SAFETY
Model 432 Safety
3
• Secure the supply cord ground lead to the
machine in a location where if the cord is pulled,
the main power leads will become taut before
the ground lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are restrained with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to, freezer door,
beater, or scraper blades), unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving the machine for any reason. Two or more
persons are required to safely move this machine.
Failure to comply may result in personal injury or damage
to the machine.
IMPORTANT! Access to the service area of the
machine must be restricted to persons having knowledge
and practical experience with the machine, in particular
as far as safety and hygiene are concerned.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet, designed to maintain product
temperature at or below 41°F (5°C). Any product being
added to this machine must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards and
poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings: 6 in.
(152 mm) minimum air space on front, sides and rear,
and 0 in. (0 mm) on bottom.
!
!
!

SAFETY
3-3
Model 432
Safety
3
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in. 
(1.6 m) from the floor.

3-4
SAFETY
Model 432 Safety
3
Notes:

Section 4
4-1
Model 432
Operator Parts Identification
4
Operator Parts Identification
Model 432
Figure 4-1
1
2
3
16
419
5
18
8
11
13
9
12
15
7
14
16
17
10
6

4-2
OPERATOR PARTS IDENTIFICATION
Model 432 Operator Parts Identification
4
Model 432 Parts Identification
*Not Shown
Item Description Part No.
1 Cover A.-Hopper X52452
2 Panel-Rear 052363
3 Panel-Side Right 066452
4 Panel-Front Lower 066405
5 Gasket-Base Pan 052377
6 Shelf A.- Drip Tray X66421
7 Shield- Splash 066419
8 Pan- Drip 17- 1/2 LG 027504-GRY
9 Stud- Nose Cone 013496
10 Panel A.- Upper Front X66410
11 Light A.- LED *432* 080966- 05
Item Description Part No.
12 Lens- Decorative Plate 052359
13 Panel- Side- Left 066453
14 Tray- Drip 066420
15 Tube- Feed W/DBL 3/8 Hole 015176-SP9
16 Screw- 10- 32X3/4 SLTD 001086
17 Collar- Holding 019481
18 O- Ring- SQ- .358ID X .139W 066456
19 Collar- Holding- .730DIA X .184 066457
*20 Screw- 10X7/16 UNSL TD HWH-
Base Pan Gasket
066234

OPERATOR PARTS IDENTIFICATION
4-3
Model 432
Operator Parts Identification
4

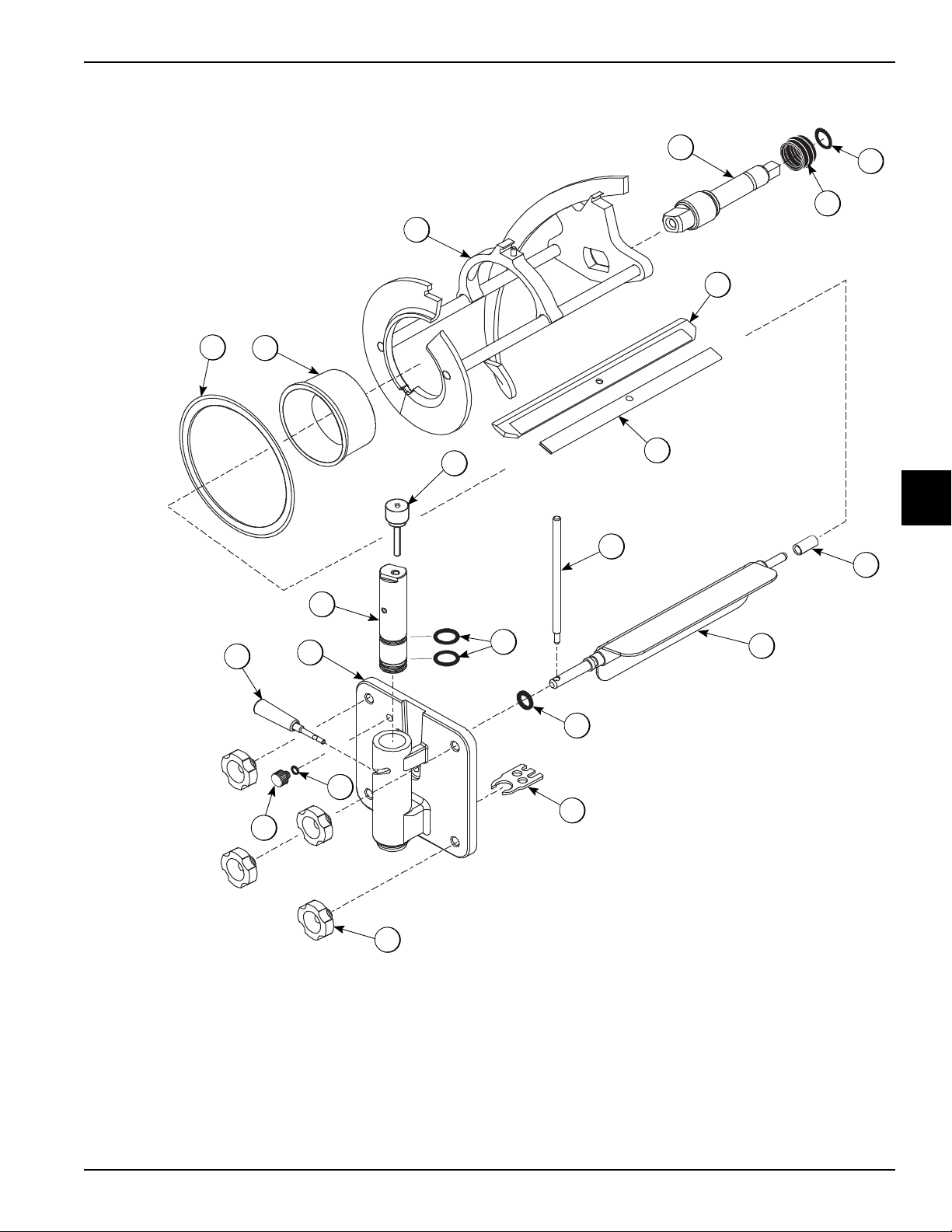

Beater Door Assembly
Figure 4-2
15
16
10
13
4
17
14
19
8
5
9
7
6
21
3
21
20
18
11
12

4-4
OPERATOR PARTS IDENTIFICATION
Model 432 Operator Parts Identification
4
Beater Door Assembly Parts Identification
Item Description Part No.
1 Door A.-Slush-Partial X83427SER2
2 Handle A.-Draw-Slush X47384
3 Valve Draw - Slush 047734
4 Pin A.- Valve Handle X25929
5 O-Ring- 1”OD X.139W 032504
6 Buster - Ice 047735
7 O-Ring -.291 OD X.080 W 018550
8 Torque A. *432* X66393
9 Bearing - Guide 014496
10 Gasket- Door 5.109 X 5.630 014030
11 Bearing - Front 013116
Item Description Part No.
12 Beater A. - 4 QT. 1 Pin X49490
13 Blade- Scraper- Plastic 046237
14 Arm- Torque *432* SOFT 052450-SP
15 Shaft - Beater 035418
16 Seal - Drive Shaft 032560
17 O-Ring 7/8 OD X.139 W 025307
18 Nut- Stud 029880
19 Clip- Scraper Blade 8.75” 046238
20 Plug- Prime*430*STNLS 050405
21 O-Ring-.563 OD X.070W 043758

OPERATOR PARTS IDENTIFICATION
4-5
Model 432
Operator Parts Identification
4
Accessories
Figure 4-3
*Note: A sample container of sanitizer is sent with the unit. For
reorders, order Stera Sheen part no. 055492 (100 packs) or
Kay- 5 part no. 041082 (125 packs).
Apply the appropriate
Taylor approved food safe lubricant.
1
2
3
5
8
4
9
6
7
Item Description Part No.
1 Brush- Mix Pump Body- 3X7 023316
2 Brush- Double Ended 013072
3 Brush- Rear BRG 1”D X 2” LG X
14”
013071
4 Brush- Draw Valve 1- 1/2”OD X 3” 014753
Item Description Part No.
5 Kit A.- Tune Up X50413
6 Blade- Scraper- Plastic 046237
7 Lubricant- Taylor 047518
8 Pail- 10 QT. 013163
*9 Sanitizer- Stera Sheen 055492

4-6
OPERATOR PARTS IDENTIFICATION
Model 432 Operator Parts Identification
4
Notes:
