Taylor 104 User manual

Models 104/220
Batch Freezers
Service Manual
028763--S
7/16/01 (Original Publication)
(Updated 1/27/12)

Models 104 & 220 Table of Contents
Table of Contents
Section 1: Introduction 1...............................................
Safety 2.............................................................
104 Specifications 4...................................................
220 Specifications 5...................................................
Running Specifications 6...............................................
General Installation Instructions 7.......................................
Environmental Notices 11...............................................
Section 2: Controls 13...................................................
Controls 14............................................................
Section 3: Troubleshooting 17...........................................
General Troubleshooting 18.............................................
Model 104 Electrical Troubleshooting 22..................................
Model 220 Electrical Troubleshooting 23..................................
Section 4: Parts 25......................................................
Warranty Explanation 26................................................
Model 104 Exploded View 28............................................
Model 104 Panels Exploded View 30.....................................
Model 104 Beater Door Assembly 31.....................................

Table of Contents Models 104 & 220
Table of Contents -- Page 2
Model 220 Exploded View 32............................................
Model 220 Panels Exploded View 34.....................................
Model 220 Beater Door Assembly 36.....................................
Cap & Relay Box X53471--27 (Model 220) 37..............................
Control A. X49827--27 (Model 104) 38....................................
Control A. X49156--27 (Model 220) 39....................................
Switch A.--Draw X31727-SER 40.........................................
Blower A. X53478--27 41................................................
Parts List 42...........................................................
Wiring Diagrams 56....................................................
CAUTION: Information in this manual is intended to be used by Taylor Authorized
Service Technicians only.
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
EJuly, 2001 Taylor (Original Publication)
(Updated January, 2012)
All rights reserved.
028763--S
The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Models 104 & 220 Introduction
Section 1: Introduction
SSafety
SSpecifications
SRunning Specifications
SGeneral Installation Instructions
SEnvironmental Notices

2
Introduction Models 104 & 220
Safety
_________________________________
We, at Taylor Company, are committed to
manufacturing safe operating and serviceable
equipment. The many built--in safety features that are
part of all Taylor equipment are aimed at protecting
operators and trained service technicians alike.
This manual is intended exclusively for
Taylor authorized service personnel.
DO NOT attempt to run the equipment unless
you have been properly trained to do so.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! Do not operate this freezer
unless it is properly grounded and all service panels
and access doors are restrained with screws. Failure
to do so can result in severe personal injury from
electrical shock!
SDO NOT attempt any repairs unless the
main power supply to the freezer has been
disconnected.
SDO NOT operate the freezer with larger
fuses than specified on the data label.
SStationary appliances which are not
equipped with a power cord and a plug or
other device to disconnect the appliance
from the power source must have an
all--pole disconnecting device with a contact
gap of at least 3 mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected, not used for long
periods, or during initial installation, shall
have protective devices such as a GFI to
protect against the leakage of current and
be installed by authorized personnel to the
local codes.
SSupply cords used with this unit shall be
oil--resistant, sheathed flexible cable, not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer--sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
Failure to follow these instructions may result in
electrocution or damage to the machine.
This unit is provided with an equipotential
grounding lug that is to be properly attached to either
the rear of the frame or the under side of the base pan
near the entry hole for incoming power, by the
authorized installer. The installation location is marked
by the equipotential bonding symbol (5021 of IEC
60417-1) on both the removable panel and the
equipment’s frame, as well as on the diagram.
DO NOT remove the freezer door or any
internal operating parts (examples: beater, scraper
blades, etc.) unless all control switches are in the OFF
position. Failure to follow these instructions may result
in severe personal injury from hazardous moving
parts.
THIS UNIT HAS MANY SHARP EDGES
THAT CAN CAUSE SEVERE INJURIES.
Examples:
Sscraper blades
Scondenser fins
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason.
Two or more people are required to safely move this
unit. Failure to comply may result in personal injury or
equipment damage.

3
Models 104 & 220 Introduction
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean this unit. Using a
water jet or hose on or around this equipment may
result in electrocution to the user or damage to the
equipment.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to the
cleaning section of the Operator Manual for the proper
procedure to clean this unit.

4
Introduction Models 104 & 220
104 Specifications
Freezing Cylinder
One, 3 quart (2.9 liter). Pre--charge of liquid mix
depends on desired overrun.
Beater Motor
One, 1.0 HP
Refrigeration Unit
One, approximately 2,500 BTU/hr. R404A
(BTU’s may vary depending on compressor used.)
Electrical
Electrical
One dedicated connection
Maximum
Fuse Size
Minimum
Circuit Ampacity
115/60/1 Air 35 29
208-230/60/1 Air 15 15
220-240/50/1 Air 15 12
This unit is also available with other electrical
characteristics. (For exact electrical information,
always refer to the data label of the unit.)
Air Cooled
Clearance: 6” (152 mm) around all sides.
Dimensions
Width: 16--7/16” (418 mm)
Depth: 26--13/16 (681 mm)
Height:21--3/8” (542 mm)
Counter Clearance: Unit is designed to rest on a
plastic pad directly on the counter top.
Approximate Weights
Net: 165 lbs. (74.8 kgs.)
Crated:204 lbs. (92.5 kgs.)
This unit is designed and constructed to meet stringent
safety and sanitation requirements for NSF and other
food service regulatory agencies.

5
Models 104 & 220 Introduction
090811

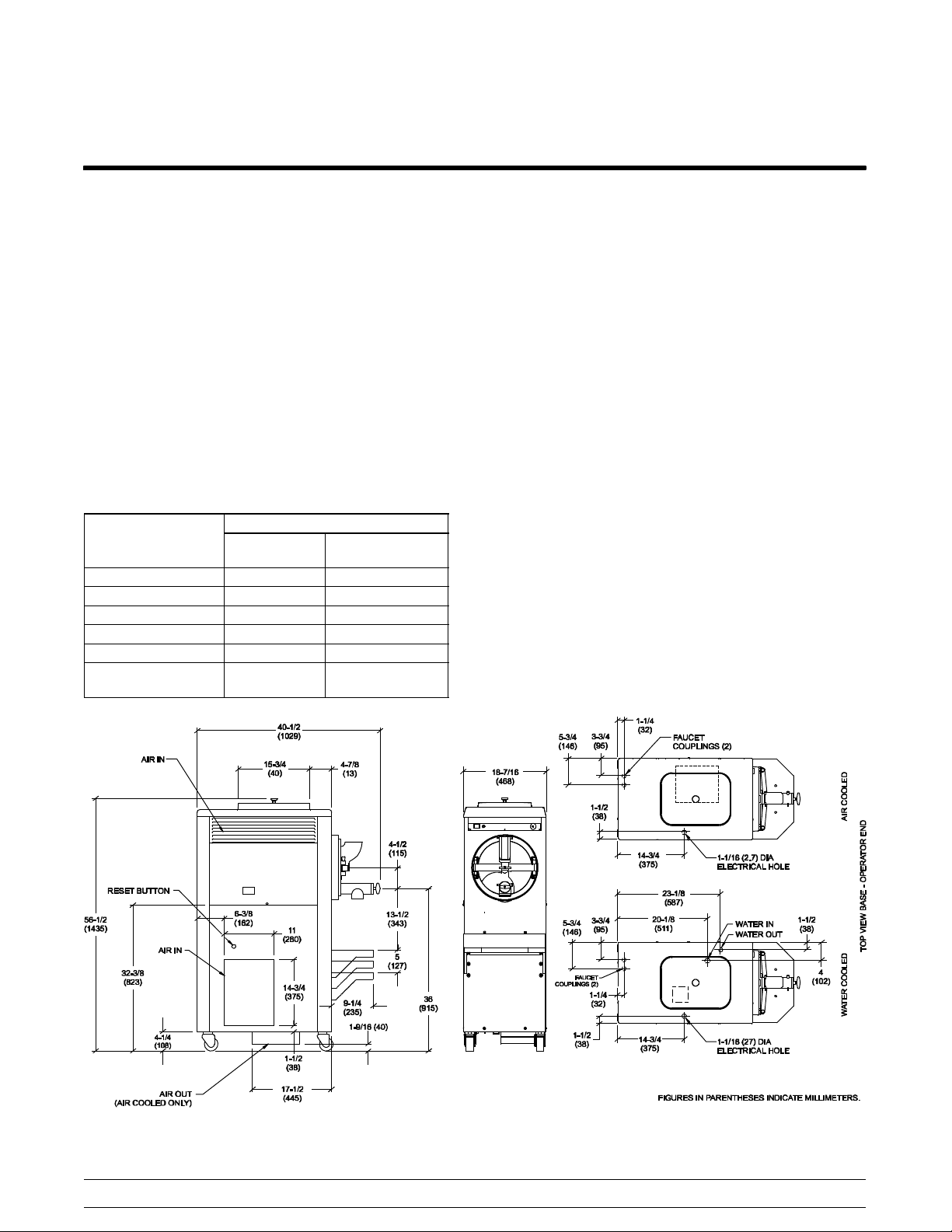

220 Specifications
Freezing Cylinder
One, 20 quart (18.9 liter)
Mix Hopper
One, 10 quart (9.5 liter)
Beater Motor
One, 1.5 HP
Refrigeration Unit
One, approximately 15,000 BTU/hr. R404A
(BTU’s may vary depending on compressor used.)
Electrical
Electrical
One dedicated connection
Maximum
Fuse Size
Minimum
Circuit Ampacity
208-230/60/1 Air 40 30
208-230/60/1 Water 40 27
208--230/60/3 Air 30 22
208--230/60/3 Water 30 19
220--240/50/1 Air 30 25
220--240/380--415/
50/3 Air
15 12
This unit is also available with other electrical
characteristics. (For exact electrical information,
always refer to the data label of the unit.)
Air Cooled
Clearance: 3” (76 mm) around all sides. Install the
deflector provided to prevent recirculation of warm air.
Water Cooled
Water inlet and drain connections under side of base
3/8” FPT.
Dimensions
Width: 18--7/16” (468 mm)
Depth: 40--1/2” (1029 mm)
Height:56--1/2” (1435 mm)
Floor Clearance: 4--1/4” (108 mm), mounted on
standard casters.
Approximate Weights
Net: 500 lbs. (226.8 kgs.)
Crated:590 lbs. (267.6 kgs.)
This unit is designed and constructed to meet stringent
safety and sanitation requirements for NSF and other
food service regulatory agencies.

6
Introduction Models 104 & 220
070308
Running Specifications
The following are the pressure and temperature
settings recommended by Taylor for the Models 104
and 220.
Pressures
Thermostatic Expansion Valve (Suction)
Suction pressure will vary in batch style freezers due
to mix formulation, temperature, etc. At the beginning
of a freeze cycle the thermostatic expansion valve will
be wide open (high suction pressure). The Model 104
will be approximately 28 PSI. The Model 220 will be
approximately 22 PSI.
Thermostatic Expansion Valve Adjustment
Adjust higher or lower by removing the large hex cap
and rotating the slotted adjustment stem. A clockwise
adjustment will lower the pressure and a
counterclockwise adjustment will raise the pressure.
Note: Make this adjustment with mix in the cylinder
and the unit in the AUTO mode. Allow adequate time
for the pressure to stabilize.
High Side (Compressor)
Head pressure on air cooled units varies depending on
the ambient temperature. The following chart shows
normal operating pressures at various ambient
temperatures.
Ambient
Temperature
Normal Operating
Head Pressures
F. C. PSI
70_21.1_240 - 270 (1,655 - 1,862 kPa)
80_26.7_270 - 300 (1,862 - 2,069 kPa)
90_32.2_300 - 340 (2,069 - 2,344 kPa)
100_37.8_340 - 380 (2,344 - 2,620 kPa)
Note: This chart applies to units using R404A
refrigerant.
Water Valve
On water cooled units, the water valve should be set
to maintain a compressor head pressure of 225--240
PSI (1551 -- 1,655 kPa).
Water Valve Adjustment
Place a gauge on the high side access port of the
compressor. Turning the adjustment stem on the water
valve clockwise will lower the pressure. Turning the
stem counterclockwise will raise the pressure.
Note: Make this adjustment with mix in the freezing
cylinder, and the unit in the AUTO mode. Allow
adequate time for the pressure to stabilize.
Temperature
Product
Model 104: Finished product temperature should be
between 18_Fto22_F(--7.8_Cto--5.6_C).
Model 220: Finished product temperature should be
between 23_Fto25_F(--5.0_Cto--3.8_C).
Temperature Adjustment
Clockwise is the coldest setting, 22_F(--5.5_C).
Counterclockwise is the warmest setting, 26_F
(--3.3_C). The temperature control is factory set, but
should be checked. It is important that the coldest
setting not go below 22_F(--5.5_C).
Hopper
The mix hopper is refrigerated directly from the main
refrigeration system and is designed to keep mix at a
safe temperature during freezer operation. The mix
hopper refrigeration is not adjustable.

7
Models 104 & 220 Introduction
110908
General Installation Instructions
The following are general installation instructions. For
complete installation details, please see the checkout
card.
Site Preparation
Review the area the unit is to be installed in before
uncrating the unit. Make sure that all possible hazards
the user or equipment may come into have been
addressed.
Clearance: Air Cooled Units
The Model 104 requires a minimum of 6” (152 mm) and
the Model 220 requires a minimum of 3” (76 mm) of air
clearance around all sides of the freezer.
IMPORTANT: Failure to allow for adequate clearance
can reduce the refrigeration capacity of the freezer and
possible cause damage to the compressor.
We recommend that condensers and filters be cleaned
of dust and dirt at least once a month.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of 70_-
75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of 104_F
(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean this unit. Using a
water jet or hose on or around this equipment may
result in electrocution to the user or damage to the
equipment.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason.
Two or more people are required to safely move this
unit. Failure to comply may result in personal injury or
equipment damage.
Uncrate the machine. Inspect the unit for damage.
Report any damage to the Taylor factory immediately.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on
the equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and
service.
SAuthorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
THIS UNIT HAS MANY SHARP EDGES
THAT CAN CAUSE SEVERE INJURIES.
Examples:
Sscraper blades
Scondenser fins

8
Introduction Models 104 & 220
110908
Electrical Connections
In the United States, this equipment is
intended to be installed in accordance with the
National Electrical Code (NEC), ANSI/NFPA 70-1987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
Note: This unit is provided with an equipotential
grounding lug that is to be properly attached to either
the rear of the frame or the under side of the base pan
near the entry hole for incoming power, by the
authorized installer. The installation location is marked
by the equipotential bonding symbol (5021 of IEC
60417-1) on both the removable panel and the
equipment’s frame, as well as on the diagram.
SDO NOT operate the freezer with larger
fuses than specified on the data label.
SStationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected, not used for long
periods, or during initial installation, shall
have protective devices such as a GFI to
protect against the leakage of current,
installed by authorized personnel to the local
codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable, not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
Failure to follow these instructions may result in
electrocution or damage to the machine.
Water Cooled Units
An adequate cold water supply with a hand shut-off
must be provided.
Step 1
Flush all water lines.
Step 2
Connect a 3/8” inside diameter water line to the 3/8”
I.P.S. inlet water connection.
Note: If local codes permit, use flexible water lines.
Local water conditions may make it necessary to install
a water strainer to prevent foreign substances from
clogging the automatic water valves.
Step 3
Connect a 3/8” inside diameter flexible drain line to the
outlet connection.
Step 4
Install the drain line into an open trap drain so the drain
water can be observed.
IMPORTANT: Do not install a shut--off valve on the
drain line.

9
Models 104 & 220 Introduction
Checkout
At installation, check the following controls and
mechanical operations and make the necessary
adjustments.
Beater Rotation
Check Rotation of Beater
PLACE THE ROCKER SWITCH IN THE
“OFF” POSITION. Failure to follow this instruction
may result in severe personal injury to fingers or hands
from hazardous moving parts.
Step 1
Remove the door assembly, the beater and the
driveshaft. Inspect each part for a smooth surface and
proper fit.
Step 2
Replace the freezer door to close the door disconnect
switch.
Step 3
Open an upper side panel and place the rocker switch
in the EJECT position.
Step 4
Check for proper operation of the belts and pulleys.
Step 5
Observe the gear coupling for the driveshaft.
It should be turning clockwise as viewed from
the front of the machine.
Correct Rotation of Beater
DISCONNECT ALL POWER TO THE
FREEZER! Failure to follow this instruction may result
in electrocution.
To correct rotation on a single--phase unit, exchange
leads inside the beater motor. (Follow the directions
printed on the beater motor.)
To correct rotation on a three--phase unit, interchange
any two incoming power supply lines at freezer main
terminal block only. (Follow the directions printed on
the beater motor.)
Gear Alignment and Rear Shell Bearings
Check Gear Alignment and Rear Shell Bearings
Step 1
Open the freezer door. Insert the driveshaft through
the rear shell bearing and into the drive coupling.
Step 2
Be sure the driveshaft can easily slide in and out of the
female socket on the gear unit on all six positions of the
hex.
Step 3
If the driveshaft is binding, the gear unit could be out
of alignment. Check the set screw on the drive
coupling and the cap screws on the gear unit to be sure
they are tight.
Step 4
Inspect the rear shell bearing for tightness. Be sure the
locking tab has been folded over to prevent the nut
from loosening.
Water Cooled Condensers
Step 1
Press the AUTO key. The automatic water valve will
begin to open and cold water will fill the condensers,
cooling the refrigerant gas.
Step 2
Check the water as it flows out of the discharge line
and into the open drain. Drain water should be warm
during normal operation.

10
Introduction Models 104 & 220
Refrigerant
In consideration of our environment, Taylor proudly
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This refrigerant
is generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
Main Compressor:
Model 104: Air Cooled Units - 26 oz. of R404a (HP62).
Model 220: Air Cooled Units - 50 oz. of R404a (HP62).
Model 220: Water Cooled Units -- 38 oz. of R404a
(HP62).
Note: Refrigerant charges are subject to change.
Always refer to the freezer data label.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term indicated on the warranty card
accompanying this machine. However, due to the
Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop--in
replacements for numerous applications. It should be
noted that in the event of ordinary service to this
machine’s refrigeration system, only the refrigerant
specified on the affixed data label should be used. The
unauthorized use of alternate refrigerants will void
your compressor warranty. It will be the owners’
responsibility to make this fact known to any
technicians they employ.
It should be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should a
new alternate prove, through our testing, that it would
be accepted as a drop--in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor, call the local Taylor Distributor or the
Taylor Factory. Be prepared to provide the
model/serial number of the unit in question.

11
Models 104 & 220 Introduction
110908
Environmental Notices
_________________________________
In consideration of our environment, Taylor proudly
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This refrigerant
is generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the product to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
Taylor Distributor.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

12
Introduction Models 104 & 220

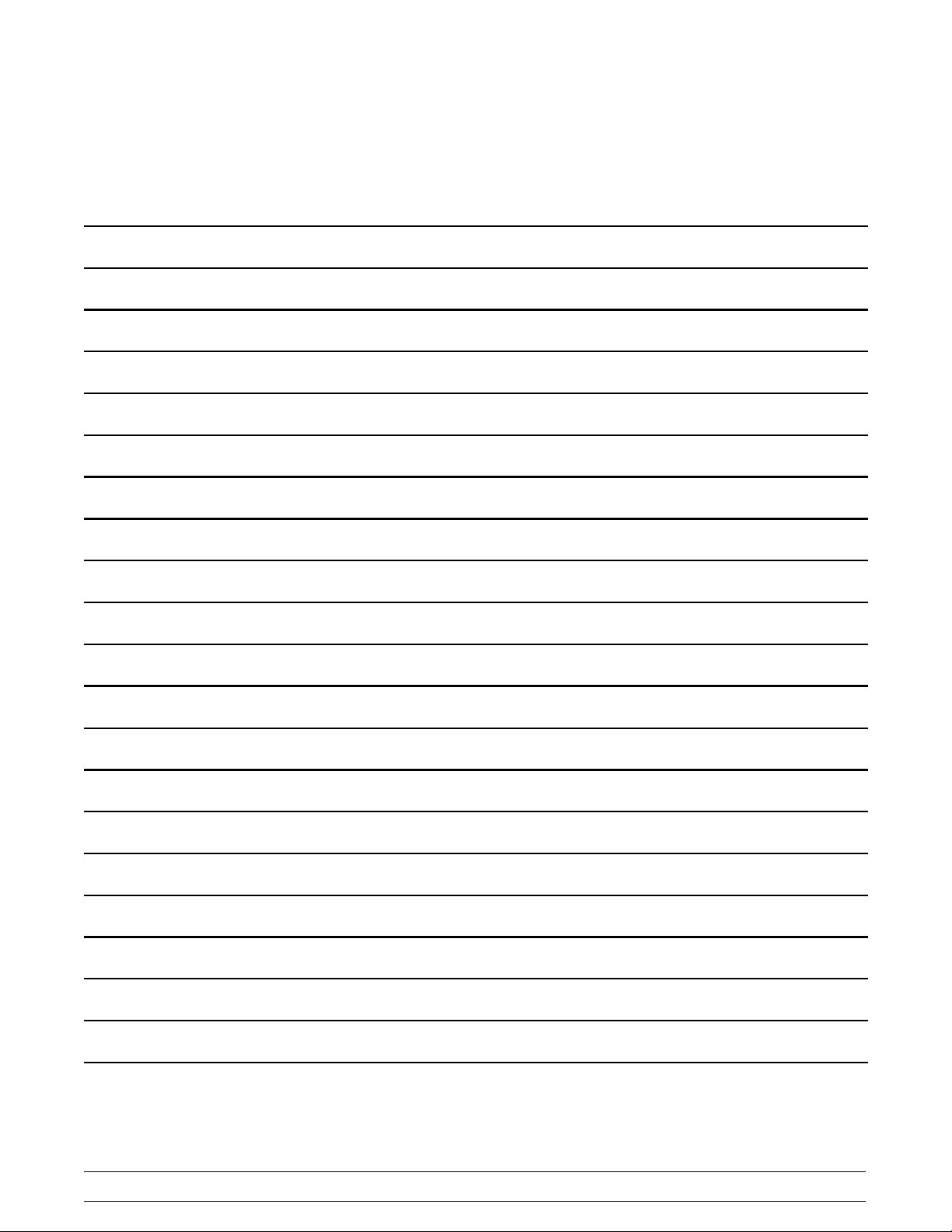

Notes:

13
Models 104 & 220 Controls
Section 2: Controls

14
Controls Models 104 & 220
Controls

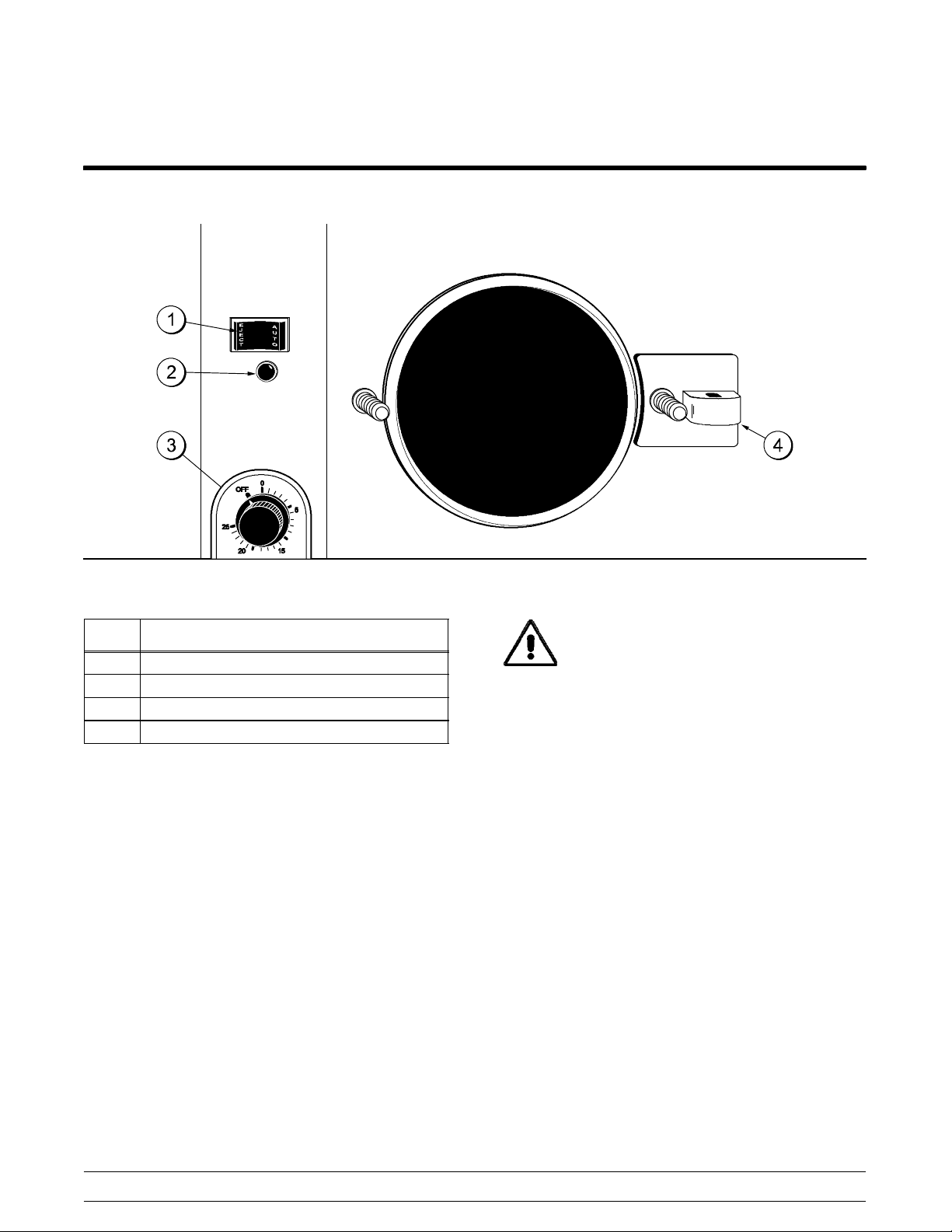

Model 104
Figure 1
ITEM DESCRIPTION
1CONTROL SWITCH
2ORANGE DIAL LIGHT
3TIMER CONTROL
4DOOR HINGE
Control Switch
When the control switch is placed in the AUTO mode
and the timer is adjusted to the desired setting, the
refrigeration system will operate. When the switch is
placed in the EJECT mode, only the beater motor will
operate.
Orange Dial Light
Locatedbelowthecontrolswitchisanorangediallight.
When the control switch is in the AUTO position, this
light will come on, indicating the refrigeration system
is operable when the timer is set.
Never empty the contents of the freezing
cylinder while the control switch is in the AUTO
position. Always put the control switch into the EJECT
position when drawing product from the freezing
cylinder. As an additional safety feature, this unit will
NOT operate if the door is open.
Timer Control
The Model 104 uses a timer control to operate the
compressor and determine the viscosity of the
product. After the desired amount ofproduct has been
added to the freezing cylinder, turn the timer for the
amount of refrigeration required for the batch. Due to
mix variations and desired finished product viscosity,
the timer setting will vary.
Oncethedesiredtimeisset,putthecontrolswitchinto
the AUTO position. The compressor and beater motor
will operate until the time is up. When the timer setting
elapses, the refrigerating process is cancelled. The
dial light and beater assembly will continue tooperate.
A tone will sound, signaling the operator to dispense
the finished product. Turn the control switch to the
EJECT position. The product is ready to draw off and
serve.

15
Models 104 & 220 Controls
Start with five minutes and increaseas needed. Times
and temperatures are dependent on specific mix
formulations, pre-charge amounts and finished
product preferences.
Note: Becausethefreezingcylinder forthefirst batch
is at room temperature, the first batch freeze-down
time will be longer than subsequent batches.
Door Hinge
This feature allows the operator to open the door
without removal. This feature is primarily used when
changing flavors and clean-up is necessary.
Reset Condition
The Model 104 is equipped with an internal motor
overload protection. Should an overload occur, the
resetmechanismwilltrip,cancellingfreezeroperation.
Toproperlyresetthefreezer,put thecontrolswitchinto
the OFF position. Allow the beater motor to cool. Then
return the control switch to its original position.
Note: If the unit went out on reset, the product may
have been run too cold or too long. Therefore, after
resetting the freezer, check the temperature control or
time set.

16
Controls Models 104 & 220

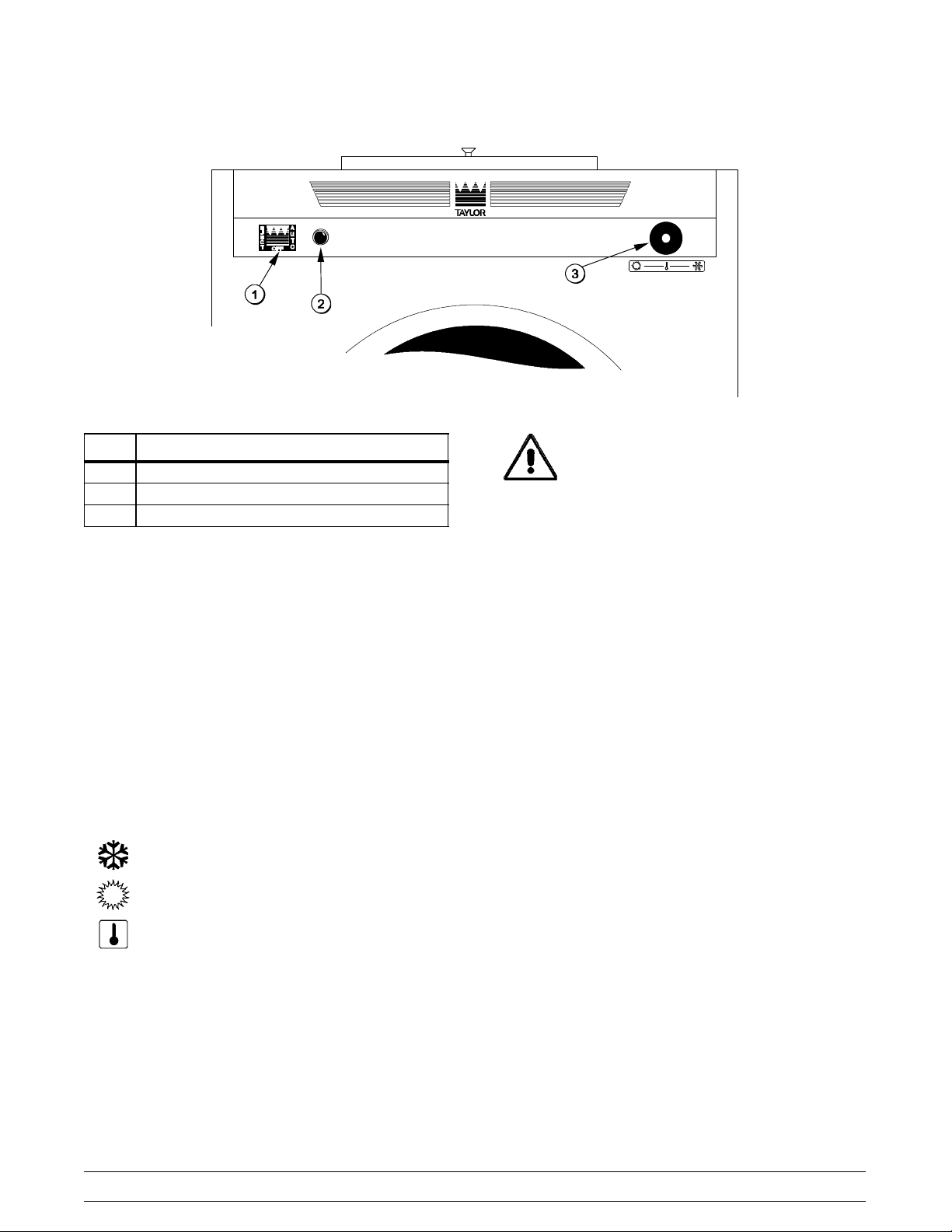

Model 220
Figure 2
ITEM DESCRIPTION
1Control Switch (Switch--Rocker)
2Dial Light (Light--Orange--Round)
3Temperature Control (Control--Temp.)
Symbol Definitions
To better communicate in the International arena, the
words on many of our operator switches and buttons
have symbols to indicate their functions. Your Taylor
equipment is designed with these International
symbols.
The following chart identifies the symbol definitions
used on the operator switches.
=COLDER
=WARMER
= TEMP (Temperature)
Control Switch
When the control switch is placed in the AUTO
position, the refrigeration system will operate. When
the switch is placed in the EJECT position, only the
beater motor will operate.
Never empty the contents of the freezing
cylinder while the control switch is in the AUTO
position. Always put the control switch into the EJECT
position when drawing product from the freezing
cylinder. As an additional safety feature, this unit will
not operate if the door is open.
Dial Light
Located to the right of the control switch is a round dial
light. When the control switch is in the AUTO position,
this light will come on, indicating the refrigeration
system is operating.
Temperature Control
Located on the right front side is the temperature
control knob. Turning the adjusting knob clockwise
will decrease product temperature. Turning the
adjusting knob counterclockwise will increase
product temperature. Eachquarterturnwillvarythe
temperature approximately two degrees.
Reset Mechanism
Located on the left side panel is the reset button. The
reset protects the beater motor from an overload
condition. Should an overload occur, the reset
mechanism will trip. To properly reset the freezer,
place the control switch in the OFF position. Press the
reset button firmly. Place the control switch in the
EJECT position and observe the freezer’s
performance. Return the control switch to the AUTO
position.
