Taylor 342 Tim Hortons User manual

OPERATOR'S
MANUAL

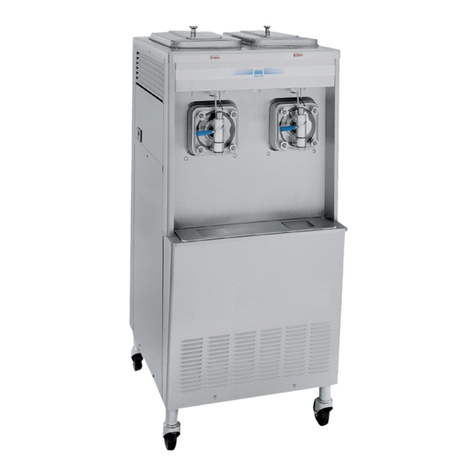

Model 342 Tim Hortons
Slush Freezer
Original Operating Instructions
068461-M
10/8/10 (Original Publication)
Updated 1/26/15

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
2010 Carrier Commercial Refrigeration, Inc.
068461-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may bea violationof Copyright Lawof theUnitedStates of America and other countries, couldresult
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Model 342 Tim Hortons Table of Contents
Section1 TotheInstaller 1............................................
InstallerSafety 1........................................................
SitePreparation 1.......................................................
AirCooledUnits 2.......................................................
Water Connections (Water Cooled Units Only) 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
ElectricalConnections 2.................................................
BeaterRotation 3.......................................................
Refrigerant 3...........................................................
Section2 TotheOperator 4...........................................
Section3 Safety 5....................................................
Section 4 Operator Parts Identification 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 5 Important: To the Operator 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PowerSwitch 13.........................................................
IndicatorLight-Spinner 13................................................
IndicatorLight-MIXOUT 13..............................................
IndicatorLight-ADDMIX 13..............................................
ResetButton 13.........................................................
Section 6 Operating Procedures 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly 14............................................................
Sanitizing 18............................................................
Priming 19..............................................................
ClosingProcedure 20....................................................
Draining Product From The Freezing Cylinder 20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rinsing 20..............................................................
Cleaning 20.............................................................
Disassembly 21..........................................................
BrushCleaning 21.......................................................

Table of Contents Model 342 Tim Hortons
Table of Contents - Page 2
Section 7 Important: Operator Checklist 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DuringCleaningandSanitizing: 22.........................................
Troubleshooting Bacterial Count: 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RegularMaintenanceChecks 23...........................................
WinterStorage 23........................................................
Section 8 Troubleshooting Guide 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 9 Parts Replacement Schedule 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 10 Limited Warranty on Equipment 27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 11 Limited Warranty on Parts 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WiringDiagram 33.......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
2010 Carrier Commercial Refrigeration, Inc. (Original Publication)
Updated January, 2015
068461-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may bea violationof Copyright Lawof theUnitedStates of America andother countries, couldresult
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model 342 Tim Hortons To the Installer
131122
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
Only authorized Taylor service personnel
should perform installation and repairs on
the equipment.
Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
Authorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and
service.
Authorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer
must be disconnected prior to performing any
repairs. Failure to follow this instruction may result in
personal injury or death from electrical shock or
hazardous moving parts, as well as poor
performance or damage to the equipment.
Note: All repairs must be performed by an
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed
before uncrating the unit. Make sure all possible
hazards to the user or equipment have been
addressed.
For Indoor Use Only: This unit is designed to
operate indoors under normal ambient temperatures
of 70 -75 F (21 -24 C). The freezer has
successfully performed in high ambient
temperatures of 104 (40 C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken in moving this equipment for any reason.
Two or more people are required to safely move this
unit. Failure to comply may result in personal injury
or equipment damage.
Uncrate the unit and inspect it for damage. Report
any damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

2Model 342 Tim HortonsTo the Installer
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
The Model 342 air cooled unit requires a minimum of
3” (76 mm) air space around all sides. Install the
deflector to prevent recirculation of warm air.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezers and possibly
cause permanent damage to the compressors.
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided
with a hand shut-off valve. On the underside rear of
the base pan, two 3/8” I.P.S. water connections for
inlet and outlet have been provided for easy
hook-up. 1/2” inside diameter water lines should be
connected to the machine. (Flexible lines are
recommended, if local codes permit.) Depending on
local water conditions, it may be advisable to install
a water strainer to prevent foreign substances from
clogging the automatic water valve. There will be
only one water “in” and one water “out” connection.
DO NOT install a hand shut-off valve on the water
“out” line! Water should always flow in this order:
first, through the automatic water valve; second,
through the condenser; and third, through the outlet
fitting to an open trap drain.
A back flow prevention device is
required on the incoming water connection side.
Please refer to the applicable National, State, and
local codes for determining the proper configuration.
Electrical Connections
In the United States, this equipment is intended to
be installed in accordance with the National
Electrical Code (NEC), ANSI/NFPA 70-1987. The
purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety. In all
other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the
freezer for branch circuit overcurrent protection or
fuse, circuit ampacity, and other electrical
specifications. Refer to the wiring diagram provided
inside the electrical box for proper power
connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the equipment's frame.

3
Model 342 Tim Hortons To the Installer
130726
Stationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.
Appliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected, not used for long
periods, or during initial installation, shall
have protective devices, such as a GFI to
protect against the leakage of current,
installed by authorized personnel to the local
codes.
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable, not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures must be performed
by an authorized Taylor service technician.
To correct rotation on a single-phase unit, change
the leads inside the beater motor. (Follow the
diagram printed on the motor.)
Refrigerant
In consideration of our environment, Taylor
uses only HFC refrigerants. The HFC refrigerant
used in this unit is R404A. This refrigerant is
generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Use only R404A refrigerant that conforms
to the AHRI standard 700 specification. The use of
any other refrigerant may expose users and
operators to unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils are extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

4Model 342 Tim HortonsTo the Operator
131122
Section 2 To the Operator
The freezer you purchased has been carefully
engineered and manufactured to give you
dependable operation. When properly operated and
cared for, it will produce a consistent quality product.
Like all mechanical products, it will require cleaning
and maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator's Manual should be read
before operating or performing any maintenance on
your equipment.
Your Taylor freezer will NOT eventually compensate
for and correct any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment's operation review these procedures in
order to be properly trained and to make sure no
misunderstandings exist.
If you require technical assistance, please contact
your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other
similar legislation in effect after August 13, 2005.
Therefore, it must be collected separately after its
use is completed, and cannot be disposed as
unsorted municipal waste.
The user is responsible for returning the product to
the appropriate collection facility, as specified by the
local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or
local distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this machine, Taylor has no obligation to
either supply or provide its replacement either at
billable or unbillable terms. Taylor does have the
obligation to recommend a suitable replacement if
the original refrigerant is banned, obsoleted, or no
longer available during the five year warranty of the
compressor.
Taylor will continue to monitor the refrigerant
industry and test new alternates as they are being
developed. Should a new alternate prove, through
our testing, that it would be accepted as a drop-in
replacement, then the above disclaimer would
become null and void. To find out the current status
of an alternate refrigerant as it relates to your
compressor warranty, call the local Taylor Distributor
or the Taylor Factory. Be prepared to provide the
Model/Serial Number of the unit in question.

5
Model 342 Tim Hortons Safety
130726
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator when he or she comes in
contact with the freezer and its parts. Taylor has
gone to extreme efforts to design and manufacture
built-in safety features to protect both you and the
service technician. As an example, warning labels
have been attached to the freezer to further point
out safety precautions to the operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may damage the
machine and its components. Component
damage will result in part replacement expense
and service repair expense.
DO NOT operate the unit without reading
this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.
This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited equipment operation is allowed for
public use, such as a self-serve application,
supervision or instruction concerning the use of the
appliance by a person responsible for their safety is
required. Children should be supervised to ensure
that they do not play with the appliance.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the equipment's frame.
All repairs should be performed by an
authorized Taylor service technician.
The main power supplies to the unit must be
disconnected prior to performing installation,
repairs, or maintenance.
DO NOT operate the unit unless it is
properly grounded.
DO NOT operate the unit with larger fuses
than specified on the unit's data label.
Units that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods,
or during initial installation, shall have
protective devices such as a GFI, to protect
against the leakage of current, installed by
the authorized personnel to the local codes.
Stationary units which are not equipped with
a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

6Model 342 Tim HortonsSafety
130726
DO NOT use a water jet to clean or rinse
the freezer. Failure to follow these instructions may
result in serious electrical shock.
DO NOT allow untrained personnel to
operate this machine.
DO NOT operate the freezer unless all
service panels and access doors are
restrained with screws.
DO NOT remove any internal operating
parts (examples: freezer door, beater,
scraper blades, etc.) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in
severe personal injury to fingers or hands from
hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
DO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
USE EXTREME CAUTION when removing
the beater asssembly. The scraper blades
are very sharp.
This freezer must be placed on a level
surface. Failure to comply may result in personal
injury or equipment damage.
Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this manual for the proper
procedure to clean this unit.
This unit is designed to maintain product
temperature under 41°F (5°C). Any product being
added to this unit must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.
DO NOT obstruct air intake and discharge openings:
The Model 342 air cooled unit requires a minimum of
3” (76 mm) air space around all sides. Install the
deflector to prevent recirculation of warm air.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezers and possibly
cause permanent damage to the compressors.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70 -75 F (21 -24 C). The freezer
has successfully performed in high ambient
temperatures of 104 (40 C) at reduced capacities.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the machine and at a
height of 1.6 meters from the floor.

7
Model 342 Tim Hortons Safety
Notes

8Model 342 Tim HortonsOperator Parts Identification
150126
Section 4 Operator Parts Identification
Figure 1

9
Model 342 Tim Hortons Operator Parts Identification
141212

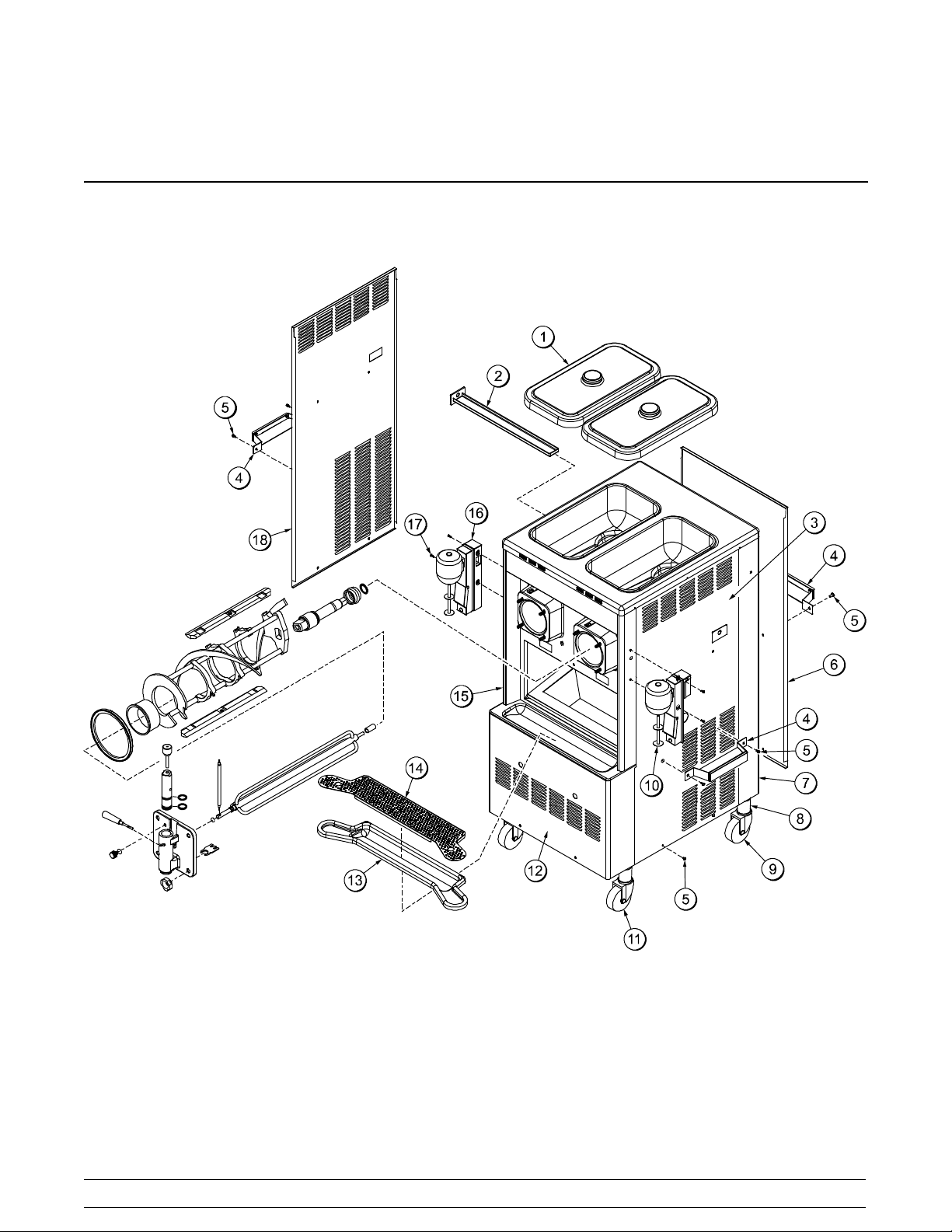

Exploded View Parts Identification
ITEM DESCRIPTION PART NO.
1 COVER A.-HOPPER X51152
2 PAN-DRIP 21-1/2" LONG 052827
3 PANEL-SIDE RIGHT 069037-SP
4 BRACKET A.-BUMPER X68881
5 SCREW-1/4-20X3/8 SLTD 011694
6 PANEL-REAR 017563
7TRIM-REAR CORNER-RIGHT 013663
TRIM-REAR CORNER-LEFT 069040
8 ADAPTOR A.-CASTER X18915
9 CASTER-4" SWV 5/8 STEM 018794
ITEM DESCRIPTION PART NO.
10 SPINNER A.-PANEL MOUNT-R X6836827SP
11 CASTER-4" SWV W/BRAKE 034081
12 PANEL-SERVICE 052091
13 TRAY-DRIP 068714
14 SHIELD-SPLASH 068716
15 PANEL A.-FRONT X52089-SP2
16 SPINNER A.-PANEL MOUNT-L X6836927SP
17 SCREW-10-32X5/8 SLTD 079113
18 PANEL-SIDE LEFT 069036-SP

10 Model 342 Tim HortonsOperator Parts Identification
150126

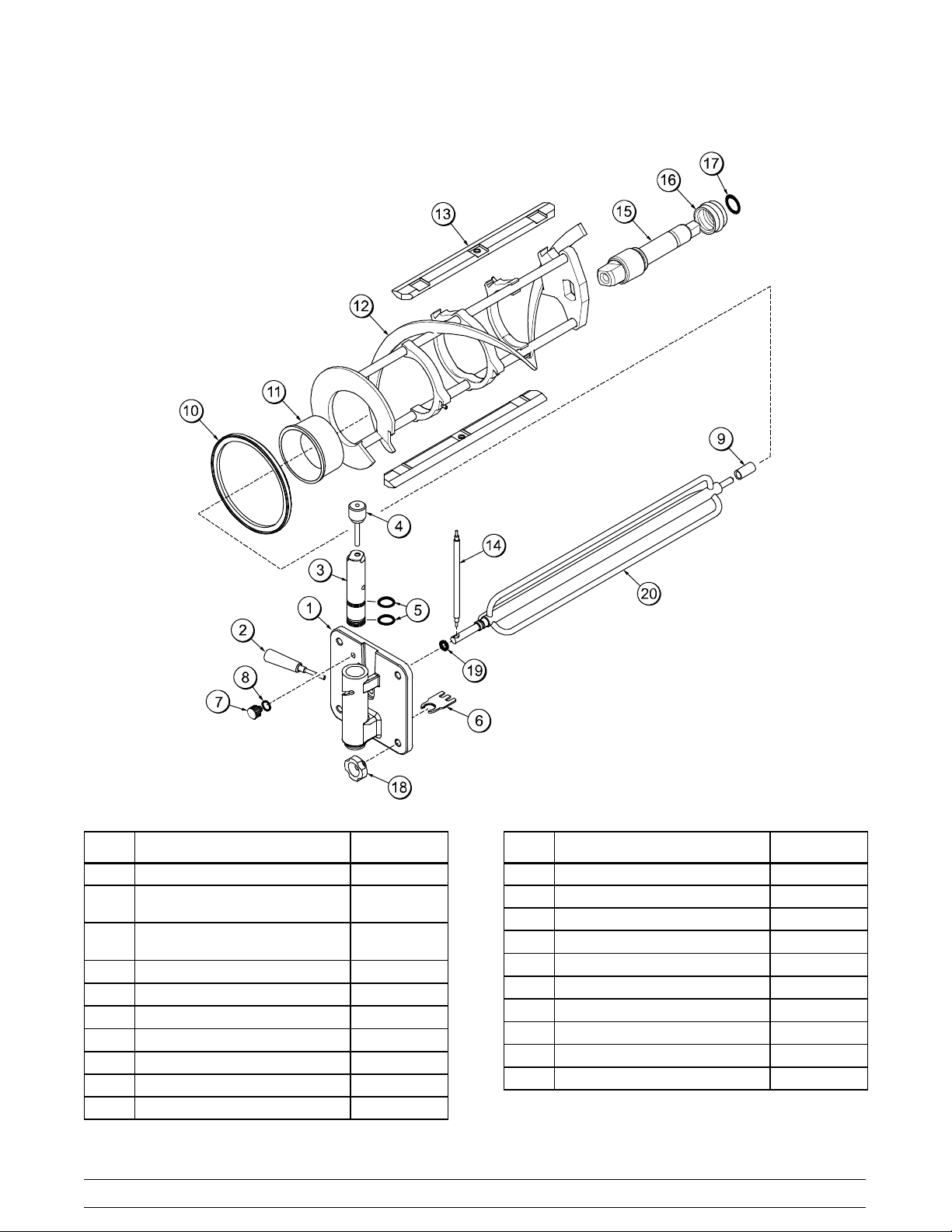

Beater Door Assembly
Figure 2
ITEM DESCRIPTION PART NO.
1 DOOR A.-SLUSH-PARTIAL X83427SER2
2 HANDLE A.-DRAW-SLUSH-
BLACK X47384
3 VALVE-DRAW *SLUSH* ICE
BUSTER 047734
4 PIN A.-VALVE HANDLE X25929
5 O-RING-1"OD X .139W 032504
6 BUSTER-ICE 047735
7 PLUG-PRIME*STNLS 050405
8 O-RING-.563 OD X .070W 043758
9 BEARING-GUIDE 014496
10 GASKET-DOOR 5.200"ID 021662
ITEM DESCRIPTION PART NO.
11 BEARING-FRONT 013116
12 BEATER A.-7QT-1 PIN X46233
13 BLADE-SCRAPER-PLASTIC 081094
14 ARM-TORQUE 029549
15 SHAFT-BEATER 035418
16 SEAL-DRIVE SHAFT 032560
17 O-RING-7/8 OD X .139W 025307
18 NUT-STUD 029880
19 O-RING-.291 ID X .080W 018550
20 TORQUE A. X14488

11
Model 342 Tim Hortons Operator Parts Identification
141212
Accessories
Figure 3
ITEM DESCRIPTION PART NO.
1 PAIL-10 QT. 013163
2 BRUSH-MIX PUMP BODY-3 X 7 023316
3 BRUSH-DOUBLE END 013072
4 BRUSH-REAR BRG 1 X 2 X 14 013071
ITEM DESCRIPTION PART NO.
5 BRUSH-DRAW VALVE 1 X 2 X 17 013073
6 BRUSH-SYRUP PORT 045079
* KIT A.-TUNE UP*TORQUE X50413A
* NOT SHOWN

12 Model 342 Tim Hortons
141215
Section 5 Important: To the Operator

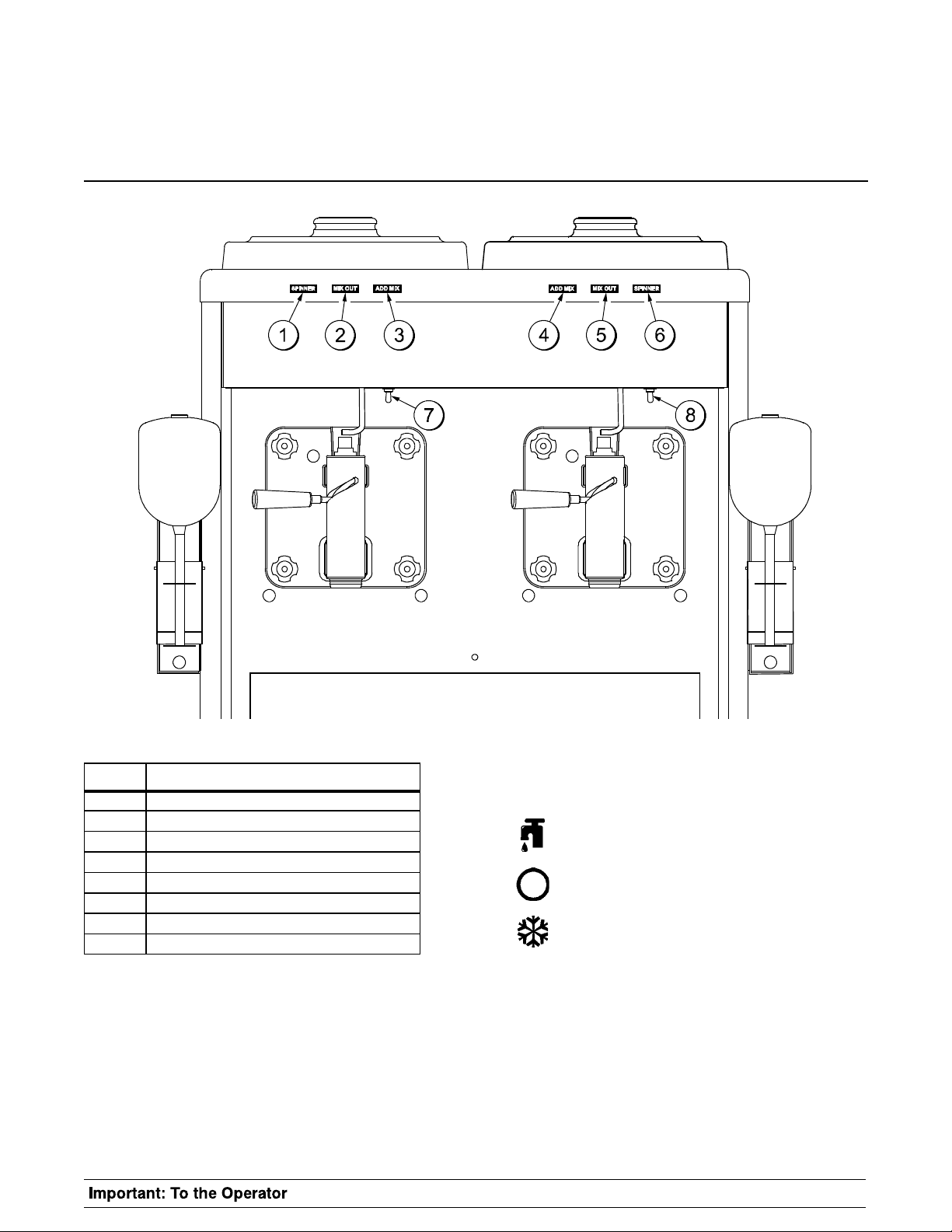

Figure 4
ITEM DESCRIPTION
1 LIGHT-SPINNER-TIMER-LEFT SIDE
2 LIGHT-MIX OUT-LEFT SIDE
3 LIGHT-ADD MIX-LEFT SIDE
4 LIGHT-ADD MIX-RIGHT SIDE
5 LIGHT-MIX OUT-RIGHT SIDE
6 LIGHT-SPINNER TIMER-RIGHT SIDE
7 POWER SWITCH-LEFT SIDE
8 POWER SWITCH-RIGHT SIDE
The following chart identifies the symbol definitions
used on the unit label.
= WASH
= OFF
= ON/AUTO

13
Model 342 Tim Hortons Important: To the Operator
Power Switch
The center position is OFF. The AUTO position
activates the beater motor and the refrigeration
system. The WASH position activates the beater
motor only.
Indicator Light - Spinner
The spinner indicator lights are located on the front
of the machine closest to the spinner assembly. The
spinner indicator light is activated by pressing the
spinner motor switch. The light illuminates for 15
seconds, indicating the proper blend time.
Indicator Light - MIX OUT
The MIX OUT indicator lights are located on the
front of the machine. When a MIX OUT indicator
light is flashing, it indicates that the hopper is empty
and the mix supply needs to be replenished. To
prevent damage to the unit, refrigeration stops
automatically.
Indicator Light - ADD MIX
The ADD MIX indicator lights are located on the
front of the machine. An ADD MIX indicator light will
flash and an audible tone will sound when a mix
hopper has a low supply of product. Refill the hopper
as soon as possible.
Reset Button
The reset buttons are located in the service panel on
the lower front of the machine. The reset protects
the beater motor from an overload condition. If an
overload occurs, the reset mechanism will trip. To
properly reset the freezer, place the power switch in
the OFF position. Press the reset button firmly.
Place the power switch in the WASH position and
observe the freezer's performance. Once satisfied,
place the power switch back in the AUTO position.
IMPORTANT: Do not use metal objects to
press the reset button. Failure to follow this
instruction may result in serious electrical shock.

14 Model 342 Tim HortonsOperating Procedures
Section 6 Operating Procedures
The Model 342 is designed to produce slush product
at the desired thickness. It has two 20 quart (18.9
liter) mix hoppers and two 7 quart (6.6 liter) freezing
cylinders.
We begin our instructions at the point where we
enter the store in the morning and find the parts
disassembled and laid out to air dry from the
previous night's brush cleaning.
These opening procedures will show you how to
assemble the parts into the freezer, sanitize them,
and prime the freezer with fresh mix in preparation
to serve your first portion.
If you are disassembling the machine for the first
time or need information to get to this point in our
instructions, turn to page 22, “Disassembly”, and
start there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
MAKE SURE THE POWER SWITCH IS IN
THE “OFF” POSITION! Failure to follow this
instruction may result in severe personal injury from
hazardous moving parts.

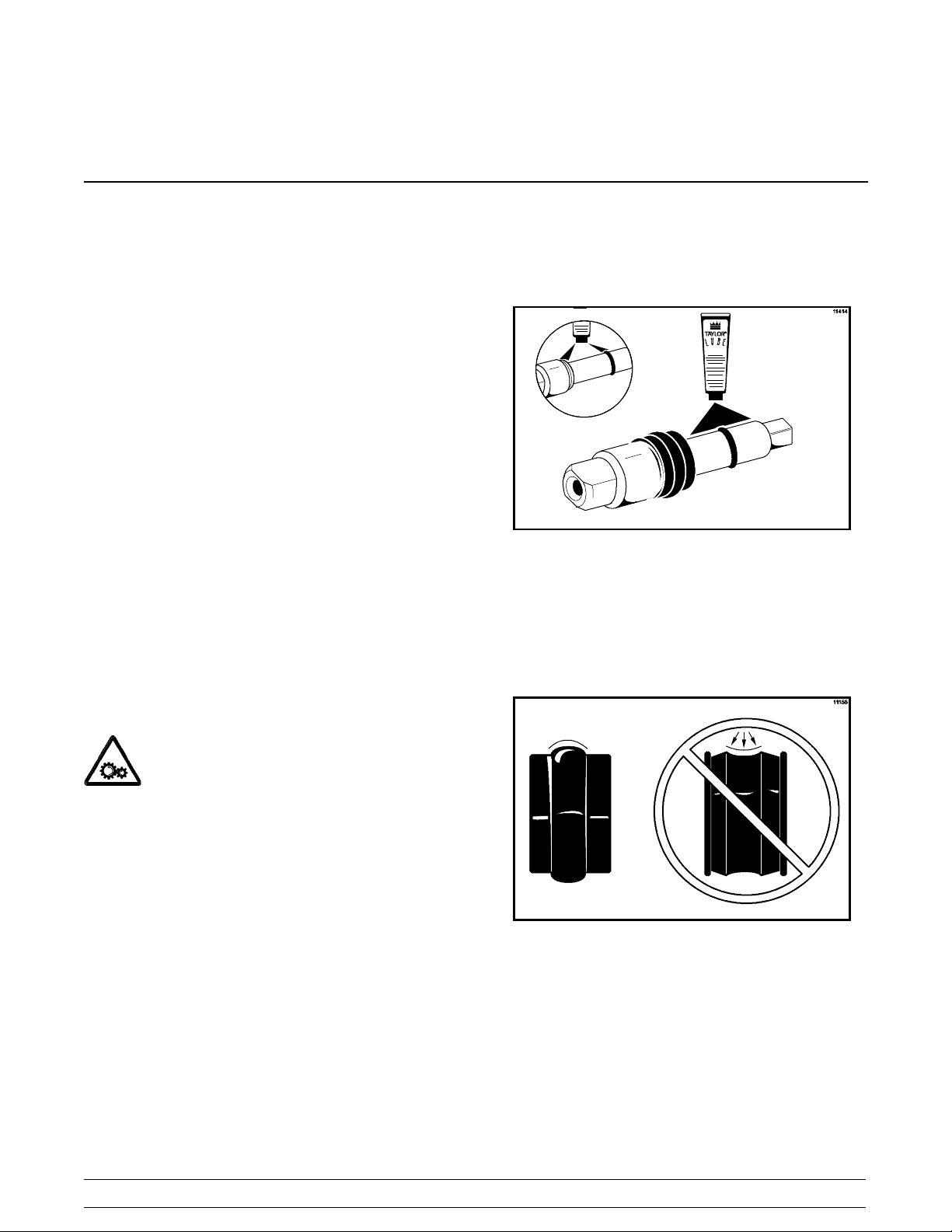

Step 1
Lubricate both grooves on the drive shaft and slide
the o-ring in place. Lubricate the o-ring and shaft
portion that comes in contact with the bearing. DO
NOT lubricate the square end of the drive shaft.
Slide the boot seal over the shaft and groove until it
snaps into place. Fill the inside portion of the seal
with 1/4” more lubricant and evenly lubricate the end
of the seal that fits onto the rear shell bearing.
Figure 5
Note: To ensure that mix does not leak out of the
back of the freezing cylinder, the middle section of
the boot seal should be convex or extend out from
the seal. If the middle section of the boot seal is
concave or extending into the middle of the seal,
invert the seal.
Figure 6

15
Model 342 Tim Hortons Operating Procedures
131009

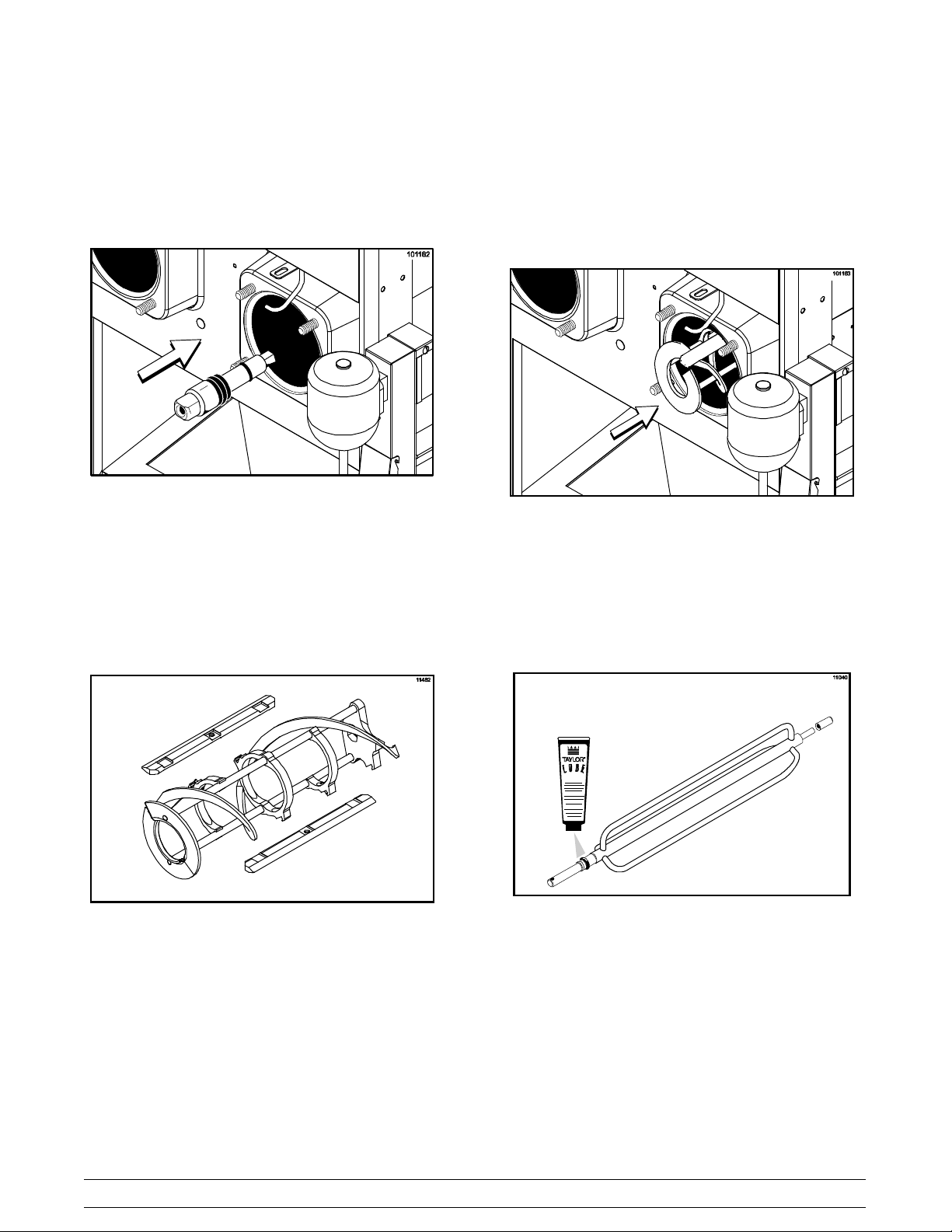

Step 2
Insert the beater drive shaft into the rear shell
bearing. Engage the square end firmly into the
female socket of the drive unit. Be certain that the
drive shaft fits into the drive coupling without
binding.
Figure 7
Step 3
Check the scraper blades for any nicks or signs of
wear. If any nicks are present or if the blade is worn,
replace both blades. If the blades are in good
condition, place the rear scraper blade over the rear
holding pin (knife edge to the outside). Holding the
blade on the beater, turn it over and install the front
blade the same way.
Figure 8
Step 4
Holding the blades in position, insert the beater
assembly into the freezing cylinder and slide it into
position over the drive shaft. Turn the beater slightly
to be certain that the beater is properly seated.
When it is in position, the beater will not protrude
beyond the front of the freezing cylinder.
Figure 9
Step 5
Install the white plastic guide bearing on the short
end of the torque rotor. Slide the o-ring into the
groove on the long end of the torque rotor and
lubricate the o-ring. Do not lubricate the guide
bearing.
Figure 10

16 Model 342 Tim HortonsOperating Procedures
150126
Step 6
Insert the torque rotor end with the guide bearing
into the pilot hole in the center of the drive shaft. The
hole in the torque rotor shaft should be rotated to the
12 o'clock position.
Figure 11
Step 7
Install the o-rings on the draw valve and lubricate.
Figure 12
Step 8
Insert the draw valve into the door, leaving
approximately 1/2” of the valve sticking out the top
of the door.
Figure 13
Step 9
Rotate the draw valve so the flats on the top of the
draw valve are perpendicular to the door face.
Figure 14
Table of contents
Other Taylor Freezer manuals
Popular Freezer manuals by other brands

Silver King
Silver King SKUCF7F Technical manual and replacement parts list

Gram
Gram Compact 610 Instructions for use

Danby
Danby DUF808BSLE Owner's use and care guide

Burg
Burg BGS88E user manual

Maytag
Maytag W10675483A user guide

Bühler technologies
Bühler technologies EGK 2A Ex Installation and operation instructions
