Taylor 428 User manual

OPERATOR’S 
MANUAL
Model 428
Shake/Slush Freezer
February 2001 (Original Publication)
(Updated 4/1/2020)
Original Operating Instructions
055058-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address: _________________________________________________________________
Phone: __________________________________________________________________
Service:__________________________________________________________________
Parts: ___________________________________________________________________
Date of installation: _________________________________________________________
Information found on the data label:
Model Number: ____________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2001 Taylor Company.
055058-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

055058-M i
Table of Contents
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Section 3: Safety
Section 4: Operator Parts Identification
Model 428 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Beater Door Assembly with Standard Door (No Prime Plug) . . . . . . . . . . . . . . . . . . . . 4-2
Beater Door Assembly with Self-Closing/Prime Plug Door. . . . . . . . . . . . . . . . . . . . . . 4-3
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Section 5: User Interface
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Display Light Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Viscosity Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Light—ADD MIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Light—MIX OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Standby Switch—(Toggle Switch). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Reset Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Section 6: Operating Procedures
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
Priming the Freezing Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Closing Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Draining Product from the Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Brush-Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

055058-M ii
Section 7: Operator Checklist
During Cleaning and Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Model 428
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Operator
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
equipment should be installed in accordance with
existing local codes. Please contact your local authorities
if you have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®equipment.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper protective equipment (PPE) is
available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area the machine is to be installed in before
uncrating the machine, making sure that all possible
hazards to the user or machine have been addressed.
Air-Cooled Machine
Air-cooled machines require a minimum of 3 in. (76 mm)
of clearance on both sides of the freezer. It is
recommended to place the rear of the machine against
the wall to prevent the recirculation of warm air. Minimum
air clearances must be met to ensure adequate airflow
for optimum performance. Failure to allow adequate
clearance can reduce the refrigeration capacity of the
freezer and possibly cause permanent damage to the
compressor.
For Indoor Use Only: This machine is designed to
operate indoors under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this equipment for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or equipment damage.
Uncrate the machine and inspect it for damage. Report
any damage to your Taylor distributor.
This piece of equipment is made in the USA and has
!

1-2
TO THE INSTALLER
Model 428 To the Installer
1
USA sizes of hardware. All metric conversions are
approximate and vary in size.
Electrical Connections
This equipment is supplied with a three-wire cord and
grounding type of plug for connection to a single-phase,
60-cycle, branch circuit supply. This machine must be
plugged into a properly grounded receptacle. The cord
and plug provided are 20A for 115/60/1 or 15A for 
208-230/60/1. Therefore, the wall outlet must also be
20A for 115/60/1 or 15A for 208-230/60/1. See the data
label on the side panel for electrical specifications.
Note: The following procedures should be performed by
a Taylor service technician.
Permanent wiring may be employed if required by local
codes. Instructions for conversion to permanent wiring
are as follows:
1. Make sure the freezer is electrically disconnected.
2. Remove the appropriate panel and locate the small
electrical box at the base of the freezer.
3. Remove the factory-installed cord and strain relief
bushing.
4. Route incoming permanent wiring through the 7/8 in. 
(22 mm) hole in the base pan.
5. Connect two power supply leads. Attach ground
(earth) wire to the grounding lug inside the electrical
box.
6. Make sure the machine is properly grounded before
applying power.
In the United States, this machine is intended to be
installed in accordance with the National Electrical Code
(NEC), ANSI/NFPA 70-1987. The purpose of the NEC
code is the practical safeguarding of persons and
property from hazards arising from the use of electricity.
This code contains provisions considered necessary for
safety. In all other areas of the world, machines should
be installed in accordance with the existing local codes.
Please contact your local authorities.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
freezer for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This equipment must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
WARNING! DO NOT operate this machine with
fuses larger than specified on the machine data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
IMPORTANT!
• Stationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.

(3 mm) installed in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Model 428
To the Installer
1
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician to

avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures must be performed by a
Taylor service technician.
To correct rotation on a single-phase machine, change
the leads inside the beater motor. (Follow the diagram
printed on the motor.)
Refrigerant
CAUTION! This equipment contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine's type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine's data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush immediately with cold water. If burns are severe,
apply ice packs and contact a physician immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

1-4
TO THE INSTALLER
Model 428 To the Installer
1
Notes:

Section 2
2-1
Model 428
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor Model 428, when properly operated
and cared for, will produce a consistent quality product.
Like all mechanical products, it will require cleaning and
maintenance. A minimum amount of care and attention is
necessary if the operating procedures outlined in this
manual are followed closely.
This Operator's Manual should be read before operating
or performing any maintenance on your machine.
Your Taylor freezer will not eventually compensate for
and correct any errors during the setup or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
machine’s operation, both assembly and disassembly, go
through these procedures together to be properly trained
and to make sure no misunderstandings exist.
In the event you should require technical assistance,
please contact your local Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on
machines or parts if unapproved parts or incorrect
refrigerant were installed in the machine, system
modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements. Therefore, information in this manual is
subject to change without notice.
IMPORTANT! If the crossed-out, wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine's refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner's responsibility to make this fact
known to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or unbillable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the 5-year
warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, that it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the 
model/serial number of the machine in question.

2-2
TO THE OPERATOR
Model 428 To the Operator
2
Notes:

Section 3
3-1
Model 428
Safety
3
Safety
We at Taylor Company are concerned about the safety of
operators at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect both operators and service technicians.
Installing and servicing refrigeration equipment can be
hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service refrigeration
equipment. When working on refrigeration equipment,
observe precautions noted in the literature, tags, and
labels attached to the machine, and other safety
precautions that may apply. Follow all safety code
requirements. Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may result in component replacement and
service repair expenses.
NOTICE! DO NOT operate the machine without
reading this entire manual first. Failure to follow all of
these operating instructions may result in damage to the
machine, poor performance, health hazards, or personal
injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use by children
or people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge. Where
limited equipment operation is allowed for public use,
such as a self-serve application, supervision or
instruction concerning the use of the appliance by a
person responsible for their safety is required. Children
should be supervised to ensure that they do not play with
the machine.
WARNING! DO NOT use a water jet to clean or
rinse the machine. Failure to follow these instructions
may result in serious electrical shock.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by a Taylor
service technician.
• Cord-connected machines: Only Taylor service
technicians may install a plug on this machine.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. 
(3 mm) in the external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician to
prevent a hazard.
!
!

3-2
SAFETY
Model 428 Safety
3
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
IMPORTANT! This machine is provided with an
equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
both the removable panel and the equipment's frame.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to, freezer door,
beater, or scraper blades) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving the machine for any reason. Two or more
persons are required to safely move this machine.
Failure to comply may result in personal injury or damage
to the machine.
IMPORTANT! Access to the service area of the
machine must be restricted to persons having knowledge
and practical experience with the machine, in particular
as far as safety and hygiene are concerned.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet designed to maintain product
temperature at or below 41°F (5°C). Any product being
added to this machine must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards and
poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings: 3 in.
(76 mm) minimum airspace on front, sides and rear, and
3-1/2 in. (89 mm) on bottom.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in. 
(1.6 m) from the floor.
!
!
!

Section 4
4-1
Model 428
Operator Parts Identification
4
Operator Parts Identification
Model 428

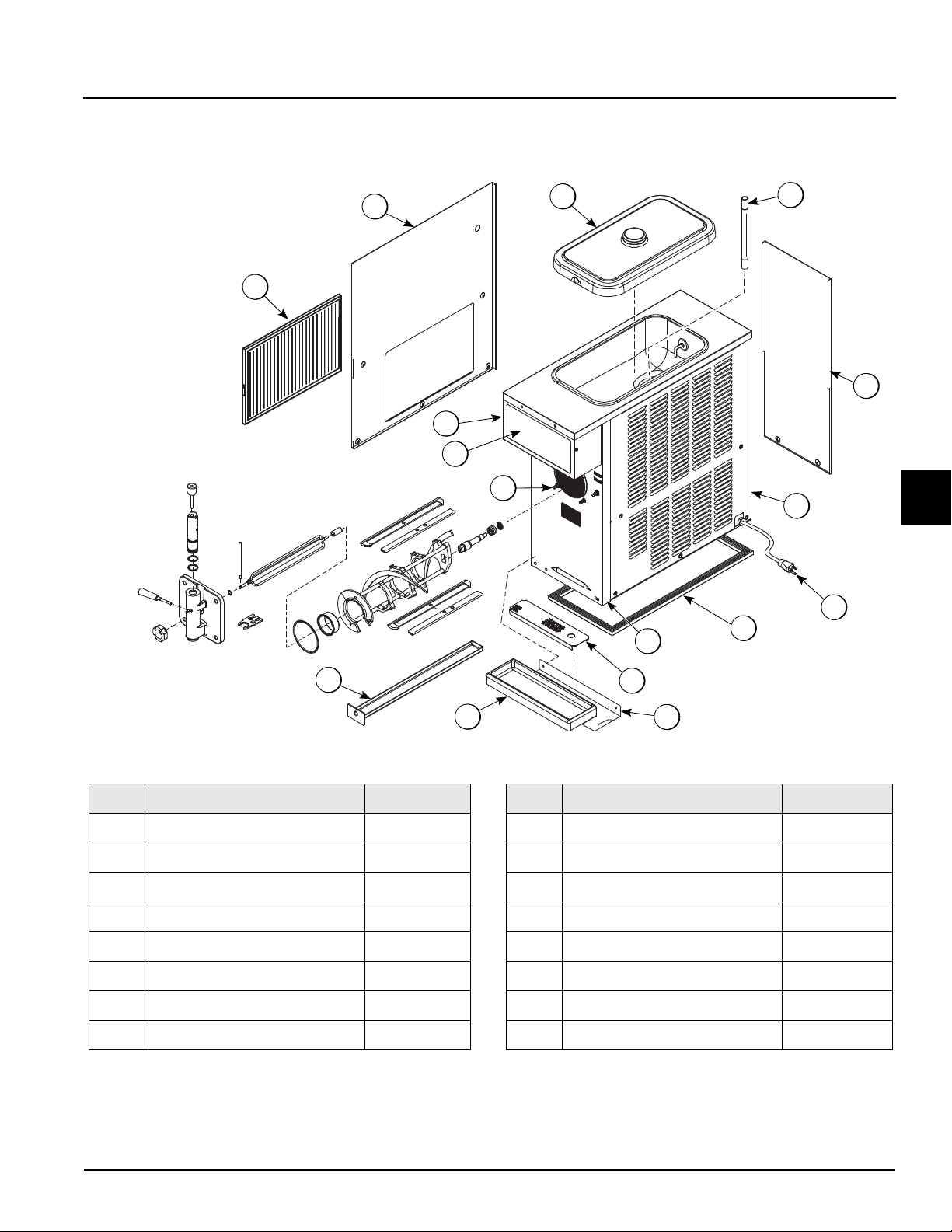

Figure 4-1
Note: Standard door shown (no prime plug).
56
7
4
15
13
9
10
8
12
3
2
1
14
16
11
Item Description Part No.
1 Lens-Light 052952
2 Plate A.-DEC Lighted X52936
3 Filter-Air-17 x 13 x 7/16 052951
4 Panel A.-Side *Left X62592
5 Cover A.-Hopper X51152
6 Tube-Feed 5/16 Hole SS 028967-7
7 Panel-Rear 062594
8 Panel -Side *Right 052935
Item Description Part No.
9 Cord-Power-125V 045666
10 Gasket-Base Pan-OVRRN 062619
11 Panel-Front 054933
12 Shield-Splash 052980
13 Shelf-Drip Tray 052979
14 Tray-Drip 052978
15 Pan-Drip 22-29/32 Long 053048
16 Stud-Nose·Cone-5/16-18 013496

4-2
OPERATOR PARTS IDENTIFICATION
Model 428 Operator Parts Identification
4
Beater Door Assembly with Standard Door (No Prime Plug)

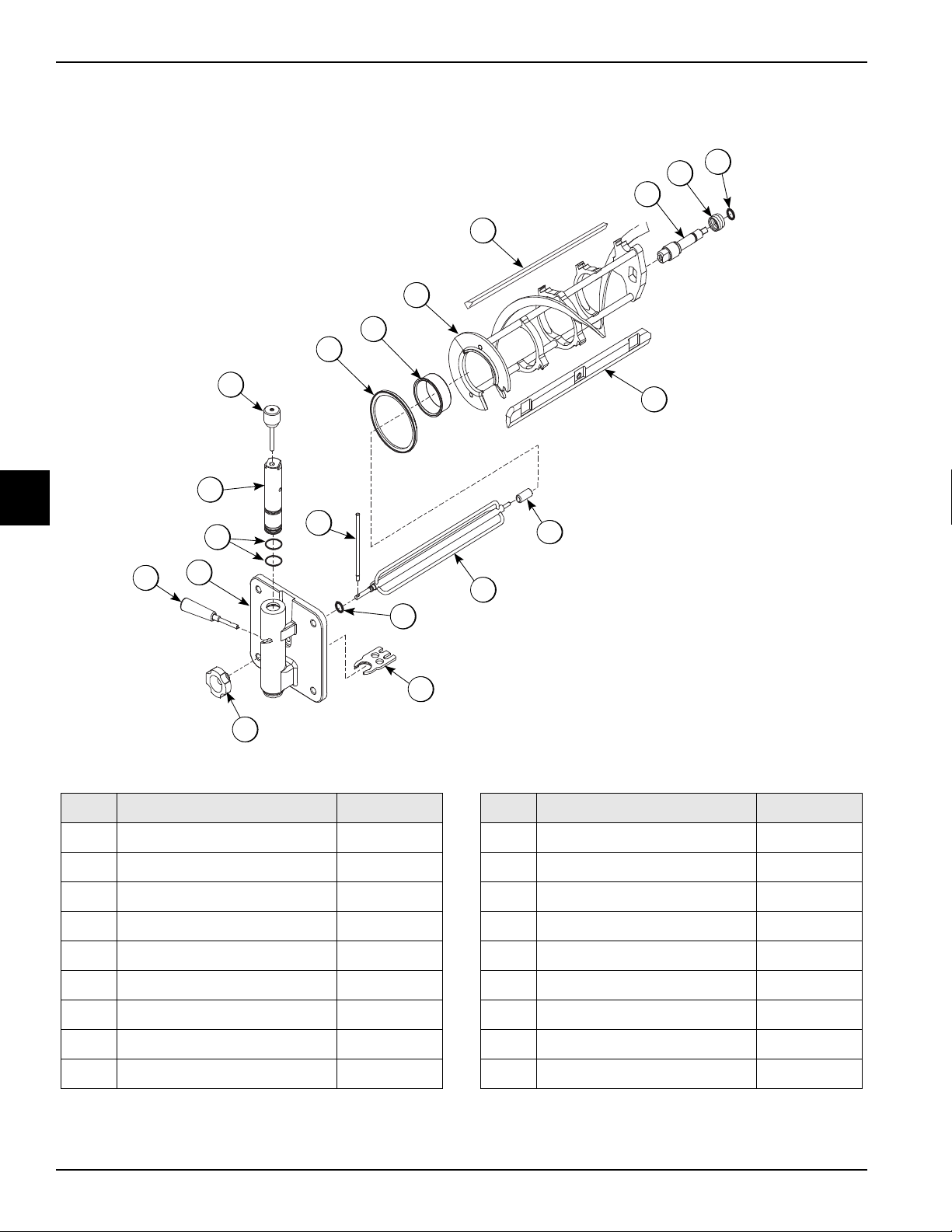

Figure 4-2
*Note: Optional Torque A. = X27027- 1.
12
11
8
15
13
16
14
18
17
5
7
6
1
4
10
9
2
3
12
Item Description Part No.
1 Handle A.-Draw X47384
2 Door A.-Slush-Partial X83427SER3
3 O-ring-1"OD x.139W 032504
4 Valve-Draw 047734
5 Pin A.-Valve Handle X25929
6 Gasket-Door 5.109"ID 014030
7 Bearing-Front 013116
8 Beater A.-7QT-1 Pin X46233
9 Shaft-Beater 035418
Item Description Part No.
10 Seal-Drive Shaft 032560
11 O-ring-7/8 OD x.139W 025307
12 Blade- Scraper- Plastic 084950
13 Bearing-Guide 013116
*14 Torque A. X14488
15 Arm-Torque 052450
16 O-ring-.291 ID x.080W 018550
17 Buster-Ice 047735
18 Nut-Stud 029880

OPERATOR PARTS IDENTIFICATION
4-3
Model 428
Operator Parts Identification
4
Beater Door Assembly with Self-Closing/Prime Plug Door

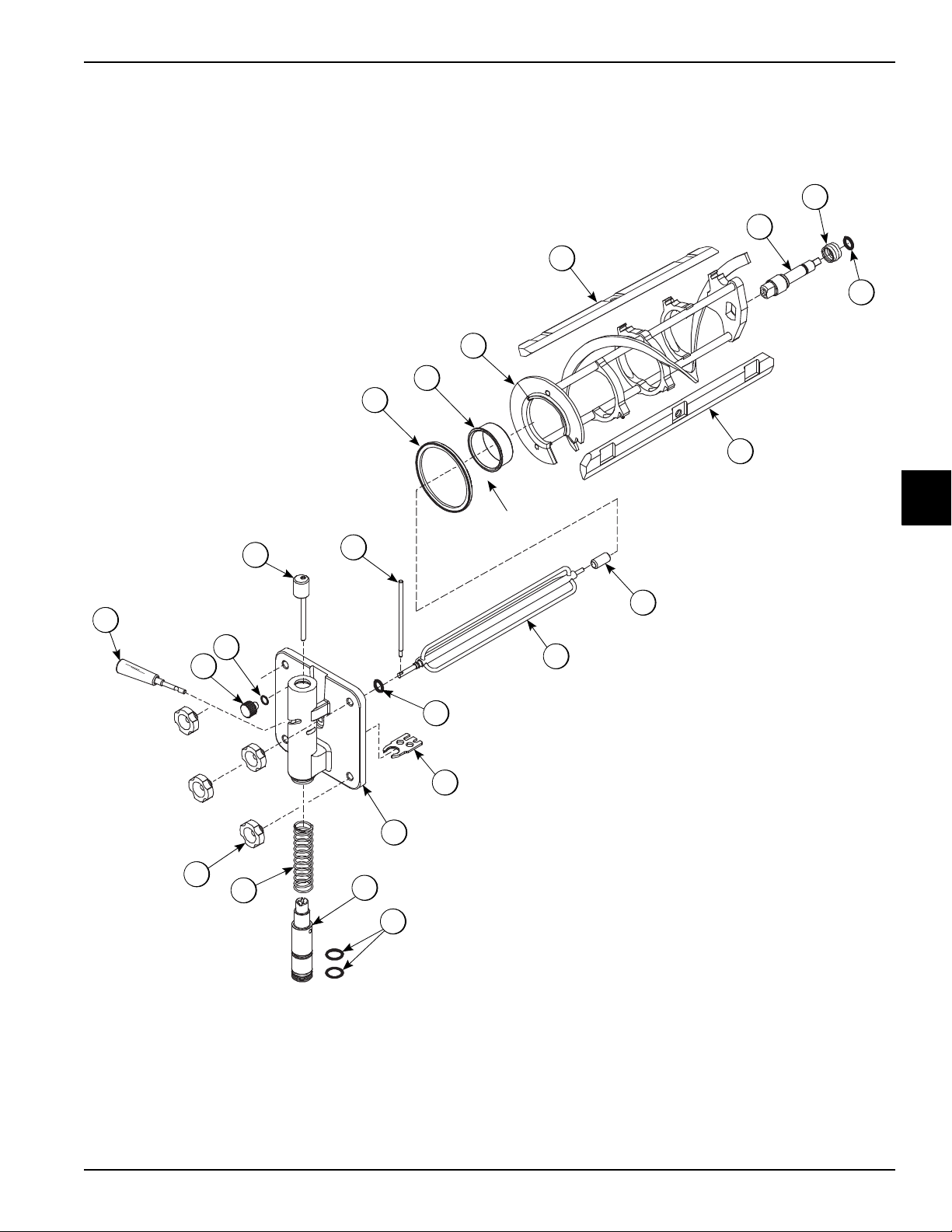

Figure 4-3
11
8
15
16
14
17
5
7
6
1
4
10
9
2
3
12
9
13
18
19
20
21

4-4
OPERATOR PARTS IDENTIFICATION
Model 428 Operator Parts Identification
4
Beater Door Assembly With Self-Closing/Prime Plug Door (Cont.)
Item Description Part No.
1 Handle A.-Draw-Slush-BLK X47384
2 Plug-Prime-STNLS 050405
3 O-ring-.563 OD x .070W 043758
4 Pin A.-Valve Handle X83812
5 Arm-Torque 052450
6 Gasket-Door 5.109"ID 014030
7 Bearing-Front 013116
8 Beater A.-7QT-1 Pin X46233
9 Blade- Scraper- Plastic 084950
10 Shaft-Beater 035418
11 Seal-Drive Shaft 032560
Item Description Part No.
12 O-ring-7/8 OD x.139W 025307
13 Bearing-Guide 014496
14 Torque A. X14488
15 O-ring-.291 ID x.080W 018550
16 Buster-Ice 047735
17 Door A.-Slush-Partial X83427SER3
18 O-ring-1"OD x.139W 032504
19 Valve-Draw-SLF Close 080662
20 Spring-Comp.970x.082 030344
21 Nut-Stud 029880

OPERATOR PARTS IDENTIFICATION
4-5
Model 428
Operator Parts Identification
4
Accessories
Figure 4-4
Apply the appropriate
Taylor approved food safe lubricant.
1
2
6
5
4
3
789
Item Description Part No.
1
Kit A.-Tune Up (Std. Door Units) X39969
Kit A.-Tune Up-Torque
(Prime Plug, Self-Closing Door
Units)
X50413
2 Pail-10 qt. 013163
3 Brush-Mix Pump Body-3” X7” 023316
4 Brush-Double Ended 013072
Item Description Part No.
5 Brush-Rear BRG 1” X 2” 013071
6 Brush-Draw Valve 1 x 2 x 17 013073
7 Brush-Syrup Port 045079
8 Lubricant-Taylor 4 oz. 047518
9 Sanitizer-Stera Sheen -Green 055492

4-6
OPERATOR PARTS IDENTIFICATION
Model 428 Operator Parts Identification
4
Notes:

Section 5
5-1
Model 428
User Interface
5
User Interface

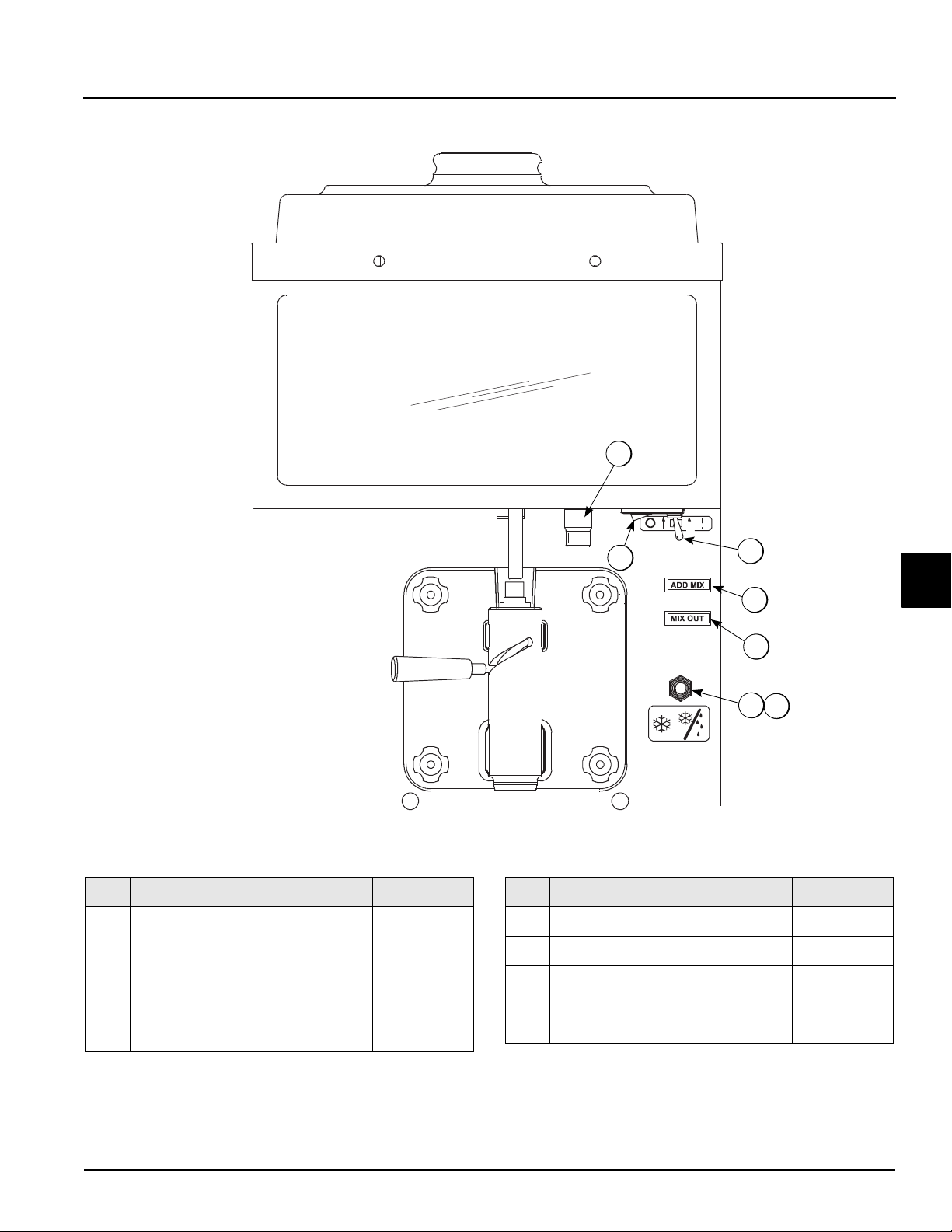

Figure 5-1
NOTE: Standard door shown (no prime plug)
1
4
3
6a
6
5
2
Item Description Part No.
1 Switch- Rocker Auto/Wash 
(Power Switch)
048420
2 Switch- Toggle- SPST 3/4HP/250V
(Display Light)
012626
3 Bushing A.-Torque 
(Viscosity Adjustment)
X50399- SER
Item Description Part No.
4 Light- Amber- Rect-12VDC ADD MIX 052486- 02
5 Light- Amber- Rect-12VDC MIX OUT 052487- 02
6 Switch- Toggle- SPST 3/4 HP/250V
(Standby Switch)
012626
6a Boot- Switch- Toggle 043398

5-2
USER INTERFACE
Model 428 User Interface
5
Power Switch
The center position is OFF. The right position is AUTO,
which activates the beater motor and the refrigeration
system. The left position is WASH, which activates the
beater motor only.
Display Light Switch
The display light switch is under the control channel. The
left position is OFF. The right position is ON and activates
the display light.
Viscosity Adjustment
The viscosity (thickness) of the product can be adjusted
by turning the viscosity adjustment screw on the right
side of the machine, under the display light. Turn the
viscosity adjustment screw clockwise for a thicker
product, or counterclockwise for a thinner product. After
making an adjustment, allow the refrigeration system to
cycle two or three times to accurately evaluate the
viscosity.
Indicator Light—ADD MIX
An ADD MIX indicator light is on the front of the machine.
The light flashes to indicate when the mix hopper has a
low supply of product and should be refilled as soon as
possible.
Indicator Light—MIX OUT
A MIX OUT indicator light is on the front of the machine.
When the light is flashing, it indicates that the hopper is
empty and the mix supply needs replenishing. To prevent
damage to the machine, refrigeration discontinues
automatically when the MIX OUT indicator light is
flashing.
Standby Switch—(Toggle Switch)
This switch determines which mode of operation the
freezing cylinder is operating in. The left position places
the machine in the Auto mode. The right position places
the machine in the Standby mode.
Note: The power switch must be in the AUTO position
for the Standby switch to function.
Reset Mechanism
Should an overload condition occur, the freezer will
automatically shut down. To properly reset the freezer,
place the toggle switch in the OFF position. Wait 2 or 3
minutes, then press the RESET button located in the left
side panel. Place the toggle switch in the WASH position
and observe the freezer's performance. Return the toggle
switch to the AUTO position.

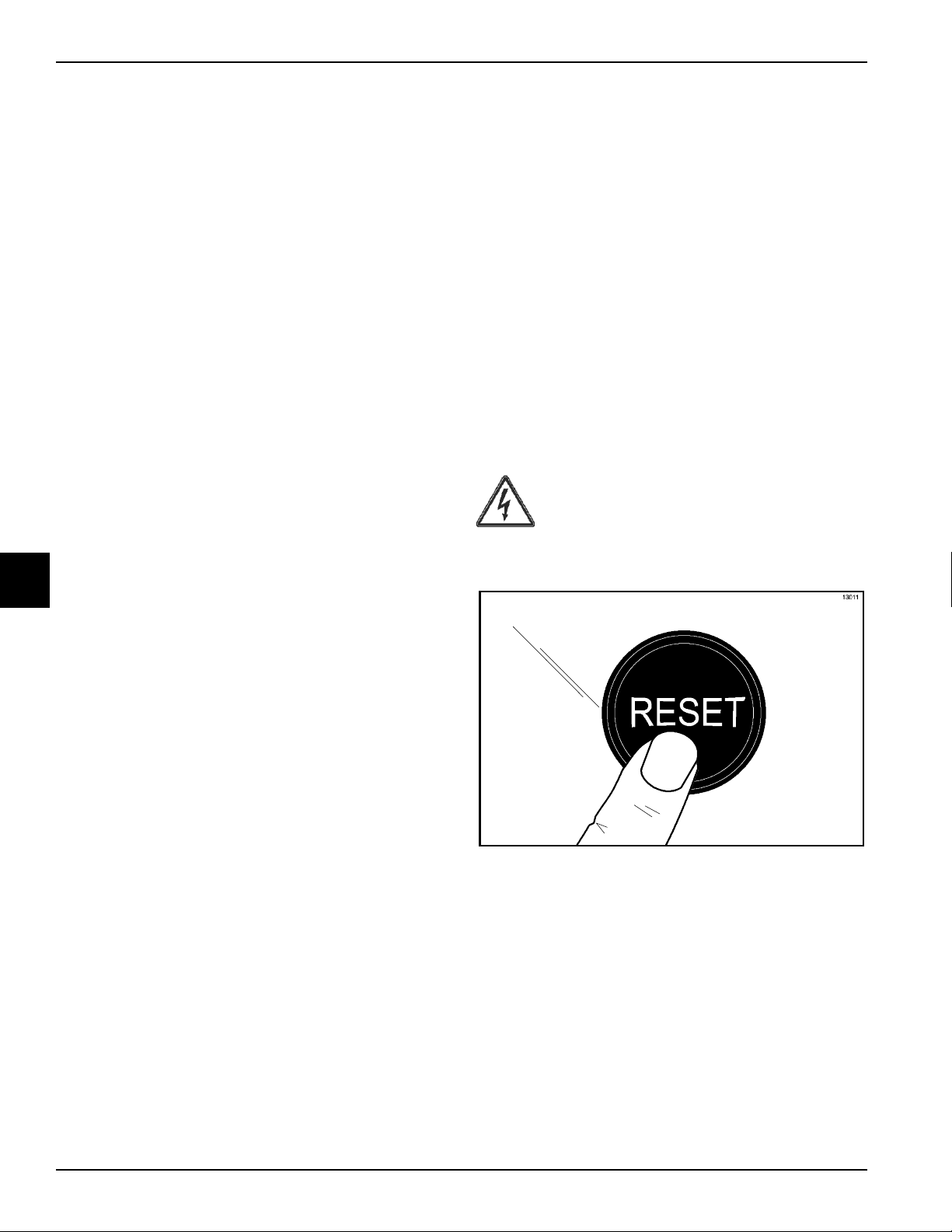

CAUTION! DO NOT use metal objects to press
the RESET button. Failure to follow this instruction may
result in electrocution.
Figure 5-2
