Taylor Horizon 8756 User manual

OPERATOR’S 
MANUAL
Model 8756
Single-Stage Pump
Soft Serve Freezer
11/15/10 (Original Publication)
(Updated 8/13/2020)
Original Operating Instructions
069071-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© November 2010, Taylor Company.
(Updated 8/13/2020)
069071-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of
Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
069071-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Water Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Beater Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Section 3: Safety
Section 4: Operator Parts Identification
Beater Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

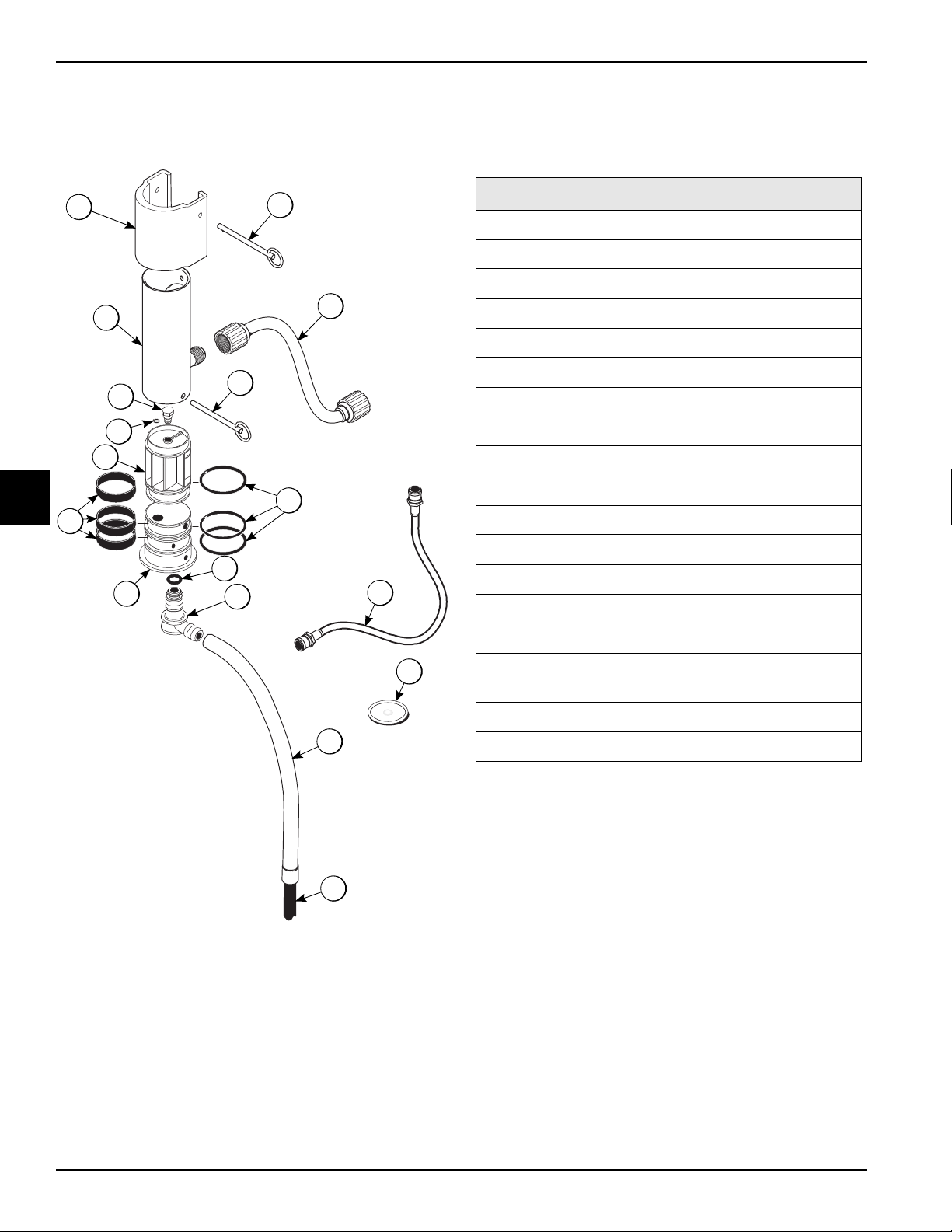

Air/Mix Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

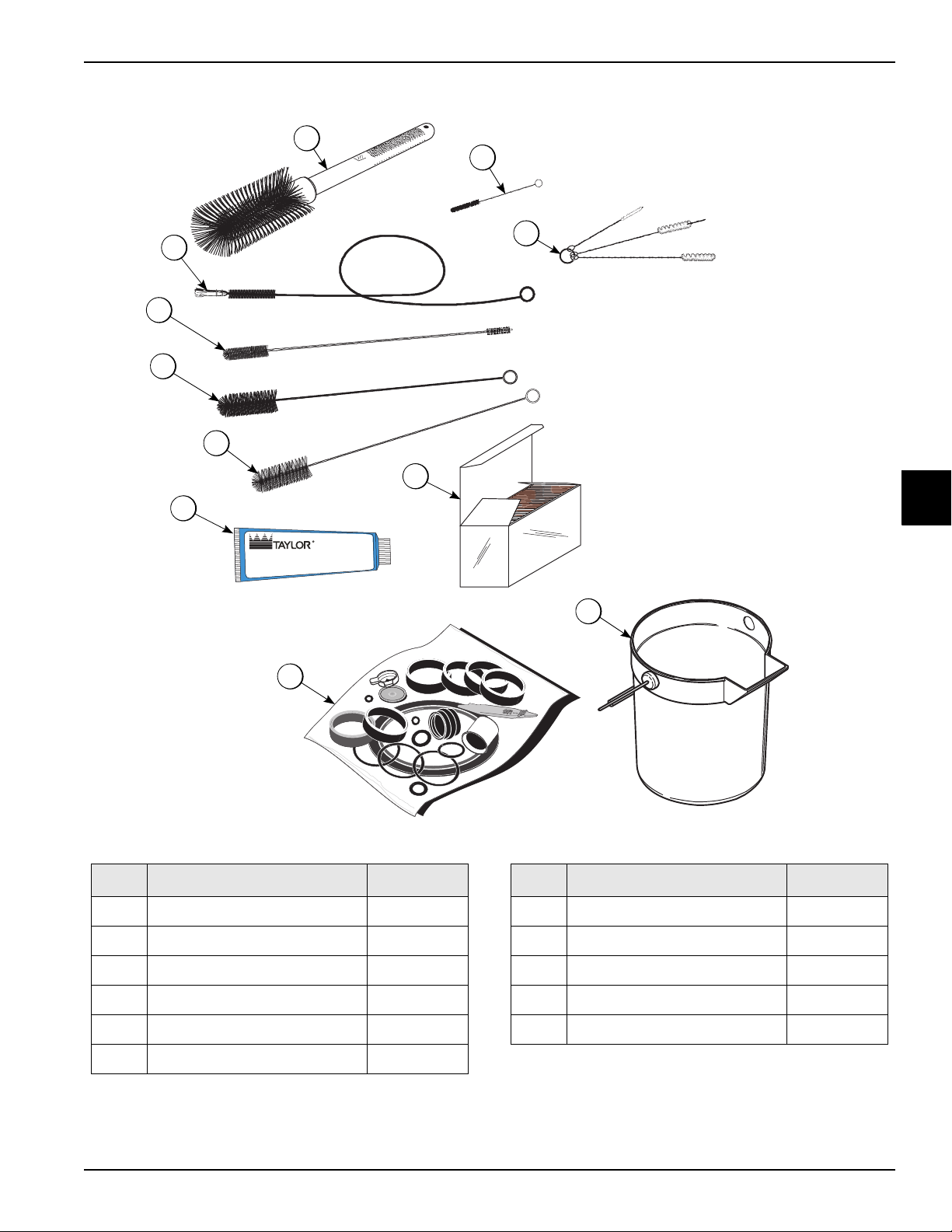

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

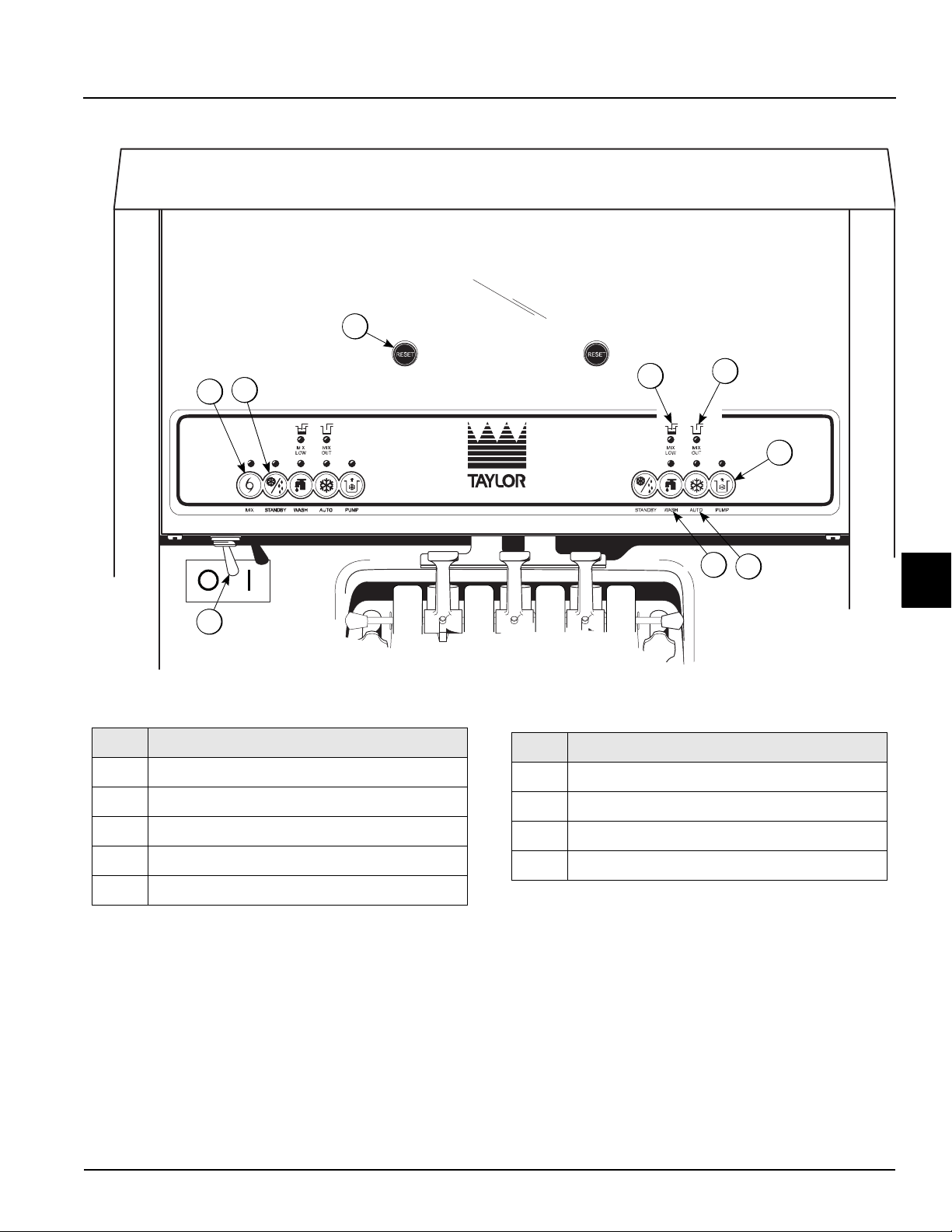

Section 5: User Interface
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
RESET Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
MIX Ref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
STANDBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Adjustable Draw Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Section 6: Operating Procedures
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Air/Mix Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Sanitizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12
Closing Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Draining Product from the Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Brush-Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

ii 069071-M
Table of Contents
Section 7: Operator Checklist
During Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Air/Mix Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts
Section 12: Wiring Diagrams

Section 1
1-1
Model 8756
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating it. Make sure all possible hazards to the
user or machine have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70ºF to 75ºF (21ºC to 24ºC). 
The freezer has successfully performed in high ambient
temperatures of 104ºF (40ºC) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine and
promptly report any damage to the local authorized
Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.

1-2
TO THE INSTALLER
Model 8756 To the Installer
1
Air-Cooled Machines
Important! Do not obstruct air intake and discharge
openings.
Air-cooled machines require a minimum of 3 in. (76 mm)
of clearance around all sides of the freezer and 12 in.
(305 mm) on the top of the freezer to allow for adequate
airflow across the condenser(s). Failure to allow
adequate clearance can reduce the refrigeration capacity
of the freezer and possibly cause permanent damage to
the compressor.
Water Connections
(Water-Cooled Machines Only)
An adequate cold water supply must be provided with a
hand shutoff valve. On the rear of the machine, two 3/8
in. IPS (for single-head machines) or two 1/2 in. IPS (for
double-head machines) water connections for inlet and
outlet have been provided for easy hookup. Permanently
connect the machine using 1/2 in. (12.7 mm) inside
diameter water lines.. (Flexible lines are recommended if
local codes permit.)
Depending on local water conditions, it may be advisable
to install a water strainer to prevent foreign substances
from clogging the automatic water valve. There will be
only one water-in and one water-out connection for both
single-head and double-head machines.
Do not install a hand shutoff valve on the water-out line.
Water should always flow in this order: first, through the
automatic water valve; second, through the condenser;
and third, through the outlet fitting to an open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the unit must not exceed 150 psi (1034 kPa).
Electrical Connections
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! This machine is provided with an
equipotential grounding lug that is to be properly
attached by the authorized installer to either the rear of
the frame or the underside of the base pan near the entry
hole for incoming power. The installation location is
marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine’s frame, as well as on the diagram.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Model 8756
To the Installer
1
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
freezer main terminal block only. To correct rotation on a
single-phase machine, exchange leads inside the beater
motor. (Follow the diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box, located behind
the service panel.
It is recommended that beater rotation adjustment be
performed by an authorized Taylor service technician.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine’s type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine’s data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. When refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.

1-4
TO THE INSTALLER
Model 8756 To the Installer
1
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

Section 2
2-1
Model 8756
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. Taylor products are highly sophisticated and,
when properly operated and cared for, will produce a
consistent quality product. Like all mechanical products,
they will require cleaning and maintenance. A minimum
amount of care and attention is necessary if the operating
procedures outlined in this manual are followed closely.
IMPORTANT! This manual should be read
before operating or performing any maintenance on the
machine.
Your Taylor machine will NOT compensate for and/or
correct any errors made during setup or filling operations.
Thus, the initial assembly, setup, and priming procedures
are of extreme importance. It is strongly recommended
that all personnel responsible for the machine's
operation, including assembly and disassembly, go
through these procedures together to be properly trained
and to make sure that all personnel understand their role
in using and maintaining the machine.
If you require technical assistance, please contact your
local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by an authorized Taylor service
technician. Taylor reserves the right to deny warranty
claims on machines or parts if unapproved parts or
incorrect refrigerant were installed in the machine,
system modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
IMPORTANT! When the crossed-out wheeled
bin symbol is affixed to this machine, it signifies that this
machine is compliant with the EU directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.

2-2
TO THE OPERATOR
Model 8756 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine’s refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner’s responsibility to make this fact
known to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its machine. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide replacement refrigerant either at billable or
unbillable terms. Taylor will recommend a suitable
replacement if the original refrigerant is banned,
obsoleted, or no longer available during the five (5) year
Taylor warranty of the compressor.
From time to time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor’s testing, that it would be accepted as a
drop-in replacement for this machine, then the disclaimer
in this Compressor Warranty Disclaimer section will not
apply to the use of the alternate refrigerant approved by
Taylor.
To find out the current status of an alternate refrigerant as
it relates to your compressor warranty, call Taylor or your
local authorized Taylor distributor. Be prepared to provide
the model/serial number of the machine in question.

Section 3
3-1
Model 8756
Safety
3
Safety
We at Taylor Company are concerned about the safety of
operators at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect operators and service technicians.
Installing and servicing refrigeration equipment can be
hazardous because of system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service.
When working on refrigeration equipment, observe
precautions noted in the literature, tags and labels
attached to the machine, and other safety precautions
that may apply. Follow all safety code requirements.
Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
NOTICE! DO NOT operate this machine
without reading this entire manual first. Failure to follow
all of these operating instructions may result in damage
to the machine, poor performance, health hazards, or
personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a

3-2
SAFETY
Model 8756 Safety
3
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to the freezer door,
beater, or scraper blades) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers near the shaver
or the pitcher blades.
•USE EXTREME CAUTION when removing
blades that are very sharp.
Failure to follow this instruction may result in
contaminated product or personal injury from blade
contact.
CAUTION! This machine must be placed on a
level surface. Use caution when moving the machine.
Failure to comply may cause the machine to tip over and
result in personal injury.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet designed to maintain product
temperature at or below 41°F (5°C). Before replenishing
the mix supply, the product must be refrigerated at or
below 41°F (5°C). Failure to follow this instruction may
result in health hazards and poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings. A
minimum of 3 in. (76 mm) air clearance on both sides of
the machine is required. It is recommended to place the
rear of the machine against the wall to prevent the
recirculation of warm air. Failure to follow this instruction
may cause poor freezer performance and damage to the
machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in.
(1.6 m) from the floor.

Section 4
4-1
Model 8756
Operator Parts Identification
4
Operator Parts Identification
Model 8756
Figure 4-1
22 7
23
9
10
8
4
22
11
12
27
29
13
28
24
25 1
18
19
14
20
21
15
17
5
2
16
6
26
3

4-2
OPERATOR PARTS IDENTIFICATION
Model 8756 Operator Parts Identification
4
8756 Parts Identification
*Not Shown
Item Description Part No.
1 Panel A.-Front X22879
2 Stud-Nose Cone 068410
3 Bolt-Carriage 012347
4 Panel A.-Lower Side (R & L) X23956
5 Panel-Upper Side Left 028599
6 Hood 048526
7 Panel-Upper Rear 022015
8 Panel-Lower Rear 023598
9 Panel-Upper Side Right 028600
10 Pan-Drip 17-1/4” Long 027504
11 Caster-Swivel 3/4-10 3” WHL 021279
12 Gasket-Cabinet Mix Door 024629
13 Probe A.-Mix (2) X35981
14 Boot-Mix Cover 037200
15 Tank A.-Mix W/Decals X38755
*15a Tank (Only) 034928
Item Description Part No.
16 Cover-Mix Tank 024590
17 Funnel-Mix 036637
18 Tray-Drip 22-7/8 X 5-1/8 014533
19 Shield-Splash 23” Long 022766
20 Cover-Left Mix Storage 037138
21 Cover-Right Mix Storage 037139
22 Trim-Corner-Left/Right 022013
23 Trim A.-Side Left/Right X22424
24 Trim A.-Shelf X24813
25 Trim-Front-Left 024824-SP
26 Trim-Front-Right 024825
27 Trim-Bottom Cabinet 024826
28 Strip-Top Trim 024827
29 Caster 3” Swivel (Front) 030307
*30 Screw-6-32 X 3/8 Slotted 002201

OPERATOR PARTS IDENTIFICATION
4-3
Model 8756
Operator Parts Identification
4
Beater Door Assembly
Figure 4-2
1
3
4
5
6b
6a
78
10
6b
12
11
14
15
16
17
18
1b
1a
1c
13
2
1d
9
Item Description Part No.
1 Handle A.-Draw ADJ X55096
1a Handle-Adjustable 028804
1b Screw-Adjustment 055092
1c O-ring-1/4 OD X .070W 50 015872
1d Nut-5/16-24 Finished Hex 029639-BLK
2 Rod A.-Pivot-Short X22388
3 O-ring-3/8 OD X .070W 016137
4 Plug-Prime 028805
5 Gasket-Door HT 4"-Double 048926
6 Kit A.-Beater-Front Shoes X50350
6a Shoe-Front Helix-Rear 050346
6b Bearing-Front-Shoe 050348
6c Shoe-Front Helix-Front 050347
Item Description Part No.
7 Beater A.-3.4 qt-1 Pin X46231
8 Shaft-Beater 032564
9 Seal-Driveshaft 032560
10 Blade-Scraper-Plastic 084350
11 O-ring-5/16 OD X .070W 016272
12 Rod A.-Pivot-Long X22387
13 Door A.-3 Spout X51532-12
14 O-ring-7/8 OD X .103W 014402
15 Cap-Design-1.010" ID-6 Point 014218
16 Valve A.-Draw X18303
17 Nut-Stud-Short 034383
18 Nut-Stud-Long 034382

4-4
OPERATOR PARTS IDENTIFICATION
Model 8756 Operator Parts Identification
4
Air/Mix Pump Assembly
Figure 4-3
*Includes Items 3a-3h
1
6
3a
43b
5
3c
3e
7
3g
3h
8
9
3f
3d
10
2
Item Description Part No.
1 Cap-Pump 021276-9
2 Pin-Retaining 021276-8
*3 Pump A.-Soft Serve Complete X22345
3a Cylinder A.-Pump 022345-1
3b Pin-Retaining 021276-8
3c Piston 021276-2
3d Ring-Check 2” OD x 1/2 020050
3e O-ring 2-1/8 OD x .139 W 020051
3f Body A.-Valve X22345-3
3g O-ring - 13/16 OD x .139 W 021278
3h Elbow-Inlet 90 Degree 022502-4
4 Orifice 023425-50
5 O-ring - 3/8 OD x .070 W 016137
6 Line A.-Flare 038299
7 Line A.-Pump Pressure X27139
8 Diaphragm-Pressure
Switch
020249
9 Tube-Vinyl 5/8 ID X 1/8 Wall 020945-18
10 Counterweight-Suction Tube 020452

OPERATOR PARTS IDENTIFICATION
4-5
Model 8756
Operator Parts Identification
4
Accessories
Figure 4-4
*Note: A sample container of sanitizer is sent with the
machine. For re-orders, order Stera-Sheen®part no. 055492
(100 packs) or Kay-5®part no. 041082 (125 packs).
Apply the appropriate
Taylor approved food safe lubricant.
1
6
7
9
8
2
3
11
10
4
5
Item Description Part No.
1 Brush-Mix Pump Body 023316
2 Brush-Pressure Switch 027647
3 Brush Set-LVB 050103
4 Brush-Feed Tube 021101
5 Brush-Double Ended 013072
6 Brush-Rear Bearing 013071
Item Description Part No.
7 Brush-Draw Valve 013073
*8 Sanitizer See Note
9 Lubricant-Taylor 4 oz. 047518
10 Kit A.-Tune Up X49463-2
11 Pail-10 qt. 013163

4-6
OPERATOR PARTS IDENTIFICATION
Model 8756 Operator Parts Identification
4

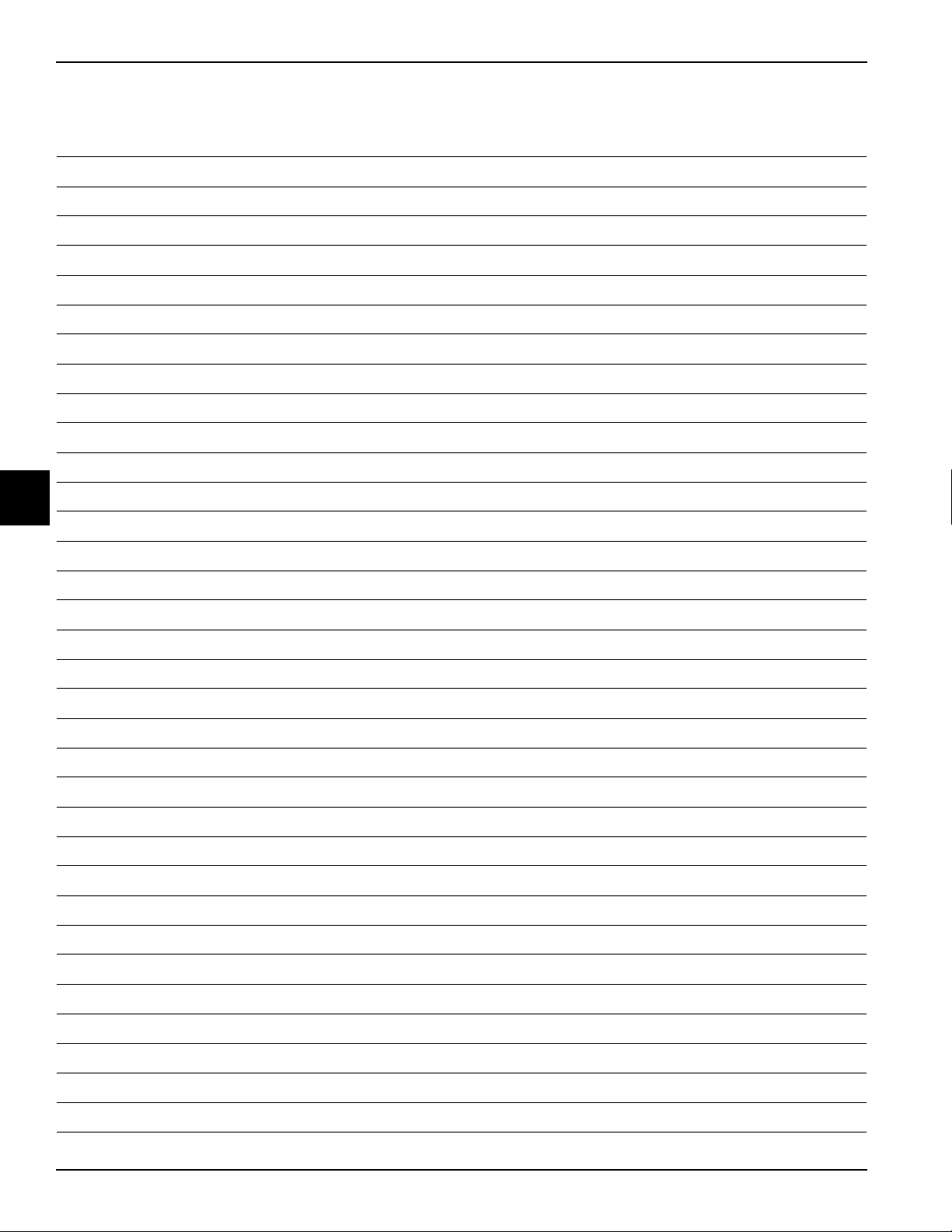

Notes:

Section 5
5-1
Model 8756
User Interface
5
User Interface
Figure 5-1
4
2
89
7
6
5
1
3
Item Description
1 Power Switch (Toggle)
2 RESET Button
3 MIX Refrigeration Control
4 STANDBY Key
5 WASH Key
Item Description
6AUTOKey
7PUMPKey
8 MIX LOW Indicator
9 MIX OUT Indicator

5-2
USER INTERFACE
Model 8756 User Interface
5
Symbol Definitions
To better communicate in the international arena, the
words on many of our operator switches and buttons
have symbols to indicate their functions. Your Taylor
machine is designed with these international symbols.
The following chart identifies the symbol definitions used
on the operator switches.
= AUTO
= ON
= OFF
= MIX Refrigeration Control (Ref)
= WASH
= PUMP
= STANDBY
= MIX LOW
= MIX OUT
Power Switch
When placed in the ON position, the power switch allows
Softech™ control panel operation.
Indicator Lights
MIX LOW
When the MIX LOW light begins to flash, the mix tank
has a low supply of mix and should be refilled as soon as
possible.
MIX OUT
When the MIX OUT light begins to flash, it indicates the
mix tank has been almost completely exhausted and has
an insufficient supply of mix to operate the freezer. At this
time, the Standby and Auto modes are locked out and the
freezer shuts down. To initiate the refrigeration system,
add mix to the tank and press the AUTO key. The freezer
will automatically begin operation.
RESET Button
The RESET button is in the decorative plate above the
Softech controls. The reset protects the beater motor
from an overload condition. If an overload occurs, the
reset mechanism will trip. To properly reset the freezer,
press the AUTO button and cancel the cycle. Turn the
power switch to the OFF position. Press the RESET
button firmly. Return the power switch to the ON position.
Press the WASH button and observe the freezer’s
performance. Open the side access panel to check if the
beater motor is turning the driveshaft clockwise (from the
operator end) without binding.
When it’s turning properly, press the WASH button to
cancel the cycle. Press the AUTO button to resume
normal operation. Press the AUTO button on both sides
to resume normal operation. If the freezer shuts down
again, contact a Taylor service technician.
MIX Ref
When the MIX Ref button is pressed, the mode indicator
will light to indicate that the mix cabinet refrigeration
system is operating. There are two touch-tone panels,
one for each freezing cylinder. The mix refrigeration
system is controlled by the MIX Ref button found on the
left panel. When the AUTO button is pressed on either
side of the freezer, the MIX Ref function is automatically
activated. The MIX Ref function cannot be canceled
unless the Auto mode is canceled first.
STANDBY
During long no-sale periods, it becomes necessary to
warm the product in the freezing cylinder to
approximately 35°F to 40°F (1.7°C to 4.4°C) to prevent
overbeating and product breakdown.
When the STANDBY button is pressed, the indicator light
will come on, indicating the cylinder temperature
retention system (CTR) has been activated. In the
Standby mode, the Wash, Pump, and Auto functions are
automatically canceled. The Mix Ref function is
automatically locked in to maintain the mix in the cabinet.
To resume normal operation, press the AUTO button.
When the machine cycles off, the product in the freezing
cylinder will be at serving viscosity.
