Taylor Model C043 User manual

OPERATOR'S
MANUAL
Model C043
Frozen Custard Machine
Original Operating Instructions
068359- M
7/22/10 (Original Publication)
(Updated 9/14/15)

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the C043 data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: Amps
Minimum Wire Ampacity: Amps
Part Number:
Information found on RC35 data label:
Model Number:
Serial Numbers:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: Amps
Minimum Wire Ampacity: Amps
E2010 Carrier Commercial Refrigeration, Inc.
068359-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may
be a violation of Copyright Law of the United States of America and other countries, could result in the awarding
of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Model C043 Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Installer Safety 1........................................................
Site Preparation 1.......................................................
Air Cooled Units 2.......................................................
Water Cooled Units 2....................................................
Electrical Connections 2.................................................
Section 2 To the Operator 4...........................................
Section 3 Safety 6....................................................
Section 4 Operator Parts Identification 8...............................
C043 8................................................................
Beater Door & Hopper Assemblies 10......................................
Accessories 12..........................................................
Section 5 Important to Operator 13.....................................
Section 6 Operating Procedures 14.....................................
Assembly 14............................................................
Sanitizing 18............................................................
Priming 21..............................................................
Hold Cycle During Operation 23...........................................
Resuming Production During Operation 25..................................
Preparing for Shutdown 27................................................
Rinsing 28..............................................................
Cleaning 30.............................................................
Disassembly 32..........................................................
Brush Cleaning 33.......................................................

Table of Contents Model C043
Table of Contents - Page 2
Section 7 Important: Operator Checklist 36..............................
During Cleaning and Sanitizing 36.........................................
Troubleshooting Bacterial Count 36........................................
Regular Maintenance Checks 36...........................................
Winter Storage 37........................................................
Section 8 Troubleshooting Guide 38....................................
Section 9 Parts Replacement Schedule 39...............................
Section 10 Limited Warranty on Equipment 40............................
Section 11 Limited Warranty on Parts 42.................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E2010 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated September, 2015)
068359-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may be a violation of Copyright Law of the United States of America and other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model C043 To the Installer
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor® equipment.
SOnly authorized Taylor service personnel
should perform installation, maintenance,
and repairs on Taylor equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper personal protective
equipment (PPE) is available and worn
when required during installation and
service.
SAuthorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the unit must
be disconnected prior to performing any installation,
maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death
from electrical shock or hazardous moving parts as
well as poor performance or damage to the unit.
This unit has many sharp edges that can
cause severe injuries.
Note:Allrepairsmustbeperformedbyan
authorized Taylor service technician.
Site Preparation
Review the area where the unit will be installed
before uncrating the unit. Make sure that all possible
hazards to the installer, user, and the unit have been
addressed.
For Indoor Use Only: The Model C043 is designed
to operate indoors, under normal ambient
temperatures of 70°-75°F (21°-24°C). The unit has
successfully performed in high ambient
temperatures of up to 104°F (40°C) at reduced
capacities.
This unit must NOT beinstalledinanarea
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken in moving this unit for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
damage to the unit.
Uncrate the unit and inspect it for damage. Promptly
report any damage to your local authorized Taylor
distributor.
This unit is made using USA sizes of hardware. All
metric conversions are approximate.

2Model C043To the Installer
150805
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
C043: A minimum air clearance of 3” (76 mm) is
required on the left side and rear of the unit, and 0”
on the right side. The drip tray can be installed on
either side. That side requires 36” (914 mm) to allow
for installation and removal of drip tray. Allow 36”
(914 mm) at the rear of the unit for service access.
Each air cooled C043 requires three RC35 remote
condensing systems.
RC35: Each 60 Hz remote condenser requires a
minimum air clearance of 6” (152 mm) on three
sides.
Each 50 Hz remote condenser requires a minimum
air clearance of 12” (305 mm) on three sides.
An air deflector must be installed on the condenser
side of each RC35 if the floor clearance is less than
5” (127 mm). (Note: The legs are typically mounted
on 4” x 4” lumber to achieve the minimum floor
clearance.)
Failure to allow adequate air clearance can reduce
the refrigeration capacity of the unit and possibly
cause permanent damage to the compressor.
Water Cooled Units
C043: The minimum air clearance requirement is 3”
(76 mm) on both sides and at the rear of the unit.
The drip tray can be installed on either side. That
side requires 36” (914 mm) to allow for the
installation and removal of the drip tray. Allow 36”
(914 mm) at the rear of the unit for service access.
Water Connections
An adequate cold water supply must be provided
with a hand shut-off valve. On the underside of the
base pan or on the right side, two 3/8” I.P.S. water
connections for inlet and outlet are provided for easy
hook-up. 1/2” inside diameter water lines should be
connected to the machine. (Flexible lines are
recommended, if local codes permit.) Depending on
local water conditions, it may be advisable to install
a water strainer to prevent foreign substances from
clogging the automatic water valve.
There will be only one water “in” and one water “out”
connection. DO NOT install a hand shut-off valve on
the water “out” line! Water should always flow in this
order: first, through the automatic water valve;
second, through the condenser; and third, through
the outlet fitting to an opentrapdrain.
Minimum water pressure is 30 psi (207 kPa) and
maximum water pressure is 150 psi (1034 kPa).
A back flow prevention device is
required on the incoming water connection side.
Please refer to the applicable National, State, and
local codes for determining the proper configuration.
Electrical Connections
In the United States, this unit is intended to be
installed in accordance with the current edition of the
National Electrical Code (NEC), ANSI/NFPA 70
which governs the installation of the unit at the local
governmental level.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the unit should be
installed in accordance with the existing local codes.
Please contact your local authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the unit
for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
Refer to the wiring diagram provided inside of the
electrical box for proper power connections.
CAUTION: THIS UNIT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!

3
Model C043 To the Installer
150805
This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the unit's frame.
SStationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Beater Rotation
Beater rotation must be counter-clockwise
as viewed looking into the freezing cylinder.
If the beater rotation is not counter-clockwise,
contact your local authorized Taylor service
technician.
Refrigerant
In consideration of our environment, Taylor
proudly uses only earth friendly HFC refrigerants.
The HFC refrigerants used in this unit are R404A
and R134a. These refrigerants are generally
considered non-toxic and non-flammable, with an
Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Only R404A and R134a refrigerant that
conforms to the AHRI standard 700 specification
may be used. The use of any other refrigerant may
expose users and operators to unexpected safety
hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.
Taylor Company reminds technicians to be
cautious of all applicable laws regarding refrigerant
recovery, recycling, and reclaiming systems. If you
have any questions regarding these laws, please
contact the Taylor Company's Service Department.
WARNING: R404A and R134a refrigerant
used in conjunction with polyolester oils is extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

4Model C043To the Operator
131122
Section 2 To the Operator
Your unit has been carefully engineered and
manufactured to give you dependable operation.
When properly operated and cared for, it will
produce a consistent quality product. Like all
mechanical products, it will require cleaning and
maintenance. A minimum amount of care and
attention will be necessary if the operating
procedures outlined in this manual are followed
closely.
DO NOT operate the unit without reading
this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.
Your Taylor unit will NOT eventually compensate for
and correct any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment's operation, both assembly and
disassembly, go through these procedures together
in order to be properly trained and to make sure that
no confusion exists.
In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor.
Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other
similar legislation in effect after August 13, 2005.
Therefore, it must be collected separately after its
use is completed, and cannot be disposed as
unsorted municipal waste.
The user is responsible for returning the product to
the appropriate collection facility, as specified by
your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or
local distributor.

5
Model C043 To the Operator
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this unit, Taylor has no obligation to either
supply or provide replacement refrigerant either at
billable or unbillable terms. Taylor will recommend a
suitable replacement if the original refrigerant is
banned, obsoleted, or no longer available during the
five (5) year Taylor warranty of the compressor.
From time-to-time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor's testing, that it would be accepted as
a drop-in replacement for this unit, then the
disclaimer in this “Compressor Warranty Disclaimer”
section will not apply to the use of the alternate
refrigerant approved by Taylor.
To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call Taylor or your local authorized Taylor distributor.
Be prepared to provide the Model/Serial Number of
the unit in question.
Note: Continuing research results in steady
improvements; therefore, information in this
Operator Manual is subject to change without
notice.

6Model C043Safety
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator at all times when they are
coming in contact with the unit and its parts. Taylor
makes every effort to design and manufacture
built-in safety features to protect both operators and
service technicians.
Installing and servicing refrigeration equipment can
be hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service
refrigeration equipment. When working on
refrigeration equipment, observe precautions noted
in the literature, tags and labels attached to the unit,
and other safety precautions that may apply. Follow
all safety code requirements. Wear safety glasses
and work gloves.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may also damage
the unit and/or its components. Such damage
may result in component replacement and
service repair expenses.
DO NOT operate the unit without reading
this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.
This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited unit operation is allowed for public
use, such as a self-serve application, supervision or
instruction concerning the use of the unit by a
trained person is required.
DO NOT use a water jet to clean or rinse
the unit. Failure to follow these instructions may
result in serious electrical shock.
SAll repairs should be performed by an
authorized Taylor service technician.
SThe main power supplies to the unit must be
disconnected prior to performing any
installation, repair, or maintenance.
SDO NOT operate the unit unless it is
properly grounded.
SDO NOT operate the unit with larger fuses
than specified on the unit's data label.
SCord Connected Units: Only authorized
Taylor service technicians or licensed
electricians may install a plug or
replacement cord on these units.
SUnits that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods,
or during initial installation, shall have
protective devices such as a GFI, to protect
against the leakage of current, installed by
the authorized personnel to the local codes.
SStationary units which are not equipped with
a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

7
Model C043 Safety
150302
SDO NOT allow untrained personnel to
operate this unit.
SDO NOT operate the unit unless all service
panels and access doors are restrained with
screws.
SDO NOT remove any internal operating
parts (including, but not limited to, freezer
door, beater, or scraper blades), unless all
control switches are in the OFF position.
Failure to follow these instructions may result in
severe personal injury, especially to fingers or
hands, from hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater assembly. The scraper blades
are very sharp.
This unit must be placed on a level surface.
Extreme care should be taken when moving the unit
for any reason. Two or more persons are required to
safely move this unit. Failure to comply may result in
personal injury or damage to the unit.
Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this Operator Manual for the
proper procedure to clean this unit.
This unit is designed to maintain product
temperature under 41°F (5°C). Any product being
added to this unit must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
For Indoor Use Only: The Model C043 is designed
to operate indoors, under normal ambient
temperatures of 70° - 75°F (21° - 24°C). The unit
has successfully performed in high ambient
temperatures of 104°F (40°C) at reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the machine and at a
height of 1.6 meters from the floor.
Minimum Air Clearances: Air Cooled Units
DO NOT obstruct air intake and discharge openings:
C043: A minimum air clearance of 3” (76 mm) is
required on the left side and rear of the unit, and 0”
on the right side. The drip tray can be installed on
either side. That side requires 36” (914 mm) to allow
for installation and removal of drip tray. Allow 36”
(914 mm) at the rear of the unit for service access.
Each air cooled C043 requires three RC35 remote
condensing systems.
RC35 (used with air cooled C043 unit, only):
Each 60 Hz remote condenser requires a minimum
air clearance of 6” (152 mm) on three sides.
Each 50 Hz remote condenser requires a minimum
air clearance of 12” (305 mm) on three sides.
An air deflector must be installed on the condenser
side of each RC35 if the floor clearance is less than
5” (127 mm). (Note: The legs are typically mounted
on 4” x 4” lumber to achieve the minimum floor
clearance.)
Failure to allow adequate air clearance can reduce
the refrigeration capacity of the unit and possibly
cause permanent damage to the compressor.
Minimum Air Clearances: Water Cooled Units
C043: The minimum air clearance requirement is 3”
(76 mm) on both sides and at the rear of the unit.
The drip tray can be installed on either side. That
side requires 36” (914 mm) to allow for the
installation and removal of the drip tray. Allow 36”
(914 mm) at the rear of the unit for service access.

8Model C043Operator Parts Identification
150825
Section 4 Operator Parts Identification
C043
Figure 1

9
Model C043 Operator Parts Identification
150825

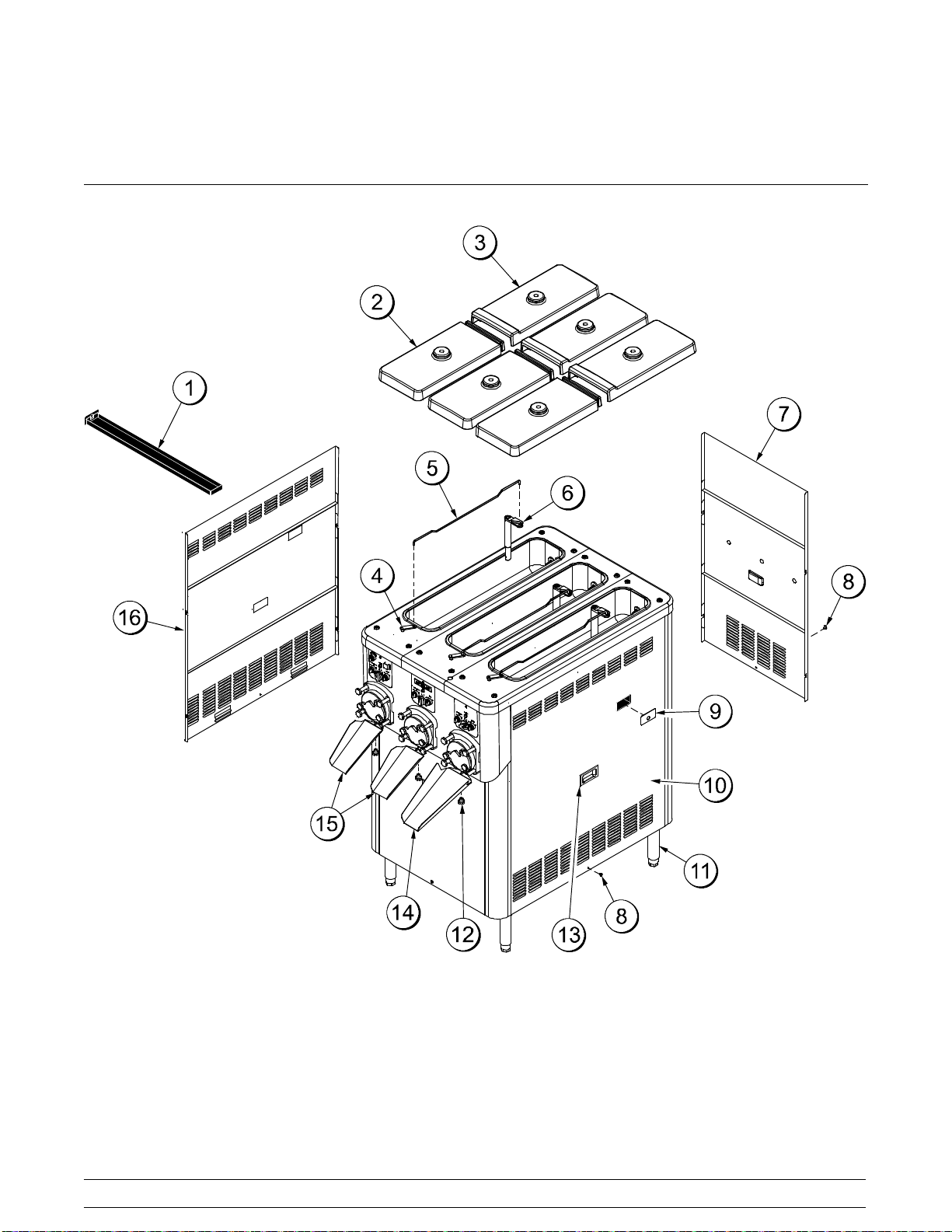

Exploded View Parts Identification
ITEM DESCRIPTION PART NO.
1TRAY A.-DRIP X63636
2COVER-HOPPER-FRONT INS 065701
3COVER-HOPPER-REAR INS 065700
4LEVER A.-FLOW REG X66923
5ROD-FLOW CONTROL 063593
6TUBE A.-FEED PLASTIC X67453
7PANEL A.-REAR X63715
8SCREW-1/4-20X3/8 PHIL TRUSS 038872
ITEM DESCRIPTION PART NO.
9COVER A.-PANEL-SIDE X65637
10 PANEL A.-SIDE RIGHT X63720
11 LEG-8" 2"OD-3/4-10 STUD-HEX 044652
12 NUT-STUD 043666
13 HANDLE-STNLS FLUSH PULL 019043
14 CHUTE-LONG 063619
15 CHUTE-SHORT 063618
16 PANEL A.-SIDE LEFT X63724

10 Model C043Operator Parts Identification
150825
Beater Door & Hopper Assemblies
Figure 2

11
Model C043 Operator Parts Identification
150825
Beater Door & Hopper Assemblies Parts Identification
ITEM DESCRIPTION PART NO.
1CHUTE 063618
2DOOR ASSEMBLY X63611-SER
3NUT-STUD 043666
4PLATE-DRAW ARM 063614
5NUT-STUD 034383
6GASKET-DOOR HT 4IN-DBL 048926
7BEARING-DOOR-FRONT 064315
8BLADE-SCRAPER 30 PITCH 063656
ITEM DESCRIPTION PART NO.
9SPRING-DASHER BLADE 063693
10 BLADE-SCRAPER-REAR 063640
11 DASHER A.-CUSTARD X83275
12 SEAL-DRIVE SHAFT 032560
13 TUBE A.-FEED PLASTIC X67453
14 ROD-FLOW CONTROL 063593
15 CHUTE-LONG 063619

12 Model C043Operator Parts Identification
150825
Accessories
Figure 3
ITEM DESCRIPTION PART NO.
1BRUSH-DBL END-PUMP & FEED 013072
2BRUSH-DRAW VALVE
1”OD X 2”X17” 013073
3BRUSH-BARREL 063843
4BRUSH-REAR BRG 063844
5BRUSH-MIX PUMP BODY 3”X7” 023316
6BRUSH-END-DOOR-SPOUT-SS 039719
ITEM DESCRIPTION PART NO.
7TOOL-DASHER SHAFT REMOVE 063623
*8 SANITIZER SEE NOTE
9KIT A.-TUNE UP X64743
10 RAKE-BLADE GUARD 064888
11 TIMER-COUNTDOWN-DIGITAL 065425
12 CHUTE-LONG 063619
*A SAMPLE OF SANITIZER IS SENT WITH THE UNIT.
FOR REORDERS, ORDER STERA SHEEN PART NO.
055492 (100 PACKS) OR KAY-5 PART NO. 041082
(125 PACKS).

13
Model C043 Operator Parts Identification
150629
Section 5 Important to Operator
Figure 4
ITEM DESCRIPTION
1HOPPER REFRIGERATION SWITCH
2OPERATIONAL REFRIGERATION SWITCH
3FLOW ADJUSTMENT KNOB
4MIX LOW INDICATOR LIGHT
5BEATER MOTOR SWITCH
6DIGITAL COUNTDOWN TIMER
Hopper Refrigeration Switch
The hopper refrigeration switch activates the hopper
refrigeration.
Operational Refrigeration Switch
Place the operational refrigeration switch in the “ON”
position to allow the product to dispense. During “No
Sale” periods, place the switch in the “HOLD”
position to keep the product refrigerated in the
freezing cylinder.
Flow Adjustment Knob
The flow adjustment knob adjusts the flow of product
into the freezing cylinders.
Note: Whenever an adjustment is made, first turn
the adjustment knob all the way to “5” and then back
to the desired number.
Mix Low Indicator Light
When the mix low indicator light is illuminated, the
mix hopper has a low supply of mix and should be
refilled as soon as possible.
Beater Motor Switch
The beater motor switch activates the beater motor.
Digital Countdown Timer
The digital countdown timer is used to keep track of
the time needed to control product quality.

14 Model C043Operating Procedures
150629
Section 6 Operating Procedures
This unit is a three flavor custard freezer. It has
three 30 quart (28 liter) hoppers. The mix flows by
gravity through an adjustable flow control into the
freezing cylinders. This unit has been designed to
produce a rich tasting custard product that can be
drawn off and served from a holding cabinet. The
overrun is typically 20-25% and varies depending on
the mix formulation and the finished product
temperature (18 to 21°F [-7.8 to -6.1°C]).
We begin our instructions at the point where we find
the parts disassembled and laid out to air dry from
the previous brush cleaning.
The following procedures will show you how to
assemble the parts into the freezer, sanitize them,
and prime the freezer with fresh mix.
If you are disassembling the unit for the first time or
need information to get to this starting point in our
instructions, turn to “Disassembly” on page 32 and
start there.
Assembly
MAKE SURE THE BEATER MOTOR
SWITCH IS IN THE OFF POSITION. Failure to
follow this instruction may cause severe personal
injury to fingers or hands from hazardous moving
parts.

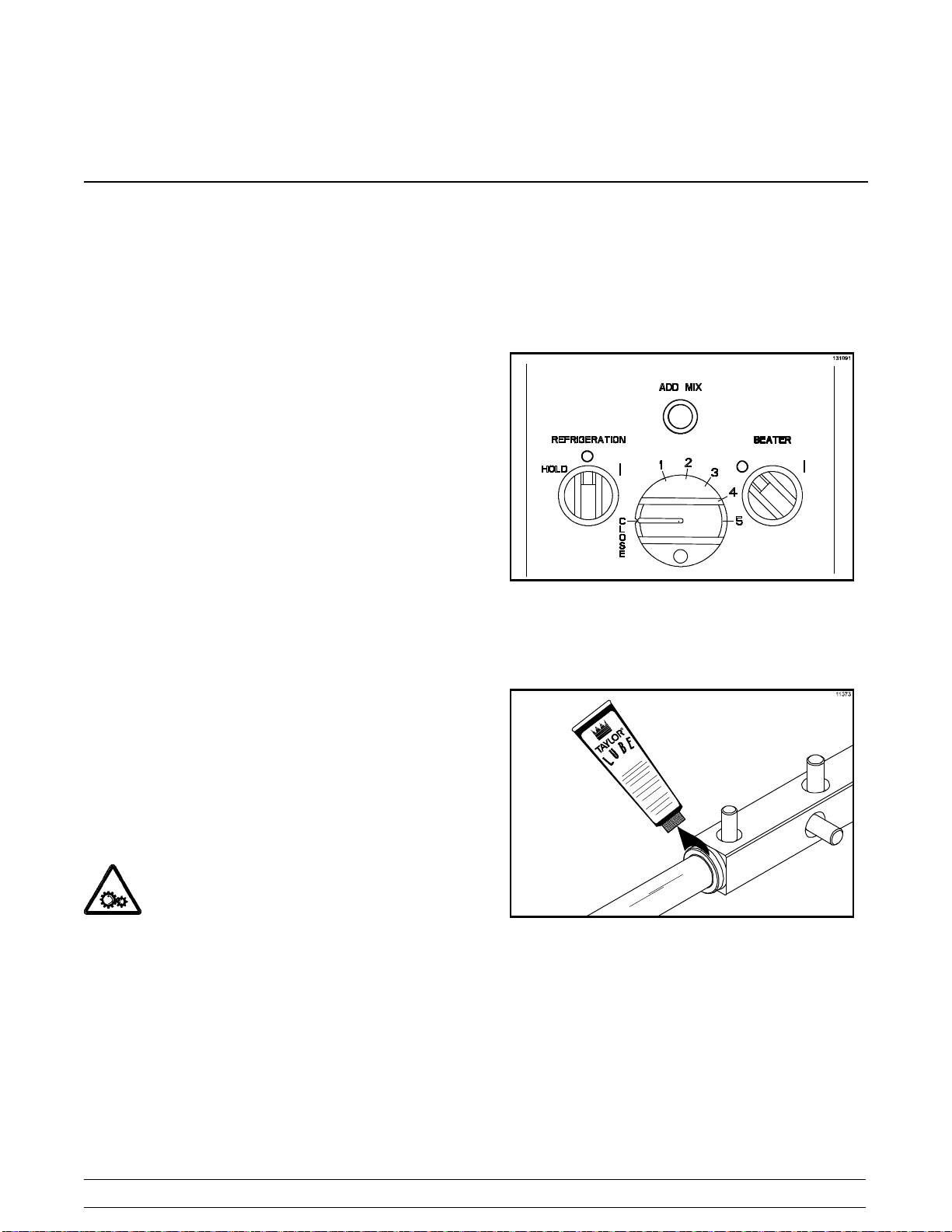

Beater Shaft, Scraper Blade, and Feed
Tube Assembly
Step 1
Verify that the refrigeration switch and the beater
motor switch are both in the OFF position.
Figure 5
Step 2
Place a bead of lubricant around the groove of the
beater shaft.
Figure 6
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).

15
Model C043 Operating Procedures
Step 3
Slide the seal over the shaft and groove until it
snaps into place.
Figure 7
Step 4
Fill the inside portion of the seal with 1/4” (6 mm)
more lubricant and lubricate the flat side of the seal
that fits onto the rear shell bearing.
Figure 8
Step 5
Lubricate the beater shaft. IMPORTANT! DO
NOT lubricate the hex end of the beater shaft.
Figure 9
Step 6
Inspect each scraper blade for any nicks or signs of
excessive wear. If any nicks or signs of wear are
present, replace the blade.
Figure 10

16 Model C043Operating Procedures
Step 7
Starting at the hex end of the beater shaft, place a
metal leaf spring (arched upward) over the two pins
closest to that end. Install the long scraper blade on
top of the leaf spring. (Note: There is only one long
scraper blade per beater.)
Figure 11
Step 8
Place a leaf spring and a short scraper blade on the
next set of pins.
Step 9
Hold the two leaf springs and scraper blades in
place. Slide the beater shaft into the freezing
cylinder until the scraper blades are held in place by
the freezing cylinder. Rotate the beater shaft
counter-clockwise until the next set of pins is facing
up.
Figure 12
Step 10
Place a leaf spring and a short scraper blade on the
next set of pins. Slide the beater shaft into the
freezing cylinder until the blade is held in place by
the freezing cylinder. Rotate the beater shaft
counter-clockwise until the next set of pins is facing
up.
Step 11
Continue adding leaf springs and short scraper
blades to the beater shaft until all 12 blades are
installed.
Step 12
Slide the beater shaft into the freezing cylinder,
rotating the beater shaft slightly counter-clockwise.
Engage the hex end firmly into the drive coupling at
the back of the unit. The square portion of the beater
shaft assembly should fit completely inside the
freezing cylinder. The bearing support pin will extend
beyond the freezing cylinder.
Note: It may be helpful to use the beater removal
tool to turn the beater while installing the beater.
Figure 13
Note: The drip pan is a convenient place to store
the beater removal tool.
Step 13
Install the front bearing on the bearing support pin.
Figure 14
Step 14
Repeat the assembly instructions on the
remaining freezing cylinders.
