Taylor 750 User manual

OPERATOR'S
MANUAL
Model 750, 751, 754, 774,
791, & 794 Soft Serve Freezers
Original Operating Instructions
028754- M
2/01/02 (Original Publication)
Updated 12/22/15

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
E2002 Carrier Commercial Refrigeration, Inc.
028754-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may
be a violation of Copyright Law of the United States of America and other countries, could result in the awarding
of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Models 750, 751, 754, 774, 791, 794 Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Section 2 To the Operator 4...........................................
Section 3 Safety 5....................................................
Section 4 Operator Parts Identification 7...............................
Model 750 7............................................................
Model 751 8............................................................
Model 754 9............................................................
Model 774 10............................................................
Model 774 Topping Pump (053794−) 11....................................
Model 791 12............................................................
Model 794 13............................................................
Models 750 & 751 Single Spout Door and Beater Assembly 14................
Models 754, 774 & 794 Three Spout Door and Beater Assembly 15............
Model 791 Three Spout Door and Beater Assembly 16.......................
Accessories 17..........................................................
Section 5 Important: To the Operator 18.................................
Symbol Definitions 18....................................................
Power Switch 19.........................................................
MIX LOW Indicator Light 19...............................................
MIX REF Key 19.........................................................
STANDBY Key 19........................................................
WASH Key 19...........................................................
AUTO Key 19...........................................................
Reset Button 20.........................................................
Air Tube 20.............................................................
Adjustable Draw Handle 20...............................................
Section 6 Operating Procedures 21.....................................
Prior to Set−Up (Model 774) 21............................................
Assembly 21............................................................
Sanitizing 26............................................................
Priming 28..............................................................
Closing Procedure 29....................................................

Table of Contents Models 750, 751, 754, 774, 791, 794
Table of Contents −Page 2
Draining Product From The Freezing Cylinder 29............................
Rinsing 29..............................................................
Cleaning 29.............................................................
Disassembly 30..........................................................
Manual Brush Cleaning 30................................................
Section 7 Important: Operator Checklist 32..............................
During Cleaning and Sanitizing 32.........................................
Troubleshooting Bacterial Count 32........................................
Regular Maintenance Checks 32...........................................
Winter Storage 33........................................................
Section 8 Troubleshooting Guide 34....................................
Section 9 Parts Replacement Schedule 37...............................
Section 10 Limited Warranty on Equipment 38............................
Section 11 Limited Warranty on Parts 40.................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E2002 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated December, 2015)
All rights reserved.
028754−M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work
may be a violation of Copyright Law of the United States of America and other countries, could result in the
awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further
civil and criminal penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Models 750, 751, 754, 774, 791, 794 To the Installer
131206
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on the
equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and service.
SAuthorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(ies) to the freezer
must be disconnected prior to performing any repairs.
Failure to follow this instruction may result in personal
injury or death from electrical shock or hazardous
moving parts as well as poor performance or damage
to the equipment.
Note: All repairs must be performed by an
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area the unit is to be installed in before
uncrating the unit making sure that all possible
hazards the user or equipment may come into have
been addressed.
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
Counter Model: 6” (152 mm) minimum air space on
both sides and 0” on the rear.
Console Models: 3” (76 mm) minimum air space on
all sides.
This will allow for adequate air flow across the
condenser(s). Failure to allow adequate clearance can
reduce the refrigeration capacity of the freezer and
possibly cause permanent damage to the compressor.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of
70_-75_F (21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean the unit. Failure to
follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
equipment damage.
Uncrate the unit and inspect it for damage. Report any
damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

2 Models 750, 751, 754, 774, 791, 794To the Installer
101027
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided with
a hand shut−off valve. On the underside rear of the
base pan, two 3/8” I.P.S. (for single−head units) or two
1/2” I.P.S. (for double−head units) water connections
for inlet and outlet have been provided for easy
hook−up. 1/2” inside diameter water lines should be
connected to the machine. (Flexible lines are
recommended, if local codes permit.) Depending on
local water conditions, it may be advisable to install a
water strainer to prevent foreign substances from
clogging the automatic water valve. There will be only
one water “in” and one water “out” connection for both
single−head and double−head units. DO NOT install a
hand shut−off valve on the water “out” line! Water
should always flow in this order: first, through the
automatic water valve; second, through the
condenser; and third, through the outlet fitting to an
open trap drain.
A back flow prevention device is required
on the incoming water connection side. Please
refer to the applicable National, State, and local codes
for determining the proper configuration.
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70-1987. The purpose of the
NEC code is the practical safeguarding of persons and
property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. In all other areas of the world,
equipment should be installed in accordance with the
existing local codes. Please contact your local
authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
DO NOT operate this freezer with larger fuses
than specified on the unit data label. Failure to follow
this instruction may result in electrocution or damage
to the machine.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
Stationary appliances which are not equipped
with a power cord and a plug or another device to
disconnect the appliance from the power source must
have an all-pole disconnecting device with a contact
gap of at least 3 mm installed in the external
installation.
Appliances that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected or not
used for long periods, or during initial installation, shall
have protective devices such as a GFI, to protect
against the leakage of current, installed by the
authorized personnel to the local codes.

3
Models 750, 751, 754, 774, 791, 794 To the Installer
130819
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not lighter than
ordinary polychloroprene or other equivalent synthetic
elastomer-sheathed cord (Code designation 60245
IEC 57) installed with the proper cord anchorage to
relieve conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be replaced by
an authorized Taylor service technician in order to
avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures should be
performed by a trained service technician.
To correct the rotation on a three−phase unit,
interchange any two incoming power supply lines at
freezer main terminal block only.
To correct rotation on a single−phase unit, change the
leads inside the beater motor. (Follow the diagram
printed on the motor.)
Electrical connections are made directly to the
terminal block provided in the main control box located
under the upper left side panel on the countertop unit,
or behind the service panel on the console units.
Refrigerant
In consideration of our environment, Taylor
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This refrigerant
is generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution. NEVER
fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
Use only R404A refrigerant that conforms to
the AHRI standard 700 specification. The use of any
other refrigerant may expose users and operators to
unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

4 Models 750, 751, 754, 774, 791, 794To the Operator
131206
Section 2 To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor soft−serve models covered in
this manual consist of the following: 750, 751, 754,
774, 791, and 794.
These units, when properly operated and cared for, will
produce a consistent quality product. Like all
mechanical products, they will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator’s Manual should be read
before operating or performing any maintenance on
your equipment.
Your freezer will NOT eventually compensate and
correct for any errors during the set−up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that all personnel responsible for the
equipment’s operation study these procedures
together in order to be properly trained and to make
sure that no misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor Distributor, and only if all required
service work is provided by an authorized Taylor
service technician. Taylor reserves the right to deny
warranty claims on units or parts if non−Taylor
approved parts or incorrect refrigerant were installed
in the unit, system modifications were performed
beyond factory recommendations, or it is determined
that the failure was caused by abuse, misuse, neglect,
or failure to follow all operating instructions. For full
details of your Taylor Warranty, please see the Limited
Warranty section in this manual.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste. The user is responsible for returning
the product to the appropriate collection facility, as
specified by your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop−in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit’s refrigeration system,
only the refrigerant specified on the affixed data
label should be used. The unauthorized use of
alternate refrigerants will void your Taylor compressor
warranty. It is the unit owner’s responsibility to make
this fact known to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
The Taylor Company will continue to monitor the
industry and test new alternates as they are being
developed. Should a new alternate prove, through our
testing, that it would be accepted as a drop−in
replacement, then the above disclaimer would
become null and void. To find out the current status of
an alternate refrigerant as it relates to your
compressor warranty, call the local Taylor Distributor
or the Taylor Factory. Be prepared to provide the
Model/Serial Number of the unit in question.

5
Models 750, 751, 754, 774, 791, 794 Safety
130819
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator when he or she comes in contact
with the freezer and its parts. Taylor has gone to
extreme efforts to design and manufacture built−in
safety features to protect both you and the service
technician. As an example, warning labels have been
attached to the freezer to further point out safety
precautions to the operator.
IMPORTANT −Failure to adhere to the
following safety precautions may result in severe
personal injury or death. Failure to comply with
these warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.
DO NOT operate the freezer without reading
this Operator Manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
This appliance is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the
use of the appliance by a person responsible for their
safety.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
DO NOT use a water jet to clean or rinse the
freezer. Failure to follow these instructions may result
in serious electrical shock.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT operate the freezer with larger fuses
than specified on the freezer data label.
SAll repairs must be performed by an
authorized Taylor service technician.
SThe main power supplies to the machine must
be disconnected prior to performing any
repairs.
SCord Connected Units: Only Taylor authorized
service technicians may install a plug on this
unit.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices such as a GFI, to protect against the
leakage of current, installed by the authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

6 Models 750, 751, 754, 774, 791, 794Safety
130819
SDO NOT allow untrained personnel to operate
this machine.
SDO NOT put objects or fingers in door spout.
SDO NOT operate the freezer unless all service
panels and access doors are restrained with
screws.
SDO NOT remove any internal operating parts
(example: freezer door, beater, scraper
blades, etc.) unless all control switches are in
the OFF position.
Failure to follow these instructions may result in
contaminated product or severe personal injury to
fingers or hands from hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater asssembly. The scraper blades are
very sharp.
Failure to follow these instructions may result in
electrocution or damage to the machine. Contact your
local authorized Taylor Distributor for service.
This freezer must be placed on a level
surface. Failure to comply may result in personal injury
or equipment damage.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to the
cleaning section of this manual for the proper
procedure to clean this unit.
Access to the service area of the unit must be
restricted to persons having knowledge and practical
experience with the unit, in particular as far as safety
and hygiene are concerned.
DO NOT run the unit without product. Failure to follow
this instruction can result in damage to the unit.
DO NOT obstruct air intake and discharge openings:
Counter Model: 6” (152 mm) minimum air space on
both sides and 0” on the rear.
Console Models: 3” (76 mm) minimum air space on
all sides.
Failure to follow this instruction may cause poor
freezer performance and damage to the machine.
These freezers are designed to operate indoors, under
normal ambient temperatures of 70_−75_F
(21_−24_C). The freezers have successfully
performed in high ambient temperatures of 104_F
(40_C) at reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

7
Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
101217
Section 4 Operator Parts Identification
Model 750
Item Description Part No.
1Cover A.−Hopper X38458−SER
2Gasket−Hopper Cover 038375
3Tube A.−Feed X29429−2
4Panel−Rear 020891
5Panel−Upper Side Right 042317
6Pan−Drip 050766
7Panel−Right Side 050742
8Shield−Splash 022763
9Tray−Drip 013690
Item Description Part No.
10 Panel−Side Left 050741
11 Leg−4” SS w/O−Ring 013458
12 Louver−Side 051192
13 Stud−Nose Cone 022822
14 Panel A.−Front X50754
15 O−Ring−.643 OD x .077 W 018572
16 O−Ring−3/8 OD x .070 W 016137
17 Orifice 022465−100

8 Models 750, 751, 754, 774, 791, 794Operator Parts Identification
111101
Model 751
Item Description Part No.
1Cover A.−Hopper X38458−SER
2Gasket−Hopper Cover 038375
3Tube A.−Feed X29429−2
4Panel−Rear 013637
5Panel−Upper Side Right 028823
6Pan−Drip 11−5/8 Long 027503
7Panel A.−Lower Side Right X24424−SER
8Shield−Splash 022763
9Tray−Drip 14−7/8 x 5−1/8 013690
10 Panel−Upper Side 024426
11 Panel−Service 047170
Item Description Part No.
12 Caster−Swivel 018794
13 Stud−Nose Cone 022822
14 Panel A.−Side−Lower X39075−SER
15 O−Ring−.643 OD x .077 W 018572
16 O−Ring−3/8 OD x .070 W 016137
17 Orifice 022465−100
18 Louver−Side−Top 051191
19 Panel A.−Front X33237
20 Adaptor A.−Caster X18915
21 Caster−4” Swivel 5/8” Stem
w/Brake
034081

9
Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
Model 754
Item Description Part No.
1Cover A.−Hopper X38458−SER
2Gasket−Hopper Cover 038474
3Tube A.−Feed X29429−2
4Panel−Rear 053782
5Panel−Upper Side Right 028823
6Panel A.−Side Lower Right X46448−SER
7Panel−Service 046584
8Shield−Splash 022766
9Tray−Drip 014533
10 Caster−Swivel 018794
Item Description Part No.
11 Panel−Upper Side Left 028822
12 Stud−Nose Cone 022822
13 Panel A.−Side Lower Left X46447−SER
14 Louver−Side−Top 051191
15 O−Ring−.643 OD x .077 W 018572
16 O−Ring−3/8 OD x .070 W 016137
17 Orifice 022465−100
18 Pan−Drip 17−1/4” Long 027504
19 Panel A.−Front X32956
20 Adaptor A.−Caster X18915

10 Models 750, 751, 754, 774, 791, 794Operator Parts Identification
140616

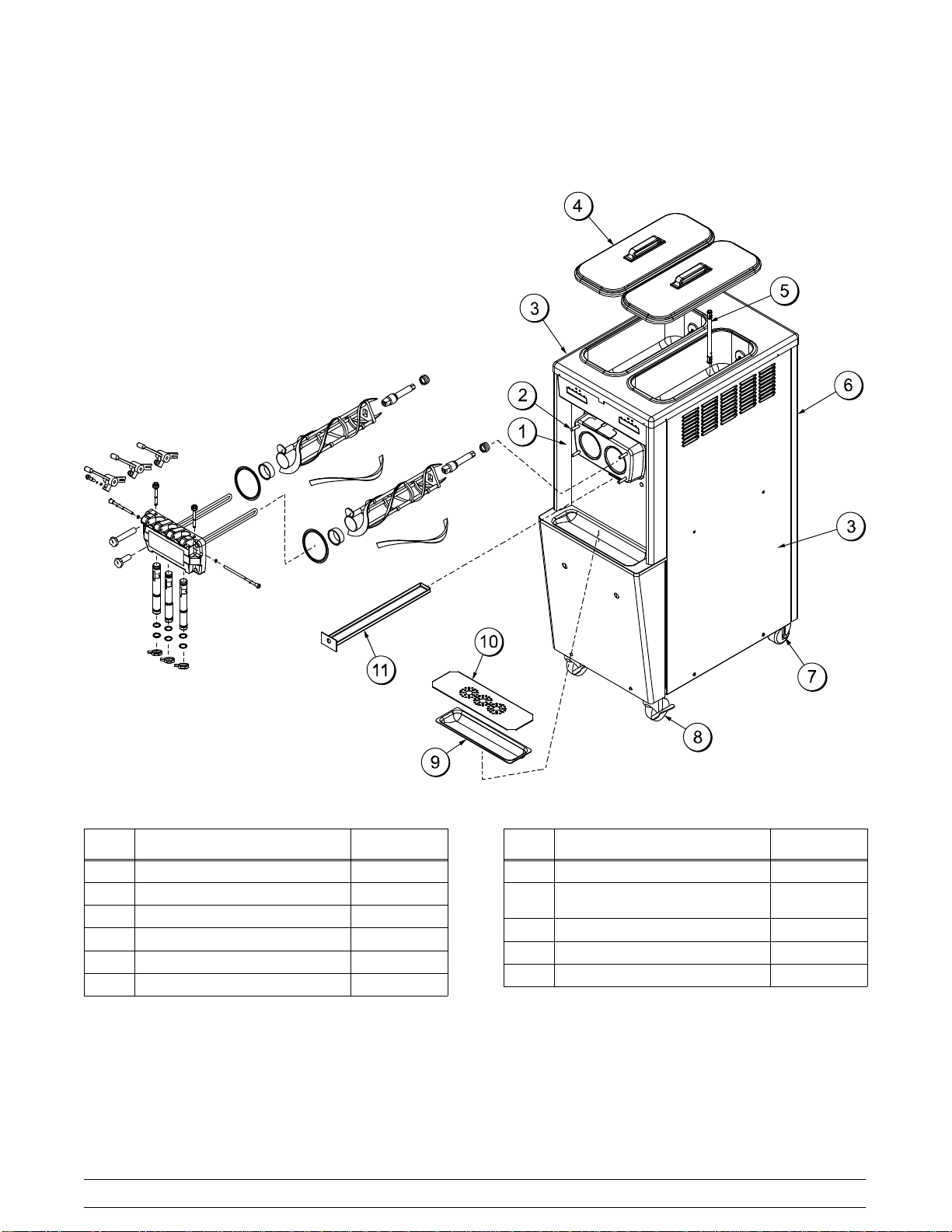

Model 774
Item Description Part No.
1Cover A.−Hopper X38458−SER
2Gasket−Hopper Cover 20 Qt. 038474
3Tube A.−Feed X29429−2
4Panel−Upper Rear Inactive X42574
5Louver−Side−Top 051191
6Panel A.−Side Lower−Right X46448−SER
7Panel−Service 047077
8Shield−Splash 022766
9Tray−Drip 014533
10 Caster−4” Swivel 5/8 Stem/Brake 034081
11 Panel−Upper Side Left 028822
12 Pan−Drip 17−1/4” Long 027504
13 Lid with Ladle 1 oz. 036575
Item Description Part No.
14 Pump A.−Syrup−Tan 053794−TAN
15 O−Ring−.643 OD x .077 W 018572
16 Panel A.−Side Lower−Left X46447−SER
17 Jar−Syrup−Plastic Shallow 036573
18 Jar−Syrup−Stainless−Shallow 036574
19 Stud−Nose Cone 022822
20 Caster−4” Swivel 5/8” Stem 018794
21 Panel−Lower Rear Inactive 053837
22 O−Ring−3/8 OD x .070 W 016137
23 Orifice 022465−100
24 Panel A.−Front−Syrup Inactive X42539
25 Adaptor A.−Caster X18915

11
Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
Model 774 Topping Pump (053794−)
ITEM DESCRIPTION PART NO.
1 Knob-Plunger-Tan 032762-TAN
1 Knob-Plunger-Brown 032762-BRN
1 Knob-Plunger-Red 032762-RED
2O-Ring-9/16 OD x .103 W 016369
3 Nut-Plunger 036577
4Collar-Gaging 1/2 Ounce 035514
5 Tube-Plunger 032757
6 Insert-Plunger 032758
7 Spring-Plunger 032761
8 Washer-Nylon 032760
9 Plunger 036578
10 Seal Assembly X33057
10a O-Ring-13/16 OD x .103 W 019330
11 Body-Syrup Pump 047934
12 Nut-Spout 036821
13 Lid-Pump 036822
14 Tube-Discharge 050912
15 O-Ring-1-5/16 OD x .103 W 048149
16 O-Ring-1 OD x .103 W 048148
17 Kit-Valve-Captured Ball Shallow 048166-001
Includes:
1 - Body A.-Pump Valve
1 - O-Ring-1-5/16 OD x .103W (048149)
1 - Brush-cleaning (054068)
1 - Instruction Sheet-Installation/Cleaning

12 Models 750, 751, 754, 774, 791, 794Operator Parts Identification
120613

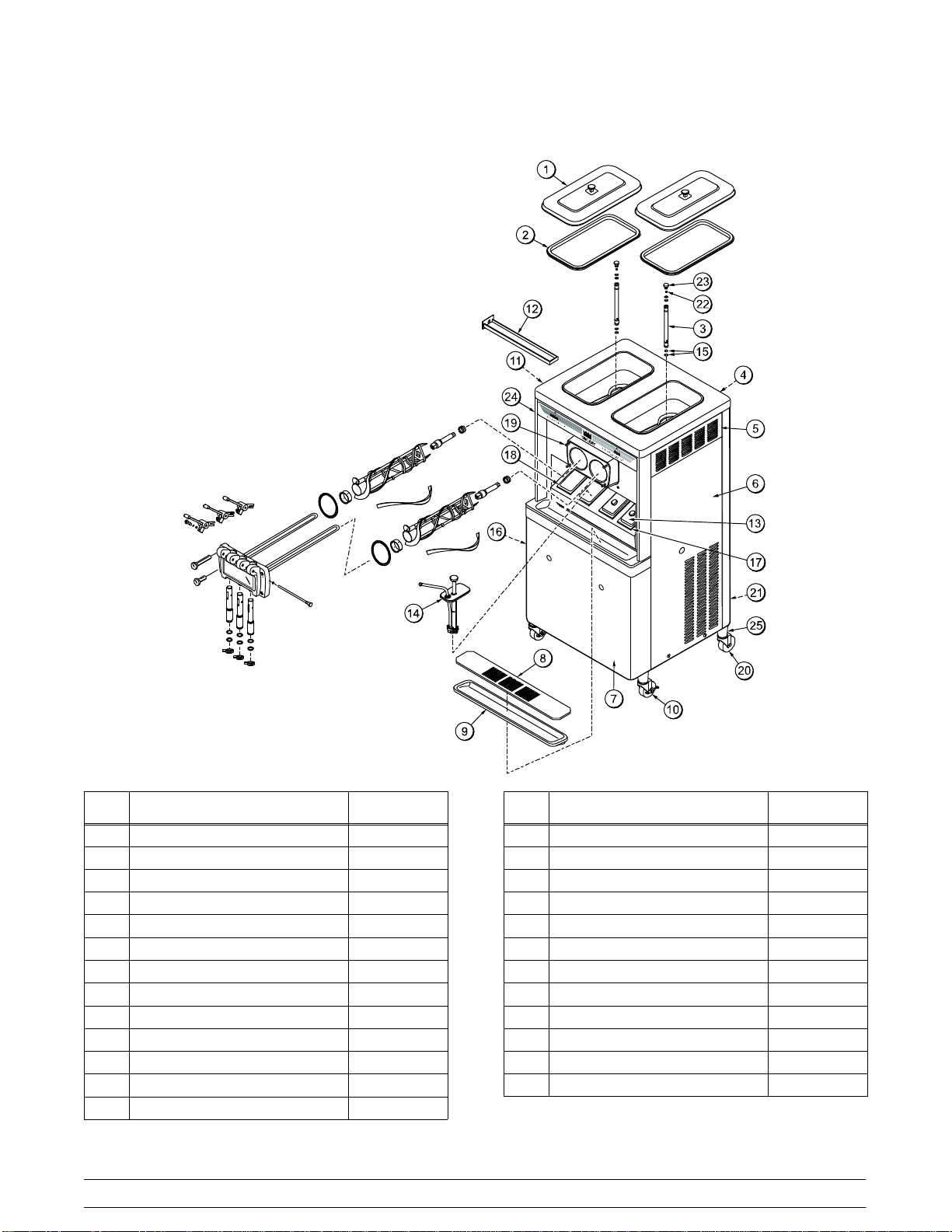

Model 791
ITEM DESCRIPTION PART NO.
1PANEL A.−FRONT X41820−SP3
2STUD−NOSE CONE 068410
3PANEL−SIDE 069038
4KIT A.−COVER−HOPPER X68150
5TUBE A.−FEED−SS−5/32 X29429−2
6PANEL−REAR 041855
ITEM DESCRIPTION PART NO.
7CASTER−4” SWV 5/8 STEM 018794
8CASTER−4” SWV 5/8 STEM
W/BRAKE
034081
9 TRAY−DRIP 16−7/8L X 5−1/8 020157
10 SHIELD−SPLASH 022765
11 PAN−DRIP 19−1/2 LONG 035034

13
Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
130508
Model 794
ITEM DESCRIPTION PART NO.
1COVER−HOPPER−14 QT 041682−GRY
2PAN−DRIP 19 1/2 LONG 035034
3TUBE A.−FEED X29429−2
4PANEL−REAR 041855
5PANEL−SIDE *LEFT 068691
6PANEL−SIDE *RIGHT 068692
7PANEL−SERVICE 064000
8SHIELD−SPLASH 022765
9 TRAY−DRIP 021057
ITEM DESCRIPTION PART NO.
10 CASTER−4” SWV 5/8 STEM 018794
11 ADAPTOR A.−CASTER X18915
12 CASTER−4” SWV 5/8 STEM
W/BRAKE
034081
13 STUD−NOSE CONE 022822
14 O−RING−3/8 OD X .070W 016137
15 O−RING−.643 OD X .077W 018572
16 ORIFICE 022465−100
17 PANEL A.−FRONT X41820−SP3

14 Models 750, 751, 754, 774, 791, 794Operator Parts Identification
151130

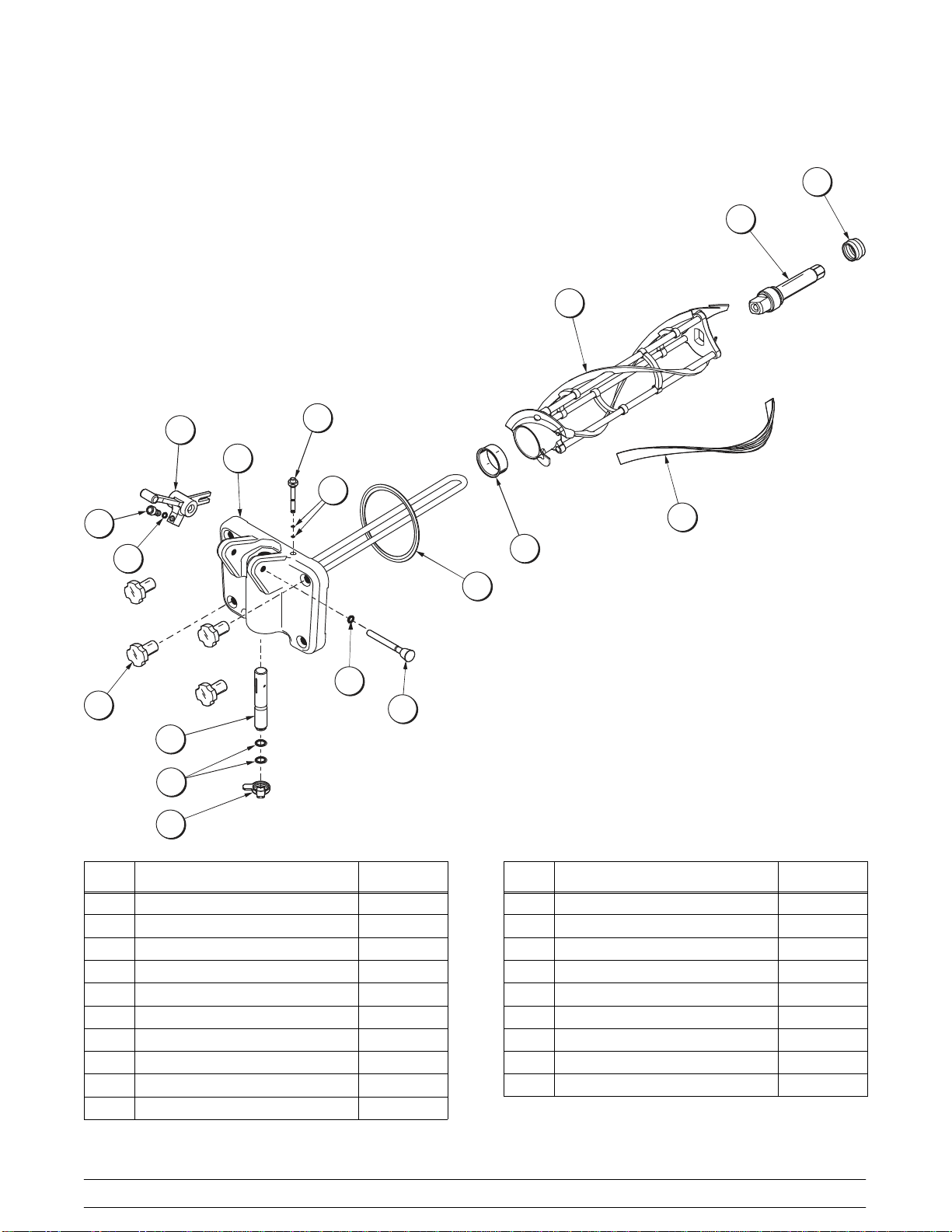

Models 750 & 751 Single Spout Door and Beater Assembly
1a
1b
1c
2
3
4
6
7
11
12
13
14
15
16
8
10
5
9
ITEM DESCRIPTION PART NO.
1HANDLE A.−DRAW NONADJ X69016
1a DRAW HANDLE 028804
1b SCREW−ADJUSTMENT 069014
1c O−RING 1/4OD X .070W 015872
2NUT−STUD FLAT LONG 021508
3DOOR A.−1−SPOUT X51531−10
4VALVE A.−DRAW X18303
5 O−RING 7/8OD X .070W 014402
6CAP−DESIGN 014218
7 O−RING 5/16OD X .070W 016272
ITEM DESCRIPTION PART NO.
8PLUG−PRIME 028805
9 O−RING−PRIME PLUG 016137
10 PIN A.−PIVOT X22820
11 GASKET−DOOR HT 4” 048926
12 BLADE−SCRAPER 035174
13 BEATER A.−HELICORE X31761
14 BEARING−FRONT 050216
15 SHAFT−BEATER 032564
16 SEAL−DRIVE SHAFT 032560

15
Models 750, 751, 754, 774, 791, 794 Operator Parts Identification
151217
Models 754, 774 & 794 Three Spout Door and Beater Assembly
8a
8c
9
6
8b
10
3
4
5
1
11
12
17
18
13
14 15 16
1a
2
7
Figure 1
ITEM DESCRIPTION PART NO.
1DOOR A.−3 SPOUT X51532−12
1a BAFFLE A.−LONG 4 IN X50882
2DECAL−DOOR−3 SPOUT 021521
3VALVE A.−DRAW X69539
4 O−RING−7/8 OD X .103W−SIL 083693
5CAP−DESIGN 1.010”ID−6 POINT 014218
6PLUG−PRIME 028805
7 O−RING−3/8 OD X .070W 016137
8HANDLE A.−DRAW *WHITE X81010−SP
8a HANDLE−DRAW−WHITE 056248−1
8b SCREW−ADJ.−5/16−24 056332
8c O−RING−1/4 OD X .070W 50 015872
ITEM DESCRIPTION PART NO.
9NUT−STUD *LONG 034382
10 NUT−STUD *SHORT 034383
11 ROD A.−PIVOT X20683
12 O−RING−5/16 OD X .070W 016272
13 GASKET−DOOR HT 4”−DOUBLE 048926
14 BEARING−FRONT 050216
15 BEATER A.−3.4QT−HELICORE X31761
16 BLADE−SCRAPER−PLASTIC 035174
17 SHAFT−BEATER 032564
18 SEAL−DRIVE SHAFT 032560

16 Models 750, 751, 754, 774, 791, 794Operator Parts Identification
151222
Model 791 Three Spout Door and Beater Assembly
Figure 2
ITEM DESCRIPTION PART NO.
1HANDLE A.- DRAW *WHITE X81010- SP
1a O- RING 1/4OD X .070W 015872
1b SCREW- ADJUSTMENT 056332
2PLUG- PRIME 028805
3ROD A.- PIVOT X20683
4NUT- STUD *LONG 034382
5NUT- STUD *SHORT 034383
6VALVE A.- DRAW X69539
7O- RING- 7/8 OD X .103W- SIL 083693
8CAP- DESIGN 014218
9DECAL- DOOR- 3 SPOUT 021521
ITEM DESCRIPTION PART NO.
10 DOOR A.- 3 SPOUT X51532- 12
10a BAFFLE A.- LONG 4 IN X50882
11 O- RING- PRIME PLUG 016137
12 O- RING 5/16OD X .070W 016272
13 GASKET- DOOR HT 4” 048926
14 BEARING- FRONT 050216
15 BEATER A.- HELICORE X31761
16 BLADE- SCRAPER 035174
17 SHAFT- BEATER 032564
18 SEAL- DRIVE SHAFT 032560
