Taylor PH61 User manual

OPERATOR'S
MANUAL
Model PH61 Heat Treatment
Peristaltic Pump Shake Freezer
Original Operating Instructions
048119TS 2006 (Original Publication)
(Updated 8/7/15)

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
A
A
Maximum Fuse Size:
Minimum Wire Ampacity:
E 2006 Taylor Company
048119TS
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may be a violation of Copyright Law of the United States of America and other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

PH61 Peristaltic Pump Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Section 2 To the Operator 4...........................................
Section 3 Safety 6....................................................
Section 4 Operator Parts Identification 8...............................

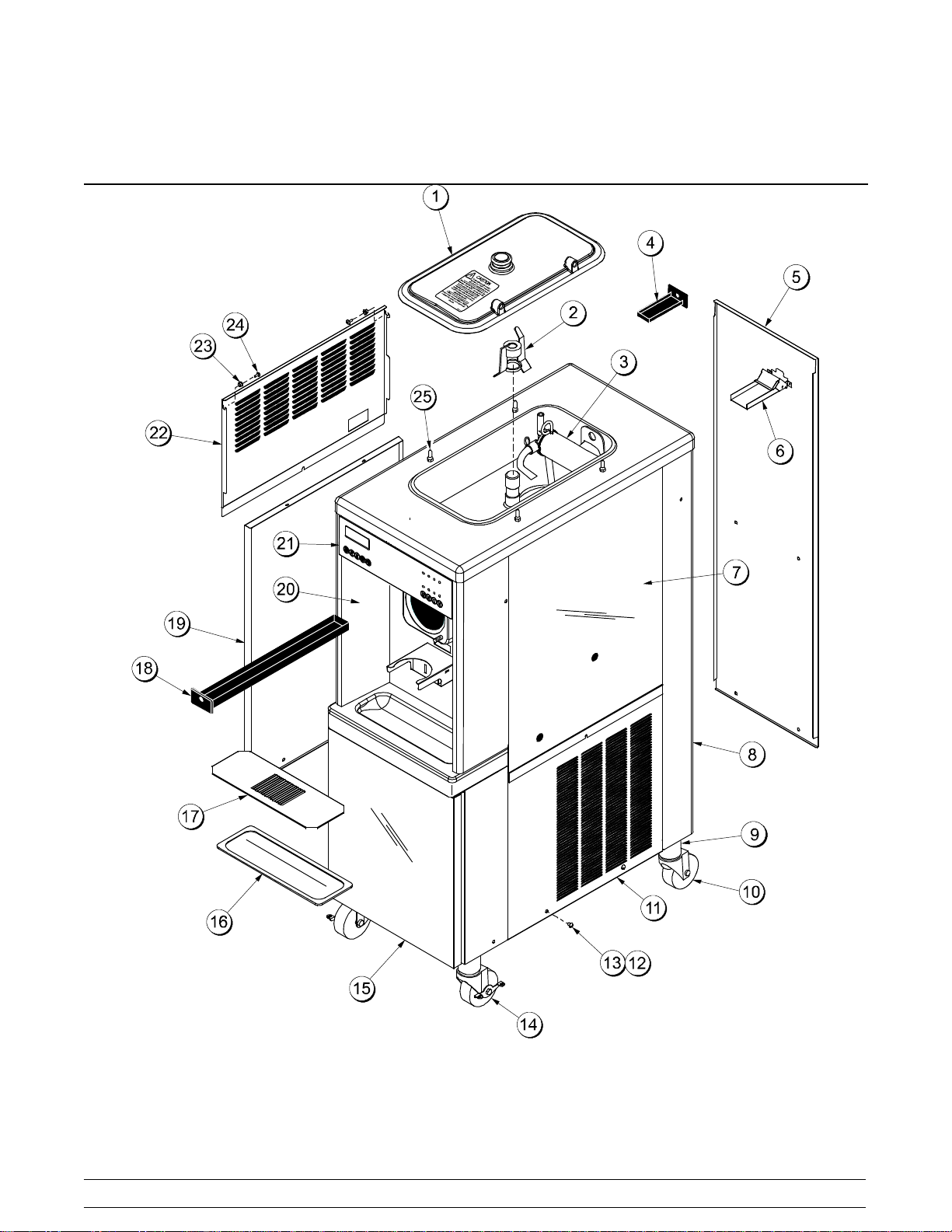

Model PH61 8..........................................................

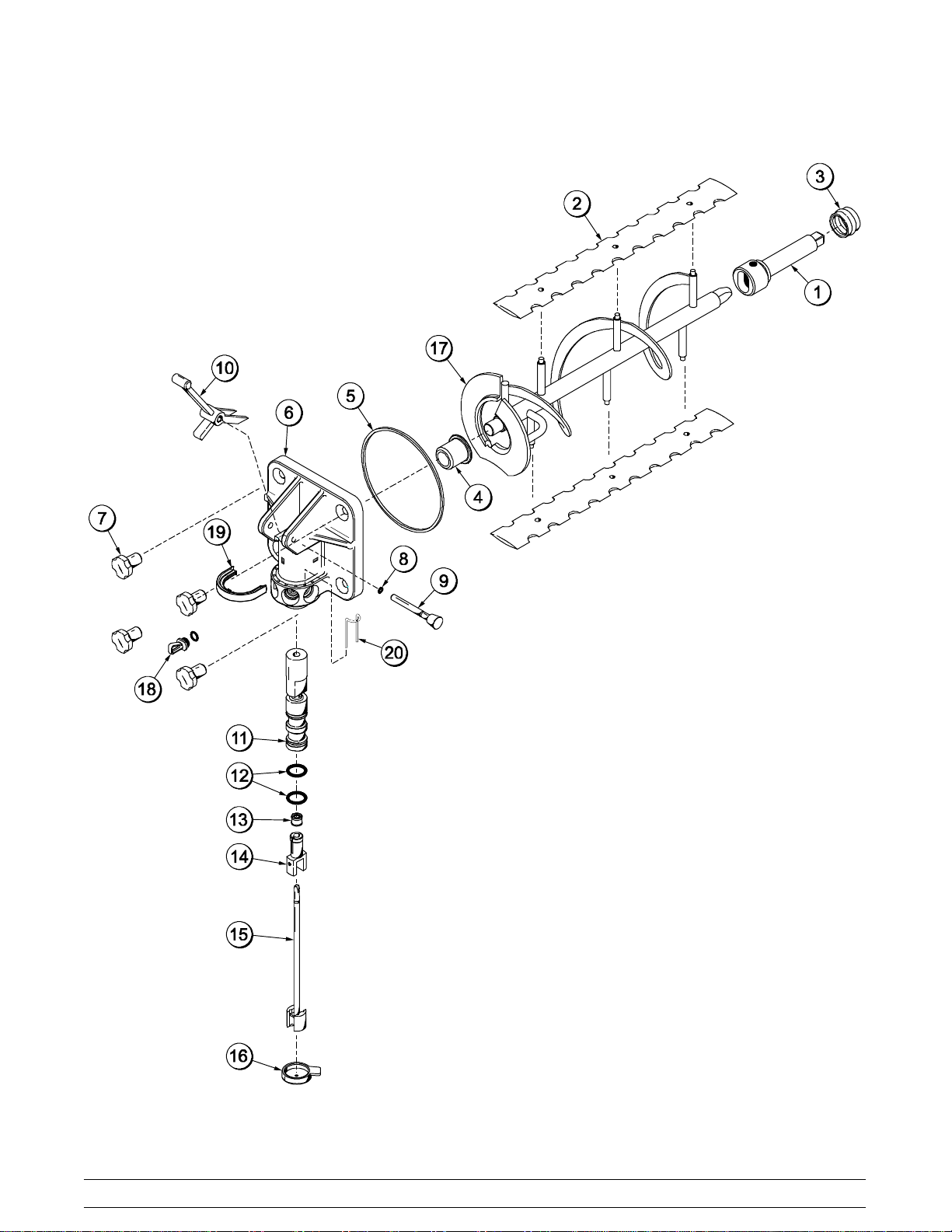

Beater and Door Assembly 10.............................................
X57028-XX Pump A. - Mix Simplified 12....................................

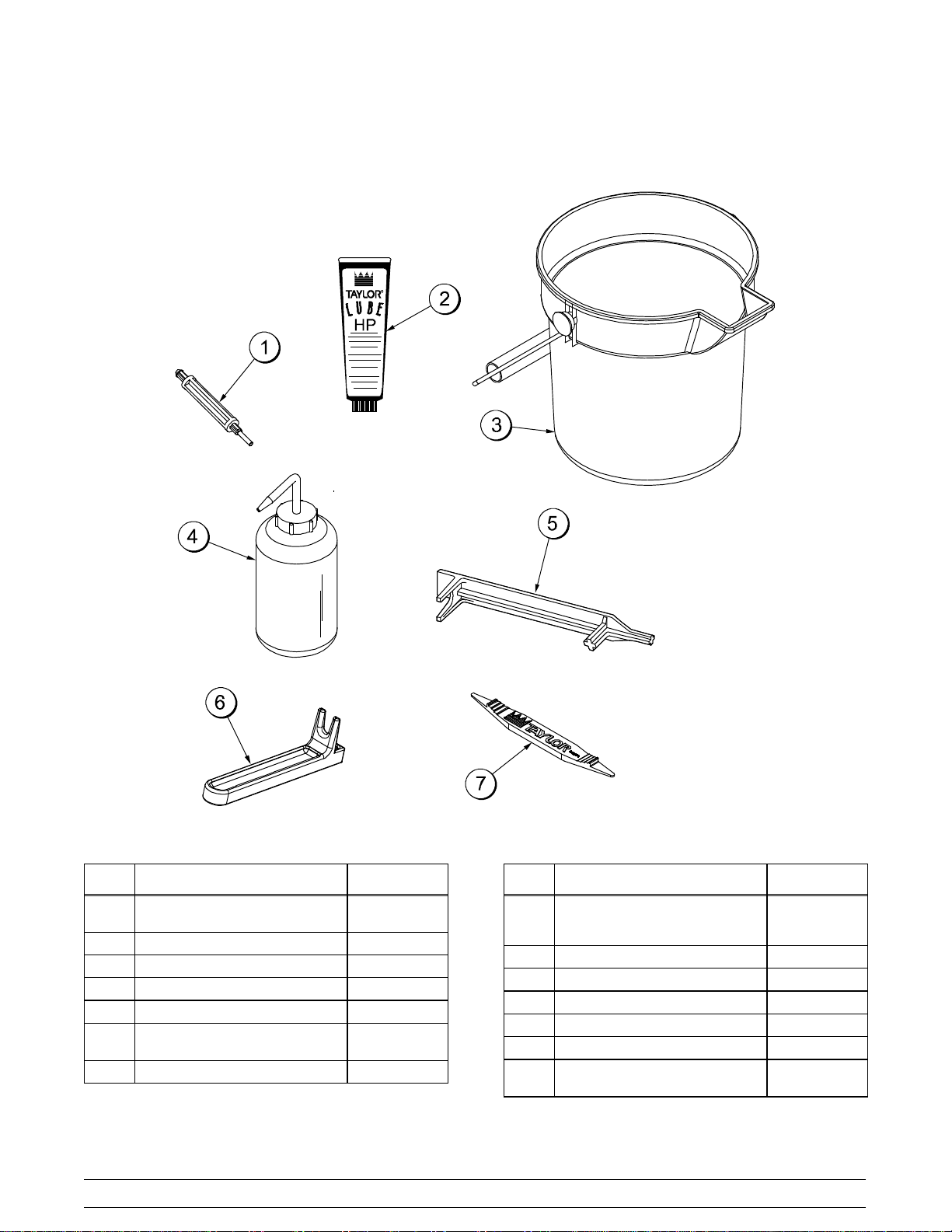

Accessories 13..........................................................
Syrup Valve 14..........................................................

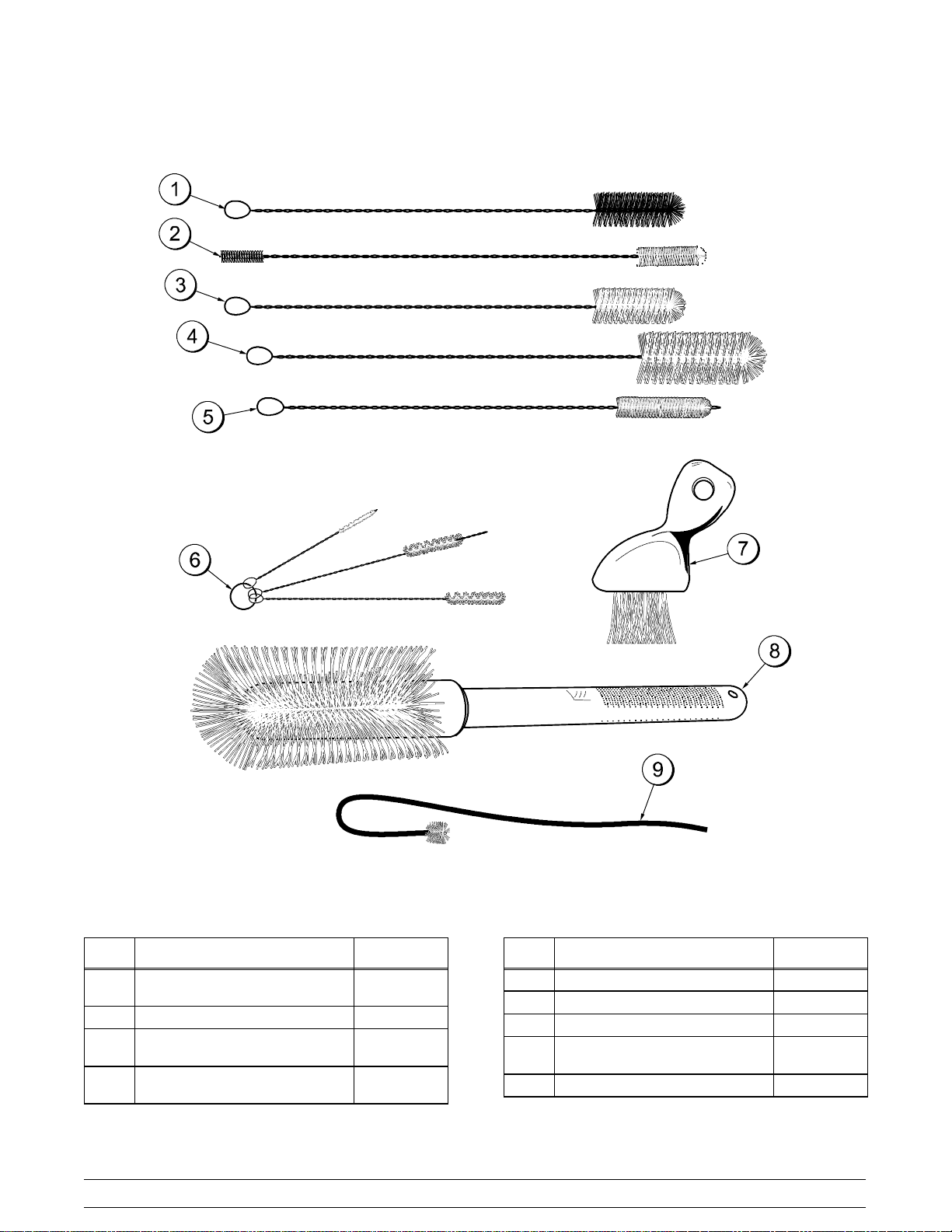

Brush A.-Package-HT X44127 15..........................................
Section 5 Important: To the Operator 16.................................
Symbol Definitions 16....................................................
Power Switch 17.........................................................
Liquid Crystal Display 17..................................................
Indicator Lights 17.......................................................
Reset Mechanism 17.....................................................
Operating Screen Descriptions 18..........................................
Operator Menu 21.......................................................
Section 6 Operating Procedures 25.....................................
Equipment Set Up 25.....................................................
Daily Closing Procedures 36..............................................
Daily Opening Procedures 39..............................................
Syrup Calibration & Priming 41............................................
Closing Procedures 44...................................................
Draining Product From the Freezing Cylinder 44.............................
Brush Cleaning 48.......................................................
Sanitizing the Syrup Lines 49..............................................
Pump Tube Replacement 50..............................................
Section 7 Important: Operator Checklist 53..............................
During Cleaning and Sanitizing 53.........................................
Troubleshooting Bacterial Count: 53........................................

Table of Contents PH61 Peristaltic Pump
Table of Contents - Page 2
Regular Maintenance Checks: 53..........................................
Winter Storage 54........................................................
Section 8 Troubleshooting Guide 55....................................
Section 9 Parts Replacement Schedule 61...............................
Section 10 Limited Warranty on Equipment 62............................
Section 11 Limited Warranty on Parts 64.................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E 2006 Taylor Company (Original Publication)
(Updated August, 2015)
048119TS
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may be a violation of Copyright Law of the United States of America and other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
PH61 Peristaltic Pump To the Installer
131212
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor® equipment.
SOnly authorized Taylor service personnel
should perform installation, maintenance,
and repairs on Taylor equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper protective equipment (PPE)
is available and worn when required during
installation and service.
SAuthorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the unit must
be disconnected prior to performing any installation,
maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death
from electrical shock or hazardous moving parts as
well as poor performance or damage to the unit.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed.
Make sure that all possible hazards to the installer,
user, and the unit have been addressed.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70°-75°F (21°-24°C). The unit has
successfully performed in high ambient
temperatures of up to 104°F (40°C) at reduced
capacities.
This unit must NOT beinstalledinanarea
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken in moving this unit for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
damage to the unit.
The authorized installer should inspect the unit for
damage and promptly report any damage to the
local authorized Taylor distributor.
This unit is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.

2PH61 Peristaltic PumpTo the Installer
Air Cooled Units
DO NOT obstruct the unit's air intake and discharge
openings:
Air cooled units require a minimum of 6” (152 mm)
of clearance around all sides of the unit. Failure to
allow adequate clearance can reduce the
refrigeration capacity of the unit and possibly cause
permanent damage to the compressors.
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided
with a hand shut-off valve. On the rear of the unit,
two 3/8” I.P.S. water connections for inlet and outlet
have been provided for easy hook-up. 1/2” inside
diameter water lines should be connected to the
machine. (Flexible lines are recommended, if local
codes permit.) Depending on local water conditions,
it may be advisable to install a water strainer to
prevent foreign substances from clogging the
automatic water valve. There will be only one water
“in” and one water “out” connection. DO NOT install
a hand shut-off valve on the water “out” line! Water
should always flow in this order: first, through the
automatic water valve; second, through the
condenser; and third, through the outlet fitting to an
opentrapdrain.
A back flow prevention device is
required on the incoming water connection side.
Please refer to the applicable National, State, and
local codes for determining the proper configuration.
Electrical Connections
In the United States, this unit is intended to be
installed in accordance with the current edition of the
National Electrical Code (NEC), ANSI/NFPA 70
which governs the installation of the unit at the local
governmental level.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the unit should be
installed in accordance with the existing local codes.
Please contact your local authorities.
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the unit
for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
Refer to the wiring diagram provided inside of the
electrical box for proper power connections.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
CAUTION: THIS UNIT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
An equipotential grounding lug is provided with
this unit. Some countries require the grounding lug
be properly attached to the rear of the frame by the
authorized installer. The installation location is
marked by the equipotential bonding symbol (5021
of IEC 60417-1) on both the removable panel and
the unit's frame.
SStationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.
SAppliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.

3
PH61 Peristaltic Pump To the Installer
131212
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
To correct the rotation on a three-phase unit,
interchange any two incoming power supply lines at
unit's main terminal block only.
To correct rotation on a single-phase unit, change
the leads inside the beater motor. (Follow the
diagram printed on the motor.)
Electrical connections are made directly to the
terminal block provided in the main control box
located under the upper left side panel on the
countertop unit, or behind the service panel on the
console units.
It is recommended that beater rotation be performed
by an authorized Taylor service technician.
Refrigerant
In consideration of our environment, Taylor
uses only HFC refrigerants. The HFC refrigerant
used in this unit is R404A. This refrigerant is
generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Use only R404A refrigerant that conforms
to the AHRI standard 700 specification. The use of
any other refrigerant may expose users and
operators to unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.
Taylor reminds technicians to be aware of
and in compliance with local government laws
regarding refrigerant recovery, recycling, and
reclaiming systems. For information regarding
applicable local laws, please contact your local
authorized Taylor distributor.
WARNING: R404A refrigerants used in
conjunction with polyolester oils are extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

4PH61 Peristaltic PumpTo the Operator
131212
Section 2 To the Operator
The unit you have purchased has been carefully
engineered and manufactured to give you
dependable operation. When properly operated and
cared for, it will produce a consistent quality product.
Like all mechanical products, this machine will
require cleaning and maintenance. A minimum
amount of care and attention is necessary if the
operating procedures outlined in this manual are
followed closely.
This Operator's Manual should be read
before operating or performing any maintenance on
your equipment.
The Model PH61 will NOT eventually compensate
and correct for any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment's operation, both assembly and
disassembly, study these procedures in order to be
properly trained.
When your machine is delivered or if it has been in
the OFF position for more than 24 hours,
disassemble the unit following procedures found on
page 44.Follow assembly procedures on page 25
to re-assemble your machine.
Dairy products are susceptible to
bacterial contamination due to improper product
handling. Therefore, be sure to use clean
sanitary conditions when handling mix.
The machine must be disassembled, cleaned,
sanitized, and lubricated every two weeks.
ALWAYS FOLLOW LOCAL HEALTH CODES.
In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor.
Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.
During the heat treatment process, the product is
brought to a temperature sufficient to destroy
bacteria and is returned to a standby temperature.
The special control system will insure that the
product is heated and maintained at the set
temperature for the full 30 minutes. This time is
required to insure that bacteria is destroyed. If the
unit was unable to complete the heating cycle, the
LCD will read:
“HEAT TREAT CYCLE FAILURE - FREEZER
LOCKED - PRESS SEL KEY”.Ifthisisthecase,or
if you require technical assistance, please contact
your local authorized Taylor Distributor.
If the crossed out wheeled bin symbol is
affixed to this unit, it signifies that this unit is
compliant with the EU Directives as well as other
similar end of life legislation in effect after August
13, 2005. Therefore, it must be collected separately
after its use is completed, and cannot be disposed
as unsorted municipal waste.
The user is responsible for returning the unit to the
appropriate collection facility, as specified by your
local code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste
facility and/or local authorized Taylor distributor.

5
PH61 Peristaltic Pump To the Operator
131212
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this unit, Taylor has no obligation to either
supply or provide replacement refrigerant either at
billable or unbillable terms. Taylor will recommend a
suitable replacement if the original refrigerant is
banned, obsoleted, or no longer available during the
five (5) year Taylor warranty of the compressor.
From time-to-time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor's testing, that it would be accepted as
a drop-in replacement for this unit, then the
disclaimer in this “Compressor Warranty Disclaimer”
section will not apply to the use of the alternate
refrigerant approved by Taylor.
To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call Taylor or your local authorized Taylor distributor.
Be prepared to provide the Model/Serial Number of
the unit in question.
Note: Continuing research results in steady
improvements; therefore, information in this
Operator Manual is subject to change without notice.

6PH61 Peristaltic PumpSafety
131212
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator at all times when they are
coming in contact with the unit and its parts. Taylor
makes every effort to design and manufacture
built-in safety features to protect both operators and
service technicians.
Installing and servicing refrigeration equipment can
be hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service
refrigeration equipment. When working on
refrigeration equipment, observe precautions noted
in the literature, tags and labels attached to the unit,
and other safety precautions that may apply. Follow
all safety code requirements. Wear safety glasses
and work gloves.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may also damage
the unit and/or its components. Such damage
may result in component replacement and
service repair expenses.
DO NOT operate the unit without reading
this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.
This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited equipment operation is allowed for
public use, such as a self-serve application,
supervision or instruction concerning the use of the
appliance by a person responsible for their safety is
required. Children should be supervised to ensure
that they do not play with the appliance.
SAll repairs should be performed by an
authorized Taylor service technician.
SThe main power supplies to the unit must be
disconnected prior to performing installation,
repairs, or maintenance.
SDO NOT operate the unit unless it is
properly grounded.
SDO NOT operate the unit with larger fuses
than specified on the unit's data label.
SUnits that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods,
or during initial installation, shall have
protective devices such as a GFI, to protect
against the leakage of current, installed by
the authorized personnel to the local codes.
SStationary units which are not equipped with
a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

7
PH61 Peristaltic Pump Safety
An equipotential grounding lug is provided with
this unit. Some countries require the grounding lug
be properly attached to the rear of the frame by the
authorized installer. The installation location is
marked by the equipotential bonding symbol (5021
of IEC 60417-1) on both the removable panel and
the unit's frame.
DO NOT use a water jet to clean or rinse
the unit. Failure to follow these instructions may
result in serious electrical shock.
SDO NOT allow untrained personnel to
operate this unit.
SDO NOT operate the unit unless all service
panels and access doors are restrained with
screws.
SDO NOT remove any internal operating
parts (including, but not limited to, freezer
door, beater, or scraper blades), unless all
control switches are in the OFF position.
Failure to follow these instructions may result in
severe personal injury, especially to fingers or
hands, from hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater assembly. The scraper blades
are very sharp.
This unit must be placed on a level surface.
Extreme care should be taken when moving the unit
for any reason. Two or more persons are required to
safely move this unit. Failure to comply may result in
personal injury or damage to the unit.
Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this Operator Manual for the
proper procedure to clean this unit.
This unit is designed to maintain product
temperature under 41_F(5_C). Any product being
added to this unit must be below 41_F(5_C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.
DO NOT draw product during the HEAT
cycle because of high product temperatures.
Some consumers are highly allergic to
strawberries. In some severe cases,
strawberry allergic reactions can cause
death. When serving shakes, make sure
the draw handle is closed automatically by
the portion control device and that the
white spot is visible.
WARNING!
DO NOT obstruct air intake and discharge openings:
6” (152 mm) minimum air space on all sides. Failure
to follow this instruction may cause poor freezer
performance and damage to the unit.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70_-75_F(21_-24_C). The unit has
successfully performed in high ambient
temperatures of up to 104_F(40_C) at reduced
capacities.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the unit and at a
height of 1.6 meters from the floor.

8PH61 Peristaltic PumpOperator Parts Identification
140612
Section 4 Operator Parts Identification
Model PH61
Figure 1

9
PH61 Peristaltic Pump Operator Parts Identification
140612
Model PH61 Parts Identification List
ITEM DESCRIPTION PART NO.
1KIT A.-COVER-HOPPER X65369
2AGITATOR X44797
3PUMP A.-MIX SIMPLIFIED
SHAKE X57028-14
4PAN-DRIP-HT 048204
5PANEL-REAR 048203
6GUIDE A.-DRIP PAN-MIX PUMP X48228
7PANEL-SIDE-UPPER-RIGHT 056013
8TRIM-REAR CORNER RIGHT 045517
*TRIM-REAR CORNER LEFT 045516
9ADAPTOR A.-CASTER X18915
10 CASTER-SWV 5/8 STEM - 4”
WHEEL 018794
11 PANEL-LOWER·SIDE·RIGHT 034680
12 SCREW-1/4-20X3/8·RHM-SS 011694
ITEM DESCRIPTION PART NO.
13 FASTENER-CLIP 1/4-20 U 045865
14 CASTER-4" SWV 5/8 STEM
W/BRAKE 034081
15 DOOR A.-SYRUP CABINET X45325
16 TRAY-DRIP 14-7/8L X 5-1/8 SG 013690
17 SHIELD-SPLASH·15"L 022763
18 PAN A.-DRIP X28142
19 PANEL A.-LOWER SIDE X24397-SER
20 PANEL A.-FRONT X55436
21 DECAL-DEC 052280
22 PANEL-SIDE-UPPER-LEFT 056012
23 WASHER-PLASTIC PIVOT 013808
24 SCREW-10-24X1/2 TORX TRUS 002077
25 PIN-RETAINING-HOPPER
COVER 043934
*NOT SHOWN

10 PH61 Peristaltic PumpOperator Parts Identification
141021
Beater and Door Assembly
Figure 2

11
PH61 Peristaltic Pump Operator Parts Identification
141021
Beater & Door Assembly
ITEM DESCRIPTION PART NO.
1SHAFT-BEATER*7QT FLUTED 050985
2BLADE-SCRAPER-FCB 16L 041103
3SEAL-DRIVE SHAFT 032560
4BEARING-DOOR-FRONT 1.390 055605
5O-RING-6 IN ODX5 3/4 IDX 1/8 033493
6DOOR-1SPT 4FLV HT TTS X55937-SER
7NUT-STUD 034034
8O-RING-5/16 OD X .070W 016272
9PIN A.-PIVOT X22820
10 HANDLE-DRAW VALVE 034003
11 VALVE A.-DRAW-ALUMINUM X42210
12 O-RING-1-1/16 OD X.139W 020571
ITEM DESCRIPTION PART NO.
13 SEAL-SPINNER SHAFT 036053
14 SPINNER 034054
15 BLADE A.-SPINNER X41895
16 CAP-RESTRICTOR 033107
17 BEATER A.-7QT-FLUTED X50958
18 KIT A.-SYRUP PLUG KIT TTS X58474
18a PLUG-SYRUP PORT TTS 053867
18b O-RING-11MM ID X 2MM W
GREEN 053890
*18c TOOL-SEAL INSTALL-REMOVE 035460
19 RETAINER-VALVE PIN *TTS* 054690
20 RETAINER-SYRUP VALVE
*TTS* METAL 054554
*NOT SHOWN

12 PH61 Peristaltic PumpOperator Parts Identification
140612
X57028-XX Pump A. - Mix Simplified
Figure 3
ITEM DESCRIPTION PART NO.
1-7 PUMP A.-MIX SIMPLIFIED
SHAKE X57028-14
1CYLINDER-PUMP HOPPER
SHAKE 057944
2PIN-RETAINING X55450
3PISTON-PUMP-SIMPLIFIED 053526
4O-RING-PKG *50 TO BAG* 020051
5CAP-VALVE BODY SHAKE 056873-14
6GASKET-SIMPLIFIED PUMP
VALVE 053527
7ADAPTOR-MIX INLET-SHAKE-
BLUE 054944
8O-RING-PKG *50 TO BAG* 016132-SER
9PIN-COTTER-HAIRPIN-1/8DIA 044731
ITEM DESCRIPTION PART NO.
10 SHAFT A.-DRIVE-MIX PUMP-
HOPPER X41947
10a CRANK-DRIVE-HOPPER MIX
PUMP 039235
10b SHAFT-DRIVE-MIX
PUMP-HOPPER 041948
10c O-RING-PKG *25 TO BAG* 048632
10d O-RING-PKG *25 TO BAG* 008904
11 CLIP-RETAINER-MIX PUMP 044641
12 TUBE A.-FEED-HOPPER-
SHAKE X56522
13 RING-CHECK-FEED-TUBE 056524
14 SLEEVE A.-MIX PUMP X44761

13
PH61 Peristaltic Pump Operator Parts Identification
141021
Accessories
Figure 4
ITEM DESCRIPTION PART NO.
1TOOL-SEAL INSTALL-
REMOVE 035460
2LUBRICANT-TAYLOR HI-PERF 048232
3PAIL-10 QT. 013163
4BOTTLE-WASH-PLASTIC 044818
5TOOL-SHAFT-DRIVE-PUMP 047919
6TOOL-MIX PUMP SHAFT
REMOVAL 057167
7TOOL-O-RING REMOVAL 048260VWHT
ITEM DESCRIPTION PART NO.
*8 KIT A.-PARTS TRAY SIMP
PUMP
(CONSISTS OF 044118 & 056525)
X58447
*9 KIT A.-TUNE UP SMP PUMP X49463-64
*10 KIT A.-RETAINER HOLDER X54560
*11 TUBE A.-PUMP-PERISTALTIC X81509
*12 KIT A.-SYRUP PLUG KIT TTS X58474
*13 BRUSH A.-PACKAGE-HT X44127
*14 SANITIZER-STERA SHEEN -
GREEN 055492
*NOT SHOWN

14 PH61 Peristaltic PumpOperator Parts Identification
Syrup Valve
Figure 5
ITEM DESCRIPTION PART NO.
1-6 Valve-Syrup 053874
1Cap-Syrup Valve 053874-001
2Spring-Syrup Valve 053874-003
3Plunger-Syrup Valve w/Seals 053874-009
3a O-Ring-Syrup Valve Plunger L 053874-007
3b Plunger-Syrup 053874-002
3c O-Ring-Syrup Valve Plunger S 053874-006
3d Seal-Syrup Valve Plunger 053874-008
ITEM DESCRIPTION PART NO.
4O-Ring-11 MM x 2MM 053890
5Fitting-Syrup Valve 053874-004
6Body-Syrup Valve 053874-005
7Ferrule- .625 ID Brass 053036
8Tube-Twinned Syrup 054580-86
*Kit A.-Repair Valve 054595
*Not Shown

15
PH61 Peristaltic Pump Operator Parts Identification
Brush A.-Package-HT X44127
Figure 6
ITEM DESCRIPTION PART NO.
1BRUSH-REAR BRG
1"D X 2"LG X 14 013071
2BRUSH-DOUBLE END 013072
3BRUSH-DRAW VALVE
1"OD X 2"X17" 013073
4BRUSH-DRAW VALVE
1-1/2"OD X 3" 014753
ITEM DESCRIPTION PART NO.
5BRUSH-1/2" DIA 033059
6BRUSH-SET LVB 050103
7BRUSH-END-DOOR-SPOUT 039719
8BRUSH-MIX PUMP BODY-
3" X 7" 023316
9BRUSH-PUMP SPOUT 054068

16 PH61 Peristaltic PumpImportant: To the Operator
Section 5 Important: To the Operator
ITEM DESCRIPTION
1POWER SWITCH
2INDICATOR LIGHTS
3FLAVOR SELECTOR KEYPAD
4LIQUID CRYSTAL DISPLAY
5KEYPADS
Symbol Definitions
To better communicate in the International arena,
the words on many of our operator switches and
buttons have symbols to indicate their functions.
Your Taylor equipment is designed with these
International symbols.
The following chart identifies the symbol definitions
used on the operator switches.
=OFF
=POWER
=ON
=CALIBRATE
= WASH
=PUMP
=AUTO
=MENU
=MIXLOW
= MIX OUT
= HEAT MODE
= CLEAN MANUALLY/BRUSH CLEAN
= CHOCOLATE
= STRAWBERRY
= VANILLA
= OPTIONAL
