Taylor C152 User manual

1/23/2017 (Original Publication)
(Updated 7/29/20)
OPERATOR’S
MANUAL
Model C152 and C161
Soft Serve Freezer
Original Service Instructions
085592-M

Complete this page for quick reference when service is required:
Taylor Distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2017 Taylor Company
085592-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
085592-M i
Section 1: To the Installer
Installer Safety ................................................................................................... 1-1
Site Preparation ................................................................................................. 1-1
Air-Cooled Machines.......................................................................................... 1-1
Water Connections............................................................................................. 1-2
Electrical Connections........................................................................................ 1-2
Electrical Hookup Installation............................................................................. 1-2
Beater Rotation .................................................................................................. 1-2
Refrigerant ......................................................................................................... 1-3
Section 2: To the Operator
Operator Information.......................................................................................... 2-1
Section 3: Safety
Section 4: Operator Parts Identification
Model C152........................................................................................................ 4-1
Model C161........................................................................................................ 4-2

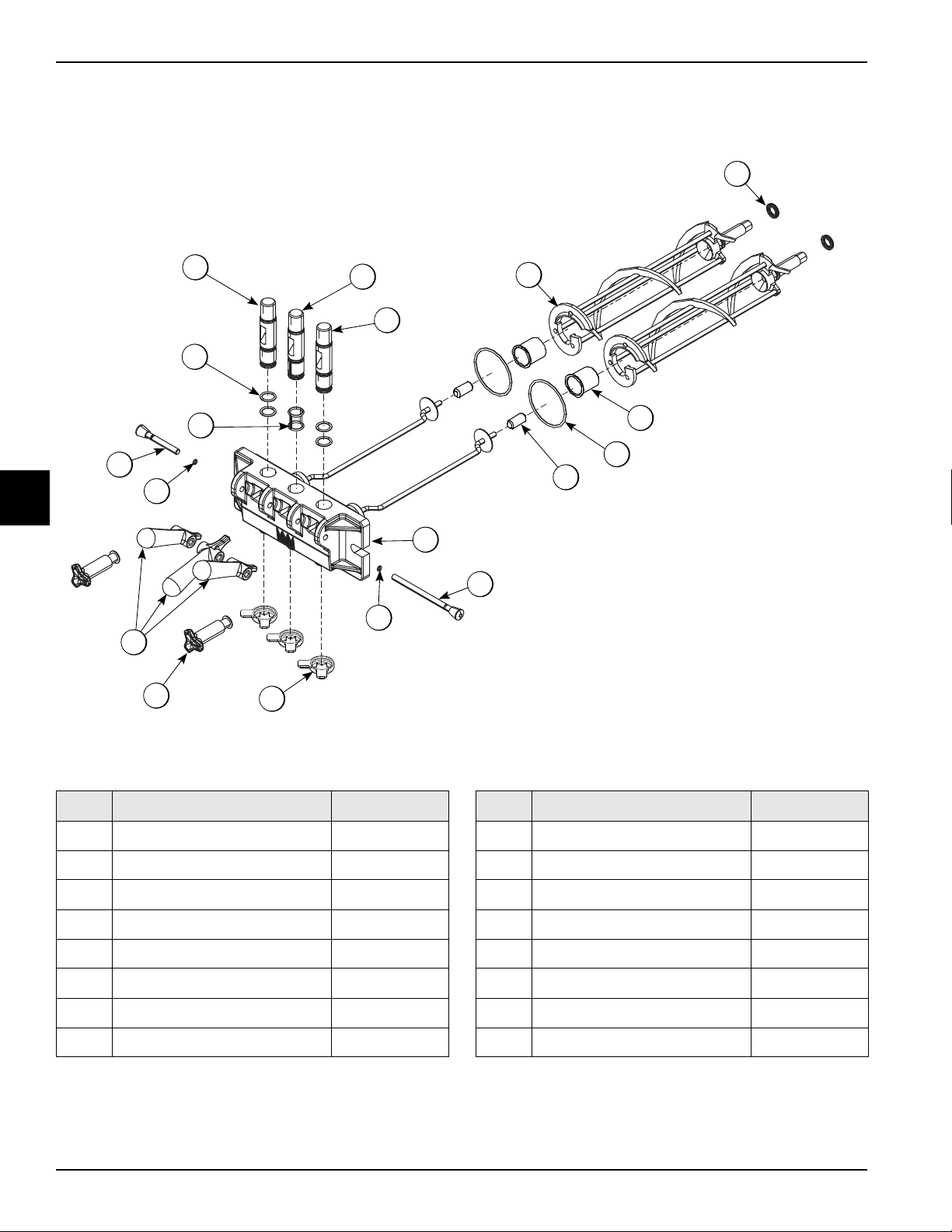

C152 Beater Door Assembly.............................................................................. 4-3
C161 Beater Door Assembly.............................................................................. 4-4

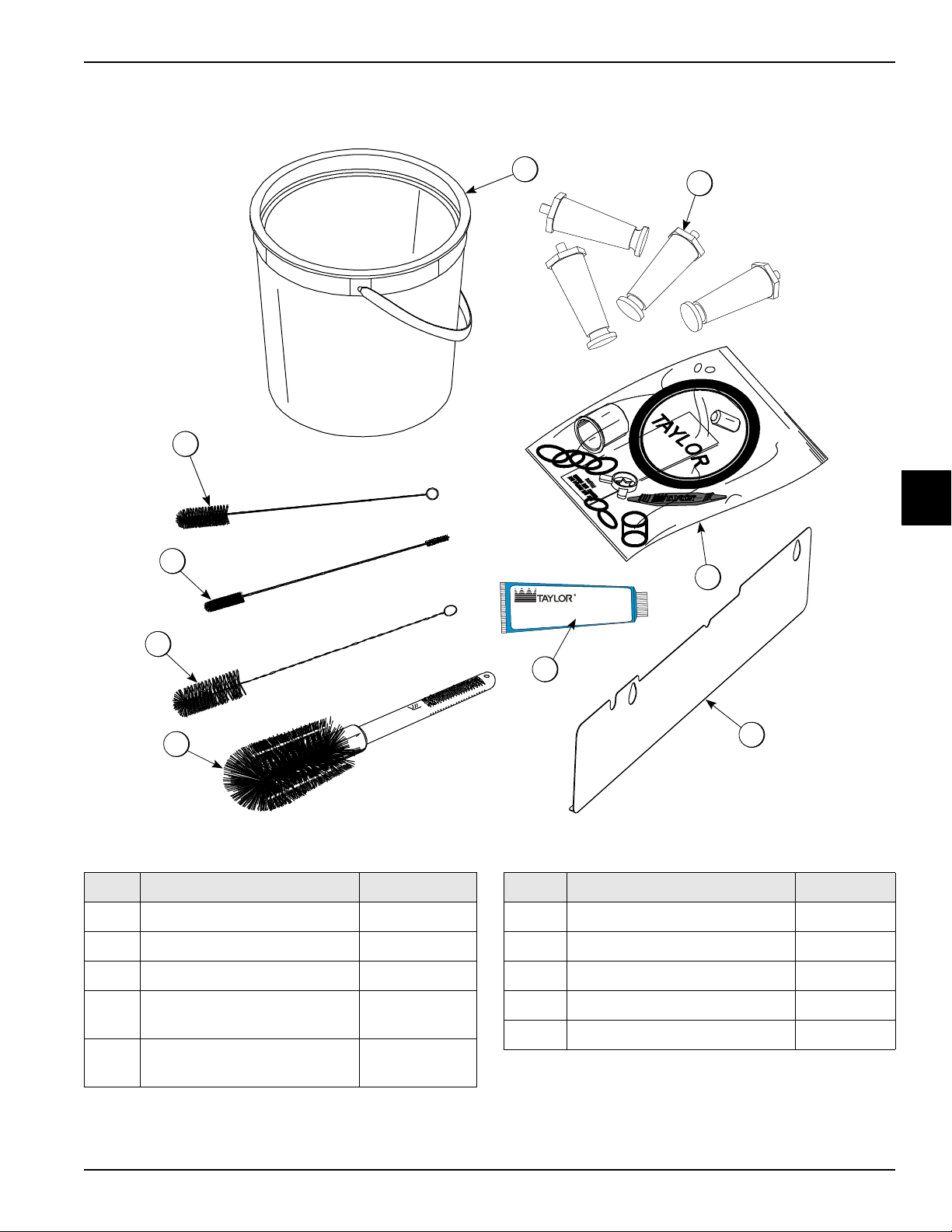

C152 Accessories .............................................................................................. 4-5
C161 Accessories .............................................................................................. 4-6
Section 5: User Interface
C152................................................................................................................... 5-1
C161................................................................................................................... 5-1
Symbol Definitions ............................................................................................. 5-2
Power Switch ..................................................................................................... 5-2
MIX REF Key ..................................................................................................... 5-2
STANDBY Key................................................................................................... 5-2
WASH Key ......................................................................................................... 5-3
AUTO Key.......................................................................................................... 5-3
Indicator Light—MIX LOW ................................................................................. 5-3
Indicator Light—MIX OUT .................................................................................. 5-3
Reset Button ...................................................................................................... 5-3
Feed Tube.......................................................................................................... 5-4
Section 6: Operating Procedures
Assembly............................................................................................................ 6-1

ii 085592-M
Sanitizing............................................................................................................6-5
Priming ...............................................................................................................6-6
Closing Procedure..............................................................................................6-7
Draining Product from the Freezing Cylinder .....................................................6-7
Rinsing ...............................................................................................................6-7
Cleaning .............................................................................................................6-7
Disassembly .......................................................................................................6-7
Brush Cleaning...................................................................................................6-8
Section 7: Operator Checklist
During Cleaning and Sanitizing ..........................................................................7-1
Troubleshooting Bacterial Count ........................................................................7-1
Regular Maintenance Checks ............................................................................7-1
Winter Storage ...................................................................................................7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Maintenance Intervals ........................................................................................9-1
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
085592-M
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
equipment should be installed in accordance with
existing local codes. Please contact your local authorities
if you have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®equipment.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
equipment.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper protective equipment (PPE) is
available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before work-
ing on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the unit will be installed before
uncrating the machine. Make sure that all possible
hazards to the user and the equipment have been
addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors under normal ambient temperatures of 
70°F to 75°F (21°C to 24C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this equipment for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or equipment damage.
Uncrate the machine and inspect it for damage. Report
any damage to your Taylor distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.
Air-Cooled Machines
Do not obstruct air intake and discharge openings.
Model C152 requires 4 in. (102 mm) of space on both
sides, and no space at the rear. Model C161 requires 
6 in. (152 mm) of space on both sides, and no space at
the rear. If machine has legs, install the skirt provided on
the right side of the machine. Minimum air clearances
must be met to ensure adequate air flow for optimum
performance.
!
!

1-2
TO THE INSTALLER
085592-M To the Installer
1
Water Connections
Water-Cooled Machines Only: An adequate cold water
supply must be provided with a hand shutoff valve. On
the underside rear of the base pan, two 3/8 in. I.P.S.
water connections for inlet and outlet have been provided
for easy hookup. Permanently connect machine using 
1/2 in. (12.7 mm) inside diameter water lines. (Flexible
lines are recommended, if local codes permit.)
Depending on local water conditions, it may be advisable
to install a water strainer to prevent foreign substances
from clogging the automatic water valve. There will be
only one water-in and one water-out connection. Do not
install a hand shutoff valve on the water-out line! Water
should always flow in this order: first, through the
automatic water valve; second, through the condenser;
and third, through the outlet fitting to an open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the machine must not exceed 150 psi (1034 kPa).
Electrical Connections
Each unit requires one power supply for each data label
on the unit. Check the data label(s) on the freezer for
branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to the
wiring diagram provided inside the electrical box for
proper power connections.
In the United States, this equipment is intended to be
installed in accordance with the National Electrical Code
(NEC) ANSI/NFPA 70-1987. The purpose of the NEC
code is the practical safeguarding of persons and
property from hazards arising from the use of electricity.
This code contains provisions considered necessary for
safety. Compliance therewith and proper maintenance
will result in an installation essentially free from hazard!
In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
Electrical Hookup Installation
(60 Cycle, 1 Ph, Supplied with Cord and Plug)
This freezer is supplied with a three-wire cord and
grounding plug for connection to a single-phase, 60-
cycle, branch circuit supply. This unit must be plugged
into a properly grounded receptacle. For example, the
cord and plug provided for 115/60/1 is 20 A; therefore,
the wall outlet must also be 20 A. Check the data label,
located on the side panel, for electrical specifications.
Permanent wiring may be employed if required by local
codes. Instructions for conversion to permanent wiring
are as follows:
• Be sure the freezer is electrically disconnected.
• Remove the appropriate panel and locate the
small electrical box at the base of the freezer.
• Remove the factory-installed cord and strain
relief bushing.
• Route incoming permanent wiring through 7/8
in. (22 mm) hole in base pan.
• Connect two power supply leads. Attach ground
(earth) wire to the grounding lug inside the
electrical box.
• Be sure the unit is properly grounded before
applying power.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
!
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
085592-M
To the Installer
1
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine's type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine's data-label. The refrigerant
used is generally considered non-toxic and non-
flammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data-label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush immediately with cold water. If burns are severe,
apply ice packs and contact a physician immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
!
!

1-4
TO THE INSTALLER
085592-M To the Installer
1
Notes:

Section 2
2-1
085592-M
To the Operator
2
To the Operator
Operator Information
This soft serve freezer has been carefully engineered
and manufactured to give you dependable operation.
This machine, when properly operated and cared for, will
produce a consistent quality product. Like all mechanical
products, it will require cleaning and maintenance. A
minimum amount of care and attention is necessary if the
operating procedures outlined in this manual are followed
closely.
The Taylor soft serve models covered in this manual are
C152 and C161.
IMPORTANT! This manual should be read
before operating or performing any maintenance on the
machine.
Your Taylor machine will NOT compensate for and/or
correct any errors made during the setup or filling
operations. Thus, the initial assembly, setup, and priming
procedures are of extreme importance. It is strongly
recommended that all personnel responsible for the
machine’s operation, including assembly and
disassembly, go through these procedures together in
order to be properly trained and to make sure that all
personnel understand their role in using and maintaining
the machine.
In the event you should require technical assistance,
please contact your local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on units
or parts if unapproved parts or incorrect refrigerant were
installed in the unit, system modifications were performed
beyond factory recommendations, or it is determined that
the failure was caused by abuse, misuse, neglect, or
failure to follow all operating instructions. For full details
of your Taylor warranty, please see "Limited Warranty on
Equipment" on page 10-1 and "Limited Warranty on
Parts" on page 11-1.
IMPORTANT! If the crossed-out, wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.

2-2
TO THE OPERATOR
085592-M To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit's refrigeration system, only
the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the unit owner's responsibility to make this fact known
to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or non-billable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the five year
warranty of the compressor.
The Taylor Company will continue to monitor the industry
and test new alternates as they are being developed.
Should a new alternate prove through our testing that it
would be accepted as a drop-in replacement, the above
disclaimer would become null and void. To find the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the model/
serial number of the unit in question.

Section 3
3-1
085592-M
Safety
3
Safety
We at Taylor Company are concerned about the safety of
operators at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect both operators and service technicians.
Installing and servicing refrigeration equipment can be
hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service refrigeration
equipment. When working on refrigeration equipment,
observe precautions noted in the literature, tags, and
labels attached to the machine, and other safety
precautions that may apply. Follow all safety code
requirements. Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may result in component replacement and
service repair expenses.
NOTICE! DO NOT operate the machine without
reading this entire manual first. Failure to follow all of
these operating instructions may result in damage to the
machine, poor performance, health hazards, or personal
injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT operate this machine unless it is
properly grounded.
•DO NOT operate this machine with larger fuses
than specified on the machine's data label.
• All repairs should be performed by a Taylor
service technician.
• Cord Connected machines: Only Taylor
authorized service technicians may install a plug
on this machine.
• The main power supplied to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to the
local codes.
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in. 
(3 mm) installed in the external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician in order
to avoid a hazard.
• Secure supply cord ground lead to machine in a
!
!

3-2
SAFETY
085592-M Safety
3
location where if the cord is pulled the main
power leads become taught before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are restrained with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to, freezer door,
beater, or scraper blades), unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving for any reason. Two or more persons are
required to safely move this machine. Failure to comply
may result in personal injury or damage to the machine.
IMPORTANT! Access to the service area of the
machine is restricted to persons having knowledge and
practical experience with the appliance, in particular as
far as safety and hygiene are concerned.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is equipped with a
refrigerated cabinet, designed to maintain product
temperature at or below 41°F (5°C). Any product being
added to this machine must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards and
poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings: A
minimum of 4 in. (102 mm) on both sides, and 0 in the
rear is required for Model C152. A minimum of 6 in. (152
mm) on both sides, and 0 in the rear is required for Model
C161. If machine has legs, install the skirt provided on
the right side of the machine. Failure to follow this
instruction may cause poor freezer performance and
damage to the machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the unit and at a height of 62 in. 
(1.6 m) from the floor.
!
!
!

Section 4
4-1
085592-M
Operator Parts Identification
4
Operator Parts Identification
Model C152
Figure 4-1
3
1
2
5
6
7
8
9
10
11
13
414 15
12
Item Description Part No.
1 Pan-Drip 085295
2 Panel-Left 086378
3 Cover A.-Hopper X49633-SP
4 Tube-Feed 035819
5 Panel-Rear 086376
6 Panel-Right 086377
7 Gasket-Base Pan 086306
8 Tray-Drip 086312
Item Description Part No.
9 Shield-Splash 086379
10 Panel-Lower Front 086380
11 Panel-Front 086384
12 Trim-Corner-Rear 086375
13 Plate-Dec X85775
14 Air Orifice 022465-100
15 O-Ring-3/8 OD X.070W 016137

4-2
OPERATOR PARTS IDENTIFICATION
085592-M Operator Parts Identification
4
Model C161
Figure 4-2
3
1
2
4
5
6
7
8
9
10
11
12
13
14
Item Description Part No.
1 Pan-Drip 085295
2 Panel-Side-Left 085262
3 Cover A.-Hopper 085351
4 Tube-Feed 030797
5 Panel-Rear 085274
6Panel A.-Side-Right X69433
7Gasket-Base Pan 055815-SP
Item Description Part No.
8Tray-Drip 16-7/8L X 4-5/16 085699
9Shield-Splash 085304
10 Panel-Lower Front X85729-SER
11 Panel A.-Front 085678
12 Plate-Dec X85775
13 Air Orifice 022465-100
14 O-Ring 3/8 OD X.070W 016137

OPERATOR PARTS IDENTIFICATION
4-3
085592-M
Operator Parts Identification
4
C152 Beater Door Assembly
Figure 4-3
1
2
3
45
8
10
12
13
9
11
7
6
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-Ring-7/8 OD X.103W 014402
3 Door A.-3SPT 1.5QT VALOX X86373-SER
4 Pin A.-Pivot-Short X38539
5 O-Ring-5/16 OD X.070W 016272
6 Handle-Draw 085615
7 Nut-Stud 034829-SP
Item Description Part No
8 Cap-Design 1.010"ID-6 PT. 014218
9 Bearing-Guide 014496
10 O-Ring-2-3/4 OD X .139W 019998
11 Bearing-Front 023262
12 Beater A. X24689
13 Seal-U-Cup 080534

4-4
OPERATOR PARTS IDENTIFICATION
085592-M Operator Parts Identification
4
C161 Beater Door Assembly
Figure 4-4
1
2
1
3
11
5
6
7
89
6
10
4
13
15
16
12
14
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-Ring-7/8 OD X.103W 014402
3 Seal-Draw Valve *Small H-Ring* 030930
4 Door A.-3SPT 1.5QT VALOX X56906SER3
5 Pin A.-Pivot-Short X38539
6 O-Ring-5/16 OD X.070W 016272
7 Handle-Draw 085615
8 Nut-Stud 056802-SP
Item Description Part No
9 Cap-Design 1.010"ID-6 PT. 014218
10 Pin A.-Pivot-Long X38538
11 Valve-Draw-Center 031164-SP
12 Bearing-Guide 014496
13 O-Ring-2-3/4 OD X .139W 019998
14 Bearing-Front 023262
15 Beater A.- X24689
16 Seal-U-Cup 080534

OPERATOR PARTS IDENTIFICATION
4-5
085592-M
Operator Parts Identification
4
C152 Accessories
Figure 4-5
*Not Shown: A sample container of sanitizer is sent with the
unit. For reorders, order Kay-5™ part no. 041082 (200 packs)
or Stera Sheen part no. 055492 (100 2 oz. packs).
Apply the appropriate
Taylor approved food safe lubricant.
1
2
3
4
5
6
7
8
9
Item Description Part No
1 Pail-6 qt. 023348
2 Brush-Rear BRG 1” D X 2” LG 013071
3 Brush-Double·Ended 013072
4 Brush-Draw·Valve·1” OD X 2” X
17”
013073
5 Brush-Mix·Pump·Body-3”X7”
White
023316
Item Description Part No.
6 Lubricant-Taylor 4 oz. 047518
7 Kit·A.-Tune Up X25802
8 Leg (Optional) 024755
9 Skirt (Used with Legs Only) 086649
* Sanitizer KAY-5 25 pkts See Note

4-6
OPERATOR PARTS IDENTIFICATION
085592-M Operator Parts Identification
4
C161 Accessories
Figure 4-6
*Not Shown - A sample container of sanitizer is sent with the
unit. For reorders, order Kay-5 part no. 041082 (200 packs) or
Stera Sheen part no. 055492 (100 2 oz. packs)
Apply the appropriate
Taylor approved food safe lubricant.
1
2
3
4
5
6
7
8
9
Item Description Part No
1 Pail-6·QT. 023348
2 Brush-Rear BRG 1” D X 2” LG 013071
3 Brush-Double·Ended 013072
4 Brush-Draw·Valve·1” OD X 2” X
17”
013073
5 Brush-Mix·Pump·Body-3”X7”
White
023316
Item Description Part No.
6 Lubricant-TAYLOR·4·OZ. 047518
7 Kit·A.-Tune·Up X31167
8 Leg (Optional) 036397
9 Skirt (Used With Legs Only) 055508
* Sanitizer KAY-5 25 PKTS See Note

Section 5
5-1
085592-M
User Interface
5
User Interface
C152
C161
R
RESET
2345
68
7
1
RESET
1
6
6
2345345
7
Item Description
1 Power Switch
2MIXREFKey
3 STANDBY Key
4WASHKey
Item Description
5AUTOKey
6 Indicator Light Mix Low
7 Reset Button
8 Indicator Light Mix Out

5-2
USER INTERFACE
085592-M User Interface
5
Symbol Definitions
To better communicate in the international arena, the
words on many of our operator switches and keys have
symbols to indicate their functions. Your Taylor
equipment is designed with these international symbols.
The following chart identifies the symbol definitions used
on the operator switches.
Power Switch
When placed in the ON position, the power switch allows
Softech™control panel operation.
MIX REF Key
When the MIX REF key is pressed, the light comes on,
indicating the mix hopper refrigeration system is
operating. Mix refrigeration is controlled by the left side of
the freezer as viewed from the operator end. The Mix
refrigeration cannot be canceled unless the AUTO or
STANDBY modes are canceled first.
STANDBY Key
This unit is equipped with a standby feature. If product is
not dispensed for long periods of time (example: early
morning hours), the standby feature can be activated to
maintain the hopper and freezing cylinder product at safe
temperatures and prevent product breakdown. In the
standby mode, the wash and auto functions are
automatically canceled.
To use the standby feature, perform the following steps:
Note: Make sure your hands are clean and sanitized
before performing the following steps.
1. Remove the air orifice and invert the mix feed tube so
that the end with the mix delivery hole is positioned at
the top. Install the end without the mix delivery hole
into the mix inlet hole in the bottom of the hopper.
This will prevent mix from entering the freezing
cylinder.
Figure 5-1 Feed Tube Position during Standby Operation
2. Make sure there are at least 3 in. (76 mm) of mix in
the hopper and that the level of mix is not above the
mix delivery hole on the side of the feed tube.
Note: The level of mix must be below the mix delivery
hole on the side of the feed tube. Failure to follow this
instruction may result in lower product quality when
normal operation is resumed.
3. Press the STANDBY key. The light will illuminate,
indicating that the unit is operating as a refrigerator
for product in the hopper and freezing cylinder.
4. To remove the unit from the standby mode, press the
AUTO key. The STANDBY light will extinguish,
indicating the unit has resumed the normal operating
mode.
OOFF WASH
ION AUTO
MIX MIX LOW
STANDBY MIX OUT
