OPERATOR’S
MANUAL
Model RD30 & RC25
Remote Slush Freezer
Original Operating Instructions
051060- M
11/99 (Original Publication)
(Updated 7/6/15)

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
E1999 Carrier Commercial Refrigeration, Inc.
051060- M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory
Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Models RD30/RC25 Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Installer Safety 1........................................................
Site Preparation 1.......................................................
Electrical Connections 2.................................................
Beater Rotation 2.......................................................
Refrigerant 3...........................................................
Section 2 To the Operator 5...........................................
Section 3 Safety 6....................................................
Section 4 Operator Parts Identification 8...............................
Section 5 Important: To the Operator 10.................................

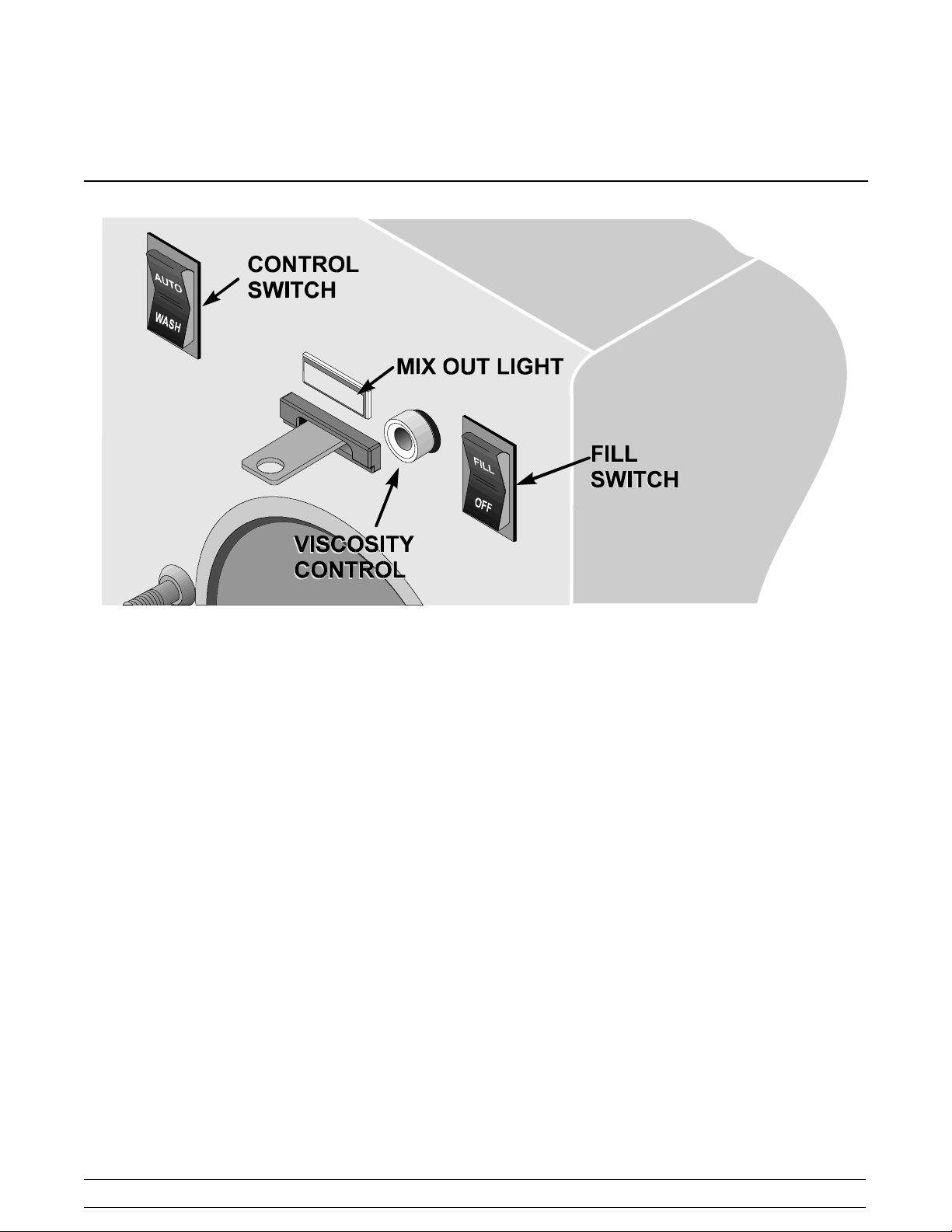

Control Switch 10........................................................
Fill Switch 10............................................................
Mix Out Light 10.........................................................
Viscosity Control 10......................................................
Section 6 Operating Procedures 11.....................................
Assembly 11............................................................
Sanitizing 15............................................................
Priming 18..............................................................
Closing Procedure 18....................................................
Draining Product From The Freezing Cylinder 18............................
Rinsing 19..............................................................
Cleaning 19.............................................................
Disassembly 19..........................................................
Brush Cleaning 20.......................................................

Table of Contents Models RD30/RC25
Table of Contents - Page 2
Section 7 Important: Operator Checklist 21..............................
During Cleaning and Sanitizing 21.........................................
Troubleshooting Bacterial Count 21........................................
Regular Maintenance Checks 21...........................................
Winter Storage 21........................................................
Section 8 Troubleshooting Guide 22....................................
Section 9 Parts Replacement Schedule 25...............................
Section 10 Limited Warranty on Equipment 26............................
Section 11 Limited Warranty on Parts 28.................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E1999 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated July, 2015
051060- M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work
may be a violation of Copyright Law of the United States of America and other countries, could result in the
awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further
civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Models RD30/RC25 To the Installer
131209
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on the
equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and service.
SAuthorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer must
be disconnected prior to performing any repairs.
Failure to follow this instruction may result in personal
injury or death from electrical shock or hazardous
moving parts as well as poor performance or damage
to the equipment.
Note:Allrepairsmustbeperformedbyan
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area the unit is to be installed in before
uncrating the unit, making sure that all possible
hazards the user or equipment may come into have
been addressed.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of
70_-75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean the unit. Failure to
follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
equipment damage.
Uncrate the unit and inspect it for damage. Report any
damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

2Models RD30/RC25To the Installer
130319
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70-1987. The purpose of the
NEC code is the practical safeguarding of persons and
property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. In all other areas of the world,
equipment should be installed in accordance with the
existing local codes. Please contact your local
authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices such as a GFI, to protect against the
leakage of current, installed by the authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures must be
performed by an authorized Taylor service
technician.
To correct the rotation on a three- phase unit,
interchange any two incoming power supply lines at
freezer main terminal block only.
To correct rotation on a single- phase unit, change the
leads inside the beater motor. (Follow the diagram
printedonthemotor.)
Electrical connections are made directly to the splice
box. The splice box is located behind the right side
panel.

3
Models RD30/RC25 To the Installer
120611
Refrigerant
In consideration of our environment, Taylor
proudly uses only earth friendly HFC refrigerants. The
HFC refrigerant used in this unit is R404A. This
refrigerant is generally considered non-toxic and
non-flammable, with an Ozone Depleting Potential
(ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution. NEVER
fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
Use only R404A refrigerant that conforms to
the AHRI standard 700 specification. The use of any
other refrigerant may expose users and operators to
unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
Refrigeration Charging and Line
Construction
The dispensing unit is shipped with a refrigerant
holding charge that is sufficient enough to prevent
moisture contamination (8 oz./227 g. R404A). This
holding charge will become part of the total system
charge.
The condensing unit is shipped with the total amount
of refrigerant required for a typical installation of 75 ft.
or less with a single dispenser.
Set Up Procedures
Standard Fill Module
Step 1
Connect the product supply line to the 1/4” barbed
fitting on the fill module. Adjust the fill system pressure
to deliver product to the hopper at 1.5 to 2.5 oz. (42.5
to 70.9 g) per second. (Approximately 15 to 20 PSIG
[103- 138 kPa] for most products.)
Step 2
Lubricate, assemble, sanitize and prime the dispenser
as outlined in the Assembly section of this manual.
Step 3
Place the fill switch in the “ON” position. Allow the
product to fill the cylinder and the hopper until the mix
level float is satisfied.
Step 4
Place the power switch in the “AUTO” position.
Step 5
To observe the suction pressure, attach refrigeration
gauges to the suction access fitting in the dispenser.
Pressures should read approximately 32 psi. (221
kPa) for non- alcoholic application and 28 psi. (193
kPa) for alcoholic application.
Note: Connection to the condensing unit suction
access can give an improper reading.
Step 6
Allow the dispenser to run until the condensing unit
cycles off.
Step 7
If necessary, adjust viscosity to produce satisfactory
product. Adjustments are made by turning the
viscosity adjustment screw (located on the front panel)
clockwise for a thicker product or counterclockwise for
a thinner product.

4Models RD30/RC25To the Installer
Units Equipped With Post Mix Valve
Step 1
Connect syrup and water lines.
Note: Adjust the syrup supply pressure to maintain 60
PSIG. Water pressure minimum 40 PSIG, maximum
100 PSIG, may require regulated water supply.
Step 2
Turn the “FILL” switch in the front of the RD30 to the
“ON” position.
Step 3
Press and hold the area on the front of the post mix
valve marked “PUSH” to prime the fill system. Priming
is required until the B.I.B. switch and the float switch
are both satisfied. Priming is complete when product
will flow without pressing the “PUSH” button.
Step 4
To adjust either the syrup or water flow rate, turn the
flow adjustment screw clockwise to increase flow, or
counterclockwise to decrease flow. Adjust the screws
until the desired brix is obtained. The flow rate should
be 1.5 to 2.5 oz. (43 fl. ml.) per second.
Note: Both syrup and water flow adjustment screws
are located inside the post mix valve cover. Viewed
from the front, the syrup adjustment screw is on the
right and water adjustment is on the left.

5
Models RD30/RC25 To the Operator
131209
Section 2 To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor Model RD30/RC25, when
properly operated and cared for, will produce a
consistent quality product. Like all mechanical
products, this machine will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator’s Manual should be read before
operating or performing any maintenance on your
equipment.
Your Model RD30/RC25 will NOT eventually
compensate and correct for any errors during the
set- up or filling operations. Thus, the initial assembly
and priming procedures are of extreme importance. It
is strongly recommended that all personnel
responsible for the equipment’s operation thoroughly
read this manual.
If you require technical assistance, please contact
your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor Distributor, and only if all required
service work is provided by an authorized Taylor
service technician. Taylor reserves the right to deny
warranty claims on units or parts if non- Taylor
approved parts or incorrect refrigerant were installed
in the unit, system modifications were performed
beyond factory recommendations, or it is determined
that the failure was caused by abuse, misuse, neglect,
or failure to follow all operating instructions. For full
details of your Taylor Warranty, please see the Limited
Warranty section in this manual.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste.
The user is responsible for returning the product to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop- in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit’s refrigeration system,
only the refrigerant specified on the affixed data
label should be used. The unauthorized use of
alternate refrigerants will void your Taylor compressor
warranty. It is the unit owner’s responsibility to make
this fact known to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should a
new alternate prove, through our testing, that it would
be accepted as a drop- in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor
Distributor or the Taylor Factory. Be prepared to
provide the Model/Serial Number of the unit in
question.

6Models RD30/RC25Safety
130319
Section 3 Safety
We at Taylor Company are concerned about the safety
of the operator when he or she comes in contact with
the freezer and its parts. Taylor has gone to extreme
efforts to design and manufacture built- in safety
features to protect both you and the service technician.
As an example, warning labels have been attached to
the freezer to further point out safety precautions to the
operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in severe
personal injury or death. Failure to comply with
these warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.
DO NOT operate the freezer without reading
this Operator Manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
This appliance is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that
they do not play with the appliance.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
DO NOT use a water jet to clean or rinse the
freezer. Failure to follow these instructions may result
in serious electrical shock.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT operate the freezer with larger fuses
than specified on the freezer data label.
SAll repairs must be performed by an
authorized Taylor service technician.
SThe main power supplies to the machine must
be disconnected prior to performing any
repairs.
SFor Cord Connected Units: Only Taylor
authorized service technicians or licensed
electricians may install a plug or replacement
cord on these units.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices such as a GFI, to protect against the
leakage of current, installed by the authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

7
Models RD30/RC25 Safety
130319
SDO NOT allow untrained personnel to
operate this machine.
SDO NOT operate the freezer unless all
service panels and access doors are
restrained with screws.
SDO NOT remove any internal operating
parts (examples: freezer door, beater,
scraper blades, etc.) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury to fingers or hands from hazardous
moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater asssembly. The scraper blades
are very sharp.
Access to the service area of the unit is
restricted to persons having knowledge and practical
experience with the appliance, in particular as far as
safety and hygiene are concerned.
This freezer must be placed on a level
surface. Failure to comply may result in personal
injury.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to the
cleaning section of this manual for the proper
procedure to clean this unit.
This machine is designed to maintain product
temperature under 41_F(5_C). Any product being
added to this machine must be below 41_F(5_C).
Failure to follow this instruction may result in health
hazards and poor freezer performance.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of 70_-
75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

8Models RD30/RC25Operator Parts Identification
Section 4 Operator Parts Identification
Model RD30
ITEM DESCRIPTION PART NO.
1Cover- Rear 049201
2Cover- Hopper 049081
3Retainer- Clip 049419
4Panel A.- Rear X48983
5Panel- Side- Right 048977
6Leg A.- 4”- 3/8- 16 Stud w/Cap X43408
7Panel- Side- Left 048975
8Stud- Freezer 034035
ITEM DESCRIPTION PART NO.
9Washer- Freezer Stud 049032
10 Panel A.- Front X49760
11 Support- Tray- Left 049056
12 Support- Tray- Right 049057
13 Tray A.- Drip X49182
14 Shield- Splash 049203
15 Cover- Front- Upper 049162
16 Cover A.- Solenoid X49396

9
Models RD30/RC25 Operator Parts Identification
Beater Door Assembly
ITEM DESCRIPTION PART NO.
1Door Assembly- Complete X48768
1a Screw- 1/4- 20 x 9/16 Thumb 047632
1b Knob- Draw Valve- Black Plastic 047358
1c Plate- Draw Spout Mounting 049275
1d Spout- Door Zero Waste 049276
1e O- Ring- 2.375 OD x 1/16 W 046830
1f Spring- Comp. - .845 x .055 x 3.5 047357
1g Valve - Draw Zero Waste 047353
1h O- Ring- 7/8 OD x .103 W 014402
1i Door A.- Partial X50172
2O- Ring 5.5” OD x 5.234 ID x .13 049077
3Bearing- Front 013116
ITEM DESCRIPTION PART NO.
4Arm- Torque 014500
5O- Ring .291 ID x .080 W 018550
6Torque Assembly X49022
7Bearing- Guide 014496
8Beater A.- 7 Qt.- 1 Pin Support X46233
9Blade- Scraper- Plastic 046237
10 Clip- Scraper Blade 046238
11 Shaft- Beater 035418
12 O- Ring 7/8 OD x .139 W 025307
13 Seal- Drive Shaft 032560
14 Nut- Stud 045644
Note: Optional Door Assembly X50654 has a larger
draw valve, spout and door port for thick product.

10 Models RD30/RC25Important: To the Operator
Section 5 Important: To the Operator
Figure 1
Control Switch
The control switch is located on the front of the
machine. The center position is “OFF”. The down
position is the “WASH” mode and activates the beater
motor only. The up position is the “AUTO” mode. The
“AUTO” mode activates the beater motor and enables
refrigeration when the fill switch is in the “ON” position.
Fill Switch
The fill switch is located on the front of the machine.
The “ON” position enables refrigeration when the
control switch is in the “AUTO” position. The “ON”
position enables the fill module to replenish and
maintain product levels in the freezing cylinder and in
the hopper. The “OFF” position terminates the fill
function. The refrigeration system is disabled when the
fill switch is in the “OFF” position.
Mix Out Light
A mix out indicating light is located on the front panel.
When the light is lit, it indicates that the hopper is
empty and the mix supply must be replenished. When
the indicator lights, refrigeration is automatically
disabled to prevent component damage. The beater
motor continues to run.
Viscosity Control
The viscosity adjustment screw is located on the front
of the unit. The viscosity (thickness) of the slush can
be adjusted by turning the adjustment screw clockwise
for a thicker product or counterclockwise for a thinner
product.

11
Models RD30/RC25 Operating Procedures
Section 6 Operating Procedures
We begin our instructions at the point where the parts
are disassembled and laid out to dry from the previous
night’s cleaning.
The following procedures will explain how to assemble
the parts into the freezer, sanitize them, and prime the
freezer with fresh product.
If you are disassembling the machine for the first time
or need information to get to this starting point in our
instructions, turn to “Disassembly” on page 19, and
start there.
Assembly
MAKE SURE THE CONTROL SWITCH IS IN
THE OFF POSITION. Failure to do so may result in
personal injury or component damage.
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube HP). Every
three months discard rubber parts and install new
rubber parts.
Step 1
Lubricate the o- ring groove. Slide the o- ring into the
first groove on the drive shaft. Lubricate the groove,
o- ring and shaft portion that comes in contact with the
rear shell bearing on the beater drive shaft. DO NOT
lubricate the square end of the drive shaft.
Figure 2
Step 2
Slide the seal over the shaft until it snaps into the
groove. Fill the inside portion of the seal with lubricant
and evenly lubricate the flat side of the seal that fits
onto the rear shell bearing.
Figure 3
Step 3
Install the drive shaft into the freezing cylinder, square
end first. The drive shaft seal must fit securely over the
rear shell bearing. Be certain the drive shaft fits into the
drive coupling without binding.
Figure 4
USE EXTREME CAUTION when handling
the beater assembly. The scraper blades are very
sharp and may cause injury.

12 Models RD30/RC25Operating Procedures
150706
Step 4
Before installing the beater assembly, check the
scraper blades for any signs of wear or damage. If a
scraper blade is nicked or worn, replace both blades.
Check the scraper blade clips to make sure they are
not bent and the slot is even for the entire length of the
clip. Replace any damaged clips.
Figure 5
If the blades and clips are in good condition, install the
scraper blade clip over the scraper blade. Place the
rear scraper blade over the rear holding pin (knife edge
to the outside). Holding the blade on the beater, turn
it over and install the front blade the same way.
Figure 6
Step 5
Holding the blades in position, insert the beater
assembly into the freezing cylinder, and slide the
assembly into position over the drive shaft. Turn the
beater slightly to be certain that the beater is properly
seated.
Figure 7
When in position, the beater will not protrude beyond
the front of the freezing cylinder.
Figure 8
Step 6
Install the plastic guide bearing on the short end of the
torque rotor. Slide the o- ring into the groove on the
long end of the torque rotor and lubricate the o- ring.
Do not lubricate the guide bearing.
Figure 9

13
Models RD30/RC25 Operating Procedures
150706
Step 7
Insert the torque rotor (guide bearing end first) into the
pilot hole in the center of the drive shaft. The hole in the
torque rotor shaft should be rotated to the 12 o’clock
position.
Figure 10
Step 8
Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear:
door bearing, door gasket, draw valve, o- rings, and all
sides of the door assembly, including the inside of the
draw valve bore. Replace any damaged parts.
Step 9
Slide the draw valve o- ring into the groove on the draw
valve and lubricate the o- ring.
Figure 11
Step 10
Place the draw valve spring over the shaft end on the
draw valve.
Figure 12
Step 11
Insert the draw valve and spring into the door spout
until the threaded end of the shaft passes through the
hole in the end of the door spout. Thread the draw
valve knob onto the end of the draw valve shaft.
Figure 13
Step 12
Place the door spout seal o- ring into the groove in the
door and lubricate the components.
Figure 14

14 Models RD30/RC25Operating Procedures
Step 13
Align the draw spout assembly with the door. Place the
draw spout mounting plate over the draw spout
assembly and align the holes.
Figure 15
Step 14
Using the thumb screws, fasten the draw spout
assembly and draw spout mounting plate to the door.
Figure 16
Step 15
Place the large o- ring into the groove on the back side
of the door and lubricate the o- ring. Install the door
bearing onto the hub on the back side of the door with
the flanged end of the bearing facing the door.
Figure 17
Note: Do not lubricate the door bearing.
Step 16
Position the door on the freezer studs at the front of the
freezing cylinder. Press the door firmly into place.
Note: The torque rotor will protrude through the hole
in the center of the door.
Figure 18
Step 17
Install the handscrews on the studs. Tighten the
screws equally, using a criss- cross pattern. Do not
over- tighten the handscrews.
Figure 19

15
Models RD30/RC25 Operating Procedures
150706
Step 18
Position the torque arm by inserting it through the slot
in the torque switch arm and down into the hole in the
torque rotor which protrudes from the door. Verify
proper installation by moving the torque rotor back and
forth to be sure it moves freely and easily.
Figure 20
Step 19
Install the front drip tray and the splash shield under
the door spout.
Figure 21
Sanitizing
Step 1
Fill System. Disconnect the product supply lines from
the mix delivery container. Prepare a pail of approved
100 PPM sanitizing solution (examples: 2- 1/2 gal. [9.5
liters] of Kay- 5Ror 2 gal. [7.6 liters] of
Stera- SheenR). USE WARM WATER AND FOLLOW
THE MANUFACTURER’S SPECIFICATIONS. Pour
the solution into a clean, empty mix delivery container.
Connect the container to the mix delivery line.
Figure 22
Step 2
Place the control switch in the “WASH” position. Press
the fill switch to activate the mix solenoid. The mix
solenoid will remain open until the mix level float switch
is satisfied. Drain sanitizer from the freezing cylinder
and repeat this procedure until full strength solution is
dispensed from the mix delivery container. Make sure
all sanitizer is removed from the fill system. Place the
fill switch in the “OFF” position and drain any remaining
solution from the freezing cylinder.
Figure 23
IMPORTANT! The unit must NOT be placed in AUTO
until all sanitizing solution has been removed from the
freezing cylinder and proper priming procedures have
been completed. Failure to follow this instruction may
result in damage to the freezing cylinder.

16 Models RD30/RC25Operating Procedures
150706
For units equipped with a post mix valve, the
following procedure is to be used in place of Step
1 - 2 of the Sanitizing Procedure.
Prepare a pail of approved 100 PPM sanitizing solution
(examples: 2- 1/2 gal. [9.5 liters] of Kay- 5Ror 2 gal.
[7.6 liters] of Stera- SheenR). USE WARM WATER
AND FOLLOW THE MANUFACTURER’S
SPECIFICATIONS. Pour the solution into a clean,
empty mix delivery system container.
Figure 24
Place the control switch in the “WASH” position. Place
the “FILL” switch in the “ON” position. To prime the fill
valve, press and hold the area marked “PUSH” on the
front of the post mix valve (prime button). After 10
seconds, release the valve and the sanitizing solution
will continue to flow until the mix float is satisfied or until
the fill switch is turned to the “OFF” position.
Figure 25
Note: If the sanitizing solution does not continue to
flow after releasing the prime button, press and hold
the prime button for an additional ten (10) seconds.
Repeat this procedure as required to prime the post
mix valve.
Figure 26
Drain the sanitizing solution from the freezing cylinder
and repeat this procedure until all the sanitizing
solution is dispensed from the mix delivery container.
Disconnect the mix delivery container.
Figure 27
IMPORTANT! The unit must NOT be placed in AUTO
until all sanitizing solution has been removed from the
freezing cylinder and proper priming procedures have
been completed. Failure to follow this instruction may
result in damage to the freezing cylinder.
