TBK TBK-1016AVH36IRHF User manual

TBK-1016AVH36IRHF
3-AXIS GIMBAL VARI-FOCAL
IR-LED DAY&NIGHT
VANDAL RESISTANT DOME CAMERA
USER MANUAL
Before installing and using the camera, please read the
instructions thoroughly and retain them for reference.
2
Caution
Warning
This symbol is intended to alert the user to the presence of non insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accom
p
an
y
in
g
the
p
roduct.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Wiring methods shall be in accordance with the National Electric Code.
This product is manufactured to comply with the CE and FCC Certificate standard.

3
Contents
Composition ----------------------------------------------- 4
Features ---------------------------------------------------- 5
Dimensions ------------------------------------------------ 6
Parts Name and Description --------------------------- 7
Installation -------------------------------------------------- 8
Mounting Housings to Electrical Junction Boxes-- 9
Connection ------------------------------------------------- 10
3-Axis Gimbal / Zoom & Focus Adjustment -------- 12
Switch & Volume Adjustment -------------------------- 13
Fan & Heater Specifications --------------------------- 14
Specifications ---------------------------------------------- 15
4
Composition
Confirm that the following parts are included:
Camera DRIVER SERVICE MONITOR CABLE
Accessories Instruction Manual Mounting Template
zTorx Wrench : Length 2 1/2”, Thickness 1/8” (1pc)
zAssembly Screws: FH M4x14 (4pcs)
- These screws are used to affix flush mount base to surface mount plate.
zMounting Screws : ST4x38 (4pcs)
- These screws are used to mount both surface mount plate or flush mount base
to a sturdy surface. If necessary, use the dowels included in the package.
zDowels : Length 30mm, Thickness 6mm (4pcs)
zPipe Cap Driver (1pc)
- This is used to open/close the pipe cap of surface mount plate.

5
Features
z1/3” SONY Super HAD High-resolution Color CCD
z550TVL High-Resolution
z2.8~10.5mm Vari-Focal, DC Auto Iris F1.2 Lens Day & Night Lens
zBuilt-in Function selection Dip Switch
- ICR switching tine, FLK, BLC, AWB
zAuto switching IR-LED control by photocell
- IR LED: 36pcs
zBuilt-in DC Iris level adjustment Volume
zEasy adjustment of Focal Length & Focus
zBuilt-in Service Monitor Port
zFan & Heater
z3-Axis Gimbal bracket
zFlush & Surface mount
zVandal Resistant & Weatherproof Housing (IP-66)
zPower: AC24V/DC12V
6

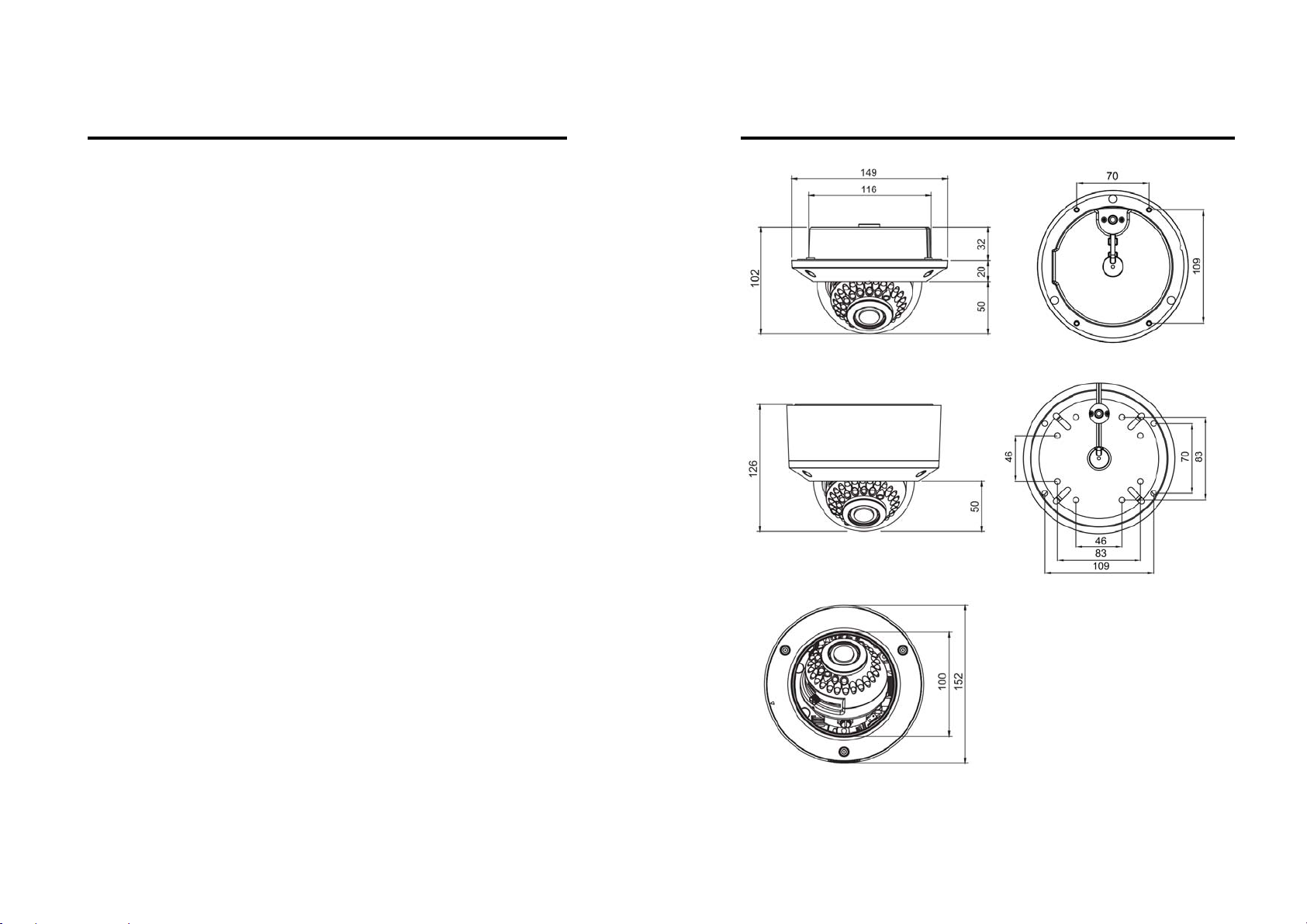

Dimension (Unit: mm)

7

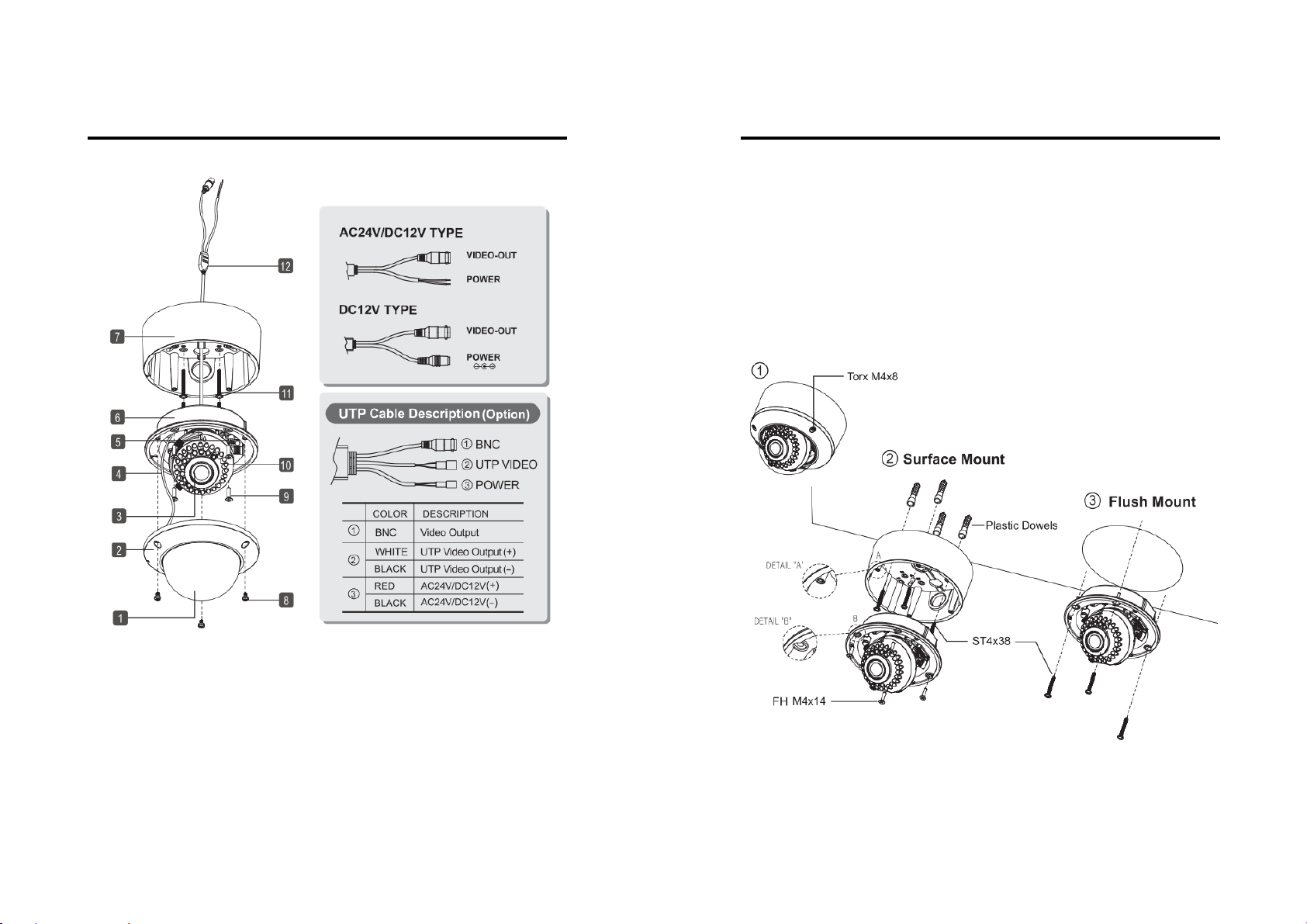

Parts Name and Descriptions
1. Bubble
2. Dome Cover Ring
3. Lens
4. Safety Wire
5. Sercive Monitor Output Port
6. Flush Mount Base
7. Surface Mont Plate
8. Assembly Screws (M4x8)
9/ Assembly Screws (FH M4x14)
10. Gimbal-Bracket
11. Mounting Screws (ST4x38)
12. Videio/Power Cable
Installation
1. Remove dome cover by loosening 3 screws.
Use supplied Torx wrench.
2. Surface Mount :
Use four ST4x38 screws, mount surface plate to a sturdy surface.
Use four M4x14 screws, affix flush mount base to surface plate.
(For flush mount application, disregard this section.)
3. Flush Mount :
Use four ST4x38 screws, affix flush mount base to a sturdy surface.

9
Mounting Housings to Electrical Junction Boxes
Either flush mount or surface mount application, pre-drilled mounting
holes on.
Dome housing accommodate various electrical junction boxes,
making installation easy and less time consuming.
Screws required for electrical junction boxes are not
Note supplied with the package. These screws are readily
available at local electrical supply stores.
10
Connections
- Power connections: Requires DC12V or AC24V input depending on
camera model.
- All camera models are supplied with second video output on the
camera module. To use this feature along with a service monitor,
second monitor cable/connector is required.
Do not aim the camera directly into the sun.
Caution!

11

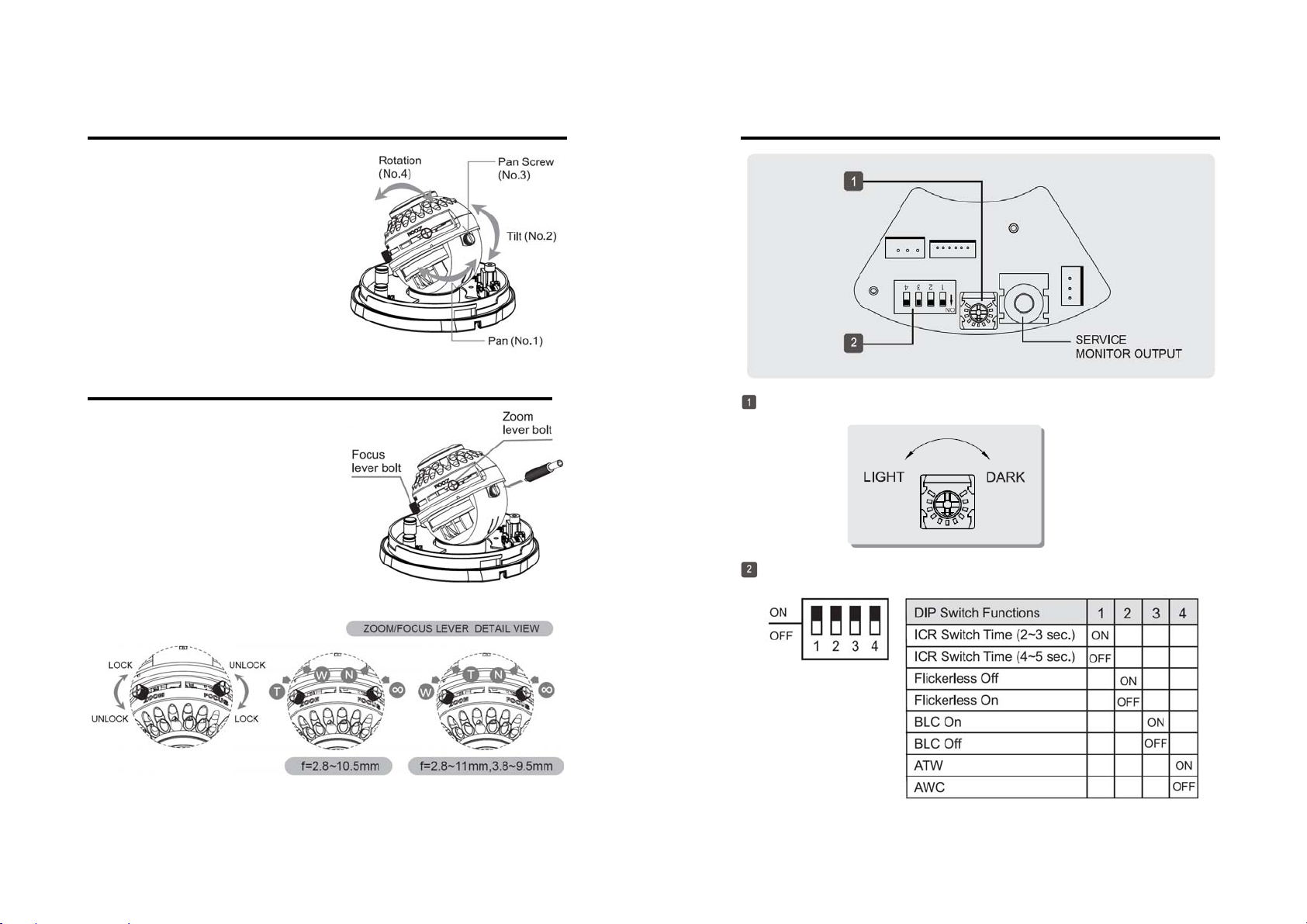

3-Axis Gimbal Adjustment
1. Pan: Adjust the first pan angle
by returning the gimbal 360˚degree.
(see the figure No.1)
2. Tilt: Adjust the tilt angle by moving the
gimal up and down.
(see the figure No.2)
3. Second Pan: Loosen the pan screw
(No.3) to adjust the pan to desired angle
And fix the screw. (see the figure No.4)
Zoom & Focus Adjustments
1. If you require to make focal/focus
adjustments, loosen the lever bolt and
make necessary adjustments.
2. Loosen Zoom & Focus Levers and
make the viewing angle/focus as shown.
- Field of View: Telephoto(T) to Wide(W)
- Focus: Near(N) to Infinity(∞)
3. After the adjustments, tighten the
lever bolts to lock.
12
Switch & Volume Adjustments
DC Level Volume
Function Dip Switch Setting

13
Fan & Heater Specifications (Option)
Power Input AC24V
Power Consumption (Heater) 10W
Power Consumption (Fan) 0.7W
Heater ON at 41(5℃)
Heater OFF at 50℉(10℃)
Screws required for electrical junction boxes are not
Note supplied with the package. These screws are readily
available at local electrical supply stores.
14
Specifications
ITEM NTSC PAL
Image Sensor 1/3” Interline transfer type color CCD (Sony)
Effective Pixels 768H x 494V (380K pixels) 752H x 582V (440K pixels)
Scanning System 525 Lines 2:1 Interlace 625 Lines 2:1 Interlace
Scanning Frequency 15.734KHz(H), 59.94Jz(V) 15.625KHz(H), 50Hz(V)
Resolution 550TVL(Color), 580TVL(B/W)
High Shutter Speed 1/60sec 1/50sec
S/N Ratio More than 48dB (AGC Off)
Sync.System Internal
White Balance ATW1 / AWC selectable
Day&Night Functionality ICR type
Min. Illumination 0Lux with IR LED On (36pcs)
Lens F=2.8~10.5mm Vari-Focal, DC Auto Iris F1.2 D/N Lens
Video Output VBS 1.0 Vp-p (75ΩLoad)
Power Supply (*) AC24V / DC12V±10%, DC12V±10%
Power Consumption AC24V/DC12V Max.: 12VA/AC24V, 570mA/DC12V(IR LED On)
Operating Temp. -10 ~ +50
Operating Humidity Max. 90% RH
Dimension 152mm(φ) x 126mm(H)
(*) Use regulated & specified power supply.

15
3-AXIS GIMBAL VARI-FOCAL IR DAY&NIGHT
VANDAL RESISTANT DOME CAMERA
MADE IN KOREA
