TBM MPL028H-B6 User manual

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]

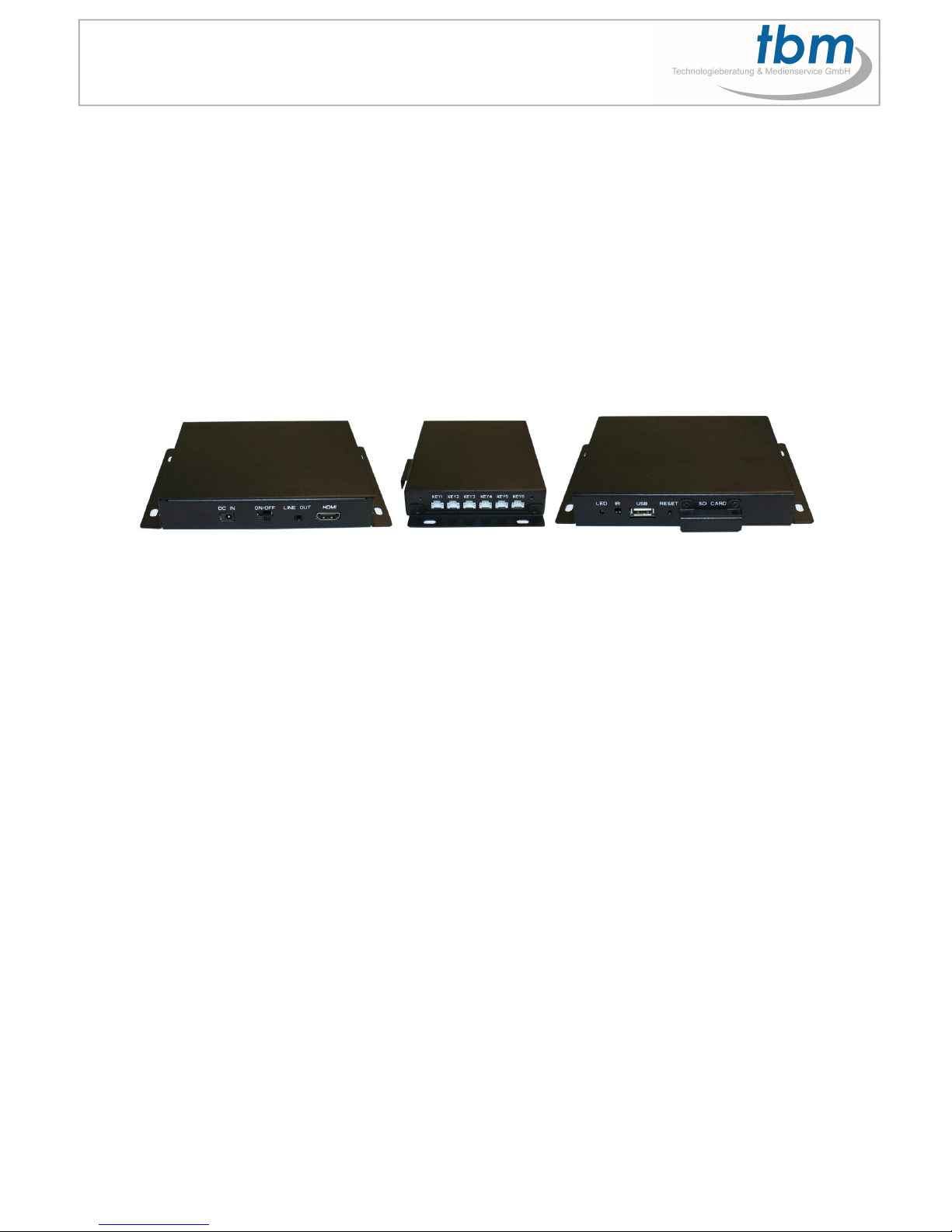

tbm SD Media Player
MPL028H-B6

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Please read this instruction before installation.
S ec. & Package

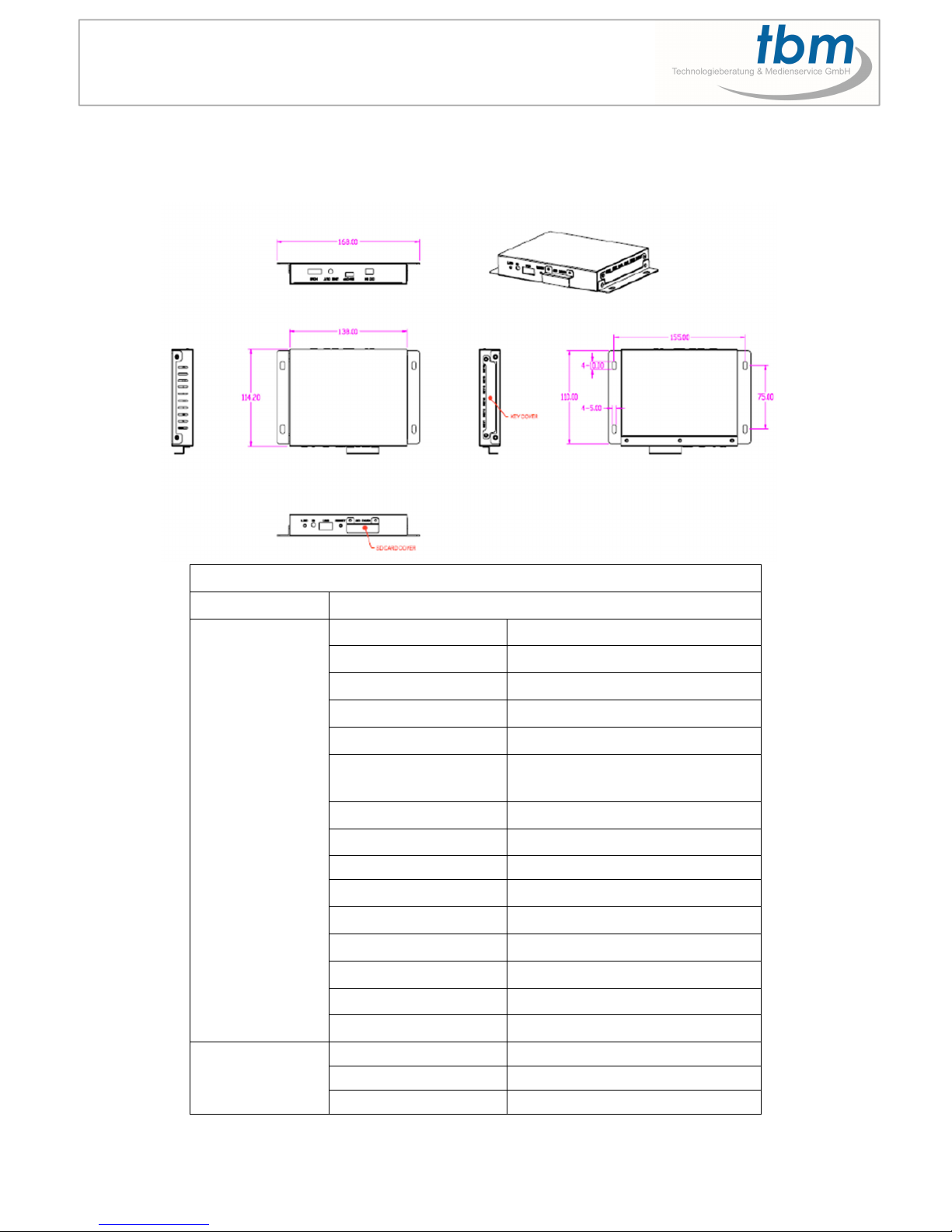

Technical Specification
Model MPL028H-B6
Hardware
Casing Metal
Resolution 1920x1080p
Color Black
Audio System Stereo
Supported File Format JPEG, MPEG1,2,4, H.264, AVI,
Supported Storage
Medium SD Card,
Play Back Features Auto start, Auto play, Auto repeat
Motion Sensor N/A
Audio out 3.5mm stereo jack
Control Buttons N/A
Speaker N/A
Input voltage DC5V 1,5A
Max Power Consumption 0,8A
Accessories Power adaptor, Remote Control
Optional Function
(Additional Cost)
Button Up to 6 buttons
Lift N
Battery N

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Introduction

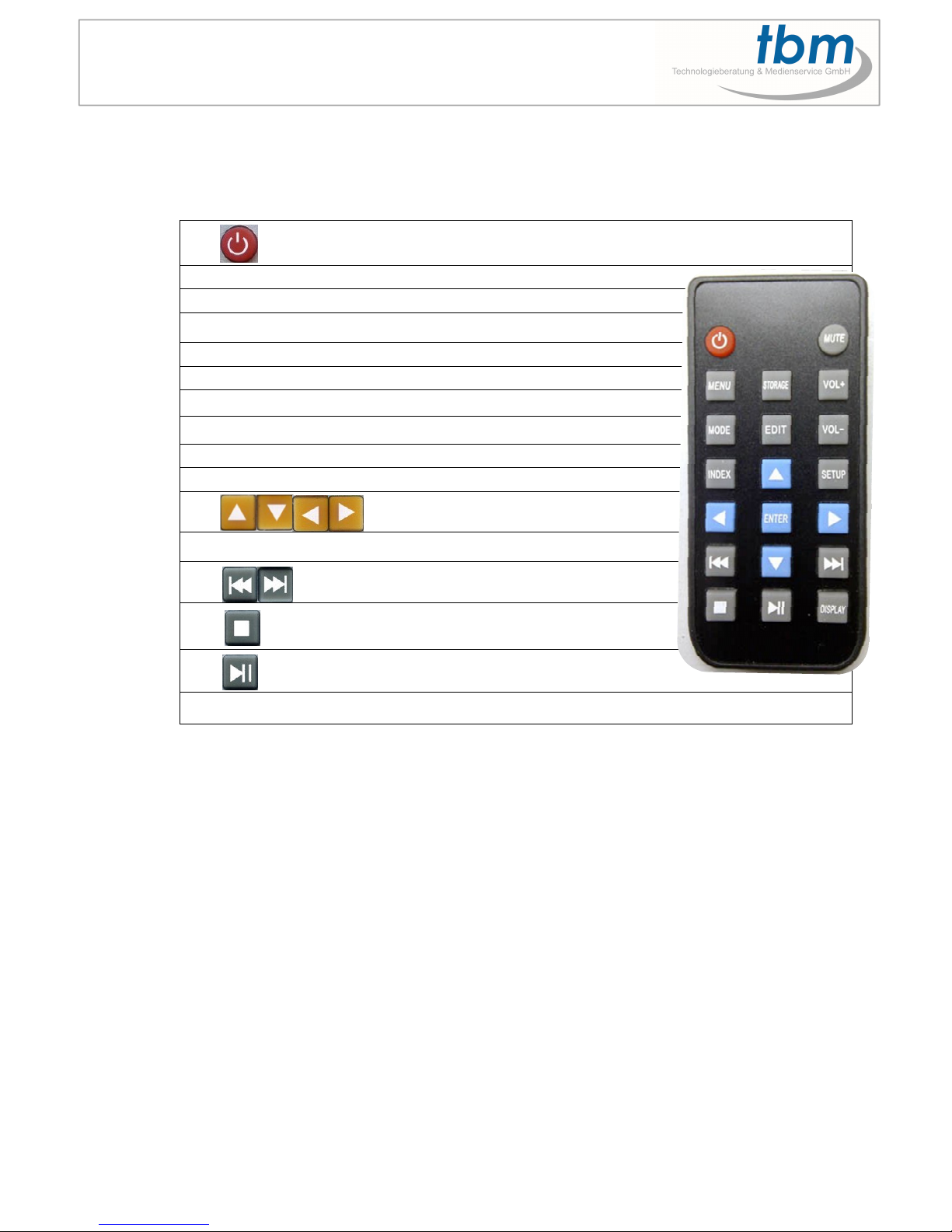

Remote Control
●—— on/off button
●
MUTE
——
mute
●
MENU
——
return to main menu
●STORAGE —— switch between different storage medium (USB/SD)
●
VOL+
——
volume up
●
VOL
-
——
volume down
●MODE —— switch between 4:3 or 16:9 viewing mode
●EDIT —— copy or paste specific files
●
INDEX
——
show content file lists
●
SETUP
——
enter setup menu
●—— directional keys
●ENTER —— confirm key
●—— previous/next track
●—— stop
●—— play/pause
●DISPLAY —— show file info

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Main Menu Selections
The home screen is divided into 6 main selections
Display all movie contents
Display all Photos content.
Display all music contents
Display all text contents
Display all contents
Configure settings and perform software upgrade

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Base Control
General Setup
1. Display
2. Language
Display 1080P, NTSC, PAL, 480I, 576I, 480P, 576P, 720P, 1080I
TVMode 16:0, 4:3
Display
Language
Photo setup
Clock
Text setup
Movie setup
Music setup
Default
About
Upgrade
Timer
Button Mode
Display

480p

TVMode

16:9

Setting
-
Display
Display
Language
Photo setup
Clock
Text setup
Movie setup
Music setup
Default
About
Upgrade
Timer
Button Mode
English
German
Setting-Language
Italian
Portuguese
Spanish
Russian
Polish
Netherlands

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
3. Clock
Show Clock
ON
OFF
Set turn ON to display the clock and turn OFF to hide the clock
Timer Enable
ON
OFF
Turn on after setting the time of the timer.
Timer Mode
Daily Everyday
Weekly Monday, Tuesday, Wednesday, Thursday, Friday, Saturday,
Sunday
Display
Language
Photo setup
Clock
Text setup
Movie setup
Music setup
Default
About
Upgrade
Timer
Button Mode
Timer Mode

Daily

Year

2014

Month

10

Day

23

Set Hour

1

Set Min

3s

Show Clock

Off

Timer Enable

Off

Setting
-
Clock

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
4. Timer
Daily Mode
Weekly Mode : Monday, Tuesday, Wednesday, Thursday, Friday, Saturday,
Sunday
Remark: Set the time of the time before turn on the timer Enable.
5. Defaults
FACTORY SET Press ENTER to go back to factory setting
Display
Language
Photo setup
Clock
Text setup
Movie setup
Music setup
Default
About
Upgrade
Timer
Button Mode
Timer1 Off
--
Hour

17

-
-
Min

2

Timer2 On
--
Hour

17

--
Min

3

Timer2 Off
--
Hour

17

--
Min

4

Timer1 On
--
Hour

17

-
-
Min

1

Setting
-
Timer
Timer3 On
--
Hour

17

-- Min 5 
Timer3 Off
--
Hour

17

--
Min

6


tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Advanced Control
Photo Setup
1. View
2. Sorting
By File Date Files arrange by the Date
By File Name Files arrange by the Name
3. Directory
Users can select enable or disable directory.
4. Repeat
Repeat All Play the photos from the beginning once or a number of
times
Repeat Directory Directory repeat
Repeat Off Stop playing the photos once it finished
5. Cropping
Entire Photo Cut out the whole photo
Smart Crop Smart Crop
Stretch Photo Cut out the photo to a longer or wider one
6. Slideshow Duration
The time interval between slides can be set as 3 seconds, 5 seconds, 10, seconds 30
seconds, 60 seconds and 5 minutes.
Thumbnail A small description
List A number of items or names listed consecutively
View

Thumbnail

Sorting

By File Name

Directory

Enable

Repeat

Repeat Directory

Cropping

Entire Photo

Slideshow duration

3s

Transition effect

On


tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
7. Transition Effect
On Lighting, sound or scenery effect may occur between
slides
Off No effect will occur between slides
Movie Setup
1. View
List A small description
Thumbnail A number of items or names listed consecutively
2. Sorting
By File Date Files arrange by the Date
By File Name Files arrange by the Name
3. Directory
Users can select enable or disable directory.
4. Repeat
Repeat All Play the movie from the beginning once or a number of
times
Repeat Directory Directory repeat
Repeat Movie Continue playing the current movie again once it
finished
Repeat Off Stop playing the movie once it finished
View List 
Sorting By File Name 
Directory Enable 
Repeat Repeat Directory 
Subtitle Off 
Resume Play Off 
Digital Audio Ouput Spdif PCM 

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
5. Subtitle
On Movie captions will be displayed that translate or transcribe the dialogue
Off No captions will be displayed
6. Resume Play
Off Not to continue playing the movie again after a pause
On Continue to play the movie again after a pause or interruption.
7. Digital audio Output
Spdif PCM Covert the current audio format to PCM format and then output
Spdif RAW Audio format on the disc without treatment, the authentic output from the
coaxial and fiber
Music Setup
1. View
List A small description
Thumbnail A number of items or names listed consecutively
2. Sorting
By File Date Files arrange by the Date
By File Name Files arrange by the Name
3. Directory
Users can select enable or disable directory.
4. Repeat
Repeat All Play the music from the beginning once or a number of times
Repeat Directory Directory repeat
Repeat Song Continue playing the current music again once it finished
Repeat Off Stop playing the music once it finished
View Thumbnail 
Sorting By file name 
Directory Enable 
Repeat Repeat directory 
Lyrics Disable 

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
5. Lyrics
Enable Display the words of a song
Disable Not to display the words of a song
Text Setup
1. Sorting
By File Date Files arrange by the Date
By File Name Files arrange by the Name
2. Directory
Users can select enable or disable directory.
3. Front Color
There are 4 front colors for users to choose – Black, white, blue and green.
4. Background Color
There are 3 background colors for users to choose – Effect 1, Effect 2 and Effect 3.
5. Auto Browser Speed
3 auto browser speed can be chosen according to your need – Normal, slow and fast.
6. Resume Play
3 types of resume play speed can be chosen – Normal, slow and fast.
Sorting By File Name 
Directory Enable 
Font Color Black 
Background Color Effect 1 
Auto Browser Speed Normal 
Resume Play Normal 

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Button Mode
1. Press SETUP in the Remote Control, choosing Button Mode to select the
suitable mode for you.
2. In Button Mode, you can select either Audio Display or Number Mode
according to your need.
a.
Key 1: Previous Video
Key 2: Next Video
Key 3: Play/ Pause
Key 4: Stop
Key 5: Volume +
Key 6: Volume -
b. In Number Mode, You have 2 blinking modes to choose – Retail or Museum.
Remark:
You can press the button for watching different video.
For example: Button 1 for watching Video 1.
If you do not press any button, it will start looping at Video 0.
Display
Language
Photo setup
Clock
Text setup
Movie setup
Music setup
Default
About
Upgrade
Timer
Button Mode
Button Mode Audio Display 
Button Mode

Number Mode

Blink Mode

Retail

Blink Mode

Museum

Button Mode

Number Mode

Selected Retail as the blink mode, the
buttons will keep blinking every 3 seconds.
Selected Museum as the blink mode, it will
only blink when you press the button.

tbm Technologieberatung & Medienservice GmbH • Schragenhofstraße 35 • D-80992 München
Tel.: + 49 (0) 89 30 76 42 81 • Fax: + 49 (0) 89 30 76 42 83 • Email: [e-mail]
Contact
tbm Technologieberatung & Medienservice GmbH
Schragenhofstraße 35
D-80992 München
Fon + 49 (0) 89 30 76 42 81
Fax + 49 (0) 89 30 76 42 83
Mobile + 49 (0) 0171 49 48 55 5
E-Mail r[email protected]
Web www.tbmgmbh.de
