TCL Breeva A2W User manual

Air Purifier
User Manual
READ AND SAVE THESE INSTRUCTIONS
（you can also read the instruction at www.TCL.com）
Model : Breeva A2W Breeva A2WW Breeva A2B Breeva A2BW
Breeva A2WK Breeva A2WWK Breeva A2BK Breeva A2BWK

- 1 -
User Manual
English
Deutsch
Français
Español
Português
Italiano
1-15
16-31
32-46
63-77
47-62
78-92

Product Description
Packing list
Name of each part
Safety
Getting started
Control Panel
Instructions
APP connection instructions
Maintenance
Troubleshooting
Specifications
Customer support
3
3
4
5-6
7-8
9
10-11
12
13
14
14
15
Contents
- 2 -

Composite Filter
The TCL Breeva air purifier can efficiently remove dust, smoke, pollen, bacteria, and
more, helping to protect your family’s health by converting these pollutants into
clean air.
This air purifier is equipped with a composite filter that can efficiently remove
particulate matter in the air, including PM2.5 particles, formaldehyde, and odor
(smoke).
It can absorb smoke, pollen, and dust,
filter bacteria in the air, effectively
remove formaldehyde, TVOC, odors
(fumes) in the air, and effectively remove
PM2.5.
Product description
- 3 -

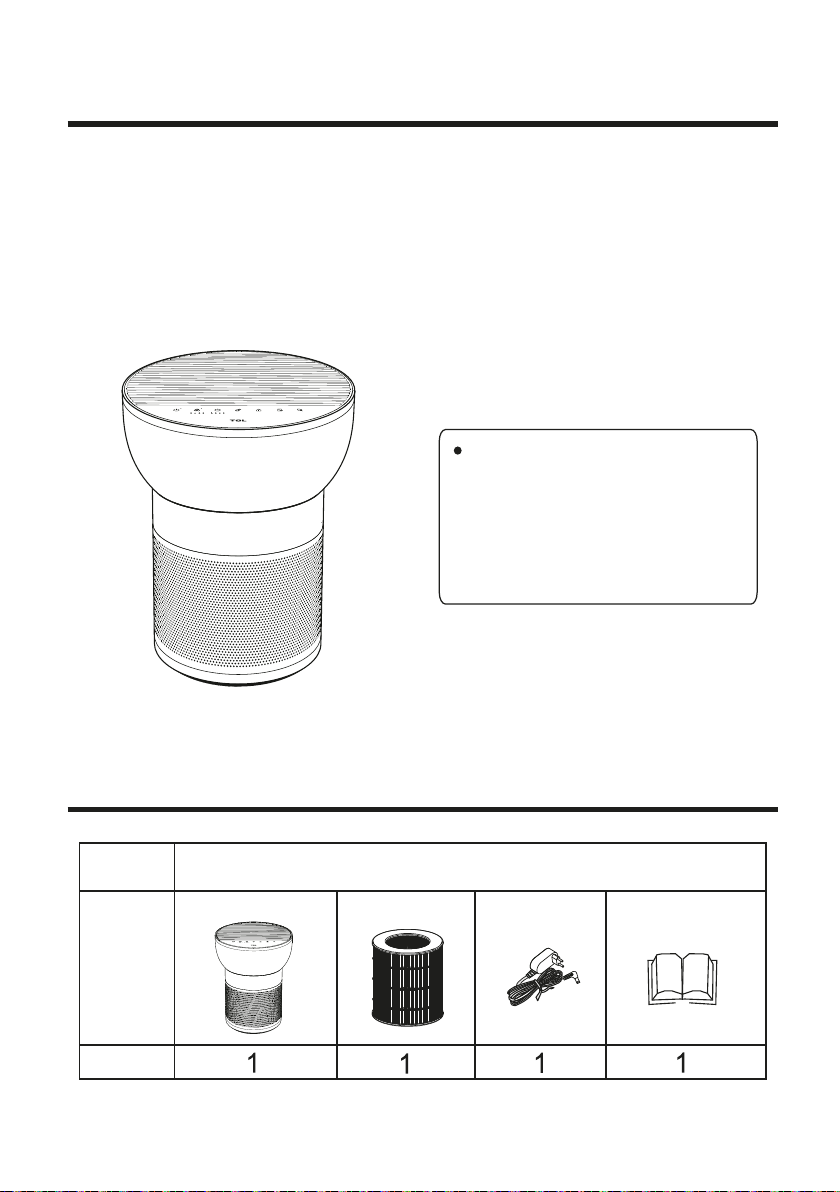

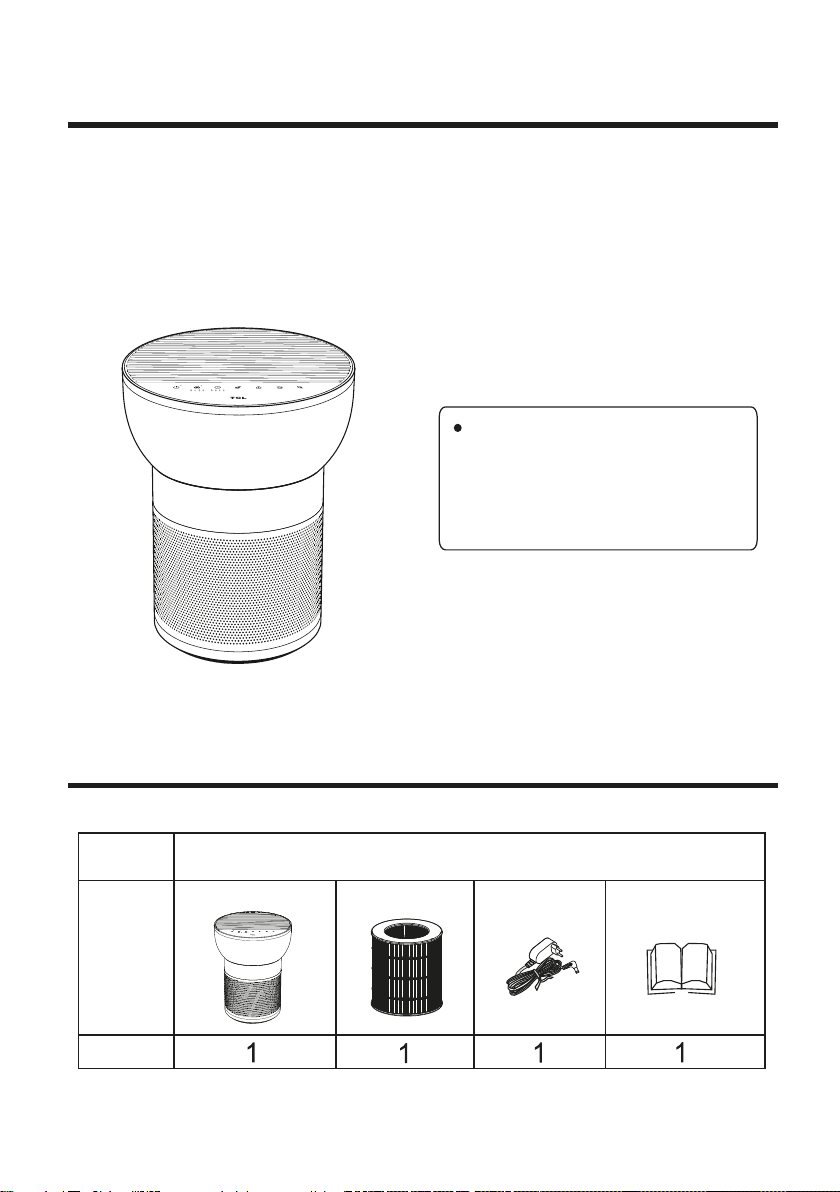

Packing list
Packing
position
Name of
items
Quantity
Main Filter Adaptor
Main machine packaging
User Manual

1、Shell
2、Air inlet
3、Air outlet
4、Bottom cover
5、Anti-slip mat
6、Composite filter
6
Name of each part
- 4 -

Safety
Read the instructions for use carefully before putting the appliance into operation, and keep in
a safe place for later reference.
Only use the appliance in living spaces and within the specified technical data. Incorrect use can
place health and life in danger.
Children cannot recognize the dangers associated with using electrical devices. For this reason,
always supervise children when they are in the vicinity of a running appliance.
Tooperate the appliance only use the supplied original components. Use the unit only at room
temperatures (＞10℃).
The appliance is only to be used with the power supply unit provided with the appliance.
Appliance must only be supplied at safety extra low voltage.
Persons who have not familiarized themselves with the instructions for use, as well as children
and persons under the influences of medicines, alcohol or drugs, must not operate the unit, or do
so only under supervisor.
Do not use the appliance if the power cable is defective or the appliance has been damaged by,
e.g., falling over.
The appliance may only be put into operation in a completely assembled state.
Never remove the power plug from the mains socket by pulling on the cable or with wet hands.
Place the appliance on a level, dry surface only.
Appliances that are obviously damaged must not be operated.
Never immerse the appliance in water or other liquids.
Place the appliance so that it cannot be knocked over.
Remove the power plug prior to cleaning, maintenances, or when the appliance is not in use.
Do not cover the cable with acarpet or other objects. Place the unit so that you cannot trip over
the cable.
If the air outlet grille is opened while the product is running, the product will stop running.
Do not operate the appliance in rooms containing flammable goods, gases or vapors.
Do not place the appliance in the rain, and do not use it in damp rooms.
Do not insert any foreign objects into the appliance.
Never sit on the appliance, and do not place any objects on it.
The cable must never be trapped by a door threshold or crushed by other heavy objects!
Do not move the appliance during operation.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in asafe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation Please note that
changes or modifications of this product is not expressly approved by the party responsible for
compliance could void the user'sauthority to operate the equipment. NOTE: This equipment has
been tested and found to comply with the limits for aClass Bdigital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in aresidential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
Please follow all the precautions given here
- 5 -


If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on acircuit different from that to which the receiver is
connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the
following two conditions:
(1)This device may not cause interference.
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.

This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated
to provide aseparation distance of at least 20 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm
separation distance will be maintained between the device (excluding its handset) and users.
This marking indicates that this product should not be disposed with other house- hold
wastes throughout the EU. Toprevent possible harm to the environment or human
death from uncontrolled waster disposal, recycle it responsibly to promote to the
sustainable reuse of material resources. Toreturn your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environment safe recycling.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack or experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by aperson responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Ensure that the device is switched off from the supply mains before removing the guard.
This product complies with the maximum allowable concentration of ozone of 0.050 parts per
million by volume (ppmv) in a 24-h period.
WARNING: RISK OF ELECTRIC SHOCK – These servicing instructions are for use by qualified
personnel only. Toreduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
WARNING: DISCONNECT POWER SUPPLY BEFORE SERVICING.
Safety Please follow all the precautions given here
- 6 -

Getting started

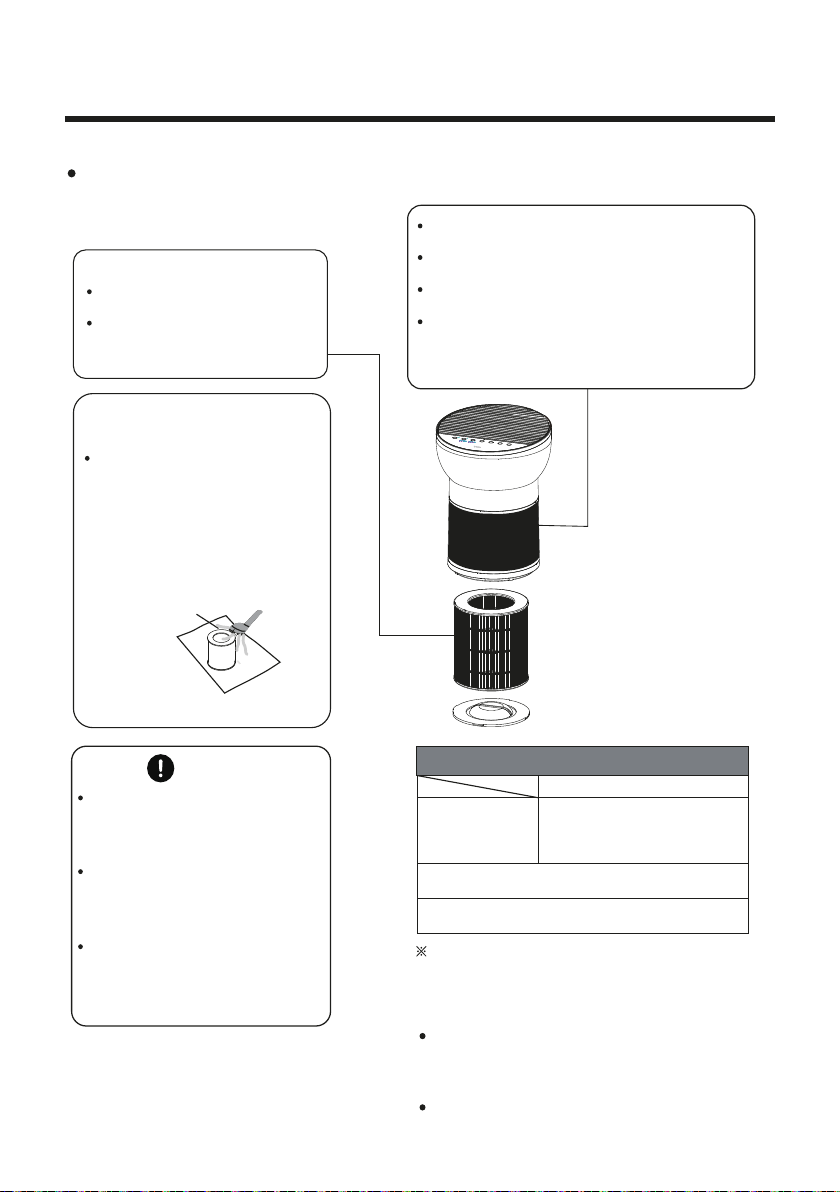

Start preparation
Remove filter Install filter
Using the Humidification
Feature
1. Flip the air purifier over and twist the
filter cover counterclockwise to remove
it.
2. Remove the filter from inside the unit. 2. Replace the cover and twist it
clockwise to tighten.
3. Remove the filter from its plastic
packaging.
1. Place the filter back into the air
purifier.The side with drawstring
should be placed outward.
1. Press the air outlet grill and
remove the sink cover.
2. Pour in water but do not overfill.
3. Place the sink cover on top and
close the air outlet grill.
4. Turn it on and enjoy clean,
refreshing air.
(The water in the sink needs to be
released and then replaced)
Please press the air outlet
grille in place after adding
water before starting the
product.
- 7 -

Getting started
Start preparation
Place the air purifier on a flat surface, and
then insert the plug into the power socket;
Power on
This product can only be used on a 100-240V
50/60Hz socket.
Pleaseclose doors and windows when using;
If the air quality does not improve after the air purifier has been running
for a period of time, please open the doors and windows to maintain air
circulation. (Inextreme environments)
Before inserting the plug into the socket, please make
sure that your hands and the plug are dry. If there is
water on your hands or the plug, please dry the plug and
your hands before inserting it into the power socket.
After the power is turned on, the light on the operation
panel will flash once. After 1 second, except for the
half-bright switch light, all the other lights are off.
The filter is aconsumable item, thus is excluded from our warranty policy. Please confirm
that the filter is in good condition before removing the protective wrap.
Please do not use the air purifier without the filter.
The unit must be disconnected from the power supply before replacing the filter.
Remove any remaining water in the sink and wipe the sink dry.
- 8 -

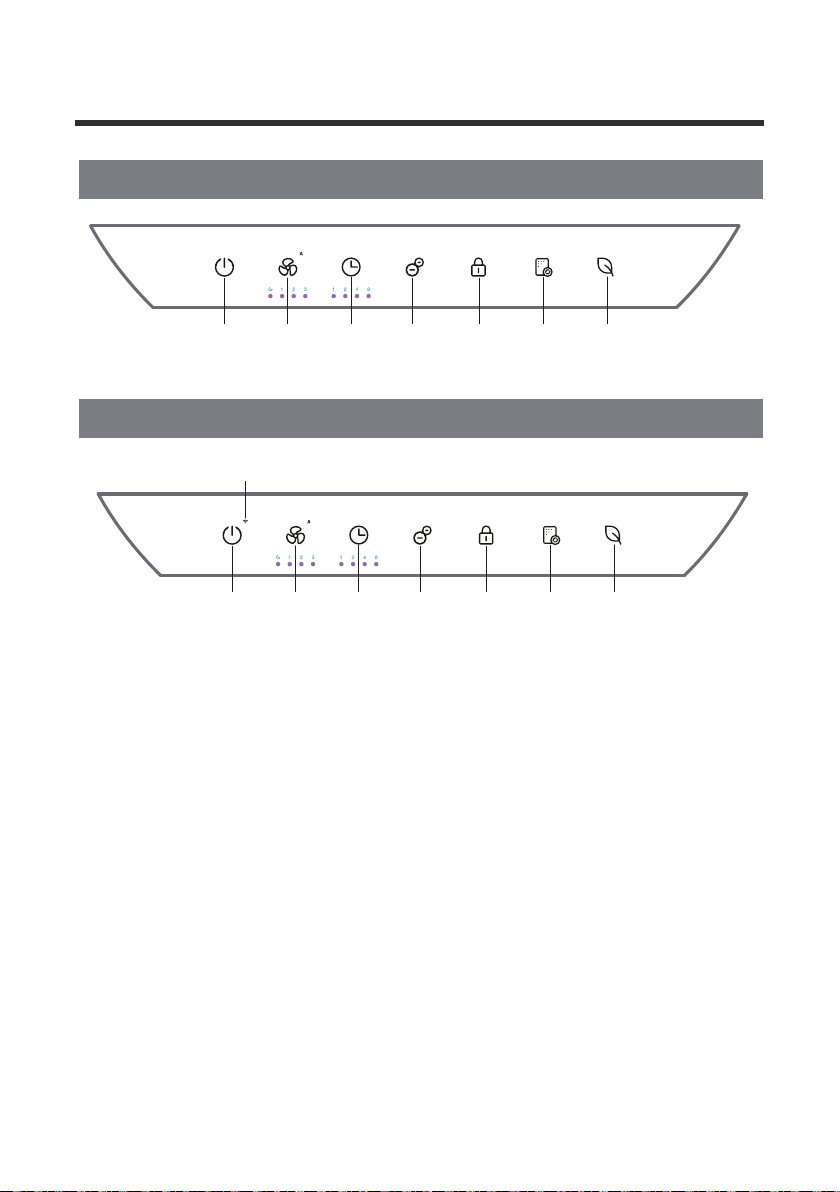

breeva A2 operation panel
ON/OFF ModeTimerAnion Child
Lock Filter Air Quality
ON/OFF ModeTimerAnion Filter Air Quality
breeva A2 Wi-Fi operation panel
Wi-Fi indicator
Control panel
- 9 -
Child
Lock

Child Lock
On/off
Timer
Anion
Instructions

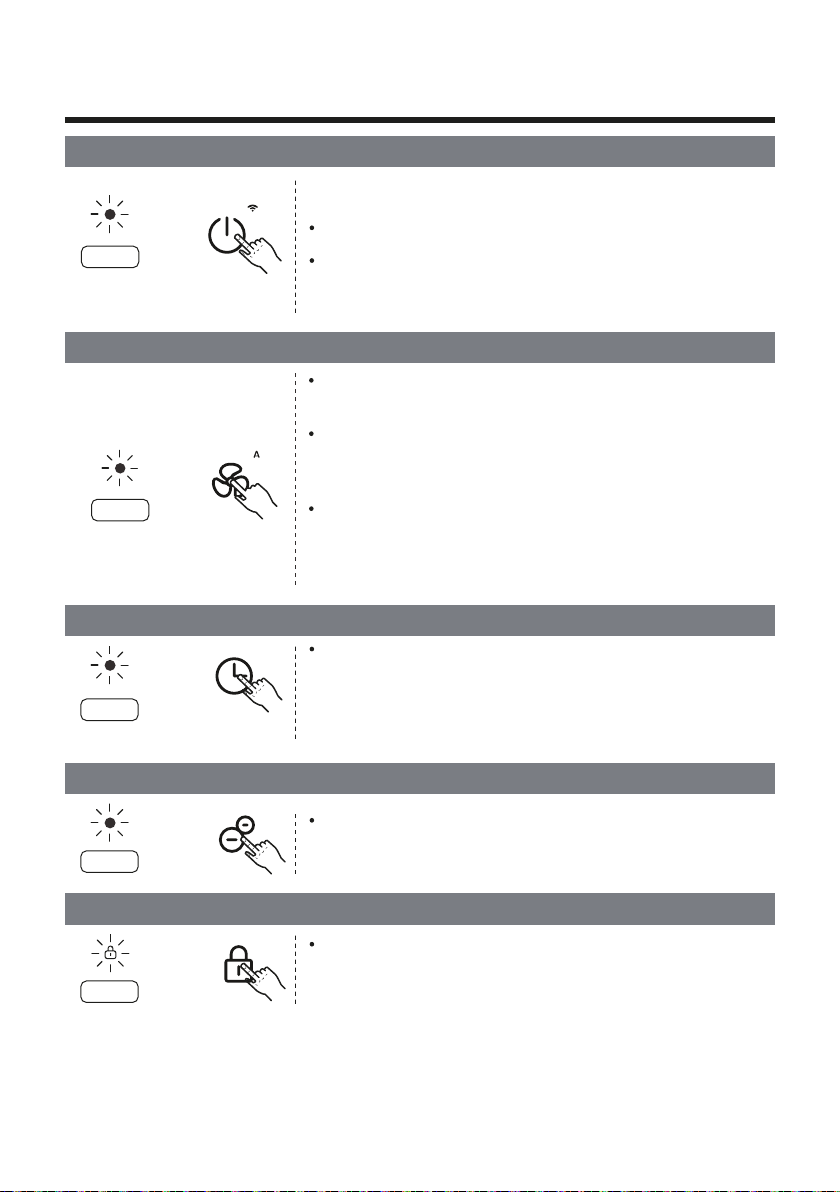

Insert the power plug into the socket and press the "on/off"
button to turn on the machine.
Insert the power plug into the socket and press the "on/off" button
to turn on the machine.
When the air purifier is on, press the power button to re-enter the
standby state. The power button light will be half lit. * Standby refers
to the state when the device is connected to power but is not turned
on.
Press the timer button while the unit is on to turn on the timer
function.
The time can be set to 1H-2H-4H-8H-cancel time intervals, and the
corresponding indicator will turn white. After setting the timer to
turn off, press the power button to cancel the timer setting and
immediately enter the standby mode.
While the device is on, press the anion button to turn on/off the
anion function.
Press and hold for 3 seconds to turn on the panel lock. Once the panel
is locked, users will be unable to change any settings. You can unlock
the device by pressing the lock icon for 3 seconds.
Mode
While powered on, press the wind speed button to adjust the wind
speed in the following order:
Sleep-1st gear-2nd gear-3rd gear-Automatic.
In automatic mode, when the air quality is excellent, it operates in
the first gear, when the air quality is medium, it operates in the
second gear, and when the air quality is poor, it operates in the third
gear.
In sleep mode, all lights are at 50% brightness. Press and hold the
wind speed button for 3 seconds to turn on/off the lights on the
control panel. When the control panel lights are off, if touched, the
rest of the button panel will light up by 50%. The lights will turn off
again if there is no operation within 10 seconds.
Light on
Light on
Light on
Light on
Light on
- 10 -

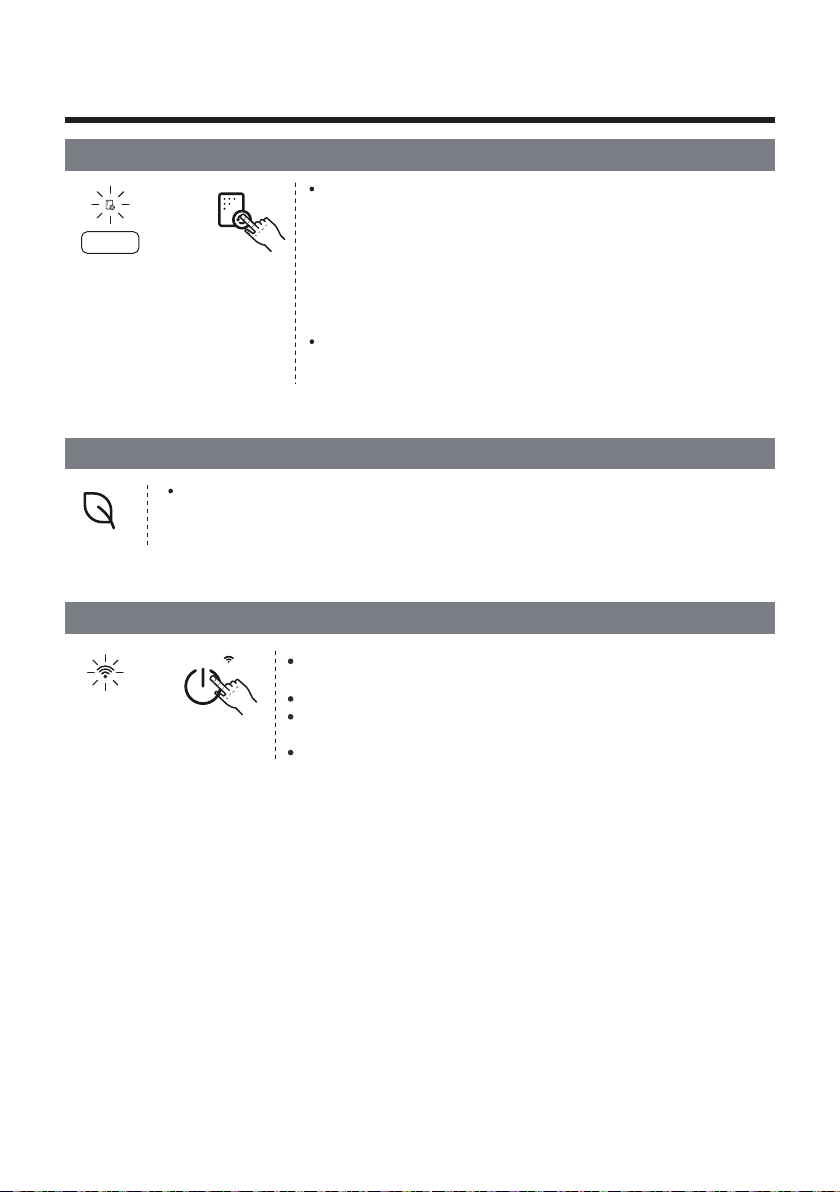

Filter
Air quality (no button function)
Instructions
The icon will change based on your quality of air measured by the dust and VOC sensor.
When the light is white, the air quality is excellent;
When the light is yellow, the air quality is medium;
When the light is red, the air quality is poor.
The internal timer calculates the cumulative running time. When the
filter indicator flashes red (each time it powers on), and the buzzer
sounds three times, it indicates that the filter will need to be replaced
soon. When the filter indicator flashes red (each time it powers on) and
the buzzer sounds five times, you will need to replace the filter as soon
as possible (The time of the timer is calculated by laboratory simulation
test, which may not be completely consistent with actual use. In heavy
usage scenarios, you may need to replace the filter before the time
expires).
After replacing the filter, press and hold the filter reset button for 3
seconds, the buzzer will sound once, and the indicator light will turn
white.
Wi-Fi connection (only for breeva A2 Wi-Fi)
Light on
In standby mode, press and hold the power button for 3 seconds. The
buzzer will then make a sound indicating the unit is ready to pair.
As the unit begin to pair, the WiFi icon will begin to flash quickly.
Once the unit has finished pairing and is connected to WiFi, the icon will
appear solid as long as it remains connected.
WiFi pairing will automatically turn off if there is action after 8 minutes.
- 11 -

1、
APP connection instructions
Download the APP
You can scan the QR code below to download and install TCL HOME or search for "TCL HOME"
in the Apple App Store and Google Play Store.
2、
Configure the device
In the standby mode, press the power button for 3 seconds and the buzzer will make a sound,
the WiFi indicator will flash quickly, and the device will enter the configuration mode . When the
WiFi indicator is always on, the TCL HOME APP can be used to operate the equipment after the
configuration is completed.
[Turn off Wi-Fi]: Long press the power button for 3 seconds to enter the network configuration
state (the Wi-Fi light flashes), press the power button again to turn off Wi-Fi.
3、
Voice operation
After the configuration is complete, enter the APP screen, click the upper right corner to enter the
voice operation settings:
A. Click the function to start connecting to the voice assistant.
B. TCL HOME is compatible with both Alexa and Google voice assistants.
C. It will display the voice operation guide.
If your connection fails, please check the following list:
A. Make sure your Bluetooth is turned on.
B. When you are adding a device, make sure you are connected to Wi-Fi.
C. Put your smartphone as close to the device as possible.
D. Your phone is not in power-saving mode.
Tips
A. Because we are constantly improving the TCL Home app to provide you a better experience,
the actual instruction may very slightly from above. This is no problem though, our app has the
latest information to keep you up to date.
B. Devices are only compatible with the 2.4GHz band and not the 5GHz band. (No need to worry,
all WiFi networks have a 2.4GHz band that comes standard).
NOTE: While connected to a WiFi network, the WiFi icon will remain on even when the unit is
powered off. However, the WiFi icon will dim to 50% brightness when the unit turns off. If your
unit become disconnected from the WiFi, you can repair it at any time .
Reminder
- 12 -

Composite Filter
Conditions: The product use time is 12 hours/day, and
the use environment is normal.
If the environmental pollution is high, please shorten
the replacement time as appropriate.
Maintenance
Precautions for maintenance:
Before maintenance, you must unplug the unit to disconnect the power supply.
Composite Filter
Reminder
Wipe the body and operation panel with a soft
cloth.
Please do not wipe with a hard cloth, otherwise it
will cause surface damage.
Please use a dry cloth to clean the power cord to
avoid potential injury (electrical shock).
Please use neutral detergent when cleaning.
Never use decontamination powder, alkaline
detergent, thinner, bleach, alcohol or gasoline to
clean the body.
Use a vacuum cleaner to maintain
the filter.
The filter is not washable.
Please clean the filter once every
two weeks.
※
Clean the filter with a vacuum
cleaner
The filter material is easy to damage,
so be gentle while cleaning to avoid
damage.
Depending on the actual use environment and
method of use, the replacement cycle of the filter
may change. If you believe your air purifier is not
performing good because of a heavy usage
environment, please replace the filter.
After replacing the filter, press and hold the light
button for 3 seconds, the buzzer will sound once,
the panel indicator will turn from red to white,
and the reset is complete.
Brush
nozzle or
gap nozzle
The filter is a consumable product,
which is not covered by the product
warranty. Please maintain and use it
properly to avoid damage.
※
Do not operate when the filter is
removed. (It loses the function of dust
removal and deodorization, and the
inhaled dust may cause the sensor in
the machine to malfunction.)
During maintenance, do not arbitrarily
place the removed accessories. (It is
possible to trip over or damage the
accessories, and children could get
injured by playing with them.)
There is a sink in the product. If the
product is dumped or knocked over,
the water in the sink will overflow.
Please stand the unit up for 2 hours
before restarting.
Reference time for filter replacement
Replacement cycle
When the panel indicator is
flashing (it needs to be replaced
every 6 months after use)
Please dispose of the used filter as non-combus-
tible garbage.
- 13 -

Problems Possible solutions
Breeva A2W Breeva A2WW Breeva A2B Breeva A2BW
Breeva A2WK Breeva A2WWK Breeva A2BK Breeva A2BWK
Product model
Rated voltage
Rated power
Clean air delivery rate (CADR)
Applicable area
26W
24V
Troubleshooting
Specifications
The following lists the problems you may encounter during use. If you cannot
solve the problem based on the information below, please contact your local
dealer.
You ignored the reminder to replace the filter. When the red indicator on the panel
starts to flash, you did not replace the filter in time; You must replace the filter and
press and hold the light button for 3 seconds. After the reset is complete, the indicator
goes out.
The product is not connected to the power source. Please insert the plug into the
power socket and turn on the product.
A certain filter may not be placed as it should inside the product. Please make sure to
install the filter in the correct order, starting with the innermost filter: composite
filter-base.
The indoor humidity is too high, so condensate is formed. Do not place the product in
a place with high humidity such as bathroom, toilet
There are obstacles around the product that affect the purification effect. (Refer to the
instructions for use.)
The room where the product is in is too large. The recommended room area for this
product is about 182 square feet.
Is the filter dirty? If there is no improvement after maintenance, please replace the
filter.
The product has been
running for a long time, and
the air quality has not
improved significantly.
Difficult to remove dirt in
the air.
Is it used in places with strong smells? If you use it under strong odors such as
cigarettes and barbecues, the filter will produce an unpleasant odor within weeks or
months. Please replace the filter and keep it well ventilated.
Please confirm whether the child lock button is locked first, you need to press and
hold the child lock button for 3 seconds to unlock the child lock button, and then
touch other buttons to operate.
Please check if the air outlet switch has been pressed in place.
The wind blowing from the
air outlet has a peculiar
smell.
No response after touching
buttons.
The water tank cannot be
turned on after adding
water.
14~24㎡
117 cfm
200 m³/h
The red indicator on the
panel flashes for a long time.
No air is discharged from
the air outlet.
- 14 -

Customer support
We are devoted to your 100% satisfaction and would like to get your feedback on our product and
service.If there is anything that did not meet you expetation you have any questions regarding your new
product.Please contact us via www.tcl.com without hesitation.
TCL OVERSEAS MARKETING LIMITED
7/F BUILDING 22E,
22 SCIENCE PARK EAST AVENUE,
HONG KONG SCIENCE PARK,
SHATIN NT
www.tcl.com
*Please have your order invoice and order ID ready before contacting Customer Support.
- 15 -

Luftreiniger
Benutzerhandbuch
LESEN UND SPEICHERN SIE DIESE ANLEITUNGEN
(Sie können die Anleitung auch unter www.TCL.COM lesen)
- 16 -
Model : Breeva A2W Breeva A2WW Breeva A2B Breeva A2BW
Breeva A2WK Breeva A2WWK Breeva A2BK Breeva A2BWK

Produktbeschreibung
Packliste
Bezeichnung der einzelnen Teile
Sicherheitsvorsichtsmaßnahmen
Erste Schritte
Bedienfläche
Anweisungen
App-Verbindungsanweisungen
Wartung
Fehlerbehebung
Technische Daten
KUNDENBETREUUNG
18
18
19
20-22
23-24
25
26-27
28
29
30
30
31
Inhalt
- 17 -

Verbundfilter
Dieser leistungsstarke Luftreiniger kann Rauch und Staub entfernen und kann in
Innenräumen, Raucherbereichen und an Orten mit einer großen Menge an partike-
lförmigen Schadstoffen wie Zigaretten, Staub, Pollen usw. verwendet werden. Er
kann Sie und Ihre Familie vor Passivrauch und Smog schützen, um die Gesundheit
der Familie zu gewährleisten.
Dieser Luftreiniger ist mit einem Verbundfilter ausgestattet, der effektiv Partikel
und PM2,5-Partikel in der Luft, Formaldehyd und Gerüche (Dämpfe) entfernen
kann, um die Luft, die Sie atmen, zu reinigen und zu erfrischen.
Er kann Rauch, Pollen und Staub
absorbieren, Bakterien in der Luftfiltern,
Keime abtöten, Formaldehyd, TVOC,
Gerüche (Dämpfe) in der Lufteffektiv
entfernen, die Luftreinigen und PM2,5
effektiv entfernen.
Produktbeschreibung
- 18 -
Packliste
Filter
Hauptmaschine Netzteil
Verpackung der Hauptmaschine
Benutzerhandbuch
Menge
Bezeichnung
der Teile
Inhalt der
Verpackung
