TCL P650SBN1 User manual

P650SBN1

1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not play with the appliance.
2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6.WARNING: Do not damage the refrigerant circuit.
7.WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
9.This appliance is intended to be used in household and similar applications such as
— Sta f kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.

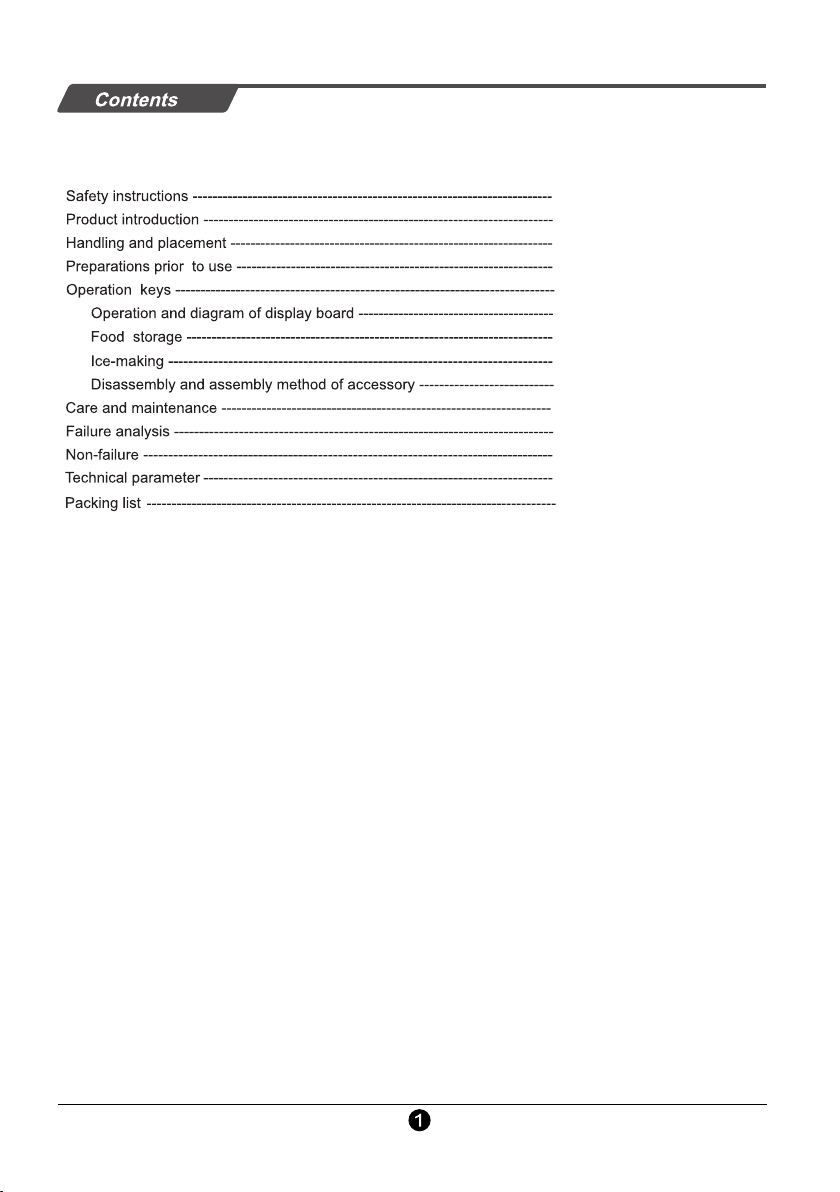

P2
P5
P6
P7
P8
P8
P11
P11
P12
P12
P13
P13
P14
P15
Thank you for buying TCL refrigerator. We hereby express our thanks.
Welcome to use TCL refrigerator. We will do our best to provide you with quality
service.
f

2
Safety instructions
1.Warning
Warning: No barrier is allowed around the appliance or in the embedded structure in
order to ensure the free ventilation.
Warning: It is forbidden to speed up the defrosting process with any mechanical
equipment or by other method except for the method recommended by the manufacturer.
Warning: Never damage the refrigerating circuit.
Warning: Never use any electric apparatus in the food chamber of the appliance
except for the type recommended by the manufacturer.
Warning: Never place the liquid beverage or food contained with glass container in
the freezing chamber for fear of cracking.
Warning: If powered o f, the refrigerator shall be powered on 5min later for fear of
damaging the compressor.
Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found
during use, it is necessary to power o f the appliance immediately and contact the after-
sales service department of the Company timely.
Warning: Never place your finger or hand under the refrigerator, especially rear
bottom of refrigerator; otherwise, you may be hurt by the sharp matter.
Warning: The children must not play or climb the refrigerator. The operation by the
children must be supervised by their parents for fear of danger.
Warning: Never place your hand between the doors to open or close door for fear of
jamming your finger. The door handle shall be used to open or close the door.
Warning: Under the rated climate types SN, N and ST, the operating ambient range of
the appliance is 10℃~38℃; under the climate types SN, N, ST and T, the operating
ambient range of the appliance is 10℃~43℃. If the appliance operates outside the rated
climate type (ambient temperature range), the appliance may not maintain the satisfying
interior temperature.
f
f

3
Safety instructions
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances
Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food.
If the refrigerating appliance is left empty for long periods, switch o f, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
Warning: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
Warning Risk of fire / flammable materials :
Warning: Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
2. Cautions
Cautions: The power supply of this product must be uniform with the power supply
mentioned on the nameplate, and the standard independent 3-hole socket shall be used
(above 10A, and reliably grounded). One socket must not be shared by more than one
appliance; otherwise, fire may be caused due to overheat.
Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the
power connector from the socket to disconnect the power supply. The power wire or
connector must not be touched by the wet hand for fear of electric shock.
Cautions: The power wire must not be squeezed by the refrigerator or any heavy
load, and the power wire shall not be bent extremely. The damage or peeling of power
wire may result in fire or electric shock. If the power wire is broken or cut, please contact
the after-sales service department immediately.
Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is
allowed in the refrigerator.
f

4
Safety instructions
Cautions: The refrigerator must not be used in the rain or under the sunshine.
Cautions: It is forbidden to place the container with fluid on the refrigerator because
the breakage or turnover of the container may a fect the electrical insulation of
refrigerator and result in electric shock or fire.
Cautions: The refrigerator must not be disassembled or modified without
permission. The repair of refrigerator must be performed by the specialist.
Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary
to close the leaking valve first and then open the window for ventilation, and forbidden to
unplug the refrigerator connector immediately for fear of fire or explosion due to electric
spark.
Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I –
might not operate consistently (possibility of defrosting of contents or temperature
becoming too warm in the frozen food compartment) when sited for an extended period
of time below the cold end of the range of temperatures for which the refrigerating
appliance is designed;
Cautions: The fact that e fervescent drinks should not be stored in food freezer
compartments or cabinets or in low-temperature compartments or cabinets, and that
some products such as water ices should not be consumed too cold.
Cautions: The need to not exceed the storage time(s) recommended by the food
manufacturers for any kind of food.
Cautions: The precautions necessary to prevent an undue rise in the temperature of
the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen
food in several layers of newspaper.
Cautions: The fact that a rise in temperature of the frozen food during manual
defrosting, maintenance or cleaning could shorten the storage life.
Cautions: The care required with regard to frozen food in storage in the event of an
extended non-running of the refrigerating appliance (interruption of power supply or
failure of the refrigerating system).
Cautions: The action to be taken when the refrigerating appliance is switched o f
and taken out of service temporarily or for an extended period (e.g. emptied, cleaned
and dried, and the door(s) or lid(s) propped ajar).
f
f
f

5
–- Intelligent temperature control by computer, fan-cooled and frost-free
Computer temperature control is adopted, visual operation, intelligent and convenient; equipped
----- Green and environmental friendly refrigerant
CFC-free materials are adopted, green and environmental friendly material R600a, 80% main
materials can be recycled;
Warm prompt:
If your product is improved product, it may not be totally same as that in the
instructions. But it will not change the performance and method of application.
Please feel relieved about usage.
Features
with fan-cooled and frost-free system, safe and e ficient;
- - Generate air by swinging left and right, uniform cooling;
Lower freezer glass shelf
Lower freezer drawer
Refrigerator air duct
Freezer bottle holder
Freezer chamber door
Upper freezer glass shelf
Refrigerating chamber door
Refrigerator bottle holder
Upper refrigerator glass shelf
Lower refrigerator glass shelf
Lower refrigerator drawer
f

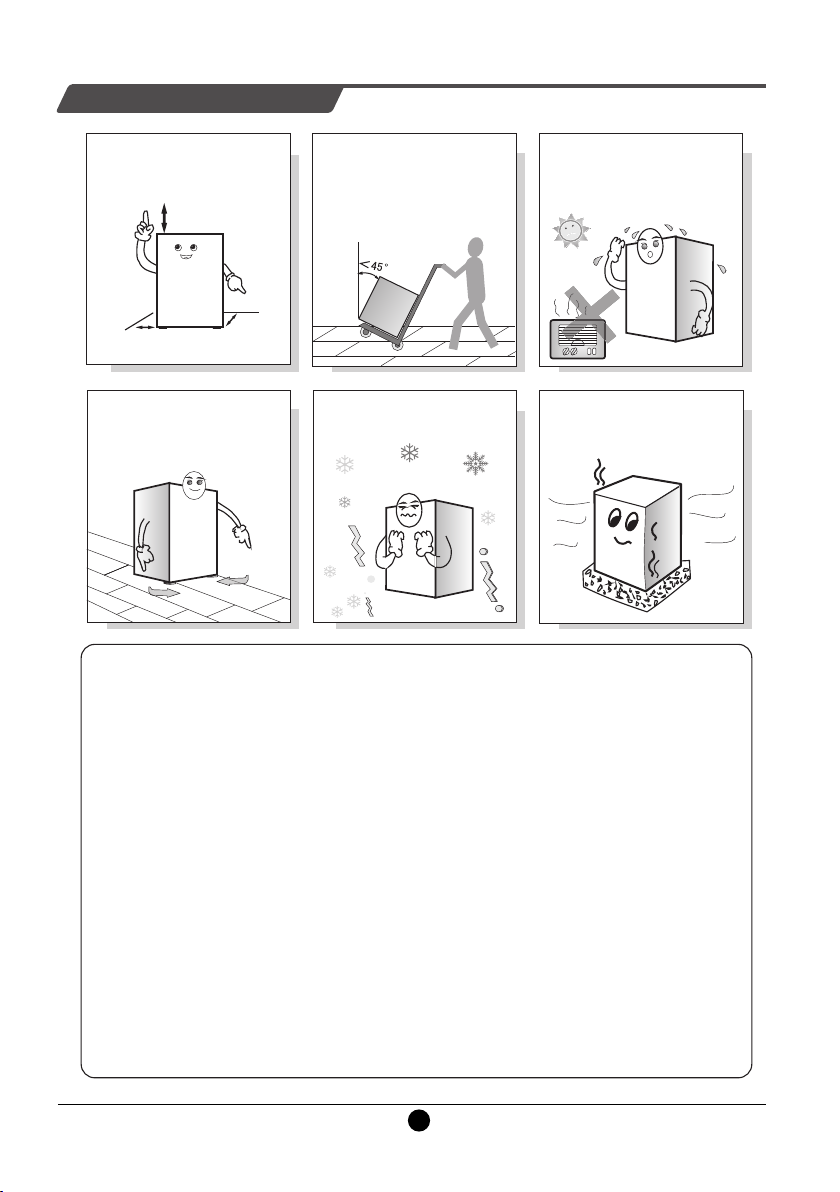

Handling and placement
During handling, the door
side of the refrigerator shall
not contact with the
handling tools
Removing the foam base is
beneficial for bottom heat
dissipation and can avoid
fire.
The refrigerator shall be
placed in an environment
which is dry, has good
ventilation, far from direct
sunshine and heat source.
The refrigerator shall be
placed on the flat and firm
surface. If the ground is not
flat, adjust the adjusting leg
to keep it level.
Never place the refrigerator
into a too cold environment
that may get frozen.
Warm prompt:
--When handling the refrigerator, at least two persons are required – one lifts the top of
rear part, the other one handles the bottom (if one part is clamped, it is quite
dangerous and may cause accident).
--When moving the refrigerator, the lower runner may damage and scratch the floor. If you
need to move the refrigerator for a long distance, the internal accessories shall be fixed
using adhesive tape. Otherwise, the accessories may get damaged due to crashing each
other.
--Please place the refrigerator in the position with small vibration or little exposed to
vibration. For users in the area where earthquake often occurs, please fix the refrigerator
against the wall or pole. Otherwise, the falling of refrigerator will cause accident.
--Su ficient clearance shall be left around. If the clearance is too small or place goods on the
top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be
a fected, and thus to cause unnecessary electric energy waste as well as burn out of the wall
and other goods; the contact between the back and wall will cause vibration and noise;
--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the
refrigerator will cause vibration and noise.
Certain space shall be left
around the refrigerator,
shown in the figure.
>30cm
>10cm >10cm
6
f
f

TRF-650WEXPFBSA 735 920 >L1+380 >W1+600
7
Preparations prior to use
1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can
be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 2 hours before plugging the power
plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.
1. Remove fixing tape 2. Connect to power 3. Store food after
connecting to power
for 2-3 hours
Wipe with
warm and
wet cloth
In hot summer, 24 hours are
needed to fully freeze the food.
Check the refrigerating condition
on the second day.
Do not o pen the
door s frequently
to sav e electricity.
The plastics deodorant will disappear
automatically after freezing for a while.
>L1+100 >W1+200
TRF-650WEXPU 735 920 >L1+380 >W1+600>L1+100 >W1+200

8
Operation keys

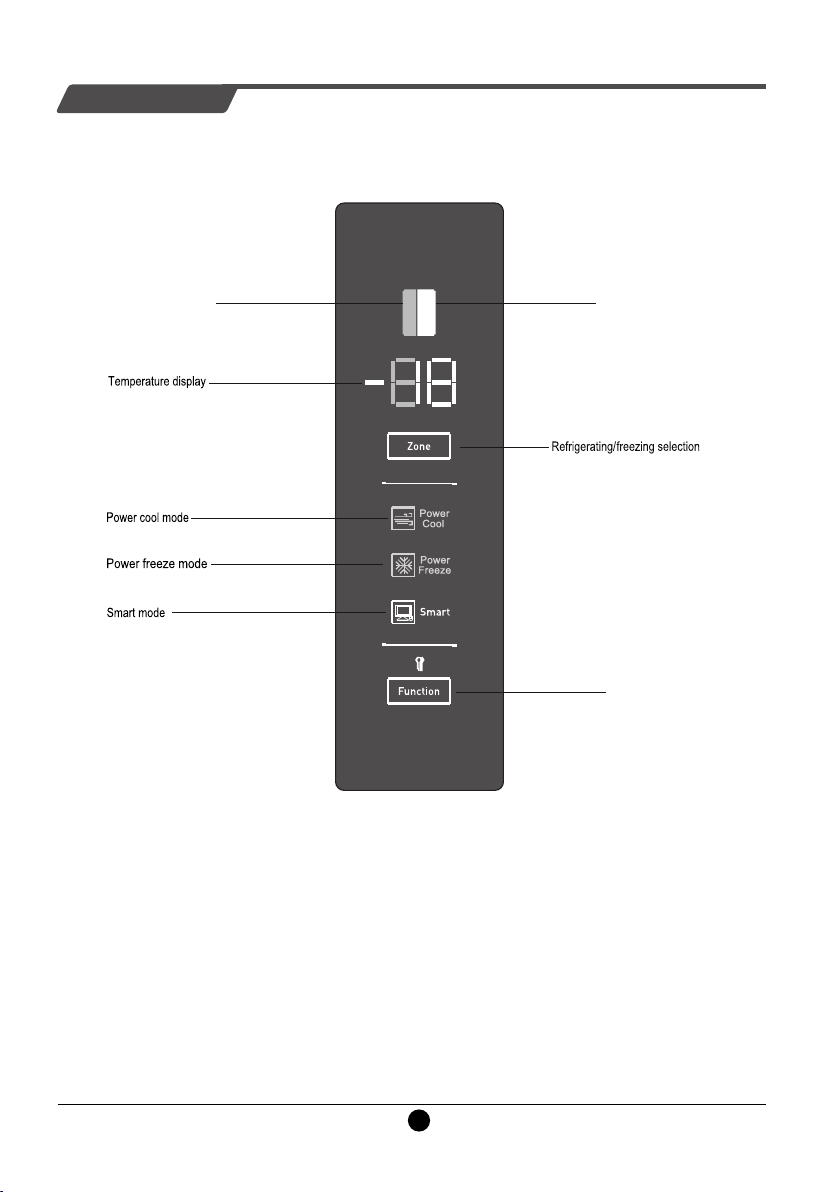

Operation and diagram of display board
The above is the computer control board of the product
Freezing chamber Refrigerating chamber
Function selection

9
Operation keys
The first time to electricity, the cooling room runs at the 5℃ and the freezing room runs at the -18℃
First time to electricity
The function of adjusting the temperature manually
Temperature adjustment in cooling room(2℃~8℃)
Under unlock status, long press “ ” key for 3 seconds until the icon switches to refrigerator compartment.
Press “ ” key to adjust temperature in refrigerator compartment. And then the temperature drops
by 1℃ every time press “ ” key. The shift of refrigerator compartment stalls recycles around "08" -
"07" - "06" - "05 " - "04" - "03" - "02" - "OF" - "08". Stop button operation and wait for 5 seconds after appropriate
temperature is selected, and then set the temperature shift for confirmation.
Temperature adjustment of freezer compartment (-22℃~-15℃)
Under unlock status, long press “ ” key for 3 seconds until the icon switches to freezer compartment.
Press “ ” key to adjust temperature in freezer compartment. And then the temperature drops by
1℃ every time press “ ” key. The shift of freezer compartment stalls recycles around " -15 “ -"-16" -
“- 17"- "-18" - "-19" - "-20" - "-21" - "-22" -"-15". Stop button operation and wait for 5 seconds after appropriate
temperature is selected, and then set the temperature shift for confirmation.
Quick refrigerating function
Under unlock status, repeatedly press “ ” key until the “ ” icon flashes. Stop key operation
and wait for 5 seconds to enter quick refrigerating function of refrigerator compartment. Manually exit quick
refrigerating function through the same operation. Automatically exit quick refrigerating function after two hours.
When the “ ” function is on, set temperature to 2℃ for refrigerator compartment, until the function
exit quick refrigerating function. Open refrigerator door over three minutes exit quick refrigerating function
exits. (Under quick refrigerating status, adjust set temperature of refrigerator compartment to automatically
under quick refrigerating status.)
Quick freezing function
Under unlock status, repeatedly press “ ” key until the “ ” icon flashes. Stop key operation
and wait for 5 seconds to enter quick freezing function of freezer compartment. Manually exit quick freezing
function through the same operation. Automatically exit quick freezing function after four hours in high
freezing status.
When the “ ” function is on, set temperature to -24℃ for freezer compartment, until the function exits.
(Under quick freezing status, adjust set temperature of freezer compartment to automatically exit quick freezing
function. Open freezer door over three minutes exit quick freezing function under quick freezing status.)
Function
Function

10
Operation keys
Intelligent function
Under unlock status, repeatedly press “ ” key until the “ ” icon flashes. Stop key operation and
wait for 5 seconds to enter intelligent function. Manually exit intelligent function through the same operation.
When the “ ” function is on, the refrigerator will automatically monitor the status of all compartments
and run e ficiently. Under intelligent status, the refrigerator can automatically enter quick-refrigerating or quick
freezing function according to the temperature in refrigerator and freezer compartments. (Setting other
functions under intelligent status can automatically exit intelligent function.)
Child lock function
Under unlock status, enter “ ” function:
Automatically on: the child lock function is automatically on after no key operation for 30 seconds,“ ”
icon is lit, and the key board is locked;
Exit child lock: when the “ ” icon is lit, long press “ ” key for 3 second to unlock.
Refrigerating close function
Under unlock status, long press “ ” key for 3 seconds until the temperature icon switches to refrigerator
compartment, press “ ” key to adjust temperature for refrigerator compartment. Stop key
operation and wait for 5 seconds when the shift of refrigerator compartment is at "OF" to enter refrigerating
close function. Refrigerating close function exits when the shift of refrigerator compartment is not at "OF".
Attention: take the food out of refrigerator compartment before the refrigerating close function is on.)
(Setting other functions under refrigerating close status can automatically exit refrigerating close function.
Power-o f memory
When the power is cut o f, the instantaneous working state of blackout will be locked and resume the state
after power on.
Door alarm
When the refrigerator or freezer door is not well closed or open for over 1 minute, the buzzer siren will send o f
sound. Press down any key to stop alarming and the siren sounds “beep, beep, beep” again after I minute;
close refrigerator or freezer door to stop alarming.
Freezer compartment temperature reminder
When the temperature of freezer compartment is higher than -12℃, the corresponding temperature area
The refrigerator compartment enters close status when the “Refrigerating close” function is on.
is lit, the digital area flashes. Press down any key to display temperature of freezer compartment when the
power is on, press again or wait for 10 seconds to restore normal display state.
Display protection function
Function
Function
The refrigerator will enter display protection function without any key operation for 30 seconds, and the key board is
locked automatically. Under display protection mode, press any key to exit display protection function.
f
f
f
f

11
Operation keys

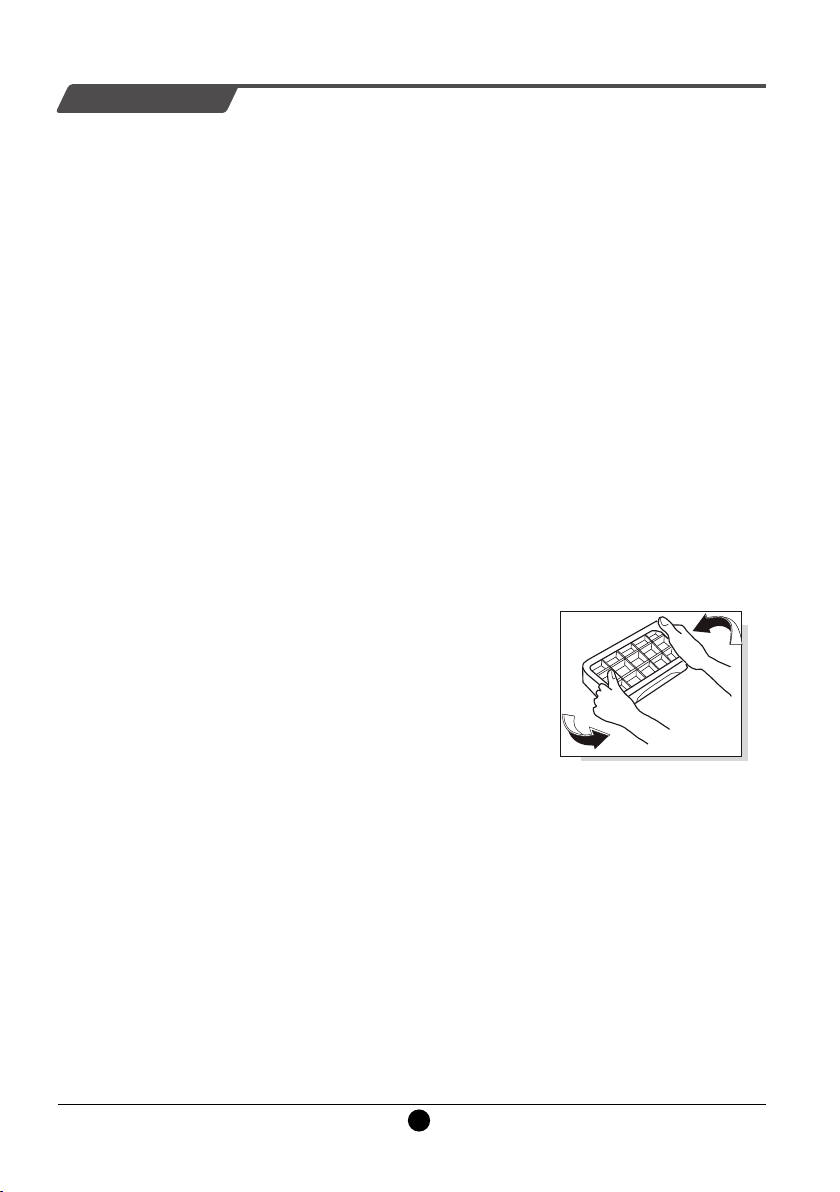

Ice-making (If the appliance has it)
Fill the ice-making box with 4/5 water and put the box into the
freezing chamber. After the water in the box turns into ice, twist
the box slightly to separate the ice from the box. However, don't
bend the box. When separating the ice, wrap the box with dry
box to avoid finger frostbite.
Foods storage
Refrigerating chamber (2℃~8℃)
--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled
drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to
prevent the back from frosting and the power from increasing.
Freezing chamber (-22℃~-15℃)
--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags
separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing
chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.
★★ Warm tips:
The stored food, if any, shall not block the air duct outlet and return port for fear of a fecting the
refrigerating e fect.
Before being stored in the refrigerator, the overheated water and food shall be cooled to the room
temperature.
f
f

12
Disassembly and assembly method of accessory
--Glass shelf in the refrigerating chamber: the height of the shelf is
adjustable, which facilitates the storage of articles with different
volumes. Pull the shelf outwardly and upwardly in a slight way to
take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can
be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for
long-term, such as meat and fish. It can be taken out by pulling
outwardly and lifting upwardly.
Kindly tips: It is recommended to put into the large piece of meat
after being cut into small pieces, to avoid difficult cutting after being
frozen. The quick-freezing foods shall be distributed uniformly and
stored together after being frozen.
--Bottle pedestal at the refrigerating door: storing eggs, various
bottled drinks and other sundries. It can be taken out by being lifted
up slightly.
Note: Don't pull out the bottle pedestal at the refrigerating door
forcibly during disassembly, to avoid damaging the refrigerator.
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe o f
the oil contamination and other dirt. Then completely wipe o f the
detergent.
--Do not use alkaline detergent, soap powder, gasoline and
alcohol, talcum powder etc.; otherwise the coats or plastics may
be damaged;
--Regularly clean the refrigerator body and clear the ground dusts
to keep the refrigerator clean.
Inspections after maintenance:
1. Whether there are damages to the power line and plug; 2.
Whether there are dusts on the power plug; 3. Whether there is
abnormal heat on the plug; 4. Whether the socket is loose; 5.
Whether the plug is totally inserted.
Note:
If the power line and plug is damaged and there exist dusts,
electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before re-plugging
it;
Do not put your hands under the refrigerator to avoid getting hurt.
Care and maintenance
Take out by pulling upwardly
and outwardly in a slight way
Unplug the refrigerator
plug before cleaning
Take out by pulling outwardly
and upwardly in a slight way
Please use neutral
detergent
Neut ral det ergent
Operation keys
f
f

Failure analysis
13
The following items shall be inspected before occurring failures which require maintenance:
Failures:Refrigerator does not work,The refrigeration effect is poor
Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to
direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation
space around refrigerator.
Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight
and heat source. 3. Leave sufficient space between refrigerator and wall.
Failures:Foods in refrigerating chamber are frozen
Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too
much water are too close to the rear wall.
Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the
door side of glass shelf
Failures:There is abnormal sound in refrigerator
Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is
too close to the wall. 3. Check whether the refrigerator touches other objects.
Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space
around refrigerator. 3. Remove the obstacles.
Failures:There is abnormal odor in refrigerator
Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is
clean. 3. Check whether the foods are stored for too long time.
Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3.Do not store foods
for too long time.
Non-failures
Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating
chamber and freezing chamber.
Cause:Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator
for heat dissipation and to prevent from condensation.
Phenomenon:The door is too tight and not easy to open
Cause:Reopening of the door immediately after closing it is hard because hot air enters the
refrigerator and contracts to produce pressure di ference. It is easy to open the door after a while.
Phenomenon:There is water ripple in refrigerator
Cause:When starting or stopping the compressor, the refrigerant will make such sound;
Water produced after defrosting will also make such sound.
Phenomenon:There is “Click” sound or tick sound in refrigerator
Cause:Shrinkage and swelling of case will make such sound;When the case is cold or the door is
opened, this sound will occur;Phenomenon:There is hum sound in refrigerator
Cause:Running of compressor will make such sound (if the refrigerator is not leveled, this sound
will be louder)
Phenomenon:There is condensation or frosting freezing chamber door surface or food
surface
Cause:Temperature or humidity around the refrigerator is high;The door is opened for too long
time;The foods with too much water are not sealed or tightly wrapped
Phenomenon:There is condensation on the built-in light surface
Cause:Light will produce heat after being lit, and the door is opened for too long time. So there is
temperature di ference, and thus the light case will have condensation.
Phenomenon:There is condensation and water mist on body
Cause:Humidity around refrigerator is high, and the moisture in the air will gather in the case to
form condensation
f
f

Technical prameter
Technical parameter
14
Model
Climate type
Electric shock resistance
Star sign
Power type
Rated current
Annual enegy consumption
Lamp power
Weight
Refrigerant and charge amount
Noise Volume
P650SBN1
SN/N/ST/T
I
600L
180L
6W
1.2A
R600a,84g
220-240V〜/50/60Hz
511kW•h/year
95kg
42dB(A)
Total Storage Volume
Total Gross Volume 663L
Dimension
920x735x1768mm
Storage Volume of Freezer
Packing list
Refrigerating shelf
Fruit and vegetable box
Egg box
Annex
Fruit and vegetable box cover
Refrigerating door bottle bracket
3
1
1
2
Operating instruction
Model
4
2
4
Freezing drawer
Freezer door bottle bracket
2
P650SBN1
Freezing shelf
5
Ice-making box
1
26L
Storage Volume of two stars Freezer
