TCL 50FS4690 User manual
Need assistance?
visit our website at www.tclusa.com
or call 1-877-300-8837 (for mainland 48 States),
or 1-877-800-1269 (for AK, HI, and Puerto Rico).
User’s Guide
For use with models: 48FS4690 / 50FS4690
Figures and illustrations in this User’s Guide are
provided for reference only and may dier from
actual product appearance. Product design and
specications may be changed without notice.
1
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very low-
power standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone__________________________
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the product.
This symbol indicates that this product
incorporates double insulation between hazardous
main voltage and user accessible parts. When
servicing, use only identical replacement parts.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Important Information
WARNING The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
WARNING
The TV is unstable if it is not properly attached to the
base or mounted to the wall. Please follow the base
or wall mounting instructions provided in the User’s
Guide to ensure your safety.
2
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the point
where it exits from the component.
7. Do not use this apparatus near water.
8. Only use the attachments/accessories specied by the manufacturer.
9. Clean only with dry cloth.
10. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
component. When the TV is placed on a cart, use caution when moving the cart to avoid injury from tip-
over.
11. Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was
place within the table surface in horizontal.
12. Unplug this component during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Service is required when the component is damaged
in any way, such as power supply cord or plug damage, liquid spilled on or objects falling onto the
component, rain or moisture exposure, abnormal operation, or if the component has been dropped.
14. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1)
provides information with respect to proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. See following
example:
ANTENNA LEAD IN WIRE
GROUND CLAMP
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PARTH)
ELECTRIC SERVICE
EQUIPMENT
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART
250, PARTH)
3
Table of Contents
Important Information ................................ 1
Important Safety Instructions ..................... 2
Chapter 1 - Connections and Setup
Before Initial Setup .................................... 4
Check Supplied Parts ................................ 4

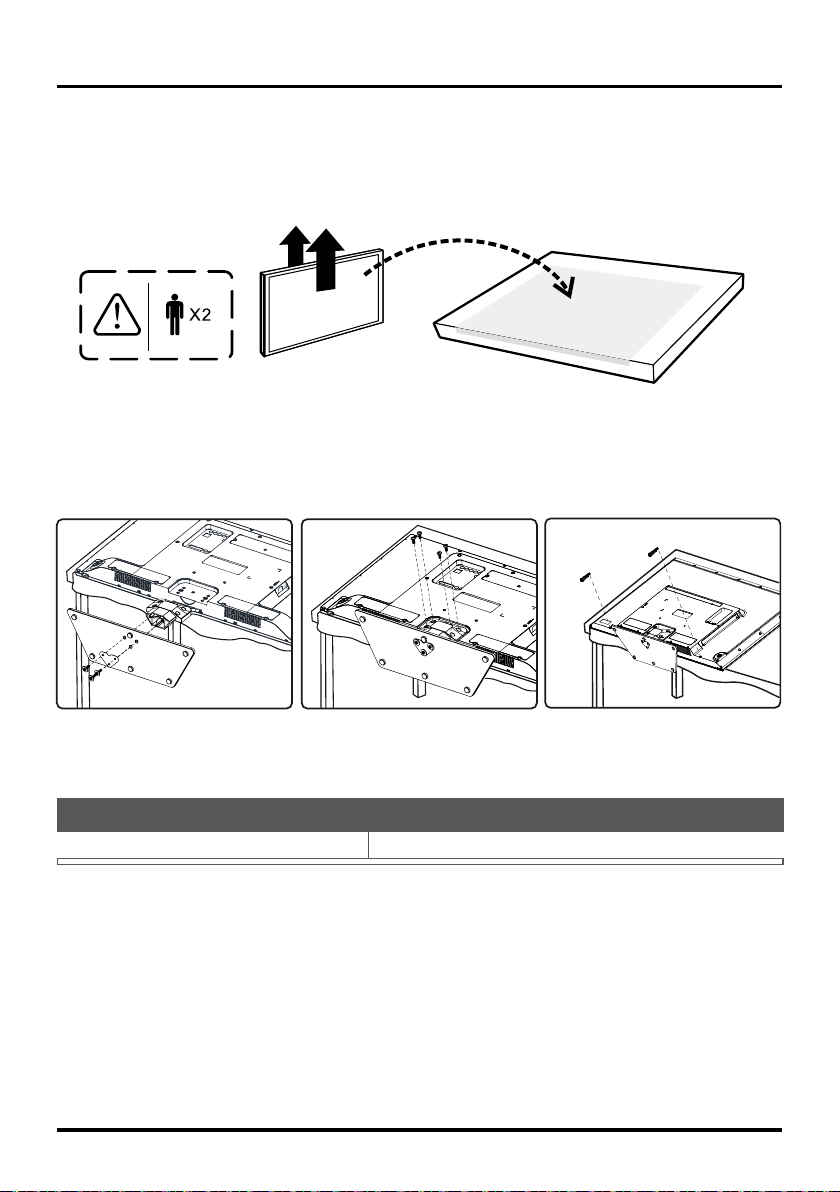

Attaching Your TV to the Base Stand ........ 5
Mounting Your TV to the Wall .................... 5

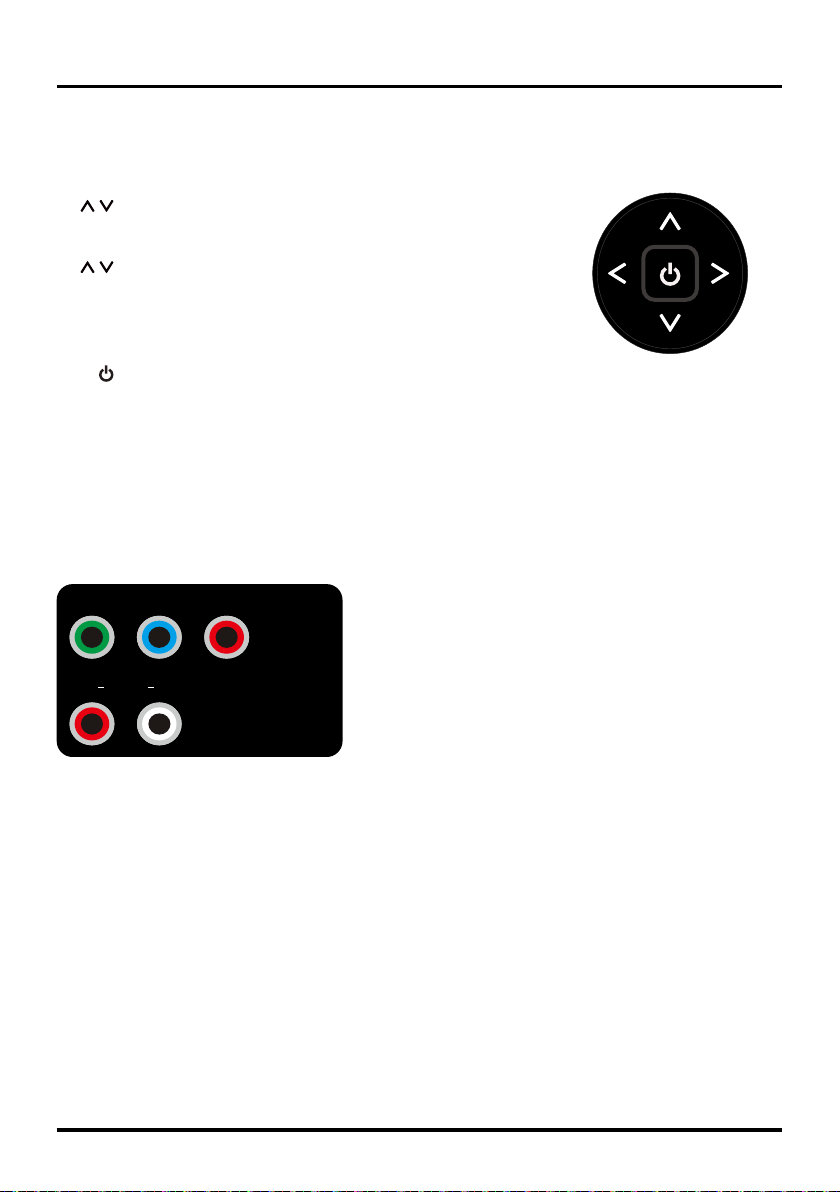

Buttons on TV ............................................ 6
Explanation of Jacks on TV ....................... 6

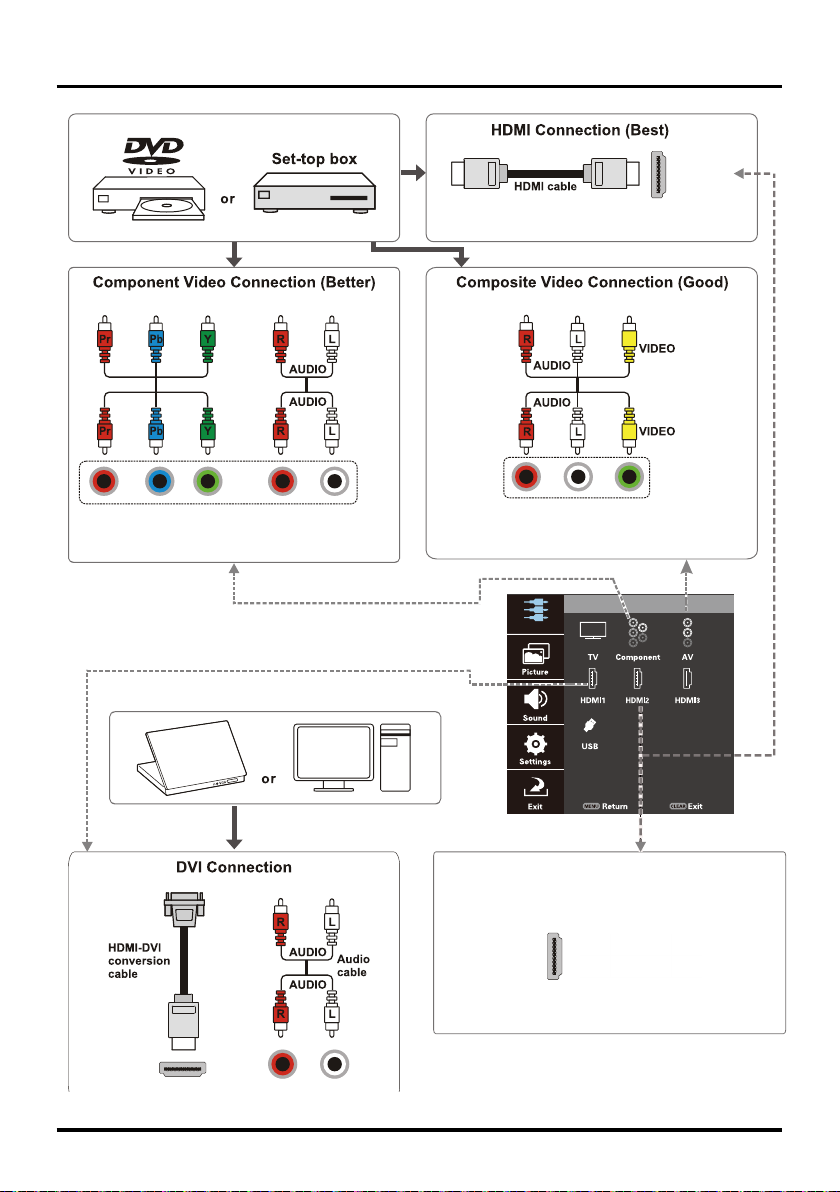

Choose Your Connections ......................... 7

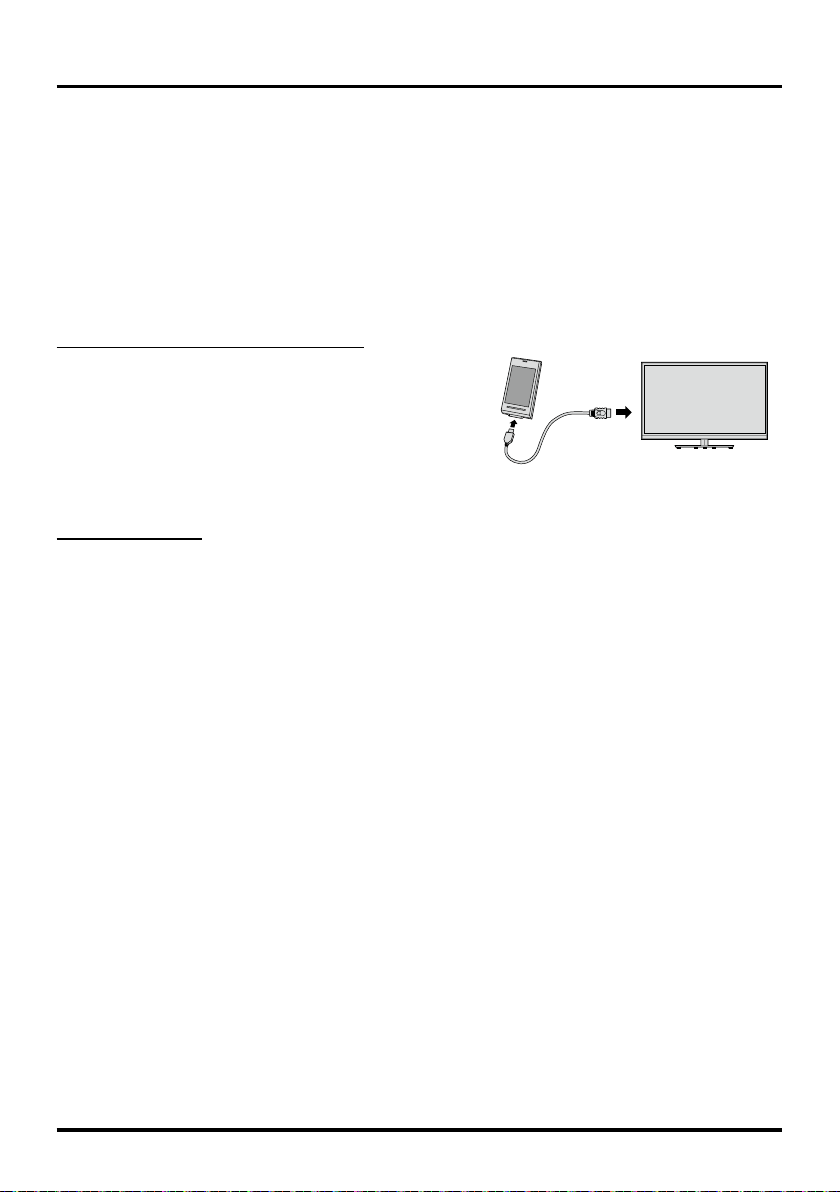

MHL Function ............................................ 9

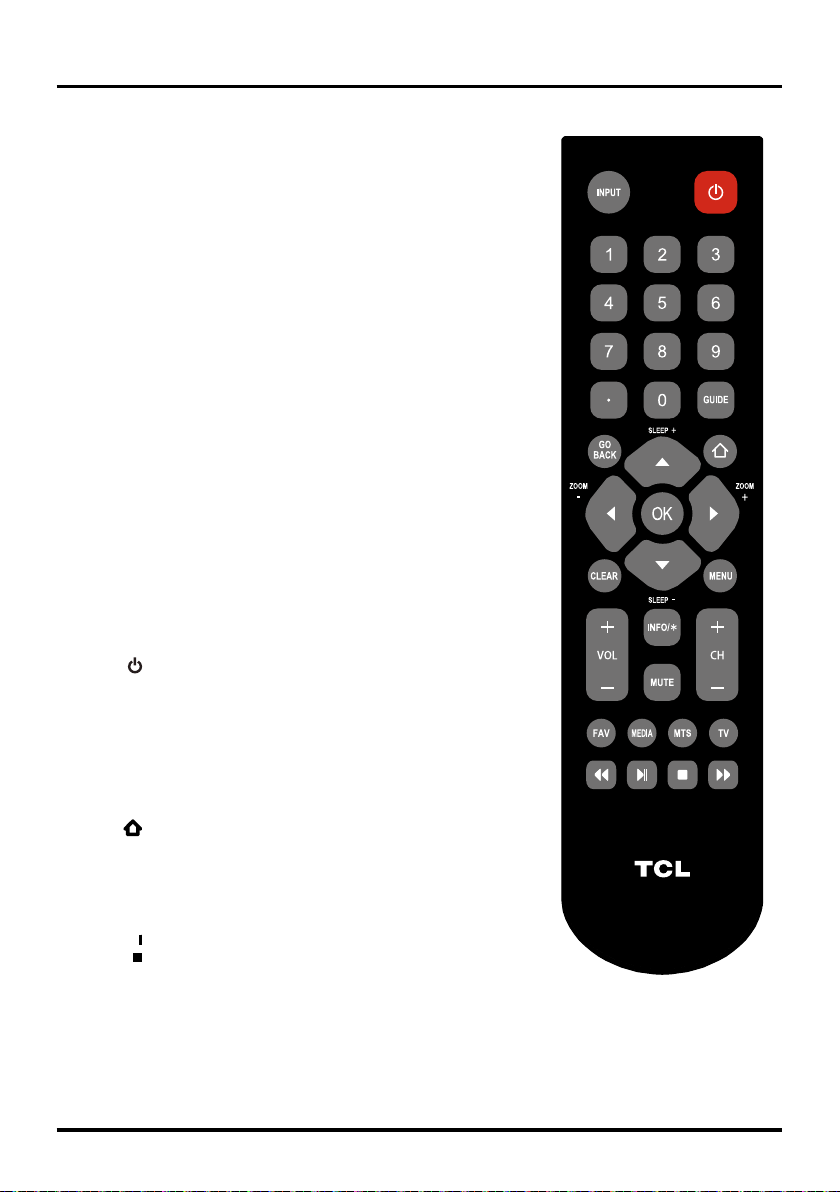

Remote Control Functions ....................... 10
Obtain the Signal ......................................11
Switching On ............................................11
Switching Off ............................................11
Setup Wizard ........................................... 12
Chapter 2 - Menu Operation
Menu Display ........................................... 13
Using Menu System ................................ 14
Input Menu............................................... 14
Picture Menu ........................................... 14
Picture Mode.................................................14
Brightness ..................................................... 14
Contrast ........................................................ 14
Saturation ..................................................... 14
Sharpness.....................................................14
Tint ................................................................14
Color Mode ................................................... 14
Back Light ..................................................... 14
Dynamic Backlight ........................................ 14
Dynamic Light Sensor...................................14
Advanced Settings ........................................ 14
Sound Menu ............................................ 15
Equalizer ....................................................... 15
Speaker ........................................................ 15
SPDIF Type .................................................. 15
Smart Volume ............................................... 15
MTS .............................................................. 15
Audio Language ...........................................15
Setting Menu ........................................... 15
Language ...................................................... 15
Channel ........................................................ 15
Closed Caption ............................................. 16
Parental Control ............................................ 17
Time Setting ................................................. 18
Software Info. ...............................................18
Location. ...................................................... 18
Keypad Display. ...........................................18
Restore to Default ........................................ 19
USB Menu ............................................... 19
Chapter 3 - Other Information
Frequently Asked Questions (FAQs) ....... 20
Troubleshooting ....................................... 21
Care and Cleaning................................... 23
Television Specications.......................... 23
Limited Warranty ..................................... 24
Legal Statement of TCL ........................... 26
4
Chapter 1 Connections and Setup
Before Initial Setup
Protect Against Power Surges
• Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions.
Safety Information
• Prevent TV from overheating with a good ventilation area.
• Don’t block ventilation holes on any of this TV. Arrange the TV so air can circulate freely.
• Don’t stack object onto this TV.
• If you place the TV on a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier to the TV, place it on the top shelf so the heated air won’t
harm the TV.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• Route all cables down one side of the back of the TV instead of straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
• 1 Remote Control and 3 AAA Batteries
• User’s Guide
• Quick Start Guide
• Parts for Base Stand Assembly:
• Base Stand
• (M5 x 12) Screw x 4, (ST5 x 14) Screw x 3
• 100N Support Bracket 2pc
Replacing your remote
If you need to replace your remote, visit www.tclusa.com. A shipping and handling fee, and the appropriate sales tax, will be charged
upon ordering. Have your Visa or MasterCard ready.
