TCL L28E3500 User manual

TCL
SERVICE MANUAL
L28E3500MS82MT-LA
1. CautionĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ2
2. Specification ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ6
3. Alignment ProcedureĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ7
4. Block Diagram ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ2
5. Scheme DiagramĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ 2
6. PCB Layout ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ27
7. Trouble ShootingĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
8. Explode DiagramĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ35
9ˊBOM ListĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ36
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product


CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INSIDE . RE FER SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION


1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.

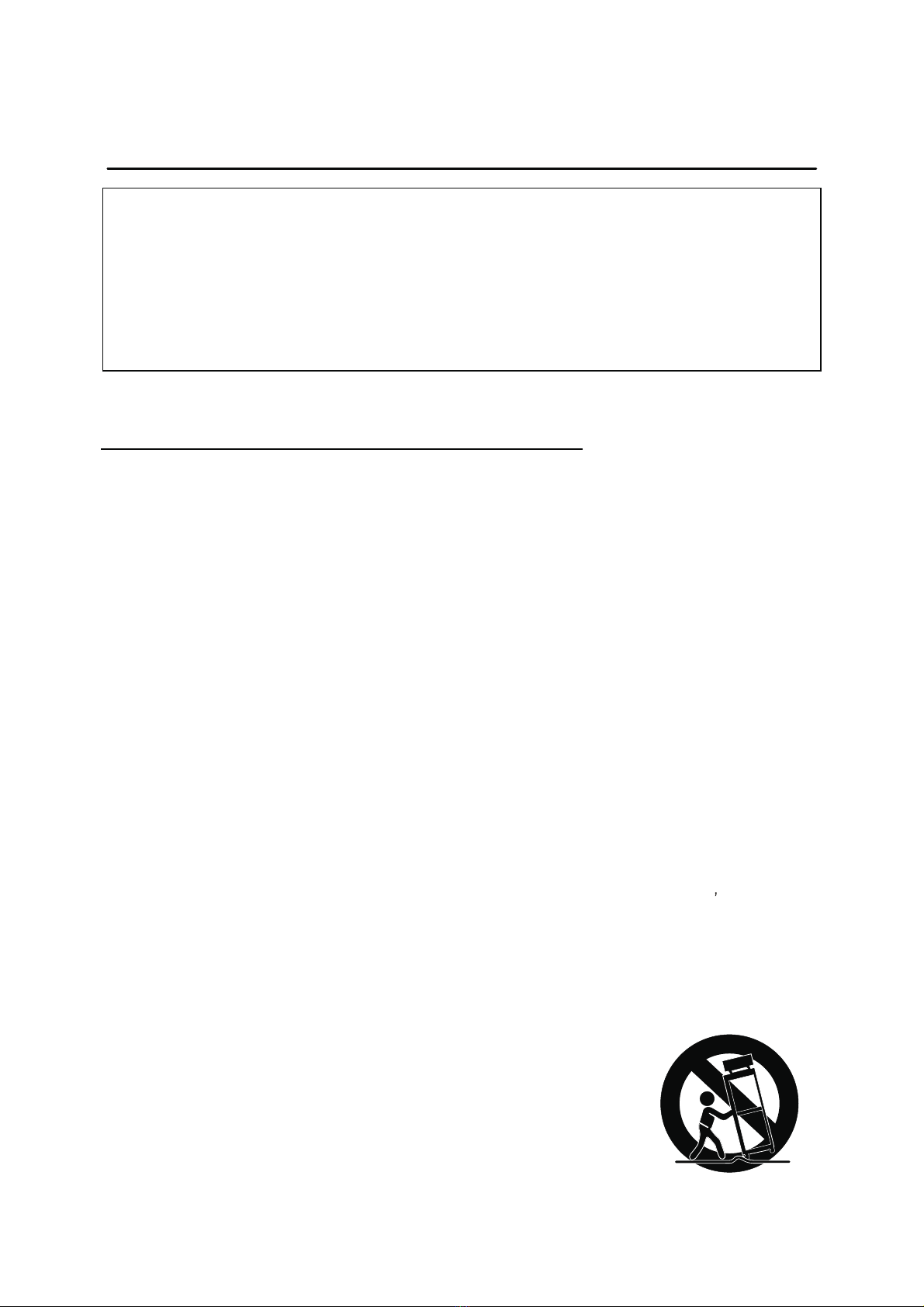

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

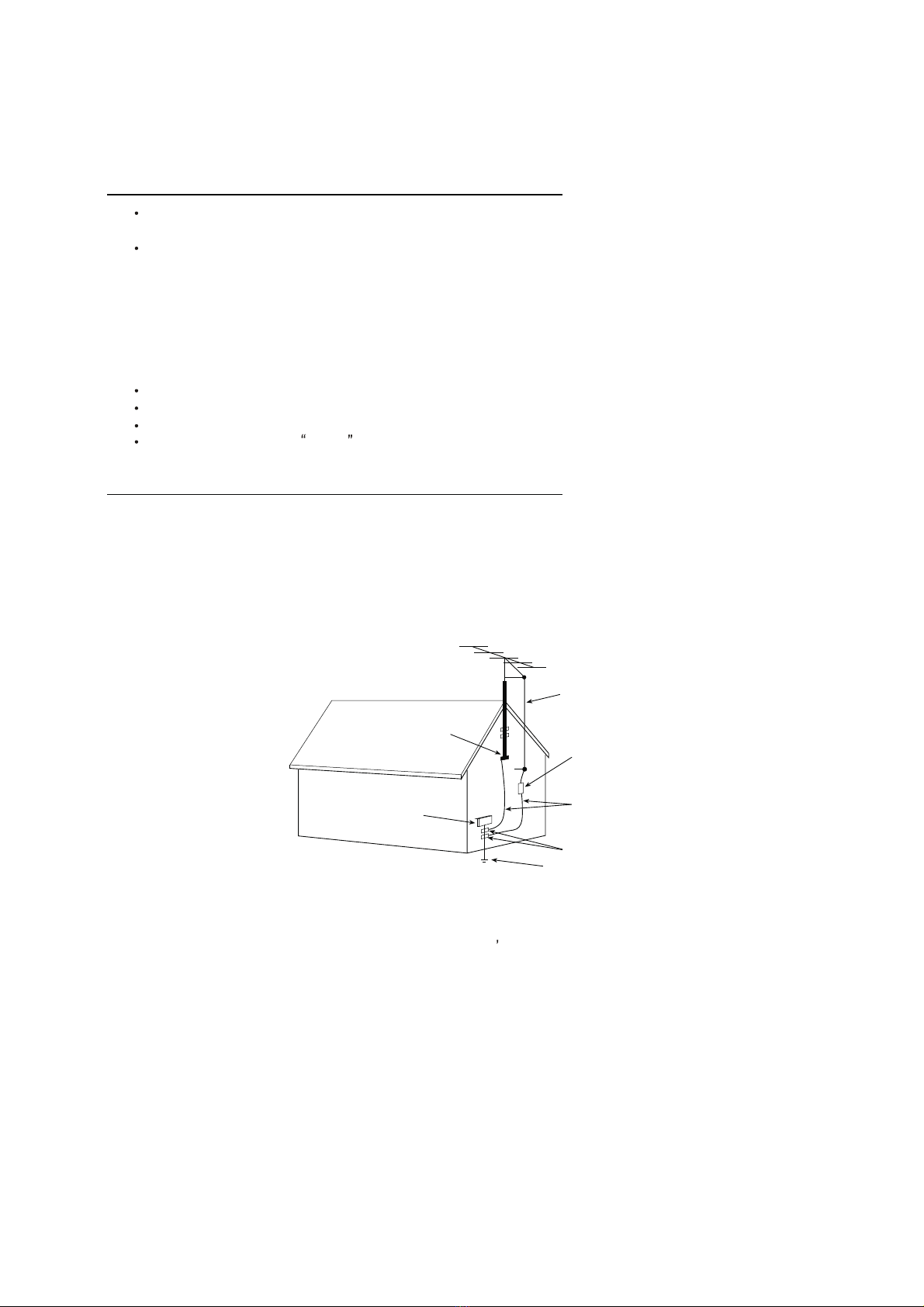

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restorenormal operation by followingthe detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required,be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

EM BUSINESS CENTER
FTV PRODUCT MANAGEMENT DEPT.
SPECIFICATION RELEASE
Version: V2.1 Issued Date: 2013.03.27
Model:L28E3500/MS82MT-LA
Category LCD TV
Naturalight Technology Yes (Natural Light Engine ‖)
Dynamic Contrast Yes
Color Temperature Warm / Normal / Cold
Backlight Adjustable Yes SIGNAL FORMAT CAPABILITY
Scale Mode Zoom,Expand,Original,Natural Component Video Format Y,PB/CB,PR/CR:up to 1080P
Picture Effect Standard, Bright, Soft, Personal DVI Video Format Up to XGA for HDMI-PC
Film Mode (3:2 pull down) AUTO HDMI Video Format up to 1080P
VGA Dot to Dot Display Yes (Natural) PC Compatibility Up to SXGA
Light Sensor
--
TERMINALS
Light Senso
r
--
TERMINALS
AV1 Input (Composite) Audio/CVBS---R/L+ Video in side
AV2 Input (Composite) Video Share with Y
Picture Enhancement and Audio share with YPBPRAudio
Comb Filter 3D YPBPRInput 1---in side
Adaptive Deinterlacing 3D Audio Input for YPBPR1---in side
Blue Stretch Yes YCBCRInput Share with "YPBPR"
Black Stretch Yes Audio Input for YCBCRShare with Audio for "YPBPR"
Motion Compensation Yes VGA(PC) Input 1 (D-Sub,15 Pins)---in side
DLTI Yes Audio Input for VGA(PC) Share with Audio for "YPBPR"
p()
DCTI Yes HDMI 1 (HDMI1) ---in side
Dynamic Skin Correction Yes CVBS Output (Composite) 1 RCA Video Socket ---in side
PANEL SPECIFICATION SPDIF Output 1 (coaxial digital audio output)---in side
Back light Unit LED Headphone Output --
Panel supplier CSOT RF Input(Antenna) 1 (F Type)---in side
Aspect Ratio 16:9 USB 1（Standard）---in side
Panel Size (inch) 27.5" BASIC INFO.
Display Resolution 1366*768 TV System NTSC-M;PAL-M;PAL-N
Brightness (cd/m2) 240 AV System PAL,NTSC
Contrast Ratio 3000:1 Channels Cable 125 (1～125) , Antenna 68 (2～69)
Response Time Tr/Tf 6.5ms Chassis MS82MT-LA
Viewing Angle (H/V) 178°/178° Certification CB
Life Time 30,000hrs Power Supply AC 100V-240V 50/60Hz
Color 16.7M Power Consumption-TV on 35W
SOUND Power Consumption-Standby ≤1W
Speakers Integrated speakers (Bottom side) Default Color of Front Cabinet Black
Audio Power Output 2×2.5W Keyboard Position Back
Woofer Power Output -- Base Stand Detachable Yes
Smart Volume
Yes
PACKAGE INFO
Smart
Volume
Yes
PACKAGE
INFO
.
Sound Effect Stereo, Music, Movie, News,Personal Unpackaged Dimension for Main Body (L*H*D) (mm)
Sound Control Balance, Sound EQ Adjust; With Base Stand (mm) 657.7x450.4x175
Sound Features MTS（BTSC）Without Base Stand (mm) 657.7x409.9x69.7
Scene Selecting（DeskTop mode and HangUp mode）Packaged Dimension (L*H*D)
FUNCTION Main Body (mm) 718X490X128
OSD Language English/Spanish/Portuguese Speaker Box
OSD Features Motion Bmp Style Base Stand
Source in OSD Source Bmp Icon Selecting Net Weight (Kg) 4.5
CC (Closed Caption) Yes (CC1~CC4,Text1~Text4; Gross Weight (Kg) 5.5
CC
(Closed
Caption)
Yes
(CC1 CC4,Text1 Text4;
Gross
Weight
(Kg)
5.5
CC OFF,CC ON,CC On Mute,) Container Loading
Clock/Sleep Timers Yes 20 feet 693
Wake up/Turn off time Yes 40 feet 1408
Wake up Source/Chanel Yes 40 feet high 1557
Watch Time Limit Yes ACCESSORIES
Startup Setting Yes(User can set a picture for turning on Logo display) Operation Manual English(Default)
Smart Switch Yes(Signal Auto Detecting and Changing Source) Remote Control For TV control (with two batteries)
Picture Freeze Yes Base Stand Integrated Packaging
DNR（Dynamic Noise Reduction）Off、Low、Middle、High Speaker Box Integrated
Hotel Menu In factory mode Wall Mount WMB233（Optional）
USB Connection Movie：Support H.264、RM/RMVB、XVID、FLV Others AV Adapter cable
DivX、MPEG2、MPEG4、VC1
Photo: Support JPEG、BMP、PNG；Drafted by:
Music: support MP3、WMA、M4A；
Design and specifications are subject to change without notice! Checked by:
App
roved b
y
:

TCL Multimedia Technology Holdings Ltd.
R&D Center
Alignment Procedure
MS82MT-AP/LA Chassis
Version: 1.0
Release Date: 2013-03-26
PREPARED BY: Kangwei DATE: 2013-03-26
APPROVEDBY: DATE:

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
2
Content
1. General Description 3
2. Factory Menu 3
2.1 Way of accessing 3
2.2FactoryMenu 4
2.3 ADC calibration menu 5
2.4 White Balance adjustment 6
3. Design Menu 7
3.1wayofaccessing 7
3.2 SHOP Menu 8
3.3 Other Menu 9
3.4 Service Menu 10
3.5 PARAM SETTING MENU 11
3.6 Hotel Menu 12
4.Stepsofdebugging 13
4.1 Device 13
4.2stepsofdebugging 13
4.3ADCcalibration 13
4.4WhiteBalanceadjustment 14
4.5WhiteBalanceadjustment(automatically) 16
5.ChiplistofsoftwareprogrammingbeforeSMT 16
6.Appendix 17
6.1 Software upgrading through USB 17
6.2 Check software version, release date and Project ID 18
6.3FAQ 20
History Description of major changes Release
Date
V1.0 2013-03-26
Chassis Model
FHD MS82MT-AP/LA L28E3500 etc

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
3
1. General Description
MS82MT-AP/LA is our latest design especially for LCDTV products selling in Asia
Pacific (AP) and Latin America (LA) market. It features by its high integration,
easy debugging as well as convenience in terms of maintenance. Fast software
upgrade through USB disk facilitates both manufacture and after-sale service.
Meantime, a variety of functions involved in Factory Main Menu can not only
bring benefits for production, but also satisfy various demands of customer.
Note: Factory Main Menu (FMM) is divided into Factory Menu, Design Menu, Service
Menu and Hotel Menu. Factory Menu covers all indispensable functions during
manufacture such as White Balance Adjustment, ADC Calibration, USB Upgrading e.g.,
while the items under Design Menu is exclusively used by R&D engineer, anyone else
shouldn’t change the settings in the menu. When you wish to learn the product
information like project ID, model name, chassis name, software version, release date,
you can access to Service Menu. In addition, in Hotel Menu, we also provide a great
deal of useful functions for specific applications in hotel.
2.1 Accessing way:
a. In the first place, press Menu button of
remote
control, then select Contrast item of Picture
submenu. Finally, press 9, 7, 3, 5 consecutively.
b. When the FAC HOTKEY item of Factory Menu
is enabled (ON), press Return button of remote
control.
2. Factory Menu

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
4
2.2 Factory Menu
Factory Menu
Name Default Description Status
FAC
HOTKEY OFF Factory Menu shortcut button switch
The item must be disabled (OFF) after production
OK
WARM-
UP OFF OFF: Normal mode. Display blue screen when no signal. Turn to automatically standby mode if keep the signal unavailable over
15 minutes.
ON: Aging mode. Display snow dot when no signal. The set will not
turn to standby even if the unavailability of signal;press
‘function’key to exit warm-up mode.
OK
ADC >> ADC calibration ( see details below) OK
WHITE
BALANCE >> White Balance Adjustment ( see details below) OK
SHOP DO It is crucial that the function is executed after production aim to clear
information of production process, ensure user cannot access to
Factory Menu after executing the item.
OK
NVM RESET DO Restore default value except WB and ADC data. OK
SET FAC CH DO Preset the channel table of factory. Option: HZ, WX, EGYPT-EL,
ALGERIA e.g. To preset the channel table of certain factory, firstly,
choose the corresponding factory name, then press OK button of
remote control and wait until the disappearance of Factory Menu,
OK
Power On
Mode LAST/STB ON: the set will power on after switching on power.
STB: the set will remain standby status after switching on power.
Last: the set will turn to the status in which it lies when last switching
off.
If without requirement from certain customer,
by default, the Setting should be Last for MS82S-AP and STB for
MS82S-LA
OK
USB
UPDATE Upgrade software. Please see details below. OK
SW NO. OFF Version information of Main Software OK
Project
Name Product model OK
SIACP
Version Serial port remote control protocol OK
Date Release date and time of main software OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
5
2.3 ADC calibration menu
ADC Menu
Press the button in remote control to select certain
item and to change the value of ADC data or start
ADC calibration.
Notes:
1. Only YPBPR and RGB source should be calibrated.
ADC Calibration menu
Name Default Description Status
SOURCE Select the source you intend to ADC Calibrate.
Only YPBPR and RGB are available.
OK
R GAIN 4096 Gain of R channel ( cannot be changed after auto calibration) OK
G GAIN 4096 Gain of G channel ( cannot be changed after auto calibration) OK
B GAIN 4096 Gain of B channel ( cannot be changed after auto calibration) OK
R OFFSET 0 Offset of R channel ( cannot be changed after auto calibration) OK
B OFFSET 0 Offset of B channel ( cannot be changed after auto calibration) OK
G OFFSET 0 Offset of G channel ( cannot be changed after auto calibration) OK
AUTO ADC DO Select and execute the item, ADC Calibration starts. It indicates
a successful calibration if prompt “OK” is displayed.
Otherwise, It is a failing calibration (“FAIL” is displayed).
OK
ADC
STATUS Show the ADC status of YPbPr/RGB Channel. SUCCESS will be display if YPbPr/RGB Channel has been correctly calibrated.
Otherwise FAIL will be displayed
OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
6
2.4 White Balance Adjustment menu
White Balance menu
Press the button in remote control to select
certain item and to adjust White Balance
White Balance Adjustment menu
Name Default Description Status
Source PC Select the source you intend to apply WB adjustment.
Only HDMI1, AV1, YPBPR, PC and should be adjusted.
OK
COLOR
TEMPERATURE
Cool Select color temperature you intend to adjust Three groups of
color temperature: Normal, Warm, Cool are available for each
source.
OK
R GAIN -2 Gain of R channel ( cannot be changed after auto calibration) OK
G GAIN 0 Gain of G channel ( cannot be changed after auto calibration) OK
B GAIN +9 Gain of B channel ( cannot be changed after auto calibration) OK
R OFFSET +6 Offset of R channel ( cannot be changed after auto calibration) OK
G OFFSET 0 Offset of G channel ( cannot be changed after auto calibration) OK
B OFFSET -2 Offset of B channel ( cannot be changed after auto calibration) OK
WB INIT White Balance Initalization. Before WB adjustment, this item should
be executed. OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
7

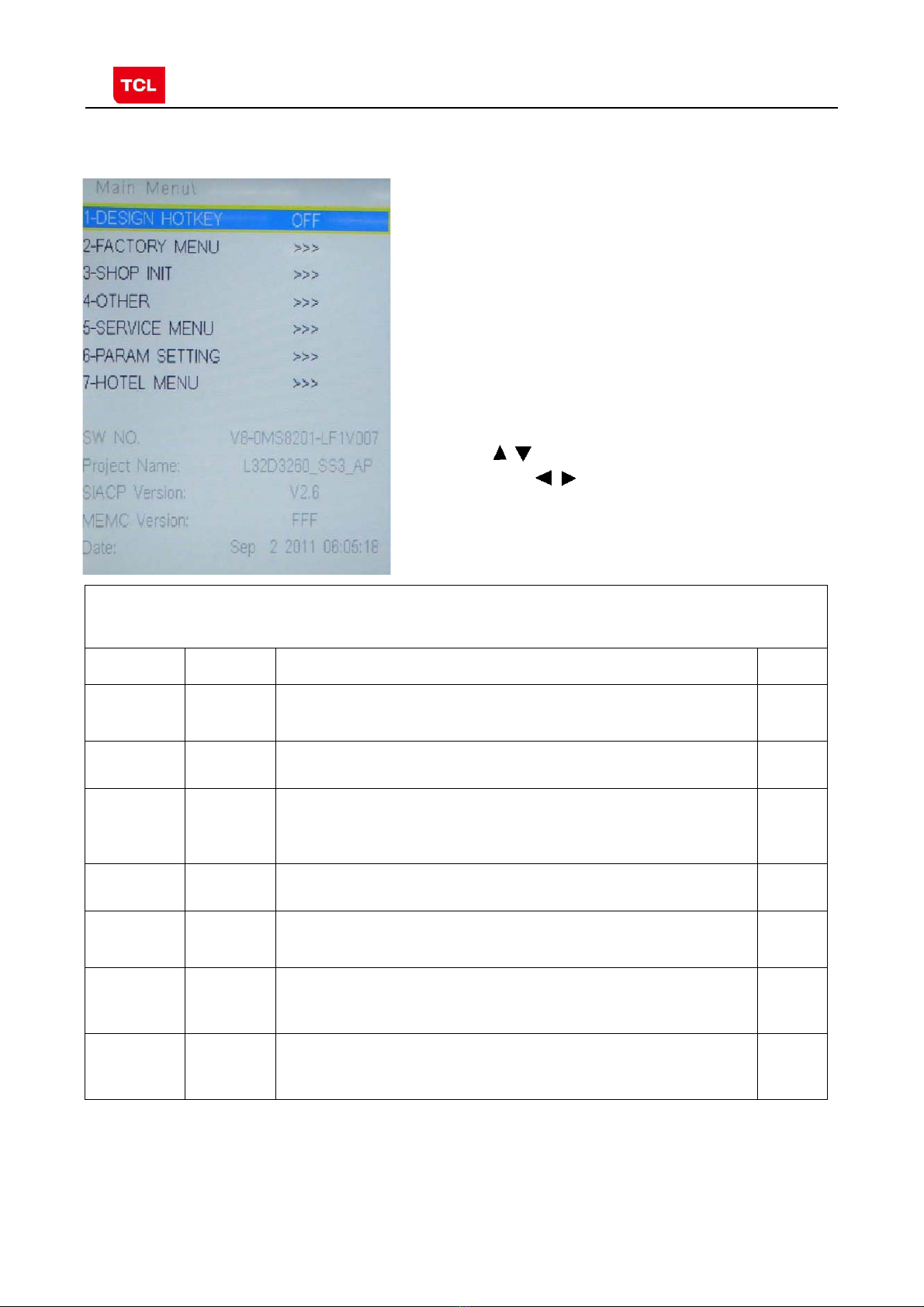

3 Factory Main Menu
3.2 SHOP MENU
Main Menu
Name Default Description Status
DESIGN
HOTKEY OFF Design Menu shortcut button switch
The item must be disabled (OFF) after production
OK
FACTORY
MENU >>> Access to Factory Menu OK
SHOP
INIT
>>> Contain many options which can be chosen according to the
requirements of customers as default settings when leave factory.
See details below.
OK
OTHER >>> The item includes a number of functions offering convenience for
R&D engineer to solve problems. It is exclusively used by R&D. OK
SERVICE
MENU >>> Provide many useful information for aftersale service
Please reference to SERVICE MENU submenu
OK
PARAM
SETTING >>> Include volume, brightness, contrast, saturation, hue, sharpness,
backlight, volume, overscan Adjustment etc. Please reference to
PARAM SETTING submenu.
OK
HOTEL
MENU >>> Include special functions which bring benefits to hotel management.
The item is accessible only when HOTEL ENABLE item is enabled
(ON).
OK
3.1 Accessing way:
1. In the first place, press Menu button of
remote control, then select Contrast item
of Picture submenu. Finally, press 1, 9, 5, 0
consecutively.
2. When the DESIGN HOTKEY item of Design
Menu is enabled (ON), press Return button of
remote control.
Press the button in remote control to select
certain item and to toggle among or execute the
available options.

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
8
3.3 Other Menu
Contain many options which can be chosen according
to the requirements of customers as default settings
when leave factory. Press the button in remote
control to select certain item and to toggle
among the available options..
SHOP MENU
Name Default Description Status
VOLUME 30 Volume setting, 0~100 adjustable OK
PIC MODE STANDARD Picture mode. Options:
BRIGHT, SOFT, PERSONAL,STANDARD
OK
SOUND
MODE STEREO Sound effects. Options:
STAREO MISIC, MOVIE, NEWS
OK
CH NUMBER 199 Maximum number of accessible channel NG
OSD
LANGUAGE
ENGLISH AP: English, French, Vietnamese, Russian, Arabic, Farsi, Hebrew,
Thai, Portuguese, Mongolian, LA: English, Portuguese, Spanish OK
Preset CH 0 Preset channel. 0~199 optional OK
COLOR
TEMP NORMAL Color temperature. Option: NORMAL, WARM, COOL OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
9
Other Menu
Name Default Description Status
VIF1 Exclusively used by R&D. OK
VIF2 Exclusively used by R&D. OK
VIF3 Exclusively used by R&D. OK
QMAP
ADJUST Exclusively used by R&D. OK
SSC Spectrum Spread Control.
Exclusively used by R&D.
OK
DBC
ENABLE Dynamic Backlight Enable
Exclusively used by R&D.
OK
BP Parameter of DBC
Exclusively used by R&D.
OK
CP Parameter of DBC
Exclusively used by R&D.
OK
DBC MODE DBC Mode. Exclusively used by R&D. OK
MU0 DQS0 Manually adjust DQS1 phase of DDR2
Exclusively used by R&D
OK
MU1 DQS1 Manually adjust DQS1 phase of DDR1
Exclusively used by R&D
OK
Press the button in remote control to select
certain item and to toggle among the available
options..

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
10
TTX ON ON: enable teletext OFF: Disable teletext OK
3.4 SERVICE MENU
Press the button in remote control to select certain
item and to toggle among the available options..
SERVICE MENU (Product Info)
Name Default Description Status
SW NO. Software virtual code of Main Software OK
DATE Release date, time OK
Project Name Model of product OK
SIACP
Version Serial port remote control protocol OK
Chassis MS82S-AP/MS82S-LA Chassis name OK
PANEL NAME Panel code OK
PROJECT ID Select project parameters through project ID. OK
USB UPDATE USB upgrade. OK
HOTEL
ENABLE Switch of Hotel Menu. OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
11

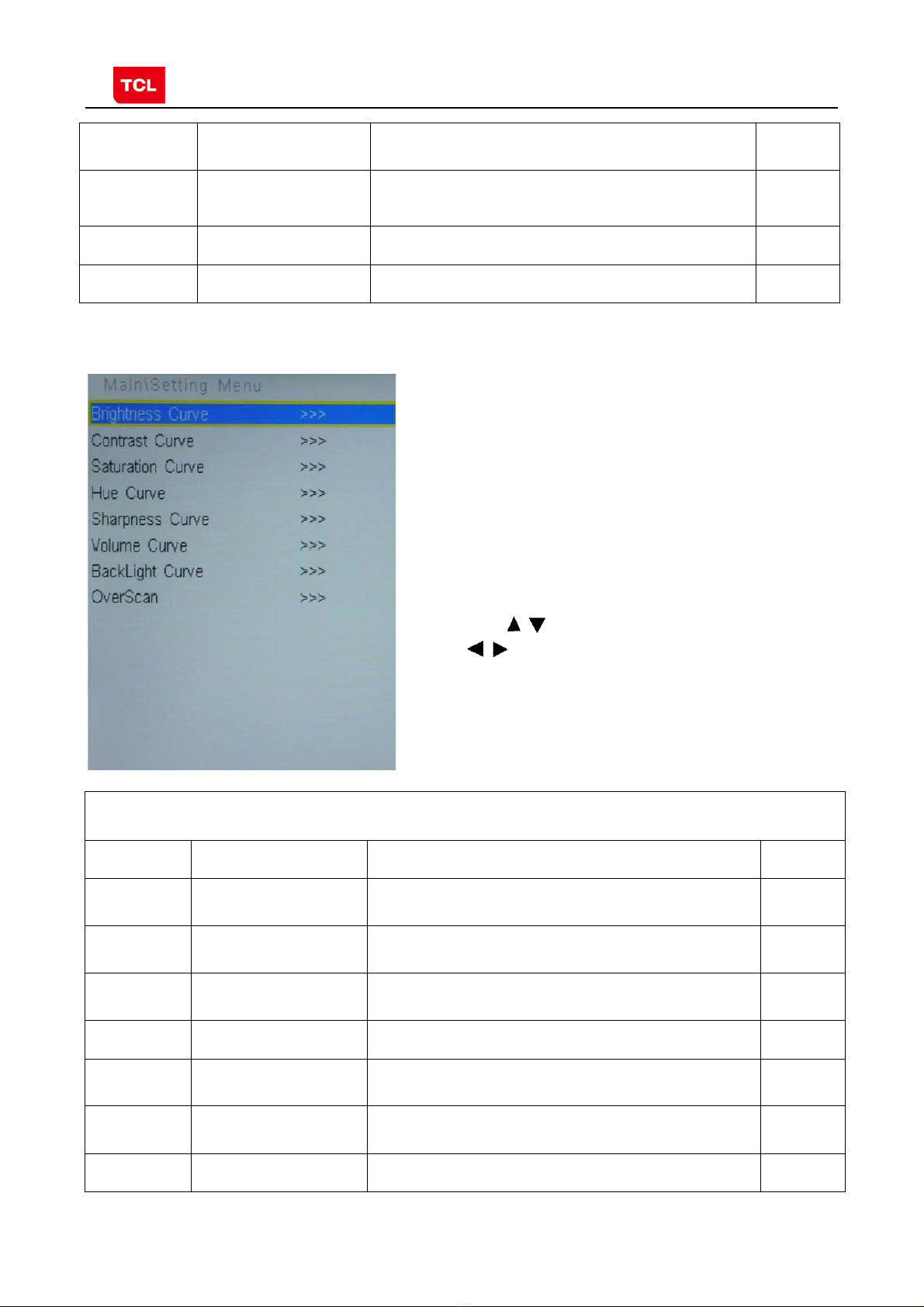

3.5 PARAM SETTING MENU
ERROR
CODE NG
TCL_LOGO Display TCL Logo or not. On : display,
Off: not display
OK
LOGO_LIGHT OK
TCL_SHOW DEMO function ON/OFF OK
Press the button in remote control to select certain item
and to enter menu.
PARAM SETTING MENU (Setting menu)
Name Default Description Status
Brightness
Curve >>> Brightness curve. Exclusively used by R&D. OK
Contrast
Curve >>> Contrast curve. Exclusively used by R&D. OK
Saturation
Curve >>> Saturation curves. Exclusively used by R&D. OK
Hue Curve >>> Hue Curve Exclusively used by R&D. OK
Volume
Curve >>> Volume curve. Exclusively used by R&D. OK
Backlight
Curve >>> Backlight curve. Exclusively used by R&D. OK
OverScan >>> Overscan adjustment. Exclusively used by R&D. OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
12
3.6 HOTEL MENU
Press the button in remote control to select
certain item and to enter submenu.
HOTEL MENU
Name Default Description Status
POWER
LOGO ON LOGO select OK
CH LOCK OFF Channel scan lock. OK
MAX VOL 100 Max volume OK
AUTO SET OFF The switch of PIC, SOUND etc.
When it is ON, these items are selectable.
OK
PIC MODE Standard Picture mode. OK
SOUND
MODE STEREO Sound mode OK
POWER
VOL. 50 Default volume when power on OK
POWER
SIGNAL ATV Default signal source when power on OK
POWER
CHANNEL 0 Default channel no. when power on OK
KEY LOCK OFF Lock the keys. OK
SAVE DATA
TO DO Save the settings of Hotel Menu to USB OK
WRITE
DATA TO DO Copy the settings of Hotel Menu from USB OK

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
13
Color Analyzer CA-210. Video Pattern Generator Chroma2329. Color TV Pattern
Generator PM5418, VGA cable, AV cable(RCA),YPBPR(RCA) cable.
。
Chroma2329 Fluke5418 CA-210
According to the requirement of order, we suggest take the below steps to finish
the appropriate settings.
A enter the Factory Menu, enable FAC HOTKEY
B Check the version of software, release date displayed at the bottom of Factory
Menu. If the information is correct, you can ignore step C and D.
C Enter Factory Main Menu, choose SERVICE MENU->PROJECT ID, choose
corresponding Project ID number of the product (Please refer to the description in
BOM about Project ID number).
D return to Factory Menu, check the Product model.
E choose Factory Menu-> NVM RESET and press and wait until prompt OK
appears.
F restart the set
G according to the requirement of order, set the items of Shop Menu and Hotel
Menu etc.
H After aging under normal temperature, calibrate ADC and adjust white balance.
I choose Factory Menu-> SHOP INIT and press button of remote control to
initialize the set.
Note: after step I (execute SHOP INIT), Hotel Menu will be disabled by default.
Therefore, if order requires hotel function, it is necessary to enable hotel function by
set Factory Main Menu-> Service Menu->HOTEL ENABLE to ON.
Ⅰ.signal and generator
VGA: Chroma2329 Pattern42, Timing 14(1024x768@60Hz 5 MOSAIC)
YPBPR: Chroma2329 Pattern103, Timing 79(100% Color Bar, 720p)
5 MOSAIC 100% Color Bar
4. The ste
p
s of debu
gg
in
g
4.1 Device
4.2 ste
p
s of debu
g
g
in
g
：
4.3 ADC Calibration

MS82MT-AP/LA Chassis Aliment procedure
PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE
14
Ⅱ.steps of debug:
1) Access to the Factory menu->ADC
2) Select PC source
3) Select AUTO ADC，Press button in your remote control to calibrate the
ADC automatically.
4) Select YPBPR source
5) Repeat step 3.
6) When the OK appears the calibration has been finished successfully.
VGAcalibration YPBPR calibration
Before adjustment, you must ensure Color Analyzer has been calibrated. Only AV1,
YPBPR, VGA , HDMI 1 need to be adjusted. It is necessary to adjustment HDMI 1
firstly.
a. signal and generator
The pattern of the signal should be used are White (Chroma2329 pattern113) and
Grey (pattern 114).The format of signal are respectively 720p for HDMI1
(Chroma2329 Timing 69), NTSC for AV1 (Chroma2329 Timing 37),1024×768@60Hz
(Chroma2329 Timing 14) for VGA and 720p (Chroma2329 Timing 79)for YPBPR
b. steps of adjustment
1) enter the factory menu->WHITE BALANCE, select source HDMI 1 and COLORTEMP
normal.
2) input grey signal in 720p format
3) change R OFFSET and B OFFSET to make sure the value of color coordination
equal to the value required by enterprise standard (x, y).
4.4 White Balance adjustment (Manual)
：
