SERVICE MANUAL
LCD40V8SY
1
ǃ
Caution
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
1
2
ǃ
Specification
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
5
3
ǃ
BOM list
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
7
4
ǃ
Alignment Procedure
ĂĂĂĂĂĂĂ Ă ĂĂĂĂĂĂĂĂĂĂĂĂ
15
5
ǃ
Schematic Diagram
ĂĂĂĂĂĂĂĂĂ ĂĂĂ ĂĂĂĂĂĂĂĂĂ
19
6
ǃ
Explode View Diagram
ĂĂĂĂĂĂĂ ĂĂĂĂĂĂĂĂĂĂĂĂĂ
36
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product
CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Ar ticle 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operationby followingthe detailedprocedurein your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
LCD 40V8SY
40' LCD Widescreen
HDTV Monitor
Features
Widescreen High Definition TV Monitor with 1366*768 High
Resolution Panel and Lightening Fast 8ms Response Time
Comprehensive Connectivity Package: DVI, PC D-Sub(VGA) In,
Component Video In, S-Video In, AV In (x3), Audio In for DVI
(1), Component Video (1) & PC D-Sub (3.5mm)
Exceptional Contrast and Brightness Performance
High Performance Video Processing with Advanced De-
Interlacing
5-Line Digital Comb Filter(Y/C Separation with Adjustable
Vertical Peaking)
SRS WOW
Standard Definition NTSC M & PAL M/N Integrated Tuner Built-in analog TV tuner receives standard over-the-air television
broadcasts and cable TV programming.
Progressively converts incoming signals and up-converts to 768
progressive lines for improved resolution&clarity.Reverse 3:2 Pull
down keeps DVD images jitter-free.
Precision Y/C separation reduces interference generated by the
interlacing process of analog signals,resulting in clear,accurate
images with improved contrast.
Improves the audio experience by providing a 3-D audio image
that extend sound in both vertical and horizontal directions.
2 SPECIFICATION RELEASE
Benefits
Capable of viewing digital TV signals(480p,720p,1080i)in
720progressive lines,Lightening fast response time yields
crisp,clear,detailed images.
High contrast ratio and high brightness brings images to life with
bright,vivid color and outstanding detail.
Connect a wide array of sources for greater utility, from VCR to
Progressive Scan DVD Player, Digital TV Tuner,Digital Cable
Box, Satellite, Game, or Personal Computer.
PICTURE SIGNAL FORMAT CAPABILIT
Y
Panel Size(inch) 40 Component Video Format Y,Pb/Cb,Pr/Cr: 480i,480p,720p,1080i@50Hz/60Hz
Category LCD TV DVI Video Format (1024*768)@60Hz
Aspect Ratio 16:9 HDMI Video Format ˉ
Color Temperature Adjustable(Normal/Cool/Warm) PC Compatibility VGA: Up to 1280*1024 @75Hz
Backlight Adjustabl
e
Yes TERMINALS
Scaler Mode 4:3, 14:9 Zoom, 16:9 Zoom, Cinerama, 16:9 Subtitles,
and 16:9 Widescreen. Audio/CVBS Inputs(Composite) 3 (R/L) Audio,
3 Video:AV1,AV2,AV3
(
rear
)
Picture Effect 4 (Soft,Natural, Bright, Personal) S-Video Input 1
Film Mode(3:2 pull down) Yes Audio Input for S-Video Share with AV1
Picture Enhancement YPbPr Input 1
Comb Filter Digital 5-Line Audio Input for YPbPr 1 (R/L)
Gamma Correction Yes YCbCr Input Share with "YPbPr"
CCS Yes Audio Input for YCbCr Share with Audio Input for "YPbPr"
DCDI Yes VGA Input(RGB) 1 (D-Sub,15-Pin)
Blue Stretch ˉAudio Input for RGB 1
(
3.5mm
)
Black Stretch Yes DVI 1(DVI-D, HDCP)
Motion Compensation Yes Audio Input for DVI 1 (R/L)
DLTI Yes HDMI ˉ
DCTI Yes Audio/CVBS Outputs(Composite) 1 (R/L+CVBS) (RCA)
Dynamic Skin Correction Yes Headphone Jack Output 1
DNR Yes RF Input(Antenna) 1 (F Type)
Panel Specification Scart ˉ
Panel Supplie
r
SEC Basic Info.
Viewing Technology PVA TV System NTSC M,PAL M/N
Display Resolution WXGA(1366*768) AV System NTSC/PAL
Brightness (cd/m2) 500 Channels 181
Contrast Ratio 1000:1 Chassis Name PW118
Response Time 8ms Market EM2
Viewing Angle(H/V) 170°/170° Certification CB
Life Time 50,000hrs Power Supply AC 100V-240V 50/60Hz
Color 16.7M Power Consumption-TV ON 260W
SOUND Power Consumption-Standb
y
Less than 1 W
Speakers 2 - Side Separated Default Color
Audio Power Output 2*8 W Front Cabinet Silver gray
Sound Processing MTS stereo Rear Cabinet Gray
DVSS (Dolby Virtual Surround) ˉBase Stand Silver gray
AVC (Auto Volume Control) Yes Keyboard Position Lower right on the front panel
BBE ˉUnpackaged Dimension for Main Body (L*H*D)
SRS SRS-WOW With Base Stand (mm) 1267x772x310
Without Base Stand (mm) 1267x713x126
Packaged Dimension (L*H*D)
Main Body (mm) 1214x879x454
Sound Features Mono/Stereo Speaker Box (mm) Packaged with main body together
Function Base Stand (mm) Packaged with main body together
V-Chip Yes - USA & Canada Net Weight (Kg) 35 (main body with speaker,base stand)
CCD(Closed Caption) Yes Gross Weight (Kg) 42.5 (main body with speaker,base stand)
Teletext ˉContainer Loading (Main body with Speaker,base stand)
PIP/POP ˉ20 feet 40
Macro Vision Yes 40 feet 90
Calendar Yes 40 feet high 135
Clock/Timer
s
Timer(Sleep/Wake up/Turn off
)
ACCESSORIES
Lock Front Panel Block Operation Manual English
OSD Language English/Spanish/Portuguese/French Base Stand Included-Detachable
OSD Features Semi-transparent,Size & position adjustable Wall Mount WMB300(optional)
Card Reader ˉRemote Control 06-015W35-A30EX
DVD Combo ˉOthers Power cordˈBatteries
USB Connection ˉ
Game ˉ
Screen Saver Yes
Demo Function ˉ
5-Band Graphic Equalizer, 6 effects
(Stereo,Cinema,News,Surround,Custom,Concert)
LCD40V8SY
Technical Specifications
Sound Control
2 SPECIFICATION RELEASE
PART NO. SEPC QTY LOCATION
T8-40V8AY-SP1 ASS'Y - LOUDSPEAKER 1
T8-40V8AY-SP2 ASS'Y - LOUDSPEAKER 1
T8-40V8AY-SPY ASS'Y - LOUDSPEAKER 1
V8-L40SE2-01D01 SOFTWARE CODE 1 FOR U018
V8-L40SE2-01D02 SOFTWARE CODE 1 FOR U001
V8-L40SE2-01F01 SOFTWARE CODE 1 FOR U020
V8-L40SE2-01M01 SOFTWARE CODE 1 FOR U503
09-0BAV70-ATX SMD DIODE BAV70 1 D514
09-38C6V8-DTX SMD.DIODE BZX384-C6V8 1 C648
09-55C5V1-DTX SMD.DIODE BZV55-C5V1 1 D506
09-FM5817-STX SMD.DIODE FM5817 4 D510;D511;D512;D513
09-LL4148-ATX SMD. SWITCHING DIODE LL4148 8 D509;D508;D507;D516;D505;D504;D517;D501
09-LL4148-ATX SMD. SWITCHING DIODE LL4148 1 D503
10-HS18VC-DBX DIODE 500MW 18HSC 1 D502
12-BC847C-0BX SMD.TRANSISTOR BC847C 1 Q518
12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) 8Q501;Q503;Q504;Q505;Q511;Q512;Q513;Q514
12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) 3 Q515;Q516;Q517
12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) 1 Q508
12-C144ET-0BX SMD. TRANSISTOR PDTC144ET 2 Q509;Q510
12-D40N03-0BX MOSFSET NTD40 NO3RG 2 Q507;Q506
13-12F675-00B IC PIC12F675 1 U503
13-CS5211-G0B IC CS5211G 1 U502
13-L7809C-D2B IC L7809CD2T-TR (DDPAK) 1 U506
13-LD1117-50B 5.0V IC LD1117S50TR 1 U507
13-MSP345-0GB12 IC MSP34506-C12 1 U501
13-S35380-A0B IC S-35380A 1 U508
13-TA2024-00B IC TA2024 1 U505
13-TDA282-2DB IC E-TDA2822D013TR 1 U511
13-TV6415-DDB IC STV6415D 1 U504
19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% 8 R643;R637;R622;R618;R580;R579;R648;R503
19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% 2 R649;R650
19-BB0101-JTX SMD. RES 100 OHM 1/10W +/-5% 7 R507;R508;R519;R522;R599;R600;R641
19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% 8 R515;R509;R517;R518;R520;R521;R664;R663
19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% 8 R527;R533;R535;R538;R558;R630;R631;R644
19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% 8 R645;R568;R562;R559;R554;R551;R550;R546
19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% 2 R539;R516
19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% 8 R506;R510;R541;R544;R549;R567;R569;R570
19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% 8 R574;R597;R598;R615;R616;R632;R633;R532
19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% 1 R557
19-BB0123-FTX RES.SMD 12K 1/10W +/-1% 0805 1 R525
19-BB0151-JTX RES. SMD 150 OHM 1/10W +/-5% 2 R502;R504
19-BB0153-JTX SMD. RES 15K OHM 1/10W +/-5% 3 R584;R587;R590
19-BB0203-JTX SMD. RES 20K OHM 1/10W +/-5% 2 R571;R566
19-BB0221-JTX SMD. RES 220 OHM 1/10W +/-5% 0805 2 R595;R501
19-BB0222-JTX SMD. RES 2.2K OHM 1/10W +/-5% 2 R573;R572
19-BB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 8 R555;R591;R528;R529;R531;R540;R545;R548
19-BB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 2 R585;R588
19-BB0302-FTX RES.SMD 3K0HM 1/10W +/-1% 1 R526
19-BB0362-JTX SMD. RES 3.6K OHM 1/10W +/-5% 1 R523
19-BB0470-JTX SMD. RES 47 OHM 1/10W +/-5% 1 R513
%20/LVW
19-BB0473-JTX SMD. RES 47K OHM 1/10W +/-5% 0805 6 R536;R537;R552;R553;R560;R561
19-BB0479-FTX SMD. RES 4.7 OHM 1/10W +/-1% 2 R635;R636
19-BB0513-JTX SMD. RES 51K OHM 1/10W +/-5% 1 R514
19-BB0680-JTX SMD. RES 68 OHM 1/10W +/-5% 0805 1 R512
19-BB0681-JTX SMD. RES 680 OHM 1/10W +/-5% 3 R592;R589;R586
19-BB0750-JTX SMD. RES 75 OHM 1/10W +/-5% 5 R581;R583;R577;R582;R578
19-BB0820-JTX RES. SMD 82 OHM 1/10W +/-5% 5 R534;R542;R543;R547;R556
19-BB0822-FTX RES.SMD 1/10W 8.2KOHM +/-1% 1 R565
19-CC0101-JTX SMD. RES 1/8/+/-5%/100 OHM 2 R576;R575
19-CC0680-JTX RES. SMD 68 OHM 1/8W +/-5% 1 R617
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 3 C558;C555;C534
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 8 C533;C642;C634;C617;C606;C577;C565;C562
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 8 C506;C516;C527;C528;C529;C530;C531;C532
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 6 C556;C560;C563;C566;C571;C569
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 8 C632;C603;C600;C637;C636;C633;C547;C549
25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% 3 C608;C605;C602
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 6 C505;C514;C522;C552;C553;C598
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 5 C536;C544;C545;C546;C537
25-BDB221-M1X CAP. ELEC 220UF 25V +/-20% 3 C583;C589;C580
25-BFB339-M1X CAP. ELEC 3.3 UF 50V +/-20% 1 C526
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 2 C520;C519
28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B 2 C630;C631
28-BA0106-ZFX SMD. CAP 10UF 10V +80% -20%1 C662
28-BB0100-JCX SMD. CAP. 10PF 50V +/-5% 2 C616;C609
28-BB0101-JCX SMD CAP. 100 PF 50V C 0805 1 C661
28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 2 C517;C518
28-BB0103-ZFX SMD CAP. 0.01 UF 50V F 0805 5 C559;C504;C509;C515;C513
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 8C618;C635;C639;C638;C507;C525;C538;C539
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 8C582;C581;C579;C575;C574;C573;C572;C570
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 8C568;C564;C561;C557;C554;C551;C550;C548
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 8C542;C541;C540;C587;C588;C593;C614;C610
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 5 C607;C604;C601;C597;C595
28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% 1 C594
28-BB0152-KBX SMD CAP. 0.0015UF 50V B 0805 1 C523
28-BB0224-ZFX SMD. CAP 0.22UF 50V +80%/-20% 0805 8C591;C596;C599;C503;C501;C500;C625;C590
28-BB0224-ZFX SMD. CAP 0.22UF 50V +80%/-20% 0805 3 C585;C584;C502
28-BB0339-CCX SMD. CAP 3.3PF 50V +/-0.25PF 2 C511;C512
28-BB0471-JCX SMD. CAP 470PF 50V +/-5% 3 C644;C643;C521
28-BB0474-ZFX SMD. CAP 0.47UF 50V +80% -20%2 C586;C592
28-BB0560-JCX SMD. CAP 56PF 50V +/-5% 2 C508;C510
28-BB0820-JCX SMD. CAP. 82PF 50V +/-5% 4 C611;C612;C613;C615
28-BC0225-ZFX SMD. CAP 2.2UF 16VDC +/-20% 3 C663;C640;C641
28-BD0683-KBX CAP.SMD 683 25V +/-10 0805 X7R 2 C578;C576
33-BLN102-NTX SMD.COLL FBMH4525HM102NT 1 L548
33-ELN102-NTX SMD.COLL CBG201209U 102B 8 L530;L540;L551;L550;L529;L528;L531;L535
33-ELN102-NTX SMD.COLL CBG201209U 102B 8 L539;L549;L523;L522;L521;L520;L500;L536
33-ELN102-NTX SMD.COLL CBG201209U 102B 8 L538;L526;L525;L524;L533;L537;L534;L527
33-GLL100-KTX SMD. COIL 10 UH +/-10% CMI3216 8 L515;L507;L514;L513;L508;L506;L503;L502
33-GLL220-KTX SMD.COLL 22UH +/-10% 1 L504
33-GLN222-NTX CHIP BEAD MGGB3216 M222HT 1206 2.2K 3 L532;L547;L546
33-PLL100-MTX SMD COIL SPI127QR-100 1 L505
34-R100K2-10X COIL CHOKE SG9006 10UH +/-20% 4 L510;L509;L511;L512
36-371620-00X NETWORK FILTER NF0801 1 U509
40-D32V6N-MAH2
X
P.C.B MAIN BD 1
43-SFSS11-2DM RELAY SF-SS-112DM 1 RELA1
45-OSC18M-4Y0 CRYSTAL 18.432M 1 X501
45-OSC32K-7Y0 CRYSTAL 32.768KHZ 1 X502
46-28827H-04X HS 4P24 F/W 250 2*TJC3-4Y 1 FOR J507
46-33079W-04X PIN BASE *4 TJC3-4A 1 J507
46-33079W-09X PIN BASE *9 TJC3-9A 1 J504
46-33333W-03X PIN BASE 1 J501
46-35199W-05X CONN.PH-5A 5PIN PITCH=2.0MM 1 J502
46-35199W-07X CONN.PH-7A PITCH=2.0MM 7PIN 1 J503
46-39690W-64X CONNECTOR 64PIN 32X2 2.0X2.0 1 J505
46-CC005T-09Q HS 9P UL4007#24 50MM 1 FOR J504
46-CC035F-04J01 HS 4P 2468#24 350MM TJC3-4Y 1 SP3 to sound box J3
46-DF065T-06X01 HS 6PIN LCSAP001TL0118 1 J508
46-FF010F-05001 HS 5P UL1185#26 100MM 1 FOR J502
46-KF090F-09X01 POWER WIRE VH-9Y/VH-3Y/2*PH-14Y/PH-7Y 1 FOR J501
47-RCA009-XX4 RCA SOCKET AV-3.2-3W-052 3 P501;P504;P506
47-SVI008-XX1 SOCKET DSW-506WT-L 1 P503
49-382630-BAT BATT. CR2025 1 BT1
50-01000B-NUUG FUSE 20N 125V 1A 1 L519
50-02000D-NUUG PUSE 2A 250V U/C1 20N 250V 2A (ROHS) 1 F501
50-05000D-NUUG FUSE 5A 250VAC 1 F502
67-387200-3A0 HEAT SINK 1 FOR U505
71-268390-0A0AF LABEL (QC) GREEN 1
71-BAR005-XX0 LABEL BAR CODE 1
55-718070-0HA5C BASE COVER 1
57-702250-0HD HOST FOOT PAD 8
63-B40120-AB3 S/T SCREW B 4 X 12 10 base armor plate for base cover
64-B40100-102 M/C SCREW B 4 X 10 8 base armor plate for base support
67-C71746-0A05C BASE SUPPORT 2
67-C71756-0A05C BASE SUPPORT COVER 2
67-M71745-0E0 BASE 1
09-0BAV70-ATX SMD DIODE BAV70 2 D012;D004
09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 4 D007;D008;D009;D021
09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 8D010;D018;D024;D023;D022;D002;D003;D006
09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 8D014;D019;D013;D015;D016;D020;D017;D011
12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) 3 Q008;Q006;Q005
12-C144ET-0BX SMD. TRANSISTOR PDTC144ET 3 Q007;Q003;Q002
13-0024LC-21B IC 24LC21-SOIC8(WRITE) 2 U018;U001
13-128168-A6B DDR SDRAM M13S128168A 2 U013;U012
13-63LVDM-83B IC THC63LVDM83R 1 U003
13-74AHCT-08B AND GATE 74AHCT08PW 1 U019
13-AIC108-4PB IC AIC1084PM 1 U015
13-AL008D-70BT2 FLASH 8M S29AL008D70TFI02 1 U020
13-EF4052-BTB IC HEF4052BT(D) 1 U005
13-IC1084-25B IC 2.5V 5A AIC1084-25CM 1 U016
13-IC1084-CMB IC AIC1084-33CM 3.3V (TO-263) 1 U014
13-IRF731-40B IC IRF7314 1 U004
13-LD1117-18B 1.8V REGULATOR IC LD1117S18TR 1 U006
13-LD1117-33B IC LD1117 3.3V 1 U007
13-M24C32-MNB IC SM M24C32-WMN6P(ST00) R 1 U021
13-PT7809-STB IC PT7M7809ST 1 U09
13-PW1181-0LB DEINTERLACER AND SCALER PW118-10 1 U002
13-PW3300-10B IC PW3300-10 1 U008
13-SRV054-CTB IC SRV05-4 TCT 2 D005;D001
19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 8 R227;R193;R149;R148;R129;R128;R127;R091
19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 8 R107;R114;R125;R196;R028;R063;R065;R228
19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 6 R229;R070;R068;R067;R066;R198
19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% 1 R221
19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 1 R174
19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 7 R160;R092;R103;R102;R175;R176;R215
19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 8 R023;R132;R152;R153;R165;R166;R167;R078
19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 8 R039;R027;R034;R076;R077;R084;R089;R130
19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 2 R073;R218
19-AB0152-JTX SMD. RES 1.5K OHM 1/10W +/-5% 0603 2 R071;R069
19-AB0155-JTX SMD. RES 1.5M OHM 1/10W +/-5% 0603 1 R116
19-AB0201-JTX SMD. RES 200 OHM 1/10W +/-5% 0603 1 R018
19-AB0202-JTX SMD. RES 2K OHM 1/10W +/-5% 0603 2 R164;R163
19-AB0220-JTX SMD RES 22 OHM 1/10W 0603 8 R001;R003;R004;R009;R101;R100;R015;R013
19-AB0220-JTX SMD RES 22 OHM 1/10W 0603 2 R012;R010
19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 1 R216
19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 2 R147;R146
19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 8R060;R059;R055;R052;R054;R053;R226;R225
19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 8R056;R057;R058;R050;R048;R223;R222;R061
19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 5 R031;R046;R047;R051;R049
19-AB0243-JTX SMD. RES 24K OHM 1/10W +/-5% 0603 1 R137
19-AB0271-JTX SMD. RES 270 OHM 1/10W +/-5% 0603 1 R217
19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603 6 R122;R131;R140;R150;R168;R171
19-AB0391-FTX SMD. RES 390 OHM 1/10W +/-1% 0603 1 R112
19-AB0392-JTX SMD. RES 3.9K OHM 1/10W +/-5% 4 R135;R136;R219;R220
19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 4 R123;R121;R120;R083
19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 8 R119;R154;R151;R138;R134;R133;R126;R124
19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 8 R139;R075;R081;R085;R087;R099;R117;R118
19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 8 R006;R007;R008;R029;R033;R093;R115;R144
19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 2 R145;R224
19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 7 R026;R042;R040;R041;R043;R044;R045
19-AB0682-JTX RES SMD 6.8K OHM 1/10W 0603 1 R025
19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 5 R014;R155;R156;R157;R169
19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 8 R002;R190;R187;R005;C195;R011;R173;R170
19-AB0751-FTX SMD. RES 750 OHM 1/10W +/-1% 1 R111
19-CD0000-JTX RES.SMD 0 OHM 1206 4 R021;L029;L025;L027
23-A08101-JBX NETWORK RES. 100 OHM +/-5% 6 RP006;RP005;RP004;RP007;RP009;RP011
23-A08101-JBX NETWORK RES. 100 OHM +/-5% 3 RP003;RP002;RP001
23-A08470-JBX CHIP ARRAY RES. 47 OHM +/-5% 0603*4 3 RP035;RP034;RP033
23-A08470-JBX CHIP ARRAY RES. 47 OHM +/-5% 0603*4 6 RP041;RP040;RP039;RP038;RP037;RP036
23-A08470-JBX CHIP ARRAY RES. 47 OHM +/-5% 0603*4 6 RP044;RP045;RP046;RP047;RP043;RP042
23-A08750-JBX RES.75*4 OHM 1/8W +/-5% 6 RP031;RP017;RP022;RP023;RP025;RP026
23-A08750-JBX RES.75*4 OHM 1/8W +/-5% 6 RP027;RP032;RP030;RP029;RP028;RP024
23-A08750-JBX RES.75*4 OHM 1/8W +/-5% 4 RP018;RP019;RP020;RP021
28-AB0102-JCX SMD. CAP 1000PF 50V +/-5% 0603 5 C164;C176;C184;C215;C191
28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 2 C019;C018
28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F 1 C216
28-AB0120-JCX SMD. CAP 12 PF 50VDC 0603 +/-5% 3 C180;C179;C178
28-AB0180-JCX SMD. CAP 18 PF 50V +/-5% 0603 8 C201;C200;C202;C158;C157;C085;C084;C083
28-AB0224-ZFX CAP.SMD 0.22UF 50V +80-20%0603 6 C177;C173;C174;C187;C192;C196
28-AB0392-KBX SMD. CAP 3900 PF 50VDC +/-10% 0603 1 C159
28-AB0393-ZFX SMD. CAP 0.039 UF 50V +80%-20% 1 C160
28-AB0471-JCX CAP.SMD 470PF 50V +/-5% 0603 1 C214
28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% 2 C217;C213
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C067;C075;C068;C069;C070;C071;C072;C073
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C055;C056;C057;C058;C063;C064;C065;C066
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C087;C088;C089;C090;C091;C092;C060;C061
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C074;C118;C119;C079;C080;C081;C082;C086
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C008;C013;C014;C015;C016;C021;C022;C023
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C076;C077;C078;C005;C002;C001;C006;C007
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C032;C046;C048;C050;C051;C052;C053;C054
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C024;C025;C026;C027;C028;C029;C030;C031
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C136;C137;C138;C150;C149;C148;C147;C146
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C094;C170;C171;C172;C175;C181;C133;C134
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C165;C166;C167;C168;C169;C145;C132;C093
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C156;C155;C154;C151;C186;C185;C183;C182
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C104;C105;C131;C144;C141;C140;C139;C163
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C096;C097;C098;C099;C100;C101;C102;C103
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C129;C125;C128;C130;C127;C062;C120;C095
28-AD0104-ZFX SMD CAP 0.1UF 25V +80-20% 0603 8 C109;C114;C059;C121;C122;C123;C124;C126
28-RA0107-MAX SMD. CAP 100 UF 10V +/-20% 6 C152;C135;C116;C115;C111;C110
28-RC0106-MAX SMD. CAP 10 UF 16V +/-20% 8 C038;C039;C040;C017;C020;C035;C036;C037
28-RC0106-MAX SMD. CAP 10 UF 16V +/-20% 5 C045;C044;C043;C042;C041
28-RC0226-MAX SMD. CAP 22 UF 16V +/-20% 2 C034;C033
28-RC0476-MAH SMD. CAP 47 UF 16V +/-20% 2 C049;C047
28-RD0477-MAX ALUMINIUM CAP. 470 UF 25V +/-20% 2 C107;C108
33-ELN221-NTX CHIP BEAD 220 OHM +/-25% 1 L004
33-ELN300-NTX CHIP BEAD 30 OHM +/-25% 1 F001
33-ELN301-NTX BEAD CHIP HB-1T2012-301 2012 2 R201;R202
33-GLN121-NTX CHIP BEAD 120 OHM +/-25% 7 L006;L005;L003;L002;L001A;L001;L018A
33-GLN121-NTX CHIP BEAD 120 OHM +/-25% 7 L018;L017A;L017;L016A;L016;L015;L019
33-GLN121-NTX CHIP BEAD 120 OHM +/-25% 7 L020;L020A;L024;L026;L028;L014A;L014
33-GLN121-NTX CHIP BEAD 120 OHM +/-25% 5 L013A;L013;L009;L008;L007
33-KLN102-NTX SMD.COLL MGGB1608M102HB 8 R214;R142;R141;R024;R088;R086;R211;R038
33-KLN102-NTX SMD.COLL MGGB1608M102HB 1 R030
33-KLN121-NTX CHIP BEAD 120 OHM +/-25% 6 L021;L023;L022;L011;L012;L010
33-KLN601-NTX CHIP BEAD 600 OHM +/-25% 3 L032;L030;L031
40-D32V6N-DIC4X P.C.B.DIGIBOARD 1
45-OSC14M-3Y2 CRYSTAL 14.31818MHZ 1 Y001
45-OSC27M-0Y3 CRYSTAL 27MHZ 1 Y002
46-33079W-09X PIN BASE *9 TJC3-9A 1 J008
46-35199W-04X CONN.PH-4A 4PIN PITCH=2.0MM 2 J011;J009
46-35199W-07X CONN.PH-7A PITCH=2.0MM 7PIN 1 P003
46-38612W-30X PIN BASE DF14-30P(WF) 1.25PITCH 1 P002
46-39689W-64X CONNECTOR 1 J005
46-39999H-30X HS 30PIN T9103552-01 1 FROM P002 TO PANEL
46-FF025F-04001 HS 4P UL1185#26 250MM 1 FOR J009
47-DVI001-XX0 DVI SOCKET DVFR283-PC0-NP 1 P001
47-EAR005-XX0 EARPHONE SOCKET CK3-3.5-3WK-E 1 J002
47-RCA009-XX4 RCA SOCKET AV-3.2-3W-052 1 J006
47-RCA123-XX0 RCA SOCKET AV-3.2-2W-G6 2 J003;J004
47-RCA125-XX1 RCA SOCKET AV-3.2-3W-051 1 J007
47-VGA002-XX0 VGA JACKET D-SUB-15WP 1 P004
66-702620-0E2 SCREW POST 4 FOR DVI;FOR VGA
67-387190-0A0 HEAT SINK 1 FOR U002
67-387190-1A0 HEAT SINK 2 FOR U012;FOR U013
67-H42094-0A0 HEAT SINK 1 FOR U008
71-268390-0A0AF LABEL (QC) GREEN 1
71-BAR005-XX0 LABEL BAR CODE 1
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 3 C21;C20;C22
40-D32V6N-EAB1X P.C.B EA BD 1
46-35199W-06X .PH-6A 6PIN PITCH-2.0MM 1 J1
47-EAR002-XX0 EARPHONE SOCKET CK3-3.5-9WK-B 1J2
25-DFB339-M1X CAP. ELEC 3.3 UF 50V +/-20% 2 C1
36-WID132-XX0 COIL WIDTH 1.3MH/+/-5% 2 L1
40-L40A71-SPB1X P.C.B. SP BD 2
46-33079W-02X PIN BASE *2 TJC3-2A 8 J4;J3;J2(contrary fitting );J1
62-389840-00F LINE NIP (2.5MMX200MM) 2
40-LD27V8-SWA1
X
P.C.B. SWITCH BD 1
46-35184W-02X PIN BASE *2 TJC1-2A 2 P1;P2
48-POW007-XX1 POWER SWITCH 1 SW001
54-806060-0U0 32:(56:,7&+,168/$7(')/$.( 1 FOR PCB
07-457FF5-TB1G TUNER TMQH6-019A 1 TUN1
09-LL4148-ATX SMD. SWITCHING DIODE LL4148 1 D701
11-SC1815-YBX TRANSISTOR 2SC1815-Y (NPN) 1 Q36
12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) 3 Q703;Q702;Q701
13-LD1117-50B 5.0V IC LD1117S50TR 1 U702
13-MC3406-3AB IC MC34063AD (SO-8) 1 U8
19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% 2 R726;R720
19-BB0101-JTX SMD. RES 100 OHM 1/10W +/-5% 3 R718;R712;R711
19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% 1 R707
19-BB0104-JTX SMD. RES 100K OHM 1/10W +/-5% 0805 2 R723;R710
19-BB0109-JTX SMD. RES 1 OHM 1/10W +/-5% 0805 2 R709;R714
19-BB0122-FTX SMD. RES 1.2K OHM 1/10W +/-1% 0805 1 R715
19-BB0181-JTX SMD. RES 180 OHM 1/10W +/-5% 1 R704
19-BB0221-JTX SMD. RES 220 OHM 1/10W +/-5% 0805 2 R705;R713
19-BB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 3 R701;R702;R706
19-BB0303-FTX RES.SMD 30K 0HM 1/10W +/-1% 1 R716
19-BB0331-JTX SMD. RES 330 OHM 1/10W +/-5% 0805 1 R708
19-BB0471-JTX SMD. RES 470 OHM 1/10W +/-5% 1 R703
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 4 C710;C716;C718;C702
25-BDB100-M1X CAP. ELEC 10 UF 25V +/-20% 1 C703
25-BFB220-M1X CAP. ELEC 22 UF 50V +/-20% 1 C713
25-BFB470-M1X CAP. ELEC 47 UF 50V +/-20% 1 C714
28-BB0103-ZFX SMD CAP. 0.01 UF 50V F 0805 1 C707
28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 7 C715;C712;C711;C709;C719;C717;C701
28-BB0334-ZFX SMD. CAP 0.33UF 50V +80%/-20% 1 C724
28-BB0470-JCX SMD CAP. 47 PF 50V C 0805 3 C722;C706;C705
28-DC0107-MTX TANTALUM CAP. 100 UF 16VDC +/-20% 1 C708
33-ELM100-KTX SMD. COIL 10UH +/-10% 0805 1 L702
33-GLL100-KTX SMD. COIL 10 UH +/-10% CMI3216 1 L705
34-R101K2-1BX COIL CHOKE 100 UH +/-10% 2 L703;L704
34-R120J2-0EX COIL PL - 12 UH +/-5% 1 L701
34-R221J2-0EX COIL PL - 220 UH +/-5% 1 LN9
40-D32V6N-TUC2
X
P.C.B TUNER BD 1
46-35199W-04X CONN.PH-4A 4PIN PITCH=2.0MM 1 J702
46-35199W-05X CONN.PH-5A 5PIN PITCH=2.0MM 1 J701
71-268390-0A0AF LABEL (QC) GREEN 1
71-270870-0A9 LABEL 1
71-BAR005-XX0 LABEL BAR CODE 1
35-FB0133-00X FERR. BEAD ZCAT3035-1330 1 FOR earphone connect line
35-FB0914-00X ANTI-JAMMING CORE ZCAT2017-0930(-BK) 1 FOR earphone connect line
35-FB0927-00X MAGNETISM RING ZCAT2035-0930A 1 FOR key connet line
46-AK090T-02T HS 2P UL1015#22 900MM 1 SRZHUVZLWFK%'WRSRZHU%'
46-CC035F-04J01 HS 4P 2468#24 350MM TJC3-4Y 1 analog BD SP3 to sound box J3
47-PWS014-XX6 POWER JACK 03GEEW3ES-R 1
4A-LCD40T-SS0 40.0"LCD TFT PANEL LTA400W2-L01 1
54-700770-000 SPEAKER AIRPROOF STRIP 6MMX1MMX2000MM 4 around front cabinet
54-807270-0U0 SPONGE PAD 2 FOR LVDS;FOR LINE OF INVENTOR
54-807270-0U0 SPONGE PAD 1 stick LVDS line
54-807480-0U0 SPONEG 28X25X80MM 1 FOR LVDS OF PANEL 1
54-808450-0U0 CONDUCTIVE SPONGE 1 FOR LVDS OF PANEL 2
54-LCPVC7-000 40" PROTECT SCREEN 1
55-718050-0UN1A FRONT CABINET 1
56-718140-0HA4R POWER KNOB 1
56-718160-0HA1A REAR AV BRACKET 1
56-718290-0HA4R PUSH BUTTON 1
56-718330-0HC5Z LENS 1
63-B30080-AB4 S/T SCREW B 3 X 8 AB 7 iron bracket for analog PCB+digital PCB
63-B30080-AB4 S/T SCREW B 3 X 8 AB 11 FOR RCA socket;lens+key BD FOR front cabinet
63-B40120-AB3 S/T SCREW B 4 X 12 16 aluminum bar(up/down,left/right) FOR front cabinet
63-S30100-AB4 S/T SCREW S 3 X 10 AB 2 power PCB FOR front caninet
64-B30060-102 M/C SCREW B 3 X 6 2 power switch stator FOR power swicth PCB
64-B30080-102 M/C SCREW B 3 X 8 6 screen cover for tuner bracket;digital BD for big iron board
64-B30080-102 M/C SCREW B 3 X 8 8 tuner BD for big iron board;analon PCB for big iron board
64-B30080-102 M/C SCREW B 3 X 8 3 screen cover For big iron board
64-B30080-103 M/C SCREW 3.0 X 8.0 2 audio-socket PCB for audio-socket bracket
64-B40100-102 M/C SCREW B 4 X 10 8 panel back support bracket for aluminrm bar(up/down)
64-B40100-102 M/C SCREW B 4 X 10 8 up/down transom for aluminum bar(up/down)
64-B40100-102 M/C SCREW B 4 X 10 8 support linket for up/down transom
64-B40100-102 M/C SCREW B 4 X 10 10 aluminum bar(up/down,left/right)for PANEL
64-B40100-102 M/C SCREW B 4 X 10 4 big iron board for aluminum bar(up/down)
64-F30080-103 M/C SCERW F 3 X 8 2 power socket for power socket bracket
64-F30080-103 M/C SCERW F 3 X 8 4 tuner bracket for big iron board;iron bracket for big iron board
64-W30100-102 M/C SCREW W 3 X 10 4 power box for big iron board
64-W30100-102 M/C SCREW W 3 X 10 1 power socket bracket for aluminum bar(down)
64-W30100-102 M/C SCREW W 3 X 10 2 back AV bracket cover for aluminum bar(down)
64-W30100-102 M/C SCREW W 3 X 10 2 audio-socket bracket for aluminum bar(down)
64-Z30080-1040A SCREW 1 FOR power socket bracket to GND
67-C71747-0A0 BRACKET CONNECTOR 2
67-L71622-2N0 LOGO 1
67-M71729-0E0 TUNER BRACKET 1
67-M71730-1E0 BRACKET 1
67-M71739-3E0 STEEL BOARD 1
67-M71740-0E0 TRANSOM 2
67-M71752-0E0 BRACKET 1
67-M71753-1E0 BRACKET 1
67-M80454-0E0 POWER SWICTH NIP 1
67-P71748-0A0 ALUMINIUM BAR(TOP) 1
67-P71749-1A0 ALUMINIUM BAR 1
67-P71750-0A0 ALUMINIUM BAR(LEFT) 1
67-P71751-0A0 ALUMINIUM BAR(RIGHT) 1
67-S71731-4E0 SCREEN COVER 1
67-X24970-0E0 SPRING 1
81-LC42B6-PW0 POWER JSK3325-007 1
89-343720-JZ002 PROTECTING LABEL (50MMX100MM) 4 around front cabinet
02-IRR001-XX5 IR RECEIVER MODULE AT156A 1 IR3
12-BC857C-0BX SMD.TRANSISTOR BC857C 1 Q2
14-LED05R-XX1 LED RED FB205 1 LED1
19-BB0100-JTX RES. SMD 10 OHM 1/10W +/-5% 1 R3
19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% 2 R11;R10
19-BB0152-JTX SMD. RES 1.5K OHM 1/10W +/-5% 2 R9;R6
19-BB0221-JTX SMD. RES 220 OHM 1/10W +/-5% 0805 2 R1;R2
19-BB0272-JTX SMD. RES 2.7K OHM 1/10W +/-5% 2 R8;R5
19-BB0622-JTX SMD. RES 6.2K OHM 1/10W +/-5% 2 R7;R4
28-BB0104-KBX SMD. CAP 0.1UF 50VDC +/-10% 0805 5 C7;C6;C4;C1;C8
28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% 1 C3
28-XC0106-MTX TANTALUM CAP.10 UF 16V +/-20% 1 C5
33-GLN222-NTX CHIP BEAD MGGB3216 M222HT 1206 2.2K 1L1
40-LD32V8-IRB1X P.C.B RECEIVE BD 1
46-35135W-07X PIN BASE PH-07AW 1 P6
46-FF055F-07001 HS 7P UL1007#24 550MM 1 From P6 To An J503
48-TAC001-XX0 TACT SWITCH 6 SW3;SW4;SW2;SW1;SW5;SW6
06-011W33-A202X REMOTE CONTROLLER RC1113326/00 1
46-39455H-02X HS 2P 800MM 2
49-267710-BAT BATT. R6P AA SUM3 5# 2
51-PC0220-0WU08 POWER CORD 1
54-LCDPC0-000 PROTECT INLAY 0.1
70-271510-00A SERVICE CARD 1
71-BAR002-XX0 BAR CODE LABEL 1
72-40V8SY-S009A OPERATION MANUAL 1
74-022032-6WE9E PLASTIC BAG 1
74-702310-00C9B PLASTIC BAG 1
74-702320-00C9C PLASTIC BAG 1
74-702360-52D9C PLASTIC BAG 1
75-814390-CC0 POLYFOAM"UL" 1
75-814400-CC0 POLYFOAM"UR" 1
75-814410-CC0 POLYFOAM"UM" 1
75-814420-CC0 POLYFOAM"LL" 1
75-814430-CC0 POLYFOAM"LR" 1
76-L40A7P-0AT9E CARTON BOX 1
35-FB0520-00X FERR. BEAD ZCAT1325-0530A 1 BLACK OF INVENTOR
35-FB0723-00X FERR BEAD 1 LVDS
54-807280-0U0 SPONGE PAD 2 CONNECT INVENTOR AND SIDE FRAME
54-807480-0U0 SPONEG 28X25X80MM 1 BLACK OF PANEL
55-718060-0UN1D REAR CABINET 1
55-718080-0HA1A FRONTPANEL 2
58-4A7PMP-0UI9G INLAY MODEL NO. 1
63-B40150-AB3 S/T SCREW B 4 X 15 AB (BLACK) 18 rear cabinet for front cabinet
64-B40160-102 M/C SCREW B 4 X 16 4 support linket for base support
64-W30100-103 M/C SCREW W 3 X 10 8 sound box linker for aluminum bar(left/right)
4. Alignment instrument

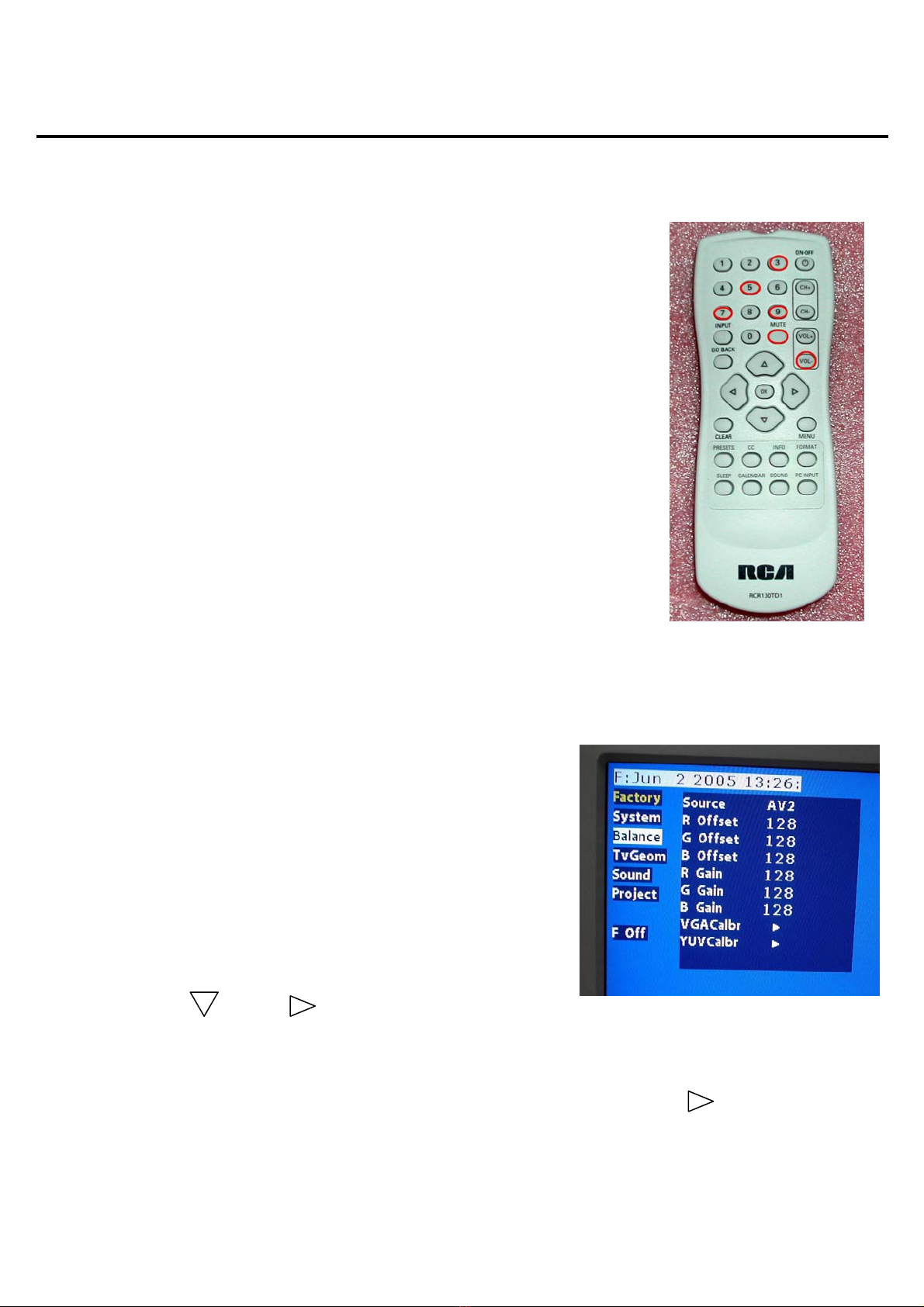

1. Enter factory menu.
1˅Press “vol-“ in remote control until the volume is zero.
2˅Press “menu” in remote control, than can see the “menu
marker” in screen.
3˅Press number 9/7/3/5 key in remote control in 5 sec.
Please see picture 1.
2. Enter Service menu.
The 1) and 2) are the same with factory menu.
3) Press number 3/1/7/5 key in remote control in 5 sec
3. Color Correction by equipment.
1) VGA input.
A. press INPUT on remote control to select VGA
signal.
B. Select Normal in Warmth and picture Preset in
consumer menu.
C. Enter factory Menu.
D. press and in remote control, select
Balance submenu.
E. Input 8 gray-bar with Chroma 2225, select VGAcalbrˈpress in remote control
To execute.
F. Measure the second black bar with color analyses equipment, adjust R offset and
B offset, make x=284,y=299.

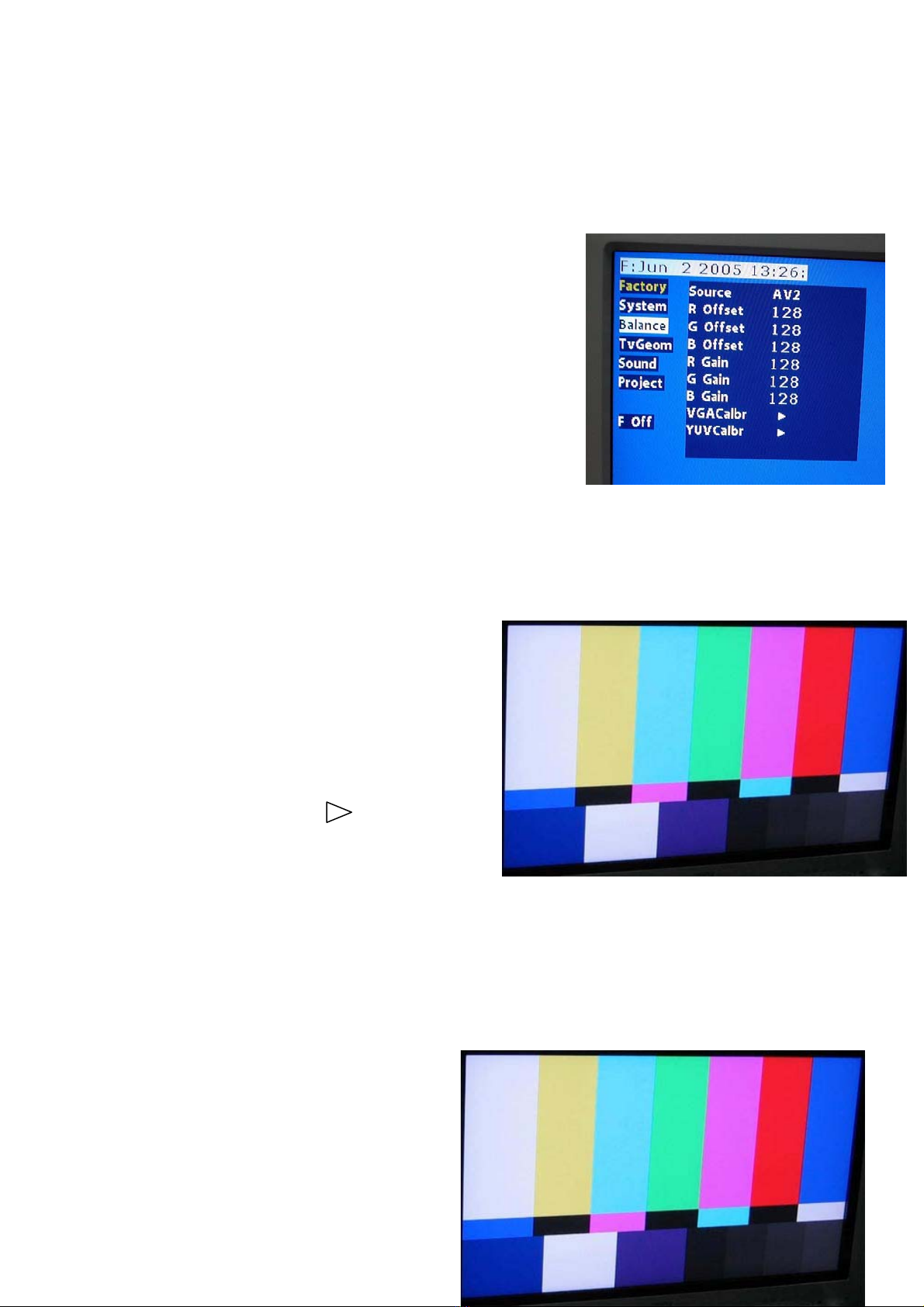

2) TV input
A. Input 8 gray-bar by 5418 or 54200.
B. select TV in Balance submenu’s source item.
C. Measure the second black bar with color
Analyses equipment, adjust R offset and G offset
And B offset, make x=284,y=299.
D. Measure the second light bar with color analyses equipment, adjust R Gain and
B Gain,G Gain, make x=284,y=299.
3) YPbPr Input
A. select HD in Balance submenu’s
Source item.
B. input the test picture beside,selset
YUVCalbr, press in remote
control To execute.
C. Measure the second black bar with color analyses equipment, adjust R offset and G
offset and B offset, make x=284,y=299.
D. Measure the second light bar with color analyses equipment, adjust R Gain and
B Gain,G Gain, make
x=284,y=299.

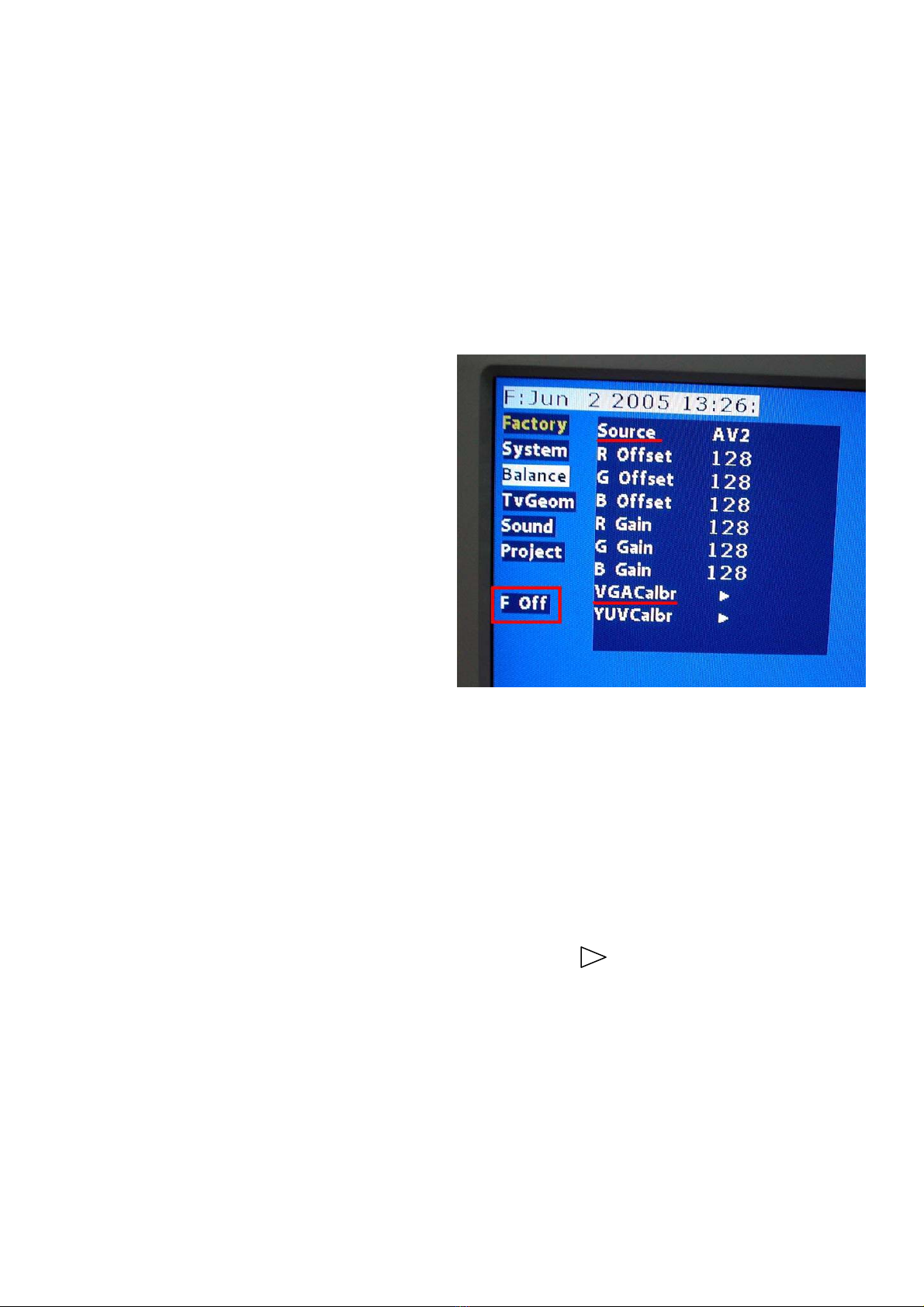

4. Color Correction by software.
1) VGA input.
A. press INPUT in remote control to
Select VGA signal.
B. Select Normal in Warmth and
Picture Preset in consumer menu.
C. Input 8 or 11 gray-bar.
D.Enter factory Menu execute
VGAcalbr in Balance submenu.
E. Input test picture beside, execute F
Off in factory menu to auto
alignment color.
2) TV/AV input.
A. Input test picture above.
B. Select TV in Balance submenu’s source item.
C. execute F in factory menu to auto alignment color.
3) YPbPr input.
A. Select HD in Balance submenu’s source item.
B. Input test picture above, selset YUVCalbr, press in remote control To execute.
C. Input test picture.
D. execute F in factory menu to auto alignment color.
6ˊGeometry correction in RF input.
1) Press INPUT in remote control to
Select RF signal with Philip test
Picture.
2) Enter factory menu.
3) Press to select Tvgeom, and
Press to enter submenu.
4) Adjust TvHPos\TvHsize\TvVPos\TVvSize until the picture is measure up to
Standards.
7. Sound curve adjust.
General no need to adjust.
8. Execute reset date in factory menu when
Power The product first time and reflash
the software.
9. Consumer date activation.
Select All For User in System submenu to
activate customs date.

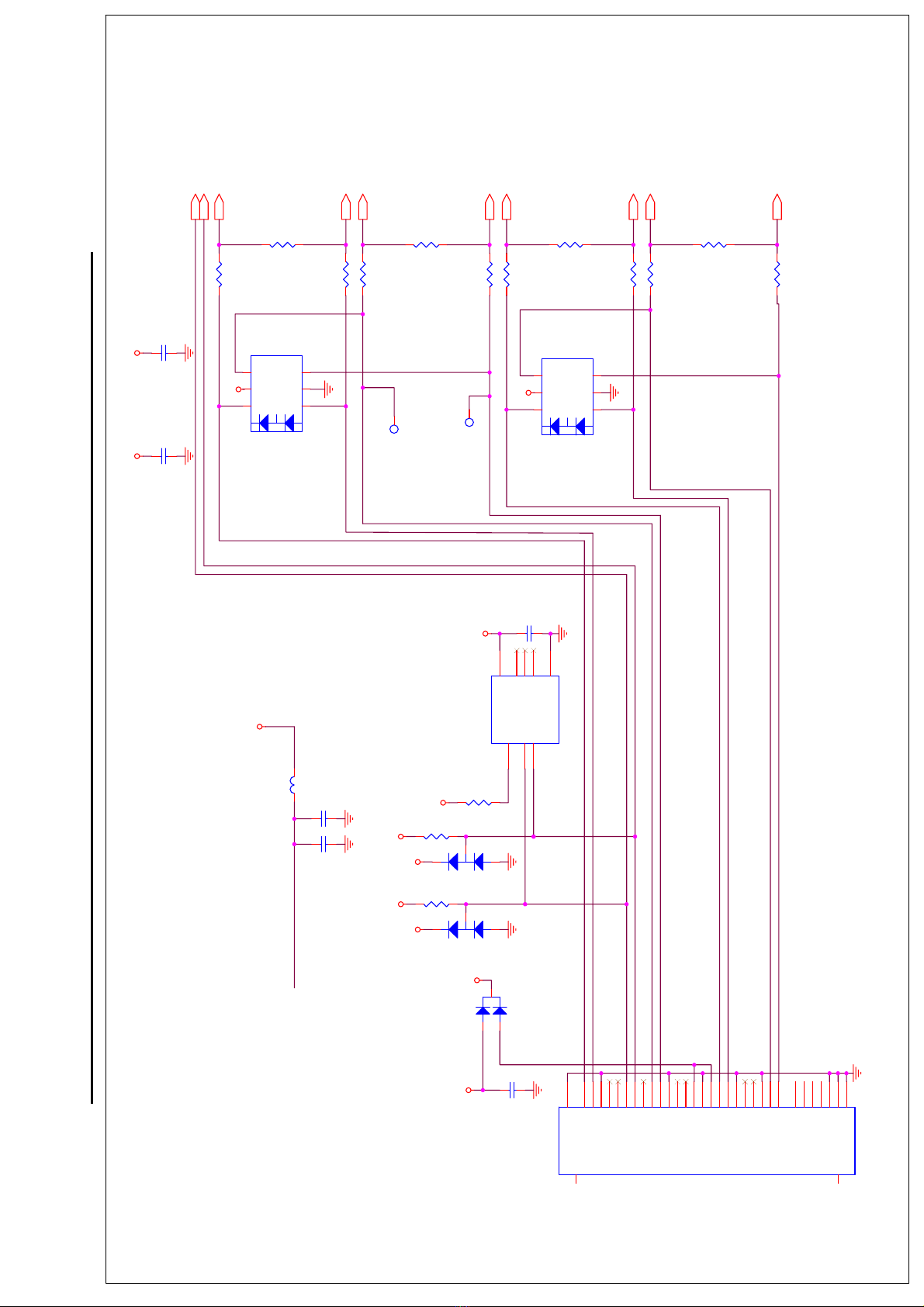

DO NOT STUFF
DATA2m
D5V
GVCK
DATA0p
CLKp
DATA0m
DATA2p
DATA1m
DATA1p
AV33
CLKm
AV33
VCCSW
VCCD
VCCD
VCCDVCCD
VCCD
VCCD
AV33
VCCD
V33SW
AV33
AV33
R007
4.75K
D002 BAV99L
1
3
2
TP027
R001 26.7
R011
75
R004 26.7
TP028
U001
24LC21A
1
2
3
4
5
6
7
8
NC1
NC2
NC3
GND
SDA
SCL
VCLK
VCC
D001 srv05-4
1
3
2
4
5
6
R014
75
R003 26.7
R006
4.75K
D003 BAV99L
1
3
2
C007
0.1uF
L001
FB_1K_OHM_200MA
R010 26.7
R009 26.7
C002
0.1uF
C001
0.1uF
C006
0.1uF
R013 26.7
R008
4.75K
R012 26.7
C008
0.1uF
D005 srv05-4
1
3
2
4
5
6
P001
DVI_V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
33
34
25
26
27
28
29
30
31
32
DATA2-
DATA2+
DATA2/4_SHLD
DATA4-
DATA4+
DDC_CLK
DDC_DATA
A_VSYNC
DATA1-
DATA1+
DATA1/3_SHLD
DATA3-
DATA3+
+5V
GND
H_PLUG_DET
DATA0-
DATA0+
DATA0/5_SHLD
DATA5-
DATA5+
CLK_SHLD
CLK+
CLK-
SHELL1
SHELL2
A_RED
A_GREEN
A_BLUE
A_HSYNC
A_GND1
A_GND2
NC1
NC2
D004BAV70L
1
2
3
R015 26.7
C005
0.1uF
R002
75
R005
75
GSDA
RX1m
RX0p
RX2p
RXCp
RX0m
RX2m
GSCL
RX1p
RXCm
6FKHPHIRUGLJLWDOERDUGSDJHV
5 Schematic Diagram
Other TCL TV manuals
