Applications
nIEEE-488 bus interfacing
nCompatible with the R&S ESH3- 5 V-network
Options
nLISN Adapter LI-2000-3816
The LI-2000-3816 LISN Adapter enables the
LI-2000 to remotely control the EMCO model
3816 LISN.

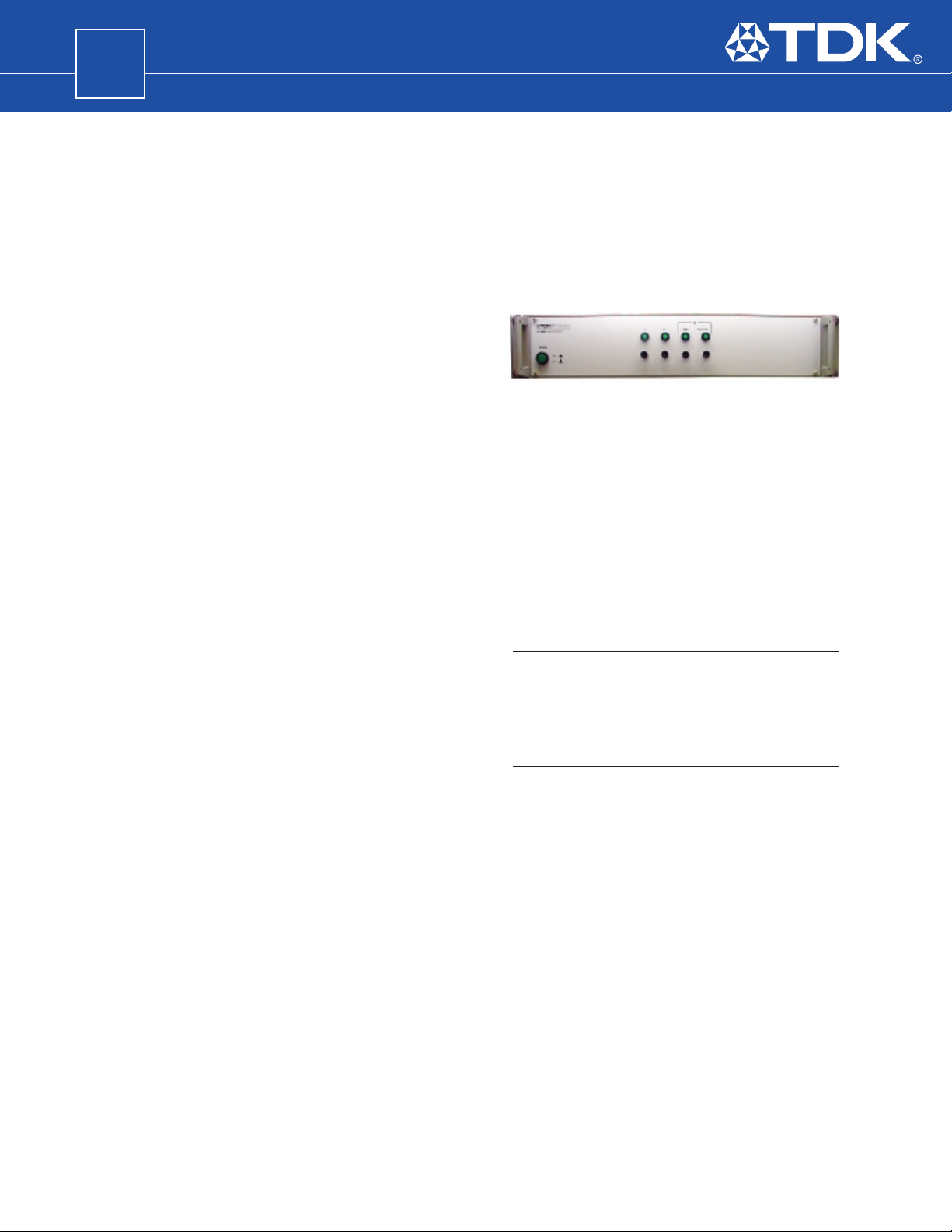

LI-2000 LISN Interface
Product Overview
The TDK RF Solutions LI-2000 LISN Interface is
used to control all front panel features of an AC or
DC LISN via manual or remote control. The LI-
2000 operates as its own controller from a direct
IEEE-488 bus connection. The interface can also
be operated manually via the front panel push
button switches.
Protection Optical isolators or relays make for a
complete electrical isolation between the bus and
the V-network, permitting protection from ground
loops and undesired RF feedback. Also, by taking
operating power from the filtered rack host, noise
from power line connections is eliminated.
Features
nIEEE-488 bus or manual operation
nComplete electrical isolation
nFront panel LED indicators for LISN operating
status
he DK RF Solutions LI-2000 LISN Interface
permits manual or remote control of the
artificial mains network to provide complete
electrical isolation between the bus and the
network.

2
PRODUCTS
DSLI2000112101
LI-2000 LISN Interface
Ordering Information
Product: LISN Interface
Model Number: LI-2000
Warranty: 1 year
o place an order or to learn more about the
DK RF Solutions products that best meet your
needs, contact your DK sales representative:
DK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
DK Electronics Europe GmbH.
Wanheimer Str. 57
40472 Düsseldorf, Germany
Phone: [phone]
Fax: [phone]
Electrical Specifications
Power Requirements 100-240 VAC, 50-60
Hz, 45 W
Communication Media Asynchronous serial (DB-
9 connector)
