Te Pari Revolution G10 Quick start guide

TE PARI
REVOLUTION
2018 Operational Manual - G10 and G20 models

Contents
Introduction 2
Difference between the G10 and G20 models 2
Included with your Te Pari Revolution Dosing Gun 3
Overview of the control panel 4
Power button 4
Prime button 4
Up and down buttons 5
Menu button 5
Barrel change sequence 6
Statistics button 7
Charging the batteries 8
Preparing the gun for use 9
Using the gun in manual mode 9
Using the gun in auto mode (G20 only) 9
Preparing the Te Pari T10 or T20 Scale for use with dosing gun (G20 only) 10
Care, Maintenance and Storage 11
Exploded views of inlet and outlet valve assemblies 12
Te Pari Products Warranty 13
Warranty reply card 13
Health and Safety – Warnings 14
Revolution Dosing Gun cautions 15
The Te Pari Revolution Dosing Gun
Congratulations on your purchase of the new Te Pari Revolution Dosing Gun. This
digital, self-powered dosing gun allows you to deliver fully-calibrated dosages with
both accuracy and speed.
Difference between the G10 and G20 models
There are two Te Pari Revolution Dosing Gun models – the G10 standard model and the G20 smart model. Both the G10 and the G20 allow
for dosages to be set manually using the digital keypad. The G20 can also connect to the Te Pari Scale System via Wi-Fi to automatically
calculate and set the dose rate based on the weight of the animal. A G10 model can be upgraded to the G20 model at any time.
Items and features only available with the G20 will be specified throughout this manual.
2
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

3
Te Pari Revolution Dosing Gun
A
B
C
D
F
E
Included with your
Te Pari Revolution
Dosing Gun
A. Feed tube and two anti-kink coils
B. Intellicharger – auto-sensing battery charger
C. 12-volt power supply – for the battery charger
D. Mains power supply – for the battery charger
E. Spares kit with 1x piston O-ring, inlet and
outlet valve assemblies, and valve retainer
C-clip for outlet valve.
F. Two high-quality 18650 lithium-ion batteries
G. Blow moulded case for secure storage
A
B C
D E F
G
www.tepari.com Freephone 0800 837 274

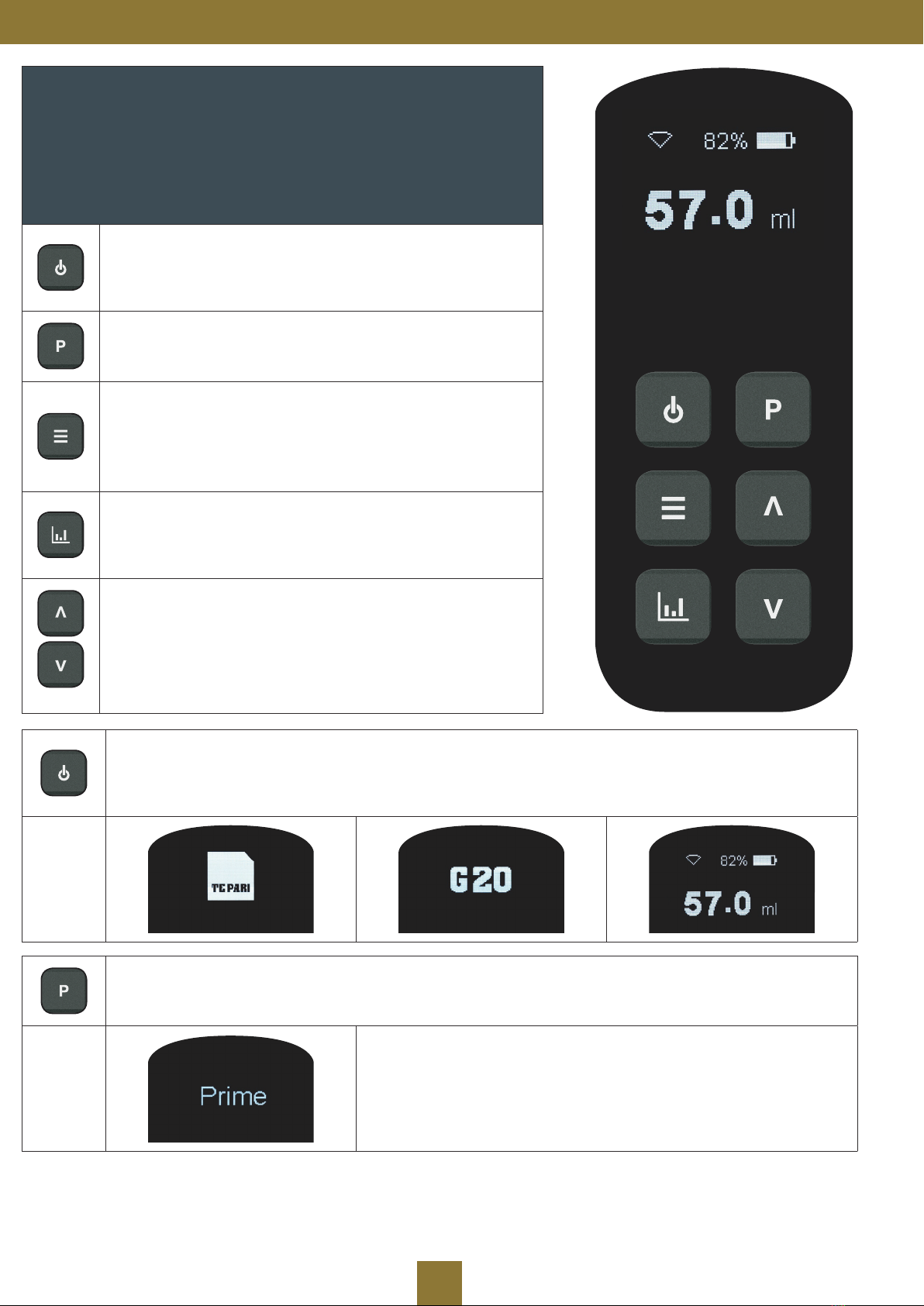

Overview of the control panel
Main screen
The current dose is prominently displayed at the top of the main screen. The top-left
corner shows a Wi-Fi icon when it is active, and the top-right corner shows the battery
level.
Power button
Click once to switch on.
Press and hold to switch off.
Prime button
Click to enter priming mode.
Menu button
Click through the options to access options for dose speed, refill speed,
Wi-Fi (G20 only), sound and tick confirmations, and the barrel change sub-
menu.
Statistics button
Shows how many doses have been administered and how much product
has been used.
Up and Down buttons
Used to increase or decrease values and change a selection when
displayed. Most setting changes are made using these buttons.
Power button
Click once to switch on. The Te Pari logo, followed by the gun model and 2 brief safety warnings will be displayed before the main
screen appears. Press and hold momentarily to switch the gun off.
Prime button
Click the prime button once. The word “Prime” will be displayed to show that the gun is in Prime mode.
Once the gun is in prime mode, pull and hold the trigger. The gun will dispense a full
barrel load and then return to the retracted position and stop. Release, then pull and
hold the trigger again to dispense another full barrel. Continue until fully primed. The
trigger may be released to stop priming at any time during the cycle.
4
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

Up and Down buttons
These buttons are used to increase or decrease values or to change a selection when displayed. Most setting changes are made
using these buttons.
Changing the dose amount
Clicking the up button once increases the dose by 1 ml (70 ml
barrel) or 0.5 ml (14 ml barrel). Pressing and holding it scrolls
the amount up quickly. The down button works in the same
way.
Changing a selection
Pressing either the up or down arrow will change the selection
for the current item. The selected option is shown with a box
around it.
Menu buttons
Each time the menu button is clicked, it cycles through the menu for access to the following items: dosing speed; Refill speed,
Wi-Fi (G20 only), Sound, Tick Timer, and Barrel Change Sequence.
Refill Speed
With the screen displaying the refill speed icon (arrows pointing right), press the up arrow to increase the refill
speed or the down arrow to decrease the speed. The arrows will change to show the selected speed. This example
shows maximum speed.
Slower speeds are for thicker liquids and faster speeds for less viscose liquids.
Dosing speed
With the screen displaying the dosing speed icon (arrows pointing left), press the up arrow to increase the dosing
speed or the down arrow to decrease speed. The arrows will change to show the selected speed.
Slower speeds are best for thicker liquids and faster speeds for less viscose liquids.
Wi-Fi (G20 only)
With the screen displaying the Wi-Fi icon, press the up or down arrow to enable or disable Wi-Fi. When active the
Wi-Fi icon will appear in the top left of the main screen. The number of filled bars show the signal strength. If no
connection is available no bars will be displayed.
Sound
The gun can issue an audible double beep to confirm dose delivery, and a single beep to notify of a dose amount
received via Wi-Fi. With the screen displaying the sound icon, press the up or down arrow to turn the sound on or
off. This example shows the sound on.
Tick Timer
The Tick Timer shows a tick mark on the screen when a dose has been delivered. With the screen displaying the
Tick Timer icon, select the length of time, in seconds, how long the tick should stay on screen. “0” is off and no tick
will be displayed.
5
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

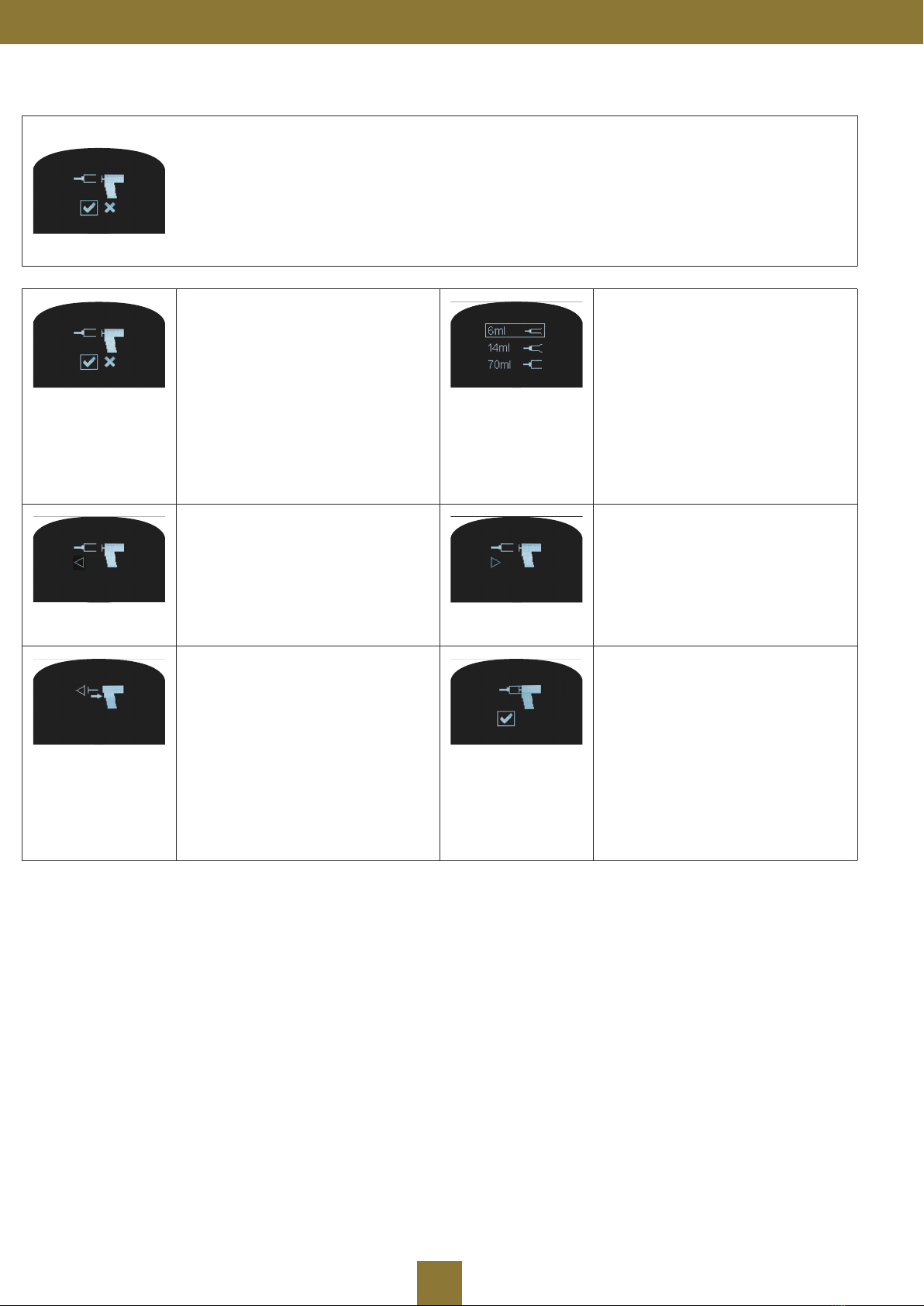

1. Remove the barrel
The arrow flashes on the screen. Remove
the barrel collar and remove the barrel.
Press the menu button for the next step.
4. Select the barrel size you are
fitting
Use the arrow keys to select the size
of the barrel being installed, then press
the menu button to proceed to the next
item. To avoid damage, it is important to
ensure that the correct setting is selected
for the barrel and piston size installed.
2. Remove the piston
The arrows flash on the screen. Remove
the piston by holding down the trigger of
the gun and gently pulling it out. Press
the menu button for the next step.
5. Fit the optional barrel
Fit the new barrel to the gun with the
collar. Press the menu button to complete
the sequence.
3. Load the piston for the
smaller barrel
The arrows flash on the screen. Load
the piston by holding down the trigger
of the gun and gently pressing it in. The
piston stops in the “Home” position and
the screen automatically advances to the
next step.
6. Barrel change complete
The screen displays a gun icon with a tick
to show the process is complete. The
gun saves the changes and automatically
returns to the main screen.
Note: When using the 14 ml barrel, dose
increments change to 0.5 ml.
Barrel Change Sequence
The barrel change sequence is the last item accessed from the menu button.
You use it to change the barrel from the standard 70ml barrel to the smaller 14ml one. When you
select the tick and press the menu button on this item you enter the barrel change sub menu described
below. Pressing and holding the Menu Button at any time returns you to the main screen.
Barrel size, dose amount and delivery specification
70 ml Barrel:
Doses of 5 to 300 ml. Dose-volume increments of 1 ml. Volumes from 71 to 300 ml delivered in up to 5 sequential shots.
14 ml Barrel:
Doses of 1 to 28 ml. Dose-volume increments of 0.5 ml. Volumes from 14.5 to 28 ml delivered in 2 sequential shots.
6 ml Barrel:
Doses of 1ml to 12ml. Dose volume increments of 0.1ml. Volumes from 6ml to 12ml delivered in two sequential shots.
Sequential shots:
These are delivered automatically and immediately after the first shot with just the one trigger click until complete dose has been
administered.
How to change the barrel
6
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

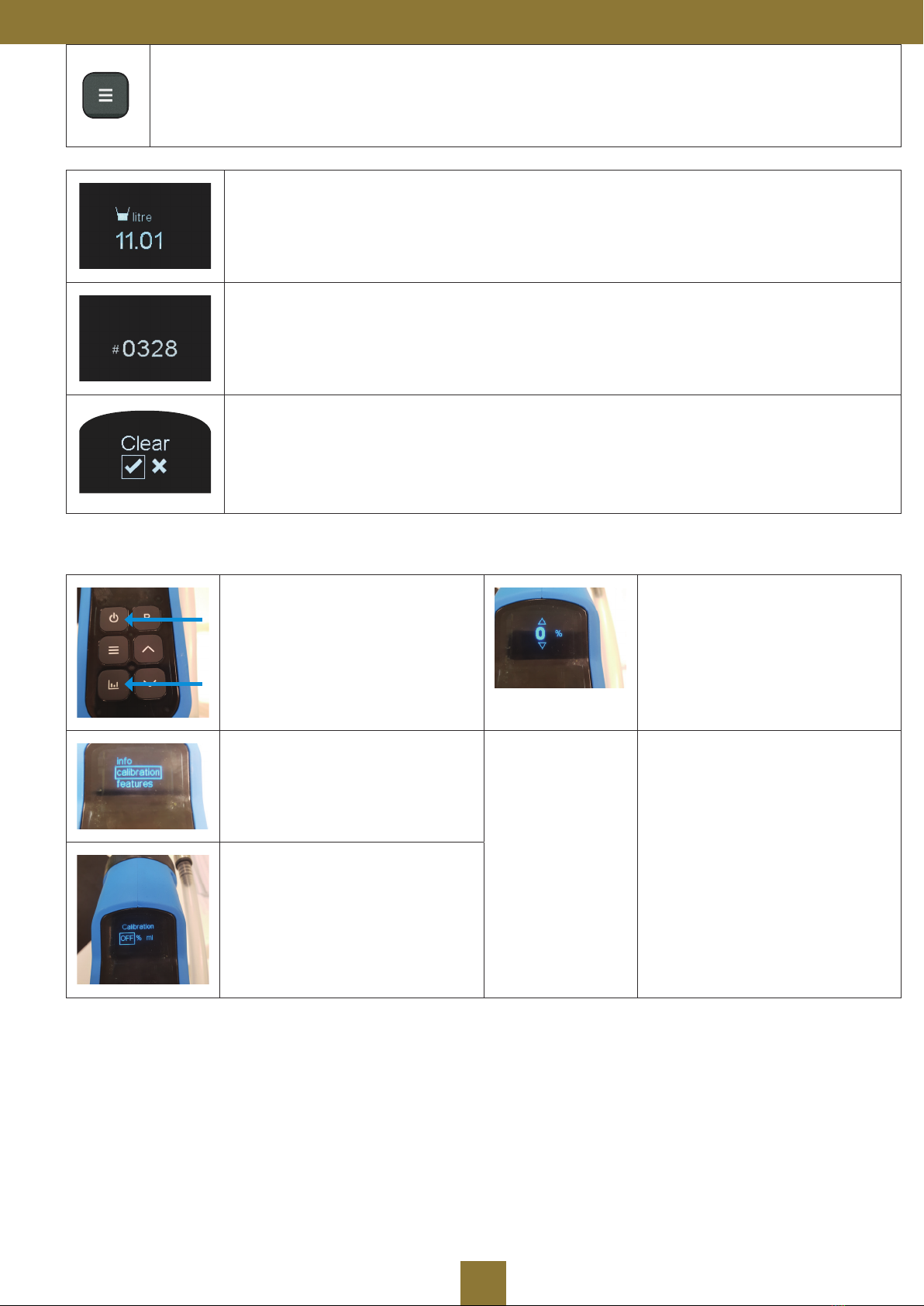

Statistics button
The statistics button shows the amount of dose left in the pack and the total number of doses administered. Each press scrolls
through the various items.
Volume of administered dose
Shows the total volume of dose administered.
Number of doses
Shows the total number of doses administered.
Clear stored statistics
With the screen displaying the clear icon, press the up or down arrow to select the tick or the cross. With the
tick highlighted, press the menu button. The display will return to the main menu, and the number of doses and
volume statistics will be reset to 0.
7
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274
To Calibrate the Gun if giving incorrect dose
1. Press the stats and the power buttons
simultaneously
4. Press the menu button again and use
the up and down to set the % amount or
the ml. To save this, press menu again.
2. A screen with “Info, Calibration,
Features” will appear. Scroll to
“Calibration” and press menu.
5. Restart the gun and resume dosing.
3. Using up and down arrows, choose
percentage(%) or the ml as required.

Charging the batteries
The Te Pari Revolution Dosing Gun is supplied with an intelligent charger that can recharge both 18650
lithium-ion batteries at once.
ʵRemove the battery clip from the base of the gun handle by squeezing in both sides of the clip and gently pulling the clip out.
ʵFit each of the batteries into the charger by pulling down the spring loaded retainer, slotting the battery in, and then releasing the
retainer. The negative terminals go on to the spring loaded end, with the positive terminals going nearest the lights.
ʵConnect the charger to a standard mains supply using the cable provided and switch on. The charger’s lights will run up and down
while the battery type, state, and charge required is determined. A 12-volt cigarette lighter cable is also provided to power the
charger in a vehicle. The charger’s lights will flash slowly in orange showing the charge progress. When all three LED lights are lit a
steady green the batteries are fully charged and ready for use.
ʵBefore reloading the batteries, ensure that the contacts inside the gun’s battery clip are clean and dry.
ʵSqueezing the sides of the battery clip, push it back into the gun handle. The clip only fits into the gun in one direction; with the
curved end facing forwards.
ʵEnsure that the polarity symbols match (+ to + and - to -) as marked on the clip and the batteries.
A. Gun handle bottom
B. Battery clip. Squeeze the sides of the
tabs on the clip to remove or refit into the
handle. Note the white terminal markings.
C. The two lithium-ion 18650 batteries. On
this type, the black band is on the positive
end, but this may vary from other makes,
so be sure to check before fitting.
D. The curved end of the clip goes to the
curved end of the handle when refitting
the battery clip.
E. Orange flashing lights showing that the
batteries are charging and their state of
charge.
F. Three green steady lights mean the
batteries are fully charged and ready for
use.
Note: Please use only the supplied batteries.
8
Te Pari Revolution Dosing Gun
A
B
C
D
D
E F
www.tepari.com Freephone 0800 837 274

Preparing the gun for use
Fitting the feed tube
A. Unclip the retainer and fit the feed tube with anti-kink coil
through it.
B. Press the tube and coil snugly into the retainer recess, with
the retainer’s flared end pointing backwards.
C. Refit the clip with the hose and coil fitting over the
attachment.
D. Ensure the valve housing knurled ring is snug and has not
loosened while fitting the tube and coil.
Using the gun in manual mode
Use the up and down buttons to select the dose amount you wish to administer. Press the trigger to dispense the dose. Dose amounts
above 70 ml will be dispensed in two half amounts. The gun will automatically deliver the second dose directly after the first.
Using the gun in auto mode (G20 only)
Note: Please ensure the Wi-Fi is turned off when not in use – this will prolong battery life.
Set up your Te Pari Scale for auto dosing as shown on page 10.
Ensure that the gun’s Wi-Fi is enabled to allow the gun to automatically connect to the scale. Each time a weight is recorded the scale
will calculate the dose size based upon the animal’s weight. The calculated dose size will be sent to the gun and will display on the main
screens of both the scale and the gun.
Press the trigger once to dispense the dose. Dose amounts above 70 ml will be dispensed in separate amounts. The gun will automatically
deliver the second dose directly after the first.
9
Te Pari Revolution Dosing Gun
A
B
C
D
www.tepari.com Freephone 0800 837 274
ʵConnect the feed tube from the gun to the fluid container. See
instructions below.
ʵSet the gun to prime.
ʵPress and hold the trigger until fluid fills the barrel.
ʵPoint the tip of the gun vertically to remove the last of the air
from the barrel.
ʵPress the prime button to return to the main screen.
ʵThe gun is now ready for use.
Warning: Exercise caution when
dispensing fluids.
Pre October 2018 Gun
A
BC
D

10
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274
Set Te Pari Scale Indicator use with Te Pari Dosing Gun
1. When you turn on the Te Pari scale indicator, you will see a
welcome screen and then the file list. Press “Set Up Weigh”
2. Scroll to DOSING using Arrows
Press Record/select
3. Dose 1 set to On using > (press once to turn on and press again
to turn off )
4. Name – Key in the drench Name using keypad
5. Type – Select calculated does or fixed dose using (press once to
select calculated dose and again to select fixed dose)
Rate - Set using numerals and > (xxml/xxxxkg = ml Per Kg)
6. Using arrow keys scroll to save and exit
Press record/select
This will return you to your main screen and your scale is set up to
communicate with your Te Pari Dosing Gun
Gun Set Up
Turn gun on
Press menu Button 3x and you will find Wifi screen
7. Make sure WiFi is turned on using Up key
8. Gun will automatically return to the dosing screen after a few second and if you are connected it will show in the top left hand of the
screen

To ensure the continued high performance of your gun always clean
and lubricate the gun immediately after use.
Start by reading the cleaning instructions provided by the fluid
manufacturer.
Remove the inlet tube from the fluid container and empty the fluid
from the gun and inlet tube.
Place the end of the inlet tube in a mixture of warm water and a
little dishwashing detergent, then flush about 1 litre through the
gun until it is clean. Flush again with clean water.
Inspect the inlet valve and outlet valve and ensure they are clean.
Remove the barrel and wipe any residue from the barrel with a soft
tissue.
Important – Lubricate the valves, piston O-ring, and barrel with a
small amount of vegetable oil after cleaning and before storing the
gun.
Periodically remove the valves and wash in warm water and
dishwashing detergent. To access the inlet valve, unscrew the
front of the inlet valve housing. To access the outlet valve, remove
the nozzle and cap then use a small screwdriver to release the
C-shaped valve retainer, being careful not to damage it. Be sure to
refit it after cleaning as the outlet valve will not function without it.
Wipe the exterior of the gun with a damp cloth and dry off. Do not
submerge the gun in water when cleaning.
Store the gun in a clean, dry place, out of direct sunlight.
Recommended storage temperature is from -10° to 35° C (14° to
95° F). Store above 0° C for optimum battery performance.
If batteries are in a low charge state, fully charge them before
storage. Remove the batteries before storing the gun.
A. Barrel collar
B. Piston O-ring
C. Nozzle holds the outlet valve and C-clip retainer in the barrel end. See exploded view.
D. Hose entry valve housing. See exploded view.
A. The main barrel can be easily separated from the body to aid in cleaning and maintenance by undoing the barrel collar. Do not over
tighten the barrel collar and ensure all O-rings and felt washers are fitting correctly when refitting.
Care, Maintenance and Storage
A
B
C
D
11
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

12
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274
Exploded views of inlet and outlet valve assemblies
Note: The gun will not function correctly or at all if the valves are in the wrong way around.
Inlet assembly – entry hose end
A. Inlet valve connector
B. Inlet valve and spring. The inlet valve is the larger of the two valves. (70 ml barrel only)
C. Inlet valve housing
Outlet assembly – nozzle end
A. Barrel exit
B. Outlet valve and spring. The outlet valve is the smaller of the two valves. (70 ml barrel only)
C. Valve retaining C- clip
D. Nozzle with screw collar and O-ring
A B C
AB C D

The company warrants that the product you have purchased is free
from defects in materials or workmanship under normal use during
the limited warranty period.
The warranty period starts on the date of purchase from the
company or authorised gun agent. Please keep the dated sales
receipt for proof of purchase as you may be required to provide
proof of purchase as a condition of receiving warranty service.
The gun has a 1-year limited warranty. The rechargeable batteries
have a 1-year limited warranty. The battery warranty does not
cover changes in battery charge capacity and is limited to defects in
materials or workmanship resulting in battery failure.
During the limited warranty period the company will repair or
replace the defective component or product. All components
removed under this warranty become the property of the company.
The replacement component will take on either the remaining
warranty period of the removed component or a ninety (90)
day limited warranty for the spare part, whichever is longer. The
replacement component may be manufactured from new or used
materials equivalent to new in performance and reliability. The
company reserves the right to improve or modify products from
time to time without assuming obligation to modify products
previously manufactured.
The company is not responsible for damage that occurs as a result
of (1) failure to follow the instructions that came with the product;
(2) accident, misuse, abuse or other external causes; (3) voltage
surge or lightning strike; (4) modification, tampering or service by
an unauthorised service provider.
Normal wearing parts requiring replacement or adjustment are not
covered by this warranty. These parts include but are not limited to:
O-rings, springs, bearings, motor brushes, and tubing.
The company is not liable for any damages or personal injury caused
by the product or the failure of the product to perform, including any
damage or loss of data on the product or computer.
The maximum liability of the company under this limited warranty
is limited to the lesser of the cost of repair or the replacement of
the product.
In the event of the product requiring servicing under the terms of
the warranty, contact your authorised dealer. The product is to be
returned to the service centre at the expense of the purchaser.
These conditions constitute the complete and exclusive warranty
and supersede all other warranties, representations or conditions
relating to this product.
Warranty reply card
Te Pari Revolution Dosing Gun
Model
Serial No. Purchase Date
Name
Farm or trading name
Address
Post Code
Telephone Fax
Email
Te Pari Products Warranty
13
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

14
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274
Warranty reply card
Te Pari Revolution Dosing Gun
Please complete all details on the reverse and post to Te Pari Products office:
Te Pari Products Ltd
New Zealand Head Office
PO Box 25, 9 Endeavour Crescent
Oamaru
9444
New Zealand
Notes:

Health and Safety – Warnings
ʵBecause the toxicity and precautions required for the handling of agricultural health fluids varies, follow the manufacturer’s
recommendations in regard to protective clothing, eye wear and handling precautions for the fluid being administered.
ʵAlways be cautious when dispensing fluids.
ʵAlways handle agricultural fluids with care.
Revolution Dosing Gun cautions
Gun
ʵOperating temperature for the gun is between -10° to 40° C (14° to 104° F).
ʵThe gun is environmentally sealed and meets IP53 standards.
ʵKeep the gun as dry as possible, drying it off if it becomes wet.
ʵDo not submerge the gun.
ʵDo not tamper with or remove the case screws as this will void the warranty.
Batteries
ʵThe gun is designed to use two 18650 lithium-ion rechargeable batteries. Only use approved batteries.
ʵDispose of used batteries according to the manufacturer’s instructions.
ʵDo not heat above 50° C (122° F).
ʵDo not dispose of in fire or crush, puncture or directly short circuit.
ʵKeep batteries clean and dry.
Thank you for purchasing a Te Pari Revolution Dosing Gun. If any issues arise with its use, please do not
hesitate to contact our Support Team by phone or online, we are here to help.
– The Te Pari Team
FCC Notice
This device complies with part 15 of the FCC rules for Class A digital devices. It can generate, use and radiate radio frequency energy, and
if not used in accordance with the instructions may cause harmful interference to radio communications. In a residential area it may cause
harmful interference, which will be required to be corrected by the user at their own expense.
Cautions
Read all safety warnings and notices and instructions before use.
Do not dispose of electric tools with household waste material.
Contains lithium-ion batteries.
15
Te Pari Revolution Dosing Gun
www.tepari.com Freephone 0800 837 274

Te Pari Products Ltd
9 Endeavour Crescent
North Oamaru Business Park
Oamaru 9444
New Zealand
Sales Email: [email protected]
NZ Freephone: 0800 837 274 or [phone]
www.tepari.com
