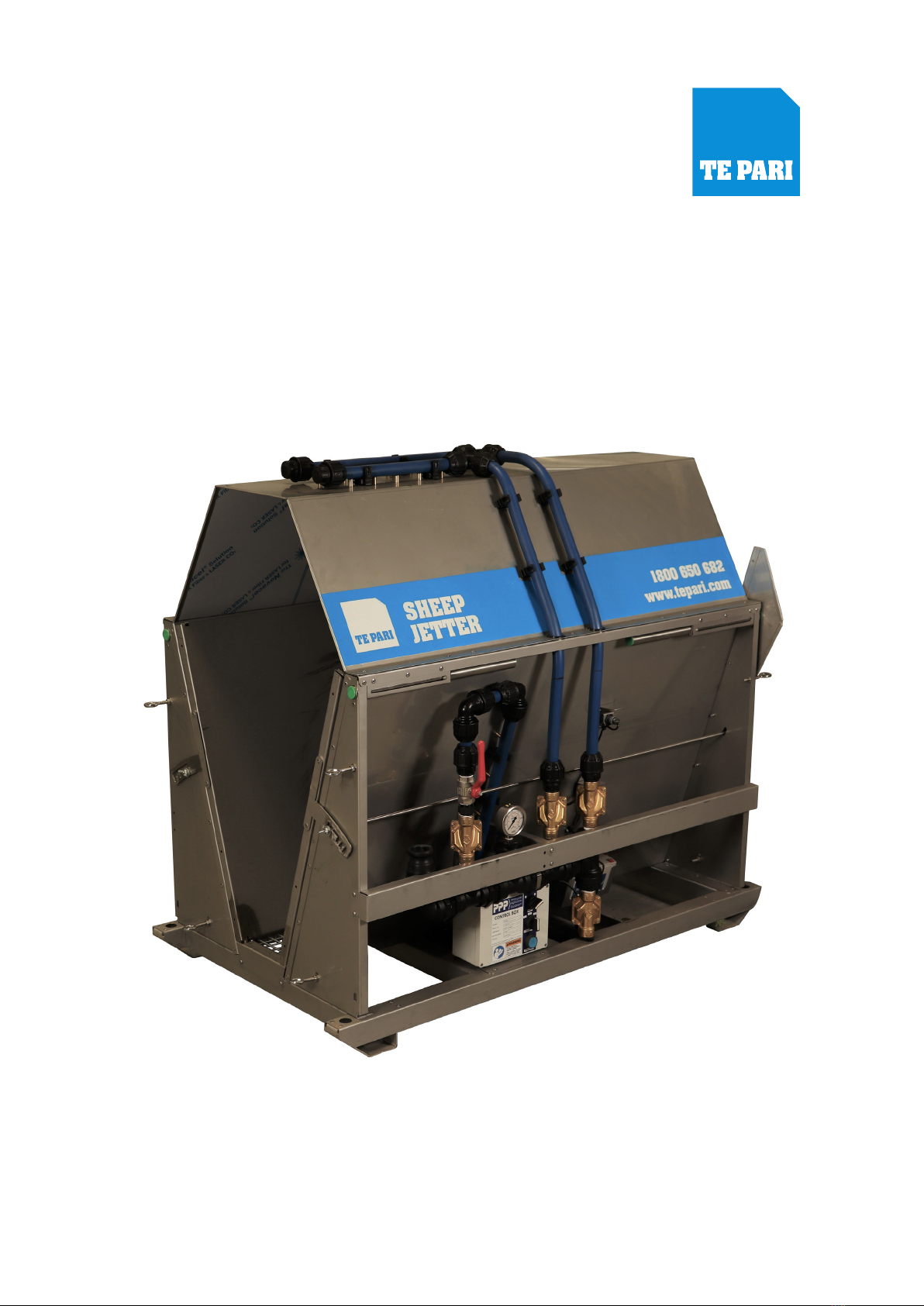

Te Pari Sheep Jetter User manual

User Manual
Te Pari Industries
Sheep Jetter

2Te Pari Sheep Jetter User Manual
Sheep Jetter
Contents
Te Pari recommends safety rst 3
Important safeguards for operating the Te Pari sheep Jetter 4

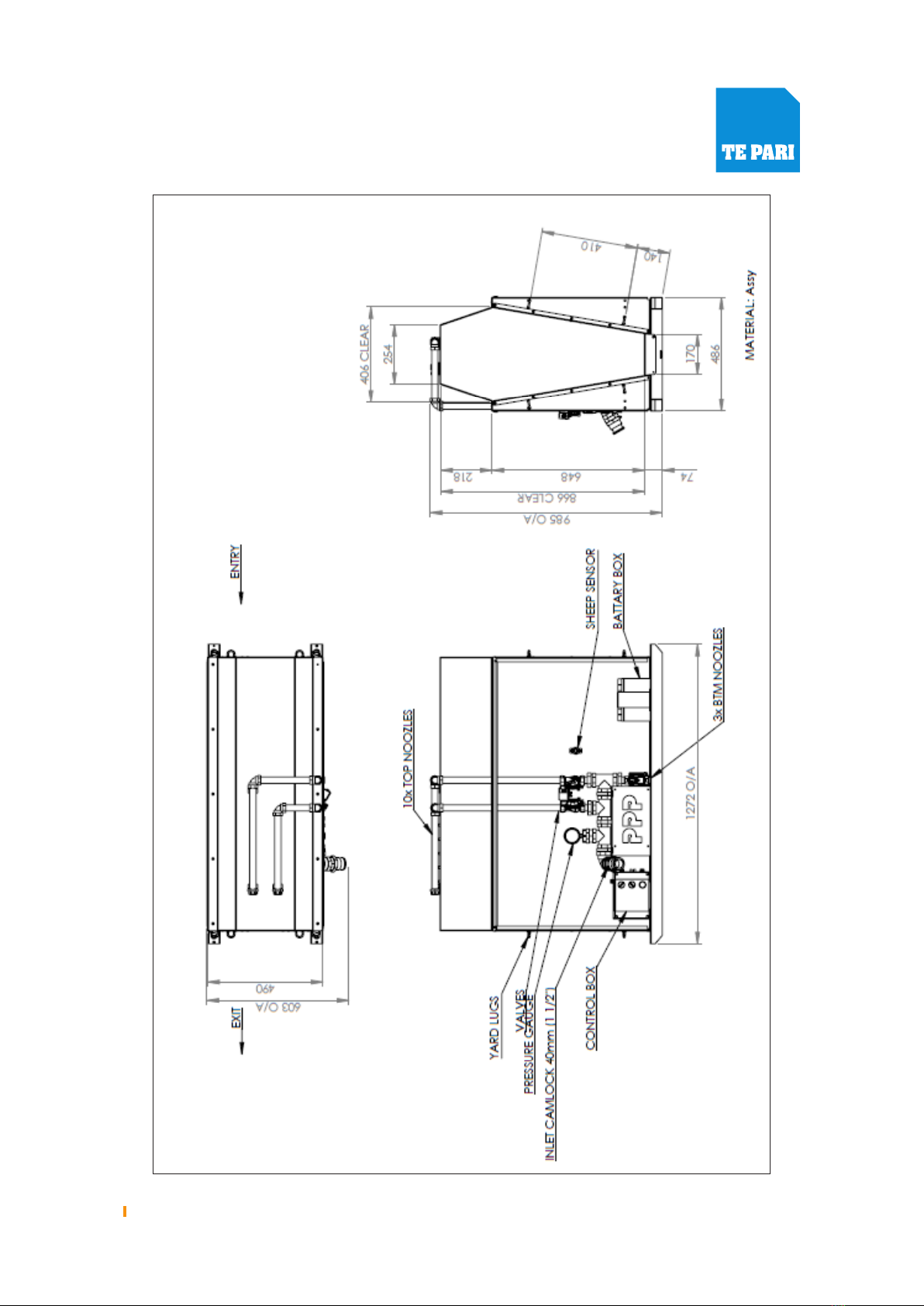

Know your Te Pari Sheep Jetter 5–6
How to set up and operate your Te Pari Sheep Jetter 7
Care, cleaning and Storage 8
Troubleshooting 9

3Te Pari Sheep Jetter User Manual
Sheep Jetter
Te Pari recommends safety rst
At Te Pari we are very safety conscious. We design and manufacture consumer products with
the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise
a degree of care when using any electrical/mechanical appliance and adhere to the following
precautions.
Read all instructions before use and save for future reference
Carefully read all instructions before operating and save for future reference.
Remove any packaging material and promotional stickers before using theTe Pari Sheep Jetter
for the rst time.
Always make sure the Te Pari Sheep Jetter is completely assembled before operating.
Ensure the Te Pari Sheep Jetter is turned o at the power switch, before removing the battery.
Always secure the inlet hose onto cam-lock before starting the pump.
Do not attempt to operate the Te Pari Sheep Jetter by any method other than those described
in this booklet.
Do not pump hot or boiling liquids.
Do not run the Pump without liquid in the supply tank.
Always ensure the Te Pari Sheep Jetter is turned o at the power switch and battery
disconnected before attempting to move the appliance, when not in use, if left unattended or
before disassembling, cleaning or sorting.
Do not use the Te Pari Sheep Jetter on uneven surfaces.
Do not leave the Te Pari Sheep Jetter unattended when in use.
Keep the Te Pari Sheep Jetter clean. Follow the cleaning instructions provided in this book.
Carefully read all supplied engine/pump instructions to ensure safe operation and avoid
possible damage or reduced engine/pump life.

4Te Pari Sheep Jetter User Manual
Sheep Jetter
Important safeguards for operating the Te Pari sheep Jetter
Unwind supply hoses before use.
Do not let the power cords be submerged in hot or wet surfaces or become knotted.
The Te Pari Sheep Jetter is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the Te Pari Sheep Jetter by a
person responsible for their safety
It is recommended to regularly inspect the Te Pari Sheep Jetter. Do not use the Te Pari Sheep
Jetter if power supply cord, pump, hoses or Te Pari Sheep Jetter becomes damaged in any
way. Return the entire Te Pari Sheep Jetter to the nearest authorized Te Pari Service Centre for
examination and/or repair
Any maintenance other than specied in this booklet should be performed at an authorized
Te Pari Service Centre
Do not use the Te Pari Sheep Jetter for anything other than its intended use.

5Te Pari Sheep Jetter User Manual
Sheep Jetter

6Te Pari Sheep Jetter User Manual
Sheep Jetter

7Te Pari Sheep Jetter User Manual
Sheep Jetter
Instructions on how to operate your Te Pari Sheep Jetter
Setting up your Te Pari Sheep Jetter
1Fully Charge the 12VDC battery before use.
2Place Jetter on a rm and level surface in an appropriate location that will allow your animals to travel
freely into the Jetter.
3Line up gates/race to the inlet and outlet of the Jetter
4Making sure the Jetter is turned o, connect the battery (12VDC) to the control unit.
5Connect the outlet of the pump to the hose tail on the Jetter. Connect the inlet of the pump to the
tank outlet and prime the pump if required (Refer the user manual for the pump you're using). Make
sure all connections are securely connected.
6Open any valves between the storage tank and Jetter and start your pump.
7Switch the “Power” switch to “on” and “Nozzle Selection” switch to “both” on the control box attached
to the Jetter.
8Prime the Jetter by pushing the “Manual Spray” button on the control box. Keep priming the system
until all air bubbles have been removed from the system and the pump has built up pressure.
9If desired switch the “Nozzle Selection” switch to either“top” or “btm” if required.
10 Using the “manual Spray” button adjust the ow/pressure of your pump until your get the desired
output ow & pressure.
Running the Jetter
1Depending on your set up open any gates etc. and allow your animals to enter the Jetter in single le.
2We recommend running the motor at around ¾ throttle to get between 60 – 90 psi.
3The sensors in the Jetter will pick up when an animal enters and opens the selected valves to apply
spray to the required area.
Packing up your Te Pari Sheep Jetter
1Flush the Jetter with clean water.
2Turn your pump o.
3Push the“Manual Spray” button to release any pressure in the spray lines.
4Turn the “Power” switch to “o”.
5Close and valves on the tank and disconnect the hoses from the Jetter.
6Wash down and dry the Jetter to clean o the overspray.
7Pack up the Jetter and store in a dry place.

8Te Pari Sheep Jetter User Manual
Sheep Jetter
Care, cleaning and storage
To keep your Te Pari Sheep Jetter working eciently proper care, cleaning and storage need to
be maintained.
Care
Before each use inspect all parts of the Jetter to check for any damage has occurred. Move and
lift the Jetter using the correct lifting points and handles. Following all instruction outlined in this
booklet.
Cleaning
After each use of the Jetter ush all the line with clean water to remove any spray that could
cause damage to the pipe work if left for an extended amount of time. Wash down the Jetter to
remove any overspray of chemicals, dirt and grime that has built up during use and transport.
Check nozzles for build-up of grime and clean accordingly.
Storage
Disconnect the battery from the Jetter before storing and switch the unit o. Drain as much
liquid from the unit as possible and fully dry the Jetter and Store Jetter in a clean, dry area that is
not subject to the elements.

9Te Pari Sheep Jetter User Manual
Sheep Jetter
Trouble shooting guide
QUESTION ANSWER
The nozzles are not spraying evenly or
the top nozzles are dripping a signicant
amount between animal.
Check that the Jetter in on a level surface and the
valves are deactivating.
Check that the Jetter in on a level surface
and the valves are deactivating.
Check the pump is correctly primed, no air bubbles
are in the spray lines and nothing is restricting ow
from the tank.
The Jetter does not stop spraying even
without an animal in the Jetter.
Turn the “Power” switch “o” then back “on”. If this
does not x the issue check nothing if between the
two sensors on each side of the Jetter.
Turn the “Power” switch “o” then back “on”. If this
does not x the issue check nothing if between the
two sensors on each side of the Jetter.
Follow steps below
Remove the 4 x bolts
o the valve.
Open the valve up
There are two holes on the face
plate that need checking as well
To Clean: Push fuse wire through
Spray water into hole
The blockage will be in either of
these two little holes
