Teac VRDS-701 User manual

D01411921A
Z
VRDS-701
CD Player
OWNER’S MANUAL
MODE D’EMPLOI
MANUAL DEL USUARIO
ENGLISH
FRANÇAIS
ESPAÑOL

2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
<The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated“dangerous voltage”within the
product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to persons.
BThe exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
oDO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE
THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
oIF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,
CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR
A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS
BEEN REPAIRED.
oUSE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched par-
ticularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the manufac-
turer, or sold with the apparatus. When a
cart is used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
oThe apparatus draws nominal non-operating power from the
AC outlet with its POWER or STANDBY/ON switch not in the ON
position.
oThe mains plug is used as the disconnect device; the disconnect
device shall remain readily operable.
oCaution should be taken when using earphones or headphones
with the product because excessive sound pressure (volume)
from earphones or headphones can cause hearing loss.
CAUTION
oDo not expose this apparatus to drips or splashes.
oDo not place any objects filled with liquids, such as vases, on
the apparatus.
oThe handle-like parts on the left and right sides of the front
panel are decorative. Do not put your fingers through them
or use them to carry the unit.
oDo not install this apparatus in a confined space such as a
book case or similar unit.
oThe apparatus should be located close enough to the AC
outlet so that you can easily reach the power cord plug at any
time.
oIf the product uses batteries (including a battery pack or
installed batteries), they should not be exposed to sunshine,
fire or excessive heat.
oCAUTION for products that use replaceable lithium batter-
ies: there is danger of explosion if a battery is replaced with
an incorrect type of battery. Replace only with the same or
equivalent type.
WARNING
Products with Class !construction are equipped with a power
supply cord that has a grounding plug. The cord of such a prod-
uct must be plugged into an AC outlet that has a protective
grounding connection.
IN USA/CANADA, USE ONLY ON 120V SUPPLY.

EN
3
VPrecautions concerning batteries
Misuse of batteries could cause them to rupture or leak leading to
fire, injury or the staining of nearby things. Please read and observe
the following precautions carefully.
oBe sure to insert the batteries with correct positive (¥) and
negative (^) orientations.
oUse batteries of the same type. Never use different types of bat-
teries together.
oIf the remote control is not used for a long time (more than a
month), remove the batteries to prevent them from leaking.
oIf the batteries leak, wipe away the leakage inside the battery
compartment and replace the batteries with new ones.
oDo not use batteries of types other than those specified. Do not
mix new batteries with old ones or use different types of batter-
ies together.
oDo not heat or disassemble batteries. Never throw batteries into
fire or water.
oDo not carry or store batteries with other metallic objects. The
batteries could short circuit, leak or explode.
oNever recharge a battery unless it is confirmed to be a recharge-
able type.
oDo not expose batteries to extremely low air pressure as it could
result in an explosion or leakage of flammable liquids or gases.
Laser information
This laser product is a consumer laser product according to
EN50689:2021 and complies with all consumer laser product
requirements except child appealing products.
This product contains a laser system and is classified as a CLASS 1
LASER PRODUCT according to IEC60825-1:2014. This class does not
require special attention in normal use. Do not take apart to prevent
being exposed to the laser beam.
Laser:
Type: EP-C101
Manufacturer: EVER BRIGHT ELECTRIC SCIENCE &
TECHNOLOGY(BEIHAI)LTD.
Laser output: 0.7mW on the objective lens
Wavelength: 790 ±25nm
Model for USA
This product has been designed and manufactured according to
FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the
Radiation Control for Health and Safety Act of 1968”, and is classi-
fied as class !laser product. There is not hazardous invisible laser
radiation during operation because invisible laser radiation emit-
ted inside of this product is completely confined in the protective
housings.
The label required in this regulation is as follows:

4
IMPORTANT SAFETY INSTRUCTIONS (continued)
Model for USA
Supplier’s Declaration of Conformity
Model number: VRDS-701
Trade name: TEAC
Responsible party: 11 Trading Company, LLC
Address: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A.
URL: https://11tradingcompany.com/contact-us/
This device complies with Part.15 of FCC Rules. Operation is sub-
ject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired
operation.
Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip-
ment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Model for Canada
Innovation, Science and Economic Development Canada’s
Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003.
Model for Europe
This product complies with the European
Directives request, and the other Commission
Regulations.
Model for UK
This product complies with the applicable UK
regulations.
For European Customers
Disposal of electrical and electronic equipment and
batteries and/or accumulators
a) All electrical/electronic equipment and waste batteries/
accumulators should be disposed of separately from the
municipal waste stream via collection facilities designated by
the government or local authorities.
b) By disposing of electrical/electronic equipment and waste
batteries/accumulators correctly, you will help save valuable
resources and prevent any potential negative effects on
human health and the environment.
c) Improper disposal of waste electrical/electronic equipment
and batteries/accumulators can have serious effects on the
environment and human health because of the presence of
hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE)
symbols, which show wheeled bins that have been
crossed out, indicate that electrical/electronic equip-
ment and batteries/accumulators must be collected
and disposed of separately from household waste.
If a battery or accumulator contains more than the
specified values of lead (Pb), mercury (Hg), and/or
cadmium (Cd) as defined in the Battery Directive
(2006/66/EC, 2013/56/EU), then the chemical symbols
for those elements will be indicated beneath the WEEE symbol.
e) Return and collection systems are available to end users. For
more detailed information about the disposal of old electri-
cal/electronic equipment and waste batteries/accumulators,
please contact your city office, waste disposal service or the
shop where you purchased the equipment.
Pb
, Hg,
Cd
MQA and the Sound Wave Device are registered trademarks of MQA
Limited © 2016
“DSD” is a registered trademark.
Microsoft and Windows are either registered trademarks or trade-
marks of Microsoft Corporation in the United States and/or other
countries.
Apple, Mac, OS X and macOS are trademarks of Apple Inc., regis-
tered in the U.S. and other countries.
Bulk Pet is a registered trademark of INTERFACE CO., LTD.
Other company names, product names and logos in this document
are the trademarks or registered trademarks of their respective
owners.

EN
5
Contents Floating mounting of the CD
mechanism
Thank you for choosing TEAC. In order to enhance the audio quality,
the entire CD mechanism employs a floating structure so it is not
fixed to the chassis of the unit. The entire mechanism, including the
tray, can move slightly forward, backward, left and right. This is by
design and no cause for concern.
Read this manual carefully to get the best performance from this
unit.
After reading it, keep it in a safe place for future reference.
IMPORTANT SAFETY INSTRUCTIONS ...............................2
Floating mounting of the CD mechanism..........................5
Discs ..............................................................6
Included accessories...............................................7
Using the TEAC International Site ..................................7
Before use .........................................................7
Connections (back) ................................................8
Connections (front)...............................................11
Using the remote control .........................................11
Remote control parts and functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

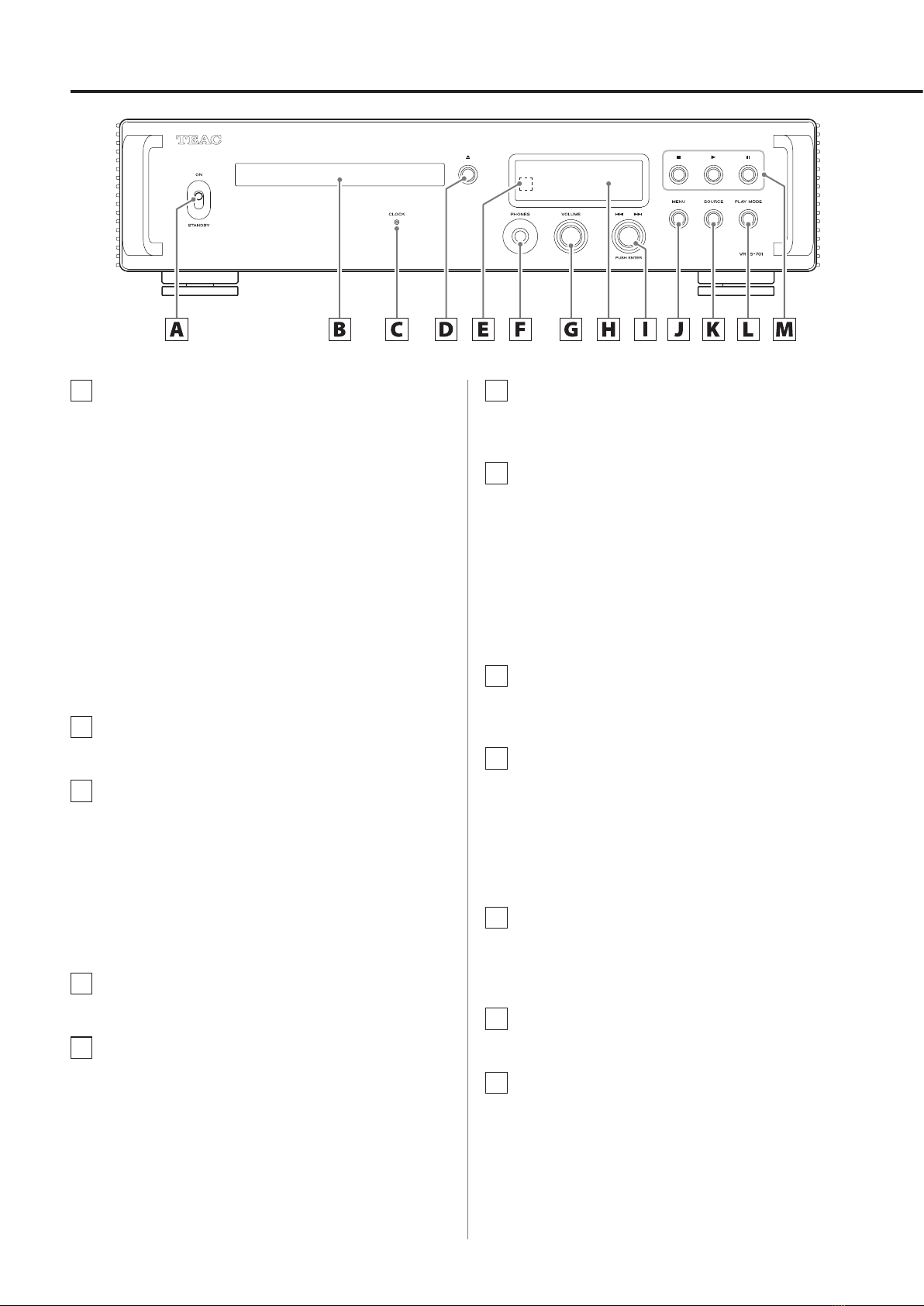

Main unit parts and functions.....................................14
Upconversion ....................................................15
Display ...........................................................16
Basic operation ...................................................18
Listening to CDs ..................................................19
Settings ..........................................................24
Playing back music on a computer................................30
MQA (Master Quality Authenticated)..............................32
Maintenance .....................................................32
Troubleshooting..................................................32
Specifications.....................................................34

6
Types of discs that can be played by this
unit
CDs with the“COMPACT disc DIGITAL AUDIO”logo
CD-R and CD-RW discs that have been properly
recorded and finalized using the audio CD format.
8cm CDs are not supported.
Adapters cannot be used.
VCAUTION
If you try to play any other type of disc with this unit,
loud noises that could damage speakers or harm hear-
ing might occur. Never try to play any type of disc other
than those shown above.
oThis unit might not be able to properly play Copy Control CDs,
Dual Discs or other special CDs that do not conform to the Red
Book CD standard. Operation and sound quality cannot be guar-
anteed when special discs are used in this unit. If playback of a
special disc should cause trouble, contact the seller of the disc.
CD-R/CD-RW discs
This unit can play CD-R/CD-RW discs that are in audio CD format
(CD-DA).
oBe sure to finalize discs created by CD recorders.
oDepending on the quality of the disc and the condition of the
recording, playback might not be possible. For details, see the
operation manual for the device you are using.
oIf you have any questions about how to handle a CD-R or CD-RW
disc, contact the seller of the disc directly.
Precautions for use
oDo not use cracked discs because they could damage the unit.
oWhen writing something on the label side of a disc, use a felt tip
permanent marker. The use of a ballpoint pen or other pen with
a hard tip could damage the disc, making it unplayable.
oNever use commercially-available CD stabilizers. Doing so could
make the disc unplayable or damage the unit.
oNever use discs with irregular shapes, including heart-shaped
and octagonal discs, because they could damage the unit.
oIf a CD-R/CD-RW disc that has a printable label surface is left in
this unit for a long time, it could stick to the inside and become
extremely difficult to remove and possibly even cause the unit to
malfunction.
Always remove such discs and store them in cases when not
in use. Moreover, avoid using discs that have just been printed
because they are especially prone to sticking.
Handling discs
oAlways load discs with their labeled sides up.
oBe careful when handling discs. If the side that contains the data
(unlabeled side) is scratched, smudged with fingerprints or oth-
erwise dirty or marred, errors could occur during playback.
oTo remove a disc from its case, while pressing down on the cen-
ter of the case, hold the disc by its edges.
Removing discs Holding discs
Storing discs
oDiscs should be stored in their cases when not being used.
Failure to do so could result in warping and scratches.
oDo not leave discs in places that are exposed to direct sunlight or
that are very humid or hot. Doing so could cause discs to become
deformed or degraded, making them unplayable.
oCD-R and CD-RW discs are more susceptible to the impacts of
heat and ultraviolet rays than ordinary CDs. For this reason, do
not leave them for long times in places that are exposed to direct
sunlight or near devices that generate heat, for example.
oAlways clean discs before storing them. Leaving a disc in an
unclean state might result in skipping or degraded sound quality.
Maintenance
oIf the side of the disc that has the data encoded on it (unlabeled
side) becomes dirty with fingerprints or dust, use a soft cloth to
wipe the surface from the center directly toward the edge.
oNever use record cleaners, antistatic treatments, thinners or
similar chemicals to clean discs. Such chemicals could harm the
surface of the disc.
Discs

EN
7
Check to be sure the box includes all the supplied accessories
shown below. Please contact the store where you purchased this
unit if any of these accessories are missing or have been damaged
during transportation.
Power cord × 1
Remote control (RC-1338) × 1
Batteries for remote control (AAA) × 2
Foot pads × 3
Owner’s manual (this document, including warranty) × 1
oFor information about the warranty, users living in the USA and
Canada should see pages104–105 and the back cover (war-
ranty document). Users living in Europe and other regions should
see page105.
Using the TEAC International Site
You can download updates for this unit from the TEAC International
Site:
https://teac.jp/int/
Click Language at the top right of the page and select the desired
country or region to access a page in the corresponding language.
Included accessories Before use
oThis equipment is very heavy, so take care to avoid injury when
opening the packaging and when moving it.
oThe handle-like parts on the left and right sides of the front panel
are decorative. Do not put your fingers through them or use
them to carry the unit.
oDo not install this unit in a location that could become hot.
This includes places that are exposed to direct sunlight or near
a radiator, heater, stove or other heating equipment. Moreover,
do not place it on top of an amplifier or other equipment that
generates heat. Doing so could cause discoloration, deformation
or malfunction.
oAvoid locations that are subject to vibrations or exposed to
excessive dust, cold or moisture.
oWhen installing this unit, leave a little space (at least 3cm or 1")
between it and walls and other devices in order to allow good
heat dissipation.
If you put it in a rack, for example, leave at least 5cm (2") open
above and 10cm (4") open behind it. Failure to provide these
gaps could cause heat to build up inside and result in fire.
oPlace the unit in a stable location.
oDo not place anything on top of the unit.
oDo not lift or move the unit during playback because the disc
rotates at high speed. Doing so could damage the disc.
oAlways remove any loaded disc before moving this unit or pack-
ing it for installation in a different location, for example. Moving
the unit with a disc inside could cause damage.
oThe voltage supplied to the unit should match the voltage
printed on the back of the unit. If you are in any doubt regarding
this matter, consult an electrician.
oDo not open the body of the unit as this might result in damage
to the circuitry or cause electric shock. If a foreign object should
get into the unit, contact your dealer.
oWhen removing the power plug from the wall outlet, always pull
directly on the plug; never yank on the cord.
Note about pinpoint feet
High-precision metal pinpoint feet are attached to the bottom plate
of this unit.
The pinpoint feet and their stands are loose, but when the unit is
placed in position, it is supported by these pinpoint feet, which
effectively disperse vibrations.
Chassis Pinpoint foot (metal)
Foot-stand (metal) Screws that
attach foot-stand
oThe included foot pads are intended to protect the surface
where the unit is placed. Apply them to the bottoms of the foot-
stands to avoid scratching the surface where the unit is placed.

8
Connections (back)
Device that outputs
clock signal
Digital audio output
device
Digital audio output
device
CLOCK OUT
Coaxial digital input
DIGITAL IN
(COAXIAL)
Optical digital input
DIGITAL IN
(OPTICAL)
Optical digital output
DIGITAL OUT
(OPTICAL)
Coaxial digital output
DIGITAL OUT
(COAXIAL)
RCA coaxial digital cable
BNC coaxial cable
Optical digital cable
RCA audio cables
XLR cables
USB cable
Included power cord
Audio input
(LINE IN, etc.)
Stereo amplifier or powered
speakers
Computer
The polarity of the XLR connectors
can be set so that either 2 or 3 is
HOT (page26).
If you want to be able to control
the volume from the amplifier, set
LINE OUT LEVEL to “FIXED 0dB” or
“FIXED +6dB” (page26).
Install the dedicated
driver on the computer
before connecting this
unit to it (page30).
Digital audio input
device
Digital audio input
device
Connect using a set
of only one type.
RCA coaxial digital cable
Optical digital cable
c
Wall outlet

EN
9
A USB port
Use this to input digital audio from a computer. Connect it to a
computer’s USB port.
Use a commercially available USB Type-C cable for
connection.
ATTENTION
Before connecting a computer that is running a Windows
OS, you must install the dedicated driver on the computer
(page30).
B COAXIAL/OPTICAL digital audio input connectors
Use these to input digital audio. Connect digital audio output
connectors of audio devices here.
Use commercially-available RCA coaxial digital cables or
rectangular optical digital cables for connection.
C 12V TRIGGER connectors
Use these to control power from an external source.
Do not connect anything to these connectors when not using
them (page10).
Use commercially-available mono mini plug cables for
connections.
D Analog audio output (LINE OUT) connectors
These output 2-channel analog audio. Connect these XLR or
RCA connectors to a stereo amplifier or powered speakers.
Use commercially available cables for connections.
XLR: XLR cables
RCA: RCA audio cables
Connect this unit’s R connector to the R connector of the
amplifier and its L connector to the L connector of the amplifier.
White (L)
Red (R)
White (L)
Red (R)
E COAXIAL/OPTICAL digital audio output connectors
Use these to output digital audio. Connect digital audio input
connectors of audio devices here.
Use commercially-available RCA coaxial digital cables or
rectangular optical digital cables for connection.
F CLOCK sync input (10MHz IN) connector
Use this connector to input 10MHz clock synchronization sig-
nals (page35).
Use a commercially available BNC coaxial cable for
connection.
oWhen the input source is COAXIAL or OPTICAL, both this unit
and the digital audio output device must be synchronized
with the same external clock. If they are not synchronized, the
sound might skip or break up.
G Power inlet (~IN)
Connect the supplied power cord here.
After all other connections are complete, connect the
power cord’s plug to a wall outlet.
VDo not use any power cord other than the one
included with this unit. Use of other power cords
could result in fire or electric shock.
VDisconnect the power plug from the outlet if you
will not use the unit for a long time.

10
VComplete all other connections before turning
the unit on.
oCarefully read the manuals of the devices that you are
connecting and follow their instructions when making
connections.
oDo not bundle connecting cables with power cords. Doing
so could cause noise.
oConnect all plugs completely.
Synchronizing external devices with
power operations of this unit (trigger
function)
The power of a connected preamp or another device that supports
trigger functions can be synchronized with the power operations of
this unit.
Use commercially-available mono mini plug cables for connections.
12V TRIGGER connectors
OUT
When this unit is turned on, it outputs 12V.
By connecting this unit’s TRIGGER OUT connector to a power
amplifier, subwoofer or other device that supports trigger
input, the power supply of that device can be synchronized
with the power operations of this unit.
IN
Connect this to the trigger output connector of a preamp or
other device.
This will make the power operation of that preamp or other
device control this unit, putting it in standby and turning it
on.
ATTENTION
oTo use the trigger input function, set this unit’s STANDBY/ON
switch to ON.
oWhen connecting both IN and OUT, be careful not to cause a
trigger loop in the entire system.
Device that supports trigger input
(e.g., AP-701 or power amplifier)
Mono mini plug cable
VRDS-701
Connections (back) (continued)

EN
11
Connections (front)
Connecting headphones
VCAUTION
While wearing headphones, do not connect or disconnect them or
turn the unit on or off.
Doing so could result in a sudden loud noise that could harm your
hearing.
Before putting headphones on, always set the volume to
minimum (display should show“0” when set to“STEP (0-100)”
or“−∞ dB” when set to“dB”) (page18).
Connect headphones with a standard 6.3mm (1/4") stereo plug
here.
Using the remote control
Precautions for use
VMisuse of batteries could cause them to rupture
or leak, which might result in fire, injury or the
staining of nearby materials. Please read and
observe the precautions on page3 carefully.
oWhen using the remote control, point it toward the remote con-
trol signal receiver on the main unit from a distance of 5m (16ft)
or less. Do not place obstructions between the main unit and the
remote control.
oThe remote control might not work if the remote control signal
receiver on the unit is exposed to direct sunlight or bright light. If
this occurs, try moving the unit.
oBeware that use of this remote control could cause the unin-
tentional operation of other devices that can be controlled by
infrared rays.
Installing batteries
Remove the cover from the back of the remote control and insert
two AAA batteries with their ¥/^oriented as shown in the case.
Replace the cover.
When to replace batteries
If the distance required between the remote and the main unit
decreases or if the main unit stops responding to the remote but-
tons, replace both batteries with new ones.
Dispose of the used batteries according to the instructions on them
or requirements set by your local municipality.

12
Remote control parts and functions
When the main unit and the remote control both have buttons
with the same functions, this manual explains how to use one of
the buttons. The other corresponding button can be used in the
same manner.
d Number buttons
Use these to select and program tracks, for example.
e REPEAT button (¼)
Use this to change the repeat playback setting (page20).
f Analog OUTPUT selection button
Switch the output of analog audio between the analog audio
output connectors and the headphone jack.
g MUTE button
Press this to minimize the volume.
h Tray OPEN/CLOSE (-) button
Press this to open and close the disc tray.
i DIMMER button
Press this to adjust the brightness of the main unit’s display.
j DISPLAY button
k INFO button
Press this to show information, including upconversion
(page17).
l UPCONVERT button
Press this to change the upconversion setting.
m CLEAR button
Use this to clear programmed tracks.
n MENU button
Press this to enter setting mode (page24).
Press this when in setting mode to return to the previous screen.
o PLAY MODE button
Press this to switch between program and shuffle playback
modes.
p Skip (., /) buttons/
up/down (k, j) buttons
When input source set to CD
Use these to skip to the previous or next track.
Press and hold these buttons during playback to search back-
ward/forward (page20).
When the menu screen is open
Use these buttons to select setting values.
a STANDBY/ON button
Press this to put the unit into standby mode or turn it on.
b SOURCE button
Use this to select the playback source.
c FILTER button
Press this to change the DSD low-pass filter setting (page28).

EN
13
q Play/pause (7/9) button/
ENTER button
When input source set to CD
Press this when stopped or paused to start or resume playback.
Press this during playback to pause.
When the menu screen is open
Press this to start or confirm setting value selection.
r Stop (8) button
Press this during playback to stop playback.
s VOLUME (+, −) buttons
Use these to adjust the volume.

14
Main unit parts and functions
A STANDBY/ON switch
Use this to put the unit into standby mode or turn it on.
oIf the display is off even though the STANDBY/ON switch is
set to ON, the cause is usually one of the following.
oThe power is on, but DIMMER (display brightness) is set to
AUTO OFF (page26).
oThe automatic power saving function has activated, put-
ting the unit into standby (page27).
oThe power cord is disconnected.
oThe unit is in standby because of the trigger function
(page10).
To turn the unit on when the automatic power saving
function has activated, putting the unit into standby, press
the STANDBY/ON button on the remote control, or set the
STANDBY/ON switch to STANDBY once and then back to ON.
B Disc tray
Load a disc here.
C CLOCK indicator
This shows the clock synchronization status.
Lit: The unit is currently synchronized with the clock
from the CLOCK sync input (10MHz IN) connector.
Blinking: No clock is being input, or the unit is trying to syn-
chronize with the clock signal.
Unlit: External clock is not being used.
oSee page26 for clock sync settings.
D Tray open/close (-) button
Press this to open and close the disc tray.
E Remote control signal receiver
This receives signals from the remote control. When operat-
ing the remote control, point it at the remote control signal
receiver.
F PHONES jack
Connect headphones (with a standard 6.3mm (1/4") stereo
plug) here (page11).
G VOLUME knob
Use this to adjust the volume. Turn it right to increase and left
to decrease the volume.
oTo enable adjustment of this unit’s analog audio output
volume, set LINE OUT LEVEL to VARIABLE (page26). This
will enable adjustment of the analog output level using this
unit’s VOLUME knob.
oVolume settings are retained separately for analog audio
output and headphone output.
H Display
This display shows information about the audio playing back
and menu screens.
I Skip knob (.//)
When input source set to CD
Use this to skip to the previous or next track (page20).
When the menu screen is open
Use this to select setting values.
Press this to start or confirm setting value selection.
J MENU button
Press this to enter setting mode (page24).
Press this when in setting mode to return to the previous
screen.
K SOURCE button
Use this to select the active input.
L PLAY MODE button
Use this to switch between the ordinary, shuffle/random and
program playback modes.

EN
15
M Playback control buttons
Use these to control playback when the input source is set to
CD.
Stop (8) button
Press this to stop CD playback.
Play (7) button
Press this when stopped or paused to start playback.
Pause (9) button
Press this during playback to pause.
Automatic power saving function
This unit has an automatic power saving function (page27).
By default, the setting is ON.
The unit will automatically enter standby mode if no audio is output
and no operation is conducted for about 30minutes.
Set the automatic power saving function to OFF to disable it
(page27).
Display brightness
You can adjust the brightness of the unit’s display (page26).
By default, the setting is Slightly BRIGHT (Stays lit dimly).
When set to AUTO OFF (automatic illumination off), the display
turns off when not being operated.
oNO DISC and other warnings will stay lit.
The upconversion function can be used with input sources
(page25).
The relationships between input sampling frequencies and sam-
pling frequencies after upconversion are as follows.
Input source Upconversion setting
Digital
audio
input
USB OFF 2× Fs 4× Fs 8× Fs
Input sampling
frequency
Sampling frequency after
upconversion
[kHz] [kHz]
32 − 32 64 128 256
44.1 44.1 44.1 88.2 176.4 352.8
88.2 88.2 88.2 88.2 176.4 352.8
176.4 176.4 176.4 176.4 176.4 352.8
− 352.8 352.8 352.8 352.8 352.8
48 48 48 96 192 384
96 96 96 96 192 384
192 192 192 192 192 384
− 384 384 384 384 384
These values are not converted.
oThe maximum upconversion is 8× Fs.
oUpconversion is not possible when the input is DSD.
Upconversion

16
Display
When on
Z
After the display appears as above, it will show the input source
status.
Playback source screen (when CD)
When no disc is available
NO DISC
Display example: stopped
TRACK 8
22 68:25
Total number of
tracks on disc
Total playback time
(minutes: seconds)
Display example: playing back
When a disc is playing or paused, press the DISPLAY button to
change the display as follows.
TRACK 7
1 0:02
Number of track
being played
Elapsed time of track
being played
(minutes: seconds)
TRACK 7
1 2:36
Number of track
being played
Remaining time of track
being played
(minutes: seconds)
REMAIN
TRACK 7
1 68:23
Number of track
being played
Remaining disc time
(minutes: seconds)
T.REMAIN
Playback source screen (when not CD)
The playback source screen will appear after turning the unit on as
well as after about seven seconds pass without operation when a
setting screen is open.
The input signal format or volume is shown to the right of the play-
back source. Press the DISPLAY button on the remote control to
change what is shown.
Display examples
Playback source information screen
Stopped
USB CHECK
Playback source
Shown when the connection is being checked
Playing back
USB PCM
44.1k
Input signal format
Sampling frequency
Press the DISPLAY button on the remote control.
Volume display
USB −45.5dB
Volume
Playback source name
The name of the selected source is shown.
The names on the display correspond to the selected connectors as
follows.
The names in parentheses appear when switching.
USB (USB)
USB port
COAX (COAXIAL)
RCA COAXIAL digital audio input connector
OPT (OPTICAL)
OPTICAL digital audio input connector
Input signal status
The input source signal status is shown.
CHECK
The connection is being checked.

EN
17
PCM 32kHz
PCM 44.1kHz
PCM 48kHz
PCM 88.2kHz
PCM 96kHz
PCM 128kHz
PCM 176.4kHz
PCM 192kHz
PCM 256kHz
PCM 352.8kHz
PCM 384kHz
DSD 2.8MHz
DSD 5.6MHz
DSD 11.2MHz
DSD 22.5MHz
These show the input signal type and sampling frequency.
Playback format information screen
Press the INFO button on the remote control during playback to
show playback format information.
oThe input signal and playback signal displays will be the same
when the upconversion setting is“OFF”.
Example when the playback source is USB, COAX or OPT (“8×
Fs” upconversion setting)
PCM PCM
44. 1kHz 352.8kHz
Input signal sampling
frequency
Playback sampling
frequency
Playback signal format
Input signal
format
Volume display
Two types of volume can be shown: STEP and dB.
This is set by the VOLUME TYPE setting (page27).
The volume setting shown will be enlarged when you turn this
unit’s VOLUME knob.
VOLUME TYPE set to“STEP (0-100)”
Display example
VOL.
36
The maximum volume level is 100 and the minimum level is
0. Before connecting headphones, set the VOLUME knob to its
minimum value (0). Failure to do so might cause sudden loud
noises, which could damage headphones, harm hearing or result
in other trouble.
VOLUME TYPE set to“dB”
Display example
VOL.
-62
.0dB
The maximum volume level is +24dB and the minimum level
is −∞dB (negative infinity). Before connecting headphones, set
the VOLUME knob to its minimum value (−∞dB). Failure to do
so might cause sudden loud noises, which could damage head-
phones, harm hearing or result in other trouble.
The set output level is shown when LINE OUT LEVEL is set to “FIXED
0dB” or “FIXED +6dB”.
Example when VOLUME TYPE set to“dB”
USB + 0.0dB
oIf VOLUME TYPE is set to “STEP (0-100)”, “VOL. 86” will be shown
when set to “FIXED 0dB” and “VOL. 90” will be shown when set to
“FIXED +6dB”.
When LINE OUT LEVEL is set to “OFF”, “VOL. 0” or “−∞ dB” will be
shown.
Example when VOLUME TYPE set to“dB”
USB − ∞ dB
When LINE OUT LEVEL is set to FIXED or OFF
Turning the VOLUME knob will cause the following to be displayed.
LINE OUT LEVEL set to FIXED
VOL.
FIXED
LINE OUT LEVEL set to OFF
VOL.
OFF

18
Basic operation
1 Shift the STANDBY/ON switch to its ON posi-
tion to turn the unit on.
oIf a stereo amplifier is connected to this unit, always turn the
amplifier on very last.
2 Minimize the volume.
Minimize the volume on devices used to control the volume
(this unit, the stereo amplifier or other equipment connected
to this unit).
3 Press the SOURCE button to select the input
source.
The selected source appears on the display.
oYou can also use the SOURCE button on the remote control.
oIf the input signal is not a digital audio signal or is an audio
signal format that is not supported by this unit, such as
Dolby Digital or DTS, no audio will be output. Set the digital
output of the connected device to PCM audio output.
oTo play back audio files when this unit is set to USB, you
must first install a dedicated driver on the computer before
connecting them (page30).
oDSD data can only be played back when the input source is
USB or when using DoP format digital input.
4 Operate the playback device.
Refer to the operation manual of that device.
5 Adjust the volume.
When using the analog audio outputs
When LINE OUT LEVEL is set to VARIABLE, turn this unit’s
VOLUME knob to adjust the volume.
When LINE OUT LEVEL is set to any other setting, the volume
cannot be adjusted from this unit. Use the stereo amplifier or
other device connected to this unit to adjust the volume.
When headphones are connected to this unit
Turn this unit’s VOLUME knob to adjust the volume.
oWhen this unit’s VOLUME knob is enabled, the volume setting
will be shown.
NOTE
oThe automatic power saving function is set to ON when shipped
new from the factory (page27).
oWhen DIMMER (display brightness) is set to AUTO OFF, the display
will turn off when not being operated (page26).

EN
19
Listening to CDs
1 Press the SOURCE button to select CD.
oYou can also use the SOURCE button on the remote control.
2 Press the tray open/close (-) button.
3 Place a disc on the tray with the labeled side
up.
oDo not put more than one disc onto the tray at a time.
oIf the tray is closed while a disc is outside the center guides,
the disc might become stuck inside and the tray might not
open. Be sure to always place discs within the guides at the
center of the tray.
oWhen the tray is opening or closing, do not force it by hand.
4 Press the tray open/close (-) button to close
it.
VCAUTION
Be careful not to let your fingers be pinched when the
tray closes.
“READING” will appear on the display and the unit will start
loading the disc.
oThe unit takes some time to load the disc.
Wait until the total number of tracks and total playback time
appear on the display.
When loading completes, the display will appear as follows.
Display example
TRACK 8
22 68:25
Total number of
tracks on disc
Total playback time (min-
utes: seconds)
oWhen POWER ON PLAY is ON, playback will start immedi-
ately after the unit is turned on (page28).
o“NO DISC” appears if no disc has been loaded.
o“No support” appears if a disc that cannot be played is loaded.
5 Press the play (7) button.
Playback starts from the first track.
Display example
TRACK 7
1 0:02
Number of track
being played
Elapsed time of track
being played
(minutes: seconds)

20
Skipping to search for a track
Turn the skip (.//) knob. Use it to skip to the previous or
next track. Keep turning until the desired track is selected.
After a track is selected, it will start playing back from the beginning.
oDuring playback, turn the skip .knob one click to return to
the beginning of the current track. Turn the skip .knob con-
tinuously to select and play lower-numbered tracks.
Searching for part of a track
During playback, press and hold a skip (.//) button on
the remote control to search forward/backward. Release the skip
(.//) button when you find the part to which you want to
listen.
Press and hold
Repeat playback
Press the repeat (¼) button to cycle through repeat modes as
follows.
Repeat all tracks ( )
Repeat one track ( )
Ordinary playback
Shuffle/random playback
To switch to shuffle/random playback, press the PLAY MODE button
repeatedly until appears at the top right of the display.
Shuffle or random playback will occur according to the setting
(page28).
Shuffle/random playback ( )
Program playback (PGM)
Ordinary playback
oRandom playback will not stop until the stop (8) button is
pressed.
oWhen random playback is active, the repeat playback setting has
no effect.
Listening to CDs (continued)
