SERVICE MANUAL
AV Digital Home Theater Receiver
Effective : November, 2004 S-0135A
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 ADJUSTMENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・4
4 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・7
5 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・22
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[E]:EUROPE[A]:AUSTRALIA[CN]:CHINA[K]:KOREA

1 SPECIFICATIONS
−2−
Amplifier Section
Output Power ........................................................100 W + 100 W
(Stereo, 0.2 % THD, 20 Hz to 20 kHz, 6 Ω)
120W + 120W (6 Ω, JEITA)
Surround Output Power ..................................125 W per channel
(0.7 % THD, 1 kHz, 6 Ω, only one channel driven)
160 W per channel (6 Ω, JEITA)
Total Harmonic Distortion ................0.09 % (at 95 W, 1 kHz, 6 Ω)
Audio Input Sensitivity/Impedance ..............*LINE: 200 mV/47 kΩ
Output Level/Impedance (TAPE REC) ..................200 mV / 2.2 kΩ
Frequency Response................*LINE: 20 Hz to 50 kHz, +0 / –3 dB
Signal-to-Noise Ratio ....................................*LINE: 90 dB (IHF-A)
Tone Control ............................................BASS: ± 10 dB at 100 Hz
TREBLE: ± 10 dB at 10 kHz
Digital Audio Section
Sampling Frequency ..................32 kHz, 44.1 kHz, 48 kHz, 96 kHz
Digital Input Level ................................COAXIAL (75 Ω): 0.5 Vp-p
OPTICAL (660nm): –15 dBm to –21 dBm
Video Section
S-Video output
Y (luminance) - Output level ..............................1 Vp-p (75 Ω)
C (color) - Output level................................286 mVp-p (75 Ω)
Jacks ..................................................................S-VIDEO jack
Video output
Output level ........................................................1 Vp-p (75 Ω)
Jacks ..........................................................................RCA jack
Component video output (Y, PB, PR)
Y-Output level..................................................1.0 Vp-p (75 Ω)
PB, PR-Output level ..........................................0.7 Vp-p (75 Ω)
Jacks ........................................................................RCA jacks
FM Tuner Section (Without notes 100.1 MHz, 65 dBf)
Tuning Range ....................87.5 MHz to 108.0 MHz (50 kHz steps)
Total Harmonic Distortion (1 kHz) ..............................Mono: 0.5%
Stereo: 0.8%
Frequency Response ..................................30 Hz to 15 kHz, ±3 dB
Stereo Separation (1 kHz)......................................................40 dB
Signal-to-Noise Ratio ................................................Mono: 70 dB
Stereo: 65 dB
AM Tuner Section
Tuning Range ..........................522 kHz to 1,611 kHz (9 kHz steps)
Usable Sensitivity ............................................................500 µV/m
Total Harmonic Distortion ..................................1.5% at 100 dB/m
Signal-to-Noise Ratio ........................................40 dB at 100 dB/m
General
Power Requirements ..........AC 220 V, 50 Hz (China/Korea model)
AC 230 V, 50 Hz (Europe/Australia model)
Power Consumption ................................250 W (STANDBY : 3 W)
AC Outlet ....................................................................switched x 1
(except Australia model, total 100 W max.)
Dimensions (W x H x D) ................................435 x 143 x 372 mm
Weight (net) ........................................................................10.4 kg
Standard Accessories
Power Cord x 1
AM Loop Antenna x 1
FM T-type Antenna x 1
FM Matching Transformer x 1
Remote Control Unit (UR-426) x 1
Battery (AAA, R03, UM-4) x 2
Owner’s Manual x 1
* LINE means CD, TAPE, VIDEO.
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

−3−

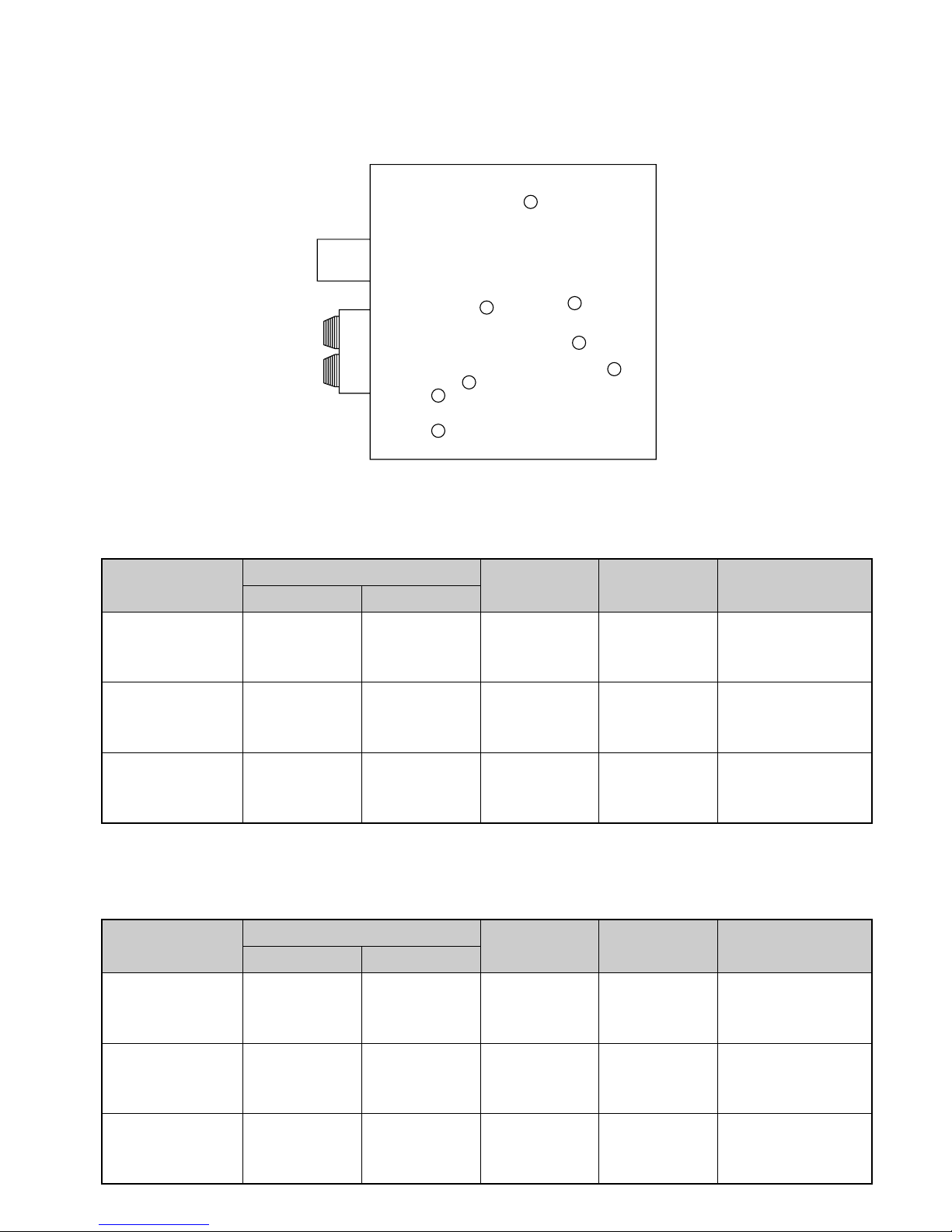

2-1 Adjustment Locations
SVR1
SVR2
SVR3
T1
AM IF
MA
2 ADJUSTMENTS
ITEM SIGNAL GENERATOR SETTING FREQUENCY
SETTING
ADJUSTMENT
POINTS ADJUST FOR
1. RF Tracking 400Hz
30% modulation 58dBu 603kHz 1404kHz MA coil
Output level is maximum.
603kHz, 1404kHz should
be confirmed repeatedly.
2. IF Tracking 400Hz
30% modulation 58dBu 603kHz AM IF coil Output level is maximum.
3. Auto Stop Level 400Hz
30% modulation 60dBu 603kHz SVR3 TUNED indicator lights.
2-2 AM Adjustment
SIGNAL OUTPUT
2-3 FM Adjustment
ITEM SIGNAL GENERATOR SETTING FREQUENCY
SETTING
ADJUSTMENT
POINTS ADJUST FOR
1. Stereo Distortion
1kHz
Main: 90%
Pilot: 10%
60dBu 98.1MHz T1 coil Distortion is minimum.
2. Stereo Separation
1kHz
Main: 90%
Pilot: 10%
60dBu 98.1MHz SVR2 Separation is maximum.
3. Auto Stop Level 1kHz
75 kHz deviation 19dBu 98.1MHz SVR1 TUNED indicator lights.
SIGNAL OUTPUT

−4−
12
17
13
14
15
18
19
11
16
2
7
3
4
5
8
9
10
1
6
22
27
23
24
25
28 29
30
26
1
32
31
33
34
36
35
37
38
39
41
40
42
43
44
46
45
47
48
49
26
26
29
29
50
3 EXPLODED VIEWS AND PARTS LIST

−5−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
15088210788000Z KNOBASSY[E,A,K]
5088210788010Z KNOBASSY[CN]
25077210973020 WINDOW,DISPLAY
34317211141000 COVER,RCA[E,A,K]
4317211141010 COVER,RCA[CN]
43067211198050 PANEL,FRONT[E]
3067211198040 PANEL,FRONT[A,K]
3067211198080 PANEL,FRONT[CN]
55630210328000 BADGE[E,A,K]
5630210328010 BADGE[CN]
65160210093000 INDICATOR,LED
73417210091000 BODY[E,A,K]
3417210091010 BODY[CN]
85097211981020 BUTTON,9KEY‑RDS[E]
5097211991020 BUTTON,4KEY[A,K]
5097211991040 BUTTON,4KEY[CN]
97028063233010 ST‑BYSWPCBASSY
10 5097211971000 BUTTON,POWER[E,A,K]
5097211971010 BUTTON,POWER[CN]
11 4010210876000 BRACKET,POWER
12 7028063234010 POWERSWPCBASSY
13 7028063236010 HPPCBASSY[E,A,K]
7028063236020 HPPCBASSY[CN]
14 5160040643010 INDICATOR,STAND‑BY
15 7028063212010 MULTIPCBASSY
16 7028063211040 FRONTPCBASSY[E]
7028063211020 FRONTPCBASSY[A,K]
7028063211060 FRONTPCBASSY[CN]
17 K530125000010 DISPLAY,FLTHNA‑12MM50
18 4320210091010 HOLDER,FLT
19 2120210678000 HEATSINK
22 4010056906010 BRACKET,HEATSINK
23 7028063261010 AMPPCBASSY
24 3200211166000 CHASSIS,MAIN
25 4300040561010 SPACER,KNOB
26 4007040241040 FOOT[E,A,K]
4007040241050 FOOT[CN]
27 7028063251070 MAINPCBASSY[E]
70280632510D0 MAINPCBASSY[A,CN]
7028063251080 MAINPCBASSY[K]
28 2120210748020 HEATSINK
29 G602405B0400Y TERMINAL,RCA4PIN
30 G607902AA101Y TERMINAL,RCA9PIN
31 G601207E0200Y TERMINAL,RCA2PIN
32 G614801A1400Y TERMINAL,BOARDSCREW8P
33 G612405E1200Y TERMINAL,BOARDSCREW4P
34 7028063241020 DSPPCBASSY
35 G601020130100 TERMINAL,RCA2PIN
36 E100116500010 MODULE,OPTICALTRANSMITTER
37 E100116500020 MODULE,OPTICALRECEIVER
38 7028063221040 VIDEOPCBASSY[E,A,CN]
7028063221020 VIDEOPCBASSY[K]
39 G601802002010 TERMINAL,RCA2PIN

−6−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
40 E903141130010 TUNER,FM/AMKST‑MB014MA1‑13[E,A]
E903111300010 TUNER,FM/AMKST‑MB001MA1‑13[CN]
E903011300010 TUNER,FM/AMKST‑MB001MA0‑13S[K]
41 7028063232020 COMPONENTPCBASSY
42 G606030164010 TERMINAL,RCA3PIN
43 3207211466030 CHASSIS,BACK[E]
3207211466060 CHASSIS,BACK[A]
3207211466050 CHASSIS,BACK[CN]
3207211466040 CHASSIS,BACK[K]
44 3007210356000 CABINET,TOP[E,A,K]
3007210356010 CABINET,TOP[CN]
45 7028063231050 ST‑BYPCBASSY[E]
7028063231080 ST‑BYPCBASSY[A]
7028063231070 ST‑BYPCBASSY[CN]
7028063231060 ST‑BYPCBASSY[K]
46£G435040110000 SOCKET,POWERRECEPTACLE[E]
£G435000130010 SOCKET,POWERRECEPTACLE[CN]
£G435000160010 SOCKET,POWERRECEPTACLE[K]
47£G430040550010 SOCKET,POWERAC
48 2410040353010 BUSHING,TERMINAL[E,A,K]
49£L061000000060 CORD,AC[E]
£L068020130010 CORDASSY[A]
£L061000000040 CORD,AC[CN]
£L061000000050 CORD,AC[K]
50£8200960610260 POWERTRANS,MAIN230V[E,A]
£8200960610270 POWERTRANS,MAIN220V[CN,K]
N712151634810 CABLE,FLATCARD15P
N712172044810 CABLE,FLATCARD17P
Q204C J503947F00000 TR,2SD947F
Q204FL J503947F00000 TR,2SD947F
Q204FR J503947F00000 TR,2SD947F
Q204SB J503947F00000 TR,2SD947F
Q204SL J503947F00000 TR,2SD947F
Q204SR J503947F00000 TR,2SD947F
Q205C£J5032390Y0000 TR,2SD2390Y
Q205FL£J5032390Y0000 TR,2SD2390Y
Q205FR£J5032390Y0000 TR,2SD2390Y
Q205SB£J5032390Y0000 TR,2SD2390Y
Q205SL£J5032390Y0000 TR,2SD2390Y
Q205SR£J5032390Y0000 TR,2SD2390Y
Q206C£J5011560Y0000 TR,2SB1560Y
Q206FL£J5011560Y0000 TR,2SB1560Y
Q206FR£J5011560Y0000 TR,2SB1560Y
Q206SB£J5011560Y0000 TR,2SB1560Y
Q206SL£J5011560Y0000 TR,2SB1560Y
Q206SR£J5011560Y0000 TR,2SB1560Y

−7−
4 PC BOARDS AND PARTS LIST

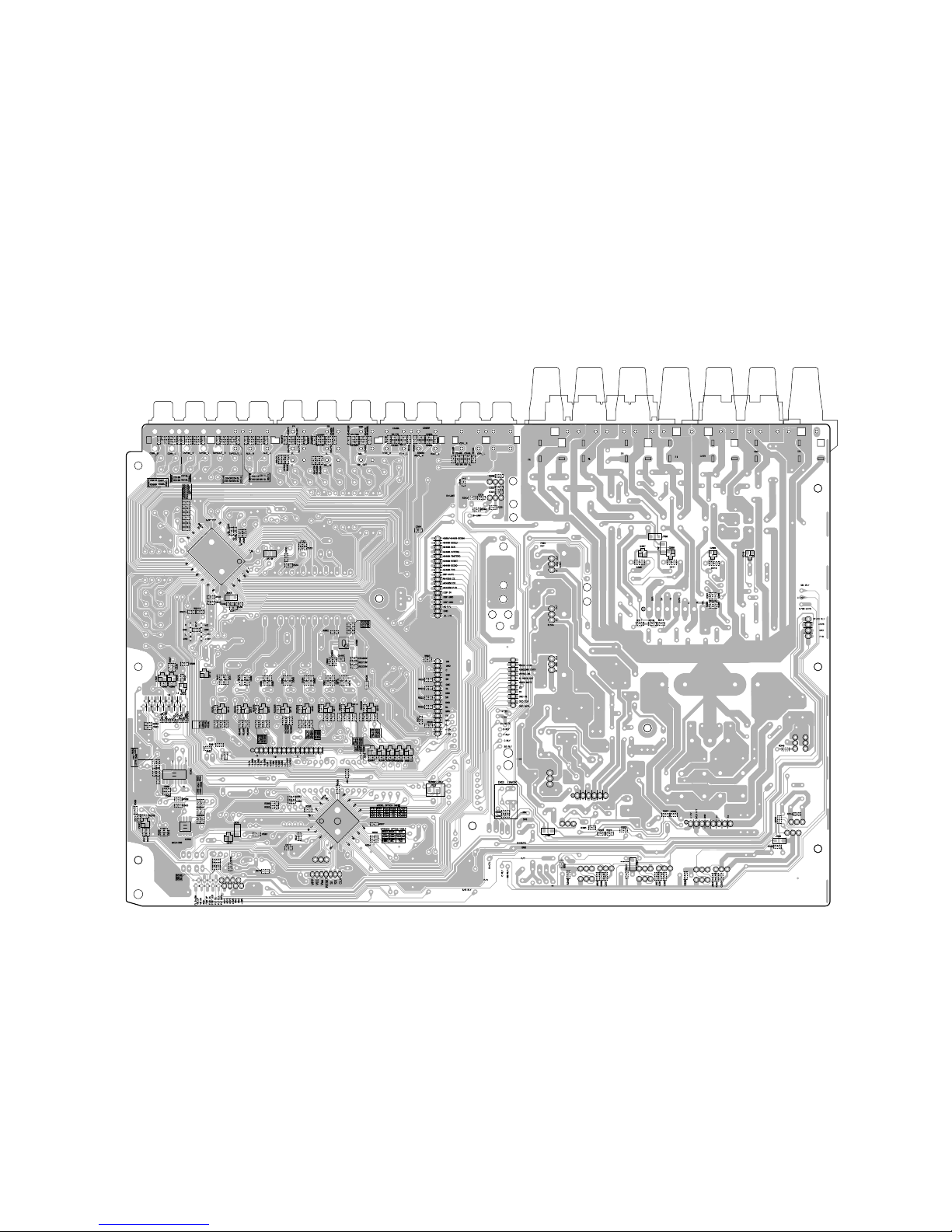

MAIN PCB (SIDE A)

−8−
MAIN PCB (SIDE B)

−9−
AMP PCB
FRONT PCB MULTI PCB

−10−
DSP PCB (SIDE A) DSP PCB (SIDE B)
VIDEO PCB (SIDE A) VIDEO PCB (SIDE B)

−11−

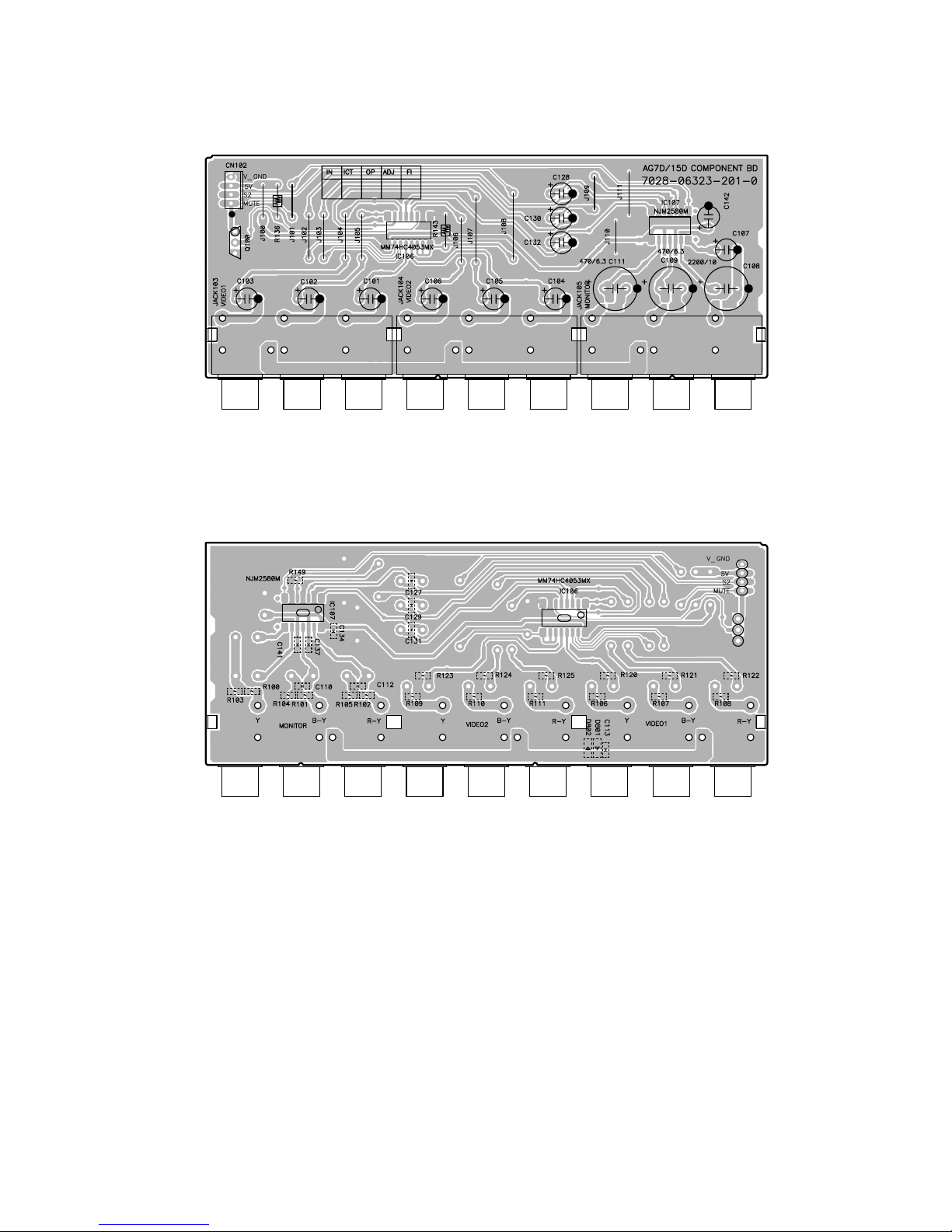

COMPONENT PCB (SIDE A)
COMPONENT PCB (SIDE B)

−12−

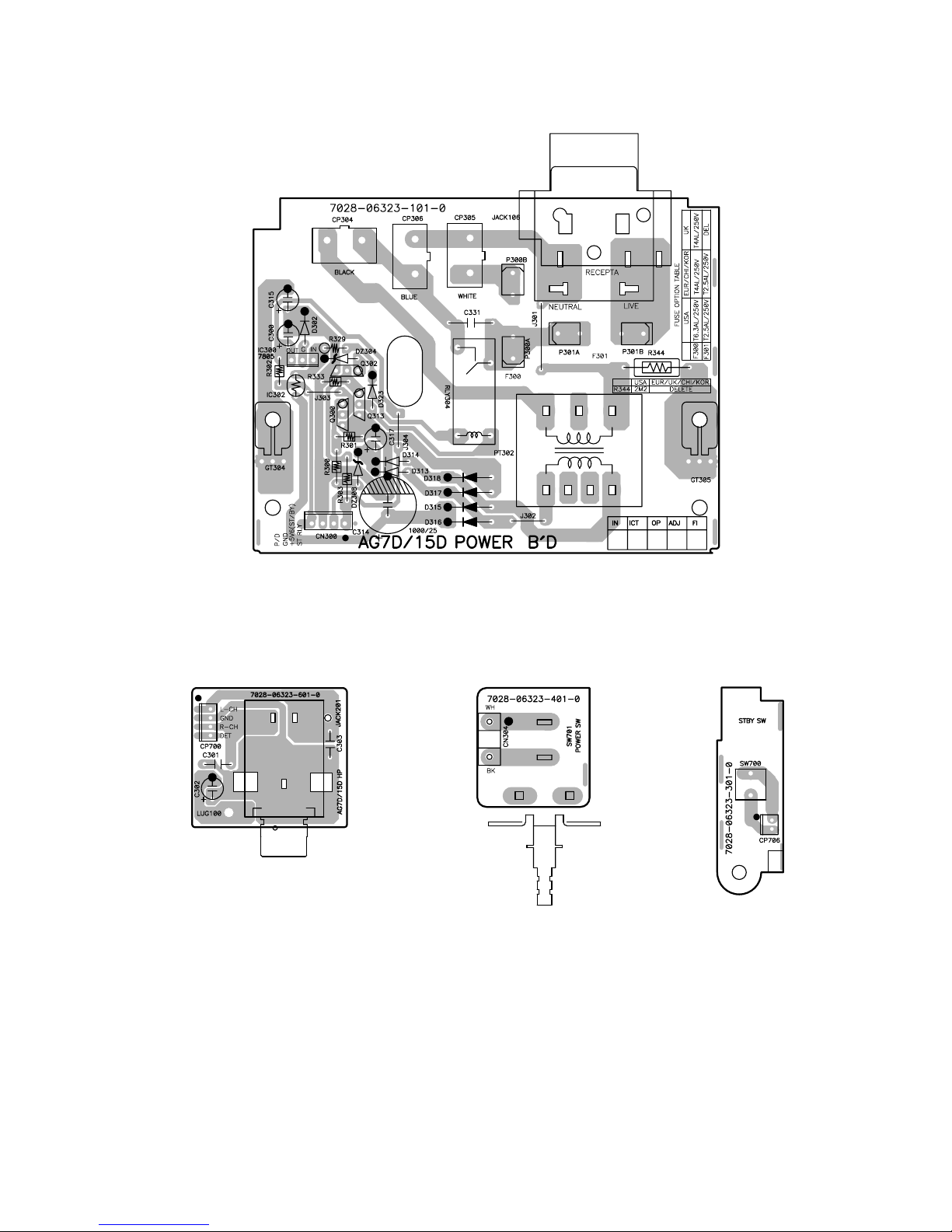

ST-BY PCB
HP PCB POWER SW PCB ST-BY SW PCB

−13−
MAIN PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
7028063251070 MAINPCBASSY[E]
7020063250001 MAINPCB
2120210748020 HEATSINK
C326£D040682083000 C,ELECT6800UFM16V
C329£D040472084210 C,ELECT4700UFM25V
C330£D040102084060 C,ELECT1000UFM25V
C340£D040682088010 C,ELECT6800UFM63V
C341£D040682088010 C,ELECT6800UFM63V
C348£D02010406C060 C,POLY0.1UFJ100V
C350£D02010406C060 C,POLY0.1UFJ100V
C351£D02010406C060 C,POLY0.1UFJ100V
C352£D02010406C060 C,POLY0.1UFJ100V
C353£D02010406C060 C,POLY0.1UFJ100V
CN501 L101100041710 CNWAFER,TUC‑P17P‑B1
CN506 L101100041810 CNWAFER,TUC‑P18P‑B1
CN512 L101100041110 CNWAFER,TUC‑P11P‑B1
CP300 L104353280300 CNWAFER,35328‑0310
CP301 L102526700800 CNWAFER,5267‑08A
CP302 L104353130600 CNWAFER,35313‑0610
CP307 L102526700600 CNWAFER,5267‑06A
CP507 L131111700010 CNFPC,SCB1117‑0017P
CP509 L131111500010 CNFPC,SCB1115‑0015P
CP513 L102526700400 CNWAFER,5267‑04A
CP514 L101220070000 CNWAFER,G1L‑S‑7P‑S2T2‑EF
CP516 L101220040000 CNWAFER,G1L‑S‑4P‑S2T2‑EF
D303 K000013300520 D,1SS133T‑72
D305 K000400700520 D,IN4007
D306 K000013300520 D,1SS133T‑72
D307 K000013300520 D,1SS133T‑72
D309 K005041480020 D,CHIP1N4148W
D310 K005041480020 D,CHIP1N4148W
D311 K005041480020 D,CHIP1N4148W
D319 K000013300520 D,1SS133T‑72
D320 K000013300520 D,1SS133T‑72
D321 K000013300520 D,1SS133T‑72
D322 K000013300520 D,1SS133T‑72
D325 K06005R144520 D,ZENERMTZJ5.1B
D327 K000013300520 D,1SS133T‑72
D328£K000400700520 D,IN4007
D329£K000400700520 D,IN4007
D330£K000400700520 D,IN4007
D331£K000400700520 D,IN4007
D332£K000400700520 D,IN4007
D333£K000400700520 D,IN4007
D334£K047604000020 D,BRIDGEKBPC604
D335£K047604000020 D,BRIDGEKBPC604
D501 K005041480020 D,CHIP1N4148W
D502 K005041480020 D,CHIP1N4148W
D505 K005041480020 D,CHIP1N4148W
D506 K005041480020 D,CHIP1N4148W
D507 K005041480020 D,CHIP1N4148W
D508 K005041480020 D,CHIP1N4148W
D509 K005041480020 D,CHIP1N4148W
D510 K005041480020 D,CHIP1N4148W
D511 K005041480020 D,CHIP1N4148W
MAIN PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
D512 K005041480020 D,CHIP1N4148W
D515 K005041480020 D,CHIP1N4148W
D516 K005041480020 D,CHIP1N4148W
D517 K000013300520 D,1SS133T‑72
D518 K000013300520 D,1SS133T‑72
D520 K000013300520 D,1SS133T‑72
D521 K000400700520 D,IN4007
DZ300 K06016R044520 D,ZENERMTZJ16B
DZ301 K06016R044520 D,ZENERMTZJ16B
DZ510 K06007R544530 D,ZENERMTZJ7.5A
DZ511 K06007R544530 D,ZENERMTZJ7.5A
DZ512 K06003R344520 D,ZENERMTZJ3.3B
DZ513 K06005R144520 D,ZENERMTZJ5.1B
GND303 3790040876010 TERMINAL,GNDPLATE
GND304 3790040876010 TERMINAL,GNDPLATE
IC301£J126781200220 IC,CJ7812F
IC303£J126780500400 IC,CJ7805F
IC304£J126781200220 IC,CJ7812F
IC305£J126791200130 IC,CJ7912F
IC501 J020703210105 IC,CPUUPD703210YGC‑105‑8BT
IC502 J000240860010 IC,EEPROMMC24C08‑WMN6
IC503 J124192400010 IC,BU1924F
IC508 J121455800150 IC,CJ4558CP
IC509 J084115700010 IC,NJW1157
JK302 G612405E1200Y TERMINAL,BOARDSCREW4P
JK303 G614801A1400Y TERMINAL,BOARDSCREW8P
JK304 G601207E0200Y TERMINAL,RCA2PIN
JK305 G602405B0400Y TERMINAL,RCA4PIN
JK306 G607902AA101Y TERMINAL,RCA9PIN
JK307 G602405B0400Y TERMINAL,RCA4PIN
JK308 G602405B0400Y TERMINAL,RCA4PIN
Q301£J5000916Y0050 TR,KSA916Y
Q303 J5001266Y0050 TR,KTA1266Y
Q304 J5023198Y0000 TR,KTC3198Y
Q307 J5020107S0050 TR,CHIPKRC107S
Q308 J5020107S0050 TR,CHIPKRC107S
Q309 J5020107S0050 TR,CHIPKRC107S
Q311 J5023198Y0000 TR,KTC3198Y
Q312 J5023198Y0000 TR,KTC3198Y
Q314 J5023198Y0000 TR,KTC3198Y
Q315 J5023198Y0000 TR,KTC3198Y
Q316 J5001268B0050 TR,KTA1268BL
Q317 J5023198Y0000 TR,KTC3198Y
Q318 J5001268B0050 TR,KTA1268BL
Q319 J5001268B0050 TR,KTA1268BL
Q320 J5023198Y0000 TR,KTC3198Y
Q321 J5023198Y0000 TR,KTC3198Y
Q322 J5001268B0050 TR,KTA1268BL
Q323 J5001268B0050 TR,KTA1268BL
Q324 J5001268B0050 TR,KTA1268BL
Q507 J5200107S0050 TR,CHIPKRA107S(PH)
Q508 J5200107S0050 TR,CHIPKRA107S(PH)
Q509 J5200107S0050 TR,CHIPKRA107S(PH)
Q510 J5200107S0050 TR,CHIPKRA107S(PH)
Q511 J5200107S0050 TR,CHIPKRA107S(PH)

−14−
MAIN PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
Q512 J5222875B0010 TR,CHIPKTC2875B(MB)
Q513 J5222875B0010 TR,CHIPKTC2875B(MB)
Q514 J5222875B0010 TR,CHIPKTC2875B(MB)
Q515 J5222875B0010 TR,CHIPKTC2875B(MB)
Q516 J5222875B0010 TR,CHIPKTC2875B(MB)
Q517 J5222875B0010 TR,CHIPKTC2875B(MB)
Q518 J5222875B0010 TR,CHIPKTC2875B(MB)
Q521 J5222875B0010 TR,CHIPKTC2875B(MB)
Q522 J5200107S0050 TR,CHIPKRA107S(PH)
Q525 J5222875B0010 TR,CHIPKTC2875B(MB)
Q543 J5222875B0010 TR,CHIPKTC2875B(MB)
Q544 J522010200210 TR,CHIPKRC102S(NB)
R304£C0604R7065050 R,METAL4.7J1W
R315£C060010065050 R,METAL10J1W
R317£C060010065050 R,METAL10J1W
R318£C060010065050 R,METAL10J1W
R319£C060010065050 R,METAL10J1W
R320£C060010065050 R,METAL10J1W
R321£C060010065050 R,METAL10J1W
R336£C060022265050 R,METAL2.2KJ1W
R338£C060022265050 R,METAL2.2KJ1W
R342£C060022265050 R,METAL2.2KJ1W
R351£C141R10069000 R,CEMENT0.1J5W
R352£C141R10069000 R,CEMENT0.1J5W
R354£C060R22065050 R,METAL0.22J1W
R355£C060R22065050 R,METAL0.22J1W
R356£C060R22065050 R,METAL0.22J1W
R359£C060R22065050 R,METAL0.22J1W
R516£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W
R517£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W
R518£C060010165060 R,METAL100J1W
R519£C060010165060 R,METAL100J1W
RLY300 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY301 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY302 G680120502040 RELAY,G5PA‑28‑NWDC12V
XTAL501 E830100000060 RESONATOR,CERAMIC
XTAL502 E800433200090 CRYSTAL,4.332MHZ
MAIN PCB ASSY [A,CN]
REF.NO. PARTSNO. DESCRIPTION
70280632510D0 MAINPCBASSY[A,CN]
7020063250001 MAINPCB
2120210748020 HEATSINK
C326£D040682083000 C,ELECT6800UFM16V
C329£D040472084210 C,ELECT4700UFM25V
C330£D040102084060 C,ELECT1000UFM25V
C340£D040682088010 C,ELECT6800UFM63V
C341£D040682088010 C,ELECT6800UFM63V
C348£D02010406C060 C,POLY0.1UFJ100V
C350£D02010406C060 C,POLY0.1UFJ100V
C351£D02010406C060 C,POLY0.1UFJ100V
C352£D02010406C060 C,POLY0.1UFJ100V
MAIN PCB ASSY [A,CN]
REF.NO. PARTSNO. DESCRIPTION
C353£D02010406C060 C,POLY0.1UFJ100V
CN501 L101100041710 CNWAFER,TUC‑P17P‑B1
CN506 L101100041810 CNWAFER,TUC‑P18P‑B1
CN512 L101100041110 CNWAFER,TUC‑P11P‑B1
CP300 L104353280300 CNWAFER,35328‑0310
CP301 L102526700800 CNWAFER,5267‑08A
CP302 L104353130600 CNWAFER,35313‑0610
CP307 L102526700600 CNWAFER,5267‑06A
CP507 L131111700010 CNFPC,SCB1117‑0017P
CP509 L131111500010 CNFPC,SCB1115‑0015P
CP513 L102526700400 CNWAFER,5267‑04A
CP514 L101220070000 CNWAFER,G1L‑S‑7P‑S2T2‑EF
CP516 L101220040000 CNWAFER,G1L‑S‑4P‑S2T2‑EF
D303 K000013300520 D,1SS133T‑72
D305 K000400700520 D,IN4007
D306 K000013300520 D,1SS133T‑72
D307 K000013300520 D,1SS133T‑72
D309 K005041480020 D,CHIP1N4148W
D310 K005041480020 D,CHIP1N4148W
D311 K005041480020 D,CHIP1N4148W
D319 K000013300520 D,1SS133T‑72
D320 K000013300520 D,1SS133T‑72
D321 K000013300520 D,1SS133T‑72
D322 K000013300520 D,1SS133T‑72
D325 K06005R144520 D,ZENERMTZJ5.1B
D327 K000013300520 D,1SS133T‑72
D328£K000400700520 D,IN4007
D329£K000400700520 D,IN4007
D330£K000400700520 D,IN4007
D331£K000400700520 D,IN4007
D332£K000400700520 D,IN4007
D333£K000400700520 D,IN4007
D334£K047604000020 D,BRIDGEKBPC604
D335£K047604000020 D,BRIDGEKBPC604
D501 K005041480020 D,CHIP1N4148W
D502 K005041480020 D,CHIP1N4148W
D505 K005041480020 D,CHIP1N4148W
D506 K005041480020 D,CHIP1N4148W
D507 K005041480020 D,CHIP1N4148W
D508 K005041480020 D,CHIP1N4148W
D509 K005041480020 D,CHIP1N4148W
D510 K005041480020 D,CHIP1N4148W
D511 K005041480020 D,CHIP1N4148W
D512 K005041480020 D,CHIP1N4148W
D515 K005041480020 D,CHIP1N4148W
D516 K005041480020 D,CHIP1N4148W
D517 K000013300520 D,1SS133T‑72
D518 K000013300520 D,1SS133T‑72
D520 K000013300520 D,1SS133T‑72
D521 K000400700520 D,IN4007
DZ300 K06016R044520 D,ZENERMTZJ16B
DZ301 K06016R044520 D,ZENERMTZJ16B
DZ510 K06007R544530 D,ZENERMTZJ7.5A
DZ511 K06007R544530 D,ZENERMTZJ7.5A
DZ512 K06003R344520 D,ZENERMTZJ3.3B

−15−
MAIN PCB ASSY [A,CN]
REF.NO. PARTSNO. DESCRIPTION
GND303 3790040876010 TERMINAL,GNDPLATE
GND304 3790040876010 TERMINAL,GNDPLATE
IC301£J126781200220 IC,CJ7812F
IC303£J126780500400 IC,CJ7805F
IC304£J126781200220 IC,CJ7812F
IC305£J126791200130 IC,CJ7912F
IC501 J020703210105 IC,CPUUPD703210YGC‑105‑8BT
IC502 J000240860010 IC,EEPROMMC24C08‑WMN6
IC508 J121455800150 IC,CJ4558CP
IC509 J084115700010 IC,NJW1157
JK302 G612405E1200Y TERMINAL,BOARDSCREW4P
JK303 G614801A1400Y TERMINAL,BOARDSCREW8P
JK304 G601207E0200Y TERMINAL,RCA2PIN
JK305 G602405B0400Y TERMINAL,RCA4PIN
JK306 G607902AA101Y TERMINAL,RCA9PIN
JK307 G602405B0400Y TERMINAL,RCA4PIN
JK308 G602405B0400Y TERMINAL,RCA4PIN
Q301£J5000916Y0050 TR,KSA916Y
Q303 J5001266Y0050 TR,KTA1266Y
Q304 J5023198Y0000 TR,KTC3198Y
Q307 J5020107S0050 TR,CHIPKRC107S
Q308 J5020107S0050 TR,CHIPKRC107S
Q309 J5020107S0050 TR,CHIPKRC107S
Q311 J5023198Y0000 TR,KTC3198Y
Q312 J5023198Y0000 TR,KTC3198Y
Q314 J5023198Y0000 TR,KTC3198Y
Q315 J5023198Y0000 TR,KTC3198Y
Q316 J5001268B0050 TR,KTA1268BL
Q317 J5023198Y0000 TR,KTC3198Y
Q318 J5001268B0050 TR,KTA1268BL
Q319 J5001268B0050 TR,KTA1268BL
Q320 J5023198Y0000 TR,KTC3198Y
Q321 J5023198Y0000 TR,KTC3198Y
Q322 J5001268B0050 TR,KTA1268BL
Q323 J5001268B0050 TR,KTA1268BL
Q324 J5001268B0050 TR,KTA1268BL
Q507 J5200107S0050 TR,CHIPKRA107S(PH)
Q508 J5200107S0050 TR,CHIPKRA107S(PH)
Q509 J5200107S0050 TR,CHIPKRA107S(PH)
Q510 J5200107S0050 TR,CHIPKRA107S(PH)
Q511 J5200107S0050 TR,CHIPKRA107S(PH)
Q512 J5222875B0010 TR,CHIPKTC2875B(MB)
Q513 J5222875B0010 TR,CHIPKTC2875B(MB)
Q514 J5222875B0010 TR,CHIPKTC2875B(MB)
Q515 J5222875B0010 TR,CHIPKTC2875B(MB)
Q516 J5222875B0010 TR,CHIPKTC2875B(MB)
Q517 J5222875B0010 TR,CHIPKTC2875B(MB)
Q518 J5222875B0010 TR,CHIPKTC2875B(MB)
Q521 J5222875B0010 TR,CHIPKTC2875B(MB)
Q522 J5200107S0050 TR,CHIPKRA107S(PH)
Q525 J5222875B0010 TR,CHIPKTC2875B(MB)
Q543 J5222875B0010 TR,CHIPKTC2875B(MB)
Q544 J522010200210 TR,CHIPKRC102S(NB)
R304£C0604R7065050 R,METAL4.7J1W
R315£C060010065050 R,METAL10J1W
MAIN PCB ASSY [A,CN]
REF.NO. PARTSNO. DESCRIPTION
R317£C060010065050 R,METAL10J1W
R318£C060010065050 R,METAL10J1W
R319£C060010065050 R,METAL10J1W
R320£C060010065050 R,METAL10J1W
R321£C060010065050 R,METAL10J1W
R336£C060022265050 R,METAL2.2KJ1W
R338£C060022265050 R,METAL2.2KJ1W
R342£C060022265050 R,METAL2.2KJ1W
R351£C141R10069000 R,CEMENT0.1J5W
R352£C141R10069000 R,CEMENT0.1J5W
R354£C060R22065050 R,METAL0.22J1W
R355£C060R22065050 R,METAL0.22J1W
R356£C060R22065050 R,METAL0.22J1W
R359£C060R22065050 R,METAL0.22J1W
R516£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W
R517£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W
R518£C060010165060 R,METAL100J1W
R519£C060010165060 R,METAL100J1W
RLY300 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY301 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY302 G680120502040 RELAY,G5PA‑28‑NWDC12V
XTAL501 E830100000060 RESONATOR,CERAMIC
MAIN PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
7028063251080 MAINPCBASSY[K]
7020063250001 MAINPCB
2120210748020 HEATSINK
C326£D040682083000 C,ELECT6800UFM16V
C329£D040472084210 C,ELECT4700UFM25V
C330£D040102084060 C,ELECT1000UFM25V
C340£D040682088010 C,ELECT6800UFM63V
C341£D040682088010 C,ELECT6800UFM63V
C348£D02010406C060 C,POLY0.1UFJ100V
C350£D02010406C060 C,POLY0.1UFJ100V
C351£D02010406C060 C,POLY0.1UFJ100V
C352£D02010406C060 C,POLY0.1UFJ100V
C353£D02010406C060 C,POLY0.1UFJ100V
CN501 L101100041710 CNWAFER,TUC‑P17P‑B1
CN506 L101100041810 CNWAFER,TUC‑P18P‑B1
CN512 L101100041110 CNWAFER,TUC‑P11P‑B1
CP300 L104353280300 CNWAFER,35328‑0310
CP301 L102526700800 CNWAFER,5267‑08A
CP302 L104353130600 CNWAFER,35313‑0610
CP307 L102526700600 CNWAFER,5267‑06A
CP507 L131111700010 CNFPC,SCB1117‑0017P
CP509 L131111500010 CNFPC,SCB1115‑0015P
CP513 L102526700400 CNWAFER,5267‑04A
CP514 L101220070000 CNWAFER,G1L‑S‑7P‑S2T2‑EF
CP516 L101220040000 CNWAFER,G1L‑S‑4P‑S2T2‑EF
D303 K000013300520 D,1SS133T‑72
D305 K000400700520 D,IN4007

−16−
MAIN PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
D306 K000013300520 D,1SS133T‑72
D307 K000013300520 D,1SS133T‑72
D309 K005041480020 D,CHIP1N4148W
D310 K005041480020 D,CHIP1N4148W
D311 K005041480020 D,CHIP1N4148W
D319 K000013300520 D,1SS133T‑72
D320 K000013300520 D,1SS133T‑72
D321 K000013300520 D,1SS133T‑72
D322 K000013300520 D,1SS133T‑72
D325 K06005R144520 D,ZENERMTZJ5.1B
D327 K000013300520 D,1SS133T‑72
D328£K000400700520 D,IN4007
D329£K000400700520 D,IN4007
D330£K000400700520 D,IN4007
D331£K000400700520 D,IN4007
D332£K000400700520 D,IN4007
D333£K000400700520 D,IN4007
D334£K047604000020 D,BRIDGEKBPC604
D335£K047604000020 D,BRIDGEKBPC604
D501 K005041480020 D,CHIP1N4148W
D502 K005041480020 D,CHIP1N4148W
D505 K005041480020 D,CHIP1N4148W
D506 K005041480020 D,CHIP1N4148W
D507 K005041480020 D,CHIP1N4148W
D508 K005041480020 D,CHIP1N4148W
D509 K005041480020 D,CHIP1N4148W
D510 K005041480020 D,CHIP1N4148W
D511 K005041480020 D,CHIP1N4148W
D512 K005041480020 D,CHIP1N4148W
D515 K005041480020 D,CHIP1N4148W
D516 K005041480020 D,CHIP1N4148W
D517 K000013300520 D,1SS133T‑72
D518 K000013300520 D,1SS133T‑72
D520 K000013300520 D,1SS133T‑72
D521 K000400700520 D,IN4007
DZ300 K06016R044520 D,ZENERMTZJ16B
DZ301 K06016R044520 D,ZENERMTZJ16B
DZ510 K06007R544530 D,ZENERMTZJ7.5A
DZ511 K06007R544530 D,ZENERMTZJ7.5A
DZ512 K06003R344520 D,ZENERMTZJ3.3B
GND303 3790040876010 TERMINAL,GNDPLATE
GND304 3790040876010 TERMINAL,GNDPLATE
IC301£J126781200220 IC,CJ7812F
IC303£J126780500400 IC,CJ7805F
IC304£J126781200220 IC,CJ7812F
IC305£J126791200130 IC,CJ7912F
IC501 J020703210105 IC,CPUUPD703210YGC‑105‑8BT
IC502 J000240860010 IC,EEPROMMC24C08‑WMN6
IC508 J121455800150 IC,CJ4558CP
IC509 J084115700010 IC,NJW1157
JK302 G612405E1200Y TERMINAL,BOARDSCREW4P
JK303 G614801A1400Y TERMINAL,BOARDSCREW8P
JK304 G601207E0200Y TERMINAL,RCA2PIN
JK305 G602405B0400Y TERMINAL,RCA4PIN
JK306 G607902AA101Y TERMINAL,RCA9PIN
MAIN PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
JK307 G602405B0400Y TERMINAL,RCA4PIN
JK308 G602405B0400Y TERMINAL,RCA4PIN
Q301£J5000916Y0050 TR,KSA916Y
Q303 J5001266Y0050 TR,KTA1266Y
Q304 J5023198Y0000 TR,KTC3198Y
Q307 J5020107S0050 TR,CHIPKRC107S
Q308 J5020107S0050 TR,CHIPKRC107S
Q309 J5020107S0050 TR,CHIPKRC107S
Q311 J5023198Y0000 TR,KTC3198Y
Q312 J5023198Y0000 TR,KTC3198Y
Q314 J5023198Y0000 TR,KTC3198Y
Q315 J5023198Y0000 TR,KTC3198Y
Q316 J5001268B0050 TR,KTA1268BL
Q317 J5023198Y0000 TR,KTC3198Y
Q318 J5001268B0050 TR,KTA1268BL
Q319 J5001268B0050 TR,KTA1268BL
Q320 J5023198Y0000 TR,KTC3198Y
Q321 J5023198Y0000 TR,KTC3198Y
Q322 J5001268B0050 TR,KTA1268BL
Q323 J5001268B0050 TR,KTA1268BL
Q324 J5001268B0050 TR,KTA1268BL
Q507 J5200107S0050 TR,CHIPKRA107S(PH)
Q508 J5200107S0050 TR,CHIPKRA107S(PH)
Q509 J5200107S0050 TR,CHIPKRA107S(PH)
Q510 J5200107S0050 TR,CHIPKRA107S(PH)
Q511 J5200107S0050 TR,CHIPKRA107S(PH)
Q512 J5222875B0010 TR,CHIPKTC2875B(MB)
Q513 J5222875B0010 TR,CHIPKTC2875B(MB)
Q514 J5222875B0010 TR,CHIPKTC2875B(MB)
Q515 J5222875B0010 TR,CHIPKTC2875B(MB)
Q516 J5222875B0010 TR,CHIPKTC2875B(MB)
Q517 J5222875B0010 TR,CHIPKTC2875B(MB)
Q518 J5222875B0010 TR,CHIPKTC2875B(MB)
Q521 J5222875B0010 TR,CHIPKTC2875B(MB)
Q522 J5200107S0050 TR,CHIPKRA107S(PH)
Q525 J5222875B0010 TR,CHIPKTC2875B(MB)
Q543 J5222875B0010 TR,CHIPKTC2875B(MB)
Q544 J522010200210 TR,CHIPKRC102S(NB)
R304£C0604R7065050 R,METAL4.7J1W
R315£C060010065050 R,METAL10J1W
R317£C060010065050 R,METAL10J1W
R318£C060010065050 R,METAL10J1W
R319£C060010065050 R,METAL10J1W
R320£C060010065050 R,METAL10J1W
R321£C060010065050 R,METAL10J1W
R336£C060022265050 R,METAL2.2KJ1W
R338£C060022265050 R,METAL2.2KJ1W
R342£C060022265050 R,METAL2.2KJ1W
R351£C141R10069000 R,CEMENT0.1J5W
R352£C141R10069000 R,CEMENT0.1J5W
R354£C060R22065050 R,METAL0.22J1W
R355£C060R22065050 R,METAL0.22J1W
R356£C060R22065050 R,METAL0.22J1W
R359£C060R22065050 R,METAL0.22J1W
R516£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W

−17−
MAIN PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
R517£C1012R2064060 R,FUSIBLEMETAL2.2J1/2W
R518£C060010165060 R,METAL100J1W
R519£C060010165060 R,METAL100J1W
RLY300 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY301 G680120502040 RELAY,G5PA‑28‑NWDC12V
RLY302 G680120502040 RELAY,G5PA‑28‑NWDC12V
XTAL501 E830100000060 RESONATOR,CERAMIC
AMP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
7028063261010 AMPPCBASSY
7020063260000 AMPPCB
CP204 L101220040000 CNWAFER,G1L‑S‑4P‑S2T2‑EF
CP205 L101220150000 CNWAFER,GIL‑S‑15P‑S2T2‑EF
D201C K000013300520 D,1SS133T‑72
D201FL K000013300520 D,1SS133T‑72
D201FR K000013300520 D,1SS133T‑72
D201SB K000013300520 D,1SS133T‑72
D201SL K000013300520 D,1SS133T‑72
D201SR K000013300520 D,1SS133T‑72
D203 K000013300520 D,1SS133T‑72
L201C D330900001320 COIL,FILTER‑INDUCTORJ9000031
L201FL D330900001320 COIL,FILTER‑INDUCTORJ9000031
L201FR D330900001320 COIL,FILTER‑INDUCTORJ9000031
L201SB D330900001320 COIL,FILTER‑INDUCTORJ9000031
L201SL D330900001320 COIL,FILTER‑INDUCTORJ9000031
L201SR D330900001320 COIL,FILTER‑INDUCTORJ9000031
Q201C J5000992F0050 TR,KSA992F
Q201FL J5000992F0050 TR,KSA992F
Q201FR J5000992F0050 TR,KSA992F
Q201SB J5000992F0050 TR,KSA992F
Q201SL J5000992F0050 TR,KSA992F
Q201SR J5000992F0050 TR,KSA992F
Q202C J5000992F0050 TR,KSA992F
Q202FL J5000992F0050 TR,KSA992F
Q202FR J5000992F0050 TR,KSA992F
Q202SB J5000992F0050 TR,KSA992F
Q202SL J5000992F0050 TR,KSA992F
Q202SR J5000992F0050 TR,KSA992F
Q203C J5021845F0000 TR,KSC1845F
Q203FL J5021845F0000 TR,KSC1845F
Q203FR J5021845F0000 TR,KSC1845F
Q203SB J5021845F0000 TR,KSC1845F
Q203SL J5021845F0000 TR,KSC1845F
Q203SR J5021845F0000 TR,KSC1845F
Q207C J5021845F0000 TR,KSC1845F
Q207FL J5021845F0000 TR,KSC1845F
Q207FR J5021845F0000 TR,KSC1845F
Q207SB J5021845F0000 TR,KSC1845F
Q207SL J5021845F0000 TR,KSC1845F
Q207SR J5021845F0000 TR,KSC1845F
Q208 J6020107M0010 TR,KRC107M
AMP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
R216C£C060056265050 R,METAL5.6KJ1W
R216FL£C060056265050 R,METAL5.6KJ1W
R216FR£C060056265050 R,METAL5.6KJ1W
R216SB£C060056265050 R,METAL5.6KJ1W
R216SL£C060056265050 R,METAL5.6KJ1W
R216SR£C060056265050 R,METAL5.6KJ1W
R217C£C060056265050 R,METAL5.6KJ1W
R217FL£C060056265050 R,METAL5.6KJ1W
R217FR£C060056265050 R,METAL5.6KJ1W
R217SB£C060056265050 R,METAL5.6KJ1W
R217SL£C060056265050 R,METAL5.6KJ1W
R217SR£C060056265050 R,METAL5.6KJ1W
R220C£C060R22065050 R,METAL0.22J1W
R220FL£C060R22065050 R,METAL0.22J1W
R220FR£C060R22065050 R,METAL0.22J1W
R220SB£C060R22065050 R,METAL0.22J1W
R220SL£C060R22065050 R,METAL0.22J1W
R220SR£C060R22065050 R,METAL0.22J1W
R221C£C060R22065050 R,METAL0.22J1W
R221FL£C060R22065050 R,METAL0.22J1W
R221FR£C060R22065050 R,METAL0.22J1W
R221SB£C060R22065050 R,METAL0.22J1W
R221SL£C060R22065050 R,METAL0.22J1W
R221SR£C060R22065050 R,METAL0.22J1W
R222C£C060R22065050 R,METAL0.22J1W
R222FL£C060R22065050 R,METAL0.22J1W
R222FR£C060R22065050 R,METAL0.22J1W
R222SB£C060R22065050 R,METAL0.22J1W
R222SL£C060R22065050 R,METAL0.22J1W
R222SR£C060R22065050 R,METAL0.22J1W
R223C£C060R22065050 R,METAL0.22J1W
R223FL£C060R22065050 R,METAL0.22J1W
R223FR£C060R22065050 R,METAL0.22J1W
R223SB£C060R22065050 R,METAL0.22J1W
R223SL£C060R22065050 R,METAL0.22J1W
R223SR£C060R22065050 R,METAL0.22J1W
R228C£C060010065520 R,METAL101W
R228FL£C060010065520 R,METAL101W
R228FR£C060010065520 R,METAL101W
R228SB£C060010065520 R,METAL101W
R228SL£C060010065520 R,METAL101W
R228SR£C060010065520 R,METAL101W
R229£C060010065050 R,METAL10J1W
R230£C060047166060 R,METAL470J2W
R231£C060047166060 R,METAL470J2W
RLY201 G680120202020 RELAY,RSB12DC12V
FRONT PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
7028063211040 FRONTPCBASSY[E]
7020063210000 FRONTPCB
CP704 L102526803010 CNWAFER,5268‑03A
CP705 L131524921720 CNFPC,52492‑172017P

−18−
FRONT PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
D702 K000013300520 D,1SS133T‑72
D703 K000013300520 D,1SS133T‑72
D704 K000013300520 D,1SS133T‑72
DZ707 K06012R044520 D,ZENERMTZJ12B
FLT701 K530125000010 DISPLAY,FLTHNA‑12MM50
HOLDER 4320210091010 HOLDER,FLT
IC700 J127631500010 IC,PT6315
JK700 G402041810090 JACK,S‑VIDEO
JK701 G606040320020 TERMINAL,RCA3PIN
L700 D330101001020 COIL,FILTER‑INDUCTOR100UH
L701 D330100700520 COIL,FILTER‑INDUCTOR10UH
LED700 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
LED701 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
LED702 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
LED703 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
Q700 J6020107M0010 TR,KRC107M
Q701 J601107M00050 TR,KRA107M
Q702 J6020107M0010 TR,KRC107M
Q703 J6020107M0010 TR,KRC107M
Q705 J6020107M0010 TR,KRC107M
Q706 J601107M00050 TR,KRA107M
Q707 J6020107M0010 TR,KRC107M
RMC700 E940643800000 MODULE,REMOCONNJL64H380A
SW700 G180000270010 SW,TACTSKHV10920A
SW701 G180000270010 SW,TACTSKHV10920A
SW702 G180000270010 SW,TACTSKHV10920A
SW704 G180000270010 SW,TACTSKHV10920A
SW706 G180000270010 SW,TACTSKHV10920A
SW708 G180000270010 SW,TACTSKHV10920A
SW710‑SW729 G180000270010 SW,TACTSKHV10920A
VR700 G121162430400 SW,ENCODEREC16B24304
FRONT PCB ASSY [A,K]
REF.NO. PARTSNO. DESCRIPTION
7028063211020 FRONTPCBASSY[A,K]
7020063210000 FRONTPCB
CP704 L102526803010 CNWAFER,5268‑03A
CP705 L131524921720 CNFPC,52492‑172017P
D702 K000013300520 D,1SS133T‑72
D703 K000013300520 D,1SS133T‑72
D704 K000013300520 D,1SS133T‑72
DZ707 K06012R044520 D,ZENERMTZJ12B
FLT701 K530125000010 DISPLAY,FLTHNA‑12MM50
HOLDER 4320210091010 HOLDER,FLT
IC700 J127631500010 IC,PT6315
JK700 G402041810090 JACK,S‑VIDEO
JK701 G606040320020 TERMINAL,RCA3PIN
L700 D330101001020 COIL,FILTER‑INDUCTOR100UH
L701 D330100700520 COIL,FILTER‑INDUCTOR10UH
LED700 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
LED701 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
LED702 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
FRONT PCB ASSY [A,K]
REF.NO. PARTSNO. DESCRIPTION
LED703 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
Q700 J6020107M0010 TR,KRC107M
Q701 J601107M00050 TR,KRA107M
Q702 J6020107M0010 TR,KRC107M
Q703 J6020107M0010 TR,KRC107M
Q705 J6020107M0010 TR,KRC107M
Q706 J601107M00050 TR,KRA107M
Q707 J6020107M0010 TR,KRC107M
RMC700 E940643800000 MODULE,REMOCONNJL64H380A
SW703 G180000270010 SW,TACTSKHV10920A
SW705 G180000270010 SW,TACTSKHV10920A
SW707 G180000270010 SW,TACTSKHV10920A
SW709 G180000270010 SW,TACTSKHV10920A
SW713‑SW729 G180000270010 SW,TACTSKHV10920A
VR700 G121162430400 SW,ENCODEREC16B24304
FRONT PCB ASSY [CN]
REF.NO. PARTSNO. DESCRIPTION
7028063211060 FRONTPCBASSY[CN]
7020063210000 FRONTPCB
CP704 L102526803010 CNWAFER,5268‑03A
CP705 L131524921720 CNFPC,52492‑172017P
D702 K000013300520 D,1SS133T‑72
D703 K000013300520 D,1SS133T‑72
D704 K000013300520 D,1SS133T‑72
DZ707 K06012R044520 D,ZENERMTZJ12B
FLT701 K530125000010 DISPLAY,FLTHNA‑12MM50
HOLDER 4320210091010 HOLDER,FLT
IC700 J127631500010 IC,PT6315
JK700 G402041810090 JACK,S‑VIDEO
JK701 G606040320000 TERMINAL,RCA3PIN
L700 D330101001020 COIL,FILTER‑INDUCTOR100UH
L701 D330100700520 COIL,FILTER‑INDUCTOR10UH
LED700 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
LED701 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
LED702 K500056000050 LED,ML50B13H‑BEC‑T/P(BLUE)
LED703 K500033000020 LED,HL‑30CNYUF2T(YELLOW)
Q700 J6020107M0010 TR,KRC107M
Q701 J601107M00050 TR,KRA107M
Q702 J6020107M0010 TR,KRC107M
Q703 J6020107M0010 TR,KRC107M
Q705 J6020107M0010 TR,KRC107M
Q706 J601107M00050 TR,KRA107M
Q707 J6020107M0010 TR,KRC107M
RMC700 E940643800000 MODULE,REMOCONNJL64H380A
SW703 G180000270010 SW,TACTSKHV10920A
SW705 G180000270010 SW,TACTSKHV10920A
SW707 G180000270010 SW,TACTSKHV10920A
SW709 G180000270010 SW,TACTSKHV10920A
SW713‑SW729 G180000270010 SW,TACTSKHV10920A
VR700 G121162430400 SW,ENCODEREC16B24304

−19−
MULTI PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
7028063212010 MULTIPCBASSY
VR701 G121161220000 SW,ENCODEREC16B12204
DSP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
7028063241020 DSPPCBASSY
7020063240000 DSPPCB
BD803 7610035500030 COIL,BEADBFS3550R2F
BD804 D340160800060 COIL,BEADMB‑160808‑0120H
BD805 7610035500030 COIL,BEADBFS3550R2F
BD807 D340160800060 COIL,BEADMB‑160808‑0120H
BD808 D340160800060 COIL,BEADMB‑160808‑0120H
BD809 D340160800060 COIL,BEADMB‑160808‑0120H
BD811 D340160800060 COIL,BEADMB‑160808‑0120H
BD812 7610035500030 COIL,BEADBFS3550R2F
CP800 L101100031810 CNWAFER,TUC‑P18X‑B1
CP801 L101100031710 CNWAFER,TUC‑P17X‑B1
D800 K005041480020 D,CHIP1N4148W
D801 K005041480020 D,CHIP1N4148W
D802 K005041480020 D,CHIP1N4148W
D803 K005041480020 D,CHIP1N4148W
D804 K005041480020 D,CHIP1N4148W
D805 K005041480020 D,CHIP1N4148W
D806 K005041480020 D,CHIP1N4148W
D807 K005041480020 D,CHIP1N4148W
D808 K005041480020 D,CHIP1N4148W
D809 K005041480020 D,CHIP1N4148W
D810 K000400700520 D,IN4007
IC800 J080458800010 IC,AK4588
IC801£J126111725020 IC,RC1117‑2.5
IC802£J12603R300010 IC,BA033T
IC803 J040742440180 IC,MM74LCX244
IC804 J040742440180 IC,MM74LCX244
IC805 J080494000010 IC,CS49400
IC806 J040742440190 IC,MM74HCT244
IC807 J040742440190 IC,MM74HCT244
IC808 J001421610010 IC,RAMIS42S16100
IC809 J000298070010 IC,EEPROMEN29LV800AT‑70TC
IC811 J040740400260 IC,74VHCU04
IC901 J121455800150 IC,CJ4558CP
IC902 J121455800150 IC,CJ4558CP
IC903 J121455800150 IC,CJ4558CP
IC904 J121455800150 IC,CJ4558CP
JACK804 G601020130100 TERMINAL,RCA2PIN
JK801 E100116500010 MODULE,OPTICALTRANSMITTER
JK803 E100116500020 MODULE,OPTICALRECEIVER
L800 D3302R2000150 COIL,FILTER‑INDUCTOR2.2UH
L801 D3304R7000150 COIL,FILTER‑INDUCTOR4.7UH
L803 D3304R7000150 COIL,FILTER‑INDUCTOR4.7UH
L804 D3302R2000150 COIL,FILTER‑INDUCTOR2.2UH
Q801 J522107S00210 TR,CHIPKRC107S(NH)
Q802 J5200107S0050 TR,CHIPKRA107S(PH)
DSP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
Q803 J5200107S0050 TR,CHIPKRA107S(PH)
Q901FL J5222875B0010 TR,CHIPKTC2875B(MB)
Q901FR J5222875B0010 TR,CHIPKTC2875B(MB)
Q902SL J5222875B0010 TR,CHIPKTC2875B(MB)
Q902SR J5222875B0010 TR,CHIPKTC2875B(MB)
Q903SBL J5222875B0010 TR,CHIPKTC2875B(MB)
Q903SBR J5222875B0010 TR,CHIPKTC2875B(MB)
Q904C J5222875B0010 TR,CHIPKTC2875B(MB)
Q904SW J5222875B0010 TR,CHIPKTC2875B(MB)
XTAL800 E80012R288080 CRYSTAL,12.288MHZ
VIDEO PCB ASSY [E,A,CN]
REF.NO. PARTSNO. DESCRIPTION
7028063221040 VIDEOPCBASSY[E,A,CN]
7020063220000 VIDEOPCB
CP101 L101220050010 CNWAFER,GIL‑S‑5P‑S2L2‑EF
CP103 L101220040010 CNWAFER,GIL‑S‑04P‑S2L2‑EF
CP105 L101100031110 CNWAFER,TUC‑P11X‑B1
D100 K000013300520 D,1SS133T‑72
D101 K000013300520 D,1SS133T‑72
D102 K000013300520 D,1SS133T‑72
IC102 J171795600010 IC,LA7956
IC103 J171795600010 IC,LA7956
IC104 J171795600010 IC,LA7956
IC601£J126780500400 IC,CJ7805F
JK101 G601802002010 TERMINAL,RCA2PIN
JK102 G601802002010 TERMINAL,RCA2PIN
L100 D330220001020 COIL,FILTER‑INDUCTOR22UH
L103 7610035500030 COIL,BEADBFS3550R2F
Q101 J5021740S0010 TR,2SC1740SR
Q102 J5021740S0010 TR,2SC1740SR
Q103 J5021740S0010 TR,2SC1740SR
Q104 J5021740S0010 TR,2SC1740SR
Q105 J5021740S0010 TR,2SC1740SR
Q106 J5021740S0010 TR,2SC1740SR
Q107 J6020107M0010 TR,KRC107M
Q108 J6020107M0010 TR,KRC107M
Q109 J6020107M0010 TR,KRC107M
Q110 J6020107M0010 TR,KRC107M
Q111 J6020107M0010 TR,KRC107M
Q112 J6020107M0010 TR,KRC107M
VIDEO PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
7028063221020 VIDEOPCBASSY[K]
7020063220000 VIDEOPCB
CP101 L101220050010 CNWAFER,GIL‑S‑5P‑S2L2‑EF
CP103 L101220040010 CNWAFER,GIL‑S‑04P‑S2L2‑EF
CP105 L101100031110 CNWAFER,TUC‑P11X‑B1

−20−
VIDEO PCB ASSY [K]
REF.NO. PARTSNO. DESCRIPTION
D100 K000013300520 D,1SS133T‑72
D101 K000013300520 D,1SS133T‑72
D102 K000013300520 D,1SS133T‑72
IC102 J171795600010 IC,LA7956
IC103 J171795600010 IC,LA7956
IC104 J171795600010 IC,LA7956
IC601£J126780500400 IC,CJ7805F
JK101 G601802002010 TERMINAL,RCA2PIN
JK102 G601802002010 TERMINAL,RCA2PIN
L100 D330220001020 COIL,FILTER‑INDUCTOR22UH
L103 7610035500030 COIL,BEADBFS3550R2F
Q101 J5021740S0010 TR,2SC1740SR
Q102 J5021740S0010 TR,2SC1740SR
Q103 J5021740S0010 TR,2SC1740SR
Q104 J5021740S0010 TR,2SC1740SR
Q105 J5021740S0010 TR,2SC1740SR
Q106 J5021740S0010 TR,2SC1740SR
Q107 J6020107M0010 TR,KRC107M
Q108 J6020107M0010 TR,KRC107M
Q109 J6020107M0010 TR,KRC107M
Q110 J6020107M0010 TR,KRC107M
Q111 J6020107M0010 TR,KRC107M
Q112 J6020107M0010 TR,KRC107M
COMPONENT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
7028063232020 COMPONENTPCBASSY
IC106 J040744053040 IC,MM74HC4053MX
IC107 J170258000010 IC,NJM2580M
JACK103 G606030164010 TERMINAL,RCA3PIN
JACK104 G606030164010 TERMINAL,RCA3PIN
JACK105 G606030164010 TERMINAL,RCA3PIN
Q100 J6020107M0010 TR,KRC107M
ST-BY PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
7028063231050 ST‑BYPCBASSY[E]
7020063230000 ST‑BYPCB
C314£D040102084060 C,ELECT1000UFM25V
C331£D00847208K070 C,CERAMICAC13F472MDOA
CP304£L104353280201 CNWAFER,35328‑0211(BLACK)
CP305£L104353280200 CNWAFER,35328‑0210
CP306£L104353280203 CNWAFER,35328‑0213(BLUE)
D302 K000013300520 D,1SS133T‑72
D313 K000013300520 D,1SS133T‑72
D314 K000013300520 D,1SS133T‑72
D315£K000400700520 D,IN4007
D316£K000400700520 D,IN4007
D317£K000400700520 D,IN4007
D318£K000400700520 D,IN4007
ST-BY PCB ASSY [E]
REF.NO. PARTSNO. DESCRIPTION
D323 K000013300520 D,1SS133T‑72
DZ304 K06020R044520 D,ZENERMTZJ20B
DZ308 K06005R644520 D,ZENERMTZJ5.6B
F300£N751224001110 FUSE,T4A250V
F301£N751222501110 FUSE,T2.5A250V
GT304 3790040876010 TERMINAL,GNDPLATE
GT305 3790040876010 TERMINAL,GNDPLATE
IC300£J126780500400 IC,CJ7805F
IC302£J120001500030 IC,ICP‑N15
JACK106£G435040110000 SOCKET,POWERRECEPTACLE
P300A G645000050010 HOLDER,FUSECLIP
P300B G645000050010 HOLDER,FUSECLIP
P301A G645000050010 HOLDER,FUSECLIP
P301B G645000050010 HOLDER,FUSECLIP
PT302£8200280150130 POWERTRANS,STAND‑BY230V
Q300 J5021740S0010 TR,2SC1740SR
Q302 J6020107M0010 TR,KRC107M
Q313 J5021740S0010 TR,2SC1740SR
RLY304£G680090102010 RELAY,G5PA‑1DC9V
ST-BY PCB ASSY [A]
REF.NO. PARTSNO. DESCRIPTION
7028063231080 ST‑BYPCBASSY[A]
7020063230000 ST‑BYPCB
C314£D040102084060 C,ELECT1000UFM25V
C331£D00847208K070 C,CERAMICAC13F472MDOA
CP304£L104353280201 CNWAFER,35328‑0211(BLACK)
CP305£L104353280200 CNWAFER,35328‑0210
CP306£L104353280203 CNWAFER,35328‑0213(BLUE)
D302 K000013300520 D,1SS133T‑72
D313 K000013300520 D,1SS133T‑72
D314 K000013300520 D,1SS133T‑72
D315£K000400700520 D,IN4007
D316£K000400700520 D,IN4007
D317£K000400700520 D,IN4007
D318£K000400700520 D,IN4007
D323 K000013300520 D,1SS133T‑72
DZ304 K06020R044520 D,ZENERMTZJ20B
DZ308 K06005R644520 D,ZENERMTZJ5.6B
F300£N751224001110 FUSE,T4A250V
GT304 3790040876010 TERMINAL,GNDPLATE
GT305 3790040876010 TERMINAL,GNDPLATE
IC300£J126780500400 IC,CJ7805F
IC302£J120001500030 IC,ICP‑N15
P300A G645000050010 HOLDER,FUSECLIP
P300B G645000050010 HOLDER,FUSECLIP
PT302£8200280150130 POWERTRANS,STAND‑BY230V
Q300 J5021740S0010 TR,2SC1740SR
Q302 J6020107M0010 TR,KRC107M
Q313 J5021740S0010 TR,2SC1740SR
RLY304£G680090102010 RELAY,G5PA‑1DC9V
